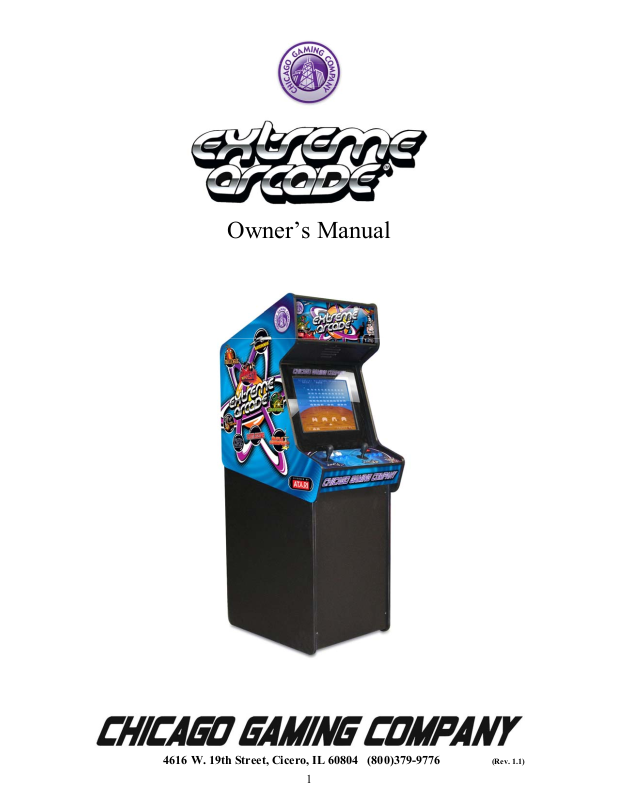

Chicago Gaming Extreme Arcade User Manual

Owner’s Manual

4616 W. 19th Street, Cicero, IL 60804 (800)379-9776 (Rev. 1.1)

EXTREME ARCADE

Thank you for purchasing Chicago Gaming Company’s Extreme Arcade. You can look forward to many hours of video game enjoyment. We strongly recommend that you follow the instructions and procedures as presented in this Owner’s Manual and that it be read in its entirety before setting up your game.

1. IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with a dry cloth.

• Do not block any ventilation openings. Install in accordance with manufacturer’s

instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

• Only use attachments/accessories specified from the manufacturer.

• Unplug this apparatus during lightning storms or when unused for long periods of

time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

THE LIGHTNING FLASH

AND ARROWHEAD WITHIN

THE TRIANGLE IS A

WARNING SIGN ALERTING

YOU OF “DANGEROUS

VOLTAGE” INSIDE THE

PRODUCT.

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE

PERSONNEL.

THE EXCLAMATION POINT

WITHIN THE TRIANGLE IS A

WARNING SIGN ALERTING

ACCOMPANYING THE

SEE MARKINGS ON PRODUCT

CAUTION: Shock hazard if instructions are not followed.

YOU OF IMPORTANT

INSTRUCTIONS

PRODUCT.

• WARNING: To reduce the risk of fire or electric shock do not expose your system to rain or moisture.

• WARNING: An apparatus with Class I construction shall be connected to a main socket outlet with a protective earthing connection.

• Be sure to disconnect the power cable before working on the machine.

• Be sure to use fuses which meet the specified rating. (5A, 220V Quick-blow).

Using fuses exceeding the specified rating can cause a fire and electrical shock.

• CAUTION: The game’s monitor is a source of high voltage. Be EXTREMELY CAREFUL when working near it; high voltage charges can still be present even after you’ve unplugged the unit. Have a qualified technician perform a monitor repair.

• Optimum operating environment is between 50-105° Fahrenheit.

• Use with only 115 volts ~ 60Hz

• We recommend using a surge suppresser or UPS (Uninterruptible Power Supply) to

safeguard the game from abrupt power spikes or losses

2. ATARI END USER LICENSE AGREEMENT

By accepting and operating an Extreme Arcade, the owner (“End User”) of the unit agrees to abide by the terms of this agreement. Asteroids, Asteroids Deluxe, Atari Basketball, Battlezone, Black Widow, Centipede, Cloak and Dagger, Crystal Castles, Food Fight, Gravitar, Liberator, Lunar Lander, Millipede, Missile Command, Pong, Red Baron, Skydiver, Space Duel, Super Break-Out, Tempest, Video Pinball, Warlords and related logos are used under license from Atari Interactive, Inc. (“Atari”). Atari expressly reserves the sole and exclusive ownership of the aforementioned games and all rights relating thereto. The end user hereby acknowledges that Atari is the sole and exclusive owner of the games and licensed trademarks and agrees not to challenge at any time, directly or indirectly, the rights of Atari. The end user agrees not to attempt to copy the licensed property (in whole or in part), decompile, disassemble or otherwise reverse engineer the software in any way. Atari is a third party beneficiary to this agreement and retains the right to bring action directly against an End User for breach of this End User License Agreement.

3. WARRANTY INFORMATION

Extreme Arcade is warranted against manufacturing defects for 180 days. After that we will provide free telephone support. If at some point you require warranty service, contact Chicago Gaming at (800)379-9776. Ask for technical support.

4. GAME SETUP

4.1 INSTALLATION

• Remove the components from their packaging. Confirm all items listed in the

Parts List (see pages 4 through 6) are present.

• When moving the unit, please treat it as delicately as possible. The monitor is

fragile.

• Be sure to install it in a dry location.

• Plug the machine into a three-prong A/C outlet.

• Please note, the monitor may initially appear discolored, particularly in the

monitor’s corners. This discoloration will go away after it has been powered up a number of times. You will have to let the unit return to room temperature after each power cycle for the monitor’s degaussing circuit to clear up this discoloration.

4.2 Parts List

Description Part # Quantity

Lightbox

Assembly

Control Panel

Assembly

Top Left

Top Right

Top Back

Monitor Shelf

Base Front

Left Base Side

Right Base Side

Base Back

Bottom

Monitor Glass

C10

Monitor

A/C Cord E2 1

Standard Angle

Bracket

(Silver)

Threaded Angle

Bracket

(Gold)

Leg Side Bracket H3 4

Leg Leveler H4 4

#6 x 1-1/4” Wood

Screw

#10 x 1/2” Wood

Screw

H1 16

H5 6

H6 76

#10-32 x 1-1/4”

Truss Head Screw

Nylon Washer H8 6

Cable Clamp H9 1

End of Parts List

H7 24
