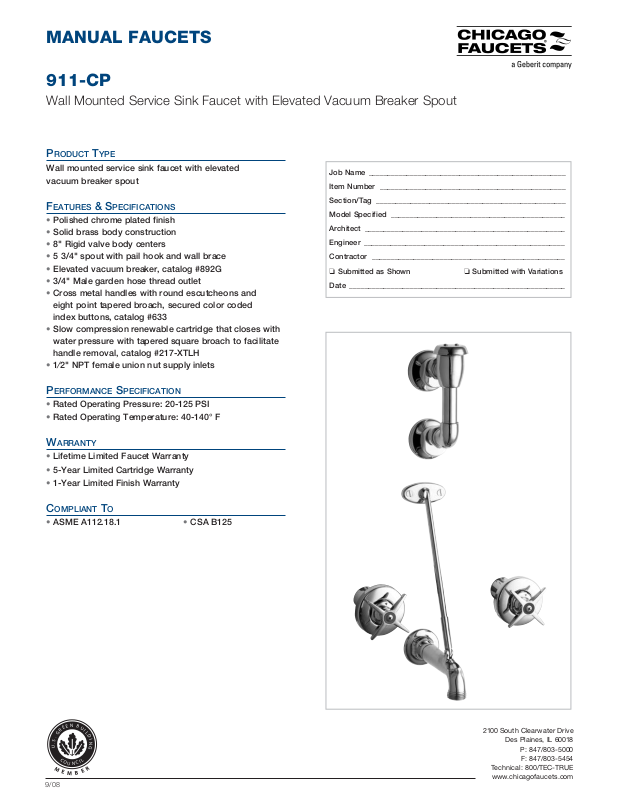

Page 1
PRODUCT TYPE

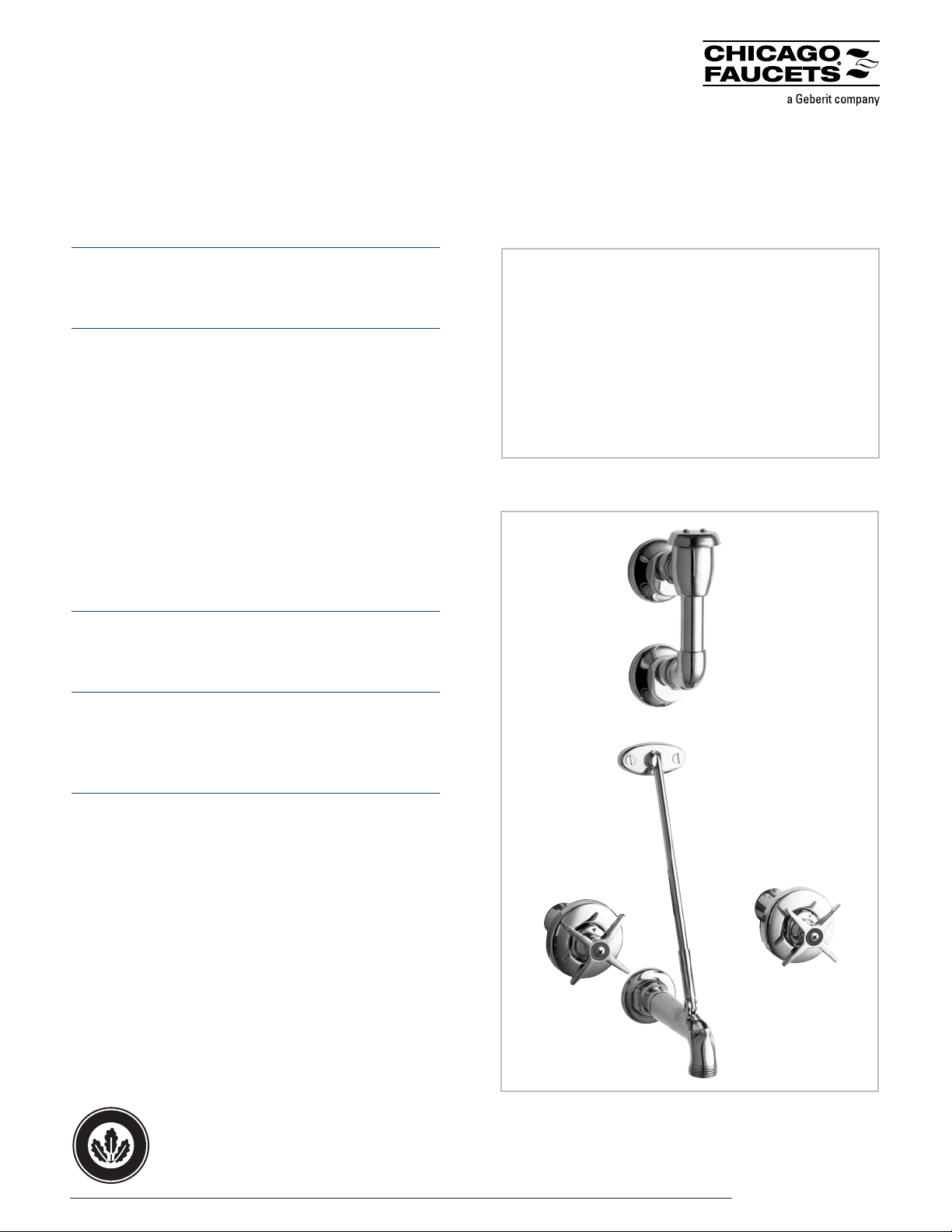

Wall mounted service sink faucet with elevated
vacuum breaker spout
FEATURES &SPECIFICATIONS
• Polished chrome plated finish
• Solid brass body construction
• 8" Rigid valve body centers
• 5 3/4" spout with pail hook and wall brace
• Elevated vacuum breaker, catalog #892G
• 3/4" Male garden hose thread outlet
• Cross metal handles with round escutcheons and
eight point tapered broach, secured color coded
index buttons, catalog #633
• Slow compression renewable cartridge that closes with
water pressure with tapered square broach to facilitate
handle removal, catalog #217-XTLH
• 1⁄2" NPT female union nut supply inlets
PERFORMANCE SPECIFICATION
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140° F
WARRANTY
• Lifetime Limited Faucet Warranty
• 5-Year Limited Cartridge Warranty
• 1-Year Limited Finish Warranty
COMPLIANT TO
• ASME A112.18.1 • CSA B125
911-CP
Wall Mounted Service Sink Faucet with Elevated Vacuum Breaker Spout
9/08
2100 South Clearwater Drive
Des Plaines, IL 60018
P: 847/803-5000
F: 847/803-5454
Technical: 800/TEC-TRUE
www.chicagofaucets.com
U
.
S
.
G
R
E
E
N
B
U
I
L
D
I
N
G
C
O
U
N
C
I
L
M
E
M
B
E
R
Job Name ____________________________________________________
Item Number _________________________________________________
Section/Tag __________________________________________________
Model Specified ______________________________________________
Architect _____________________________________________________
Engineer _____________________________________________________
Contractor ___________________________________________________
❏ Submitted as Shown ❏ Submitted with Variations
Date _________________________________________________________
MANUAL FAUCETS
Page 2
911-CP
Wall Mounted Service Sink Faucet with
Elevated Vacuum Breaker Spout
ARCHITECT/ENGINEER SPECIFICATION
Chicago Faucets No. 911-CP, Polished chrome plated solid cast brass construction. Elevated vacuum breaker, 5 3/4" spout with
pail hook, wall brace and 3/4" male garden hose thread outlet.
Cross metal handles with round escutcheons, eight point tapered
broach and secured color coded index buttons. Slow compression cartridge that closes with water pressure with square tapered
broach feature to help facilitate handle removal. 8" rigid valve body centers with 1/2" NPT union nut supply inlets. This product is
tested and certified to ASME A112.18.1 and CSA B125 industry standards.
"

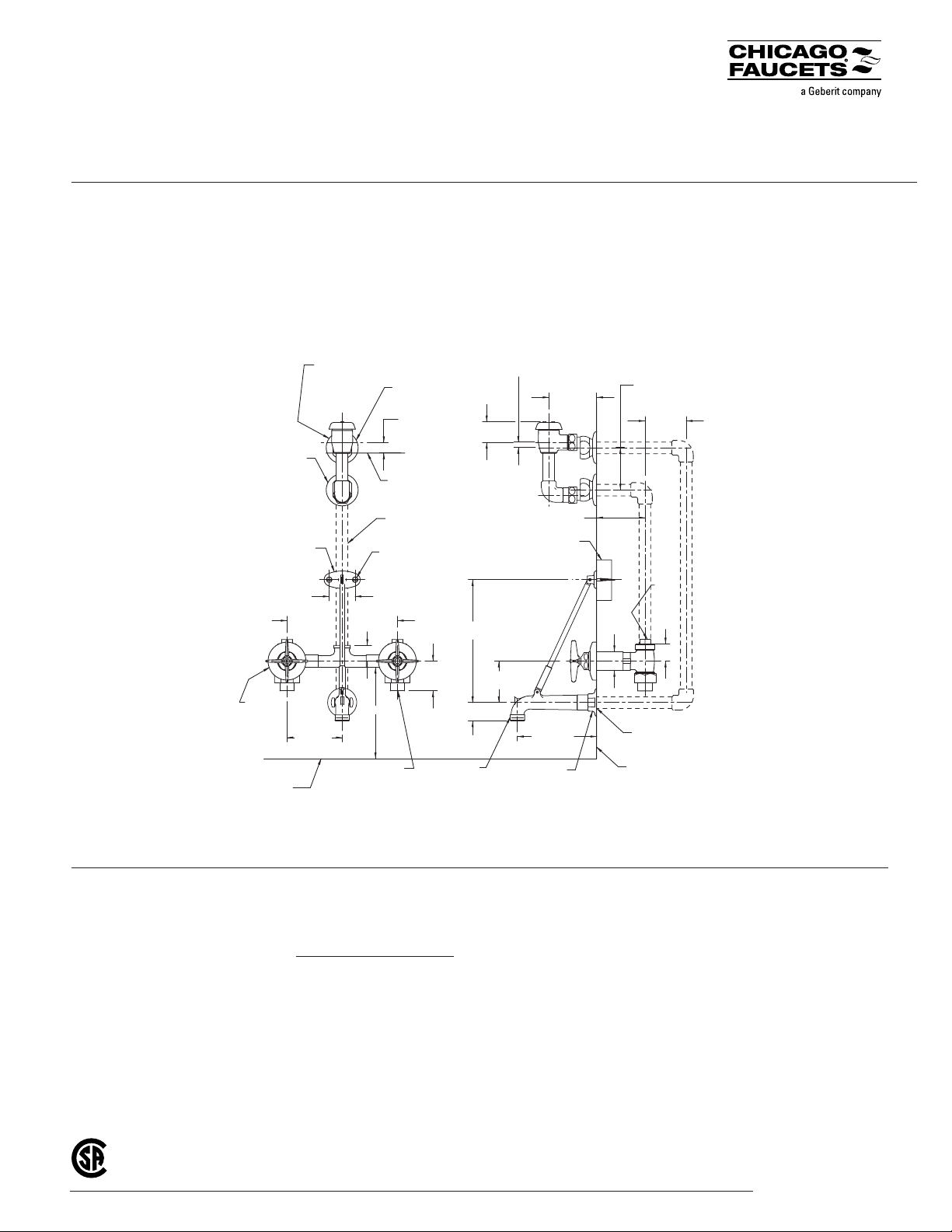

[19mm]
3/4
TO SUIT
AS
REQUIRED
" [10mm]
OFFSET FOR
ADJUSTMENT
(EACH ARM)
3/8
"
[48mm]
1-7/8
8"
[203mm]
"
[54mm]
2-1/8
"
[102mm]
4
"
[29mm]
1-1/8
5-11/16 "
[144mm]
"
[35mm]
1-3/8
"
[32mm]
1-1/4
"
[35mm]
1-3/8
"
[76mm]
3
9-1/4
"
[235mm]
3 ±1/2
"
[76mm ±13mm]
2-7/8"-4-3/8"
[73mm-111mm]
ADJUSTABLE
"
[89mm]
3-1/2
"
[38mm]
1-1/2
FOR PROPER HEIGHT
OF INSTALLATION SEE
LOCAL PLUMBING CODES
FIN. FLOOR
1" x 3"
[25mm-76mm]
BACKING
1/2" NPT FEMALE
THREAD OUTLET
(BACK SIDE)
1/2" NPT FEMALE
THREAD INLET
(BACK SIDE)
2-5/16" DIA.
[58mm]
(2 PLACES)
ALL DOTTED LINE PIPING
SUPPLIED BY OTHERS.
(2) No.10 x 1-1/2"
FLAT HEAD
WOOD SCREWS
1-1/4" X 2-5/8"
[32mm-67mm]
OVAL FLANGE
1/2" NPT
FEMALE THREAD
INLETS
2-3/4"
DIA.
[70mm]
1/2"
NPT
PLUG
1/2" NPT FEMALE
THREAD INLET
3/4" A.N.
HOSE THREAD
FIN. WALL
2-1/4" DIA.
[57mm] FLANGE
9/08 Product specifications subject to change without notice.
2100 South Clearwater Drive
Des Plaines, IL 60018
P: 847/803-5000
F: 847/803-5454
Technical: 800/TEC-TRUE
www.chicagofaucets.com
C US
®
OPERATION AND MAINTENANCE
Installation should be in accordance with local plumbing codes. Flush all pipes thoroughly before installation. After installation, remove
spout outlet or flow control and flush faucet thoroughly to clear any debris. Care should be taken when cleaning this product. Do not
use abrasive cleaners, chemicals or solvents as they can result in surface damage. Use mild soap and warm water for cleaning and
protecting the life of Chicago Faucet products. For specific operation and maintenance refer to the installation instructions and repair
parts documents that are located at www.chicagofaucets.com
.
Chicago Faucets, member of the Geberit Group, is the leading brand of commercial faucets and fittings in the United States, offering
a complete range of products for schools, laboratories, hospitals, office buildings, food service, airports and sport facilities.
Call 1.800.TECTRUE or 1.847.803.5000 Option 1 for installation or other technical assistance.
