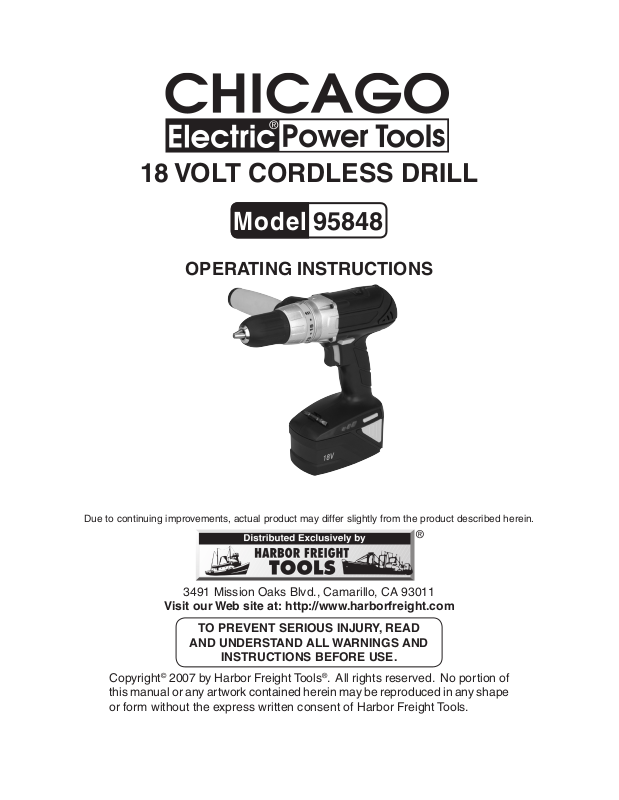

Chicago Electric 95848 User Manual

18 VOLT CORDLESS DRILL

Model

95848

®

OPERATING INSTRUCTIONS

Due to continuing improvements, actual product may differ slightly from the product described herein.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

TO PREVENT SERIOUS INJURY, READ

AND UNDERSTAND ALL WARNINGS AND

INSTRUCTIONS BEFORE USE.

Copyright© 2007 by Harbor Freight Tools®. All rights reserved. No portion of
this manual or any artwork contained herein may be reproduced in any shape
or form without the express written consent of Harbor Freight Tools.

PRODUCT SPECIFICATIONS

Power Source

Charge Time 1 Hour

Charger Input 120 VAC / 60 Hz / 1.8A

Chuck Type 1/2” Single Sleeve Keyless

Torque Settings 16

Variable Speed 0-900 RPM

Maximum Torque 6 ft./lb.

Reversible Yes

Trigger Lock Yes

Weight 5.5 Pounds

Save This Manual

You will need this manual for the safety warnings and precautions, assembly, oper­ating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Keep this manual and invoice in a safe and dry place for future reference.

18 VDC, 1.3Ah, NiCd
Battery

1.

2.

3.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result

in electric shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS

Work Area

Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

Do not operate power tools in explosive atmospheres, such as in the pres-

ence of flammable liquids, gases, or dust. Power tools create sparks which may

ignite the dust or fumes.

Keep bystanders and children away while operating a power tool. Distractions

can cause you to lose control. Protect others in the work area from debris such as

chips and sparks. Provide barriers or shields as needed.

Electrical Safety

1.

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 2

Grounded tools must be plugged into an outlet properly installed and grounded

in accordance with all codes and ordinances. Never remove the grounding

prong or modify the plug in any way. Do not use any adapter plugs. Check with

a qualified electrician if you are in doubt as to whether the outlet is properly

grounded. If the tools should electrically malfunction or break down, grounding

provides a low resistance path to carry electricity away from the user.

2.

3.

4.

5.

1.

Double insulated tools are equipped with a polarized plug (one blade is wider

than the other). This plug will fit in a polarized outlet only one way. If the plug

does not fit fully in the outlet, reverse the plug. If it still does not fit, contact

a qualified electrician to install a polarized outlet. Do not change the plug

in any way. Double insulation eliminates the need for the three wire grounded

power cord and grounded power supply system.

Avoid body contact with grounded surfaces such as pipes, radiators, ranges,

and refrigerators. There is an increased risk of electric shock if your body is

grounded.

Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

Do not abuse the Charger’s power cord. Never use the Power Cord to carry

the Charger or pull the Plug from an outlet. Keep the Power Cord away from

heat, oil, sharp edges, or moving parts. Replace damaged Power Cords im-

mediately. Damaged Power Cords increase the risk of electric shock.

Personal Safety

Stay alert. Watch what you are doing, and use common sense when operat-

ing a power tool. Do not use a power tool while tired or under the influence

of drugs, alcohol, or medication. A moment of inattention while operating power

tools may result in serious personal injury.

2.

3.

4.

5.

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 3

Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose clothes,

jewelry, or long hair can be caught in moving parts.

Avoid accidental starting. Be sure the Rotation Button (9) is in the locked

position before inserting the Battery. Carrying power tools with your finger on

the trigger, or inserting the Battery with the trigger depressed, invites accidents.

Do not overreach. Keep proper footing and balance at all times. Proper footing

and balance enables better control of the power tool in unexpected situations.

Use safety equipment. Always wear eye protection. Dust mask, nonskid safety

shoes, hard hat, or hearing protection must be used for appropriate conditions.

Always wear ANSI-approved safety goggles when working with this tool.

Tool Use and Care

1.

2.

3.

4.

5.

6.

Use clamps (not included) or other practical ways to secure and support the

workpiece to a stable platform. Holding the work by hand or against your body

is unstable and may lead to loss of control.

Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

Do not use the power tool if the trigger does not operate it. Any tool that cannot

be controlled with the trigger is dangerous and must be replaced.

Remove the battery from the tool and set the Rotation Button (9) to the cen-

ter, locked position, before making any adjustments, changing accessories,

or storing the tool. These preventive safety measures reduce the risk of starting

the tool accidentally.

Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

Maintain tools with care. Keep drill bits (not included) sharp and clean. Prop-

erly maintained accessories with a sharp cutting edge are less likely to bind and

are easier to control. Do not use a damaged tool or accessory. Tag damaged tools

“Do not use” until repaired.

7.

8.

1.

2.

1.

Check for misalignment or binding of moving parts, breakage of parts, and any

other condition that may affect the tool’s operation. If damaged, have the tool

serviced before using. Many accidents are caused by poorly maintained tools.

Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool.

Service

Tool service must be performed only by qualified repair personnel. Service or

maintenance performed by unqualified personnel could result in a risk of injury.

When servicing a tool, use only identical replacement parts. Follow instruc-

tions in this manual. Use of unauthorized parts or failure to follow maintenance

instructions may create a risk of electric shock or injury.Specific Safety Rules

SPECIFIC SAFETY RULES

Maintain a safe working environment. Keep the work area well lit. Make sure

there is adequate surrounding workspace. Always keep the work area free of

obstructions, grease, oil, trash, and other debris. Do not use the Cordless Drill in

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 4

areas near flammable chemicals, dusts, and vapors. Do not use this product in a

damp or wet location.

2.

3.

4.

5.

6.

7.

8.

Maintain labels and nameplates on the Cordless Drill. These carry important

information. If unreadable or missing, contact Harbor Freight Tools for a replace-

ment.

When using the Cordless Drill, always maintain a firm grip on the tool with

both hands.

Hold the tool by its insulated gripping surfaces when performing an operation

where the Cordless Drill may contact hidden wiring. Contact with a “live” wire

will make exposed metal parts of the Cordless Drill “live” and shock the operator.

Do not use the Cordless Drill or Charger (29) if it has been dropped, damaged,

left outdoors, or immersed in liquid.

To avoid electric shock, do not pull or carry the Charger by its Power Cord or

pull the Power Cord around sharp corners or edges. Do not unplug the Charger

by pulling on the Power Cord. Keep the Power Cord away from heated surfaces.

To avoid electrical shock, do not handle the Charger, the Adapter (30), or the

Cordless Drill with wet hands.

Keep the Handles of the Cordless Drill dry, clean, and free from oil or

grease.

9.

10.

11.

12.

Avoid unintentional starting. Make sure you are prepared to begin work before

turning on the Cordless Drill.

Never leave the Charger unattended when it is plugged into an electrical outlet.

Unplug the Charger from its electrical outlet before leaving.

PROPER BATTERY PACK CARE: Battery Pack (28) leakage may occur under

extreme usage or temperature conditions. If Battery Pack fluid comes in contact

with skin, rinse with lemon juice and vinegar then wash with soap and water. If the

fluid comes into contact with the eyes, flush with water for several minutes and contact

a doctor immediately. Never burn the Battery Pack, as it can explode in a fire. Do

not charge the Cordless Drill with a leaking Battery Pack. Contact local solid waste

authorities for instructions on correct disposal or recycling of the Battery Pack.

WARNING! Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities, contain chemicals known (to the State of California) to
cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are: lead from lead-based paints, crystalline silica from bricks and cement
or other masonry products, arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area,
and work with approved safety equipment, such as dust masks that are specially

SKU 95848 For technical questions, please call 1-800-444-3353. PAGE 5
