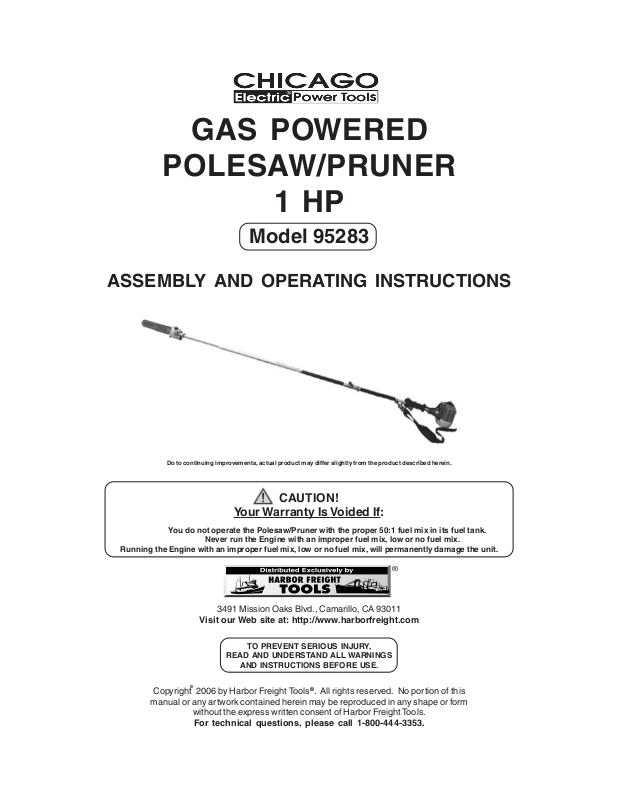

Chicago Electric 95283 User Manual

®
GAS POWERED
POLESAW/PRUNER
1 HP
Model 95283
ASSEMBLY AND OPERATING INSTRUCTIONS
Do to continuing improvements, actual product may differ slightly from the product described herein.
Your Warranty Is Voided If:
You do not operate the Polesaw/Pruner with the proper 50:1 fuel mix in its fuel tank.
Running the Engine with an improper fuel mix, low or no fuel mix, will permanently damage the unit.
Copyright 2006 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
Never run the Engine with an improper fuel mix, low or no fuel mix.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
©
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
PRODUCT SPECIFICATIONS
Item Description
Engine Specifications 1 HP / 26cc / Single Cylinder / 2-Stroke
Fuel Required: 50:1 Unleaded Fuel & 2 Cycle Oil Mixture Fuel Tank Capacity: 0.2 Gallon
Noise Level: 102 dB @ 3 Feet Drive Type Lever Operated Clutch System Chain/Bar Type Oregon Chain & Bar / Double Guard / Low Kickback
3/8” Pitch with 39 Drive Link Count Chain Oiler Built Into Base of Chain Head Attachment Recommended Chain Oil S.A.E. 30 (Below 34° Fahrenheit) / S.A.E. 40 (Above 75° Fahrenheit ) Pole Height 8 Feet (Including 10” Bar) Construction Main Poles: Steel Tubing
Chain Bar: Stamped and Formed Steel
Chain: Machined High Carbon Steel
Guards/Trim: Multi-Colored High Impact Plastic Spark Plug NHSP L8RTF, Gap = 0.5~0.7mm (.0197~.0275inch) Net Weight 12.13 Pounds
This product requires a 50:1 ratio of fuel and 2-cycle oil to be added to its fuel tank before starting. Attempting to start the Engine with an improper fuel mix, low or no fuel mix WILL ruin the Engine and void the warranty.
The Engine’s Carburetor may need to be adjusted by a qualified mechanic for efficient high-altitude use.
The Emission Control System for this product’s engine is warranted for standards set by the U.S. Environmental Protection Agency. For warranty information, refer to the last pages of this manual.
®
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep your invoice with this manual. Write the invoice number on the inside of the front cover. Keep this manual and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES AND PRECAUTIONS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create
SKU 95283 For technical questions, please call 1-800-444-3353 PAGE 2
sparks which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Provide barriers or shields as needed.
PERSONAL SAFETY
1. Stay alert. Watch what you are doing, and use common sense when
operating a power tool. Do not use a power tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure the Power Switch is in its “OFF”
position before moving the Polesaw/Pruner service, maintenance, or cleaning procedures on the unit.
and
before performing any
4. Remove adjusting keys or wrenches before turning the Polesaw/Pruner on.
A wrench or a key that is left attached to a rotating part of the machine may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the power tool in unexpected situations.
TOOL USE AND CARE
1. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
2. Do not use the Polesaw/Pruner if the Power Switch does not turn it on or
off. Any tool that cannot be controlled with its power switch is dangerous and must be replaced.
3. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
4. Maintain tools with care. Properly maintained tools are less likely to malfunction
and are easier to control. Do not use a damaged tool. Tag damaged tools “Do not use” until repaired.
SKU 95283 For technical questions, please call 1-800-444-3353 PAGE 3
5. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly
maintained tools.
6. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous when used on another tool.
SERVICE
1. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow
instructions in the manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
“Inspection, Maintenance, And Cleaning”
section of this
SPECIFIC SAFETY RULES AND PRECAUTIONS
1. IMPORTANT! Your Warranty is voided if:
You do not operate the Polesaw/Pruner with the proper 50:1 fuel mix in its fuel tank. Never run the Engine with an improper fuel mix, low or no fuel mix.
Running the Engine with an improper fuel mix, low or no fuel mix, will permanently damage the unit.
2. Maintain labels and nameplates on the Polesaw/Pruner. These carry
important information. If unreadable or missing, contact Harbor Freight Tools for a replacement.
3.
4. Never leave the Polesaw/Pruner unattended when it is running. Turn off the
Engine before leaving.
WARNING! Always wear safety equipment. When operating the Polesaw/Pruner, always wear ANSI approved safety impact eye goggles, hearing protection, heavy duty work gloves, sturdy work boots, and head protection.
5. Never allow children in the work area with the danger of falling debris and a
power tool in operation.
SKU 95283 For technical questions, please call 1-800-444-3353 PAGE 4
6. Always plan carefully where a tree limb will fall to avoid damage to property
and/or personal injury.
7. Never stand directly beneath the limb you are cutting. Always stand well off
to the side.
8. Do not use the Polesaw/Pruner to cut anything except tree limbs and
brush.
9. Always maintain a firm grip on the Polesaw/Pruner with both hands.
10. Branch trimming is a dangerous activity. The use of this Polesaw/Pruner
requires that you be in good physical condition, and with good balance and coordination. If you are in doubt about the safety issues involved, have a qualified, certified, arborist/tree surgeon do the work for you.
11. Always keep hand, fingers, and body a safe distance away from the moving
Chain.
12. Do not use the Polesaw/Pruner if the Chain is dull.
13. Make sure the wood being cut does not contain foreign materials such as
nails, spikes, etc.
14. WARNING! Ladders are inherently dangerous. NEVER use a ladder
when using the Polesaw/Pruner.
15. WARNING! Stay clear of engine components which will be hot during
and after operation.
KICKBACK PRECAUTIONS
1. Kickback is a dangerous reaction that can lead to serious injury. Kickback
may occur when the moving Chain contacts an object at the upper portion of the tip of the Guide Bar or when the wood closes in and pinches the Saw Chain in the cut. Contact at the upper portion of the tip of the Guide Bar can cause the Chain to dig into the wood and stop the Chain for an instant. The result is a quick, reverse reaction which kicks the Guide Bar up and back toward the operator. If the Chain is pinched along the top of the Guide Bar, the Guide Bar can be driven rapidly back toward the operator. Either of these reactions can cause loss of Polesaw/Pruner control which can result in serious injury. Do not rely only upon the safety devices built into the Polesaw/Pruner. As an operator, you should take several steps to keep the cutting job free from accident or injury:
A. Make sure the area in which you are cutting is free from obstructions. Do
SKU 95283 For technical questions, please call 1-800-444-3353 PAGE 5
not allow the nose of the Guide Bar to contact a log, branch, fence, or any other obstruction while you are operating the tool.
B. Always cut with the Engine running at full speed. Fully squeeze the Throttle and maintain a steady cutting speed.
C. Always keep the Chain clean and sharp.
D. Keep all guards and safety devices in proper working order and properly
adjusted.
E. Never use the Polesaw/Pruner on a ladder or unstable support.
F. Before starting the Engine, make sure the Chain is not contacting any object.
G. Shut off the Engine, and make sure the Chain has stopped before setting the
tool down.
ELECTRICAL PRECAUTIONS
1. To protect yourself from electrocution, do not operate the Polesaw/ Pruner within 50 feet of any overhead electrical lines.
2. NEVER use the Polesaw/Pruner in damp or wet conditions.
CARBON MONIXIDE PRECAUTIONS
1. WARNING! This Polesaw/Pruner is designed for outdoor use only. Do
not operate the Polesaw/Pruner in a closed area or in a poorly ventilated area.
When running, the Engine of this product produces carbon monoxide, a colorless, odorless, toxic gas that, when inhaled, can cause serious personal injury or death.
FIRE AND EXPLOSION PRECAUTIONS
1. Gasoline fuel and fumes are flammable, and potentially explosive. Use proper fuel storage and handling procedures. Always have multiple ABC class fire extinguishers nearby.
2. Keep the Polesaw/Pruner and surrounding areas clean at all times.
3. When spills of fuel or oil occur, they must be cleaned up immediately.
SKU 95283 For technical questions, please call 1-800-444-3353 PAGE 6
Dispose of fluids and cleaning materials as per any local, state, or federal codes and regulations. Store oil rags in a covered metal container.
4. Never store fuel or other flammable materials near the Polesaw/Pruner.
5. Do not smoke, or allow sparks, flames, or other sources of ignition around
the Polesaw/Pruner.
6. Keep grounded conductive objects, such as tools, away from exposed, live
electrical parts and connections to avoid sparking or arcing. These events
could ignite fumes or vapors.
7. Do not refill the Fuel Tank while the Engine is running or while the Engine is
still hot. Do not operate the Polesaw/Pruner with known leaks in the fuel system.
8. Use only Engine manufacturer recommended fuel and oil.
MECHANICAL PRECAUTIONS
1. Prior to performing service, maintenance, or cleaning procedures, always
make sure the Power Switch is in its “OFF” position. Allow the Engine to completely cool. Then, remove the spark plug from the Engine.
2. Do not alter or adjust any part of the Polesaw/Pruner or Engine that is
assembled and supplied by the manufacturer.
3. Always follow and complete scheduled Polesaw/Pruner and Engine
maintenance.
CHEMICAL PRECAUTIONS
1. Avoid contact with hot fuel, oil, exhaust fumes, and solid surfaces.
2. Avoid body contact with fuels, oils, and lubricants used in the Polesaw/
Pruner and Engine. If swallowed, seek medical treatment immediately. Do not induce vomiting if fuel is swallowed. For skin contact, immediately wash with soap and water. For eye contact, immediately flush eyes with clean water.
NOISE PRECAUTIONS
1. Prolonged exposure to high noise levels is hazardous to hearing.
Always wear ANSI approved hearing protection when operating or working
SKU 95283 For technical questions, please call 1-800-444-3353 PAGE 7
