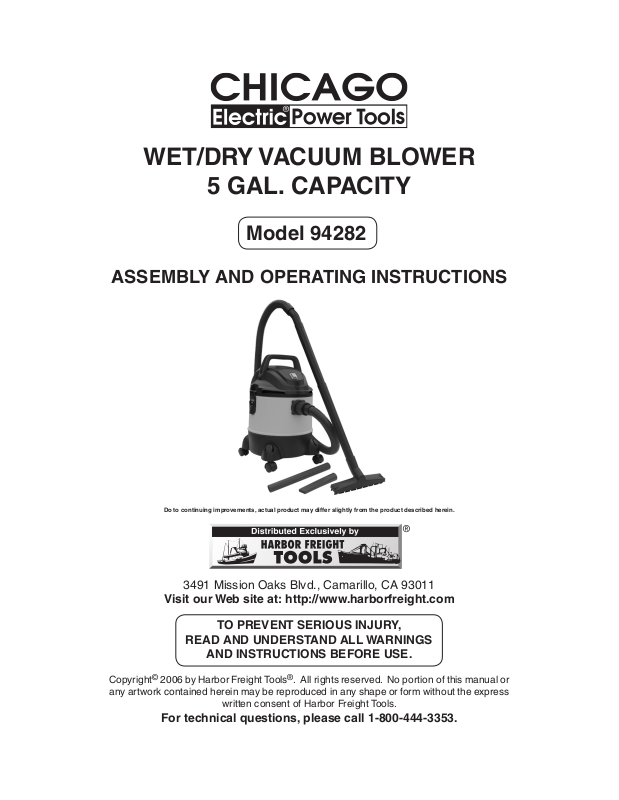

Chicago Electric 94282 User Manual
WET/DRY VACUUM BLOWER
®
5 GAL. CAPACITY
Model 94282
ASSEMBLY AND OPERATING INSTRUCTIONS
Do to continuing improvements, actual product may differ slightly from the product described herein.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
Copyright© 2006 by Harbor Freight Tools®. All rights reserved. No portion of this manual or
any artwork contained herein may be reproduced in any shape or form without the express
written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
PRODUCT SPECIFICATIONS
Electrical Requirements 120 VAC / 60 Hz / 8 Amp / 3 HP Peak
Power Plug 3-Prong, Grounded
Power Cord 18 AWG x 3 C x 100” Long
Power Switch 2-Position Rocker w/Clear Plastic Cover
Tank Capacity 5 Gallons
Air Flow Capacity 125 Cubic Feet @ 21/2” Orifice
Additional Features Float Valve to Stop Wet Vacuuming When Tank is Full
Built-In Storage for Power Cord and Accessories
Four Swivel Casters
Accessories Three Extension Wands / One Crevice Tool
One Floor Nozzle / One Filter / One Dust Bag
Net Weight 11.7 Pounds
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Keep this manual and invoice in a safe and dry place for future reference.
1.
2.
3.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed.
SKU 94282 For technical questions, please call 1-800-444-3353 PAGE 2
ELECTRICAL SAFETY
1.
2.
3.
4.
5.
Grounded tools must be plugged into an outlet properly installed and grounded
in accordance with all codes and ordinances. Never remove the grounding
prong or modify the plug in any way. Do not use any adapter plugs. Check with
a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. If the tools should electrically malfunction or break down, grounding
provides a low resistance path to carry electricity away from the user.
Double insulated tools are equipped with a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician to install a polarized outlet. Do not change the plug
in any way. Double insulation eliminates the need for the three wire grounded
power cord and grounded power supply system.
Avoid body contact with grounded surfaces such as pipes, radiators, ranges,
and refrigerators. There is an increased risk of electric shock if your body is
grounded.
Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
Do not abuse the Power Cord. Never use the Power Cord to carry the tools or
pull the Plug from an outlet. Keep the Power Cord away from heat, oil, sharp
edges, or moving parts. Replace damaged Power Cords immediately. Dam-
aged Power Cords increase the risk of electric shock.
6.
When operating a power tool outside, use an outdoor extension cord marked
“W-A” or “W”. These extension cords are rated for outdoor use, and reduce the
risk of electric shock.
PERSONAL SAFETY
1.
2.
3.
SKU 94282 For technical questions, please call 1-800-444-3353 PAGE 3
Stay alert. Watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
Avoid accidental starting. Be sure the Power Switch is off before plugging
in. Carrying power tools with your finger on the Power Switch, or plugging in power
tools with the Power Switch on, invites accidents.
4.
Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance enables better control of the power tool in unexpected situations.
5.
1.
2.
3.
4.
5.
Use safety equipment. Always wear eye protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must be used for appropriate conditions.
TOOL USE AND CARE
Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
Do not use the power tool if the Power Switch does not turn it on or off. Any
tool that cannot be controlled with the Power Switch is dangerous and must be
replaced.
Disconnect the Power Cord Plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such preventive safety
measures reduce the risk of starting the tool accidentally.
Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
Maintain tools with care. Keep the Vacuum Blower clean. Properly maintained
tools are easier to control. Do not use a damaged tool. Tag damaged tools “Do not
use” until repaired.
6.
7.
1.
2.
Check for misalignment or binding of moving parts, breakage of parts, and any
other condition that may affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by poorly maintained tools.
Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
SERVICE
Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instructions in the “Inspection, Maintenance, And Cleaning” section of this manual.
Use of unauthorized parts or failure to follow maintenance instructions may create
a risk of electric shock or injury.
SKU 94282 For technical questions, please call 1-800-444-3353 PAGE 4
SPECIFIC SAFETY RULES
1.
2.
3.
4.
5.
6.
Maintain labels and nameplates on the Vacuum Blower. These carry important
information. If unreadable or missing, contact Harbor Freight Tools for a replacement.
Always wear safety impact eye glasses when assembling and using
the Vacuum Blower. Using personal safety devices reduce the risk for
injury.
Maintain a safe working environment. Keep the work area well lit. Make sure
there is adequate surrounding workspace. Always keep the work area free of obstructions, grease, oil, trash, and other debris. Do not use a power tool in areas
near flammable chemicals, dusts, and vapors. Do not use this product in a damp
or wet location.
Do not force the Vacuum Blower. This tool will do the work better and safer at
the speed and capacity for which it was designed.
Never leave the Vacuum Blower unattended when it is plugged into an electrical outlet. Turn off the tool, and unplug it from its electrical outlet before leaving.
Avoid accidental electrical shock. Do not handle the Power Switch with wet
hands. Never plug the Power Cord of this product into an electrical outlet
while standing on a wet or damp surface. Plug the Power Cord of this unit only
into a 3-hole, 120 volt, Ground Fault Circuit Interrupter (GFCI), electrical outlet for
additional protection from electric shock.
7.
8.
9.
10.
11.
12.
SKU 94282 For technical questions, please call 1-800-444-3353 PAGE 5
Do not unplug the Vacuum Blower by pulling on the Power Cord. Do not pull
or carry the Vacuum Blower by its Power Cord. Keep the Power Cord away from
sharp corners or edges.
Industrial applications must follow OSHA guidelines.
Always turn off the Vacuum Blower and unplug the unit from its electrical
outlet before performing any maintenance or changing accessories.
Do not use the Vacuum Blower with any openings blocked. Keep free of dirt,
dust, lint, hair, and anything that may reduce air flow or hinder motor operation.
Do not use the Vacuum Blower to pick up flammable or combustible
liquids such as gasoline. Do not use the Vacuum Blower in areas
where flammable or combustible liquids may be present. Do not use
the Vacuum Blower to pick up anything that is burning or smoking,
such as cigarettes, matches, or hot ashes.
Do not use the Vacuum Blower as a sprayer of flammable liquids such as oil
base paints, lacquers, household cleaners, etc.
