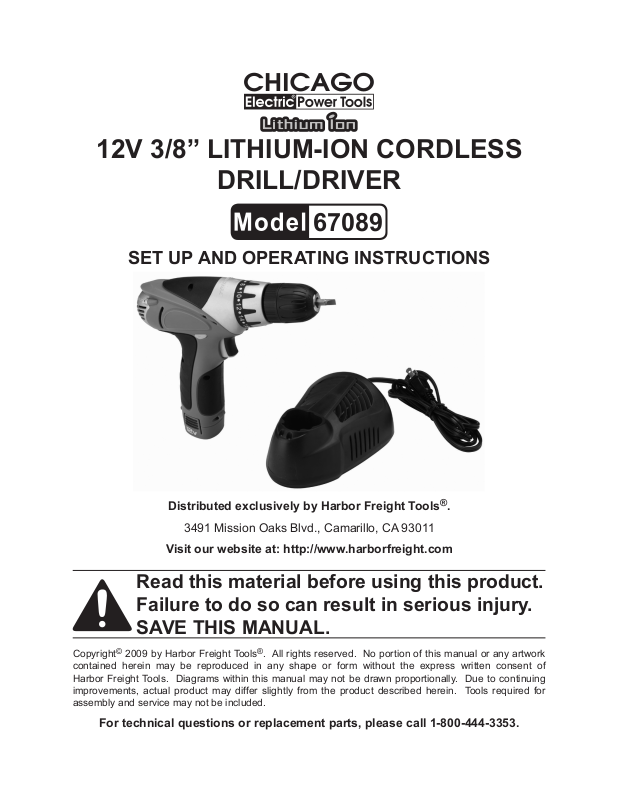

Chicago Electric 67089 User Manual
12V 3/8” LITHIUM-ION CORDLESS
DRILL/DRIVER
67089
SET UP AND OPERATING INSTRUCTIONS
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2009 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
SAVE THIS MANUAL
Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning
procedures. Write the product’s serial
number in the back of the manual near the
assembly diagram (or month and year of
purchase if product has no number). Keep
this manual and the receipt in a safe and
dry place for future reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling,
and all other information provided with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
General Safety Warnings
WARNING Read all safety
warnings and instructions.
Failure to follow the warnings and
instructions may result in electric
shock, re and/or serious injury.
Save all warnings and
instructions for future reference.
The term ″power tool″ in the
warnings refers to your line-
operated (corded) power tool.
1. Keep Battery Pack (38) Dry.
Do not open, drop, shortcircuit, incinerate or expose
to temperatures greater
than 140°F.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
SKU 67089 For technical questions, please call 1-800-444-3353. Page 2
Charge Battery Pack only according 2.
to the instructions indicated in this
manual.
Inspect Battery Pack before every 3.
use; do not use or charge if damaged.
Work area safety4.
Keep work area clean and well lit. a.
Cluttered or dark areas invite acci-
dents.
Do not operate power tools in b.
explosive atmospheres, such as in
the presence of ammable liquids,
gases or dust. Power tools create
sparks which may ignite the dust or
fumes.
Keep children and bystanders c.
away while operating a power tool.
Distractions can cause you to lose
control.
Electrical safety5.
Power tool Plugs must match the a.
outlet. Never modify the Plug in
any way. Do not use any adapter
plugs with grounded power tools.
Unmodied plugs and matching outlets will reduce risk of electric shock.
Avoid body contact with grounded b.
surfaces such as pipes, radiators,
ranges and refrigerators. There is
an increased risk of electric shock if
your body is grounded.
Do not expose power tools to rain c.
or wet conditions. Water entering
a power tool will increase the risk of
electric shock.
Do not abuse the Power Cord. d.
Never use the Cord for carrying,
pulling or unplugging the power
tool. Keep Cord away from heat,
oil, sharp edges or moving parts.
Damaged or entangled cords in-
crease the risk of electric shock.
Personal safety6.
Stay alert, watch what you are do-a.
ing and use common sense when
operating a power tool. Do not use
a power tool while you are tired
or under the inuence of drugs,
alcohol or medication. A moment
of inattention while operating power
tools may result in serious personal
injury.
Use personal protective equip-b.
ment. Always wear ANSI-approved
safety goggles. Safety equipment
such as NIOSH-approved dust mask/
respirator, NIOSH-approved hearing protection, and heavy duty work
gloves will reduce personal injuries.
Prevent unintentional starting. c.
Ensure the Power Switch is in the
off-position before connecting to
the power source or picking up or
carrying the tool. Carrying power
tools with your nger on the Power
Switch invites accidents.
Remove any adjusting key or d.
wrench before turning the power
tool on. A wrench or a key left at-
tached to an oscillating part of the
power tool may result in personal
injury.
When operating a power tool out-e.
doors, use an extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the
risk of electric shock.
If operating a power tool in a damp f.
location is unavoidable, use a
Ground Fault Circuit Interrupter
(GFCI) protected supply. Use of
a GFCI reduces the risk of electric
shock.
SKU 67089 For technical questions, please call 1-800-444-3353. Page 3
Do not overreach. Keep proper e.
footing and balance at all times.
This enables better control of the
power tool in unexpected situations.
Dress properly. Do not wear loose f.
clothing or jewelry. Keep your
hair, clothing and gloves away
from moving parts. Loose clothes,
jewelry or long hair can be caught in
moving parts.
Power tool use and care7.
Do not force the power tool. Use a.
the correct power tool for your application. The correct power tool will
do the job better and safer at the rate
for which it was designed.
Do not use the power tool if the b.
Power Switch does not turn it on
and off. Any power tool that cannot
be controlled with the Switch is dan-
gerous and must be repaired.
work to be performed. Use of the
power tool for operations different
from those intended could result in a
hazardous situation.
Service8.
Have your power tool serviced by a.
a qualied repair person using
only identical replacement parts.
This will ensure that the safety of the
power tool is maintained.
Disconnect the Power Cord from c.
the power source before making
any adjustments, changing accessories, or storing the power tool.
Such preventive safety measures
reduce the risk of starting the power
tool accidentally.
Store idle power tools out of the d.
reach of children and do not allow
persons unfamiliar with the power
tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained
users.
Maintain power tools. Check for e.
misalignment or binding of moving
parts, breakage of parts and any
other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are
caused by poorly maintained power
tools.
Keep cutting accessories sharp f.
and clean. Properly maintained cut-
ting accessories with sharp cutting
edges are less likely to bind and are
easier to control.
Use the power tool and its acces-g.
sories in accordance with these
instructions, taking into account
the working conditions and the
Specic Safety Warnings
Maintain labels and nameplates on 1.
the power tool. These carry important safety information. If unreadable
or missing, contact Harbor Freight
Tools for a replacement.
Read and adhere to the instruction 2.
manual of the included 67104 Battery Charger (49) for important safety
warnings and instructions on how to
properly operate the Lithium Battery
Charger.
Read and adhere to the safety warn-3.
ings for the included 67120 Lithium
Battery Pack (38).
Do not use this Drill Driver Tool with 4.
any other Battery or Charger.
Hold power tools by insulated grip-5.
ping surfaces when performing
an operation where the tool may
contact hidden wiring. Contact with
a ″live″ wire will make exposed metal
parts of the tool ″live″ and shock the
operator.
Maintain labels and nameplates on 6.
the tool. These carry important safety
information. If unreadable or missing, contact Harbor Freight Tools for a
replacement.
SKU 67089 For technical questions, please call 1-800-444-3353. Page 4
