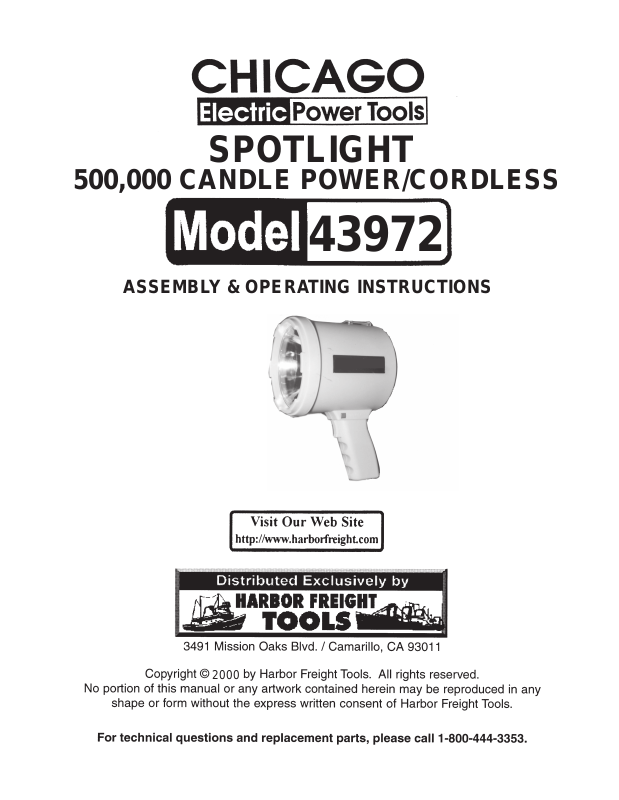

SPOTLIGHT

500,000 CANDLE POWER/CORDLESS

43972

ASSEMBLY & OPERATING INSTRUCTIONS

2000

THANK YOU for choosing a HARBOR FREIGHT TOOLS product. For future ref erence , please complete the
owner’s record belo w:

Model__________ Serial No.___________ Purchase Date______________

SA VE THE RECEIPT , WARRANTY AND THESE INSTRUCTIONS . It is important that you read the entire
manual to become familiar with the unit BEFORE you begin assemb ly.

Technical Specifications

T ool Name: Spotlight, 500,000 Candle P ower -Cordless
Item Number: 43972

Lens: 4-3/4” Diameter x 3/16” Thick
Battery: 6V/DC-5.0 Amp Hour- Rechargeable
Lens Construction: 3/16" Glass
Candle Power 500,000
Light Source: Quartz Halogen Bulb
Handle: Pistol Grip
Handle Length: 4-1/8”L x 2” W x 1-1/4” Thick
Trigger: Squeeze Type with Lock
Cord: 76” Long
Po w er Adapter: 120 VAC / 60 Hz<-> 12 VDC
Charger: U.L. Listed
Car Adapter: Lighter Type- 12V/DC

Overall Dimensions: 5-1/4” (Housing Diameter, 5-1/2” L x 9-1/2” H
T ool Weight: 3.45 LBS.

Safety Warnings and Precautions

WARNING: When using tool, basic safety precautions should always be f ollowed to

reduce the risk of personal injury and damage to equipment.

Read all instructions before using this product!

1. Av oid w orking alone . If an accident happens, an assistant can bring help.

2. Keep work area c lean. Cluttered areas invite injuries.

3. Keep children away. Children must never be allowed in the wo rk area. Do not let them handle
machines, tools, or extension cords.

4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit rust. Alw a ys lock
up tools and keep out of reach of children.

5. Maintain tools with care. Ensure tester has fresh batteries. Inspect tool cords periodically and, if
damaged, have them repaired by an authorized technician.

6. Use the right tool for the job. Do not attempt to force a small tool or attachment to do the work of a
larger industrial tool. There are certain applications for which this tool w as designed. Do not modify this
tool and do not use this tool for a purpose for which it was not intended.

7. Stay alert. Watch what you are doing, use common sense. Do not operate any tool when you are tired.

#43972 Page 2
