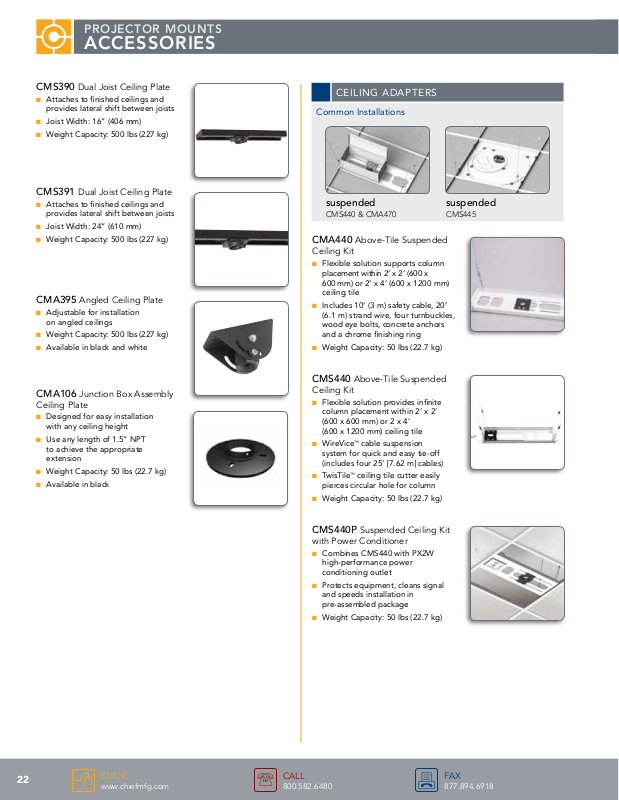

Page 1
Projector MountS
acceSSorieS
CMS390 Dual Joist Ceiling Plate
n Attaches to finished ceilings and
provides lateral shift between joists
n Joist Width: 16” (406 mm)
n Weight Capacity: 500 lbs (227 kg)
CMS391 Dual Joist Ceiling Plate
n Attaches to finished ceilings and
provides lateral shift between joists
n Joist Width: 24” (610 mm)
n Weight Capacity: 500 lbs (227 kg)
CMA395 Angled Ceiling Plate
n Adjustable for installation
on angled ceilings
n Weight Capacity: 500 lbs (227 kg)
n Available in black and white
CMA106 Junction Box Assembly
Ceiling Plate
n Designed for easy installation
with any ceiling height
n Use any length of 1.5” NPT
to achieve the appropriate
extension
n Weight Capacity: 50 lbs (22.7 kg)
n Available in black
CEILING ADAPTERS
Common Installations
suspended
CMS440 & CMA470
suspended
CMS445
CMA440 Above-Tile Suspended
Ceiling Kit
n Flexible solution supports column
placement within 2’ x 2’ (600 x
600 mm) or 2’ x 4’ (600 x 1200 mm)
ceiling tile
n Includes 10’ (3 m) safety cable, 20’
(6.1 m) strand wire, four turnbuckles,
wood eye bolts, concrete anchors
and a chrome finishing ring
n Weight Capacity: 50 lbs (22.7 kg)
CMS440 Above-Tile Suspended
Ceiling Kit
n Flexible solution provides infinite
column placement within 2’ x 2’
(600 x 600 mm) or 2 x 4’
(600 x 1200 mm) ceiling tile
n WireVice
system for quick and easy tie-off
(includes four 25’ [7.62 m] cables)
n TwisTile
pierces circular hole for column
n Weight Capacity: 50 lbs (22.7 kg)
™
cable suspension
™
ceiling tile cutter easily
22
CLICK
www.chiefmfg.com
CMS440P Suspended Ceiling Kit
with Power Conditioner
n Combines CMS440 with PX2W
high-performance power
conditioning outlet
n Protects equipment, cleans signal
and speeds installation in
pre-assembled package
n Weight Capacity: 50 lbs (22.7 kg)
CALL
800.582.6480
FAX
877.894.6918
Page 2
Projector MountS
acceSSorieS
CEILING ADAPTERS cont.
CMA450 Heavy-Duty, Above-Tile
Suspended Ceiling Kit
n Heavy-duty solution supports center,
side and corner positions within a
2’ x 2’ (600 x 600 mm) ceiling tile
n Includes 10’ (3 m) safety cable, 20’
(6.1 m) strand wire, four turnbuckles,
wood eye bolts, concrete anchors
and a chrome finishing ring
n Weight Capacity: 250 lbs
(113.6 kg) center hole, 125 lbs
(56.8 kg) side and corner holes
CMS445 Suspended Ceiling Tile
Replacement Kit
n Future-proofs installations by
providing post-installation
adjustments
n Provides infinite column placement
within a 2 x 2’ (600 x 600 mm)
ceiling tile
n WireVice cable suspension
system for quick and easy tie-off
(includes four 25’ [7.62 m] cables)
n Weight Capacity: 50 lbs (22.7 kg)
CMA470 Above-Tile
Storage Accessory
n Provides storage for equipment above
the suspended ceiling
n Hinged door for easy access
n Compatible with CMS440, CMA440,
CMA450 and CMA455 ceiling kits
CMA471 Above-Tile Large
Storage Accessory
n Provides storage for larger equipment
above the suspended ceiling
n Hinged door for easy access
n Compatible with CMS440, CMA440,
CMA450 and CMA455 ceiling kits
CMA472 Above-Tile
Storage Accessory
n Provides storage for larger equipment
above the suspended ceiling
n Supports wide, thin equipment in a
horizontal orientation
n Compatible with CMS440 and
CMA440 ceiling kits
CMS445P Suspended Ceiling
Tile Replacement Kit with Power
Conditioner
n Combines CMS445 with PX2W
high-performance power
conditioning outlet
n Protects equipment, cleans signal
and speeds installation in
pre-assembled package
n Weight Capacity: 50 lbs (22.7 kg)
CMA455 Heavy-Duty
Suspended Ceiling Tile
Replacement Kit
n Heavy-duty solution supports
center column placement within
a 2’ x 2’ (600 x 600 mm) ceiling tile
n Includes 10’ (3 m) safety cable, 20’
(6.1 m) strand wire, four turnbuckles,
wood eye bolts, concrete anchors
and a chrome finishing ring
n Weight Capacity: 250 lbs (113.6 kg)
CMSZ006 0-6” Fully
Threaded Column
n Provides infinite height adjustment
from suspended ceiling kits
n Compatible with all Chief
suspended ceiling kits
n Available in black and silver
POWER ACCESSORIES
PX2W Power Conditioner Outlet
n Wall or ceiling mounted outlet with
integrated power conditioning
n Filter removes more noise than many
full-sized line conditioners
n Non-volatile spike protection with LED
protection indicator can potentially
absorb thousands of spikes
n Non-current limiting design passes
full power on a regular circuit
n Picture and sound available after
protection stops until a replacement
can be installed
n Rated for 2160 joules and 15 amps
CLICK
www.chiefmfg.com
CALL
800.582.6480
FAX
877.894.6918
23
Page 3
Projector MountS
acceSSorieS
STRUCTURAL ADAPTERS
Common Installations
truss
CMA365 & CMA366
CMA300 Pole Clamp
n Clamps to horizontal poles and
transitions to vertical extension
column
n Pole Outside Diameter(s): 1.9-3.5”
(48-89 mm)
n Weight Capacity: 300 lbs (136.4 kg)
CMA360 I-Beam Clamp
n Clamps to I-beams and
transitions to vertical extension
column
n Weight Capacity: 250 lbs (113.4 kg)
CMA362 C Clamp
n Universal clamp for a variety of
structures and transitions to vertical
extension column
n Clamp Range: up to 2.75” (70 mm)
O.D. (including wood 2 x 4”)
n Weight Capacity: 250 lbs (113.6 kg)
unistrut
CMA372 & CMA110
CMA365 Truss Ceiling Adapter
n Universal clamp for square, round,
rectangular or I-beam truss
n Clamp Range: 0.75-3”
(19-76 mm) O.D.
n Weight Capacity: 250 lbs (113.6 kg)
CMA366 Architectural Spanning
Adapter
n Spans truss systems and
provides lateral shift capability
n Span Distance: 5-18” (127-457 mm)
n Clamp Range: up to 2” (51 mm)
O.D. or 1.9” (48 mm) square tubing
n Weight Capacity: 250 lbs (113.6 kg)
CMA372 Offset Unistrut Adapter
n Features offset for transitioning
cables out of extension columns
n Includes spring nuts and bolts to
attach to 1.63” (41 mm) unistrut
n Weight Capacity: 500 lbs (227 kg)
CMA165 Internal Joist Ceiling Kit
n Expands to bridge ceiling
joists and transition to vertical
extension column
n Joist Width: 16 or 24”
(406 or 610 mm)
n Weight Capacity: 50 lbs (22.7 kg)
CMA385 Internal Joist Mount
n Expands to bridge ceiling
joists and transition to vertical
extension column
n Joist Width: 10-23”
(254-584 mm)
n Weight Capacity: 300 lbs (136 kg)
24
CLICK
www.chiefmfg.com
WMA1S Wall Mount Arm Accessory
n Fast installation with innovative
quick-connect system
n Micro leveling adjustment
n Integrated cable management
system conceals and protects cables
n Compatible with CMS extension
columns up to 4’ (1.2 m)
(not included)
n Includes hardware for wood stud,
steel stud, and concrete
wall construction
CALL
800.582.6480
FAX
877.894.6918

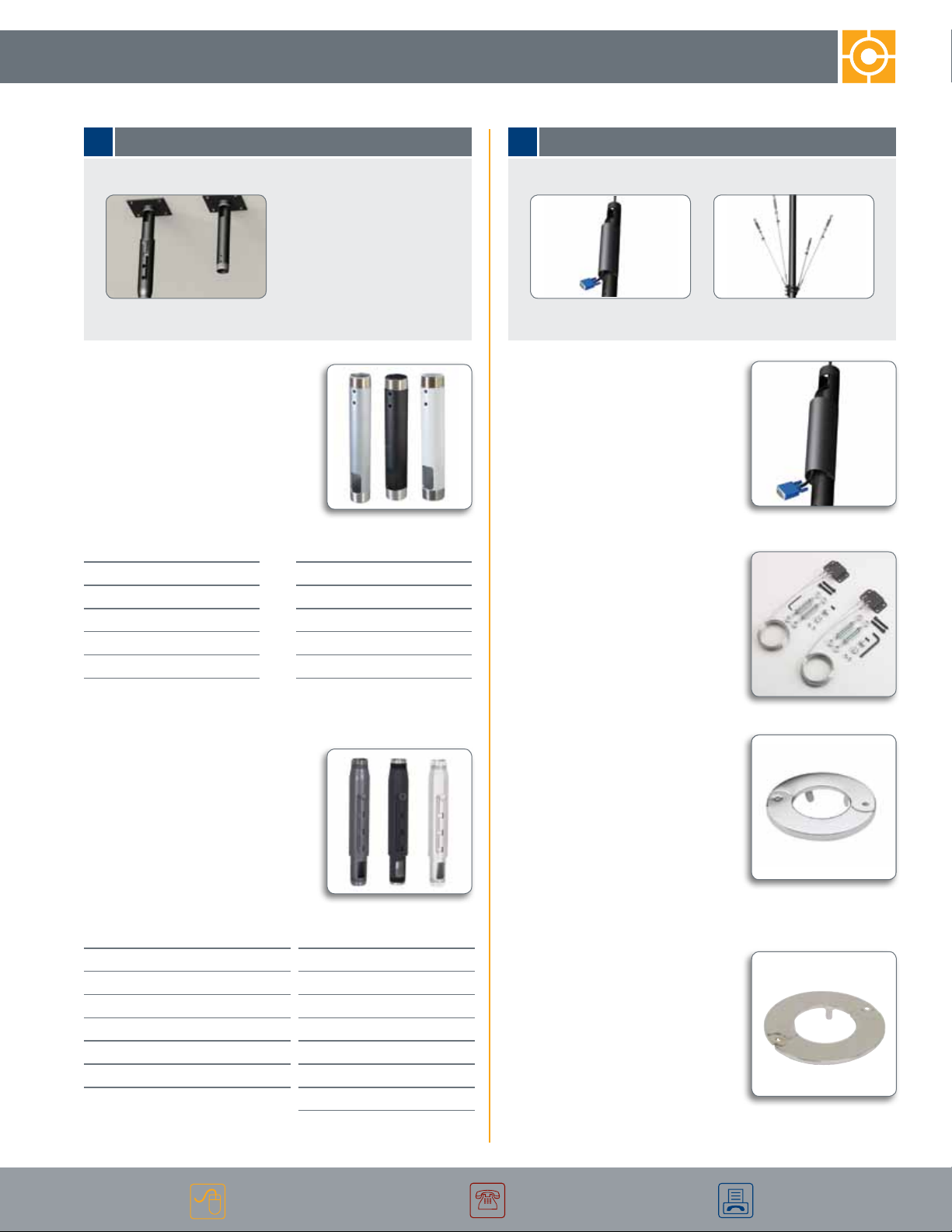

Page 4
Projector MountS
acceSSorieS
EXTENSION COLUMNS
Common Installations
fixed & adjustable
CMS0XX Fixed Extension
Columns
n Aluminum extension
columns feature easy installation
and maximum strength
n Flow-through cable management
with cable exit port (9” [229 mm]
or longer)
n Weight Capacity: 500 lbs (227 kg)
n Available in black, silver and white
Model Length
CMS003* 3” (76 mm)
CMS006* 6” (152 mm)
CMS009 9” (229 mm)
CMS012 12” (305 mm)
CMS018 18” (457 mm)
* Steel construction.
Model Length
CMS024 2’ (0.6 m)
CMS036 3’ (0.9 m)
CMS048 4’ (1.2 m)
CMS060 5’ (1.5 m)
CMS072 6’ (1.8 m)
COLUMN ACCESSORIES
Common Installations
cable management
CMA274
CMA274 Cable Cover for
Columns
n Snap-on cover for routing cables
alongside extension columns
n Hides cables for a clean appearance
n CMA275: Kit of three CMA274
CMA340 Stabilization Kit for
Columns
n Cable system attaches to extension
column for increased rigidity
n Includes one pole clamp, four cables
and four turnbuckes
n Weight Capacity: 500 lbs (227 kg)
stability
CMA340
CMS0XX0XX Adjustable
Extension Columns
n Aluminum extension columns
feature notched design for
adjustment without disassembly
n Flow-through cable management
with cable exit port (12” [305 mm]
or longer)
n Weight Capacity: 500 lbs (227 kg)
n Available in black, silver and white
Model Length
CMS006009 6-9” (152-229 mm)
CMS009012 9-12” (229-305 mm)
CMS012018 12-18” (305-457 mm)
CMS018024 18-24” (457-610 mm)
CMS0203 2-3’ (0.6-0.9 m)
CMS0305 3-5’ (0.9-1.5 m)
* Cannot ship by UPS due to length.
Model Length
CMS0406 4-6’ (1.2-1.8 m)
CMS0507 5-7’ (1.5-2.1 m)
CMS0608 6-8’ (1.8-2.4 m)
CMS0709 7-9’ (2.1-2.7 m)
CMS0810 8-10’ (2.4-3.1 m)
CMS0911 9-11’ (2.7-3.4 m)
CMS1012* 10-12’ (3.1-3.7 m)
CMA640 Decorative Ring for
Columns
n Conceals pass-through hole cut in
ceiling structure for extension column
n Hinged design for new or retrofit
installations
n Clamp Range: 1.9” (48 mm) O.D.
(fits CMS fixed and CMS adjustable
inner column only)
n Available in black, chrome and white
CMA643 Decorative Ring for
Columns
n Conceals pass-through hole cut in
ceiling structure for outer adjustable
extension column
n Clamp Range: 2.44” (62 mm) O.D.
(fits CMS adjustable outer
column only)
n Available in chrome
CLICK
www.chiefmfg.com
CALL
800.582.6480
FAX
877.894.6918
25

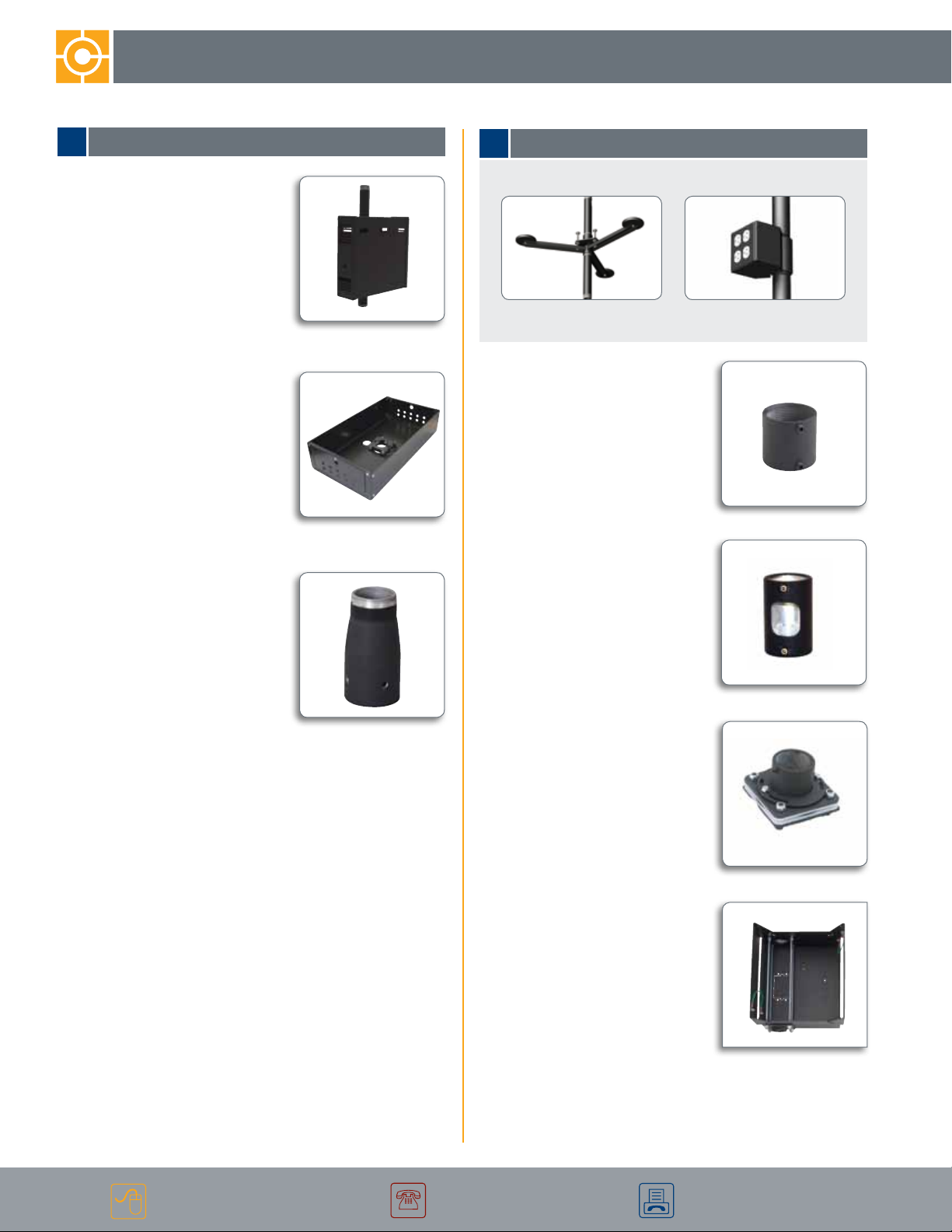

Page 5
Projector MountS
acceSSorieS
COLUMN ACCESSORIES cont.
CMA170 Storage Accessory
n Clamps on to columns for storage of
electronic components
n Mounts horizontally or vertically
n Weight Capacity: 25 lbs (11.3 kg)
CMA480 Column Storage Shelf
n Supports wide, thin AV equipment
in a horizontal orientation
n Flush-to-ceiling installation possible
with doors to access equipment
n Compatible with CMS fixed and
adjustable extension columns
n Weight Capacity: 25 lbs (11.3 kg)
CMS261 Column
Cut-Off Adapter
n Adds 1-1/2” NPT threads to
column that has been cut to length
n Adds 2” (51 mm) of height to
installation
n Weight Capacity: 500 lbs (226.8 kg)
IN-LINE COLUMN ADAPTERS
Common Installations
vibration
CMA347
CMA270 Coupler
n Connects two extension columns for
extended length applications
n Weight Capacity: 500 lbs (227 kg)
n Available in black, silver and white
CMA152 Coupler with Cable Port
n Connects two extension columns and
integrates a cable exit port
n Weight Capacity: 500 lbs (227 kg)
electrical
CMA504
CMA351 Coupler with Swivel
n Connects two extension columns
with swivel capability
n Swivel Range: 0-330º (with
limited adjustment)
n Weight Capacity: 500 lbs (227 kg)
CMA160 Installation Job
Box Coupler
n Connects two extension columns
with storage space for electronic
equipment
n Features outlet knockouts
and plenum rating
n Weight Capacity: 250 lbs (113.6 kg)
26
CLICK
www.chiefmfg.com
CALL
800.582.6480
FAX
877.894.6918
Page 6
Projector MountS
acceSSorieS
IN-LINE COLUMN ADAPTERS cont.
CMA347 Vibration
Isolating Coupler
n Connects two extension columns
and isolates vibration transmitted to
lower column
n Patented design isolates
vibration to reduce image movement
n Weight Capacity: 0-15 lbs
(0-6.8 kg) or 15-35 lbs (6.8-15.9 kg)

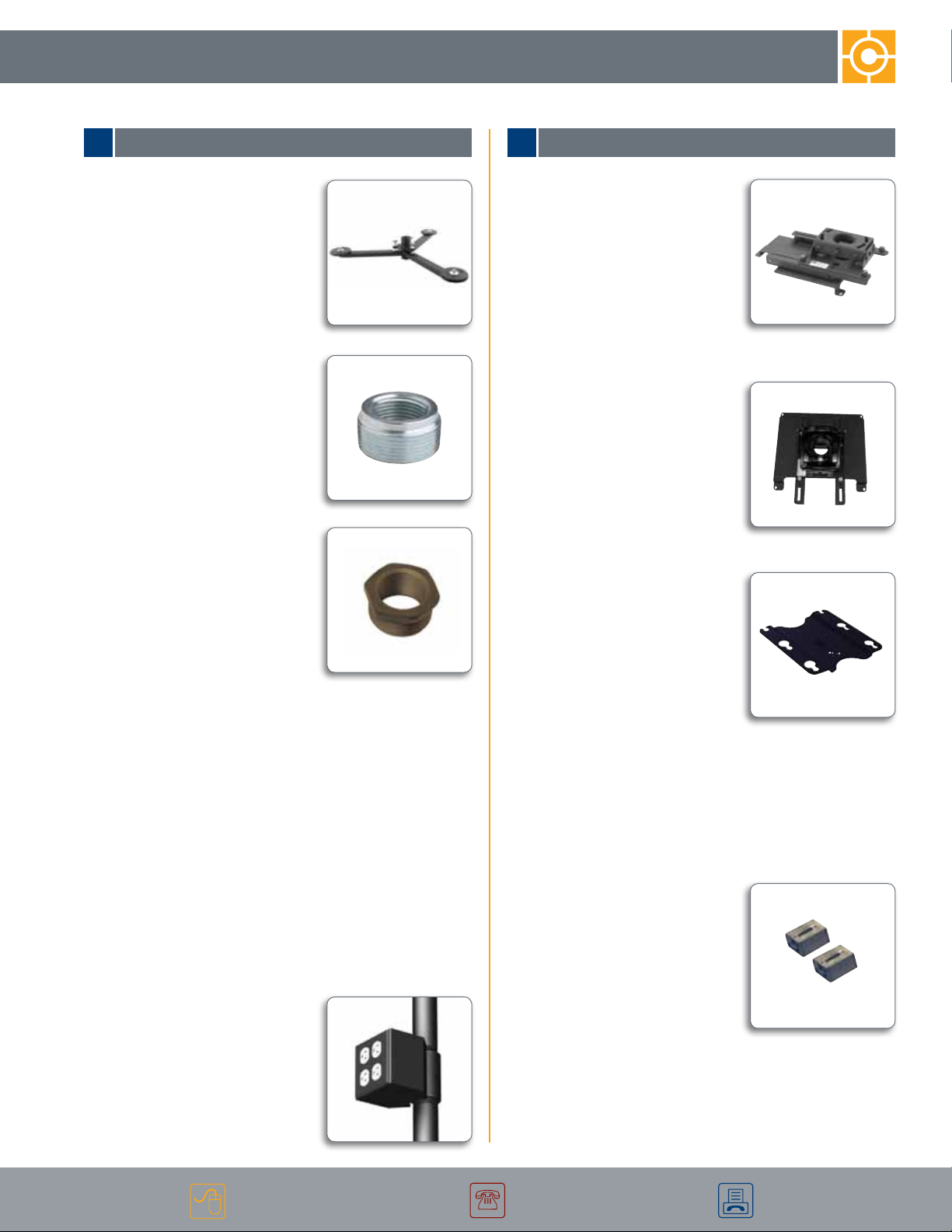

CMA151 Adapter/Reducer
n Adapts 1-1/2” NPT coupler
to 1” NPT column
n Weight Capacity: 250 lbs (113.6 kg)
CMA251 Adapter/Reducer
n Adapts 2” NPT coupler
to 1-1/2” NPT column
n Weight Capacity: 500 lbs (227 kg)
OTHER INSTALLATION ACCESSORIES
LSB100 RPA Projector Lateral
Shift Bracket
n Allows lateral shift of projector
when used with RPA or RPM mounts
n Maintains quick disconnect feature
and includes All-Points Security
n Shift Range: 0-3” (0-76 mm)
or 3-5.25” (76-133 mm)
n Weight Capacity: 50 lbs (22.7 kg)
at 0-3” or 15 lbs (6.8 kg) at 3-5.25”
LSB101 RPM with Q-Lock
Projector Lateral Shift Bracket
n Allows lateral shift of projector
when used with RPM mounts
n Maintains quick disconnect feature
and includes All-Points Security
n Shift Range: 0-3” (0-76 mm)
n Weight Capacity: 50 lbs (22.7 kg)
TMA100 Projector Tripod Mount
n Converts a standard tripod into
a projector stand
n Connects SLB custom or
universal interfaces (not included)
n Weight Capacity: 25 lbs (11.3 kg)
CMA278 Vinyl End Cap
n Covers the end of extension column for clean appearance
n Pre-cut for routing cables through cover
n Ten caps per kit
CMA273 End Cap
n Covers the end of extension column for clean appearance
CMA502 Electrical Outlet Coupler
n Connects two extension columns and supports one
electrical outlet
n Weight Capacity: 500 lbs (227 kg)
n 1-1/2” NPT
n Black
CMA504 Electrical Outlet Coupler
n Connects two extension columns and
supports two electrical outlets
n Weight Capacity: 500 lbs (227 kg)
n 1-1/2” NPT
n Black
CMA250 LCDA Flush Mount Adapter
n Adds flush mount capability to an LCDA projector mount
LPK1 VCM Flush Mount Adapter
n Adds flush mount capability to an VCM projector mount
CMA290 Wire Suspension Locks
n Combine with flexible wire rope to
hang various equipment
n One-way clamp mechanism and
quick-release lever for
ease of installation
n Ten clamps per kit
CLICK
www.chiefmfg.com
CALL
800.582.6480
FAX
877.894.6918
27
Page 7
Projector MountS
acceSSorieS

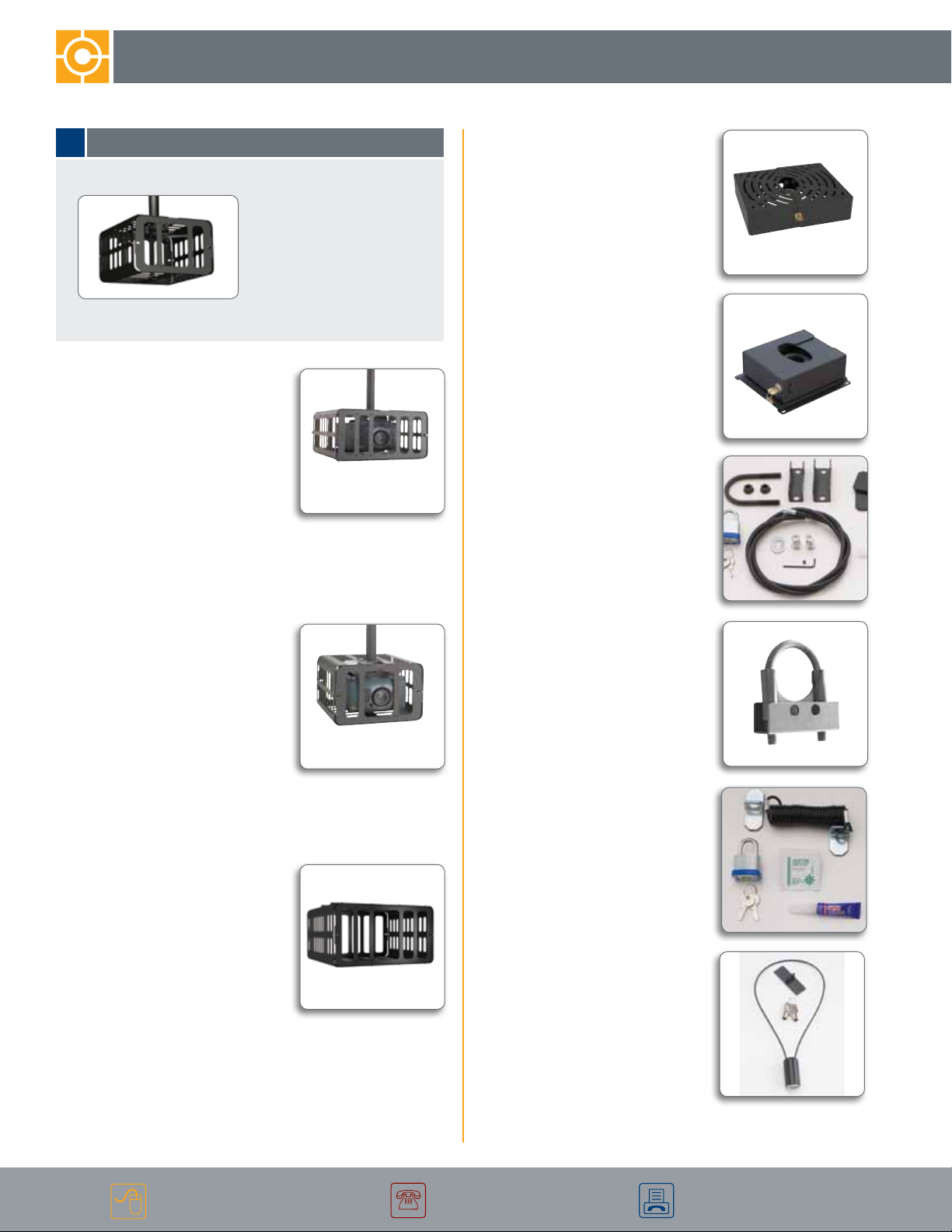

SECURITY
Common Installations
classroom
PG2A
PG1A Large Projector Guard
n Fully encloses projector in locked
cage to prevent theft or damage
n Adjustable front opening to
accommodate different lens
positions
n Hinged door for easy access
n Projector Sizes (HxWxD):
RPA - 20.4 x 7.5 x 20”
(518 x 190 x 508 mm),
RPM - 20.4 x 6.5 x 20”
(518 x 165 x 508 mm)
n Available in black and white
PG2A Small Projector Guard
n Fully encloses projector in locked
cage to prevent theft or damage
n Adjustable front opening to
accommodate different lens positions
n Hinged door for easy access
n Projector Sizes (HxWxD):
RPA - 16 x 7.5 x 16”
(406 x 190 x 406 mm),
RPM -16 x 6.5 x 16”
(406 x 165 x 406 mm)
n Available in black and white
PL1 RPA Large Projector Lock
n Conceals projector connection
points and adds keyed locking to
RPA installations
n Three unique locks available
(PL1A, PL1B, and PL1C)
PL2 RPA Small Projector Lock
n Adds keyed locking to RPA
installations
n Three unique locks available (PL2A,
PL2B, and PL2C)
HC1 Heavy-Duty Cable System
n Security cable system with adhesive
pads and SA1 security anchor
n Includes security anchor, vinyl-
coated cable, 40 mm padlock,
two security pads with rotating
cable fasteners, and a tube
of instant adhesive
SA1 Security Anchor
n Provides secure anchor point
to 1-1/2” NPT pipe, truss or
other structure
n Security shroud held in position by
cable or padlock (not included)
PG3A Extra Large
Projector Guard
n Fully encloses projector in locked
cage to prevent theft or damage
n Adjustable front opening to
accommodate different lens positions
n Hinged door for easy access
n Projector Sizes (HxWxD):
RPA - 10.75 x 25.0 x 25.0”
(273 x 635 x 635 mm),
RPM -14.33 x 25.24 x 25.51”
(364 x 641 x 648 mm)
n Available in black and white
28
CLICK
www.chiefmfg.com
LC1 Cable System
n Security cable system with adhesive
pads for securing sensitive
equipment
n Includes 6’ (1.8 m) coiled cable,
two steel security pads, instant
adhesive and a 30 mm padlock
PL4 Cable Lock
n Security cable system with 3M
adhesive-backed steel pad for
securing sensitive equipment
n Seamless lock housing with a seven-
pin tumbler locking
mechanism (two keys provided)
CALL
800.582.6480
FAX
877.894.6918
Page 8
Projector MountS
acceSSorieS

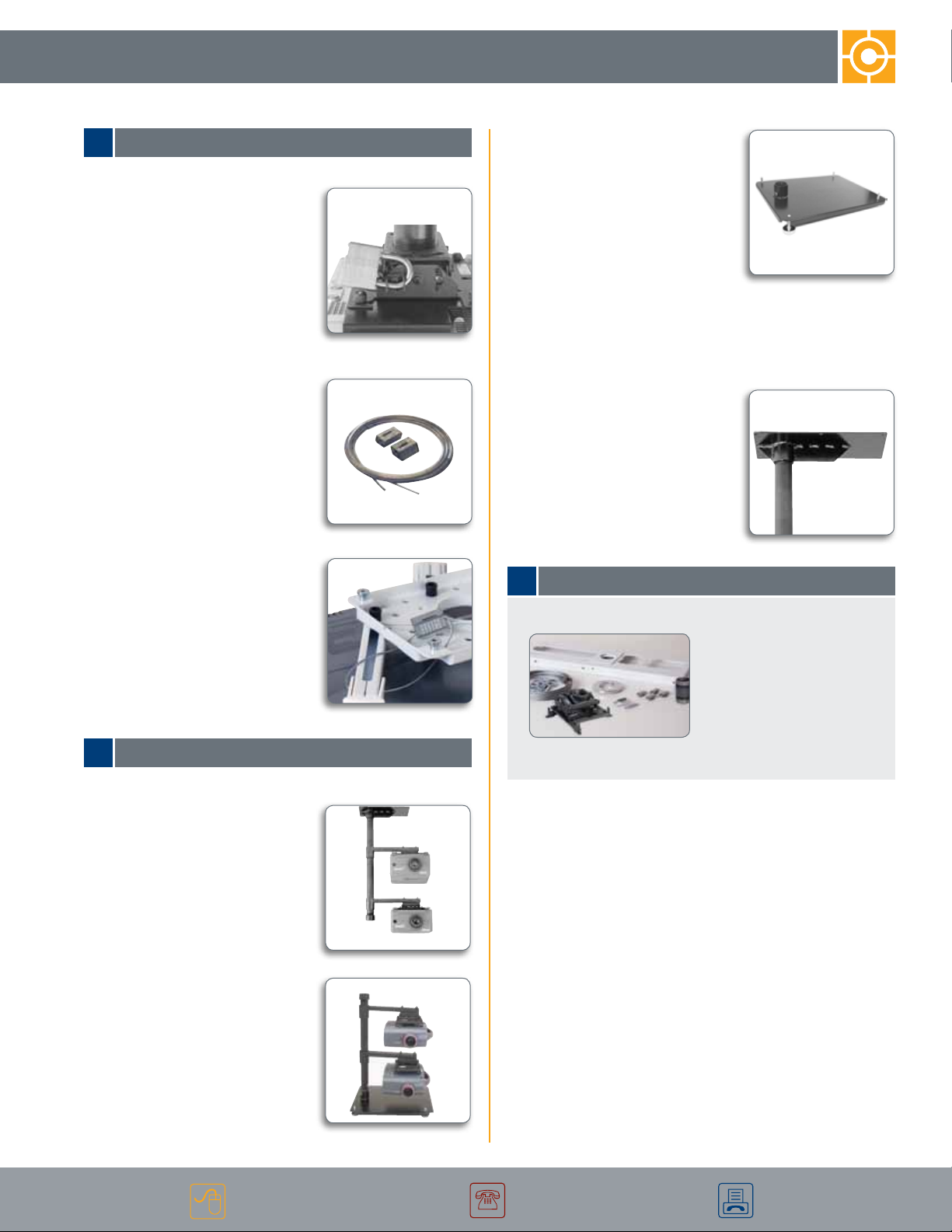

SECURITY cont.
SSC Secure Screw Cover Kits
n Prohibit access to equipment
mounting screws with cable or
padlock (not included)
n SSC1: 3 covers for screws up to
#10 (M5), SSC2: 3 covers for
screws up to 0.25” (M6), SSC3: 3
covers for screws up to 0.31” (M8),
SSC4: for RPA projector mounts
PMSC Security Cable Lock
n Use with security projector mounts
to deter theft attempts by tearing
out projector inserts
n One-way clamp mechanism and
quick-release lever for ease of
installation
n Includes two locks and two cables
with protective tubing
SEC2 Security Cable Kit for
New SLBU
n Use with RPA series or RPA Elite
series mounts with new SLBU for
additional security
n One-way clamp mechanism and
quick-release lever for ease
of installation
n Includes two locks and two cables
®
LCDB Stacker Base
n Use with extension columns to
create custom table stand
projector stacker system
n Max Column Length: 3’ (0.9 m)
n Weight Capacity: 100 lbs (45.5 kg)
LCDPA Stacker Arm
n Use with extension columns to create custom projector
stacker system
n Attaches to RPA or RPM projector mounts
n Weight Capacity: 50 lbs (27.7 kg)
LCDCP Stacker Ceiling Plate
n Use with extension columns to
create custom table stand
projector stacker system
n Max Column Length: 6’ (1.8 m)
n Weight Capacity: 100 lbs (45.5 kg)
PROJECTOR KITS
Common Installations
PROJECTOR STACKERS
LCD2C Dual Projector
Ceiling Stacker
n Ceiling mount accessory for
two vertically-stacked projectors
n Requires two RPA or RPM
projector mounts
n Projector Width: 18” (457 mm)
n Weight Capacity: 100 lbs (45.5 kg)
LCD2TS Dual Projector
Table Stand Stacker
n Table stand accessory for two
vertically-stacked projectors
n Requires two RPA or RPM
projector mounts
n Projector Width: 18” (457 mm)
n Weight Capacity: 100 lbs (45.5 kg)
CLICK
www.chiefmfg.com
KITES003
KITES003 Projector Suspended Ceiling Kit
n Includes RPMU, CMS003, CMS440
KITES003P Projector Suspended Ceiling Kit
n Includes RPMU, CMS003, CMS440, CMA470
KITLS003 Projector Suspended Ceiling Kit
n Includes RPMA1, CMS003, CMS440
KITPS003 Projector Suspended Ceiling Kit
n Includes RPAU, CMS003, CMS440
KITPA018024 Projector Angled Ceiling Kit
n Includes RPAU, CMS018024, CMA395
KITPD0203 Projector Flat Ceiling Kit
n Includes RPAU, CMS0203, CMS115
CALL
800.582.6480
FAX
877.894.6918
29
Loading...
