Chevrolet LOW CAB Forward 2016 User Manual

Low Cab Forward

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

Introduction . . . . . . . .. . . . . . . . . . . . . . 2

In Brief . . . . . . . . . . . . . . . . . .... . . . . . . 9

Keys, Doors, and Windows . . . . . 27

Seats and Restraints . . . . . . . . . . . 41

Storage . . . . . . . . . . . . . . . . . . . ..... . 57

Instruments and Controls . . . . . . . 67

Lighting . . . . . . . . . . . . . . . . . . . . . . ... 97

Infotainment System . . . . . . . . . . 102

Climate Controls . . . . . . . . . . . . . . 120

Driving and Operating . . . . . . . . . 126

Vehicle Care . . . . . . . . . . . . . . . . . . 237

Service and Maintenance . . . . . 328

Technical Data . . . . . . . . . . . . . . . . 362

Customer Information . . . . . . . . . 375

Reporting Safety Defects . . . . . . 382

Index . . . . . . . . . . . . . . . . . . . . 384

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

2 Introduction

Introduction

The names, logos, emblems, slogans, vehicle model names, and vehicle body designs appearing in this manual including, but not limited to, GM, the GM logo, CHEVROLET, and the CHEVROLET Emblem are trademarks and/or service marks of General Motors LLC, its subsidiaries, affiliates, or licensors.

This manual has been prepared to acquaint you with the operation and maintenance of your vehicle, and to provide important safety information. It includes a Maintenance Schedule and is supplemented with a Warranty and Owner Assistance

Litho in U.S.A. Part No. 84138890 A First Printing

Information booklet. We urge you to read these publications carefully. The following recommendations will help ensure the most enjoyable, safe, and trouble-free operation of your vehicle. When it comes to service, keep in mind that your commercial truck dealer knows your vehicle best and is interested in your complete satisfaction. Your dealer invites you to return for all of your service needs both during and after the warranty period. Remember, if you have a concern that has not been handled to your satisfaction, follow the steps in the separate Warranty and Owner Assistance Information booklet. We thank you for choosing our product, and want to assure you of our continuing interest in your motoring pleasure and satisfaction.

Model Reference

The models covered in this manual are:

Single Cab:

3500

3500HD

4500

Crew Cab:

3500

4500

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

Introduction 3

Using this Manual

To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.

About Driving the Vehicle

Air Deflector

79.9 ft2 to 84.8 ft2 will require an air roof fairing sold by Chevrolet to be installed.

Any vehicle with a frontal area greater than 79.9 ft2 without an air roof fairing sold by Chevrolet will be in violation of the Clean Air Act, and subject to civil penalties.

Any vehicle with a frontal area greater than 84.8 ft2, with or without an air roof fairing sold by Chevrolet, will be in violation of the Clean Air Act, and subject to civil penalties. See your dealer for assistance.

Danger, Warning, and Caution

Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them.

For vehicles with a frontal area less than 79.9 ft2, an air roof fairing sold by Chevrolet is not required. Any vehicle with a frontal area between

Danger

{

Danger indicates a hazard with a high level of risk which will result in serious injury or death.

Warning

{

Warning indicates a hazard that could result in injury or death.

Caution

Caution indicates a hazard that could result in property or vehicle damage.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

4 Introduction

A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this,” or “Do not let this happen.”

Warning/Caution Labels (Diesel Engines)

Warning/Caution Labels in Your Vehicle

The warning/caution labels in your vehicle indicate very important instructions and information that you should respect to ensure safe and proper use of the vehicle. Be sure to read them before using the vehicle.

If any of these labels are peeling or illegible due to wear or scratches, please contact your dealer for a replacement.

Some examples of warning/caution labels are indicated on the following pages, but there are many others not shown. Also, the contents of these labels may vary from model to model.

The warning/caution labels shown may be located differently in your vehicle.

No. Description

1 Cab tilt instruction

Automatic transmission fluid

level

Vehicle identification

number

4 NO STEP instruction

5 Certified clean idle label

6 Towing

Vehicle noise emission

control information

8 ID plate

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

Introduction 5

No. Description

9 Engine cooling

10 Fan blade

Vehicle emission control

information

No. Description

1 Engine shutdown instruction

2 Safety lock pin

No. Description

3 Starting aids

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

6 Introduction

No. Description

1 Safety

2 Radiator cap

3 Diesel exhaust fluid (DEF)

4 Body

Warning/Caution Labels (Gasoline Engines)

Single cab model

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

Introduction 7

No. Description

1 Cab tilt instruction

Automatic transmission fluid

level

Vehicle certification and

Greenhouse Gas (GHG) emissions

4 NO STEP instruction

5 Towing

Vehicle noise emission

control information

7 Engine cooling

8 Fan blade

Vehicle emission control

information

Crew cab model

No. Description

Vehicle emission control

information

Vehicle certification and

Greenhouse Gas (GHG) emissions

3 Engine coolant check

4 Engine coolant level

5 NO STEP instruction

6 Power steering fluid

Vehicle noise emission

control information

8 Engine cooling

9 Fan blade

10 Towing

Automatic transmission fluid

level

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

8 Introduction

No. Description

1 Safety lock pin (Single cab)

Engine cover notice

(Crew cab)

3 Radiator cap

Engine emission control

information

5 Engine coolant (Single cab)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

In Brief 9

In Brief

Instrument Panel

Instrument Panel . . . . . . . . . . . . . . 10

Instrument Panel (Driver Side -

Diesel) . . . . . . . . . . . . . . . . . . . . . . . 12

Instrument Panel (Driver Side

- Gas) . . . . . . . . . . . . . . . . . . . . . . . . 13

Instrument Panel (Vehicle

Interior) . . . . . . . . . . . . ..... . . . . . . 14

Portable Audio Devices . . . . . . . . 23

Cruise Control (Diesel) . . . . . .... 23

Cruise Control (Gas) . . . . . . . . . . . 24

Driver Information

Center (DIC) . . . . . . . . . . . . . . . . . 25

Power Outlets . . . . . . . . . . . . . . . . . 25

Performance and Maintenance

Driving for Better Fuel

Economy .... . . . . . . . . . . . . . . . . . 25

Diesel Exhaust Fluid . . . . . . . . . . . 26

Initial Drive Information

Initial Drive Information . . . . . . . . 15

Remote Keyless Entry (RKE)

System . . . . . . . . .. . . . . . . . . . . . . . 15

Getting In and Out of the

Vehicle . . . . . . . . . . . . . . . . . . .. . . . 15

Door Locks . . . . . . . . . . . . . . . . . . . . 16

Windows . . . . . . . . . . . . .... . . . . . . . 17

Seat Adjustment . . . . . . . . . . . . . . . 17

Seat Belts . . . . . . . . . . . . . . . . . . . . . 19

Mirror Adjustment . . . . . .. . . . . . . . 19

Steering Wheel Adjustment . . . . 19

Interior Lighting . . . . . . . . . . . . . . . . 20

Exterior Lighting . . . . . . . . . . . . . . . 21

Windshield Wiper/Washer . . . . . . 21

Climate Controls . . . . . . . . . . . . .. . 22

Vehicle Features

Radio(s) . . . . . . . . . . . . . . . . . . . . . . . 22

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

10 In Brief

Instrument Panel

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

In Brief 11

1. Air Flow Direction Control Lever. See Air Vents 0 123.

2. Exterior Lamp Controls 0 97.

Cruise Control Set Switch. See

Cruise Control (Gas) 0 220 or Cruise Control (Diesel) 0 216.

3. Windshield Wiper and Windshield Washer Switch. See Windshield Wiper/ Washer 0 69.

Exhaust Brake Switch (Diesel Only). See Exhaust Brake (Diesel Only) 0 215.

4. Heater and Manual Air Conditioner. See Climate Control Systems 0 120.

5. Radio with CD/USB. See AM-FM Radio 0 102.

6. Small Article Storage Pocket. See Instrument Panel Storage 0 58.

7. Windshield Washer Fluid Tank. See Washer Fluid 0 265.

8. Glove Box 0 58.

9. Relay Box. See Electrical System Overload 0 285.

10. Cupholders 0 59.

11. Hook. See Shopping Bag Hooks 0 61.

12. Card Holder. See Instrument Panel Storage 0 58.

13. Cigarette Lighter 0 71.

14. Accessory Power Outlet. See Power Outlets 0 70.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

12 In Brief

Instrument Panel (Driver Side - Diesel)

1. Instrument Panel Light Level Control. See Instrument Panel Illumination Control 0 100.

2. Power Take Off (PTO) Main Switch. See Power Take-Off (PTO) 0 235.

3. Power Take Off (PTO) Engine Speed Control Switch. See Power Take-Off (PTO) 0 235.

4. Rear Body Interior Light Switch. See Cargo Lamp 0 101.

5. Instruments, Warning Lights and Indicator Lights. See Instrument Cluster 0 73.

6. Horn Button. See Horn 0 68.

7. Outside Rearview Mirror Heater Switch. See Heated Mirrors 0 37.

8. Cruise Control Main Switch. See Cruise Control (Gas)

0 220 or Cruise Control (Diesel) 0 216.

9. Hazard Warning Flasher Switch. See Hazard Warning Flashers 0 99.

10. Diesel Particulate Filter (DPF) Switch. See Diesel Particulate Filter 0 173.

11. Odometer Check Switch. See Odometer 0 75.

Engine Oil Level Check Switch. See Engine Oil (Diesel) 0 243 or Engine Oil (Gasoline) 0 248.

12. Door Lock Switch. See Power Door Locks 0 35.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

In Brief 13

Instrument Panel (Driver Side - Gas)

1. Instrument Panel Light Level Control. See Instrument Panel Illumination Control 0 100.

2. Rear Body Interior Light Switch. See Cargo Lamp 0 101.

3. Instruments, Warning Lights and Indicator Lights. See Instrument Cluster 0 73.

4. Horn Button. See Horn 0 68.

5. Rear Power Window Lock Switch. See Power Windows 0 37.

6. Outside Rearview Mirror Heater Switch. See Heated Mirrors 0 37.

7. Cruise Control Main Switch. See Cruise Control (Gas)

0 220 or Cruise Control (Diesel) 0 216.

8. Hazard Warning Flasher Switch. See Hazard Warning Flashers 0 99.

9. Rear Power Window Switch. See Power Windows 0 37.

10. Odometer Check Switch. See Odometer 0 75.

11. Door Lock Switch. See Power Door Locks 0 35.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

14 In Brief

Instrument Panel (Vehicle Interior)

1. Overhead Tray. See Storage Compartments 0 57.

2. Sun Visor. See Sun Visors 0 39.

3. Dome Lamps 0 101.

4. Seatbelt. See Three-Point Seat Belt 0 48.

5. Seat Back Pocket (Driver’s Side). See Storage Compartments 0 57.

6. Seat. See Seat Position 0 41.

7. Cupholders 0 59.

8. Parking Brake Lever. See Parking Brake 0 214.

9. Selector Lever 0 207.

10. Fully Adjustable Steering. See

Steering Wheel Adjustment 0 68.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

In Brief 15

Initial Drive Information

This section provides a brief overview about some of the important features that may or may not be on your specific vehicle.

For more detailed information, refer to each of the features which can be found later in this owner manual.

Remote Keyless Entry (RKE) System

Unlocking and Locking the Doors

Unlocking

Press the unlock button (2) of the remote control unit for 1 second or longer. The vehicle's keyless entry system causes the right and left turn signal lights to simultaneously flash twice upon receiving the signals from the remote control unit.

Locking

Press the lock button (1) of the remote control unit for 1 second or longer. The vehicle's keyless entry system causes the right and left turn signal lights to simultaneously flash once upon receiving the signals from the remote control unit.

Getting In and Out of the Vehicle

Carefully check that the area around the vehicle is safe, hold the grip, and place your foot on the step when getting in or out of the vehicle.

See Getting In and Out of the Vehicle 0 31.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

16 In Brief

Door Locks

Locking and Unlocking the Door from Outside Using the Key

Turn the key toward the front of the vehicle to lock the door and turn it toward the rear of the vehicle to unlock it. The doors can be opened by pulling the outside door handle.

Locking the Door from Outside without Using the Key

First, push the lock button (1) on the inside door handle forward and then close the door while keeping the outside door handle (2) raised.

Before closing the door, be sure to check that you have the key with you.

Locking and Unlocking the Door from Inside

Push the lock button (1) forward to lock the door; pull the lock button backward to unlock it. After unlocking the door, open it by pulling the inside door handle (2). If the door is locked, the lock mechanism overrides operation of the door handle.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

In Brief 17

Windows

Window Switches on Driver’s Door

The power window switch on the driver’s door can operate both driver’s (2) and passenger’s (1) power windows.

To Open the Driver’s Window

Lightly pressing the driver-side window switch will lower the driver ’s window until the switch is released (manual mode operation). When the switch is firmly pressed, the window will lower completely without the need to press the switch

continuously (automatic mode operation). If you want to stop the automatic movement of the window before it lowers completely, raise the switch lightly.

To Close the Driver’s Window

Lightly raising the driver-side window switch will cause the driver's window to move up until the switch is released.

To Open the Passenger’s Window

The passenger's window continues to lower while the passenger-side switch on the driver's door is being pressed.

To Close the Passenger’s Window

The passenger's window continues to move up while the passenger-side switch on the driver's door is being raised.

Window Switches on Passenger’s Door

The power window switch on the passenger's door can raise and lower the passenger's side window only and rear doors, if equipped.

The window continues to lower while the window switch is being pressed and continues to rise while the switch is being raised. It will stop moving at any position when the switch is released.

Seat Adjustment

Driver’s Seat

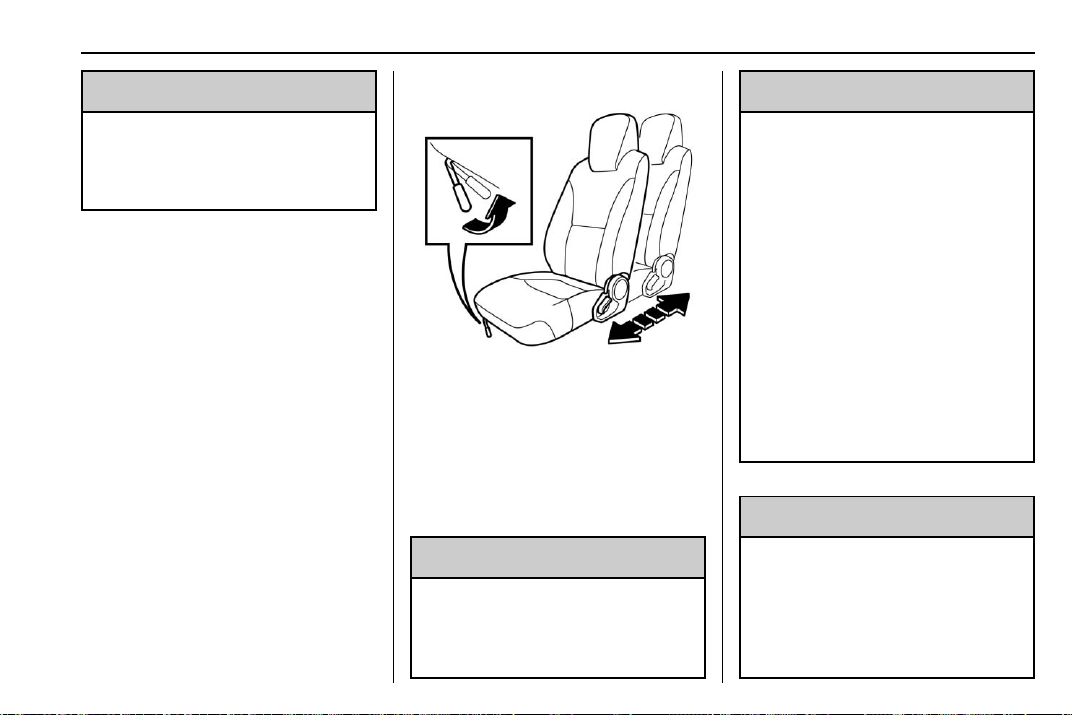

Forward/backward Adjustment

While raising the unlock lever, move the seat forward or backward. Release the lever when the seat is in the desired position. After making

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

18 In Brief

adjustments, try to move the seat back and forth to check that it is fully locked.

Reclining Adjustment

To recline the seatback, raise the seatback tilt lever and gently lean back to the desired position.

To move the seatback forward, lean forward with your back slightly clear of the seatback and raise the lever. After making adjustments, check that the seatback is fully locked.

See Seat Position 0 41.

Passenger’s Seat/Center Seat

Passenger’s Seat

Center Seat

You can tip the seatback forward if you pull forward the lever at the side of the seatback. Normally, you should keep the seatback in the raised position.

See Seat Position 0 41.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

In Brief 19

Seat Belts

Refer to the following sections for important information on how to use safety belts properly:

Seat Belts 0 46.

Three-Point Seat Belt 0 48.

Infants and Young Children 0 54.

Child Restraint Systems 0 54.

Mirror Adjustment

Sit in the correct driving position with the seat adjusted properly. Then, check each mirror to ensure that a proper view of the rear and sides of the vehicle are provided. Make adjustments and clean mirrors if necessary.

Outside Rearview Mirrors

After properly adjusting your seat for proper driving position, adjust the mirrors so that they provide adequate views for checking the rear and the sides of the vehicle. Adjust the outside rearview mirrors by hand before vehicle operation. This helps you determine the location of objects seen in the mirror. If the outside mirror fogs up, warm up the outside rearview mirror's face to defog.

See Mirrors 0 36.

Steering Wheel Adjustment

Warning

{

Adjust the position of the steering wheel before you start driving.

To reduce the risk of personal injury, apply force to the steering wheel to make certain the steering column is firmly locked before driving. Also, do not try to tilt or adjust the steering wheel while the vehicle is moving. If these steps are not followed, the steering column could move suddenly while the vehicle is in motion which could cause a temporary loss of steering control which may result in personal injury or death.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

20 In Brief

3. Firmly lock the steering wheel at the selected position by moving the lock lever to the lock position.

Interior Lighting

Front Light

The steering wheel is adjustable up and down as well as forward and backward.

Before adjusting, position the seat as desired.

1. Lift the lock lever toward you to unlock the steering column.

2. Sit in the correct driving position, and then move the steering wheel up and down and forward and backward to select the optimum steering wheel position.

The dome light operates regardless of the engine control switch position. The switch has three positions.

ON : The light stays on regardless of the doors being open or closed.

OFF : The light stays off regardless of the doors being open or closed.

Between ON and OFF, the light comes on when the driver's door is opened.

Rear Light (Crew Cab Model Only)

The dome light operates regardless of the engine control switch position. The switch has three positions.

ON : The light stays on regardless of the doors being open or closed.

OFF : The light stays off regardless of the doors being open or closed.

Between ON and OFF, the light comes on when the driver's door is opened.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

In Brief 21

Exterior Lighting

The light control switch can be used when the engine control switch is placed in the LOCK or ACC position. Do not operate the combination lights for an extended time period with the engine stopped. Otherwise, the battery may go dead, making it impossible to restart the engine.

9 : Turns off all exterior lamps. ; : Turns on the parking lamps

including all lamps, except the headlamps.

Turning the light control switch to the following positions will cause the relevant lights to illuminate.

2 : Turns on the headlamps

together with the parking lamps, sidemarker lamps, roofmarker lamps, taillamps, license plate lamp, and instrument panel lights.

Exterior Lamp Controls 0 97.

Windshield Wiper/Washer

To use the windshield wiper and washer switches, the engine control switch must be in the ON position.

The windshield wiper switch has the following positions, which correspond to the states of the wiper.

9 : Stopped. 3 : Intermittent, light rain.

Low Speed : Low speed, moderate rain.

High Speed : High speed, heavy rain.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

22 In Brief

Windshield Washer

Windshield washer fluid is sprayed over the windshield when this switch is pressed. At the same time, the windshield wiper operates.

To spray washer fluid on the windshield, push the button on the end of the combination switch lever. The spray will continue as long as you hold in the button.

See Windshield Wiper/Washer 0 69.

Climate Controls

The heating, cooling, and ventilation for the vehicle can be controlled with this system.

Climate Control System w/Air

Conditioning shown, Heater Only

similar

1. Outlet Selector Knob

2. Air Selector Lever

3. Temperature Control Knob

4. Air Conditioning (A/C) Switch, if equipped

5. Fan Speed Control Knob

See Climate Control Systems 0 120.

Vehicle Features

Radio(s)

Turning the Power On

Press the "MODE/Power" button (“ ”) to turn the power on. Press and

hold it for 1 second or more to turn the power off.

Volume Adjustment

Press the "Volume control" button (“

S — ”) to adjust the volume.

S : Volume will increase 1 step

every time the button is pressed. Volume will continuously increase when the button is pressed continuously.

— : Volume will decrease 1 step every time the button is pressed. Volume will continuously decrease when the button is pressed continuously.

}

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

In Brief 23

Tuning

1. Press the "MODE" button when the power is on to select either AM radio or FM radio.

It is switched to AM radio when "AM" is displayed, and FM radio when "FM" is displayed.

2. Press the "TUNE" button ("

") for less than 2 seconds to

select a radio station manually.

Press the "TUNE" button ("

") for 2 seconds or longer to select a radio station automatically. The automatic tuning will stop after detecting a receivable station. Press the

"TUNE" button (" to cancel this function.

y z ") again

Settings

Adjustment of bass, treble, fader, and balance, and setting of clock display and time can be performed. See “Function Setting Mode” in AM-FM Radio 0 102.

CD Player

To play a CD, see CD Player 0 108.

Portable Audio Devices

This vehicle is equipped with a

3.5 mm (1/8 in) auxiliary input jack and a USB port in the radio faceplate. External devices such as

iPods

, laptop computers, MP3 players, and USB storage devices may be connected.

See USB Port 0 115 and Auxiliary Devices 0 118.

Cruise Control (Diesel)

1. Press the cruise control main switch to turn it on.

At this time, the cruise main indicator light comes on simultaneously.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

24 In Brief

At the same time the cruise set indicator light comes on.

See Cruise Control (Gas) 0 220 or Cruise Control (Diesel) 0 216.

2. Use the accelerator pedal to adjust the vehicle to the desired speed. Upon reaching the desired speed, turn the cruise control set switch. The vehicle speed at the moment you operate the switch is set in the system, enabling you to drive with the set speed automatically maintained without using the accelerator pedal.

Cruise Control (Gas)

1. Press the cruise control main switch to set it to on. At this time, the operation indicating light will turn to green.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

In Brief 25

At the same time the cruise set indicator light comes on.

See Cruise Control (Gas) 0 220 or Cruise Control (Diesel) 0 216.

Driver Information Center (DIC)

The DIC display is in the instrument cluster. It shows the status of many vehicle systems.

See Instrument Cluster 0 73 and

Driver Information Center (DIC) (Diesel Only) 0 87.

Power Outlets

You can plug in auxiliary electrical equipment. Just flip the outlet cover open from the left edge of the cover and follow the proper installation instructions that are included with any electrical equipment you install. These circuits are protected by a fuse and have maximum current loads.

See Power Outlets 0 70.

Performance and Maintenance

Driving for Better Fuel Economy

Economical Driving

How you drive, where you drive and when you drive all affect fuel economy.

For diesel vehicles, driving too fast, driving so slowly that the engine knocks, driving with the exhaust brake switched on all the time, and frequently using the exhaust brake to adjust your speed can lead to poor fuel economy.

Drive at a constant speed as much as possible. When accelerating, increase your speed gently and slowly, and up-shift early.

Maintain a constant cruising speed, as traffic allows, and avoid sudden stops.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

26 In Brief

Frequent short trips, excessive idling and use of the air conditioner in cool weather when "Vent" would provide adequate comfort, can all lead to decreased fuel economy.

Warming up the engine for longer than necessary, driving with the vehicle overloaded and revving the engine are a waste of fuel.

Overcooling of the engine not only accelerates wear of the vital engine parts but also hurts fuel economy.

The careful attention you give your vehicle, as far as maintenance is concerned, will also help fuel economy.

Protection of Engine against Overcooling

Overcooling of the engine not only accelerates wear of the vital engine parts but also hurts fuel economy.

Diesel Exhaust Fluid

Diesel Exhaust Fluid (DEF) is used with diesel engines to reduce the amount of regulated emissions produced. The DEF system must be maintained for the vehicle to run properly.

DEF is not a fuel additive. For refilling instructions, see Diesel Exhaust Fluid 0 182. DEF should not be mixed with or added to diesel fuel. DEF freezes when exposed to temperature below −11 °C (12 ° F).

Locating Diesel Exhaust Fluid

DEF can be purchased at a dealer. It can also be purchased at authorized vehicle and truck dealerships. Additionally, some diesel truck fueling stations or retailers may have DEF for purchase. See Recommended Fluids and Lubricants 0 358.

When the remaining level of DEF becomes excessively low the DEF gauge will change color from green to amber. In addition, warning and indicator lights will come on as shown in the table and engine power will be reduced so the vehicle speed will not exceed 89 km/h (55 MPH). See Diesel Exhaust Fluid 0 182.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

Keys, Doors, and Windows 27

Keys, Doors, and Windows

Keys and Locks

Keys

Keys and Locks

Keys . . . . . . . . ... . . . . . . . . . . . . . . .. 27

Remote Keyless Entry (RKE)

System . . . . . . . . .. . . . . . . . . . . . . . 28

Remote Keyless Entry (RKE)

System Operation . . . . . . . . . . . . 28

Getting In and Out of the

Vehicle . . . . . . . . . . . . . . . . . . .. . . . 31

Door Locks . . . . . . . . . . . . . . . . . . . . 32

Power Door Locks . . . . . . . . . . . . . 35

Vehicle Security

Vehicle Security . . . . . . .... . . . . . . 35

Exterior Mirrors

Mirrors . . . . . . . . .. . . . . . . . . . . . . . .. 36

Heated Mirrors . . . . . . . . . . . . . . . . . 37

Windows

Power Windows . . . . . . . . . . . . . . . 37

Sun Visors . . . . . . . . .. . . . . . . . . . . . 39

1. Main Key

2. Spare Key

3. Metal plate with key code

One key (1) can operate all the locks on the vehicle. Keep one of the two keys provided as a spare (2). Record the key code numbers.

Both sides of the key are identical, so you can insert the key in the engine control switch without worrying about which way you insert it.

The key code is indicated on a separate metal plate (3) in order to prevent it from being acquired by an unauthorized person.

Where is the Key Used?

Where For What

Engine Control Switch

Front doors Locking and

Wipe off the key to remove any dirt or dust, etc. before using it.

To prevent theft, store the metal plate with key code in a safe place other than the vehicle.

Should you lose the key, please give the key number to the nearest dealer. The dealer will be able to duplicate your key.

Starting and stopping the engine

unlocking the doors.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

28 Keys, Doors, and Windows

If you resell the vehicle, be sure to hand over the plate with key code to the new owner together with the vehicle.

Remote Keyless Entry (RKE) System

See Radio Frequency Statement 0 381.

If there is a decrease in the Remote Keyless Entry (RKE) operating range:

Check the distance. The transmitter may be too far from the vehicle.

Check the location. Other vehicles or objects may be blocking the signal.

Check the transmitter's battery. See “Replacing the Battery in the Remote Control Unit” later in this section.

If the transmitter is still not working correctly, see your dealer or a qualified technician for service.

Remote Keyless Entry (RKE) System Operation

The keyless entry system allows you to lock/unlock the doors by simply pressing the remote control button rather than inserting the key into the lock.

The remote control unit works within a 10 m (33 ft) radius of the cab center as indicated in the figure. The actual distance over which the unit operates may vary depending on conditions.

Unlocking and Locking the Doors

Remote Control Unit

Unlocking

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-

10399647) - 2016 - crc - 5/25/16

Keys, Doors, and Windows 29

Locking

Should you lose the remote control unit, please contact your dealer.

After locking the doors using the remote control unit, be sure to check that they are locked by pulling the door handles.

Avoid getting water on the remote control unit, dropping it, hitting it against another object, or stepping on it; otherwise, the remote control unit could malfunction.

Do not leave the remote control unit on the dashboard or any other surface where the unit might be exposed to high temperatures (exceeding 60°C/140°F). Doing so may result in shorter battery life or malfunction of the remote control unit.

If the keyless entry system fails to operate normally, lock and unlock the doors using the key and have the system inspected by your dealer.

The lock or unlock buttons on the remote control unit must be fully pressed for more than 1 second to work.

If you do not open any doors within about 30 seconds after pressing the unlock button to unlock the doors, the automatic locking function of the system will lock the doors again to prevent theft.

In areas near a TV tower, electric power plant, radio station, etc. or under any conditions involving strong electrical disturbances, the remote control unit operating range might change or the keyless entry system might not work.

The keyless entry system does not operate in the following cases:

The engine control switch is in the "ON" position.

The key is inserted in the engine control switch.

One of the doors is open.

Replacing the Battery in the Remote Control Unit

When the battery runs down, replace it. Battery life is approximately two years.

Battery Used

Lithium battery 1

Model number: CR 2032

Voltage: DC3V

Number of

Battery

+ 361 hidden pages

Chevrolet LOW CAB Forward 2016 User Manual

Contents

Introduction

Using this Manual

About Driving the Vehicle

Danger, Warning, and Caution

In Brief

Instrument Panel

Instrument Panel (Driver Side - Diesel)

Instrument Panel (Driver Side - Gas)

Instrument Panel (Vehicle Interior)

Initial Drive Information

Remote Keyless Entry (RKE) System

Getting In and Out of the Vehicle

Door Locks

Windows

Seat Adjustment

Seat Belts

Mirror Adjustment

Steering Wheel Adjustment

Interior Lighting

Exterior Lighting

Windshield Wiper/Washer

Climate Controls

Vehicle Features

Radio(s)

Portable Audio Devices

Cruise Control (Diesel)

Cruise Control (Gas)

Driver Information Center (DIC)

Power Outlets

Performance and Maintenance

Driving for Better Fuel Economy

Diesel Exhaust Fluid

Keys, Doors, and Windows

Keys and Locks

Keys

Remote Keyless Entry (RKE) System

Remote Keyless Entry (RKE) System Operation
