Chevrolet Express Owner Manual - 2011

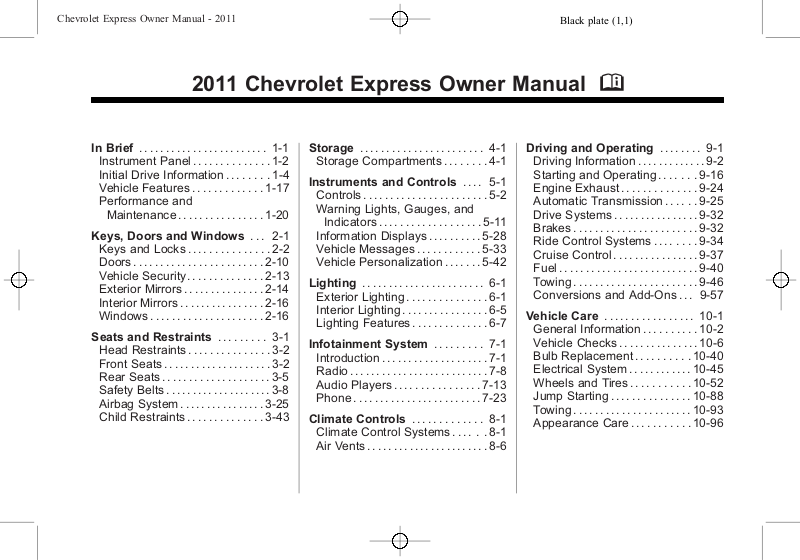

2011 Chevrolet Express Owner Manual M

In Brief . . . . . . . . . .. . . . . . . . . . .. . . 1-1

Instrument Panel . . . . . . . . . . . . . . 1-2

Initial Drive Information . . . . . . . .1-4

Vehicle Features. . . . . . . . . . . . .1-17

Performance and

Maintenance . . . . . . . . . . . . . . . . 1-20

Keys, Doors and Windows . . . 2-1

Keys and Locks . . . . . . . . . . . . . . .2-2

Doors . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Vehicle Security. . . . . . . . . . . . . . 2-13

Exterior Mirrors . . . . . . . . . . . . . . . 2-14

Interior Mirrors . . . . . . . . . . . . ... .2-16

Windows . . . . . . . . . . . . . . . . . . . . . 2-16

Seats and Restraints . . . . . . . . . 3-1

Head Restraints . . . . . . . . . . . . . . . 3-2

Front Seats . . . . . . . .. . . . . . . . .. . . 3-2

Rear Seats . . . . . . . . . . . . . . . . . . . . 3-5

Safety Belts . . . . . . . . . . . . . . . . . . . . 3-8

Airbag System . . . . . . . . . . . . . . ..3-25

Child Restraints . . . . . . . . . . . . . . 3-43

Storage . . . . . . . . . . . . . .. . . . . . . . . 4-1

Storage Compartments . . . . . . . . 4-1

Instruments and Controls . . . . 5-1

Controls . . . . . . . . . . . . . . . . . . . . . . . 5-2

Warning Lights, Gauges, and

Indicators . . . . . . . . . . . . . . . . . . . 5-11

Information Displays . . . . . . . .. . 5-28

Vehicle Messages.. . . . . . . . . . . 5-33

Vehicle Personalization.. . . . . . 5-42

Lighting . . . . . . . . . . . .. . . . . . . . . . . 6-1

Exterior Lighting . . . . . . . . . . . . . . . 6-1

Interior Lighting . . . . . . .. . . . . . .. . 6-5

Lighting Features . . . . . . . . . . . . . . 6-7

Infotainment System . . . . . . . . . 7-1

Introduction . . . . . . . . . .. . . . . . . . . . 7-1

Radio . . . . . . . . . . ... . . . . . . . . . . . ..7-8

Audio Players . . . . . . . . . . . . . . . . 7-13

Phone . . . . . . . . . .. . . . . . . . . .. . . . 7-23

Climate Controls . . . . . . . . . . . . . 8-1

Climate Control Systems . . . . . . 8-1

Air Vents.. . . . . . . . . . . . . . . . . . . . . . 8-6

Driving and Operating . . . . . . . . 9-1

Driving Information . . . . . . . . . . . . . 9-2

Starting and Operating . . . . . . . 9-16

Engine Exhaust . . . . . . . . . . . . . . 9-24

Automatic Transmission . . . . . .9-25

Drive Systems . . . . . . . . . . .. . . . . 9-32

Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-32

Ride Control Systems . . . . . . . .9-34

Cruise Control . . . . . . . .. . . . . . . . 9-37

Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 9-40

Towing . . . . . . . . . . . . . . . . . . . . . . . 9-46

Conversions and Add-Ons . . . 9-57

Vehicle Care . . . . . .. . . . . . . . .. . 10-1

General Information . . . . . . . . . .10-2

Vehicle Checks.. . . . . . . . . . . . . . 10-6

Bulb Replacement . . . . . . . . . . 10-40

Electrical System . . . . . . . . . . . . 10-45

Wheels and Tires . . . . . . . . . . . 10-52

Jump Starting . . . . . . . . . . . . . . . 10-88

Towing . . . . . . . . . . . . . . . . . . . . . . 10-93

Appearance Care . . . . . . . . . . .10-96

Black plate (2,1)

Chevrolet Express Owner Manual - 2011

2011 Chevrolet Express Owner Manual M

Service and Maintenance . . . 11-1

General Information . . . . . . . . . . 11-1

Scheduled Maintenance . . . . . . 11-3

Recommended Fluids,

Lubricants, and Parts . . . . . . . 11-8

Maintenance Records . . . . . . . 11-11

Technical Data . . . . . . ......... 12-1

Vehicle Identification.. . . . . . . . 12-1

Vehicle Data. . . . . . . . . . . . . . . . . . 12-2

Customer Information . . . . . . . 13-1

Customer Information . . . . . . . . 13-1

Reporting Safety Defects . . . . 13-16

Vehicle Data Recording and

Privacy . . .. . . . . . . . . . . . . . . . . 13-17

Index . . . . . . . . . . . . . . . . . . . . . i-1

Black plate (3,1)

Chevrolet Express Owner Manual - 2011

Introduction iii

The names, logos, emblems, slogans, vehicle model names, and vehicle body designs appearing in this manual including, but not limited to, GM, the GM logo, CHEVROLET, the CHEVROLET Emblem, and EXPRESS are trademarks and/or service marks of General Motors LLC, its subsidiaries, affiliates, or licensors.

This manual describes features that may or may not be on your specific vehicle either because they are options that you did not purchase or due to changes subsequent to the printing of this owner manual.

Litho in U.S.A. Part No. 25953303 A First Printing

Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Chevrolet Motor Division wherever it appears in this manual.

If the vehicle has the Duramax

Diesel engine, see the Duramax diesel supplement for additional and specific information on this engine.

Keep this manual in the vehicle for quick reference.

Canadian Vehicle Owners

Propriétaires Canadiens

A French language copy of this manual can be obtained from your dealer or from:

On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante:

Helm, Incorporated P.O. Box 07130 Detroit, MI 48207

1-800-551-4123 Numéro de poste 6438 de langue française www.helminc.com

Black plate (4,1)

Chevrolet Express Owner Manual - 2011

iv Introduction

Using this Manual

To quickly locate information about the vehicle, use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.

Danger, Warnings, and Cautions

Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them.

Danger indicates a hazard with a high level of risk which will result in serious injury or death.

Warning or Caution indicates a hazard that could result in injury or death.

WARNING

{

These mean there is something that could hurt you or other people.

Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty.

A circle with a slash through it is a safety symbol which means

“Do Not,” “Do not do this,” or “Do not let this happen.”

Symbols

The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gauge, or indicator.

M : This symbol is shown

when you need to see the owner manual for additional instructions or information.

* : This symbol is shown

when you need to see a service manual for additional instructions or information.

Black plate (5,1)

Chevrolet Express Owner Manual - 2011

Introduction v

Vehicle Symbol Chart

Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the Index.

9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) g : Audio Steering Wheel Controls

or OnStar

$ : Brake System Warning Light " : Charging System

I : Cruise Control

B : Engine Coolant Temperature

O : Exterior Lamps

# : Fog Lamps

. : Fuel Gauge

+ : Fuses

3 : Headlamp High/Low-Beam

Changer

j : LATCH System Child

Restraints

* : Malfunction Indicator Lamp : : Oil Pressure

} : Power

/ : Remote Vehicle Start

> : Safety Belt Reminders

7 : Tire Pressure Monitor

_ : Tow/Haul Mode d : Traction Control

M : Windshield Washer Fluid

Black plate (6,1)

Chevrolet Express Owner Manual - 2011

vi Introduction

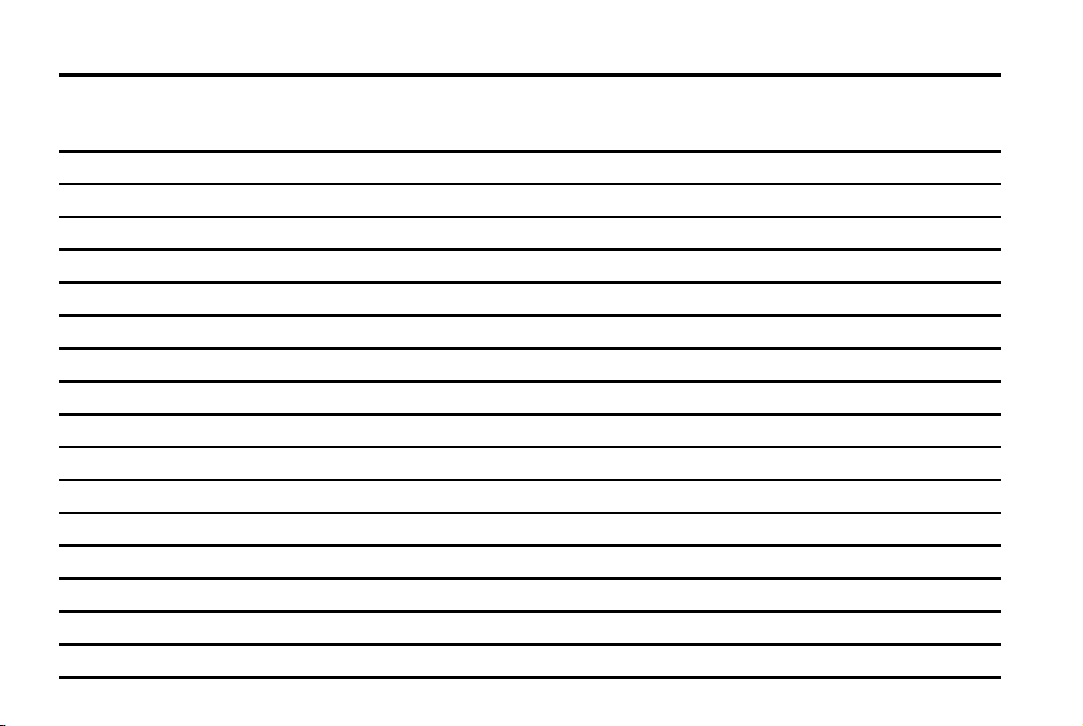

2 NOTES

Black plate (1,1)

Chevrolet Express Owner Manual - 2011

In Brief 1-1

In Brief

Instrument Panel

Instrument Panel . . . . . . .. . . . . . . 1-2

Initial Drive Information

Initial Drive Information . . . . . . . . 1-4

Remote Keyless Entry (RKE)

System . . . . . . .. . . . . . . . . . . . . . . 1-4

Remote Vehicle Start . . . . . . . . . 1-4

Door Locks . . . . . . . . . . . . . . . . . . . 1-5

Windows . . . . . . . . . . . . . . . . . . . . .. 1-6

Seat Adjustment . . . . . . . . . . . . . . 1-6

Safety Belts . . . . . . .. . . . . . . . . . . . 1-8

Airbag On-Off Switch . . . . . . . . . 1-8

Sensing System for

Passenger Airbag . . . . . . . . . . . 1-8

Mirror Adjustment . . . . . . . . . . . . . 1-9

Steering Wheel

Adjustment . . . . . . . . . . . . . . . . . 1-10

Interior Lighting . . . . . . . . . . . . . . 1-11

Exterior Lighting . . . . . . . . . . . . . 1-12

Windshield Wiper/Washer .... 1-13

Climate Controls . . . . . .. . . . . . . 1-14

Transmission . . . . . . . . . . . . . . . . 1-16

Vehicle Features

Radio(s) . . . . . .. . . . . . . . . . . . . . . 1-17

Satellite Radio . . . . . . . . . . . . . . . 1-18

Portable Audio Devices . . . . . . 1-19

Bluetooth

Steering Wheel Controls . . . . . 1-19

Cruise Control . . . . . . . . . . . . . . . 1-20

Power Outlets . . . . . . . . . . . . . . . 1-20

. . . . . . . . . . . . . . . . . . . 1-19

Performance and Maintenance

StabiliTrak®System . . . . . . . . . 1-20

Tire Pressure Monitor . . . . . . . . 1-21

Engine Oil Life System . . . . . . 1-21

Fuel E85 (85% Ethanol) . . . . . 1-21

Driving for Better Fuel

Economy .... . . . . . . . . . . . . . . . 1-22

Roadside Assistance

Program . . . . . . . . . . .... . . . . . . 1-22

OnStar

. . . . . . . . . . . . . . . . . . . . . 1-23

Black plate (2,1)

Chevrolet Express Owner Manual - 2011

1-2 In Brief

Instrument Panel

Black plate (3,1)

Chevrolet Express Owner Manual - 2011

In Brief 1-3

A. Air Vents on page 8‑6.

B. Driver Information Center (DIC)

Buttons. See Driver Information Center (DIC) on page 5‑28.

C. Turn and Lane‐Change Lever.

See Turn and Lane-Change

Signals on page 6‑5.

Windshield Wiper/Washer on page 5‑4.

D. Hazard Warning Flashers on

page 6‑4.

E. Instrument Cluster on

page 5‑12.

F. Shift Lever. See Starting the

Engine on page 9‑18.

Manual Mode on page 9‑30

(If Equipped).

G. Climate Control Systems on

page 8‑1.

H. Infotainment on page 7‑1.

I. Exterior Lamp Controls on

page 6‑1.

J. Instrument Panel Illumination

Control on page 6‑5.

Dome Lamp Override. See Dome Lamps on page 6‑6.

K. Cruise Control on page 9‑37

(If Equipped).

Fast Idle System (If Equipped). See the Duramax diesel supplement for more information.

L. Steering Wheel Adjustment on

page 5‑2.

M. Data Link Connector (DLC).

See Malfunction Indicator Lamp on page 5‑21.

N. Horn on page 5‑4.

O. Steering Wheel Controls on

page 5‑2.

P. Tow/Haul Mode Button. See

“Tow/Haul Mode” under Towing Equipment on page 9‑54.

Q. Power Outlets on page 5‑9.

R. StabiliTrak

System on

page 9‑34 (If Equipped).

S. Airbag On-Off Switch on

page 3‑32 (If Equipped).

T. Front Storage on page 4‑1.

U. Passenger Airbag Status

Indicator on page 5‑20

(If Equipped).

OnStar

System Button.

(If Equipped).

V. Rear Heating System on

page 8‑3 (If Equipped).

W. USB Port. See Auxiliary

Devices on page 7‑18.

Black plate (4,1)

Chevrolet Express Owner Manual - 2011

1-4 In Brief

Initial Drive Information

This section provides a brief overview about some of the important features that may or may not be on your specific vehicle.

For more detailed information, refer to each of the features which can be found later in this owner manual.

Remote Keyless Entry (RKE) System

The RKE transmitter is used to remotely lock and unlock the doors from up to 60 m (195 feet) away from the vehicle.

RKE Transmitter With Remote

Start Shown

K to unlock the driver door.

Press

K again within 5 seconds to

unlock all remaining doors.

j to unlock only the

Press cargo doors.

Q to lock all doors.

Press

Lock and unlock feedback can be personalized.

L and release to locate

Press the vehicle.

Press

L and hold for more than

2 seconds to sound the panic alarm.

L again to cancel the

Press panic alarm.

See Keys on page 2‑2 and Remote

Keyless Entry (RKE) System Operation on page 2‑3.

Remote Vehicle Start

With this feature the engine can be started from outside of the vehicle.

Starting the Vehicle

1. Aim the RKE transmitter at the vehicle.

2. Press

3. Immediately after completing

When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on.

Step 2, press and hold the turn signal lamps flash.

/ until

Black plate (5,1)

Chevrolet Express Owner Manual - 2011

In Brief 1-5

The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension. Remote start can be extended only once.

Canceling a Remote Start

To cancel a remote start:

Aim the RKE transmitter at the vehicle and press and hold

until the parking lamps turn off.

Turn on the hazard warning flashers.

Turn the ignition on and then back off.

See Remote Vehicle Start on page 2‑5.

Door Locks

Manual Door Locks

Lock and unlock the door from the outside using the key or the Remote Keyless Entry (RKE) transmitter, if available. From the inside, slide the manual lever on the door up or down.

See Door Locks on page 2‑7.

Power Door Locks

On vehicles with power door locks, the switches are located on the doors.

T : Press to lock and unlock

the doors.

See Power Door Locks on page 2‑8.

Black plate (6,1)

Chevrolet Express Owner Manual - 2011

1-6 In Brief

Windows

Manual Windows

Operate the manual windows by turning the hand crank on each door to raise or lower the side door windows.

See Manual Windows on page 2‑17.

Power Windows

If the vehicle has power windows, the controls are located on each of the side doors. The driver door also has a control to operate the front passenger window.

Press or pull up on the switch to lower or raise the window.

See Power Windows on page 2‑17.

Seat Adjustment

Manual Seats

To adjust a manual seat:

1. Lift the bar to unlock the seat.

2. Slide the seat to the desired position and release the bar.

3. Try to move the seat back and forth to be sure the seat is locked in place.

See Seat Adjustment on page 3‑2.

Black plate (7,1)

Chevrolet Express Owner Manual - 2011

In Brief 1-7

Power Seats

To adjust a power seat, if available, use the controls on the front of the seat:

Adjust the seat by moving the center knob up, down, right, or left.

Raise and lower the front or rear of the seat cushion by moving the right or left lever up or down.

See Power Seat Adjustment on page 3‑3.

Reclining Seatbacks

To recline the seatback:

1. Lift the lever on the inboard side of the seat.

2. Move the seatback to the desired position, and then release the lever to lock the seatback in place.

3. Push and pull on the seatback to make sure it is locked.

To return the seatback to the upright position:

1. Lift the lever fully without applying pressure to the seatback, and the seatback will return to the upright position.

2. Push and pull on the seatback to make sure it is locked.

See Reclining Seatbacks on page 3‑3.

Black plate (8,1)

Chevrolet Express Owner Manual - 2011

1-8 In Brief

Safety Belts

Refer to the following sections for important information on how to use safety belts properly.

Safety Belts on page 3‑8.

How to Wear Safety Belts Properly on page 3‑12.

Lap-Shoulder Belt on page 3‑18.

Lower Anchors and Tethers for Children (LATCH System) on page 3‑52.

Airbag On-Off Switch

If the instrument panel has one of the switches pictured in the following illustrations, the vehicle has an airbag on-off switch that you can use to manually turn on or off the right front passenger airbag.

United States

Canada and Mexico

To operate the airbag on‐off switch, use the vehicle key.

See Airbag On-Off Switch on page 3‑32 for important information.

Sensing System for Passenger Airbag

The passenger sensing system, if equipped, will turn off the right front passenger frontal airbag under certain conditions. The driver airbag and roof‐rail airbags, if equipped, are not affected by this.

Black plate (9,1)

Chevrolet Express Owner Manual - 2011

In Brief 1-9

If the vehicle has a passenger sensing system, the passenger airbag status indicator will be visible on the instrument panel when the vehicle is started.

United States

Canada and Mexico

See Passenger Sensing System on page 3‑35 for important information.

Mirror Adjustment

Exterior Mirrors

Vehicles with outside manual mirrors can be adjusted by moving the mirror up and down or left to right so you can see a little of the side of your vehicle, and have a clear view of objects behind you.

Vehicles with outside power mirrors have controls located on the driver side door.

Select each mirror by turning the knob clockwise for the passenger side mirror or counterclockwise for the driver side mirror. Adjust the mirror angle by moving the knob in the desired direction.

Keep the selector switch in the center position when not adjusting either outside mirror.

Vehicles with towing mirrors can be adjusted manually for a clear view of the objects behind you.

Black plate (10,1)

Chevrolet Express Owner Manual - 2011

1-10 In Brief

Manually fold the mirrors inward to prevent damage when going through an automatic car wash. To fold, pull the mirror toward the vehicle. Push the mirror outward, to return it to the original position.

Interior Mirror

Hold the inside rearview mirror in the center to move it for a clearer view behind the vehicle. Adjust the mirror to avoid glare from the headlamps behind. Push the tab, located at the base of the mirror, forward for daytime use and pull it for nighttime use.

See Manual Rearview Mirror on page 2‑16.

Steering Wheel Adjustment

For vehicles with a tilt steering wheel, the lever is located on the left side of the steering column.

To adjust the steering wheel:

1. Pull the lever to move the steering wheel up or down into a comfortable position.

2. Release the lever to lock the steering wheel in place.

See Steering Wheel Adjustment on page 5‑2.

Black plate (11,1)

Chevrolet Express Owner Manual - 2011

In Brief 1-11

Interior Lighting

Dome Lamp

The dome lamps come on when any door is opened. They turn off after all the doors are closed.

The instrument panel brightness knob extends when

D is pressed.

To manually turn on the dome lamps, press

clockwise to the farthest position. In this position, the dome lamps remain on whether a door is opened or closed.

D then turn the knob

E DOME OFF : This button is

located above the instrument panel brightness knob.

Press the button in and the dome lamps remain off when a door is opened. Press the button again so that the dome lamps come on when a door is opened.

Reading Lamps

For vehicles with reading lamps, press the button located next to each lamp to turn it on or off.

The vehicle may also have reading lamps in other locations. The lamps cannot be adjusted.

For more information on interior lighting, see:

Instrument Panel Illumination Control on page 6‑5.

Entry/Exit Lighting on page 6‑7.

Black plate (12,1)

Chevrolet Express Owner Manual - 2011

1-12 In Brief

Exterior Lighting

The exterior lamps control is located on the instrument panel to the left of the steering wheel.

O : Briefly turn the control to this

position to turn the automatic headlamps and Daytime Running Lamps (DRL) off or back on.

For vehicles first sold in Canada, the off position only works for vehicles that are shifted into the P (Park) position.

AUTO: Automatically turns on the headlamps, parking lamps, taillamps, instrument panel lights, and license plate lamps.

; : Turns on the parking lamps,

taillamps, instrument panel lights, and license plate lamps.

2 : Turns on the headlamps,

parking lamps, taillamps, instrument panel lights, and license plate lamps.

For more information, see:

Exterior Lamp Controls on page 6‑1.

Exterior Lamps Off Reminder on page 6‑2.

Daytime Running Lamps (DRL) on page 6‑3.

Automatic Headlamp System on page 6‑4.

Black plate (13,1)

Chevrolet Express Owner Manual - 2011

In Brief 1-13

Windshield Wiper/Washer

The lever is located on the left side of the steering column.

8 : Use for a single wiping cycle. 6 : Use to adjust the delay time

between wipes. Turn the band up or down for more frequent wipes or less frequent wipes.

d : Slow wipes. a : Fast wipes.

9 : Use to turn the wipers off. L : Push the paddle on top of the

multifunction lever to spray washer fluid on the windshield.

See Windshield Wiper/Washer on page 5‑4.

Black plate (14,1)

Chevrolet Express Owner Manual - 2011

1-14 In Brief

Climate Controls

The vehicle's heating, cooling, and ventilation can be controlled with these systems.

Vehicles Without Air Conditioning

A. Fan Control

B. Temperature Control

C. Air Delivery Mode Control

Black plate (15,1)

Chevrolet Express Owner Manual - 2011

Vehicles With Air Conditioning

In Brief 1-15

See Climate Control Systems on page 8‑1. See Rear Heating System on page 8‑3 (If Equipped) or Rear Climate Control System on page 8‑4

(If Equipped).

A. Fan Control

B. Temperature Control

C. Air Delivery Mode Control

D. Rear Window Defogger

Black plate (16,1)

Chevrolet Express Owner Manual - 2011

1-16 In Brief

Transmission

Range Selection Mode

The vehicle may have a Range Selection Mode. The Range Selection Mode helps control the vehicle's transmission and vehicle speed while driving down hill or towing a trailer by letting you select a desired range of gears.

To use this feature, do the following:

1. Move the shift lever to M (Manual Mode).

2. Press the plus/minus buttons, located on the steering column shift lever, to select the desired range of gears for current driving conditions.

When M (Manual Mode) is selected a number displays in the DIC next to the M indicating the current gear.

Grade Braking is not available when Range Selection Mode is active. See Tow/Haul Mode on page 9‑31.

While using Range Selection Mode, Cruise Control and the Tow/Haul Mode can be used.

Black plate (17,1)

Chevrolet Express Owner Manual - 2011

In Brief 1-17

Vehicle Features

Radio(s)

O : Press to turn the system on

and off. Turn to increase or decrease the volume.

between the radio station frequency and the time. While the ignition is off, press this button to display the time. Press to display additional text information related to the current FM-RDS station or MP3 song. A choice of additional information such as: Channel, Song, Artist, and CAT (category) can display. Continue pressing to highlight the desired tab, or press the softkey located under any one of the tabs and the information about that tab displays.

For more information about these and other radio features, see Infotainment on page 7‑1.

Radio with CD (MP3)

BAND: Press to choose between

FM1, FM2, AM, and XM™.

f : Select radio stations.

Black plate (18,1)

Chevrolet Express Owner Manual - 2011

1-18 In Brief

Storing a Favorite Station

Depending on which radio the vehicle has, radio stations are stored as either favorites or presets.

For vehicles with a FAV button, a maximum of 36 stations can be stored as favorites using the six softkeys located below the radio station frequency tabs and by using the radio FAV button. Press FAV to go through up to six pages of favorites, each having six favorite stations available per page. Each page of favorites can contain any combination of AM and FM stations.

If the radio does not have a FAV button, up to 18 stations (6 FM1, 6 FM2, and 6 AM), can be programmed on the six numbered buttons.

See Operation on page 7‑3.

Setting the Clock

To set the time and date for the Radio with CD (MP3):

1. Press

2. Press the softkey located below

3. Increase or decrease the time or

H and the HR, MIN, MM,

DD, YYYY (hour, minute, month, day, and year) displays.

any one of the tabs that you want to change.

date, depending on the radio, by pressing the

s / \ REV/FWD buttons or by

turning counterclockwise.

For detailed instructions on setting the clock for your specific audio system, see Clock on page 5‑6.

f clockwise or

Satellite Radio

XM is a satellite radio service that is based in the 48 contiguous United States and 10 Canadian provinces. XM satellite radio has a wide variety of programming and commercial-free music, coast to coast, and in digital-quality sound.

A fee is required to receive the XM service.

For more information, refer to:

www.xmradio.com or call 1-800-929-2100 (U.S.)

www.xmradio.ca or call 1-877-438-9677 (Canada)

See Satellite Radio on page 7‑10.

Black plate (19,1)

Chevrolet Express Owner Manual - 2011

In Brief 1-19

Portable Audio Devices

This vehicle may have an auxiliary input located on the radio faceplate and a USB port located on the instrument panel. External devices such as an iPod MP3 player, CD changer, or USB storage device can be connected to the auxiliary port using a 3.5 mm (1/8 in) input cable or the USB port depending on the audio system.

See "Using the Auxiliary Input Jack" and "Using the USB Port" in Auxiliary Devices on page 7‑18.

Bluetooth

For vehicles with a Bluetooth system, it allows users with a Bluetooth‐enabled cell phone to make and receive hands-free calls using the vehicle’s audio system and controls.

The Bluetooth‐enabled cell phone must be paired with the Bluetooth system before it can be used in the

, laptop computer,

vehicle. Not all phones will support all functions. For more information, visit www.gm.com/bluetooth.

For more information, see Bluetooth on page 7‑23.

Steering Wheel Controls

For vehicles with audio steering wheel controls, some audio controls can be adjusted at the steering wheel.

w /c x : Press to change

favorite radio stations, select tracks on a CD, or to navigate tracks or folders on an iPod

or USB device.

b g : Press to silence the vehicle

speakers only. Press again to turn the sound on. Press and hold longer than two seconds to interact with

OnStar if equipped.

decrease volume.

or Bluetooth systems,

e − e : Press to increase or

c x : Press to reject an

incoming call, or to end a call.

SRCE: Press to switch between the radio and CD, and for equipped vehicles, the front auxiliary.

¨ : Press to seek the next radio

station, the next track while sourced to the CD, or to select tracks and folders on an iPod

For more information, see Steering Wheel Controls on page 5‑2.

or USB device.

Black plate (20,1)

Chevrolet Express Owner Manual - 2011

1-20 In Brief

Cruise Control

For vehicles with cruise control, the buttons are located on the left side of the steering wheel.

J : Turns the system on or off.

+RES: Press briefly to make the vehicle resume to a previously set speed, or press and hold to accelerate.

SET−: Press to set the speed and activate cruise control or press and hold to decelerate.

[ : Press to disengage cruise

control without erasing the set speed from memory.

For more information, see Cruise Control on page 9‑37.

Power Outlets

The accessory power outlets can be used to plug in electrical equipment, such as a cell phone or an MP3 player.

The vehicle may have two accessory power outlets located on the instrument panel.

Remove the cover to access and replace when not in use.

See Power Outlets on page 5‑9.

Performance and Maintenance

StabiliTrak®System

The vehicle may have a traction control system that limits wheel spin and the StabiliTrak system that assists with directional control of the vehicle in difficult driving conditions. Both systems turn on automatically every time the vehicle is started.

To turn off both traction control and StabiliTrak, press and hold

d until d illuminates and the

appropriate DIC message displays. See Ride Control System Messages on page 5‑38.

Press and release the button again to turn on both systems.

For more information, see

StabiliTrak

System on page 9‑34.

Black plate (21,1)

Chevrolet Express Owner Manual - 2011

In Brief 1-21

Tire Pressure Monitor

This vehicle may have a Tire Pressure Monitor System (TPMS).

The TPMS warning light alerts you to a significant loss in pressure of one of the vehicle's tires. If the warning light comes on, stop as soon as possible and inflate the tires to the recommended pressure shown on the Tire and Loading Information label. See Vehicle Load Limits on page 9‑12. The warning light will remain on until the tire pressure is corrected.

During cooler conditions, the low tire pressure warning light may appear when the vehicle is first started and then turn off. This may be an early indicator that the tire pressures are getting low and the tires need to be inflated to the proper pressure.

The TPMS does not replace normal monthly tire maintenance. It is the driver’s responsibility to maintain correct tire pressures.

See Tire Pressure Monitor System on page 10‑62.

Engine Oil Life System

The engine oil life system calculates engine oil life based on vehicle use and displays a DIC message when it is necessary to change the engine oil and filter. The oil life system should be reset to 100% only following an oil change.

Resetting the Oil Life System

1. Turn the ignition to ON/RUN, with the engine off.

2. Fully press and release the accelerator pedal three times within five seconds.

3. Turn the key to LOCK/OFF.

See Engine Oil Life System on page 10‑13.

Fuel E85 (85% Ethanol)

Vehicles that have a FlexFuel badge and a yellow fuel cap can use either unleaded gasoline or ethanol fuel containing up to 85% ethanol (E85). See Fuel E85 (85% Ethanol) on page 9‑42. For all other vehicles, use only the unleaded gasoline described under Recommended Fuel on page 9‑40.

Black plate (22,1)

Chevrolet Express Owner Manual - 2011

1-22 In Brief

Driving for Better Fuel Economy

Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible.

Avoid fast starts and accelerate smoothly.

Brake gradually and avoid abrupt stops.

Avoid idling the engine for long periods of time.

When road and weather conditions are appropriate, use cruise control.

Always follow posted speed limits or drive more slowly when conditions require.

Keep vehicle tires properly inflated.

Combine several trips into a single trip.

Replace the vehicle's tires with the same TPC Spec number molded into the tire's sidewall near the size.

Follow recommended scheduled maintenance.

Roadside Assistance Program

U.S.: 1-800-243-8872

TTY Users (U.S.): 1-888-889-2438

Canada: 1-800-268-6800

Mexico: 01-800-466-0800

As the owner of a new Chevrolet, you are automatically enrolled in the Roadside Assistance program.

See Roadside Assistance Program

(U.S. and Canada) on page 13‑8 or Roadside Assistance Program (Mexico) on page 13‑10 for more

information.

Roadside Assistance and OnStar (U.S. and Canada)

If you have an active OnStar subscription, press the

Q button

and the current GPS location will be sent to an OnStar advisor who will assess your problem, contact Roadside Assistance, and relay your exact location to get the help you need.

Online Owner Center (U.S. and Canada)

The Online Owner Center is a complimentary service that includes online service reminders, vehicle maintenance tips, online owner manual, special privileges, and more.

www.chevyownercenter.com (U.S.) or www.gm.ca (Canada).

Black plate (23,1)

Chevrolet Express Owner Manual - 2011

In Brief 1-23

OnStar

For vehicles with an active OnStar subscription, OnStar uses several innovative technologies and live Advisors to provide a wide range of safety, security, navigation, diagnostics, and calling services.

Automatic Crash Response

In a crash, built‐in sensors can automatically alert an OnStar Advisor who is immediately connected to the vehicle to see if you need help.

How OnStar Service Works

Q : Push this blue button to

connect to a specially trained OnStar Advisor to verify your account information and to answer questions.

] : Push this red emergency

button to get priority help from specially trained OnStar Emergency Advisors.

X : Push this button for

hands‐free, voice‐activated calling and to give voice commands for Hands‐Free Calling and Turn‐by‐Turn Navigation.

Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance, Vehicle Diagnostics, Remote Door Unlock, Roadside Assistance, Turn‐by‐Turn Navigation, and Hands‐Free Calling are available on most vehicles.

Not all OnStar services are available on all vehicles. For more information, see the OnStar Owner's Guide; visit www.onstar.com (U.S.) or www.onstar.ca (Canada); contact OnStar at 1-888-4-ONSTAR (1‐888‐466‐7827) or TTY 1‐877‐248‐2080; or push the

Q button to speak with an

OnStar Advisor 24 hours a day, 7 days a week.

For a full description of OnStar services and system limitations, see the OnStar Owner's Guide in the glove box.

OnStar service is subject to the OnStar Terms and Conditions included in the OnStar Glove Box Kit.

OnStar service requires wireless communication networks and the Global Positioning System (GPS) satellite network. Not all OnStar services are available everywhere or on all vehicles at all times.

Black plate (24,1)

Chevrolet Express Owner Manual - 2011

1-24 In Brief

OnStar service can’t work unless the vehicle is in a place where OnStar has an agreement with a wireless service provider for service in that area, and the wireless service provider has coverage, network capacity, reception, and technology compatible with OnStar's service. Service involving location information about the vehicle can’t work unless GPS signals are available, unobstructed, and compatible with the OnStar hardware. The vehicle has to have a working electrical system and adequate battery power for the OnStar equipment to operate. OnStar service may not work if the OnStar equipment isn’t properly installed or you haven’t maintained it and the vehicle is in good working order and in compliance with all government regulations. If you try to add, connect, or modify any equipment or software in the vehicle, OnStar service may not work.

Other problems OnStar can’t control may prevent service to you, such as hills, tall buildings, tunnels, weather, electrical system design and architecture of the vehicle, damage to important parts of the vehicle in a crash, or wireless phone network congestion or jamming.

See Radio Frequency Statement on page 13‑19 for information regarding Part 15 of the Federal Communications Commission (FCC) rules and Industry Canada Standards RSS-210/220/310.

OnStar Steering Wheel Controls

This vehicle may have a

b g / c x Talk/Mute button

that can be used to interact with OnStar Hands-Free calling. See Steering Wheel Controls on page 5‑2 for more information.

On some vehicles, the

c x button can be used

to dial numbers into voice mail systems, or to dial phone extensions. See the OnStar Owner's Guide for more information.

Your Responsibility

Increase the volume of the radio if the OnStar Advisor cannot be heard.

If the light next to the OnStar buttons is red, the system may not be functioning properly. Push the

Q button and request a vehicle

diagnostic. If the light appears clear (no light appears), your OnStar subscription has expired and all services have been deactivated.

Push the the OnStar equipment is active.

Q button to confirm that

+ 392 hidden pages
