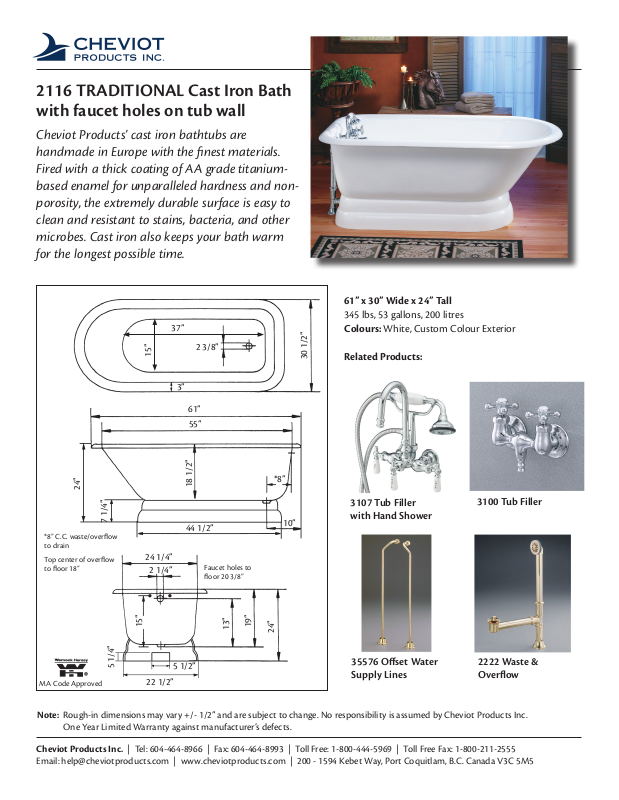

2116 TRADITIONAL Cast Iron Bath
with faucet holes on tub wall
Cheviot Products’ cast iron bathtubs are
handmade in Europe with the finest materials.
Fired with a thick coating of AA grade titaniumbased enamel for unparalleled hardness and nonporosity, the extremely durable surface is easy to
clean and resistant to stains, bacteria, and other
microbes. Cast iron also keeps your bath warm
for the longest possible time.
37”
61” x 30” Wide x 24” Tall
345 lbs, 53 gallons, 200 litres
Colours: White, Custom Colour Exterior
24”
7 1/4”
*8” C.C. waste/overflow
to drain
Top center of overflow
to floor 18”
15”
24 1/4”
2 1/4”
15”
3”
44 1/2”
2 3/8”
61”
55”
18 1/2”
Faucet holes to
floor 20 3/8”
13”
19”
*8”
24”
10”
30 1/2”
Related Products:
3107 Tub Filler
with Hand Shower
3100 Tub Filler
5 1/4”
MA Code Approved
Note: Rough-in dimensions may vary +/- 1/2” and are subject to change. No responsibility is assumed by Cheviot Products Inc.
One Year Limited Warranty against manufacturer’s defects.
Cheviot Products Inc. | Tel: 604-464-8966 | Fax: 604-464-8993 | Toll Free: 1-800-444-5969 | Toll Free Fax: 1-800-211-2555
Email: [email protected] | www.cheviotproducts.com | 200 - 1594 Kebet Way, Port Coquitlam, B.C. Canada V3C 5M5
5 1/2”
22 1/2”
35576 Offset Water
Supply Lines
2222 Waste &
Overflow
Page 2
2118 TRADITIONAL Cast Iron Bath
with continuous rolled rim
Cheviot Products’ cast iron bathtubs are
handmade in Europe with the finest materials.
Fired with a thick coating of AA grade titaniumbased enamel for unparalleled hardness and nonporosity, the extremely durable surface is easy to
clean and resistant to stains, bacteria, and other
microbes. Cast iron also keeps your bath warm
for the longest possible time.
37”
2 3/8”
15”
3”
30 1/2”
Model 2116 Shown
61” x 30” Wide x 24” Tall
345 lbs, 53 gallons, 200 litres
Colours: White, Custom Colour Exterior
Related Products:
24”
7 1/4”
*8” C.C. waste/overflow
to drain
Top center of overflow
to floor 20 1/2”
MA Code Approved
5 1/4”
24 1/4”
2 1/4”
22 1/2”
5 1/2”
61”
55”
18 1/2”
44 1/2”
15 1/2”
19”
*8”
24”
10”
5115LEV Tub Filler
With Hand Shower
3970 Heavy Duty
Water Supply Lines
5100 Tub Filler
With Hand Shower
2222 Waste &
Overflow
Note: Rough-in dimensions may vary +/- 1/2” and are subject to change. No responsibility is assumed by Cheviot Products Inc.
One Year Limited Warranty against manufacturer’s defects.
Cheviot Products Inc. | Tel: 604-464-8966 | Fax: 604-464-8993 | Toll Free: 1-800-444-5969 | Toll Free Fax: 1-800-211-2555
Email: [email protected] | www.cheviotproducts.com | 200 - 1594 Kebet Way, Port Coquitlam, B.C. Canada V3C 5M5
Page 3
2119 TRADITIONAL Cast Iron Bath
with flat area on rim
Cheviot Products’ cast iron bathtubs are
handmade in Europe with the finest materials.
Fired with a thick coating of AA grade titaniumbased enamel for unparalleled hardness and nonporosity, the extremely durable surface is easy to
clean and resistant to stains, bacteria, and other
microbes. Cast iron also keeps your bath warm
for the longest possible time.
37”
2 3/8”
15”
3”
61” x 30” Wide x 24” Tall
345 lbs, 53 gallons, 200 litres
Colours: White, Custom Colour Exterior
30 1/2”
Related Products:
Model 2116 Shown
24”
*8” C.C. waste/overflow
to drain
Top center of overflow
to floor 20 1/2”
MA Code Approved
7 1/4”
5 1/4”
24 1/4”
2”
22 1/2”
61”
55”
5 1/2”
18 1/2”
44 1/2”
15 1/2”
19”
*8”
24”
10”
5127 Tub Filler
With Hand Shower
3411 Water Supply
Lines
5106 Tub Filler
With Hand Shower
2222 Waste &
Overflow
