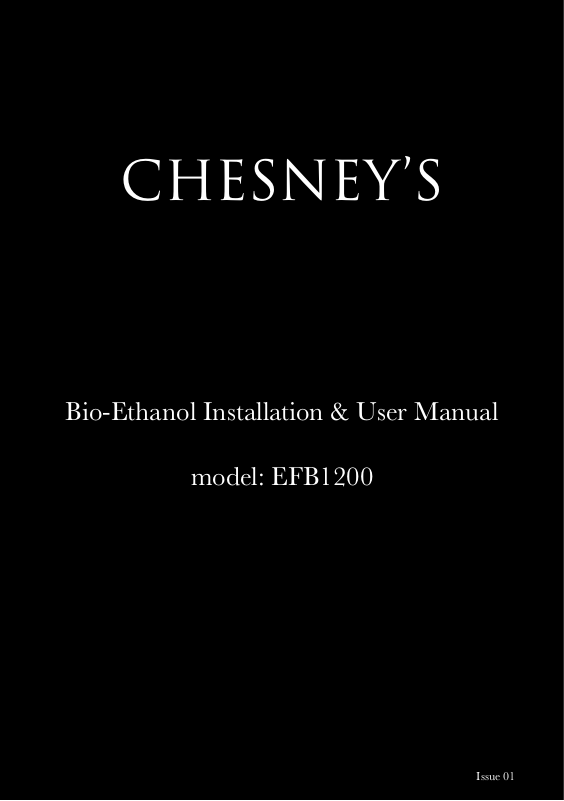

Chesney's EFB1200 Installation & User Manual

CHESNEY’S

Bio-Ethanol Installation & User Manual

model: EFB1200

Issue 01

1

Thank you for choosing this Chesney’s Bio-Ethanol fire.

Please read this information guide carefully in order to

safely install, use and maintain your product.

2

Contents

Section A: Installation Guide

Installation 4
Housing configurations 12

Section B: User Manual

I. Safety 20

II. Operation 22
Operating Elements 22
Initial start-up of the device 24
Flame size regulation 27
SLEEP function 28
Extinguishing the appliance 28
Subsequent start-up 28
Switching off 29
Information and warning alert 30

III. Customer’s Menu 33

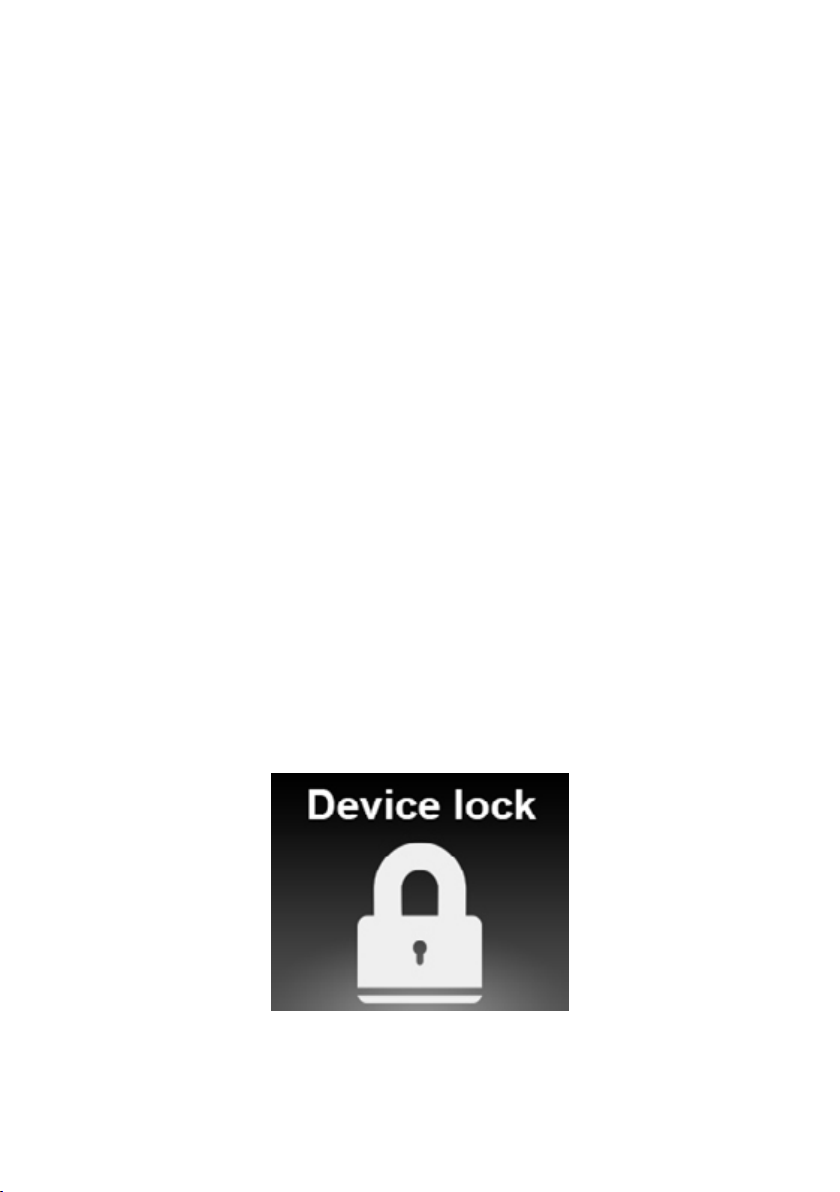

Locking the appliance 33
Child lock 34
Set time 35
Device IP 35
Remote control 36
Fast start 37
Serial number 37
Software 37

IV. Cleaning and maintenance 38

V. Fuel 39

VI. Disposal and recycling 39

3

H 237mm (9 5/16”)

H1 183mm (7 3/16”)

H2 180mm (7 1/16”)

H3 3mm (1/8”)

L 1190mm (46 7/8”)

L1 1000mm (39 3/8”)

L2 95mm (3 3/4”)

L3 95mm (3 3/4”)

D 280mm (11”)

4

Section A: Installation Guide

• Do not install the appliance in areas with a cubic capacity of less than 178m3 /

6286ft3 (68m2 / 732ft2 with a height of less than 2.6m / 8.53ft).

• Do not install the appliance near fans, vents or anything that can cause

significant draughts of air.

• Do not place in areas where there might be a potentially explosive
atmosphere of paint vapours, industrial dusts, etc.

• No ammable items should be placed in direct contact or within a radius of
1m / 3.28ft of the appliance. Do not place near curtains, net curtains, etc.

• Do not expose to external weather conditions. The product is for internal use

only.

• Do not place the appliance in close proximity to sources of humidity.

• It is obligatory to have a carbon-dioxide (CO

placed nearby the appliance.

• Installation of the appliance must allow for easy removal of the appliance for

servicing.

• The room in which the appliance is to be installed must have sufcient

ventilation to ensure air exchange in the room at least once per hour.

• Do not start the appliance before full installation has been completed.

• Do not ll the fuel container before placing the appliance into its nal position.

) or dry chemical extinguisher

2

5

INSTALLATION

NOTE! If you plan to operate the bio fireplace with a device that has a

WI-FI connection (e.g. smartphone, tablet) please acquaint yourself with

the content of the Configuration of the module with Wi-Fi and Smart Home

System manual before installing the fireplace in the building.

- After opening the packaging box leave the device inside the box for
approx. 2 hours until it reaches room temperature. During this time
familiarize yourself with the user’s and installation manuals.

- The elements of construction used over the appliance must be made of
non-ammable materials.

- Any recess below the appliance must be sealed.

- A loose cable min. 3 x 1.5 mm2, with power supply 230V, 50Hz must be
provided to connect the appliance to the mains.

- The device can be wired directly into a fused spur or alternatively a
standard 3 pin 13 amp mains plug can be fitted (not supplied).

- If there is going to be a cover over the appliance, it must be made of
non-ammable materials and the minimum distance from the appliance

must be no less than 40cm / 15 ¾”.

For reasons of safety, under no circumstances can there be any

ammable material within a 1m radius of the appliance.

The manufacturer does not recommend placing any heat

sensitive materials or devices above the appliance as it can

signicantly affect the materials, properties and lifetime.
The manufacturer will not bear any responsibility for the

damage caused to any heat sensitive materials or devices

installed above the appliance.

6

7

How to construct the housing for the appliance:

Make a cavity for the appliance following the diagram below. Ensure that
the plane within the cavity on which the appliance is to be installed is
level.

The difference in level between the ends of the appliance must not

exceed 2mm. Poor levelling may cause abnormal operation of the

appliance and, in extreme cases, it can cause leaks of the bio-ethanol fuel

and the danger of fire.

Then connect the supplied cable with a connection block at the end of
the cord. Note that connection to the mains must be made by a qualied

electrician.

8

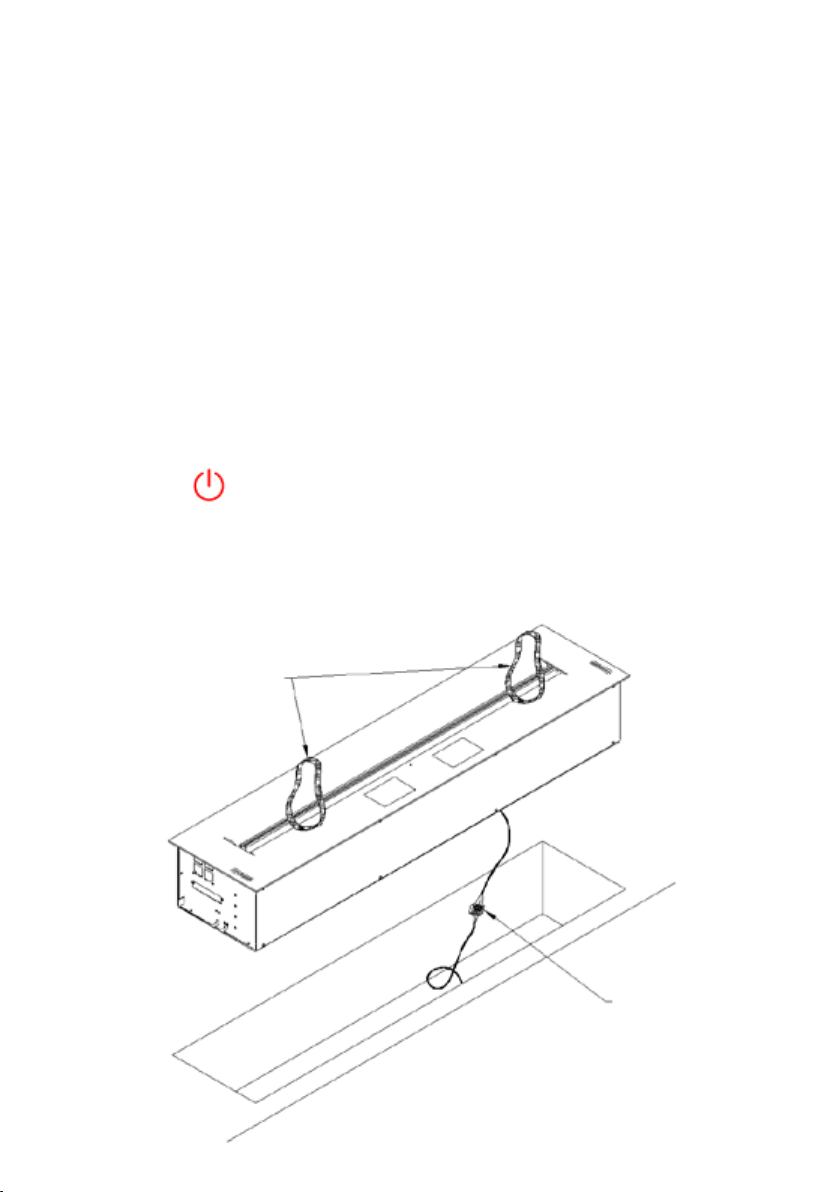

Highlighted button indicates proper connection of the appliance to
the power supply. Once connected to the power source the appliance

should be placed in the prepared cavity, by using attached handles.

Please make sure to remove the handles before starting the appliance

and keep them for the lifetime of the appliance. If necessary, use the

handles to remove the appliance.

Handle

Connection to the
mains must be
made by a qualified
electrician.

9

Installing the glass shield to the appliance:

10

Situations where the installation of the glass shield with the appliance is
necessary:

Situations in which installation of a glass shield is forbidden:

ATTENTION!

• Make sure that the appliance has been correctly installed and read the

attached instruction manual.

• You must not ll the fuel tank and start the appliance before reading

the instruction manual.

• If in the future it is necessary to take the appliance out of the housing,
wait until the fuel has burned-up completely and the display shows NO
FUEL, disconnect the power supply and take the appliance out of its

housing.

• Keep this instruction manual throughout the lifetime of the appliance.

11

Guide for designing the housing for the appliance

12

Installing an optional glass fascia

13

Mounting a heat sensitive item such as a TV above the replace

14

Installation with a two sided open setting

15

Free-standing installation of the appliance

16

Ventilation and air conditioning in the room in relation to installation of
the appliance

17

Using an existing chimney ue

18

Section B: User Manual

19

I. Safety

This is a decorative appliance with real ames. In

order to use the device properly and safely and in

order to keep the warranty, the following safety rules
should be observed. This is not a heating device.

• The device should be installed in accordance with to the installation

manual.

• While working, the device emits heat, water vapour and carbon
dioxide, therefore it is necessary for the appliance to only be installed in

a room of appropriate cubic capacity and with adequate ventilation.

• During the start-up sequence of the device, the characteristic smell of

the liquid used in the device may be perceptible.

• It is obligatory to have a carbon-dioxide or dry chemical extinguisher

placed nearby the device.

• A device that is in operation on must not be moved. Wait for complete
fuel burn-out, disconnect the power supply and cool down the elements

before moving the device.

• The device should not be left without adult supervision.

• Prevent handling of the device by persons not trained in its use.

• Do not attempt to make changes or repairs to the construction of

the device. Repairs can be made only by a person trained to service the
device.

• Do not attempt to pour fuel into the device when lit as it may cause

damage to the device and cause fire. Pouring fuel into a lit device may

cause a sudden ignition and can cause re, burns and a risk to life.

• Do not heat the fuel before starting-up the device.

• Do not start up the device if any fuel has been spilt.

• Do not cover a working device as it may cause re.

20

• Keep the device and fuel away from children, pets and unauthorized

persons.

• Bio-ethanol fuel is not suitable for consumption. Avoid contact with

skin and eyes.

• Do not re-fuel when the device is lit.

• Do not tamper with the elements inside the device as this can cause
burns, damage to the device or re.

• Some elements of the device heat up to high temperatures. Do not
touch areas of the device adjacent to the ames.

• Do not place any decorative elements on the burner’s surface.

• WARNING! The glowing coil temperature heats up to 1300°C. Touching

the device while it is turned on may cause burns.

• WARNING! Prior to moving the appliance burn the fuel out and move
the appliance slowly, in the horizontal position, avoiding shaking. There

is always some fuel left inside the device and if spilled the sensors
might get wet. If that happens the appliance will not work until the liquid
evaporates.

• WARNING! The rst run can be made only after proper installation of
the device and reading the manual instructions!

21

II. Operation

The device is adjusted to work with Wi-Fi access (such as smartphone,

tablet). If you are going to control the appliance by such means it is nec­essary to follow the instructions included in Configuration of the module

with Wi-Fi and Smart Home System.

Operating elements:

Glowing coil

Control panel display hidden under ap

Control Panel:

Starts up the device from
stand-by mode or turns off the
device to stand-by mode

Top of furnace

Tempered glass

Filler ap

Turns on to standby

or completely turns
off the device

USB port hidden

under ap

22

Control panel display

Reduces ame level

Increases ame level

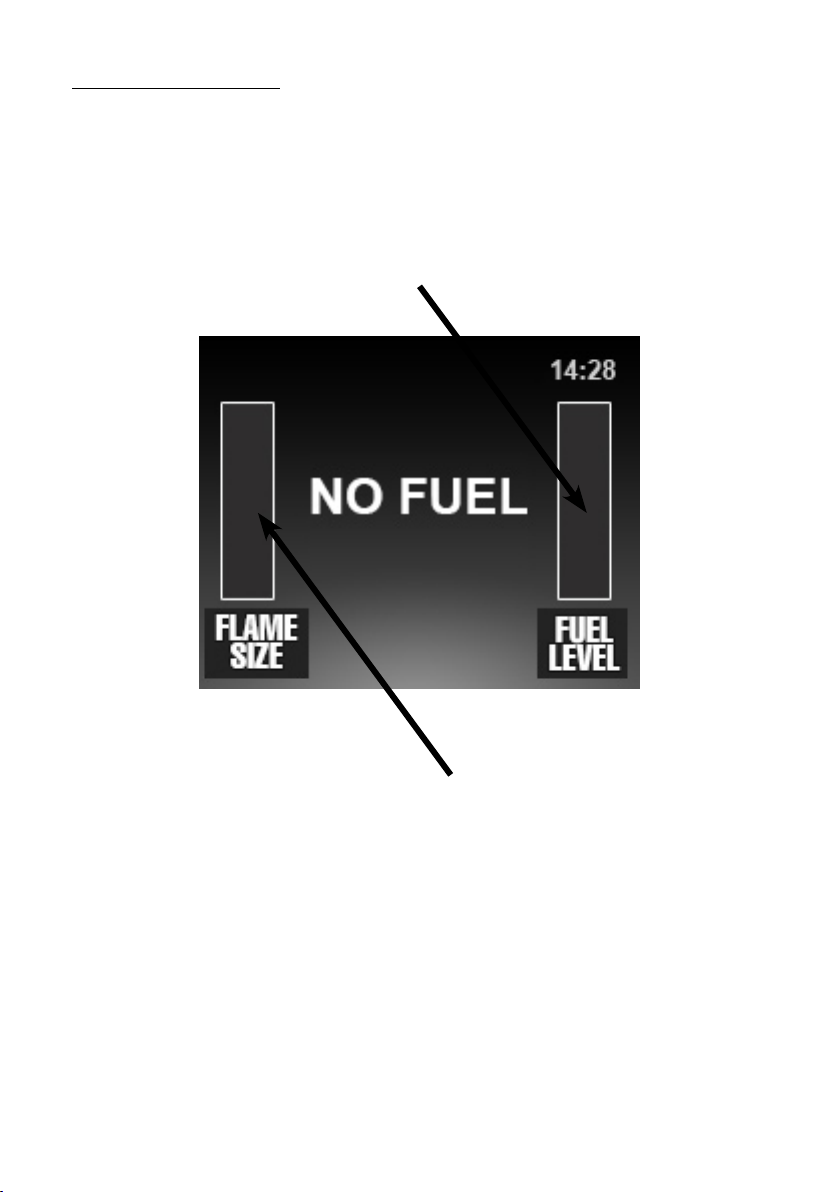

Control Panel Display:

Fuel level indicator

Flame size indicator

23

Initial Start-up of the Device:

1. If button is ashing, the device is properly connected to the

mains.

2. Press button on the control panel. The welcoming display will

appear and after 3 seconds you will see the message.

3. NO FUEL – lack of fuel. To ll it up:
3a. Open the ller bolt, message will change to FILL WITH FUEL.

24

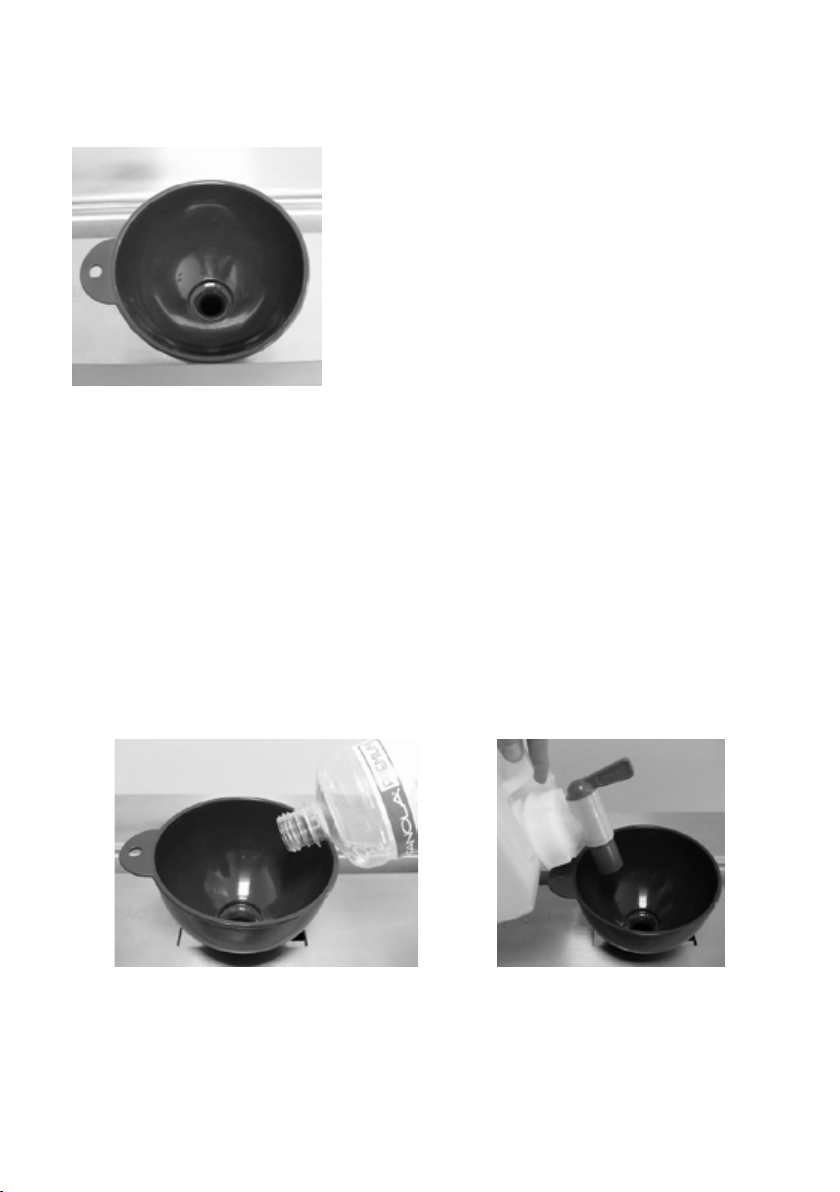

3b. Insert the funnel and fill the reservoir with fuel. Fuel level indicator on
the display will increase.

ATTENTION! Pour the fuel into the funnel following these precautions:

• During pouring be careful not to spill fuel out of the ller.

• If 5L containers are used to ll up, twist on the cap with the tap onto
the container and pour the fuel using the funnel. To ll up only use

accessories provided by the manufacturer.

25

WARNING! ERROR 01 - the fuel has been spilt:

• stop lling the fuel instantly!

• remove the funnel

• dry the visible moisture

• with the use of the manual pump, supplied by the manufacturer,

pump out at least 1 litre of fuel from the fuel filler

• close the ller ap

• turn off the device with the red button

• if the spillage is excessive the power supply needs to be

disconnected

• wait at least 1 hour until the remaining moisture evaporates

• after 1 hour turn the device on with the red button

• if the ERROR 01 message appears, turn off the device and wait until

the remaining moisture evaporates.

3c. When the message RESERVOIR FULL CLOSE THE LID appears on the
display, stop pouring! Take the funnel out and close the ller ap.

26

4. When message changes to READY – the appliance can be started:

- press the START/STOP button on the control panel or the START

button on the remote control or on the congured appliance. WARNING!
The glowing coil starts to heat up to 1300°C, when you touch it you may
be burnt!

- If the function Child lock is turned on, you need to hold the START/
STOP button on the control panel or START button on the remote control
for 3 seconds. It is also possible to push START button on the configured

appliance. WARNING! The lament starts to heat up to 1300°C, when you
touch it you may be burnt!

5. PLEASE WAIT message – you need to wait a moment as it takes a
few seconds for the appliance to ignite the ame.

6. WORKING message – the device is in working mode.

Flame size regulation:

• The appliance initially starts up at the 4th level of the ame size

• Adjust the ame size by pressing either the “+” or “-” button on the
remote control, on the control panel or on the congured appliance.

• Flame size indicator displays the chosen ame size. There is also a
number denoting the ame size visible above the ame size indicator.

27

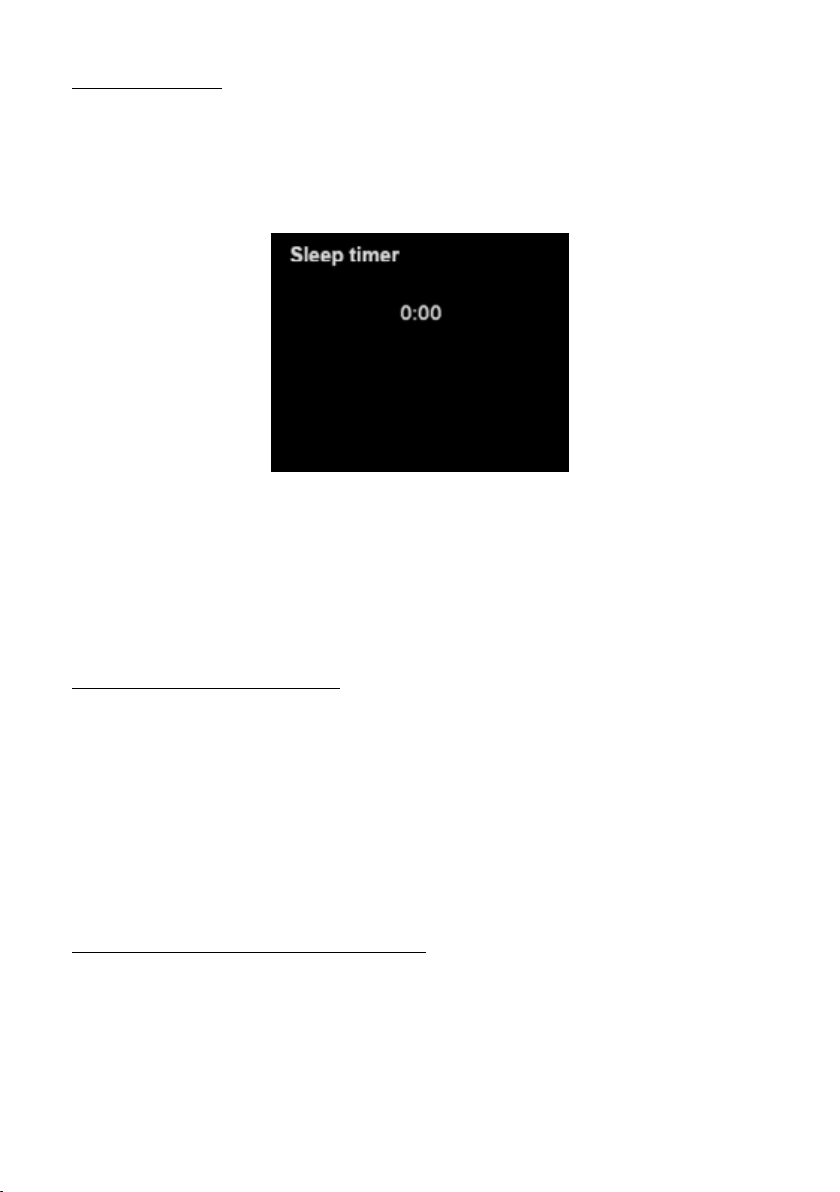

SLEEP function:

The appliance can be programmed to switch off after a given time. When
the message WORKING is visible on the display, you need to hold “+”
and “-” buttons simultaneously for a few seconds. The screen will appear:

Using “+” button choose the desired time (not longer than 3 hours) and
conrm with “-” button.

WARNING! The device with SLEEP function turned on cannot be left

without supervision!

Extinguishing the appliance:

Press the START/STOP button on the control panel or the STOP button on
the remote control or on the configured appliance.

WORKING message will change into COOLING THE DEVICE – the device
is too hot to be started again. To make the cooling process faster, the

cooling fans start operating. When the device cools down the message

on the display turns into READY.

Subsequent start-up of the appliance:

NO FUEL message visible on the display - start the procedures as in point

3 of this manual.

READY message visible on the display - start the procedures as in point 4

of this manual.

28

Switching off:

To switch off the device completely press the red button on the

control panel.

ATTENTION!

The appliance will automatically stop working when:

• the fuel burns out (The “NO FUEL, REFUEL WHEN THE DEVICE IS
COOLED” message will change to the “NO FUEL” message once the
device cools down),

• the temperature of the appliance is too high, (COOLING THE DEVICE
TEMPERATURE TOO HIGH message)

INFO! To avoid abrupt switching off when the temperature approaches
critical level, the ame size will be diminished to 50% and will restrict
the ability to increase the ame size – when you try to increase the ame
size, the message will appear:

If the temperature of the device still increases, the device will switch
off. When the temperature decreases to a safe level, ame size can be

increased again.

• the device is moved or it senses seismic shocks (COOLING THE
DEVICE. DEVICE HIT message)

• the device is tilted (COOLING THE DEVICE. DEVICE TILTED message)

• the allowed level of carbon dioxide is exceeded in the room
(COOLING THE DEVICE CO2 LEVEL TOO HIGH message)

• any occurrence takes place that evokes ERROR message

29

Information and warning alerts:

NO FUEL No
message,

button is

ashing

READY The device is connected

NO FUEL The fuel reservoir is empty. Refill the fuel following the description in

NO FUEL,

REFUEL

WHEN THE

DEVICE IS
COOLED

RESERVOIR
FULL CLOSE

THE LID

FILL WITH

FUEL

COOLING THE

DEVICE

COOLING THE
DEVICE TEMP.
TOO HIGH

COOLING THE

DEVICE

DEVICE HIT

COOLING THE

DEVICE
DEVICE

TILTED

COOLING THE

DEVICE

LEVEL

CO

2

TOO HIGH

The device is connected
to the mains, but remains

dormant.

to the mains and ready to
start.

The fuel has run out

however the device is too
hot to restart it.

The fuel reservoir is full. Close the ller bolt. You can start the

The ller bolt is open. You can rell the fuel or close the bolt and

Protection against restart
of the device when it is too
hot.

The acceptable device

operation temperature has
been exceeded.

The device has been hit. Wait until the device cools down. The

The device has been tilted. Wait until the device cools down. The

The concentration of CO2

has been exceeded.

To start operating the device, press the

red button on the control panel. In this

mode, the device does not respond to
commands sent from the remote control,

the configured device nor buttons on the
control panel.

You can start from point 3 and refuel or

from point 4 and immediately start the
device.

point 3 of the User’s Manual.

Please wait until the device displays the

NO FUEL message. Only then can the fuel

be replenished in accordance with the
point no.3 of the User’s Manual

device now.

start the device.

Wait until the device cools down. The
message will change to READY.
When the message COOLING THE DEVICE
is displayed, the fans that accelerate the

cooling of the device switch on.

Wait until the device cools down. The
message will change to READY.
When the message COOLING THE DEVICE
is displayed, the fans that accelerate the

cooling of the device switch on.

message will change to READY.
When the message COOLING THE DEVICE

is displayed the fans that accelerate the
cooling of the device switch on.

message will change to READY.
When the message COOLING THE DEVICE

is displayed the fans that accelerate the
cooling of the device switch on.

Wait until CO2 level in the room
diminishes. It is advised to open the
windows or open the door to adjacent
rooms.

30

ERROR 1 There was a fuel spill or leak

detected.

ERROR 2 An error of the heater

temperature sensor.

ERROR 3 An error of the fire temperature

sensor.

ERROR 4 An error of the reservoir

temperature sensor.

ERROR 5 Movement sensor actuated. If the device was moved during

ERROR 6 An error of the fuel level probe. Turn off the device using the red button on

ERROR 10 The heater is damaged. Turn off the device using the red button on

ERROR 14 Limiting switch K2. Call SERVICE.

ERROR 15 The device is tilted (set on a

non-levelled surface).

ERROR 16 Exceeded temperature of the

heater sensor.

ERROR 17 Exceeded time of waiting for

the appearance of ame.

ERROR 20 Too low temperature in the

hearth while turning on.

ERROR 21 Too low temperature in the

hearth during operation.

Remove the funnel if it is placed in the

fuel ller. Wipe visible moisture, pump out

at least 1 litre of fuel using the attached
manual pump then turn off the device
using the red button on the control panel.

If the spillage is excessive the source of
power needs to be disconnected. Dry

the visible moisture. Leave the device
switched off for at least 1h. If the message

is still displayed after restart, turn off the

device for a longer time. If this does not
solve the problem call SERVICE.

Turn off the device using the red button on
the control panel. Turn it on after a while.

If the message does not disappear call
SERVICE.

operation. The message will disappear

with the disappearance of the source of
movement.

the control panel. Turn it on after a while.

If the message does not disappear call
SERVICE.

the control panel. Turn it on after a while.

If the message does not disappear call
SERVICE.

Switch off the device using the red button
on the control panel. Level the surface on
which the device stands and restart the
device.

Turn off the device using the red button on
the control panel. Turn it on after a while.

If the message does not disappear call
SERVICE.

Turn off the device using the red button

and try to restart the device.

Turn off the device with the red button and
wait until it cools down. Try to restart the

device.

31

ERROR 31 Fuel spilled within fuel pump Turn off the device with the red button

ERROR 98 Error occurred during remote

control programming.

ERROR 99 No connection between

the control panel and
microprocessor

and wait at least 1h. Try to restart the

device. If the message does not disappear
wait longer until the moisture evaporates
completely. If the message does not
disappear call SERVICE.

Try to program the remote control again.

Try to restart the device.. If the message

does not disappear call SERVICE.

32

III. Customer’s Menu

If READY or NO FUEL message is visible on the display, you may access
Customer’s menu. To do this, hold “+” button for 8s and menu will appear

on the display.

It is possible to operate the menu only by means of the buttons on the
control panel. To move between the categories use “+” and to choose a
particular category use ‘-‘. Leaving the menu unused for 5s will result in
coming back to the main display.

1) Locking the appliance:

This function allows the device to be locked in order to avoid its use by
unauthorized persons. To turn this function on press “-” on the control

panel.

This screen appears:

The device cannot be turned on either via remote control, congured
device or according to the manual, without previously unlocking it. To

unlock the device hold START/STOP button for 5s – the message will
disappear.

33

2) Child lock

When the function is turned on it forces the user to hold START/STOP
button on the control panel or remote control for 3s in order to start the
device. If START/STOP button is only pressed quickly, the device will not
start.

To turn this function on press “-” on the control panel. This screen will

appear:

Using “-” button confirm ON option ashing in red. On the main display
the information that ‘Child lock’ function is turned on will be visible.

To turn this function off, choose OFF option in the menu of ‘Child lock’
function.

34

3) Set time

This allows date and time to be set.

Go to the menu’s functions by means of “-” button. The hour starts to
blink. Using “+” button set the appropriate hour and conrm with “-”
button. Do the same to set minutes and date, using “+” for choosing
the appropriate numbers and “-” for confirming them. When setting is
nished, the device will automatically come back to the main display with

time already visible.

4) Device IP

This shows the device IP that is essential in operating the device via the

configured appliance. Additional information can be found in the manual
concerning Configuration of the module with Wi-Fi and Smart Home

System.

35

5) Remote Control

Remote control attached to the device is already programmed. This

function allows for the remote control to be programmed if there is such
a need at a future date or if one remote control is to control several units.

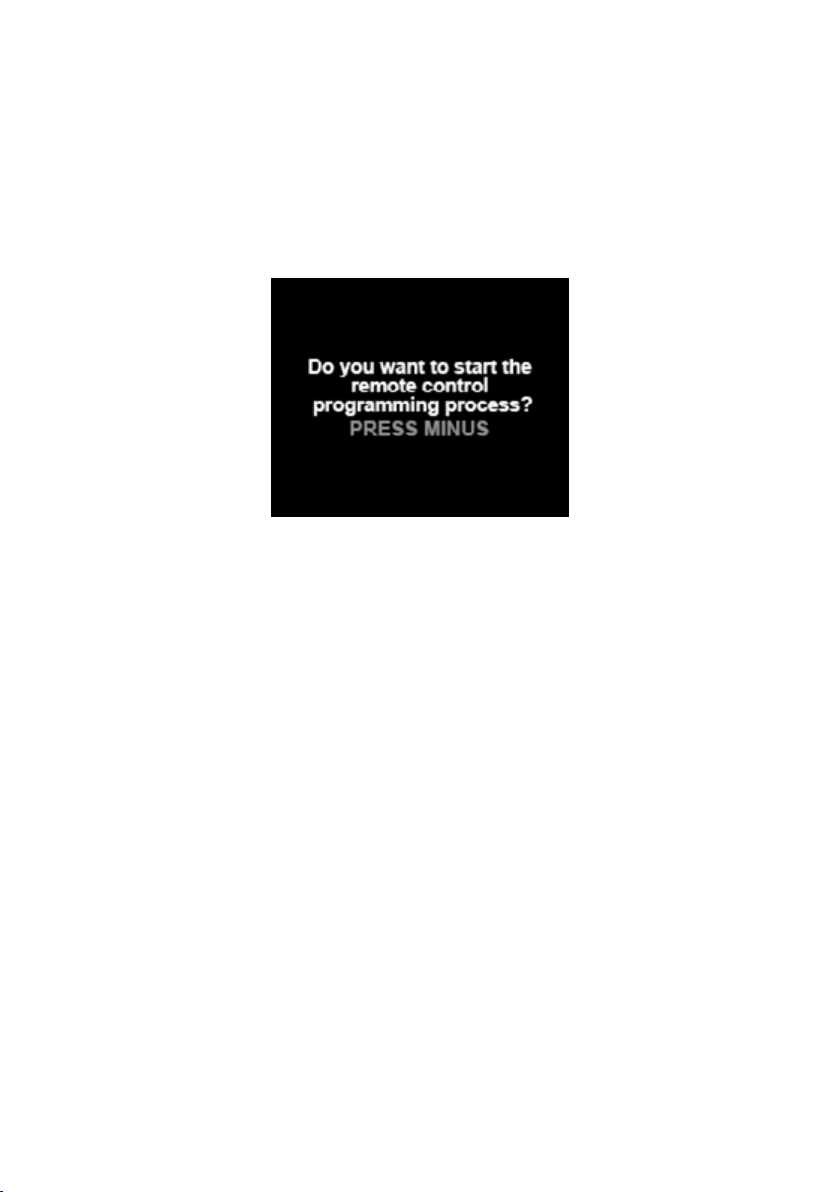

To program the remote control press “+”, choose ‘Remote Control’ and
conrm with “-” button. This screen will appear:

Press “-” button to conrm. Then press in sequence (hold until next

message appears) START, STOP, PLUS, MINUS. After the remote control
has been programmed the messages disappear and main display
appears. Remote control is programmed.

6) Fast start

When ‘Fast start’ function is turned on, the time for the ame to appear
is much shorter. The device is automatically programmed with ‘Fast start’
function turned on. To turn it off press “-” button on the control panel. The

screen will appear:

36

Using “+” button choose OFF option and conrm with “-” button. The

device automatically returns to main display and ‘Fast start’ function will
be turned off.

To restart this function choose ON option in menu of ‘Fast start’ function.

Warning! When ‘Fast start’ function is turned on the device uses 100W of

energy.

Turning off the device with button prevents from using the energy

but does not turn off ‘Fast start’ function.

7) Serial number

It displays serial number of the device.

8) Software

It displays the version of an installed program.

37

IV. Cleaning and Maintenance

Switch off the device before cleaning. Wait until the temperature of the

device gets close to the ambient temperature. To maintain the device in
good condition, please observe the following rules:

• To clean stainless steel surfaces, use only gentle cleaners
which do not cause cracks or scratches, or use other means

specifically designed for cleaning stainless steel.

The inside of the device can only be cleaned by a person competent to

service the appliance.

The manufacturer does not foresee a situation where it will be necessary

to clean elements not normally accessible.

The manufacturer is not liable for damage resulting from:

• Improper operation (failure to follow procedures detailed in the User’s

Manual).

• Self-dismantling of the device.

• Attempts to modify the device.

• Using other liquids than those recommended in point V. Fuel.

38

V. Fuel

In order for the unit to function correctly only fuel must be used that is

a 86-96% denatured ethanol in accordance with the European Union
guidelines (Directive No. 162/2013).

Using other liquids is prohibited as it may lead to incorrect functioning of

the device, damage of the device and/or may cause re or and/or health
risk. The manufacturer takes no responsibility for damage caused by

using prohibited liquids such as absolute ethanol.

VI. Disposal and recycling

The product is equipped with parts made of aluminium, steel, plastics
and electronics. If you need to dispose of the device, follow the terms of

disposal and recycling in force in your country.

Moreover, dispose of the empty fuel containers using appropriate plastic

waste disposal.

Most of the materials used can be recycled.

If you have technical problems or other questions that require

clarication, please contact the manufacturer.

39
