Warning
1. Product is for single person use only.
2. Do not use this chair unless all screws are securely tightened.
3. Check all screws are tightened every six months or as needed.
4. Dispose of packing material properly. Do not use plastic cover as a head covering.
Suocation may result.
5. Do not use this chair as a stepladder.
For assistance, call (888) 471-1616, or visit www.cherrymanindustries.com
1 2B2A
3
4A 4B

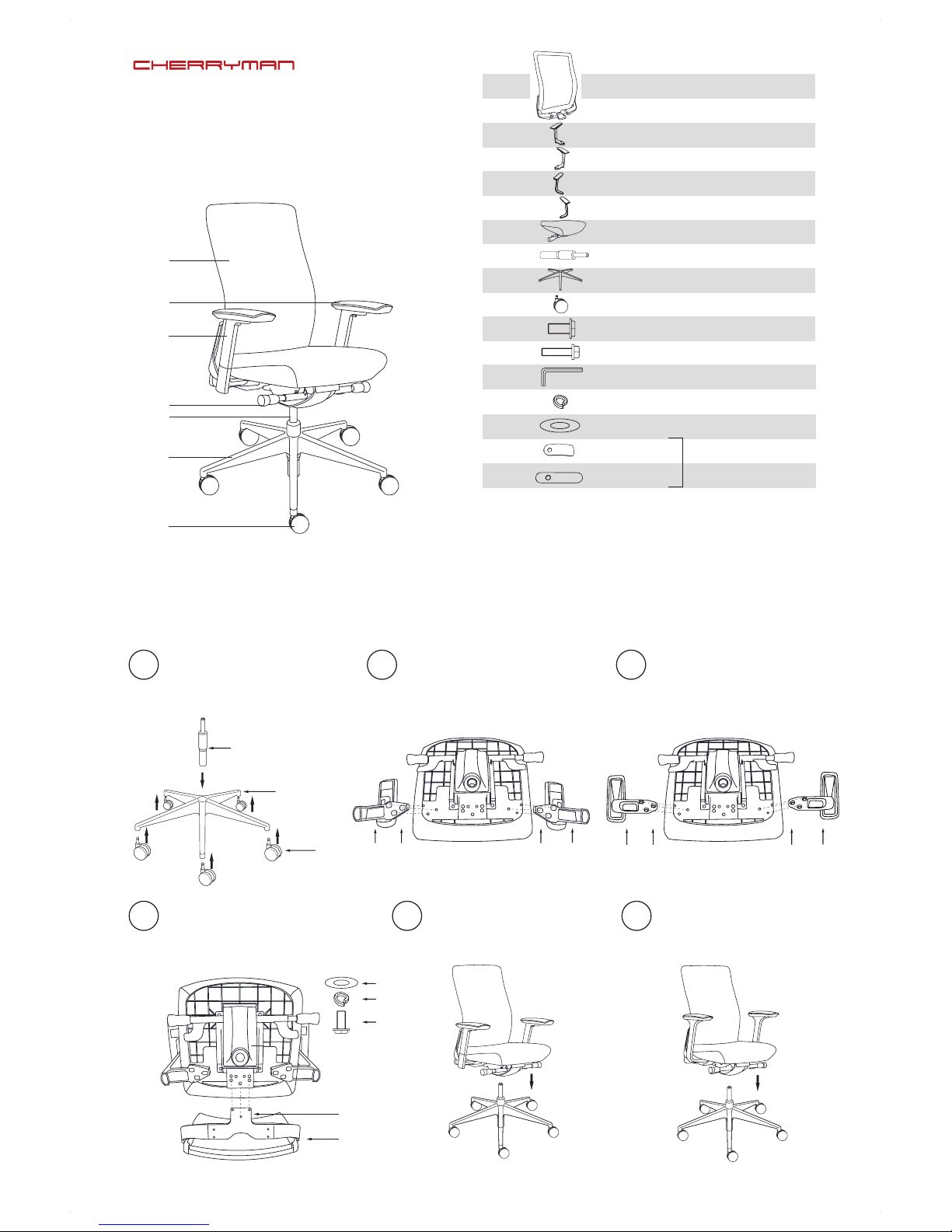

Base Assembly
Firmly snap Casters (G) into Base (F). Place
base on ground with casters attached.
Drop Gas Cylinder (E) into base with skinny
end pointing up.
Seat /Back Assembly
Carefully align the Back Frame (A) to Seat Pan (D).
Tighten Back Frame to the Seat Pan using Short
Bolt (H), Lock Washer (K) and Flat Washer (L).
Task Chair Final Assembly
With the Base on the ground, carefully
align the Gas Cylinder with the hole in the
center of the underside of the Seat Pan,
applying pressure.
Conference Chair Final Assembly
With the Base on the ground, carefully
align the Gas Cylinder with the hole in the
center of the underside of the Seat Pan,
applying pressure.
415 Task Chair Arm Assembly
Using the Long Bolts (I) screw in the arms
to the underside of the Seat Pan.
416 Conference Chair Arm Assembly
Using the Long Bolts (I) screw in the arms to
the underside of the Seat Pan.
Ex1
Gx5
Hx3,Kx3,Lx3
K
L
H

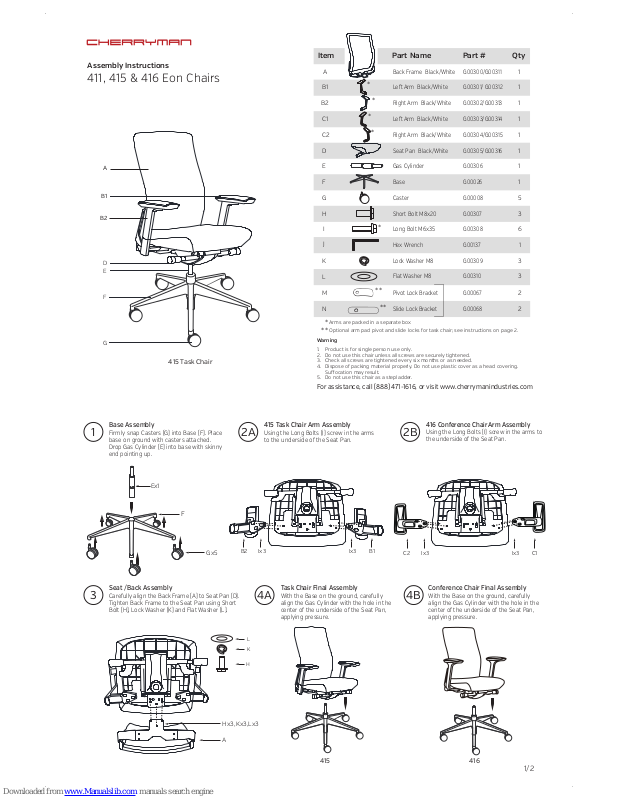

Assembly Instructions
411, 415 & 416 Eon Chairs
1/2
A
D
E
F
G
B1
B2
Ix3Ix3
B1B2
F
C2
A
C1
Ix3Ix3
415
415 Task Chair
416
*
*
*
*
*
Item Part Name Part # Qty
1
1
1
1
1
1
1
3
6
5
3
3
2
2
1
Back Frame Black/White
G00300/G00311
Le Arm Black/White
G00301/ G00312
Le Arm Black/White
G00303/G00314
Right Arm Black/White
G00302/G00313
Right Arm Black/White
G00304/G00315
Gas Cylinder
G00306
Base
G00026
Caster
G00008
Short Bolt M8x20
G00307
Long Bolt M6x35
G00308
Hex Wrench
G00137
Lock Washer M8
G00309
Flat Washer M8
G00310
1
Slide Lock Bracket
Pivot Lock Bracket
G00067
G00068
Seat Pan Black/White
G00305/G00316
A
D
E
F
G
H
I
J
K
L
M
N
B1
C1
B2
C2
*
Arms are packed in a separate box
** Optional arm pad pivot and slide locks for task chair; see instructions on page 2.
**
**
Page 2
1
2
1
2
3
4 5

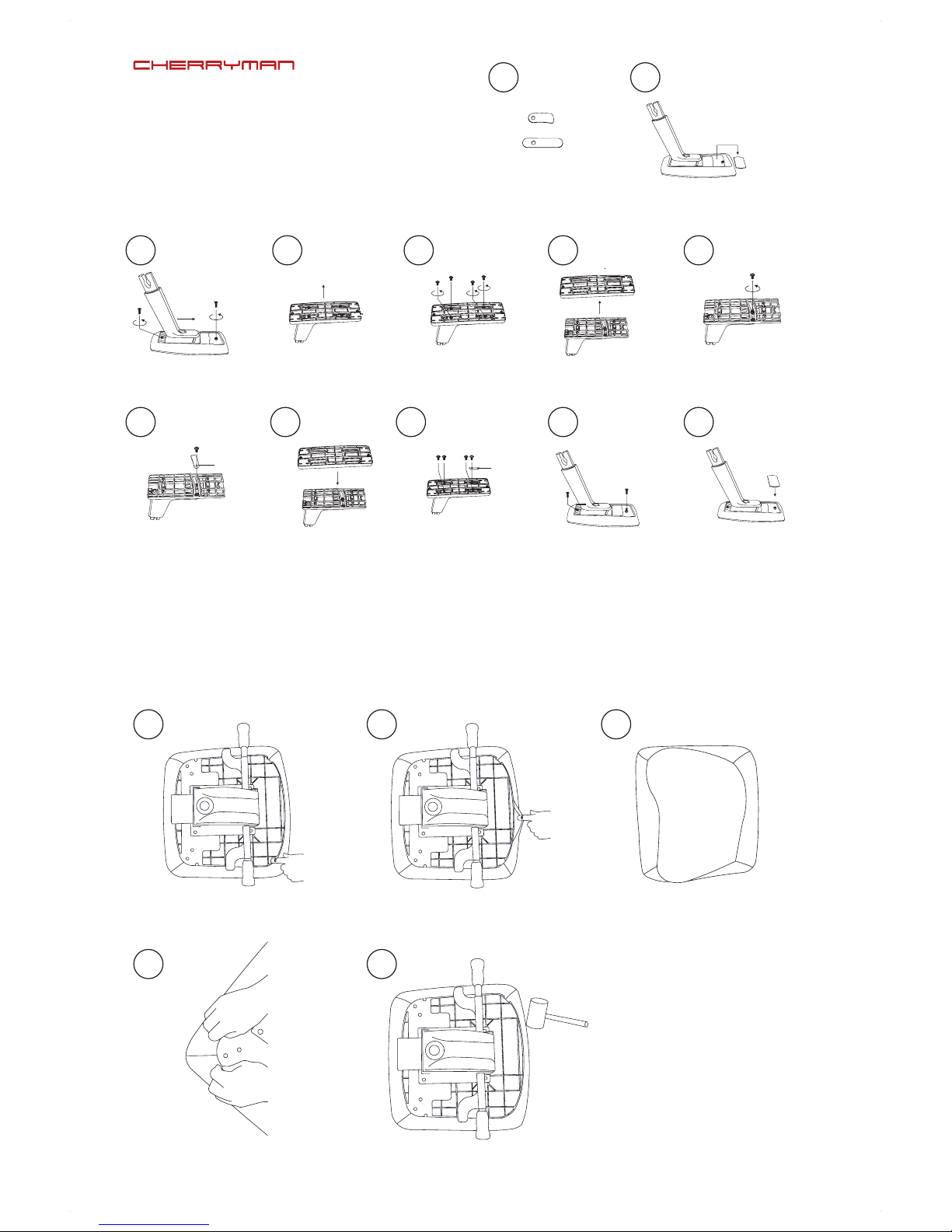

Instructions for Arm Pad Pivot & Slide
Locks for Task Chair (Optional)
413 & 415 Eon Task Chair
Assembly Instructions Slip Cover (Optional)
411, 415 & 416 Eon Chairs
2/2
Item M & Item N
Slide the arm pad forward
and remove screws
Use finger to pull & remove
the seat cover stiener
Re-insert the seat cover stiener
Place Item M and use the
same screw to secure it
Slide the arm pad back and
take a flat screwdriver and
pop o the cover
Remove the arm pad
Pull along edge to
remove seat cover
Use rubber hammer to tap fit the
seat cover with the seat base
Place sliding part
back on
Remove four screws that
secure the part for sliding
New seat cover
Pick any of the screw holes
to install item N and use the
same screw to secure it
Remove part
Reinstall the arm pad using
the same two screws and
secure the pad.
Make sure the angle adjustment is straight, then remove
center screw
Reinstall cover
M
N
3
8
4
9
5
10
6
11
7
12
x2
x2
x1
x1
