Cherry Aerospace H83B-6MBU Technical Data Sheet

1224 East Warner Ave,

www.cherryaerospace.com

H83B-6MBU

TS-H83B-6MBU Rev: C Date: 08/16/17 CR: 17-0658

Figure 1

MAXIBOLT STRAIGHT PULLING HEAD,
FOR -6 DIAMETER “U” TYPE MAXIBOLT

Technical Data Sheet, Page 1 of 2

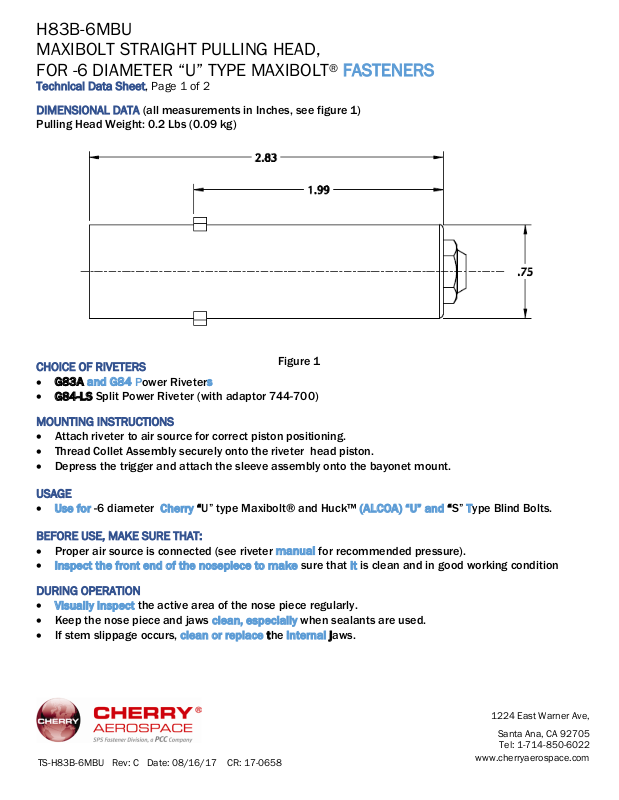

DIMENSIONAL DATA (all measurements in Inches, see figure 1)

Pulling Head Weight: 0.2 Lbs (0.09 kg)

®

FASTENERS

CHOICE OF RIVETERS

• G83A and G84 Power Riveters

• G84-LS Split Power Riveter (with adaptor 744-700)

MOUNTING INSTRUCTIONS

• Attach riveter to air source for correct piston positioning.

• Thread Collet Assembly securely onto the riveter head piston.

• Depress the trigger and attach the sleeve assembly onto the bayonet mount.

USAGE

• Use for -6 diameter Cherry “U” type Maxibolt® and Huck™ (ALCOA) “U” and “S” Type Blind Bolts.

BEFORE USE, MAKE SURE THAT:

• Proper air source is connected (see riveter manual for recommended pressure).

• Inspect the front end of the nosepiece to make sure that it is clean and in good working condition

DURING OPERATION

• Visually inspect the active area of the nose piece regularly.

• Keep the nose piece and jaws clean, especially when sealants are used.

• If stem slippage occurs, clean or replace the internal jaws.

A

Santa Ana, CA 92705

Tel: [phone]

1224 East Warner Ave,

www.cherryaerospace.com

H83B-6MBU

TS-H83B-6MBU Rev: C Date: 08/16/17 CR: 17-0658

WARRANTY

For more information please contac t our Technical Services Departm ent at tel. [phone]

1 652-178 NOSE PIECE 1
2 652-005 SLEEVE

1

3 652-030 COLLET 1
4 744C76 JAW SET 1
5 652-031 JAW FOLLOWER 1
6 P-1425 COMP RESSION SPRING 1

ITEM

No.

PART

NUMBER

DESCRIPTION

QTY.
PER

MAXIBOLT STRAIGHT PULLING HEAD,
FOR -6 DIAMETER “U” TYPE MAXIBOLT

Technical Data Sheet, Page 2 of 2

PREVENTATIVE MAINTENANCE

• Visually inspect the front end of the nosepiece as often as possible; due to the high installation shock,

this area of the nosepiece is expected to have a shorter life span. Replace if damaged or worn.
For greatly improved tool life, choose a Cherry “S” type Maxibolt® type fastener (shift washer type).

• Clean the nose piece, jaw set and collet every 1,000 installations, or when failures occurs.

• Lubricate outside configuration of the jaw set with Lubriplate® or similar light lubricant.

• Inspect regularly and keep the active area clean and in good working condition.

• Replace worn or broken components.

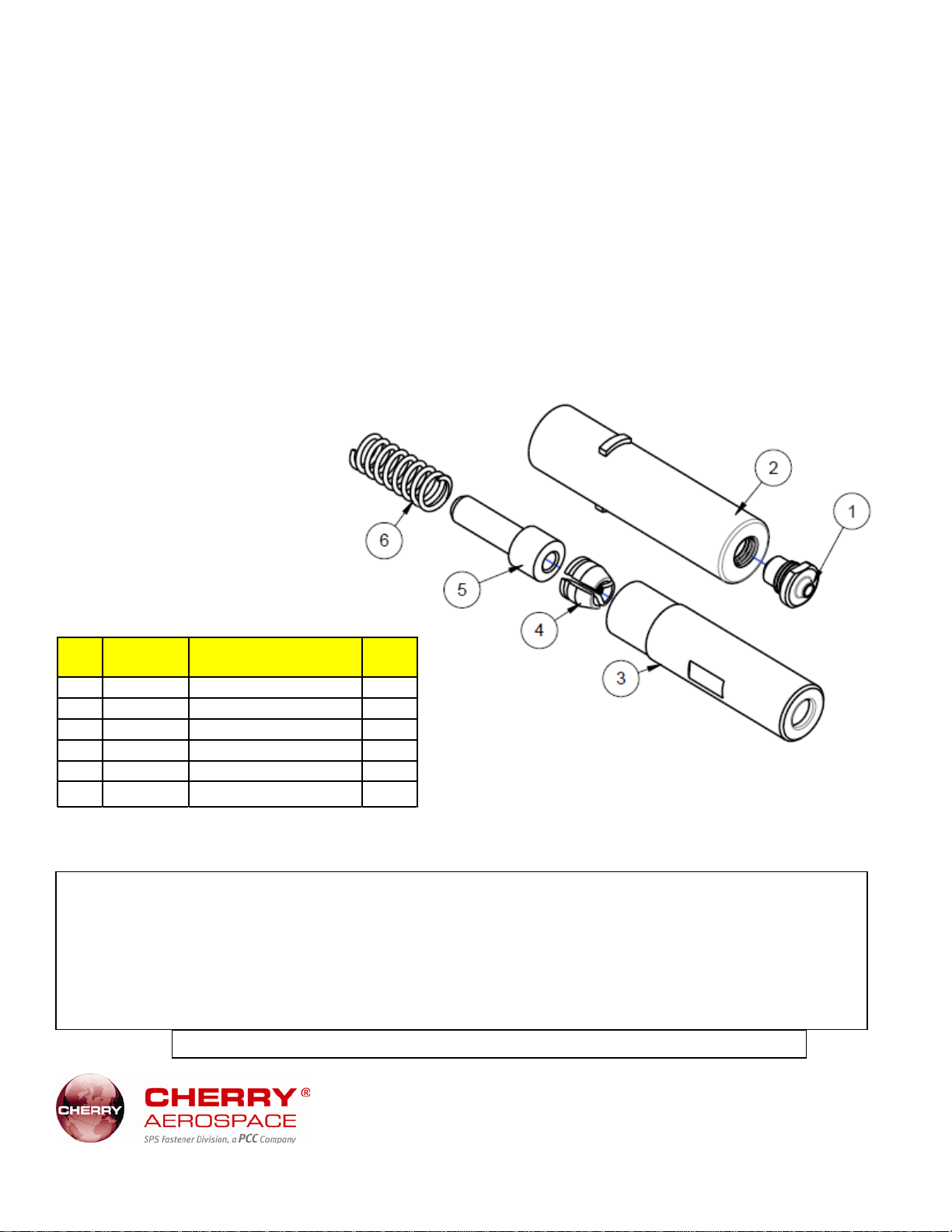

PARTS LIST

LOCTITE® is a registered trademark of Henkel Corporation.
LUBRIPLATE® is a registered trademark of Fiske Brothers Refining Co.

®

FASTENERS
