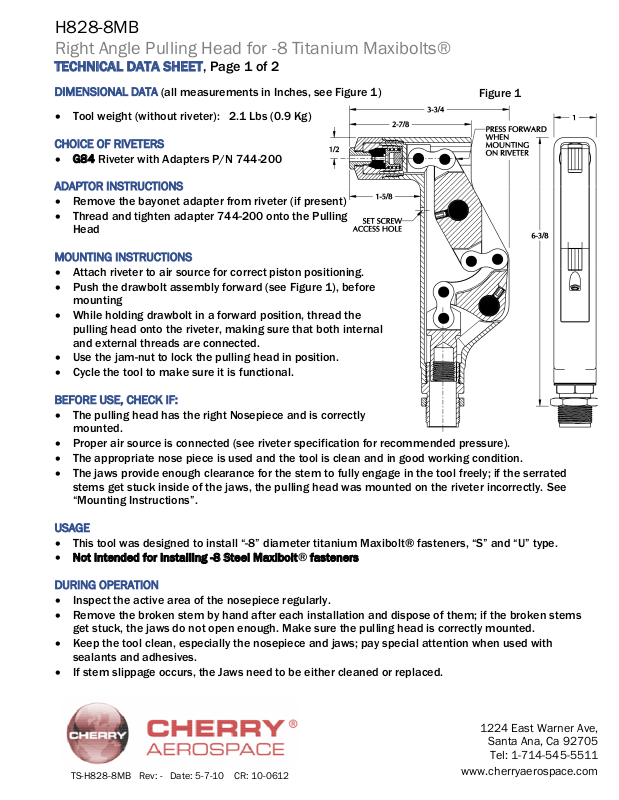

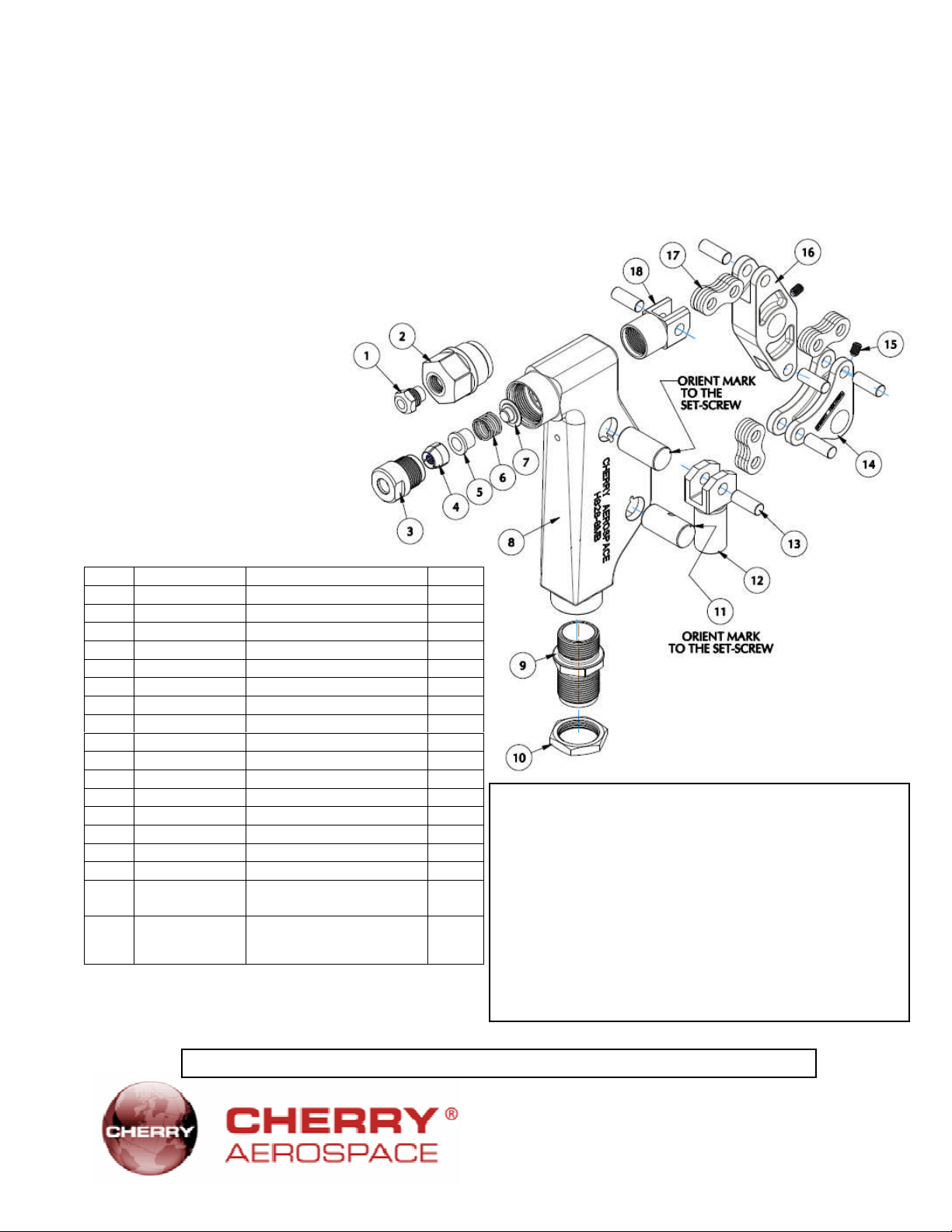

Right Angle Pulling Head for -8 Titanium Maxibolts®
TECHNICAL DATA SHEET, Page 1 of 2

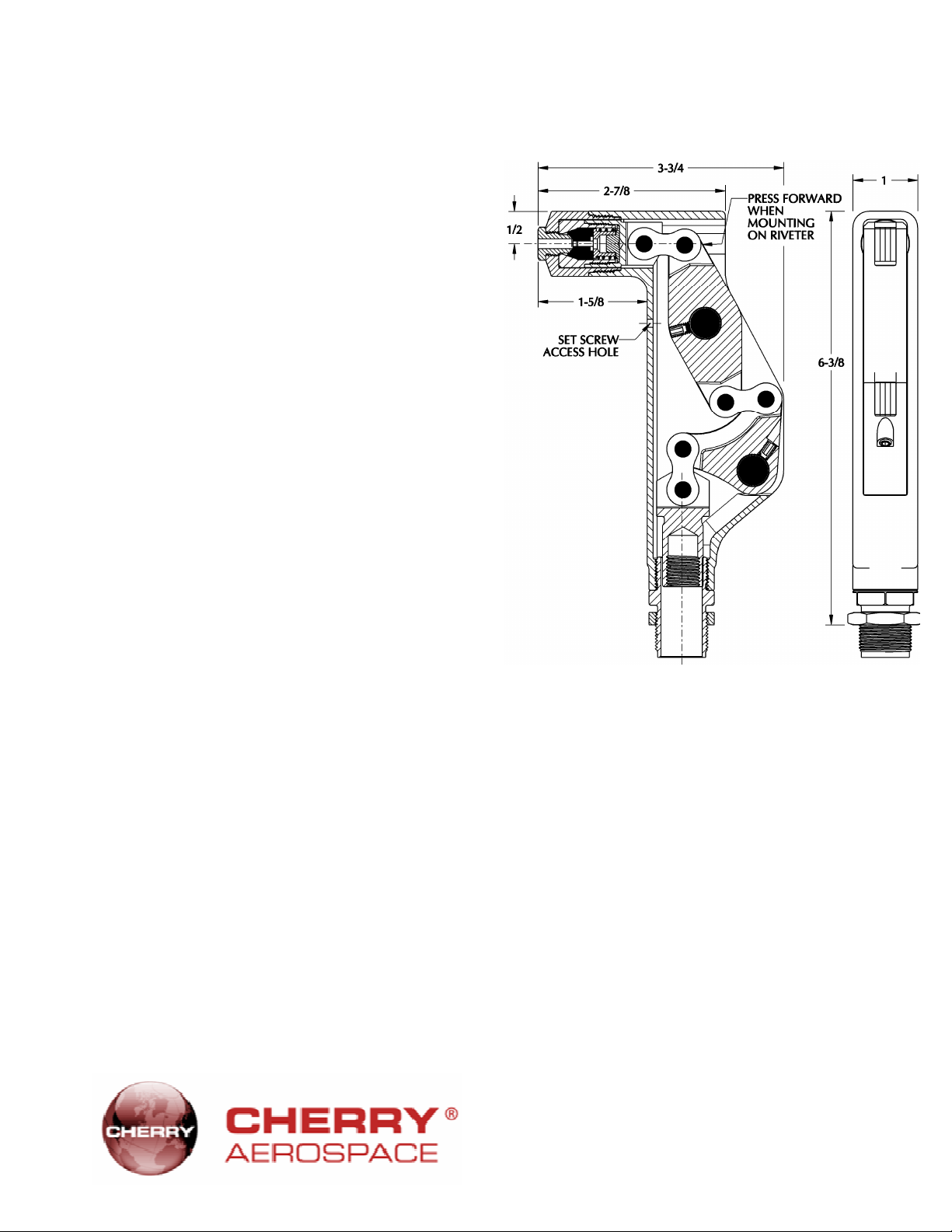

DIMENSIONAL DATA (all measurements in Inches, see Figure 1)
Tool weight (without riveter): 2.1 Lbs (0.9 Kg)
CHOICE OF RIVETERS
G84 Riveter with Adapters P/N 744-200
ADAPTOR INSTRUCTIONS
Remove the bayonet adapter from riveter (if present)
Thread and tighten adapter 744-200 onto the Pulling
Head
MOUNTING INSTRUCTIONS
Attach riveter to air source for correct piston positioning.
Push the drawbolt assembly forward (see Figure 1), before
mounting
While holding drawbolt in a forward position, thread the
pulling head onto the riveter, making sure that both internal
and external threads are connected.
Use the jam-nut to lock the pulling head in position.
Cycle the tool to make sure it is functional.
BEFORE USE, CHECK IF:
The pulling head has the right Nosepiece and is correctly
mounted.
Proper air source is connected (see riveter specification for recommended pressure).
The appropriate nose piece is used and the tool is clean and in good working condition.
The jaws provide enough clearance for the stem to fully engage in the tool freely; if the serrated
stems get stuck inside of the jaws, the pulling head was mounted on the riveter incorrectly. See
“Mounting Instructions”.
USAGE
This tool was designed to install “-8” diameter titanium Maxibolt® fasteners, “S” and “U” type.
Not intended for installing -8 Steel Maxibolt® fasteners
DURING OPERATION
Inspect the active area of the nosepiece regularly.
Remove the broken stem by hand after each installation and dispose of them; if the broken stems
get stuck, the jaws do not open enough. Make sure the pulling head is correctly mounted.
Keep the tool clean, especially the nosepiece and jaws; pay special attention when used with
sealants and adhesives.
If stem slippage occurs, the Jaws need to be either cleaned or replaced.
