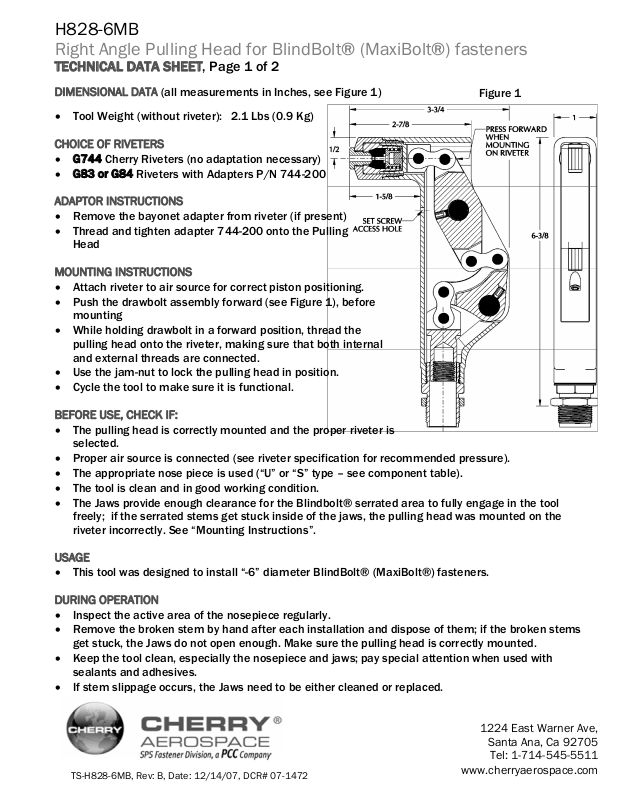

H828-6MB
Right Angle Pulling Head for BlindBolt® (MaxiBolt®) fasteners
TECHNICAL DATA SHEET, Page 1 of 2
DIMENSIONAL DATA (all measurements in Inches, see Figure 1)
• Tool Weight (without riveter): 2.1 Lbs (0.9 Kg)
CHOICE OF RIVETERS
• G744 Cherry Riveters (no adaptation necessary)
• G83 or G84 Riveters with Adapters P/N 744-200
ADAPTOR INSTRUCTIONS
• Remove the bayonet adapter from riveter (if present)
• Thread and tighten adapter 744-200 onto the Pulling
Head
MOUNTING INSTRUCTIONS
• Attach riveter to air source for correct piston positioning.
• Push the drawbolt assembly forward (see Figure 1), before
mounting
• While holding drawbolt in a forward position, thread the
pulling head onto the riveter, making sure that both internal
and external threads are connected.
• Use the jam-nut to lock the pulling head in position.
• Cycle the tool to make sure it is functional.
BEFORE USE, CHECK IF:
• The pulling head is correctly mounted and the proper riveter is
selected.
• Proper air source is connected (see riveter specification for recommended pressure).
• The appropriate nose piece is used (“U” or “S” type – see component table).
• The tool is clean and in good working condition.
• The Jaws provide enough clearance for the Blindbolt® serrated area to fully engage in the tool
freely; if the serrated stems get stuck inside of the jaws, the pulling head was mounted on the
riveter incorrectly. See “Mounting Instructions”.
USAGE
• This tool was designed to install “-6” diameter BlindBolt® (MaxiBolt®) fasteners.
DURING OPERATION
• Inspect the active area of the nosepiece regularly.
• Remove the broken stem by hand after each installation and dispose of them; if the broken stems
get stuck, the Jaws do not open enough. Make sure the pulling head is correctly mounted.
• Keep the tool clean, especially the nosepiece and jaws; pay special attention when used with
sealants and adhesives.
• If stem slippage occurs, the Jaws need to be either cleaned or replaced.

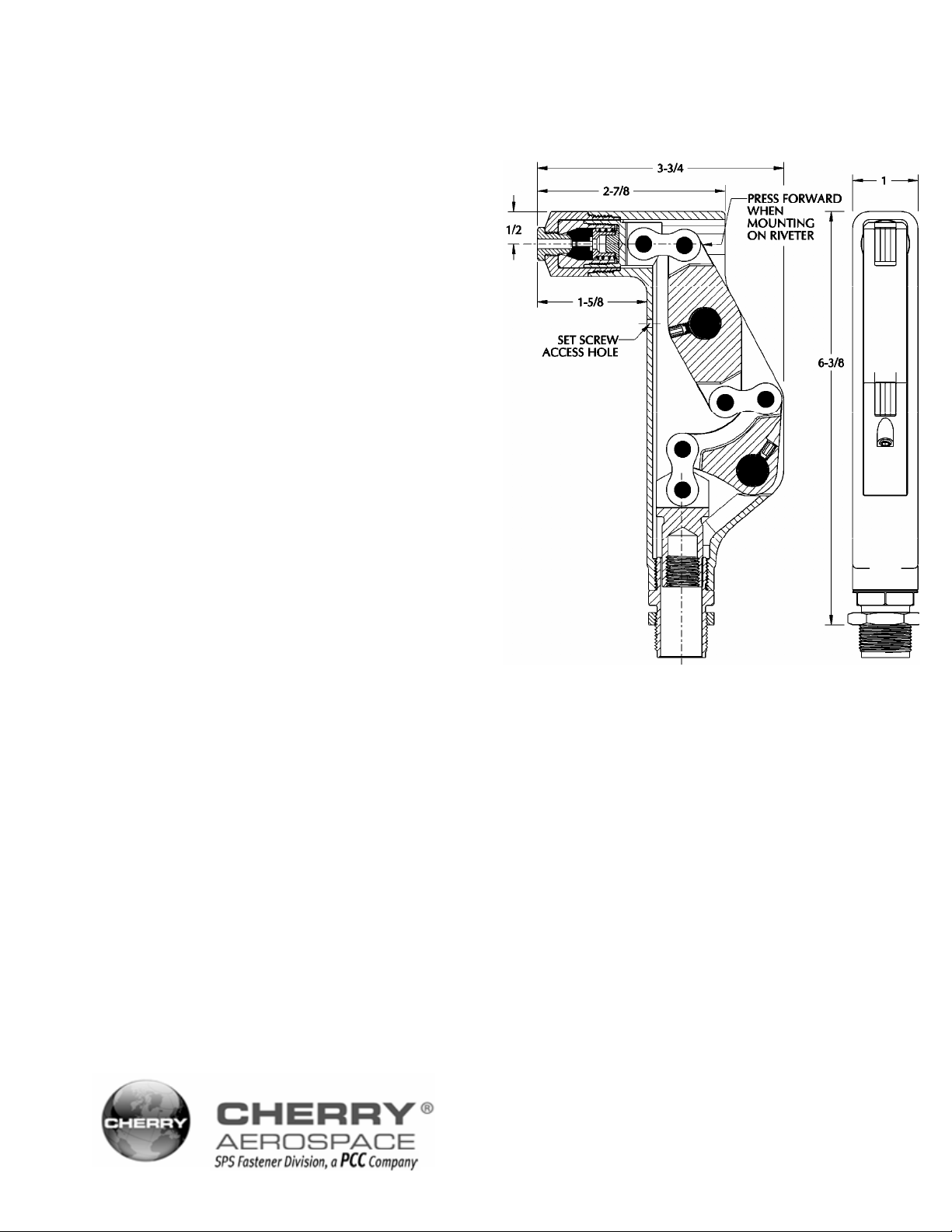

Figure 1
1224 East Warner Ave,
Santa Ana, Ca 92705
Tel: 1-714-545-5511
TS-H828-6MB, Rev: B, Date: 12/14/07, DCR# 07-1472
www.cherryaerospace.com
Page 2
H828-6MB
p
Right Angle Pulling Head for BlindBolt® (MaxiBolt®) fasteners
TECHNICAL DATA SHEET, Page 2 of 2
PREVENTATIVE MAINTENANCE
• Inspect active area
regularly and keep it clean,
in good condition
• Clean the Insert, Jaws and
Jaw Cavity inside the Collet
every 1,000 installations.
• Lubricate outside
configuration of the jaws
with Lubriplate® or similar
light grease.
• Use Loctite® 242
(removable) on threaded
components as shown.
• At assembly, thread in the
Set Screws tightly (ITEM
16), then back them off ¼
of a turn.

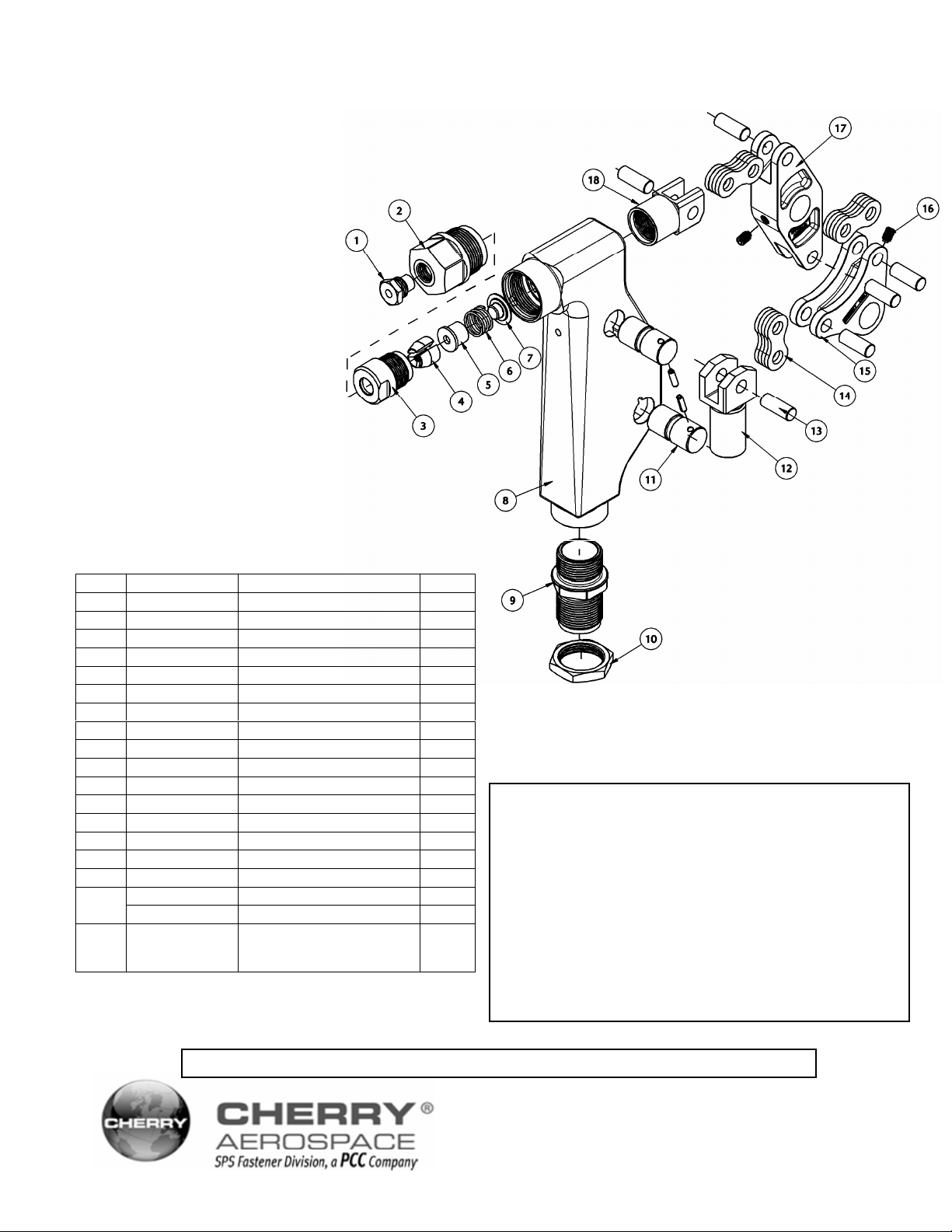

PARTS LIST
18 828B6 COLLET BOLT 1
17 828B3 LEVER 1
16 P-930 SET SCREW 2
15 828B4 BELL CRANK 1
14 828B15 LINK PLATES (SET OF 4) 3
13 828B14 LINK PIN 6
12 828B5 DRAWBOLT 1
11 828B13 PIVOT PIN ASSEMBLY 2
10 642A64 JAM NUT 1
9 828B7 ADAPTER FITTING 1
8 828B2 FRAME 1
7 828B11 GUIDE BUTTON 1
6 828A12 COMPRESSION SPRING 1
5 828B21 JAW FOLLOWER 1
4 744C76 JAWS (SET OF 3) 1
3 828C9 COLLET 1
2 828C8 SLEEVE 1
1
ITEM
NO.
828-036 -6 NOSEPIECE “U” TYPE 1
828B23 -6 NOSEPIECE “S” TYPE 1
PART NUMBER DESCRIPTION
QTY.
PER
ASSY.
LOCTITE® is a registered trademark of Henkel Corporation.
LUBRIPLATE® is a registered trademark of Fiske Brothers Refining Co.
WARRANTY
Seller warrants the goods conform to applicable specifications and drawings and will be manufactured and
inspected according to generally accepted practices of companies manufacturing industrial or aerospace
fasteners. In the event of any breach of the foregoing warranty, Buyer’s sole remedy shall be to return
defective goods (after receiving authorization from Seller) for replacement or refund of the purchase price,
at the Seller’s option. Seller agrees to any freight costs in connection with the return of any defective
goods, but any costs relating to removal of the defective or nonconforming goods or installation of
replacement goods shall be Buyer’s responsibility. SELLER’S WARRANTY DOES NOT APPLY WHEN ANY
PHYSICAL OR CHEMICAL CHANGE IN THE FORM OF THE PRODUCT IS MADE BY BUYER. THE
FOREGOING EXPRESS WARRANTY AND REMEDY ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER
WARRANTIES AND REMEDIES; ANY IMPLIED WARRANTY AS TO QUALITY, FITNESS FOR PURPOSE, OR
MERCHANTABILITY IS HEREBY SPECIFICALLY DISCLAIMED AND EXCLUDED BY SELLER. This warranty
is void if seller is not notified in writing of any rejection of the goods within ninety (90) days after receipt of
the goods by buyer.
Seller shall not be liable under any circumstances for incidental, special or consequential damages arising
in whole or in part from any breach by Seller, AND SUCH INCIDENTAL, SPECIAL, OR CONSEQUENTIAL
DAMAGES ARE HEREBY EXPRESSLY EXCLUDED.
Our policy is one of continuous development. Specifications shown in this document may be subject to
changes introduced after publication.
NOTE: The properties, strength, dimensions, installed characteristics and all other information in these
materials are for guidance only to aid in the correct selection
of the products described herein and is not intended or implied as part of the above warranty. All
applications should be evaluated for functional stability and available
sam
les of the described parts can be requested for installed tests, suitability and evaluations.
For more information please contact our Technical Services Department at tel. 714-850-6022
