CHERRY JK-8550EU-2 Datasheet

CHERRY STREAM KEYBOARD WIRELESS

1 / 4 © Cherry Europe GmbH • Cherrystraße • 91275 Auerbach/OPf. • Germany
Tel [phone] • Fax [phone] • www.cherry.de • 2021-07-29

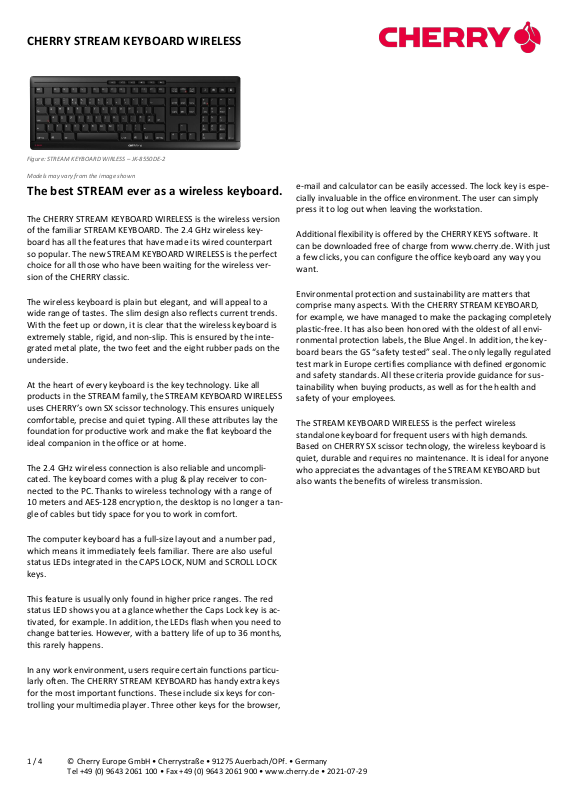

Figure: STREAM KEYBOARD WIRLESS – JK-8550DE-2

Models may vary from the image shown

The best STREAM ever as a wireless keyboard.

The CHERRY STREAM KEYBOARD WIRELESS is the wireless version
of the familiar STREAM KEYBOARD. The 2.4 GHz wireless key­board has all the features that have made its wired counterpart
so popular. The new STREAM KEYBOARD WIRELESS is the perfect
choice for all those who have been waiting for the wireless ver­sion of the CHERRY classic.

The wireless keyboard is plain but elegant, and will appeal to a
wide range of tastes. The slim design also reflects current trends.
With the feet up or down, it is clear that the wireless keyboard is
extremely stable, rigid, and non-slip. This is ensured by the inte­grated metal plate, the two feet and the eight rubber pads on the
underside.

At the heart of every keyboard is the key technology. Like all
products in the STREAM family, the STREAM KEYBOARD WIRELESS
uses CHERRY’s own SX scissor technology. This ensures uniquely
comfortable, precise and quiet typing. All these attributes lay the
foundation for productive work and make the flat keyboard the
ideal companion in the office or at home.

The 2.4 GHz wireless connection is also reliable and uncompli­cated. The keyboard comes with a plug & play receiver to con­nected to the PC. Thanks to wireless technology with a range of
10 meters and AES-128 encryption, the desktop is no longer a tan­gle of cables but tidy space for you to work in comfort.

The computer keyboard has a full-size layout and a number pad,
which means it immediately feels familiar. There are also useful
status LEDs integrated in the CAPS LOCK, NUM and SCROLL LOCK
keys.

This feature is usually only found in higher price ranges. The red
status LED shows you at a glance whether the Caps Lock key is ac­tivated, for example. In addition, the LEDs flash when you need to
change batteries. However, with a battery life of up to 36 months,
this rarely happens.

In any work environment, users require certain functions particu­larly often. The CHERRY STREAM KEYBOARD has handy extra keys
for the most important functions. These include six keys for con­trolling your multimedia player. Three other keys for the browser,

e-mail and calculator can be easily accessed. The lock key is espe­cially invaluable in the office environment. The user can simply
press it to log out when leaving the workstation.

Additional flexibility is offered by the CHERRY KEYS software. It
can be downloaded free of charge from www.cherry.de. With just
a few clicks, you can configure the office keyboard any way you
want.

Environmental protection and sustainability are matters that
comprise many aspects. With the CHERRY STREAM KEYBOARD,
for example, we have managed to make the packaging completely
plastic-free. It has also been honored with the oldest of all envi­ronmental protection labels, the Blue Angel. In addition, the key-

board bears the GS “safety tested” seal. The only legally regulated

test mark in Europe certifies compliance with defined ergonomic
and safety standards. All these criteria provide guidance for sus­tainability when buying products, as well as for the health and
safety of your employees.

The STREAM KEYBOARD WIRELESS is the perfect wireless
standalone keyboard for frequent users with high demands.
Based on CHERRY SX scissor technology, the wireless keyboard is
quiet, durable and requires no maintenance. It is ideal for anyone
who appreciates the advantages of the STREAM KEYBOARD but
also wants the benefits of wireless transmission.

CHERRY STREAM KEYBOARD WIRELESS

2 / 4 © Cherry Europe GmbH • Cherrystraße • 91275 Auerbach/OPf. • Germany
Tel [phone] • Fax [phone] • www.cherry.de • 2021-07-29

Decisive advantages

Maximum productivity:

→ Super silent keystroke
→ Proprietary SX scissor technology
→ Unbeatable typing feel

Highest quality:

→ Rubberized feet for perfect slip resistance
→ Durable key labels
→ Keyboard with AES-128 encryption
→ Integrated metal plate for maximum torsional rigidity
→ Blue Angel eco label

Optimum operating comfort:

→ Battery life up to 36 months
→ Status LEDs indicate and low battery level
→ Integrated status LEDs for the CAPS LOCK, NUM and SCROLL

keys

→ Keyboard with 10 office & multimedia keys

Very latest design:

→ Low profile
→ GS certificate (full size layout)

Technical specifications

Layout (country or language):

Depends on product, see “Models” table

Housing color:

Depends on product, see “Models” table

Weight (product):

Keyboard: approx. 920 g (incl. battery)
Receiver: approx. 3 g

Total weight (with packaging):

approx. 1,074 g

Transmission range:

approx. 10 m

Frequency range:

2,400 GHz - 2,4835 GHz

Transmission power:

Max. 10 mW (EIRP)

Storage temperature:

-20 °C to 60 °C, max. 85% humidity

Operating temperature:

0 °C to 40 °C, max. 85% humidity

Power input:

Keyboard: max. 20 mA
Receiver: max. 20 mA

Connection:

USB

Reliability:

MTBF > 80,000 hours

Product approvals:

• CE

• cRUus

• Blue Angel

• VDE GS

• China RoHS

• WHQL Win 10 64-bit

System requirements:

USB port (type A)
Windows 7, 8 or 10

Scope of delivery:

• Keyboard

• Batteries for keyboard (2 x AA)

• Nano USB receiver

• Operating instructions

• Extended manufacturer warranty

CHERRY STREAM KEYBOARD WIRELESS

3 / 4 © Cherry Europe GmbH • Cherrystraße • 91275 Auerbach/OPf. • Germany
Tel [phone] • Fax [phone] • www.cherry.de • 2021-07-29

Technical specifications (continued)

Product dimensions:

Keyboard: approx. 462.2 x 162.2 x 23.1 mm (feet folded in)
approx. 462.2 x 165.8 x 34.1 mm (feet folded out)
Receiver: approx. 19 x 14.5 x 6.5 mm

Packaging dimensions:

approx. 478 x 203 x 25 mm

Keyboard:

• Full-size layout with number pad

• Key technology: SX

• Service life of standard key > 20 million strokes

• 8 anti-slip feet (18 x 4 mm)

• Status display: Caps lock, Scroll and Num Lock key,

battery status (via LED in Scroll key)

• Number of additional keys: 10

• Additional key functions: Volume down, sound on/off, volume

up, previous track, start/pause, next track, lock PC, browser, e­mail program, calculator

Packaging unit;

Number of products in outer package 10
Number of outer packages per pallet: 24

Warranty:

We put a lot of dedication and hard work into the development of
our products and we are proud of their quality. This is why, in ad­dition to the statutory guarantee mentioned in the operating in-

structions, we are granting an expanded manufacturer’s guaran-

tee that is subject to the conditions stated below.
For the first two years after delivery, the statutory warranty ap­plies. In the third year after delivery, CHERRY voluntarily grants an
additional warranty according to the following conditions ("ex­tended warranty"). In the event of a defect, please contact the
seller of your CHERRY product. Do not carry out any repairs on
your own and do not open the product. There is no warranty if
unauthorized changes to the product cause a defect.

Conditions for the extended warranty

In the case of a defect after the first 2 years after delivery of the
CHERRY product, CHERRY grants its customers for the additional
period of one year the right to assert claims for cure, i.e. demand
that the defect is remedied or a thing free of defects is supplied.
The extended warranty is to be asserted against the seller of the
CHERRY product upon presentation of the original invoice, proof
of purchase or a comparable proof of the time of purchase.
CHERRY, and the seller of the CHERRY product, where applicable,
shall remedy the defect in the event the customer has justified
claims for cure under the terms of the extended warranty.
Excluded from the extended warranty are damages caused by im­proper use, in particular by the effects of chemical substances,
other damages caused by external influences, as well as normal
wear and tear and optical changes, in particular discoloration or
abrasion of shiny areas. Also excluded from the extended war­ranty are accessories and other parts which are not an integral
part of the purchased item.

Errors, technical changes and delivery possibilities excepted. Technical in­formation refers only to the specifications of the products. Features may
differ from the information provided.

CHERRY STREAM KEYBOARD WIRELESS

4 / 4 © Cherry Europe GmbH • Cherrystraße • 91275 Auerbach/OPf. • Germany
Tel [phone] • Fax [phone] • www.cherry.de • 2021-07-29

Versions:

Image: STREAM KEYBOARD WIRELESS – JK-8550GB-2

JK-8550xx-2 (schwarz)

Product name

Order number

EAN-Code

Layout
(country or language)

Housing
Color

Number of
Keys

1

CHERRY STREAM KEYBOARD WIRELESS

JK-8550CH-2

4025112096945

Switzerland

Black

105 + 10

2

CHERRY STREAM KEYBOARD WIRELESS

JK-8550CS-2

4025112096952

Czech

Black

105 + 10

3

CHERRY STREAM KEYBOARD WIRELESS

JK-8550DE-2

4025112096969

Germany

Black

105 + 10

4

CHERRY STREAM KEYBOARD WIRELESS

JK-8550ES-2*

4025112096976

Spain

Black

105 + 10

5

CHERRY STREAM KEYBOARD WIRELESS

JK-8550EU-2

4025112096983

US-International

Black

104 + 10

6

CHERRY STREAM KEYBOARD WIRELESS

JK-8550FR-2

4025112096990

France

Black

105 + 10

7

CHERRY STREAM KEYBOARD WIRELESS

JK-8550GB-2

4025112097003

United Kingdom

Black

105 + 10

8

CHERRY STREAM KEYBOARD WIRELESS

JK-8550PN-2

4025112097010

PAN-Nordic

Black

105 + 10

9

CHERRY STREAM KEYBOARD WIRELESS

JK-8550CN-2*

4025112097027

US/CN-Layout

Black

105 + 10

10

CHERRY STREAM KEYBOARD WIRELESS

JK-8550TW-2*

4025112097034

Taiwan

Black

104 + 10

11

CHERRY STREAM KEYBOARD WIRELESS

JK-8550BE-2

4025112097041

Belgium

Black

104 + 10

12

CHERRY STREAM KEYBOARD WIRELESS

JK-8550US-2*

840183605988

US-Layout

Black

104 + 10

* Keyboard layout not in stock. Delivery time / quantity on request
