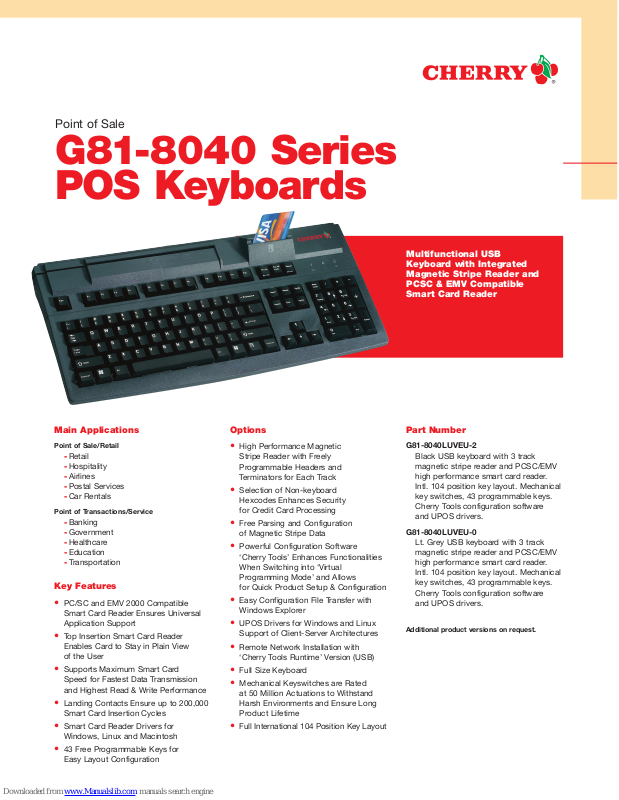

Cherry G81-8040, G81-8040LPAEU-2, G81-8040LPAEU-0, G81-8040LUBUS-2, G81-8040LUVEU-0 Specifications

Point of Sale

G81-8040 Series
POS Keyboards

Main Applications

Point of Sale/Retail

- Retail

- Hospitality

- Airlines

- Postal Services

- Car Rentals

Point of Transactions/Service

- Banking

- Government

- Healthcare

- Education

- Transportation

Key Features

• PC/SC and EMV 2000 Compatible

Smart Card Reader Ensures Universal
Application Support

• Top Insertion Smart Card Reader

Enables Card to Stay in Plain View
of the User

• Supports Maximum Smart Card

Speed for Fastest Data Transmission
and Highest Read & Write Performance

• Landing Contacts Ensure up to 200,000

Smart Card Insertion Cycles

• Smart Card Reader Drivers for

Windows, Linux and Macintosh

• 43 Free Programmable Keys for

Easy Layout Configuration

Options

• High Performance Magnetic

Stripe Reader with Freely
Programmable Headers and
Terminators for Each Track

• Selection of Non-keyboard

Hexcodes Enhances Security
for Credit Card Processing

• Free Parsing and Configuration

of Magnetic Stripe Data

• Powerful Configuration Software

‘Cherry Tools’ Enhances Functionalities
When Switching into ‘Virtual
Programming Mode’ and Allows
for Quick Product Setup & Configuration

• Easy Configuration File Transfer with

Windows Explorer

• UPOS Drivers for Windows and Linux

Support of Client-Server Architectures

• Remote Network Installation with

‘Cherry Tools Runtime’ Version (USB)

• Full Size Keyboard

• Mechanical Keyswitches are Rated

at 50 Million Actuations to Withstand
Harsh Environments and Ensure Long
Product Lifetime

• Full International 104 Position Key Layout

Part Number

G81-8040LUVEU-2

Black USB keyboard with 3 track
magnetic stripe reader and PCSC/EMV
high performance smart card reader.
Intl. 104 position key layout. Mechanical
key switches, 43 programmable keys.
Cherry Tools configuration software
and UPOS drivers.

G81-8040LUVEU-0

Lt. Grey USB keyboard with 3 track
magnetic stripe reader and PCSC/EMV
high performance smart card reader.
Intl. 104 position key layout. Mechanical
key switches, 43 programmable keys.
Cherry Tools configuration software
and UPOS drivers.

Additional product versions on request.

Multifunctional USB
Keyboard with Integrated
Magnetic Stripe Reader and
PCSC & EMV Compatible
Smart Card Reader

Technical Data

Interface

USB 2.0

Current Input

max. 300 mA

Smart Card Reader

Standards:

ISO 7816, PC/SC, EMV 2000,
CCID cards, CTAPI

Protocols:

T=0, T=1, I2 C (S=8), 2 wire
(S=10), 3 wire (S=9)

Data transfer rate from reader to:

Card: up to 420 Kbps
PC: up to 12 Mbps

Magnetic Strip Reader

Standards:

ISO 7811/-12, AAMVA, JIS
others on request

Reader head:

up to 1 million cycles

Reading speed:

3 – 125 inch/s at 75 Bit/inch
3 – 50 inch/s at 210 Bit/inch

Data is decoded to keybard scancodes.

Cable Length

Approx. 1.75 m

Key Layout

Full size 104 position Intl. key layout
including Windows keys

Weight (without/with packaging)

1850/2300 kg

Dimension

Approx. 470 x 220 x 64 mm (keyboard)
Approx. 520 x 280 x 72 mm (packaging)

Packaging Units

31 keyboards per master carton
2 master cartons per pallet

Keyswitch Lifetime

>50 million operations

Storage Temperature

-20°C to 60°C

Operating Temperature

0°C to 50°C

Available Software

Cherry Tools
MS Windows

TM

98, ME, 2000, XP

Cherry Tools Runtime:
MS WindowsTM98, ME, 2000, XP
XP Embedded

PC/SC Smart Card Reader Drivers
MS Windows

TM

98, ME, 2000, XP

MS Windows

TM

CE 3.0 / CE.NET

(depends on HW) Linux, Macintosh

OPOS Local Edition
(OLE for Point of Sale):
MS Windows

TM

98, ME, NT4, 2000, XP,

XP Embedded

OPOS Client/Server Edition
MS WindowsTM NT4, 2000, XP,
XP Embedded

JavaPOS Local Edition
(Java for Point of Sale):
MS WindowsTM98, ME, NT4, 2000,
XP, XP Embedded
Suse Linux V8.0 / Kernel 2.4 or higher
IBM JRE v1.3.x and SUN JRE V1.4.x

Approvals

CE, GS, VDE, cURus, FCC, C-Tick,
VCCI, BSMI (USB only) WHQL
(Designed for WindowsTM2000 and XP)

Delivery Volume

Keyboard, Manual, CDROM

2 years

For information on repairs or
warranty status contact:

Cherry Technical Support
Phone: [phone]

E-Mail: [e-mail]

Point of Sale

G81-8040 Series
POS Keyboards

Contact

Call, fax or visit our
website for more information.

Last Update: 10/15/08

Cherry Electrical Products

11200 88th Avenue
Pleasant Prairie, WI 53158

Phone: [phone]
Web: www.cherrycorp.com

E-Mail: [e-mail]
Fax: [phone]

The manufacturer accepts no liability for errors
or non-availability, and reserves the right to change
specifications without prior notice.

Technical data relates to product specifications
only. Features may differ from those described.
Only drawings combined with product specifications
shall be deemed binding.

© 2008 Cherry Electrical Products
