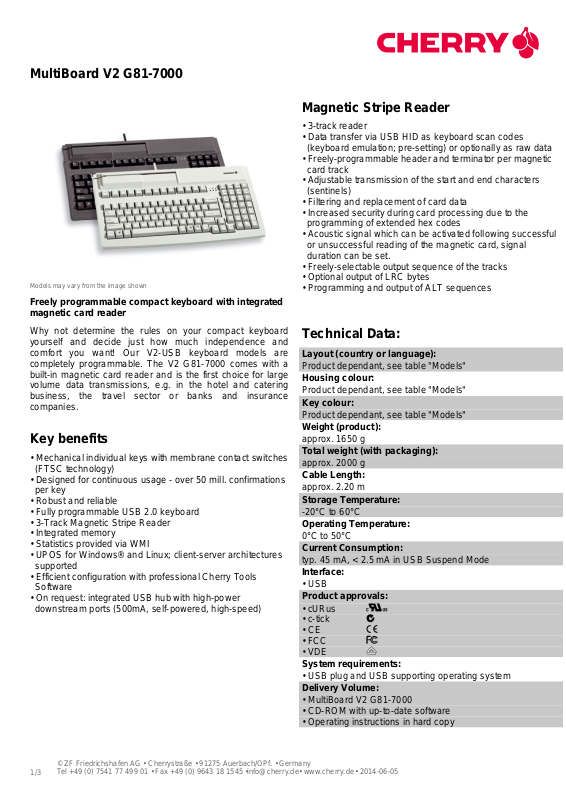

MultiBoard V2 G81-7000

Models may vary from the image shown

Freely programmable compact keyboard with integrated magnetic card reader

Magnetic Stripe Reader

• 3-track reader

• Data transfer via USB HID as keyboard scan codes (keyboard emulation; pre-setting) or optionally as raw data

• Freely-programmable header and terminator per magnetic card track

• Adjustable transmission of the start and end characters (sentinels)

• Filtering and replacement of card data

• Increased security during card processing due to the programming of extended hex codes

• Acoustic signal which can be activated following successful or unsuccessful reading of the magnetic card, signal duration can be set.

• Freely-selectable output sequence of the tracks

• Optional output of LRC bytes

• Programming and output of ALT sequences

Why not determine the rules on your compact keyboard yourself and decide just how much independence and comfort you want! Our V2-USB keyboard models are completely programmable. The V2 G81-7000 comes with a built-in magnetic card reader and is the first choice for large volume data transmissions, e.g. in the hotel and catering business, the travel sector or banks and insurance companies.

Key benefits

• Mechanical individual keys with membrane contact switches (FTSC technology)

• Designed for continuous usage - over 50 mill. confirmations per key

• Robust and reliable

• Fully programmable USB 2.0 keyboard

• 3-Track Magnetic Stripe Reader

• Integrated memory

• Statistics provided via WMI

• UPOS for Windows® and Linux; client-server architectures supported

• Efficient configuration with professional Cherry Tools Software

• On request: integrated USB hub with high-power downstream ports (500mA, self-powered, high-speed)

Technical Data:

Layout (country or language):

Product dependant, see table "Models"

Housing colour:

Product dependant, see table "Models"

Key colour:

Product dependant, see table "Models"

Weight (product):

approx. 1650 g

Total weight (with packaging):

approx. 2000 g

Cable Length:

approx. 2.20 m

Storage Temperature:

-20°C to 60°C

Operating Temperature:

0°C to 50°C

Current Consumption:

typ. 45 mA, < 2.5 mA in USB Suspend Mode

Interface:

• USB

Product approvals:

• cURus

• c-tick

• CE

• FCC

• VDE

System requirements:

• USB plug and USB supporting operating system

Delivery Volume:

• MultiBoard V2 G81-7000

• CD-ROM with up-to-date software

• Operating instructions in hard copy

1/3

Dimensions (product):

approx. 405 x 220 x 64 mm

Packaging dimensions:

approx. 455 x 277 x 72 mm

Reliability:

• MTBF > 100,000 hours

• MCBF > 10 bill. operations

Keyboard:

• Key technology: FTSC

• Service life, standard key: > 50 million key operations

• Operation characteristics: Linear

• Inscription technology: Laser

• Inscription layout: Standard

• Number of Keys: Product dependant, see table "Models"

Magnetic Stripe Reader:

• Magnetic card tracks: Track 1, Track 2, Track 3

• Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA, Gemini

• Magnetic card reading speed: 8 - 318 cm/s at 30 Bit/cm, 8 127 cm/s at 83 Bit/cm

• Magnetic card reading cycles: up to 1 mill. reading cycles

• Magnetic card swipe direction: from right to left

Packaging Unit:

• Number of products in the master package: 34

• Number of master packages per pallet: 2

Warranty:

2 years Errors, technical changes and delivery possibilities excepted.

Technical information refers only to the specifications of the products. Features may differ from the information provided.
