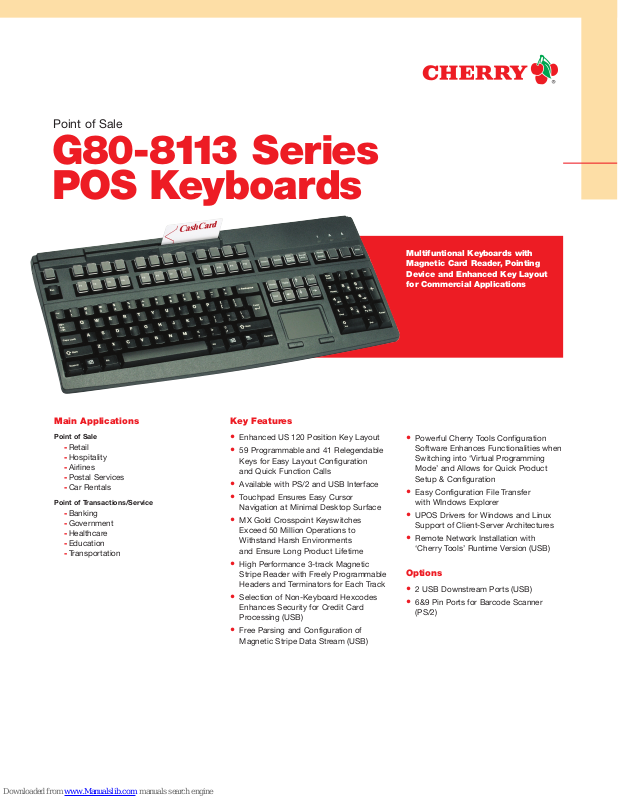

Cherry G80-8113LRAUS-2, G80-8113HRBUS-2, G80-8113HRCUS-2, G80-8113HUBUS-2, G80-8113LRBUS Specifications

Point of Sale

G80-8113 Series
POS Keyboards

Main Applications

Point of Sale

- Retail

- Hospitality

- Airlines

- Postal Services

- Car Rentals

Point of Transactions/Service

- Banking

- Government

- Healthcare

- Education

- Transportation

Key Features

• Enhanced US 120 Position Key Layout

• 59 Programmable and 41 Relegendable

Keys for Easy Layout Configuration
and Quick Function Calls

• Available with PS/2 and USB Interface

• Touchpad Ensures Easy Cursor

Navigation at Minimal Desktop Surface

• MX Gold Crosspoint Keyswitches

Exceed 50 Million Operations to
Withstand Harsh Environments
and Ensure Long Product Lifetime

• High Performance 3-track Magnetic

Stripe Reader with Freely Programmable
Headers and Terminators for Each Track

• Selection of Non-Keyboard Hexcodes

Enhances Security for Credit Card
Processing (USB)

• Free Parsing and Configuration of

Magnetic Stripe Data Stream (USB)

• Powerful Cherry Tools Configuration

Software Enhances Functionalities when
Switching into ‘Virtual Programming
Mode’ and Allows for Quick Product
Setup & Configuration

• Easy Configuration File Transfer

with WIndows Explorer

• UPOS Drivers for Windows and Linux

Support of Client-Server Architectures

• Remote Network Installation with

‘Cherry Tools’ Runtime Version (USB)

Options

• 2 USB Downstream Ports (USB)

• 6&9 Pin Ports for Barcode Scanner

(PS/2)

Multifuntional Keyboards with
Magnetic Card Reader, Pointing
Device and Enhanced Key Layout
for Commercial Applications

Part Number Legend Main Part Numbers

G80-8113LRDUS-2

Black PS/2 keyboard with 3-track
magnetic stripe reader and touchpad.
US 120 position key layout with 16
additional keys, two PS/2 connectors.
MX gold crosspoint keyswitches with
laser etched keycaps, 59 programmable
and 41 relegendable keys. Includes
Cherry Tools multifunctional configuration
software and UPOS drivers.

G80-8113LRAUS-2

Black PS/2 keyboard with 3-track
magnetic stripe reader, touchpad and
2 barcode reader ports. US 120 position
key layout with 16 additional keys, two
PS/2 connectors. MX gold crosspoint
keyswitches, 59 programmable and 41
relegendable keys. Includes Cherry Tools
multifunctional configuration software and
UPOS drivers. Laser etched keys.

G80-8113LRDUS-0

Light Grey PS/2 keyboard with 3-track
magnetic stripe reader, touchpad.
US 120 position key layout with 16
additional keys, two PS/2 connectors.
MX gold crosspoint keyswitches, 59
programmable and 41 relegendable keys.
Includes Cherry Tools multifunctional
configuration software and UPOS drivers.

G80-8113LRAUS-0

Light grey PS/2 keyboard with 3-track
magnetic stripe reader and touchpad
and 2 barcode reader ports. US 120
position key layout with 16 additional
keys. MX gold crosspoint keyswitches,
59 programmable and 41 relegendable
keys. Includes Cherry Tools multifunctional
configuration software and UPOS drivers.
Laser-etched keys.

G80-8113LUVEU-0

Light grey USB V2 keyboard with 3-track
magnetic stripe reader and touchpad.
Intl. 120 position key layout with 16
additional keys. MX gold crosspoint
keyswitches, 59 programmable and 41
relegendable keys. Includes Cherry Tools
multifunctional configuration software
and UPOS drivers.

G80-8113LUVEU-2

Black USB V2 keyboard with 3-track
magnetic stripe reader, touchpad and
2 downstream ports. Intl. 120 position
key layout with 16 additional keys.
MX gold crosspoint keyswitches, 59
programmable and 41 relegendable keys.
Includes Cherry Tools multifunctional
configuration software and UPOS drivers.
Laser-etched keys.

Additional product versions on request.

G80-8113

Point of Sale

G80-8113 Series
POS Keyboards

Technical Data

Interface

PS/2, USB 2.0
Current Input
max. 100 mA (PS/2)
max. 400 mA (USB)

Magnetic Strip Reader

Standards:

ISO 7811/-12, AAMVA, JIS
others on request

Reader head:

up to 1 million cycles

Reading speed:

3 - 125 inch/s at 75 Bit/inch
3 - 50 inch/s at 210 Bit/inch

Data is decoded to keyboard scancodes.

Barcode Ports

6-pin DIN 240 plug (right side)
9-pin SUB-D plug (right rear)

Touchpad

Resolution: 1000 dpi
Two switch activated mouse buttons

Barcode Decoder

Data is decoded to keyboard scancodes.
Supported barcode formats are:

EAN/UPC, Code 39, Code 128, Codabar

Interleaved 2/5, Industrial 2/5, Matrix 2/5

Code 93, Code 11, Code16k, MSI,
Plessey

RS232 Port

9-pin SUB-D plug (center rear)

USB Downstream Ports

USB 2.0, bus powered. Current output
max. 100 mA per downstream port

Cable Length

approx. 1.75 m

Key Layout

Full size 104 position US key layout
including Windows keys

Weight

approx. 1600 g (without packaging)
approx. 2000 g (incl. packaging)

Dimensions

approx. 470 x 220 x 64 mm (keyboard)
approx. 520 x 280 x 72 mm (packaging)

Packaging Units

31 keyboards per master carton
2 master cartons per pallet

Keyswitch Lifetime

> 50 million operations

Storage Temperature

-20°C to 60°C

Operating Temperature

0°C to 50°C

Available Software

Cherry Tools:
MS Windows™ 98, ME, 2000, XP

Cherry Tools Runtime:
MS Windows™ 98, ME, 2000, XP,
XP Embedded

OPOS Local Edition (OLE for Point of
Sale): MS Windows™ 98, ME, NT4, 2000,
XP, XPembedded

OPOS Client/Server Edition:
MS Windows™ NT4, 2000, XP,

XP Embedded

JavaPOS Local Edition (Java for Point of
Sale): MS Windows™ 98, ME, NT4, 2000,
XP, XP Embedded

Suse Linux V8.0 / Kernel 2.4 or higher
IBM JRE V1.3.x and SUN JRE V1.4.x

JavaPOS Client/Server Edition:
MS Windows™ NT4, 2000,
XP, XP Embedded
Suse Linux V8.0 / Kernel 2.4 or higher
IBM JRE V1.3.x and SUN JRE V1.4.x

Agency Approvals

CE, GS, VDE, cURus, FCC, C-Tick
VCCI, BSMI (USB only), WHQL (Designed

for Windows™ 2000 and XP)

Delivery Volume

Keyboard, Manual, CDROM

Warranty

2 Years

For information on repairs or
warranty status contact:

Cherry Technical Support
Phone: [phone]

E-Mail: [email protected]

Point of Sale

G80-8113 Series
POS Keyboards

Contact

Call, fax or visit our
website for more information.

Last Update: 10/23/08

Cherry Electrical Products

11200 88th Avenue
Pleasant Prairie, WI 53158

Phone: [phone]
Web: www.cherrycorp.com

E-Mail: [email protected]
Fax: [phone]

The manufacturer accepts no liability for errors
or non-availability, and reserves the right to change
specifications without prior notice.

Technical data relates to product specifications
only. Features may differ from those described.
Only drawings combined with product specifications
shall be deemed binding.

© 2008 Cherry Electrical Products
