2-Port 6Gb/s SAS Backplane 80H10551202A0
User’s Manual
CHENBRO
2-Port 6Gb/s SATA/SAS Backplane
80H10551202A0
User’s Manual
www.chenbro.com
April 2013
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: info@chenbro.com.tw
1
2-Port 6Gb/s SAS Backplane 80H10551202A0
User’s Manual
Copyright
Copyright © 2012 Chenbro Micom Co., Ltd.. All rights reserved.
Unless otherwise indicated, all materials in this manual are copyrighted by Chenbro Micom Co., Ltd.. All rights
reserved. No part of this manual, either text or image may be used for any purpose other than internal use within
purchasing company. Therefore, reproduction, modification in any form or by any means, electronic, mechanical or
otherwise, for reasons other than internal use, is strictly prohibited without prior written permission.
Chenbro Micom Co., Ltd. reserves the right to make improvement and modification to the products indicated in this
manual at any time. Specifications are therefore subject to change without prior notice.
Information provided in this manual is intended to be accurate and reliable. However, Chenbro Micom Co., Ltd.,
assumes no responsibility for its use, nor for any infringements upon the rights of third parties, which may result from
its use.
Technical Support
Chenbro works hard to offer our customers maximum performance from our chassis. But in case you have
any problem with our product you can find supports from the following resources.
Web Support
Detail information of our products is in our website. You can find technical updates, installation guides, FAQs,
technical specifications and more. Our web address is: www.chenbro.com
Email Support
You can also fill out the technical support form at our Technical Support page. You technical issue inquiries will be
sent directly to our support professionals.
Phone Support
Y ou can also cont act Chenbro HQ or branch offic e for immediate support; cont act Infor mation is as follo wing:
Chenbro HQ Chenbro Europe B.V.
Tel: 886-2-8226-5500 Tel: 31-40-295-2045 Tel: 1-909-947-3200
.
Chenbro Micom (USA) Inc.
www.chenbro.com
Fax: 886-2-8226-5423 Fax: 31-40-295-2044
Fax : 1-909-947-4300
Chenbro UK LTD Chenbro China Office
Tel: 44-(0)161-425-5341 Tel: 86 010-6709-1786
Fax: 86 010-8791-0567
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: info@chenbro.com.tw
2
2-Port 6Gb/s SAS Backplane 80H10551202A0
User’s Manual
Contents
Copyright………………………………………………………………………………..2
Technical Support………………………………………………………………………2
Contents…………………………………………………………………………………3
Safety Instruction……………………………………………………………………….4
Revision History…………………………………………………………………………4
6Gb/s Backplane Specification…………………………………………………………5
Backplane Layout…………………………………………………………………….6~7
Fabricate Sequence……………………………………………………………………..8
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: info@chenbro.com.tw
3
2-Port 6Gb/s SAS Backplane 80H10551202A0
User’s Manual
Safety Instruction
Caution:
Inform the user of conditions that might result in damage to hardware, corruption of customer data or application
software, or long-term health hazard to people. A caution always precedes the information to which it relates.
WARNINGS:
Alert the user to conditions that might result in injury or death. A warning always precedes the information to which it
pertains.
Revision History
Date Modification
April / 2 / 2013
․First Release
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: info@chenbro.com.tw
4
2-Port 6Gb/s SAS Backplane 80H10551202A0
User’s Manual
6Gb/s Backplane Specification
P/N: 80H10551202A0
HDD BACKPLANE TOP VIEW
Specification
Host Interface SATA
HDD Interface SATA
Hot-Swap Yes, allows user to replace Hard Disk drive on line
LED indicates Hard Disk Drive status
Power LED-Blue (When HDD is present)
Display
Access LED-Green (when HDD is busy)
Error LED- Red (When HDD is error)
1. SATA Connector7P*2
2. SAS Connector 29 P*2
Connectors
3. Standard 4P Power Connector *1 for +5V, +12V from
power supply
4. Pin Header 2.54mm (1x3)*2
Dimension 99(L)x 22.6(W)x 2.4(H) mm
Material FR4 2 layer
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: info@chenbro.com.tw
5
2-Port 6Gb/s SAS Backplane 80H10551202A0
User’s Manual
POWER Connector (CN1)
Pin NO. Description
1 12V
2 GND
3 GND
4 5V
HDD ACCESS LED Connector (CN2)
Pin
Description
NO.
1 HDD ACCESS LED (CH11)
2 HDD ACCESS LED (CH21)
3 KEY PIN
HDD FAIL LED Connector (CN3)
Pin
Description
NO.
1 HDD FAIL LED (CH11)
2 HDD FAIL LED (CH21)
3 KEY PIN
HOST IN Connector (CH12)
Pin
Description
NO.
www.chenbro.com
1 GND
2 RP
3 RN
4 GND
5 TN
6 TP
7 GND
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: info@chenbro.com.tw
6
2-Port 6Gb/s SAS Backplane 80H10551202A0
User’s Manual
HDD IN Connector (CH11, CH21)
Pin NO. Descriptions Pin NO. Descriptions
S1 GND P1 NC
S2 RP P2 NC
S3 RN P3 NC
S4 GND P4 GND
S5 TN P5 POWER ENABLE
S6 TP P6 GND
S7 GND P7 5V PRE- CHARGE
S8 NC P8 5V
S9 NC P9 5V
S10 NC P10 GND
S11 NC P11 ACCESS SIGNAL
S12 NC P12 GND
S13 NC P13 12V PRE- CHARGE
S14 NC P14 12V
P15 12V
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 e-mail: info@chenbro.com.tw
7
2-Port 6Gb/s SAS Backplane 80H10551202A0
User’s Manual

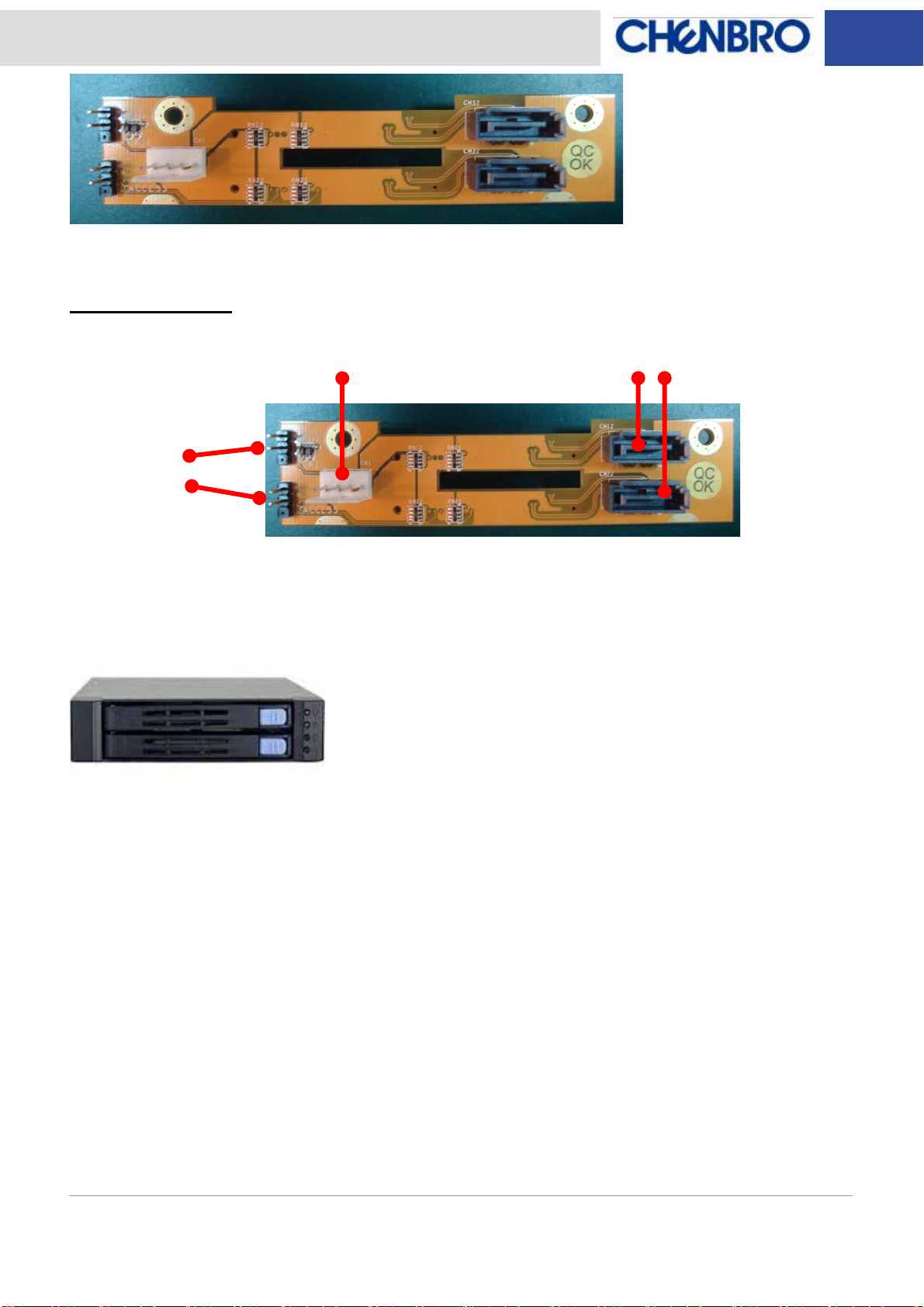

HDD BACKPLANE BACK SIDE VIEW
Backplane Wiring:
Power source
Connect to RAID card,
HDD fail LED
SATA HDD cables
HDD access LED
This backplane apply to Chenbro SK51201.
