1-Port 6Gb/s SAS Backplane

80H10551102A0

User’s Manual

April 2012

1-Port 6Gb/s SAS Backplane 80H10551102A0
User’s Manual

15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,

Tel: [phone] Fax: [phone] e-mail: [e-mail]

2

w w w . c h e n b r o . c o m

Copyright

Copyright © 2012 Chenbro Micom Co., Ltd.. All rights reserved.

Unless otherwise indicated, all materials in this manual are copyrighted by Chenbro Micom Co., Ltd.. All rights
reserved. No part of this manual, either text or image may be used for any purpose other than internal use within
purchasing company. Therefore, reproduction, modification in any form or by any means, electronic, mechanical or
otherwise, for reasons other than internal use, is strictly prohibited without prior written permission.

Chenbro Micom Co., Ltd. reserves the right to make improvement and modification to the products indicated in this
manual at any time. Specifications are therefore subject to change without prior notice.

Information provided in this manual is intended to be accurate and reliable. However, Chenbro Micom Co., Ltd.,
assumes no responsibility for its use, nor for any infringements upon the rights of third parties, which may result from
its use.

Technical Support

Chenbro works hard to offer our customers maximum performance from our chassis. But in case you have
any problem with our product you can find supports from the following resources.

Web Support

Detail information of our products is in our website. You can find technical updates, installation guides, FAQs,
technical specifications and more. Our web address is: www.chenbro.com.

Email Support

You can also fill out the technical support form at our Technical Support page. You technical issue inquiries will be
sent directly to our support professionals.

Phone Support

You can also contact Chenbro HQ or branch office for immediate support; contact Information is as
following:

Chenbro HQ Chenbro Europe B.V. Chenbro Micom (USA) Inc.

Tel: [phone] Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone] Fax : [phone]

Chenbro UK LTD Chenbro China Office

Tel: [phone] Tel: [phone]
Fax: [phone]

1-Port 6Gb/s SAS Backplane 80H10551102A0
User’s Manual

15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,

Tel: [phone] Fax: [phone] e-mail: [e-mail]

3

w w w . c h e n b r o . c o m

1-Port 6Gb/s SAS Backplane 80H10551102A0
User’s Manual

15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,

Tel: [phone] Fax: [phone] e-mail: [e-mail]

4

w w w . c h e n b r o . c o m

Contents

Copyright………………………………………………………………………………...2
Technical Support……………………………………………………………………….2
Contents………………………………………………………………………………….3
Safety Instruction………………………………………………………………………..4
Revision History…………………………………………………………………………4
6Gb/s Backplane Specification…………………………………………………………5
Backplane Layout…………………………………………………………………….6~8
Fabricate Sequence…………………………………………………………………..8~9

1-Port 6Gb/s SAS Backplane 80H10551102A0
User’s Manual

15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,

Tel: [phone] Fax: [phone] e-mail: [e-mail]

5

w w w . c h e n b r o . c o m

Date

Modification

March/22/2013

․First Release

April/03/2013

․Revised

Safety Instruction

Caution:
Inform the user of conditions that might result in damage to hardware, corruption of customer data or application
software, or long-term health hazard to people. A caution always precedes the information to which it relates.

WARNINGS:
Alert the user to conditions that might result in injury or death. A warning always precedes the information to which it
pertains.

Revision History

1-Port 6Gb/s SAS Backplane 80H10551102A0
User’s Manual

15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,

Tel: [phone] Fax: [phone] e-mail: [e-mail]

6

w w w . c h e n b r o . c o m

Specification

Host Interface

SATA

HDD Interface

SATA

Hot-Swap

Yes, allows user to replace Hard Disk drive on line

Display

LED indicates Hard Disk Drive status
Power LED-Blue (When HDD is present)
Access LED-Green (when HDD is busy)
Error LED- Red (When HDD is error)

Connectors

1. SATA Connector7P*1

2. SAS Connector 29 P*1

3. FDD 4Pin Power Connector *1 for +5V, +12V from
power supply

4. Pin Header 2.54mm (1x2)*2

Dimension

90.33(L)x 9.4(W)x 2.4(H) mm

Material

FR4 2 layer

6Gb/s Backplane Specification

P/N: 80H10551102A0

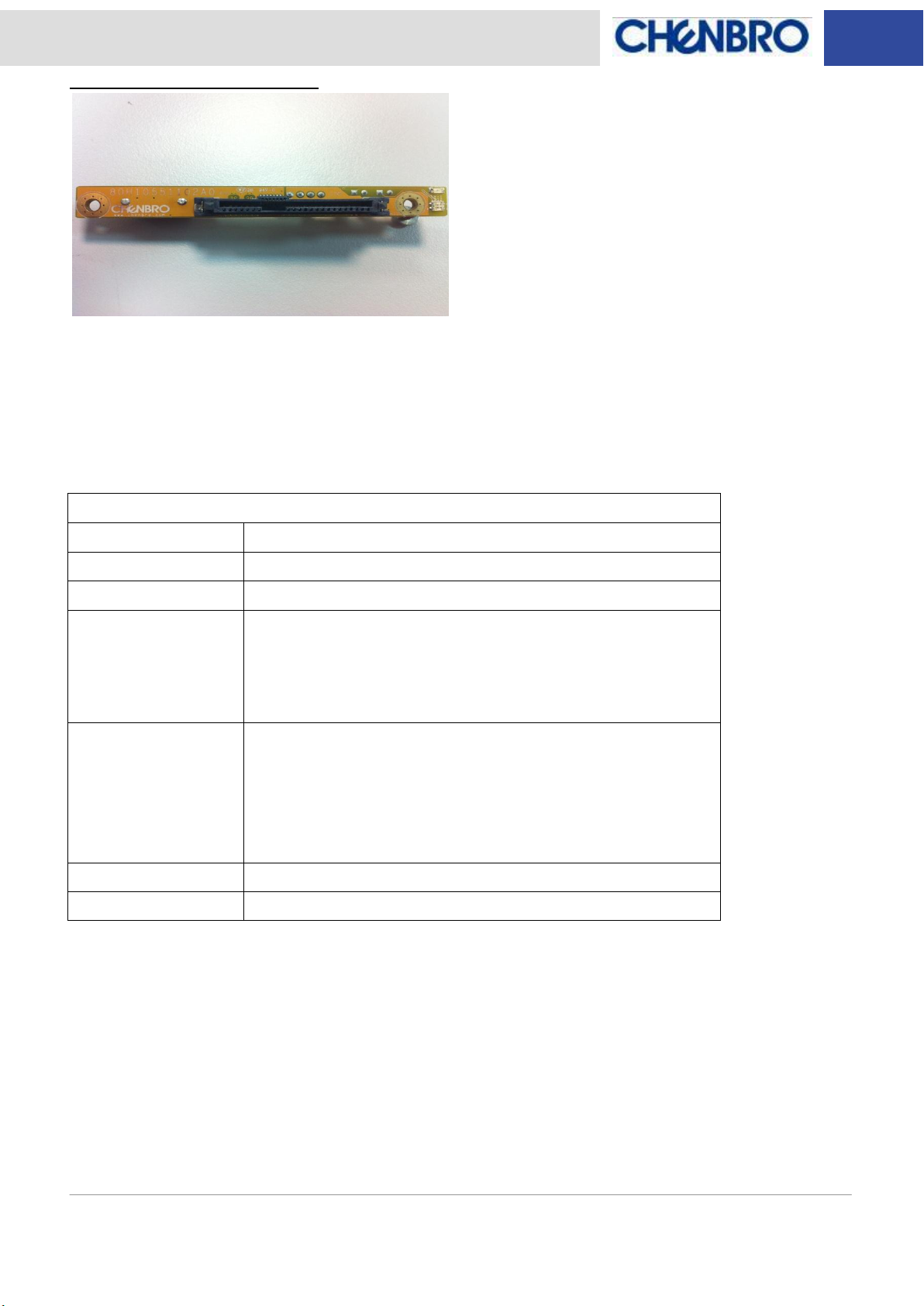

HDD BACKPLANE TOP VIEW

1-Port 6Gb/s SAS Backplane 80H10551102A0
User’s Manual

15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,

Tel: [phone] Fax: [phone] e-mail: [e-mail]

7

w w w . c h e n b r o . c o m

Pin NO.

Description

1

12V

2

GND

3

GND

4

5V

Pin NO.

Description

1

HDD ACCESS LED (CH01)

2

NC

Pin NO.

Description

1

HDD FAIL LED (CH01)

2

NC

Pin NO.

Description

1

GND

2

RP 3 RN

4

GND

5

TN 6 TP

7

GND

POWER Connector (CN1)

HDD ACCESS LED Connector (CN2)

HDD FAIL LED Connector (CN3)

HOST IN Connector (CH12)

1-Port 6Gb/s SAS Backplane 80H10551102A0
User’s Manual

15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,

Tel: [phone] Fax: [phone] e-mail: [e-mail]

8

w w w . c h e n b r o . c o m

HDD IN Connector (CH11)

Pin NO.

Descriptions

Pin NO.

Descriptions

S1

GND

P1

NC

S2

RP

P2

NC

S3

RN

P3

NC

S4

GND

P4

GND

S5

TN

P5

POWER ENABLE

S6

TP

P6

GND

S7

GND

P7

5V PRE- CHARGE

S8

NC

P8

5V

S9

NC

P9

5V

S10

NC

P10

GND

S11

NC

P11

ACCESS SIGNAL

S12

NC

P12

GND

S13

NC

P13

12V PRE- CHARGE

S14

NC

P14

12V

P15

12V

1-Port 6Gb/s SAS Backplane 80H10551102A0
User’s Manual

15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,

Tel: [phone] Fax: [phone] e-mail: [e-mail]

9

w w w . c h e n b r o . c o m

HDD BACKPLANE BACK SIDE

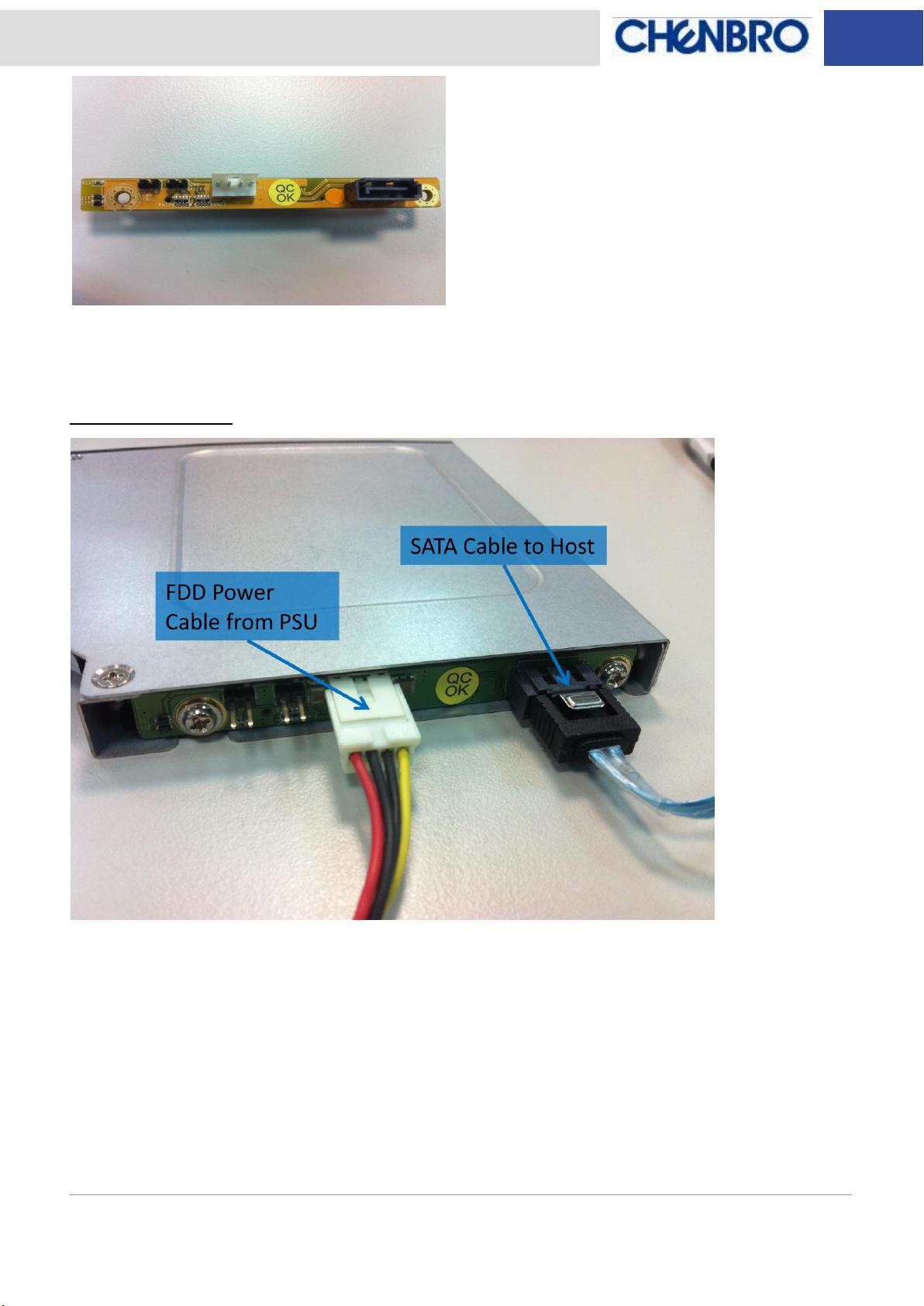

Backplane Wiring:

1-Port 6Gb/s SAS Backplane 80H10551102A0
User’s Manual

15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,

Tel: [phone] Fax: [phone] e-mail: [e-mail]

10

w w w . c h e n b r o . c o m

This backplane applies to Chenbro SK51101, SK51102.

SK51101

SK51102
