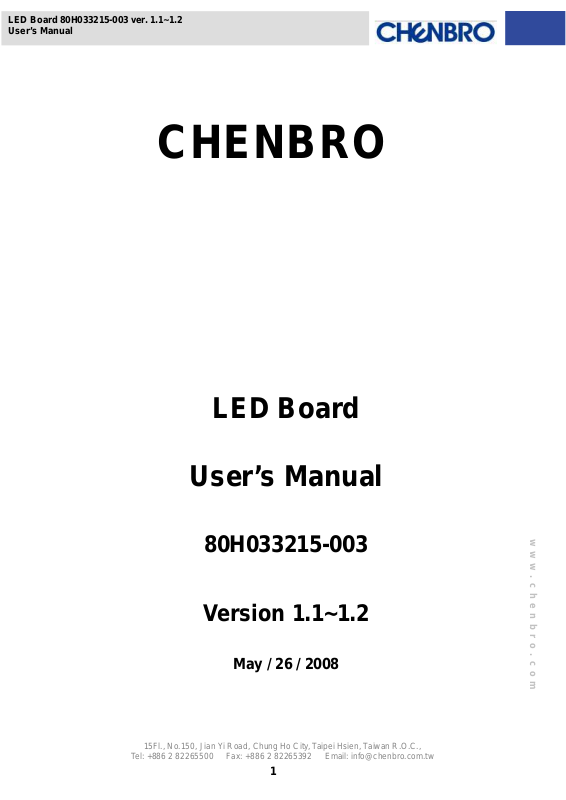

LED Board 80H033215-003 ver. 1.1~1.2
User’s Manual
CHENBRO
LED Board
User’s Manual
80H033215-003
www.chenbro.com
Version 1.1~1.2
May / 26 / 2008
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw
1
LED Board 80H033215-003 ver. 1.1~1.2
User’s Manual
Copyright
Copyright © 2006 Chenbro Micom Co., Ltd.. All rights reserved.
Unless otherwise indicated, all materials in this manual are copyrighted by Chenbro Micom Co., Ltd.. All rights
reserved. No part of this manual, either text or image may be used for any purpose other than internal use
within purchasing company. Therefore, reproduction, modification in any form or by any means, electronic,
mechanical or otherwise, for reasons other than internal use, is strictly prohibited without prior written
permission.
Chenbro Micom Co., Ltd. reserves the right to make improvement and mo dification to the pro duct s indicated in
this manual at any time. Specifications are therefore subject to change without prior notice.
Information provided in this manual is intended to be accurate and reliable. However, Chenbro Micom Co.,
Ltd., assumes no responsibility for its use, nor for any infringement s upon the right s of third p arties, whi ch may
result from its use.
Technical Support
Chenbro works hard to offer our customers maximum performance from our chassis. But in case
you have any problem with our product you can find supports from the following resources.
Web Support
Detail information of our products is in our website. You can find technical updates, installation guides, FAQs,
technical specifications and more. Our web address is: www.chenbro.com
Email Support
You can also fill out the technical support form at our Technical Support page. You technical issue inquiries
will be sent directly to our support professionals.
Phone Support
You can also contact Chenbro HQ or branch office for immediate su pport; contact Information is as
following:
.
www.chenbro.com
Chenbro HQ Chenbro Europe B.V.
Tel: 886-2-8226-5500 Tel: 31-40-295-2045 Tel: 1-909-947-3200
Fax: 886-2-8226-5423 Fax: 31-40-295-2044 Fax : 1-909-947-4300
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82 265392 Email: info@chenbro.com.tw
2
Chenbro Micom (USA) Inc.
LED Board 80H033215-003 ver. 1.1~1.2
User’s Manual
Contents
Copyright.....................................................................................................................................................2
Technical Support.....................................................................................................................................2
Contents.......................................................................................................................................................3
Revision History ........................................................................................................................................4
Hardware Specification............................................................................................................................5
Specification.......................................................................................................................................5
Accommodated Chassis..................................................................................................................5
Components................................................................................................................................................6
Connectors & Switches Definition................................................................................................6
Power Supply Alarm Mute Connector Definition......................................................................7
Power Supply Alarm Signal Connector Definition ...................................................................7
Backplane and LED Board Wiring.........................................................................................................8
Chassis Assembly Example ...................................................................................................................9
Example for RM21508B SATA backplane wiring.......................................................................9
Example for RM31212B SATA backplane wiring.....................................................................10
Example for RM41416B SATA backplane wiring.....................................................................11
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82 265392 Email: info@chenbro.com.tw
3
LED Board 80H033215-003 ver. 1.1~1.2
User’s Manual
Revision History
Date Modifications
May / 26 / 2008 z First Release
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82 265392 Email: info@chenbro.com.tw
4
LED Board 80H033215-003 ver. 1.1~1.2
User’s Manual
Hardware Specification
Specification
HDD LED – Y ellow (HDD busy)
Specification
Display
Alarm Buzzer & LED (Red)
Connectors &
Switches
Dimension 104.2 (L) x 43 (W) x 1.6 (Thickness) mm
Material FR4 4layer
Power LED – Blue (Power on)
Error LED – Red (System error )
LAN1, LAN2 LEDs – Green (Internet busy)
Backplane signal connector
Motherboard signal connector
Motherboard USB 2.0 connector
External USB 2.0 Port
Power supply alarm signal connector
Power supply alarm mute connector
Power On/Off Switch
System Reset Switch
Alarm Mute Switch
Function DIP Switch
Accommodated Chassis
This backplane can be applied to the Storage Server Chassis as below:
z RM21508B
z RM31212B
z RM41416B
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82 265392 Email: info@chenbro.com.tw
5
LED Board 80H033215-003 ver. 1.1~1.2
y
User’s Manual
Components
Connectors & Switches Definition
System signal
connector to M/B
USB 2.0
connector to M/B
HDD Activity
LEDs
System Reset Switch
USB 2.0
Port
Backplane signal
connectors
Function
Switch
Green LED On:
LAN 2 Bus
Power supply
alarm mute
connector
(Yellow & Black
Cable from PSU)
Power supply
alarm signal
connector
(Red & Black
Cable from PSU)
Power
Switch
Yellow LED on: HDD busy
Blue LED on: Power On
Alarm Mute Switch
Function Switch Pin Definition
SW 1 SW 2 SW 3 SW 4
Fan1~5 Monitoring Enable
ON
(RM41616B)
Fan1~4 Monitoring Enable
OFF
(RM21508B & RM31212B)
System Alarm
Temperature is 65°C
System Alarm
Temperature is 55°C
HDD Sequential
Spin up Disable
HDD Sequential
Spin up Enable
Fan Monitoring
Enable
Fan Monitoring
Disable
SW 5 SW 6
8 HDDs
OFF OFF
Green LED On:
LAN 1 Busy
Red LED on:
System Error
www.chenbro.com
12 HDDs
16 HDDs
ON OFF
OFF ON
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82 265392 Email: info@chenbro.com.tw
6
LED Board 80H033215-003 ver. 1.1~1.2
User’s Manual
Power Supply Alarm Mute Connector Definition
Pin 1: Ground
Pin 2: Alarm mute signal output to PSU (Active low)
Power Supply Alarm Signal Connector Definition
Pin 1: Ground
Pin 2: PSU fail signal (TTL) input from PSU (Active low)
Only redundant PSU come with the failure alarm and alarm mute reset control via
signal connector. Make s ure the redundant PSU that user applied come with the
connectors above.
Pin 2
Pin 1
Pin 2
Pin 1
This picture shows the standard
“2510 2-pin” type PSU alarm signal
connectors which fitting Chenbro
LED board.
Mute (Yellow & Black wire)
TTL (Red & Black wire)
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82 265392 Email: info@chenbro.com.tw
7
LED Board 80H033215-003 ver. 1.1~1.2
User’s Manual
Backplane and LED Board Wiring
1. Use 4 pcs of SATA-II cable per backplane for HOST to Backplane connection.
2. For the Fan connectors, connect the system middle Fan (3P3C) to the Backplane.
3. For the Fail LED output, connect the attached cable from RAID card (only if failure LED output is
supported) to Backplane (CN2).
www.chenbro.com
Wiring of SAS / SATA-II BP (2U~4U)
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82 265392 Email: info@chenbro.com.tw
8
LED Board 80H033215-003 ver. 1.1~1.2
User’s Manual
Chassis Assembly Example
See below for the example of how the wiring to be performed.
Example for RM21508B SATA backplane wiring
LED Board Function Switch Setting
SW 1 SW 5 SW6
OFF OFF OFF
HDD8 HDD7 HDD6 HDD5
HDD4 HDD3 HDD2 HDD1
SATA RAID Card Chassis Fan x4
LED Board
SATA cable (BP to Host Adaptor, 4x
cables per BP)
Chassis fans wiring (Connection start
HDD Failure Signal cable (if RAID
LED Flat cable (10cm, BP to BP)
from FAN1 )
LED FFC cable (BP to LED board )
Controller support HDD failure signal)
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82 265392 Email: info@chenbro.com.tw
9
LED Board 80H033215-003 ver. 1.1~1.2
User’s Manual
Example for RM31212B SATA backplane wiring
LED Board Function Switch Setting
SW 1 SW 5 SW6
OFF ON OFF
HDD12 HDD11 HDD10 HDD9
HDD8 HDD7 HDD6 HDD5
HDD4 HDD3 HDD2 HDD1
12 Port SATA
RAID Card
LED Board
SATA cable (BP to Host Adaptor, 4x
cables per BP)
LED Flat cable (10cm, BP to BP)
Chassis fans wiring (Connection start
from FAN1 )
HDD Failure Signal cable (if RAID
LED FFC cable (BP to LED board )
Controller support HDD failure signal)
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82 265392 Email: info@chenbro.com.tw
Chassis Fan x4
10
www.chenbro.com
LED Board 80H033215-003 ver. 1.1~1.2
User’s Manual
Example for RM41416B SATA backplane wiring
LED Board Function Switch Setting
SW 1 SW 5 SW6
ON OFF ON
HDD16 HDD15 HDD14 HDD13
HDD12 HDD11 HDD10 HDD9
HDD8 HDD7 HDD6 HDD5
HDD4 HDD3 HDD2 HDD1
8 Port SATA
LED Board
RAID Card #1
Chassis Fan x5
8 Port SATA
RAID Card #2
SATA cable (BP to Host
Adaptor, 4x cables per BP)
LED Flat cable (10cm, BP
to BP)
Chassis fans wiring
(Connection start from
FAN1)
LED FFC cable (BP to LED
board)
HDD Failure Signal cable
(if RAID Controller
support HDD failure
signal)
www.chenbro.com
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82 265392 Email: info@chenbro.com.tw
11
