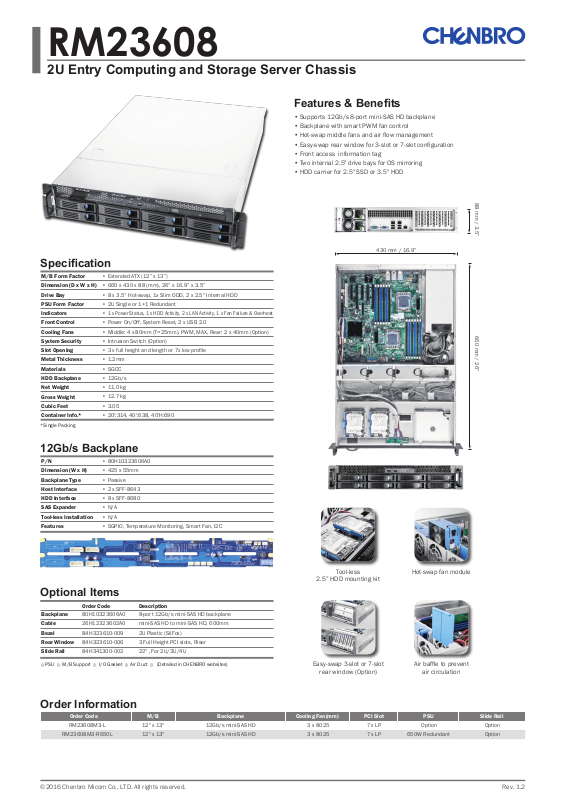

Chenbro RM23608M3-L User Manual

RM23608
2U Entry Computing and Storage Server Chassis
Features & Benets
• Supports 12Gb/s 8-port mini-SAS HD backplane
• Backplane with smart PWM fan control
• Hot-swap middle fans and air ow management
• Easy-swap rear window for 3-slot or 7-slot conguration
• Front access information tag
• Two internal 2.5" drive bays for OS mirroring
• HDD carrier for 2.5" SSD or 3.5" HDD
Specication
M/B Form Factor
Dimension (D x W x H)
Drive Bay
PSU Form Factor
Indicators
Front Control
Cooling Fans
System Security
Slot Opening
Metal Thickness
Materials
HDD Backplane
Net Weight
Gross Weight
Cubic Feet
Container Info.*
*Single Packing
Extended ATX (12” x 13”)
660 x 430 x 88 (mm), 26” x 16.9” x 3.5”
8 x 3.5” Hot-swap, 1x Slim ODD, 2 x 2.5” Internal HDD
2U Single or 1+1 Redundant
1 x Power Status, 1 x HDD Activity, 2 x LAN Activity, 1 x Fan Failure & Overheat
Power On/Off, System Reset, 2 x USB 2.0
• Middle: 4 x 80mm (T=25mm), PWM, MAX, Rear: 2 x 40mm (Option)
Intrusion Switch (Option)
• 3 x full height and length or 7x low prole
1.2mm
SGCC
12Gb/s
11.0 kg
12.7 kg
3.05
20':314, 40':638, 40'H:690
88 mm / 3.5”
430 mm / 16.9”
660 mm / 26”
12Gb/s Backplane
P/N
Dimension (W x H)
Backplane Type
Host Interface
HDD Interface
SAS Expander
Tool-less Installation
Features
80H10323606A0
• 425 x 55mm
• Passive
2 x SFF-8643
• 8 x SFF-8680
• N/A
• N/A
SGPIO, Temperature Monitoring, Smart Fan, I2C
Optional Items
Backplane
Cable
Bezel
Rear Window
Slide Rail
PSU ※ M/B Support ※ I/O Gasket ※ Air Duct ※ (Detailed in CHENBRO websites)
Order Code Description
80H10323606A0
26H12323602A0
84H323610-009
84H323610-006
84H341300-002
8-port 12Gb/s mini-SAS HD backplane
mini-SAS HD to mini-SAS HD, 600mm
2U Plastic (SilFox)
3 Full Height PCI slots, Riser
22" , For 2U/3U/4U
Order Information
Order Code M/B Backplane Cooling Fan(mm) PCI Slot PSU Slide Rail
RM23608M3-L
RM23608M3-R650L
12" x 13"
12" x 13"
12Gb/s mini-SAS HD
12Gb/s mini-SAS HD
Tool-less
2.5” HDD mounting kit
Easy-swap 3-slot or 7-slot
rear window (Option)
3 x 8025
3 x 8025
7 x LP
7 x LP
Hot-swap fan module
air circulation
Option
650W Redundant
Option
Option
Rev. 1.2©2016 Chenbro Micom Co., LTD. All rights reserved.
