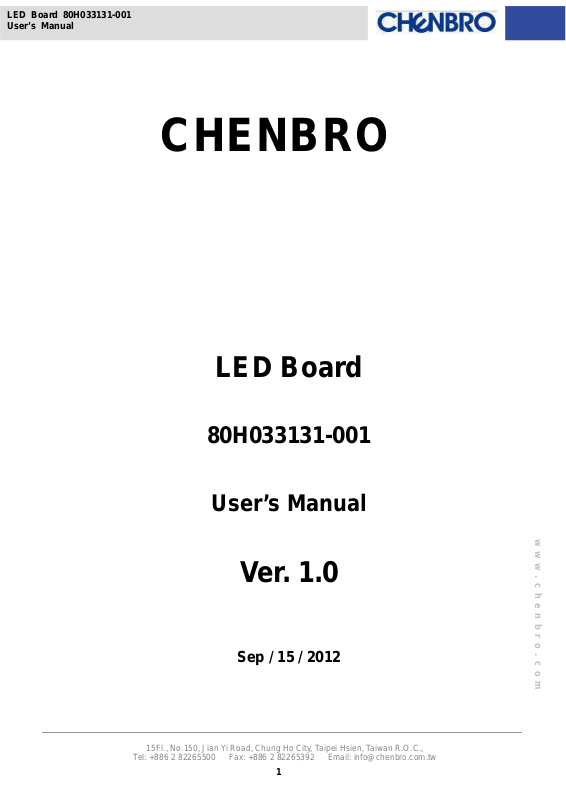

LED Board 80H033131-001
User’s Manual
CHENBRO
LED Board
80H033131-001
User’s Manual
Ver. 1.0
w w w . c h e n b r o . c o m
Sep / 15 / 2012
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw
1
LED Board 80H033131-001
User’s Manual
Copyright
Copyright © 2012 Chenbro Micom Co., Ltd.. All rights reserved.
Unless otherwise indicated, all materials in this manual are copyrighted by Chenbro Micom Co., Ltd.. All rights
reserved. No part of this manual, either text or image may be used for any purpose other than internal use within
purchasing company. Therefore, reproduction, modification in any form or by any means, electronic, mechanical or
otherwise, for reasons other than internal use, is strictly prohibited without prior written permission.
Chenbro Micom Co., Ltd. reserves the right to make improvement and modification to the products indicated in this
manual at any time. Specifications are therefore subject to change without prior notice.
Information provided in this manual is intended to be accurate and reliable. However, Chenbro Micom Co., Ltd.,
assumes no responsibility for its use, nor for any infringements upon the rights of third parties, which may result from
its use.
Technical Support
Chenbro works hard to offer our customers maximum performance from our chassis. But in case you have
any problem with our product you can find supports from the following resources.
Web Support
Detail information of our products is in our website. You can find technical updates, installation guides, FAQs,
technical specifications and more. Our web address is: www.chenbro.com.
Email Support
You can also fill out the technical support form at our Technical Support page. You technical issue inquiries will be
sent directly to our support professionals.
Phone Support
You can also contact Chenbro HQ or branch office for immediate support; contact Information is as following:
Chenbro HQ Chenbro Europe B.V.
Tel: 886-2-8226-5500 Tel: 31-40-295-2045 Tel: 1-909-947-3200
Chenbro Micom (USA) Inc.
w w w . c h e n b r o . c o m
Fax: 886-2-8226-5423 Fax: 31-40-295-2044 Fax : 1-909-947-4300
Chenbro UK LTD Chenbro China Office
Tel: 44-(0)161-425-5341 Tel: 86 010-6709-1786
Fax: 86 010-8791-0567
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw
2
LED Board 80H033131-001
User’s Manual
Contents
Technical Support
Copyright
Revision History
LED Board Specification
LED Board Hardware Layout
LED Board Wiring
w w w . c h e n b r o . c o m
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw
3
LED Board 80H033131-001
User’s Manual
Revision History
Date Modifications
Sep / 15 / 2012 First release (V1.0)
w w w . c h e n b r o . c o m
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw
4
LED Board 80H033131-001
BP fan, temperature monitoring
User’s Manual
LED Board Specification
P/N : 80H033131-001 (Version A0)
Specification
LED indicates status
Power LED – Blue (When power on)
Display
Fail LED – Red (system error for
& RPSU power signal indication)
LAN1、LAN2 LED – Green (When internet is busy)
Connectors
Dimension
Material
1. Pin header 2.0(2x8)
14(L) x 35(W) x 1.6(H) mm
FR4 2 layer
Accommodation Chassis
RM13108, RM14108, RM13600, RM23612, RM23508, RM23512, RM23524, RM41736,
RM41824, RM41848, RM41906, RM23910, RM23914, RM23916, RM41071, RM13920,
NR10800-N0100, NR50100-T0100, NB00300-N0100, NR20700-H0100
Remarks: Model number are subjected to be changed without notice
w w w . c h e n b r o . c o m
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw
5
LED Board 80H033131-001
User’s Manual
LED Board Layout
Backplane Connectors
Front View
LED3
LED1
Rear
View
PB2 PB3
CN1
LED4 LED2
PB1
Components
CN1 15 pin header Connecting to M/B (Power SW, Reset SW, GND, Power
LED1 Power LED Blue indicator during the power on stage
LED2 Fail LED Red indicator during the fail (For BP fan, BP temperature
Description Function
LED, LAN 1 & LAN 2) and BP (Fail & Mute)
& RPSU power signal indication)
LED3 LAN 1 LED Green indicator during the network activity
LED4 LAN 2 LED Green indicator during the network activity
PB1 Power Switch Push button for system power on
PB2 Reset Switch Push button for system reset
PB3 Mute Switch Push button for alarm mute
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw
6
w w w . c h e n b r o . c o m
LED Board 80H033131-001
User’s Manual
15 pin header connector (CN1)
Pin1 – MUTE SW (+)
Pin2 – MUTE SW (-)
Pin3 – FAIL LED (+)
Pin4 – FAIL LED (-)
Pin5 – RESET SW (+)
Pin6 – RESET SW (-)
Pin7 – POWER SW (+)
Pin8 – POWER SW (-)
Pin9 – POWER LED (+)
Pin10 – POWER LED (-)
Pin11 – LAN1 LED (+)
Pin12 – LAN1 LED (-)
Pin13 – LAN2 LED (+)
Pin14 – LAN2 LED (-)
CN1 – 2.0 Pin Header
Pin15 – NC
Pin16 – KEY PIN
w w w . c h e n b r o . c o m
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw
7
LED Board 80H033131-001
User’s Manual
LED Board Wiring
Through Chenbro providing Display cable (26H11323602A1/RM236, 26H11341801A0/RM235/RM417/RM418 or
26H113131-004/RM131/RM141 or others) to make 3 boards connection (LED board, B/P & M/B) as below
drawing showing.
photo #a
LED Board
Display cable
photo #b
M/B
CN05
photo #c
Chenbro
RM23612 B/P
(80H10323602A0)
Remarks: P/N are subjected to be changed without notice
photo #a-1
photo #c
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw
photo #a-2
8
photo #b
w w w . c h e n b r o . c o m
