FEATURES

1. Trouble free brushless motor

2. Integrated power supply for 100 to 240VAC service.

3. Heavy duty magnets and drive system.

4. Stainless steel top with easy alignment marks.

5. Non-slip trouble free toothed belt design for long life.

6. Speed range from 10 to 400 rpm’s.

7. Illuminated LCD display.

8. Optional output for remote communication available.

9. Optional motion alarm available

The Chemglass Life Science's five position magnetic stirrer is a rugged design for 24/7 laboratory or production
applications. It is ideal for CO2 incubators with a maximum capacity of 5 1000ml spinner vessels.

GENERAL USE

Supply Voltage - 120VAC to 240VAC +/-10%, 50-60 Hz
Dimensions H x W x D - (inches 3¼ x 16¾x 17¾), (centimet ers - 8.3 x 4 2. 5 x 45 )
Ambient Temperature - 0 to 40°C, 32 to 104°F
Speed range from 10 to 400 rpm’s. [ +/- 1% or 1 RPM, whichever is greater]

SPECIFICATIONS

2

1. Connect the detachable power cord to the AC/DC converter (DC power supply) and connect to “INPUT 24Vdc” receptacle in

2. If purchased, connect an RS232 communications cable to “ Comm.” port in rear of unit and then to a computer.

3. Place one or more spinner vessels atop of unit over magnet marks

Mains Fuse

1A/250V

SET-UP

rear of unit and then plug power cord into a suitable electrical outlet.

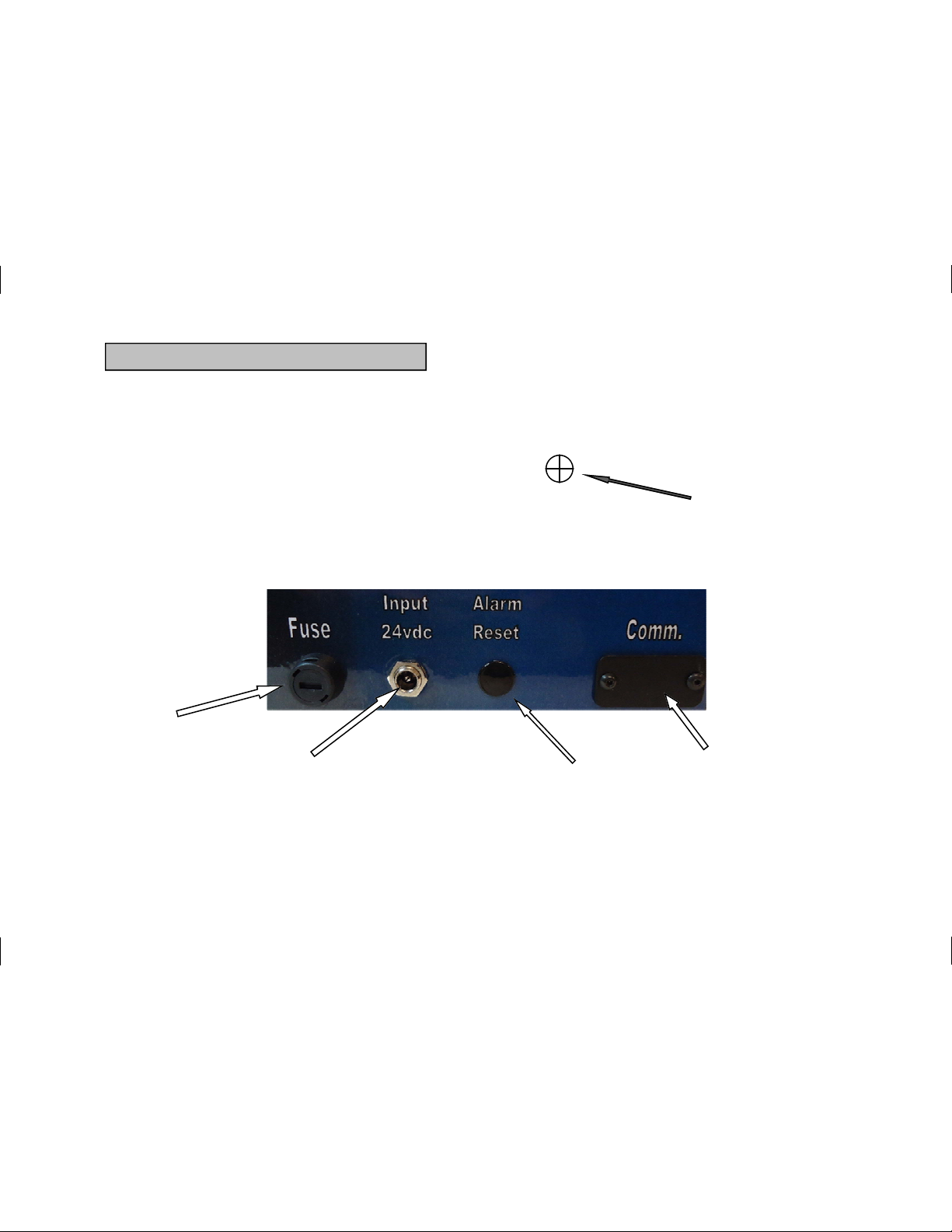

Figure 1—Rear Panel

24Vdc INPUT Receptacle

(See Figure 1)

Optional Motion Alarm

Reset Button

5 Alignment Marks

Communications Port ( Module

purchased separately )

3

To operate, turn the main power switch to the “ON” position. Turn the speed control knob to set
the desired rpm value. The units are designed to operate within a range of 10-400 rpm. Adjust the
speed by turning the speed control knob, CW to increase speed, CCW to decrease it. The unit will
ramp up (or down) to your selected speed. Turn the “LOCK” ring clockwise about an eighth of a
turn to prevent any inadvertent changes to the set speed. Turn the “LOCK” ring counterclock­wise to unlock the speed control knob.

OPERATION

RPM Display

Speed Control Knob w/lock Feature

Figure 2—Front Panel

Main Power
Switch

4

Chemglass, Inc. guarantees this unit against defects in material and workmanship for a period of two years from
the date of sale. If the unit should malfunction, it must be returned for evaluation. If the unit is determined to
have a defect in materials or workmanship, then it will be repaired or replaced at no charge. Tampering with
the unit or damage resulting from excessive current, heat, moisture, vibration, corrosive materials, or misuse
will void this warranty. Programming changes or reconfigurations are not covered under warranty.

To return this item, within or beyond the warranty period, advise the Chemglass Electronic department of the issue and they
will provide you with a return authorization number. The unit will be evaluated and repaired as required in accordance to
the warranty. If it is beyond the warranty period or not covered under warranty, a repair quote will be issued to user.

Please contact the Chemglass Electronics department with warranty repair information.

Chemglass Electronics department:

Email: [e-mail]

Warranty

Tel: [phone]

Fax: [phone]
