Rock™ Digital Rocker
VERSA
VERSA
VERSA
100
-
100
-
100
-
3800 North Mill Road • Vineland, NJ 08360 • USA
Tel: 1-800-843-1794 • Fax: 1-800-922-4361
Web: www.cglifesciences.com
-
Rock™ Digital Rocker
-
Rock™ Digital Rocker
-
REV: CG080812
Page 2
FEATURES
1. Trouble free brushless DC motor
2. Integrated power supply for 100 to 240VAC service.
3. An adjustable range of motion, 5-14 degrees.
4. Illuminated LED display.
5. Non-slip trouble free toothed belt design for long life.
6. 5 - 30 rocks per minute.
7. Rotary speed knob has locking ring.
8. Peg and Grommet tray mounting.
9. Tray sizes available: (12”x12”, 15”x15”, 20”x20”)
The Chemglass Life Science's VERSA-Rock™ is a slow speed digital rocker for laboratory cell culture work.
The low profile design incorporates a rocking platform that accepts a variety of optional trays, as well as other
similar manufacture’s trays.
GENERAL USE
Supply Voltage - 100VAC to 240VAC +/-10%, 50-60 Hz
Dimensions H x W x D - (inches 5⅝. x 11⅞x 12½), (centimeters - 14 x 31 x 33)
Base Weight - 11.6lbs (5.3kg)
Maximum Load - 20lbs (9kg)
Ambient Temperature - 0 to 40°C, 32 to 104°F
Fuse - 2AMP (5x20mm)
SPECIFICATIONS
2
Page 3
1. Connect the detachable power cord to the AC/DC converter (DC power supply) and connect to “INPUT 24Vdc” receptacle in
2. Select range of motion by loosening knob and moving pivot arm to desired location on wheel. NOTE: Ensure spacer is re-
3. Mount appropriate tray atop of rocker platform - position pegs into grommets.
Mains Fuse
2A/250V
SET-UP
rear of unit and then plug power cord into a suitable electrical outlet.
tained between wheel and pivot arm. Tighten knob securely.
(See Figure 1)

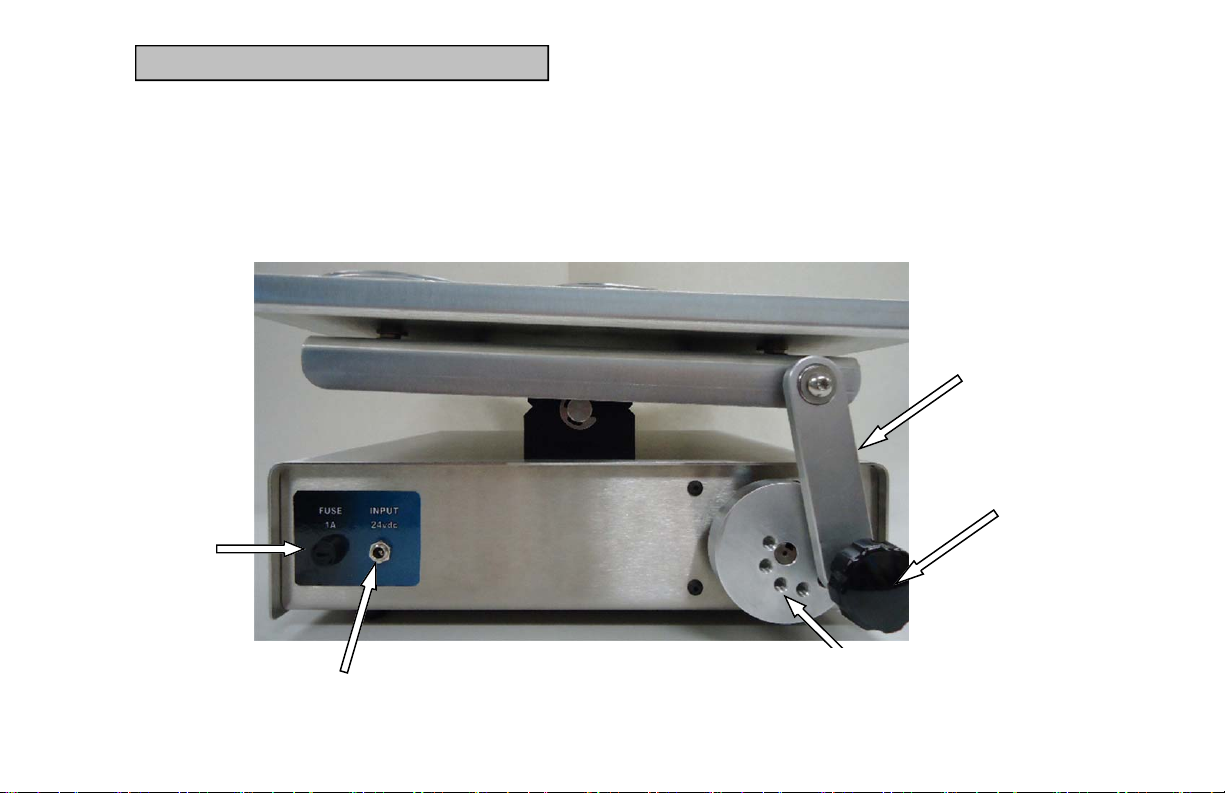

Figure 1—Rear View
24Vdc INPUT Receptacle
Pivot Arm
Knob for range of motion
Range of motion wheel
( 5 -14 degrees )
3
Page 4
To operate, turn the main power switch to the “ON” position. Turn the speed control knob to set
the desired rpm value. The units are designed to operate within a range of 5 - 30 rocks per minute.
Adjust the speed by turning the speed control knob, CW to increase speed, CCW to decrease it.
The unit will ramp up (or down) to your selected speed. Turn the “LOCK” ring clockwise about
an eighth of a turn to prevent any inadvertent changes to the set speed. Turn the “LOCK” ring
counterclockwise to unlock the speed control knob.
OPERATION
See figure 2
Speed Control Knob w/lock Feature RPM Display

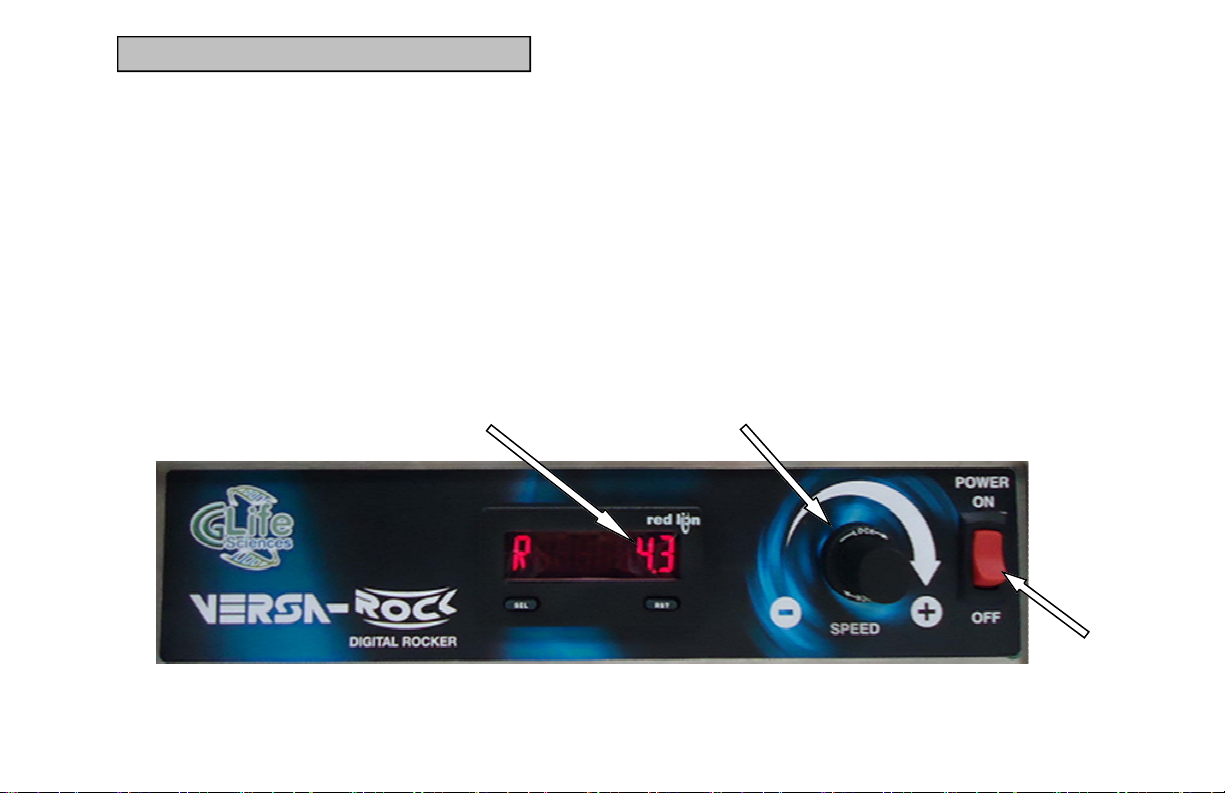

Figure 2—Front Panel
Main Power
Switch
4
Page 5
Chemglass, Inc. guarantees this unit against defects in material and workmanship for a period of two years from
the date of purchase. If the unit should malfunction, it must be returned for evaluation. If the unit is determined
to have a defect in materials or workmanship, then it will be repaired or replaced at no charge. Tampering with
the unit or damage resulting from excessive current, heat, moisture, vibration, corrosive materials, or misuse
will void this warranty. Programming changes or reconfigurations are not covered under warranty.
To return this item, within or beyond the warranty period, advise Chemglass Life Sciences customer service department
(800-843-1794) of issue and you will be provided with a return authorization number. The unit will be evaluated and repaired as required in accordance to the warranty. If it is beyond the warranty period or not covered under warranty, a repair
quote will be issued to user.
Please contact the Chemglass Electronics department with warranty repair information.
Chemglass Electronics department:
Tel: 1-800-843-1794 ext. 2124
Email: electronics@chemglass.com
Warranty
Fax: 1-800-922-4361
