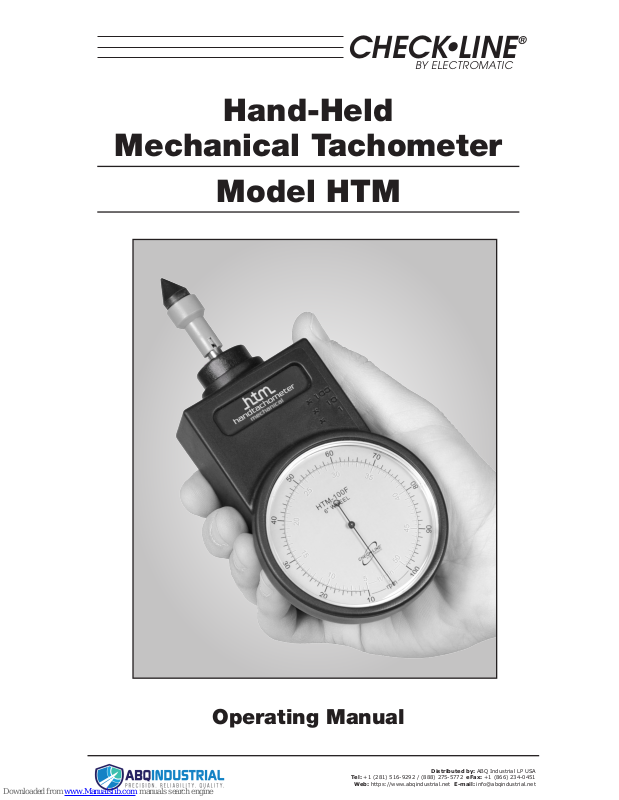

Chekline HTM series, HTM-100F, HTM-100M, HTM-500F, HTM-500M Operating Manual

CHECK•LINE

®

BY ELECTROMATIC

Hand-Held

Mechanical Tachometer

Model HTM

Operating Manual

Distributed by: ABQ Industrial LP USA

Tel: [phone] eFax: [phone]

Web: https://www.abqindustrial.net

E-mail: [e-mail]

– 1 –

TABLE OF CONTENTS

1.0 Introduction ................................................................................................. 2

1.1 Unpacking

1.2 Applications

2.0 Safety Precautions ....................................................................................... 3

3.0 Complete Kit ................................................................................................ 4

3.1 Included Accessories

4.0 Taking A Measurement ............................................................................... 5

5.0 Specications ............................................................................................... 6

6.0 Spare Parts ................................................................................................... 7

7.0 Warranty ...................................................................................................... 8

– 2 –

1.0 INTRODUCTION

The new HTM mechanical hand-tachometer accurately measures RPM and surface
speed on a wide range of applications. Favored in several industries, including
elevator maintenance, mining and others, HTM mechanical tachometers use a
pointer and dial to display RPM or surface speed—without the need for batteries.

Four models are available (two English and two metric):

HTM-100F 10-10,000 rpm/5-5,000 ft/min
HTM-100M 10-10,000 rpm/1-1,000 m/min

HTM-500F 30-50,000 rpm/15-25,000 ft/min
HTM-500M 30-50,000 rpm/3-5,000 m/min

1.1 Unpacking

Unpack the gauge and inspect it for any shipping damage. Notices of defect must
be led immediately, in writing, at the latest within 10 days on receipt of the goods.

1.2 Applications

RPM: Used to measure the speed of rotating motors, shafts, pulleys, gears, etc.

Linear Speed: Used to measure the linear speed of moving surfaces, such as

conveyor belts, printed materials, webs of fabric or paper, etc.

– 3 –

2.0 SAFETY PRECAUTIONS

All operators should wear safety goggles when using this or any other tachometer.
Failure to do so could result in serious injury!

1. Check condition of the mounting hubs of the cone tip, funnel tip, shaft extension
and surface speed wheel. Replace those that are worn, loose-tting or cracked.

2. When using the Surface Speed Wheel, make sure it ts the tachometer shaft snugly.
In operation, keep the wheel perpendicular and parallel to the moving surface to
prevent it from running off the tachometer shaft.

3. Store the instrument in its carrying case when it is not in use.

– 4 –

3.0 COMPLETE KIT

All models are supplied as a
complete kit that includes the
gauge, cone tip and funnel tip
adapters, shaft extension and
instruction manual, packaged
in a foam-tted carrying case.

NOTE: Calibration
Certicates are optional.

HTM-100F HTM-500F HTM-100M HTM-500M

6 “ Wheel • •

0.1 M Wheel • •

Cone Tip • • • •

Funnel Tip • • • •

Shaft Extension • • • •

2.1 Included Accessories

– 5 –

4.0 TAKING A MEASUREMENT

Pin

Range Switch

Pointer Button

1. Slide the Red Range Switch to select a multiplier for your application. If the
range is unknown, start at “x100” and adjust to lower range as needed. When
properly set, the needle will register a value between Min. and Max. on the dial.

2. Manually rotate the measuring shaft to engage the gear for the selected range.

3. Slide the measuring wheel contactadapter the over the shaft of the instrument.
Be sure to align the pin on the side of the shaft with the slot in the adapter.
Push on securely.

4. To begin measuring, bring the tip adapter into contact with the moving surface
of the material being measured. The gauge will take and display a reading,
either RPM, ft/min, min/min).

5. To lock in the reading, press and hold the Red Pointer Button to activate the
pointer. When the pointer button is released, the pointer will remain in the last
position.

6. To reset the pointer, press and release red button again.

Measuring Shaft

(Top View)

151 mm

– 6 –

5.0 SPECIFICATIONS

Accuracy ±0.5% Full Scale

RPM Ranges

HTM-100 models
10-10,000 rpm

HTM-500 models
30-50,000 rpm

Multipliers (rpm)

x 1
x 10
x 100

1 – 100
100 – 1,000
1,000 – 10,000

x 1
x 10
x 100

30 – 500
300 – 5,000
3,000 – 50,000

Surface Speed Ranges
100 Series Models

HTM-100F
5-5,000 ft/min

HTM-100M
1-1,000 m/min

Multipliers (fpm / mpm)

x 1
x 10
x 100

5 – 50
50 – 500
500 – 5,000

x 1
x 10
x 100

1 – 10
10 – 100
100 – 1,000

Surface Speed Range
500 Series Models

HTM-500F
15-25,000 ft/min

HTM-500M
3-5,000 m/min

Multipliers (fpm / mpm)

x 1
x 10
x 100

15 – 250
150 – 2,500
1,500 – 25,000

x 1
x 10
x 100

3 – 50
30 – 500
300 – 5,000

Surface Speed Range
Metric Models

Must divide value on dial by 10

Weight 10.6 oz (300 g)

Housing Material Plastic, with outer rubber shell

Dimensions (Tach) 6.1" x 3.4" x 2.2" (155 x 85 x 55mm)

Dimensions (Case) 9.9” x 8.2" x 2.4" (252 x 207 x 60mm)

Certifications CE

Warranty 18 months

Operating Temperature 32 °F to 104 °F (0 °C to 40 °C)

Storage Temperature 14 °F to 104 °F (–10 °C to 40 °C)

– 7 –

6.0 SPARE PARTS

NISTCAL NIST-Traceable Calibration Certicate & Test Report .

DTCA RPM Cone Tip Adapter.

DT6 6” circumference surface wheel for “F” models.

CDT-WHEEL 0.1m circumference surface wheel for “M” models.

– 8 –

7.0 WARRANTY

ELECTROMATIC Equipment Co., Inc. (ELECTROMATIC) warrants to the
original purchaser that this product is of merchantable quality and conrms in
kind and quality with the descriptions and specications thereof. Product failure
or malfunction arising out of any defect in workmanship or material in the product
existing at the time of delivery thereof which manifests itself within eighteen
months from the sale of such product, shall be remedied by repair or replacement
of such product, at ELECTROMATIC’s option, except where unauthorized repair,
disassembly, tampering, abuse or misapplication has taken place, as determined
by ELECTROMATIC. All returns for warranty or non-warranty repairs and/
or replacement must be authorized by ELECTROMATIC, in advance, with all
repacking and shipping expenses to the address below to be borne by the purchaser.

THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO,
THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR ANY
PARTICULAR PURPOSE OR APPLICATION. ELECTROMATIC SHALL NOT
BE RESPONSIBLE NOR LIABLE FOR ANY CONSEQUENTIAL DAMAGE,
OF ANY KIND OR NATURE, RESULTING FROM THE USE OF SUPPLIED
EQUIPMENT, WHETHER SUCH DAMAGE OCCURS OR IS DISCOVERED
BEFORE, UPON OR AFTER REPLACEMENT OR REPAIR, AND WHETHER
OR NOT SUCH DAMAGE IS CAUSED BY MANUFACTURER’S OR
SUPPLIER’S NEGLIGENCE WITHIN FIVE YEARS FROM INVOICE DATE.

Some State jurisdictions or States do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation may not apply to you.
The duration of any implied warranty, including, without limitation, tness for any
particular purpose and merchantability with respect to this product, is limited to the
duration of the foregoing warranty. Some states do not allow limitations on how
long an implied warranty lasts but, not withstanding, this warranty, in the absence
of such limitations, shall extend for ve years from the date of invoice.

ELECTROMATIC Equipment Co., Inc.
600 Oakland Ave. Cedarhurst, NY 11516—USA
Tel: [phone]/ Tel: [phone]/ Fax: [phone]

Every precaution has been taken in the preparation of this manual. Electromatic Equipment
Co., Inc., assumes no responsibility for errors or omissions. Neither is any liability assumed
for damages resulting from the use of information contained herein. Any brand or product
names mentioned herein are used for identication purposes only, and are trademarks or
registered trademarks of their respective holders.
