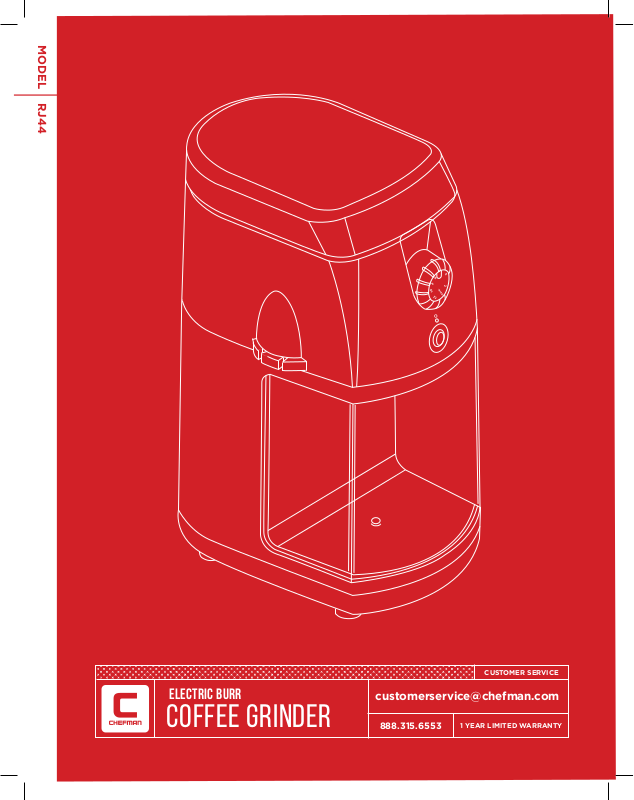

MODEL: RJ44
MODEL RJ44
ELECTRIC BURR
COFFEE GRINDER
CUSTOMER SERVICE
customerservice@chefman.com
888.315.6553
1 YEAR LIMITED WARRANTY
1
MODEL: RJ44
Visit clubchefman.com for recipes, video tutorials
and tips tailor-made for your chefman Product.
READ ALL INSTRUCTIONS BEFORE USE
For your safety and continued enjoyment of this product, always read the instruction manual before using.
2
Contents
1 Introduction
2 Safety Instructions
4 Features
5 Operating Instructions
7 Cleaning and Maintenance
8 Notes
11 Terms and Conditions
12 Warranty Card
MODEL: RJ44
Introduction
Congratulations!
You have made an excellent choice with the purchase of this quality Chefman®
product. By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to the highest
standards of performance and safety, supported by the high quality standards
of Chefman® .
We want you to be completely satisfied with your purchase, so this Chefman®
product is backed by a comprehensive manufacturer’s 1-year warranty and an
outstanding after sales service through our dedicated Helpline.
We hope you will enjoy using your purchase for many years to come.
If you require technical support or in the unlikely event that your purchase is
faulty please telephone our Helpline for immediate assistance. Faulty product
claims made within the 1-year warranty period will be repaired or replaced free
of charge provided that you have satisfactory proof of purchase (keep your
receipt). This guarantee is in addition to your statutory rights. Your statutory
rights are not affected. This limited warranty does not apply in cases of
damage caused by accident, improper use, abuse and force majeure.
This warranty gives you specific legal rights. You may have other legal rights
that vary depending on where you live. Some states or provinces do not
allow limitations on implied warranties or special, incidental, or consequential
damages, so the foregoing limitations may not apply to you.
This limited warranty will be invalidated if the appliance is tampered with in
any way whatsoever. In case of questions or technical problems please call the
following toll-free help line number: 888-315-6553, Monday – Friday 9am to
5pm EST.
If the appliance has to be returned to us, it must be packed correctly as we
cannot accept any responsibility for damage caused in transit. We recommend
you use a traceable, insured delivery service.
1
SAFETY INSTRUCTIONS
IMPORTANT SAFEGUARDS
This appliance is for HOUSEHOLD USE ONLY.
WARNING: When using electrical appliances especially when children are present, basic
safety precautions should always be followed to reduce the risk of fire, electric shock,
and/or injury to persons, including the following:
1. Read all instructions before use.
2. To protect against risk of electrical shock, do not immerse appliance, cord or plug in
water or other liquid.
3. Unplug from outlet when not in use, before putting on or taking off parts or before cleaning.
4. Do not use this appliance for anything other than its intended use.
5. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
6. Do not use if there is any visible damage to the appliance or to the supply cord.
7. Do not let cord hang over the edge of the table or counter, or touch hot surfaces.
8. Any servicing other than cleaning or user maintenance should be performed by an
authorized service representative. If the supply cord is damaged. It must be replaced by
the manufacturer or its service agent or a similarly qualified person in order to avoid a
hazard.
9. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
10. Keep the appliance and its cord out of reach of children.
11. Children should be supervised to ensure that they do not play with the appliance.
SAVE THESE INSTRUCTIONS
This appliance is for HOUSEHOLD USE ONLY.
2
MODEL: RJ44
SAFETY INSTRUCTIONS
SHORT CORD INSTRUCTIONS
a. This unit includes a short power-supply cord in order to reduce the risk of becoming
entangled or tripped over a longer cord.
b. Longer extension cords are available and may be used if care is exercised in
their use.
c. If extension cord is used:
1. The marked electrical rating of the extension cord should be at least as great as the
electrical rating of the appliance;
2. If the appliance is of the grounded type the extension cord should be a grounding
type 3-wire cord; and
3. The longer cord should be arranged that it will not drape over the counter top or
tabletop where it can be pulled on by children or tripped over.
LINE CORD SAFETY TIPS
1. Never pull or yank on cord or the appliance.
2. To insert plug, grasp it firmly and guide it into outlet.
3. To disconnect appliance, grasp plug and remove it from outlet.
4. Before each use, inspect the line cord for cuts and/or abrasion marks. If any are found,
this indicates that the appliance should be serviced and the line cord replaced. Please call
Customer Service.
5. Never wrap the cord tightly around the appliance, as this could place undue stress on the
cord where it enters the appliance and cause it to fray and break.
DO NOT OPERATE APPLIANCE IF THE LINE CORD SHOWS ANY DAMAGE OR IF
APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.
CAUTION: To ensure continued protection against risk of electric shock, connect to properly
grounded outlets only.
IMPORTANT: During the first few minutes of initial use, you may notice smoke and/or a slight
odor. This is normal and should quickly disappear. It will not recur after appliance has been
used a few more times.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
3
Features
1
2
6
7
3
4
8
1. Hopper lid
2. Hopper
3. Grinding control
4. Body
5. Burr blade
6. Quantity control
7. Start/Stop button
8. Collecting vessel
9. Cleaning brush
5
9
4
MODEL: RJ44
Operating Instructions
Before First Use
Before using the appliance for the first time, or following periods of prolonged storage,
it is necessary to clean the appliance thoroughly. See the Cleaning section. Before
switching on, make sure that the voltage of your electricity supply is the same as that
indicated on the rating plate.
Using your Coffee Grinder
1. Lift the hopper lid off the hopper. Place the desired quantity of coffee beans into the
hopper, up to 100g. Replace the lid.
2. Slowly turn the Grinding Control wheel to the desired setting. This should be done while
the appliance is operating as it prevents the beans from lodging in the grinders. The fine
setting is marked with number 4 on the Grinding Control and is graduated to the coarse
setting with the number 0.
3. Ensure that the collecting vessel is correctly located on the pedestal. Plug in and switch
on the power to the appliance.
4. Set the Quantity Control to the required setting. If the control is set to 12, it will grind
enough coffee to serve 12 cups approximately. This should be used as a guide only,
as it will vary depending upon taste, type and roast of bean and the grind selected.
Intermediate settings will give a proportion of this time.
5. Press the Start/Stop button to start the grinder. The grinder will stop automatically after
the required time, or alternatively, press the Start/Stop button again to stop it. After use
the appliance must be unplugged.
6. Remove the ground coffee bin and use the grounds as needed.
5
Cleaning & Maintenance
Cleaning
6
1. Switch off and remove the plug from the power supply. Do not clean the
appliance under running water and never immerse it in water.
2. Do not clean the appliance under running water and never immerse
it in water
3. To clean, wipe the appliance with a damp cloth and then with dry one. Brush
away any coffee that may have accumulated around the ground coffee outlet.
4. The vessel lid and collecting vessel may be washed in hot soapy water and
then thorough dried.
5. The top ground can be removed by turning the cover clockwise. You can
replace, the cover by turning anti-clockwise until finger tight.
6. While the top ground cover is removed, Brush the grindhead free of coffee
grains using the included clean dry brush, then replace, the cover by turning
anti-clockwise until finger tight.
6
MODEL: RJ44
Helpful Hints
• The Chefman Burr Coffee Grinder is fully automatic. Select the correct grind for the
brew process you are using: espresso, automatic drip, or French press. There are 17
grind settings available. Rotate Grind Adjustment Wheel to the left to select fine
grind and to the right for coarse grind.
• Select fine grind for espresso (rotate Grind Adjustment Wheel to the left), medium
grind for drip makers and coarse grind for French press or percolator.
• The actual grind size for a particular setting will vary depending on many factors,
including: degree of roast (light vs. dark), freshness, humidity, type of bean, oil
content, etc. With use, you will discover which setting best meets your taste, brewing
style and other personal coffee-making preference.
• For optimum freshness of your coffee beans, do NOT store in the bean hopper for
extended periods of time.
• To avoid overheating the motor, do not grind more than 2 full whole bean hoppers or
2 full 12-cup cycles without a break. Allow the motor to cool to room temperature at
least 2 minutes between cycles.
• The Hopper Lid and Ground Coffee Bin must always be in place when using this
appliance.
• Use only coffee beans in this appliance.
7

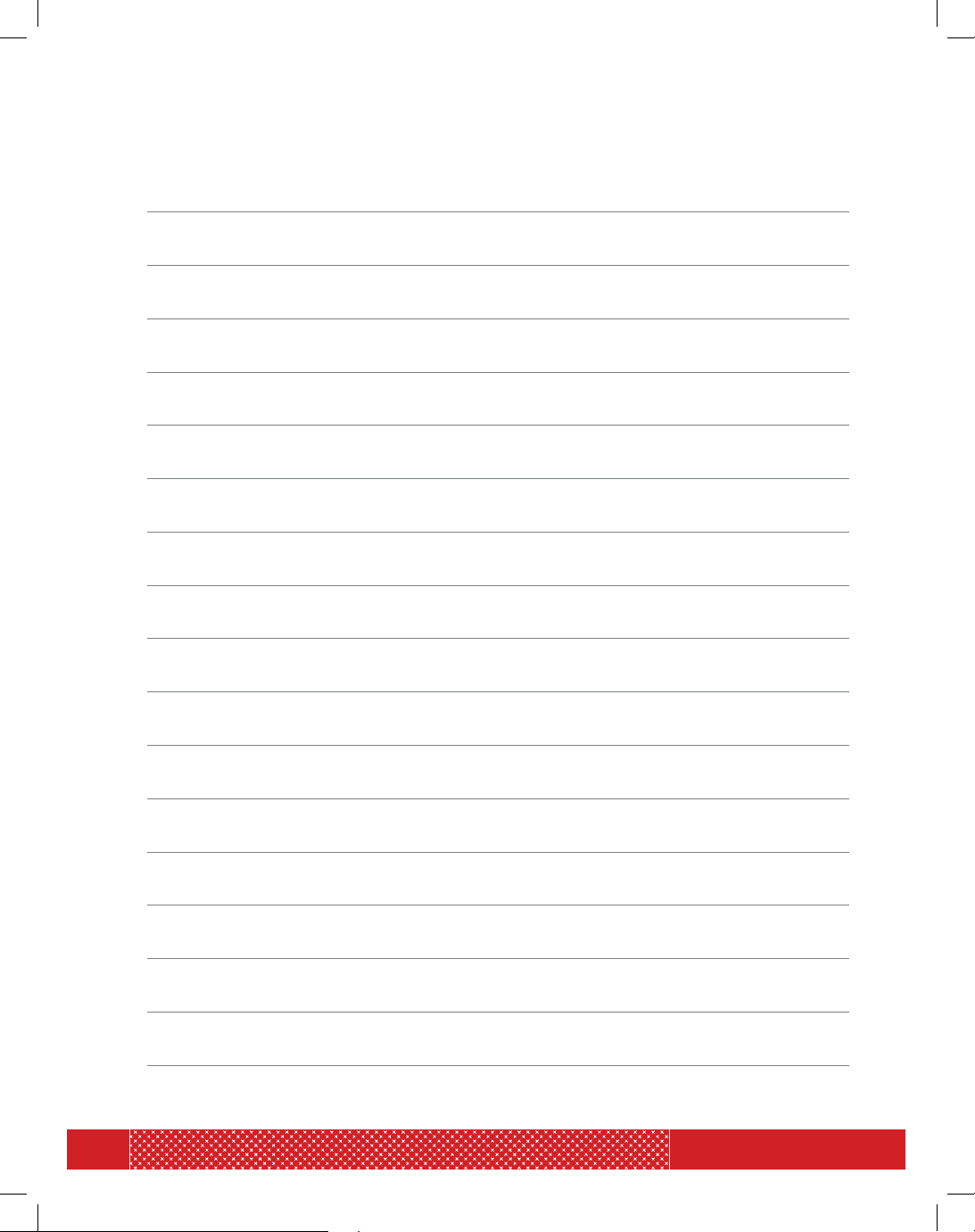

Notes
8
MODEL: RJ44

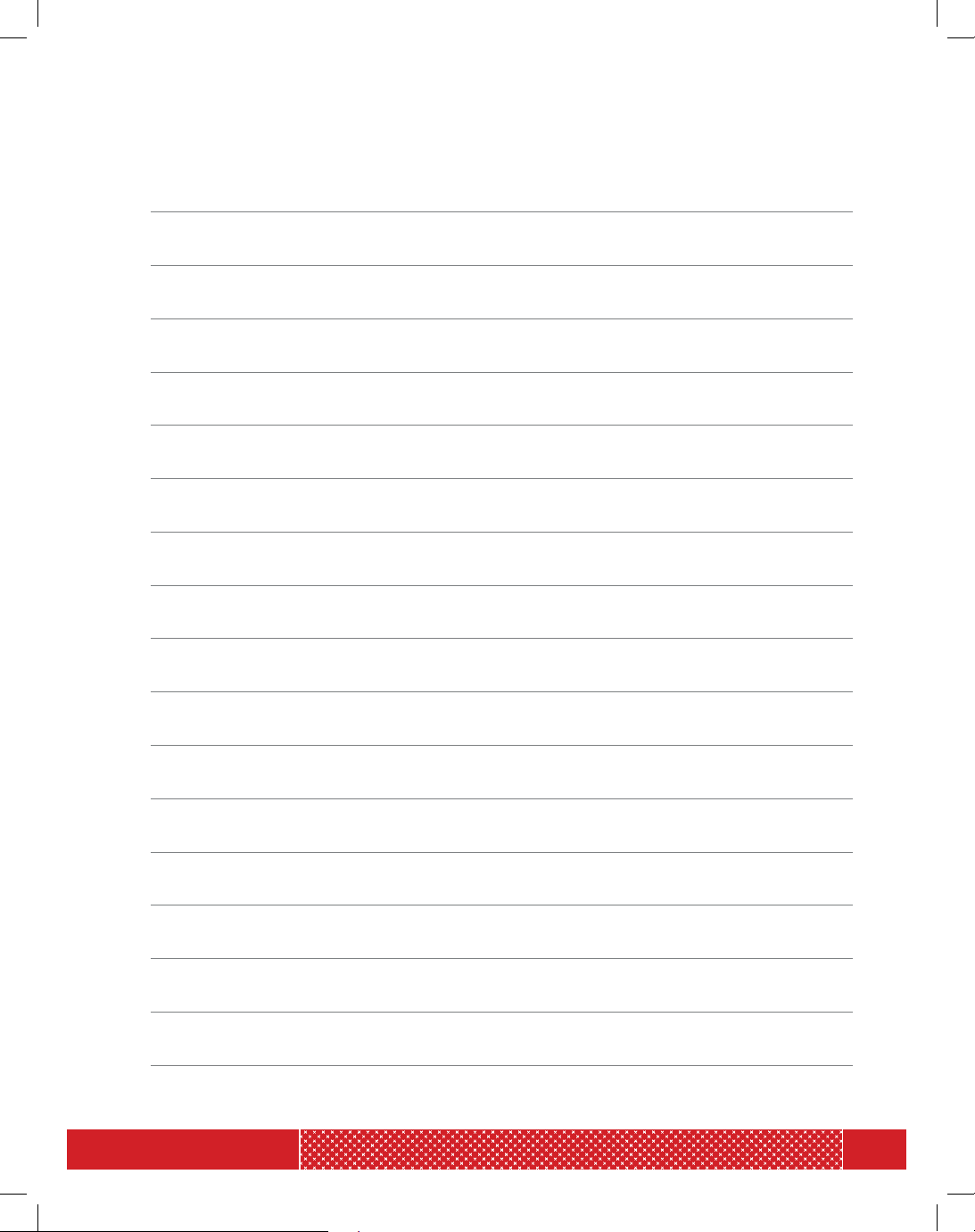

NotesNotes
9
NotesNotes
10
MODEL: RJ44
Terms & Conditions
Limited Warranty
CHEFMAN® LLC warrants, subject to the conditions stated below, that from the date of purchase, this product will
be free from mechanical defects for a period of ONE (1) year. CHEFMAN® LLC, at its option, will repair or replace
this product found to be defective during the warranty period. Should this product become defective by reason of
improper workmanship or material defect during the specified warranty period, CHEFMAN® LLC will repair or replace
the same effecting all necessary parts replacements for a period of one year from the date of purchase. If product
is no longer available we will replace it with a product of equal value. Transportation charges on parts, or products
in whole, submitted for repair or replacement, under this warranty, must be borne by the purchaser. This warranty
is void if the product is used for other than single-family household use or subjected to any voltage and waveform
other than as specified on the rating label (e.g., 120V ~ 60 Hz).
This warranty is available to consumers only. You are a consumer if you own a CHEFMAN® product that was
purchased at retail for personal, family or household use. Except as otherwise required under applicable law, this
warranty is not available to retailers or other commercial purchasers or owners.
CONDITIONS: This warranty is valid for the original USA and Canada retail purchaser from the date of initial retail
purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty
service or replacement. Dealers, service centers, or retail stores do not have the right to alter, modify or in any way,
change the terms and conditions of this warranty. Warranty registration is not necessary to obtain warranty on
CHEFMAN® LLC Products. Save your proof of purchase receipt.
ABOUT YOUR PRODUCT WARRANTY: Most warranty repairs are handled routinely, but sometimes requests for
warranty service may not be appropriate. For example, warranty service would NOT apply if the product damage
occurred because of misuse, lack of routine maintenance, shipping, handling, 3rd party warehousing or improper
installation. Similarly, the warranty is void if the manufacturing date or the serial number on the product has been
removed or the equipment has been altered or modified. During the warranty period, the authorized service dealer, at
its option, will repair or replace any part that, upon examination, is found to be defective under normal use and service.
NORMAL WEAR: This warranty does not cover normal wear of parts or damage resulting from any of the following:
negligent use or misuse of the product; improper voltage or current; use contrary to the operation instructions;
deviation from instructions regarding storage and transportation; repair or alteration by anyone other than
CHEFMAN® LLC or an authorized service center. Further, the warranty does not cover Acts of God, such as fire, flood,
hurricanes and tornadoes. CHEFMAN® LLC shall not be liable for any incidental or consequential damages caused
by the breach of any express or implied warranty. Except to the extent prohibited by applicable law, any implied
warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above
warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental of consequential
damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to
you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or
province to province.
HOW TO OBTAIN WARRANTY SERVICE: If your CHEFMAN® product should prove to be defective within the
warranty period, we will repair it, or if we think necessary, replace it. To obtain warranty service, simply email
customerservice@chefman.com or call our toll-free number 1-888-315-6553 for additional information from our
Customer Service Representatives, or send the defective product to Customer Service at Chefman, 1 Sharp Plaza,
Mahwah, NJ 07495.
This warranty is effective for the time periods listed above and subject to the conditions provided for within this
policy.
CALIFORNIA RESIDENTS ONLY:
California law provides that for In-Warranty Service, California residents have the option of returning a nonconforming
product (A) to the store where it was purchased or (B) to another retail store which sells CHEFMAN® products
of the same type. The retail store shall then, at its discretion, either repair the product, refer the consumer to an
independent repair facility, replace the product, or refund the purchase price less the amount directly attributable
to the consumer’s prior usage of the product. If the above two options do not result in the appropriate relief to
the consumer, the consumer may then take the product to an independent repair facility if service or repair can be
economically accomplished. CHEFMAN® and not the consumer will be responsible for the reasonable cost of such
service, repair, replacement, or refund for nonconforming products under warranty.
CHEFMAN® is a registered trademark of RJ BRANDS, LLC.
11
Warranty
BURR COFFEE GRINDER
All data fields are required in order for us to process your request:
Model Number:
Full Name:
Address:
Phone:
Date of Purchase*:
*We recommend you keep the receipt with this warranty card
Retail Store of Purchase:
Description of Malfunction:
Return your completed warranty card to:
Email: (If applicable)
RJ Brands
1 Sharp Plaza
Suite 207
Mahwah, NJ
074 9 5
ELECTRIC BURR
MODEL:
RJ44
COFFEE GRINDER
888.315.6553
Phone lines available Monday to Friday, 9am-5pm EST
1-YEAR LIMITED WARRANTY
customerservice@chefman.com
12
To log-in to ClubChefman.com follow the below steps:
1. Enter www.clubchefman.com into your web browser.
2. Click on "Sign Up Now" .
3. Fill in the required information as prompted.
NOTE: "Place of Purchase" refers to the store at
which you purchased your product.
4. Sign in using your User Name and Password.
CLUB CHEFMAN ACCESS CODE:
2131621
®
RJBRANDS.COM | CLUBCHEFMAN.COM | CHEFMAN.COM
Loading...
