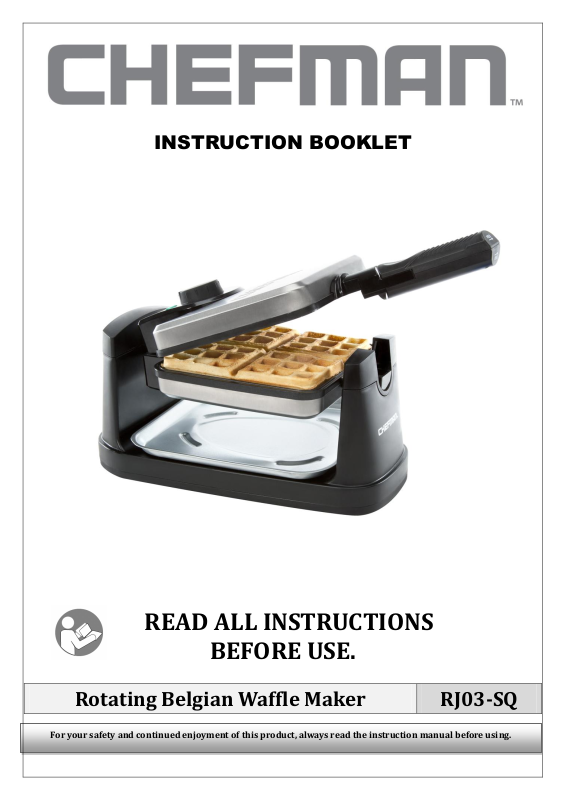

Rotating Belgian Waffle Maker
RJ03-SQ
For your safety and continued enjoyment of this product, always read the instruction manual before using.
INSTRUCTION BOOKLET
READ ALL INSTRUCTIONS
BEFORE USE.
1
8IMPORTANT SAFEGUARDS888
- FOR HOUSEHOLD USE ONLY -
1. To protect against electrical shock, do not immerse the cord, plug or
cooking unit in water or any other liquid.
2. Do not touch hot surface. Use handles.
3. This appliance should not be used by children, and extreme caution and
close supervision must be exercised when any appliance is used near
children.
4. Do not leave hand mixer unattended while in use.
5. Unplug from wall outlet when not in use and before cleaning. Allow to
cool before cleaning or storing this appliance.
6. Never yank the cord to disconnect the cooking unit from outlet. Instead,
grasp the plug and pull to disconnect.
7. Do not operate any electrical appliance with a damaged cord or plug or
after appliance malfunctions or has been dropped or damaged in any
manner.
8. In order to avoid the risk of an electric shock, never try to repair the
Rotating Belgian Waffle Maker yourself. Take it to an authorized service
center for examination and repair. An incorrect reassembly could present
a risk of electrical shock when the Rotating Belgian Waffle Maker is used.
9. The use of accessories or attachments not recommended by the
manufacturer may cause fire, electrical shock or injury.
10. Do not use outdoors or for commercial purposes.
11. Do not use this appliance for purposes other than its intended use.
12. Do not let cord hang over edge of table or countertop, or touch hot
surfaces including stove.
13. Do not place near a hot gas or electric burner or a heated oven or
microwave.
14. Use on a heat-resistant, flat level surface only.
15. Use extreme caution when moving any appliances containing hot food,
water, oil or other liquids.
16. To disconnect, remove plug from outlet
17. This appliance is not intended to operate by means of an external timer or
separate remote-control system.
18. When using this appliance, provide adequate ventilation above and on all
sides for air circulation. Do not allow this appliance to touch curtains, wall
coverings, clothing, dish towels or other flammable materials during use.
19. CAUTION: This appliance generates heat during use. Proper precautions
must be taken to prevent the risk of burns, fire or other damage to
persons or property.
SAVE THESE INSTRUCTIONS
2
WARNING: When using electrical appliances especially when children are
present, basic safety precautions should always be followed to reduce the
risk of fire, electric shock, and/or injury to persons.
This appliance is for HOUSEHOLD USE ONLY. It may be plugged into an AC
electrical outlet (ordinary household current). Do not use any other electrical
outlet.
WARNING: This appliance has a polarized plug (one blade is
wider than the other). To reduce the risk of electric shock, this
plug is intended to fit into a polarized outlet only one way. If the
plug does not fit fully into the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician. DO NOT ATTEMPT TO MODIFY THE PLUG IN
ANY WAY.
SHORT CORD INSTRUCTIONS
A short power supply cord is provided to reduce the hazards resulting from
entanglement or tripping over a longer cord. Longer detachable power-supply
cords or extension cords are available and may be used if care is exercised in
their use. If a longer detachable power-supply extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at
least as great as the electrical rating of the appliance, and:
2) The cord should be arranged so that it will not drape over the countertop
or tabletop where it can be pulled on by children or tripped over
unintentionally.
Before each use, inspect the line cord for cuts and/or abrasion marks. If any are
found, this indicates that the appliance should be serviced and the line cord
replaced. Please return it to an authorized service representative.
Never wrap the cord tightly around the appliance, as this could place undue
stress on the cord where it enters the appliance and cause it to fray and break.
DO NOT OPERATE APPLIANCE IF THE LINE CORD SHOWS ANY DAMAGE OR
IF APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
IMPORTANT
During the first few minutes of initial use, you may notice smoke and/or a slight
odor. This is normal and should quickly disappear. It will not recur after
appliance has been used a few more times.
3
GETTING TO KNOW YOUR WAFFLE MAKER
PRODUCT MAY VARY SLIGHTLY FROM ILLUSTRATIONS
OPERATING INSTRUCTIONS
Preparing Your Rotating Belgian Waffle Maker
1. Close the waffle maker and plug it into the wall outlet, you will notice that
the red power light will turn on. Turn the temperature control knob to the
desired setting. It will take approximately 3 to 5 minutes to reach baking
temperature. When the Green Ready Light goes on, the waffle maker is
ready to use.
2. Before baking the first waffle of the day, use a pastry brush to lightly coat
the top and bottom waffle grids with vegetable oil. A light coating of
non-stick cooking spray also works well.
4
Ready to Bake? Here You Go!
1. When the proper baking temperature is reached, the green light will go
on. Once heated up, cycle times will be faster.
2. Pour batter onto bottom grid of waffle maker. Ladle just enough batter to
fill lower grid so that the peak area of the grid is covered. If necessary, use
a spatula to spread the batter in to the corners of the grid. At this point
the green light will go off as the baking cycle begins.
3. Close waffle maker and rotate unit 180 degrees to the right (clockwise).
Do not open for at least 1½ minutes. Opening the lid too soon will cause
under-baked waffle to split, making them difficult to remove.
4. When the green light goes on again, rotate waffle maker 180 degrees to
the left (counter clockwise). Your waffles should be done according to the
Waffle Temperature Control setting that you’ve chosen. If you want them
darker, close the lid and continue baking until the desired color is
achieved.
5. Remove waffles from the grid using non-metallic utensils.
6. If additional baking is to be done, close waffle maker to retain heat.
7. Always be sure the green light goes on again before making more waffles.
If you need to take a short break, close waffle maker to maintain heat.
When you return to baking, you will notice that the first waffles will bake
faster because extra heat has been allowed to build up.
8. Close supervision is necessary when any appliance is being used by or
near children.
9. When baking is complete, simply unplug the power cord from wall outlet.
Leave waffle maker open to cool. Do not clean until unit has cooled.
Waffle Baking Tips
1. Set the Waffle Temperature Control to your desired setting. At first, try a
setting in the middle. You may later adjust it lower or higher according to
your preference. A lower setting produces a lighter colored waffle, while
waffles made at a higher setting are darker and crisper. Different waffle
batters will also cook up differently. Over time, you will find your perfect
setting for the batter you use.
2. When preparing waffle batter, do not over mix or waffles will be tough.
Stir batter only until large lumps of dry ingredients disappear.
3. The optimal amount of batter to produce a full-shaped waffle, without
overflowing, will vary with different waffle batters. Pouring batter from a
measuring cup will help you gauge how much batter to use each time. Fill
bottom grid of waffle maker with enough batter to cover peak areas of the
grid.
4. For more evenly shaped waffles, spread thick batters to outer edge of
grid, using a heat proof rubber spatula or other non-metallic utensil
before closing lid.
5
5. Cake-based waffles, such as the Chocolate Waffles are tenderer than
regular waffles, and may require more care when removing from waffle
maker. You may want to break these waffles into halves or quarters
before removing. Use a spatula to support waffles when removing from
the waffle maker.
6. To retain crispness, move baked waffles to a wire cooling rack to prevent
steam from accumulating underneath.
7. When serving several waffles at one time, keep waffles hot and crisp by
placing on a rack in a preheated 200°F oven until ready to serve.
8. Already cooled waffles can be re-warmed and re-crisped, individually, by
returning to hot waffle maker. Set Waffle Temperature Control to low.
Place waffle on grid so grooves match up; close lid and heat for 1 to 2
minutes, watching carefully to prevent burning.
9. Baked waffles freeze well. Cool completely on wire rack. Store in plastic
freezer bag or in covered container, separating waffles with wax paper.
Reheat frozen waffles in toaster oven, oven or toaster until hot and crisp.
Cleaning Your Waffle Maker
This appliance requires little maintenance. It contains no user serviceable parts.
Do not try to repair it yourself. Refer it to qualified personnel if servicing is
needed.
Here are a few easy steps to keep your waffle maker looking and working like
new:
1. Always unplug the waffle maker and allow it to cool before cleaning.
There is no need to disassemble the waffle maker for cleaning.
2. Brush away any loose crumbs from the grooves. Wipe grids clean with a
paper towel, absorbing any oil or butter that might be down in the
grooves of the grid. You can also wipe grids with a damp cloth. Do not use
anything abrasive that can scratch or damage the non-stick coating.
3. Wipe the outside of the waffle maker with a damp cloth only. Do not clean
the outside with any abrasive scouring pad or steel wool, as this will
damage the finish. A little metal polish suitable for stainless steel may be
used occasionally on the top housing. Do not immerse in water or any
other liquid. Do not place in the dishwasher.
4. Should any batter become baked onto the grids, pour a little cooking oil
onto the hardened batter. Let sit 5 minutes to soften batter, and then wipe
off with a paper towel or soft cloth.
5. Do not use metal utensils to remove your waffles; they can damage the
non-stick surface.
6
11/2 cups all-purpose flour
3 large eggs, separated
1⁄2 cup cornstarch
2 Tbsp. granulated sugar
2 Tbsp. cornmeal (optional)
13⁄4 cups milk
1 Tbsp. baking powder
1⁄2 Tsp. pure vanilla extract
1 Tsp. salt
1⁄2 cup (1 stick) unsalted butter,
melted
Classic Waffles
RECIPES
In large bowl, sift or whisk together flour, cornstarch, cornmeal, baking powder
and salt to blend thoroughly; set aside. In mixer bowl, beat egg whites until soft
peaks form. Add sugar; continue beating just until stiff peaks form; set aside.
Whisk together egg yolks, milk and vanilla. When you use rubber spatula, stir
milk mixture into flour mixture, blending just until dry ingredients are
moistened. (There should still be small lumps; do not over mix). Stir in melted
butter. Fold in beaten egg whites until combined. Pour batter onto hot, greased
waffle maker and bake. Makes about 5 1⁄2 cups batter
Waffle Tip:
Cornstarch makes the waffles crisper. If you don’t have cornstarch, you could still
make great waffles by omitting cornstarch and increasing flour to 2 cups. Bake as
directed.
Toasted Pecan & Cranberry Waffles
Sprinkle chopped pecans onto bottom grid of hot, greased waffle maker. Pour
batter over pecans. Sprinkle dried cranberries over batter. Close waffle maker
and bake as directed.
7
RECIPES
11/2 cups all-purpose flour
3 large eggs, separated
1⁄2 cup cornstarch
2 tbsp. granulated sugar
2 tbsp. cornmeal (optional)
13⁄4 buttermilk
1 tbsp. baking powder & ¾ Tsp. baking
soda
1⁄2 tsp. pure vanilla extract
1 tsp. salt
1⁄2 cup (1 stick) unsalted butter,
melted
Classic Buttermilk Waffles
In large bowl, sift or whisk together flour, cornstarch, cornmeal, baking powder,
baking soda and salt to blend thoroughly; set aside. In mixer bowl, beat egg
whites until soft peaks form. Add sugar; continue beating just until stiff peaks
form. Set aside. Whisk together egg yolks, buttermilk and vanilla to blend. When
you use a rubber spatula stir buttermilk mixture into flour mixture, blend until
dry ingredients are moistened. (There should still be small lumps; do not over
mix.) Stir in melted butter. Fold in beaten egg whites until combined. Pour batter
onto hot, greased waffle maker and bake. Makes about 5 1⁄2 cups batter
Waffle Tip:
Cornstarch makes the waffles crisper. If you don’t have cornstarch, you could still
make great waffles by omitting cornstarch and increasing flour to 2 cups. Bake as
directed
Buttermilk Blueberry Waffles
You can start by pouring the batter onto the bottom grid of waffle maker;
sprinkle batter with fresh (or defrosted frozen) blueberries. Close waffle maker
and bake as directed.
8
WARRANTY TERMS AND CONDITIONS
CHEFMAN LLC warrants, subject to the conditions stated below, that from the date of purchase, this product
will be free from mechanical defects for a period of THREE (3) years. CHEFMAN LLC, at its option, will
repair or replace this product found to be defective during the warranty period. Should this product become
defective by reason of improper workmanship or material defect during the specified warranty period,
CHEFMAN LLC will repair or replace the same effecting all necessary parts replacements for a period of
three years from the date of purchase. Transportation charges on parts, or products in whole, submitted
for repair or replacement, under this warranty, must be borne by the purchaser.
CONDITIONS: This warranty is valid for the original retail purchaser from the date of initial retail purchase
and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty
service or replacement. Dealers, service centers, or retail stores do not have the right to alter, modify or in
any way, change the terms and conditions of this warranty. Warranty registration is not necessary to obtain
warranty on CHEFMAN LLC Products. Save your proof of purchase receipt.
ABOUT YOUR PRODUCT WARRANTY: Most warranty repairs are handled routinely, but sometimes
requests for warranty service may not be appropriate. For example, warranty service would NOT apply if
the product damage occurred because of misuse, lack of routine maintenance, shipping, handling,
warehousing or improper installation. Similarly, the warranty is void if the manufacturing date or the serial
number on the product has been removed or the equipment has been altered or modified. During the
warranty period, the authorized service dealer, at its option, will repair or replace any part that, upon
examination, is found to be defective under normal use and service.
NORMAL WEAR: This warranty does not cover normal wear of parts or damage resulting from any of the
following: Negligent use or misuse of the product; Improper voltage or current; Use contrary to the
operation instructions; Deviation from instructions regarding storage and transportation; Repair or
alteration by anyone other than CHEFMAN LLC or an authorized service center. Further, the warranty does
not cover Acts of God, such as fire, flood, hurricanes and tornadoes. CHEFMAN LLC shall not be liable for any
incidental or consequential damages caused by the breach of any express or implied warranty. Except to the
extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular
purpose is limited in duration to the duration of the above warranty. Some states, provinces or jurisdictions
do not allow the exclusion or limitation of incidental o consequential damages or limitations on how long an
implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state to state or province to province.
HOW TO OBTAIN WARRANTY SERVICE: You must contact CHEFMAN LLC. Customer Service at
888-315-8407 Ext: 400. A Customer Service representative will attempt to resolve warranty issues over the
phone. If telephone resolution is not possible, the Customer Service representative will require your
assistance in performing routine diagnostic procedures. This warranty is effective for the time periods listed
above and subject to the conditions provided for in this policy
CHEFMAN is a registered trademark of PLUS ITS CHEAP, LLC. 10952
9
Loading...
