Chef CLE527WB, CLE537WB, CLE547WB User Manual

540MM UPRIGHT COOKERS

cooking

User Manual

CLE527WB, CLE537WB, CLE547WB

The Chef in Aussie kitchens for over 70 years

WARNING

TIPS & INFORMATION

ENVIRONMENTAL TIPS

CONGRATULATIONS

TIPS & INFORMATION

ENVIRONMENTAL TIPS

Congratulations and thank you for choosing your Chef upright cooker. We are sure you will ﬁnd your new appliance a pleasure to use and a great asset to your cooking. Before you use the appliance, we recommend that you read through the whole user manual which provides a description of the product and its functions. For future reference, please store this booklet in a safe place.

It is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

This appliance complies with the requirements of Australian standards AS/NZS 60335.2.6

Contents

Important safety instructions ...........................................3

Operating for the ﬁrst time .............................................4

Installing your oven accessories ......................................5

Using the electric cooker ...............................................6

General hints and tips ..................................................7

Cleaning the cooker ....................................................8

Getting to know your oven ..........................................10

Oven guide ..............................................................11

Trouble shooting ........................................................ 12

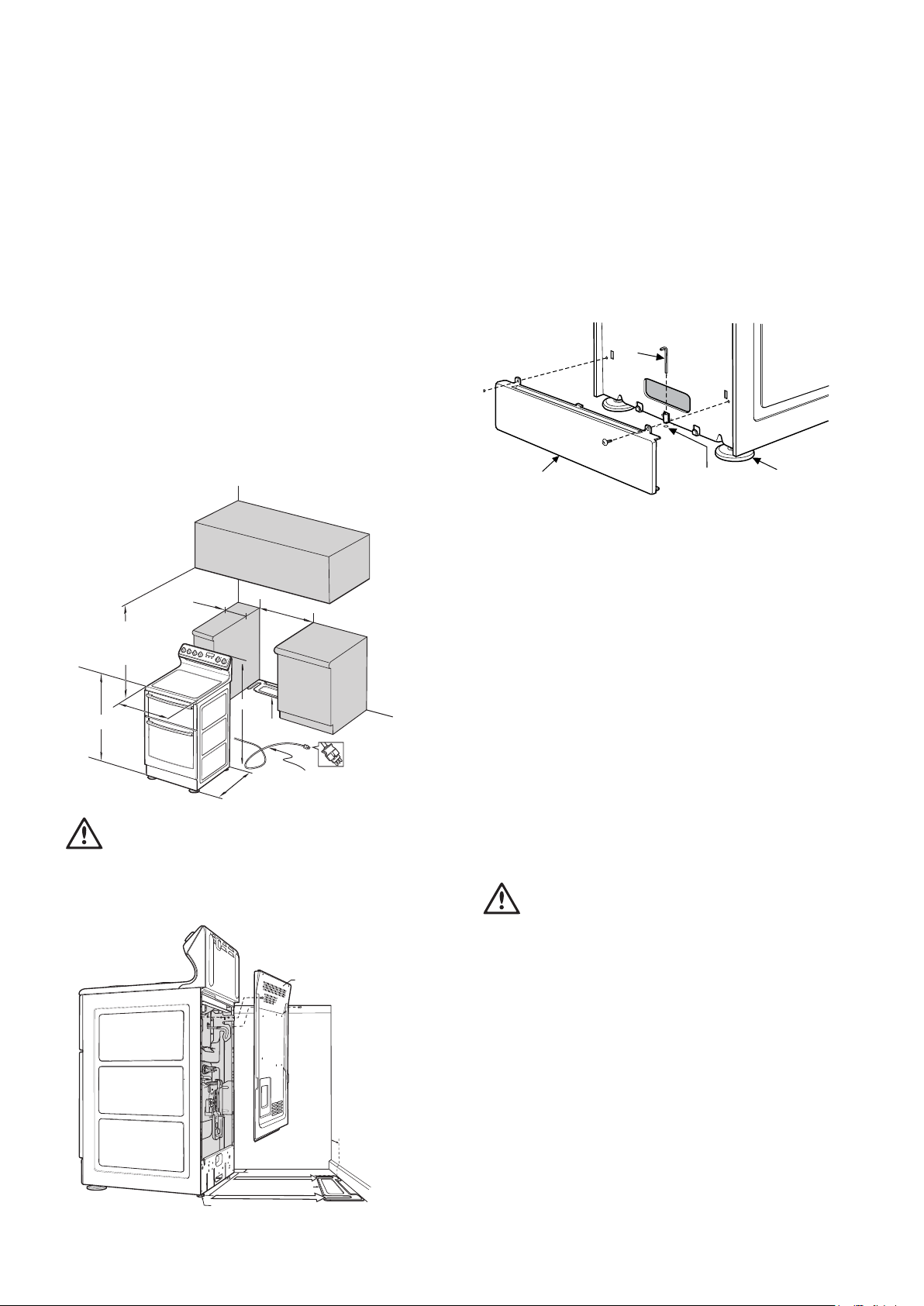

Installation ................................................................14

CONDITIONS OF USE

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, ofﬁces and other working environments

• Farm houses

• By clients in hotels, motels and other residential type environments

• Bed and breakfast type environments.

Record model and serial number here:

Model: ..................................................................

Serial number: ........................................................

The symbols you will see in this booklet have these meanings:

warning

This symbol indicates information concerning your personal safety

caution

This symbol indicates information on how to avoid damaging the appliance

tips and information

This symbol indicates tips and information about use of the appliance

environmental tips

This symbol indicates tips and information about economical and ecological use of the appliance

Warranty .................................................................19

Important – check for any damage or marks

If you ﬁnd the appliance is damaged or marked, you must report it within 7 days if you wish to claim for damage/ marks under the manufacturer’s warranty. This does not affect your statutory rights.

Information on disposal for users

• Most of the packing materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers

• If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

BEFORE MAKING A SERVICE CALL

1. Please read the user manual carefully.

2. Cooking variations are natural and to be expected. You should experiment with times, temperatures and recipes to obtain the best results to your own taste.

3. New appliances can have an odour during the ﬁrst operation.

• It is recommended to ‘run in’ the oven before you

cook. Run the oven at 180°C for 30 minutes and ensure that the room is well ventilated.

• For products with separate grill compartment, run the

grill on full for 15 minutes with the grill door open.

4. If you have purchased a model with a 3 button

programmable clock, you will need to set the clock in order to begin using your oven.

2 CONTENTS Chef 540 Upright Cooker

important safety instructions

WARNING

TIPS & INFORMATION

WARNING

To avoid an electric shock or ﬁre

This appliance is NOT intended for use by persons (including children) with reduced physical, sensory or mental capability, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING – Accessible parts may become hot during use. To avoid burns, young children should be kept away.

Young children should be supervised to ensure they DO NOT play with this appliance.

DO NOT operate the hotplates with external timers or separate remote control system.

During use this appliance becomes hot. Care should be taken to avoid touching hot external, internal surfaces and hot elements when in use. Use oven gloves.

This appliance must NOT be used as a space heater.

DO NOT install an after market lid or cover over this appliance.

DO NOT spray aerosols in the vicinity of this appliance while it is in operation.

DO NOT store ﬂammable materials in the appliance storage drawer or near this appliance.

Ensure all speciﬁed vents, openings and airspaces are not blocked

Oven warnings

DO NOT use oven door as a shelf.

DO NOT push down on open oven door.

DO NOT line oven with foil or place anything on the bottom of the oven while baking, as trapped heat will crack or craze the ﬂoor of the oven cavity liner.

DO NOT use poly-unsaturated oils (vegetable oils) as this type of oil can cause black spots or deposits inside the oven. This residue is very difﬁcult to remove.

Hotplate warnings

DO NOT allow pots to boil dry, as damage to hotplate (and pan) may result.

DO NOT operate without a pot, fry pan etc on hotplates.

DO NOT allow cookware to overhang hob onto adjacent bench tops, this will cause scorching to the bench top surface.

Do not store items on the cooking surface, to avoid ﬁre.

Unattended cooking on a hob with fat or oil can be dangerous and may result in a ﬁre.

General appliance description

Electric Separate Grill Oven depicted

Install cooker, shelving and ﬁttings in accordance with the Guide and Installation Instructions, to avoid accidents.

DO NOT MODIFY THIS APPLIANCE.

The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

Grill warnings

DO NOT leave grill on unattended.

Fat left on a grill dish is a ﬁre hazard! Keep grill clean and turn off grill immediately after use.

Placing thick portions of food under grill can be a ﬁre hazard.

DO NOT cover the grill dish insert with foil.

Separate grill model: Grill with door open

Grill with removable grill

dish side supports grill and

rack (where ﬁtted)

Grill door

(where ﬁtted)

Removable

shelves

Oven

door

Removable inner glass

Control panel

Splashback

Grill element burner

(Fan forced model)

Anti-tilt

Kick panel

Front adjustable feet

Chef 540 Upright Cooker GENERAL SAFETY 3

operating for the ﬁrst time

WARNING

TIPS & INFORMATION

Choosing utensils for electric hotplates

Refer to diagram below

GOOD BAD

(recessed base)

Installation and service warning

• Only an authorised person must install and service this appliance (Certiﬁcate of Compliance to be retained)

• In order to avoid tipping of appliance the anti-tilt plate MUST be installed

• Appliances requiring connection to 230 – 240V MUST be earthed

• An authorised person should inspect this appliance every 5 years

• This appliance must NOT be installed on a base, box or in a closed cupboard

• If the electrical supply cord is damaged, a qualiﬁed person MUST replace the cord to avoid a hazard or void your warranty

•

WITHSTAND 85°C

Surrounding kitchen cabinets MUST

BAD

(convex base)

(undersize)

BAD

Before operating ﬁrst time

1. Read all the Warning and Safety information.

2. Remove all internal boxes and bags from oven.

3. Clean out the oven interior with detergent and hot water and polish with a soft cloth. DO NOT close oven door until the oven is completely dry.

4. New appliances can have an odour during ﬁrst operation. It is recommended to ‘run in’ the oven before you cook. Run the oven at 180°C for 2 – 4 hours and ensure that the room is well ventilated.

5. If your appliance is ﬁtted with solid hotplates, turn heat setting to high for 3 minutes to fully harden the hotplate coating.

BAD

(oversize)

BAD

(moisture on hotplate)

BAD

(no utensil)

• In order to avoid a hazard the installation instructions MUST be followed.

4 OPERATING FOR THE FIRST TIME Chef 540 Upright Cooker

installing your oven accessories

WARNING

Fitting oven shelves

1. Ensure shelf orientation is correct (refer to diagram below).

2. Slide oven shelves onto oven supports (side runners) at an angle until raised back of shelf is past the stop on oven supports (side runners).

3. Lower front of shelf and push in until stop is reached.

4. To remove oven shelves, withdraw to the stop and raise the front of shelf to clear the stop.

Fitting the grill dish supports

• Insert the rear hook into the rear hole.

• Align the front peg to the front hole and push in ﬁrmly.

Oven shelf location

Not a shelf

position

Fitting the grill dish

Separate Grill: Ensure rear of the dish is engaged with the side support before sliding backwards. To remove, simply pull forwards and upwards.

To ensure proper grill operation, slide the grill dish fully rearward to the stop.

To remove, simply pull forwards and upwards.

Engagement of

rear of dish

Note the orientation of the

side and rear features

Replacing the oven light

warning

Ensure the appliance is switched off at power supply (not just the control knobs) before replacing the light globe to avoid possibility of electric shock.

Turn light anti-clockwise

to remove it for globe

NOTE: the top ledge is not a shelf position. There are no stops for shelf withdrawal.

Chef 540 Upright Cooker INSTALLING YOUR OVEN ACCESSORIES 5

using the electric cooker

WARNING

Electric features and descriptions

CLE527WB/ CLE537WB/ CLE547WB

1. Radiant/Solid/Ceramic Hotplate Control Knob

– sets hotplate temperature.

2. Grill Indicator Light – comes on when grill control

knob is operated.

3. Oven Indicator Light – comes on when oven control

knob is operated.

4. Timer 60 Minute – (where ﬁtted) sets reminder time.

– When timer returns to zero, timer gives a short ring.

NOTE: For any time below 15 minutes, turn knob past

15 minutes, then back to required time setting.

5. Grill Control Knob – sets grilling temperature.

6. Oven Control Knob – sets oven temperature.

Ceramic Hotplates

warning

If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• The ceramic cooktop is made from ceramic glass, a tough, durable material that withstands heating and cooling without breaking. However, it must be noted that as it is glass, it may break, and must therefore be treated with care. Should you have any questions about the glass in your new appliance, please contact the service centre by dialling 13 13 49

• The smooth glass surface has a pattern to show where the elements under the glass are located

• When a hotplate is on, the hot surface warning light will come on. After switching off, this light will continue to glow until the temperature of the hotplate drops below 60°C.

Electric oven fan forced baking

In a fan forced electric oven the heat comes from the rear oven element. Hot air is distributed by a fan behind the rear wall of the compartment, providing an even temperature on all shelf levels. This means, batches of food can be baked using multiple shelf positions simultaneously.

Radiant hotplates

The high-speed radiant hotplates heat rapidly from a cold start. This saves power.

Radiant elements swivel up for easy cleaning.

Solid hotplates

If present, the red dot in the centre of hotplate changes colour when heated.

When necessary to keep element looking good, apply coating of ‘hot plate protection’ onto solid hot plates.

Fan forced operation can be used for single food baking with equal success.

Fan Forced baking generally requires lower temperatures than conventional baking. Most recipe books, unless stated, are typically for conventional oven temperatures. It is recommended that when using the fan forced mode, reduce the oven temperature by 10 degrees (refer to ‘Oven Guide’).

For best baking results preheat oven for 30 minutes.

Using the Grill

• Separate Grill: Grill with door open.

Grill dish must be fully inserted.

6 USING THE ELECTRIC COOKER Chef 540 Upright Cooker
