Chef CHC644BB User Manual

CERAMIC COOKTOP
User Manual
MODEL
CHC644BB
Ceramic Cooktops GENERAL SAFETY 1
Congratulations
WARNING
WARNING
TIPS & INFORMATION
ENVIRONMENTAL TIPS
TIPS & INFORMATION
ENVIRONMENTAL TIPS
To avoid the risks that are always present when you use a cooking appliance, it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. For future reference, please store this booklet in a safe place. This appliance complies to the requirements of Australian Standard AS4551.
Conditions of use
This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments
• Farm houses
• By clients in hotels, motels and other residential type environments
• Bed and breakfast type environments
Record model and serial number here:
Model:........................................................................
Serial number: ..............................................................
The symbols you will see in this booklet have these meanings:
WARNING
Indicates information concerning your personal safety
IMPORTANT
Important – check for any damage or marks
If you find the appliance is damaged or marked, you must report it within 7 days if you wish to claim for damage/marks under the manufacturer’s warranty. This does not affect your statutory rights.
ENVIRONMENTAL TIPS
Information on disposal for users
• Most of the packing materials are recyclable. Please dispose of those materials by contacting your local authorities and ask for the correct method of disposal.
CONTENTS
General safety ............................................................3
Description of the Appliance.....................................4
Daily use .....................................................................6
Tips on Cooking and Frying .....................................7
Energy Saving ............................................................7
Cleaning and Care .....................................................8
Troubleshooting ..........................................................9

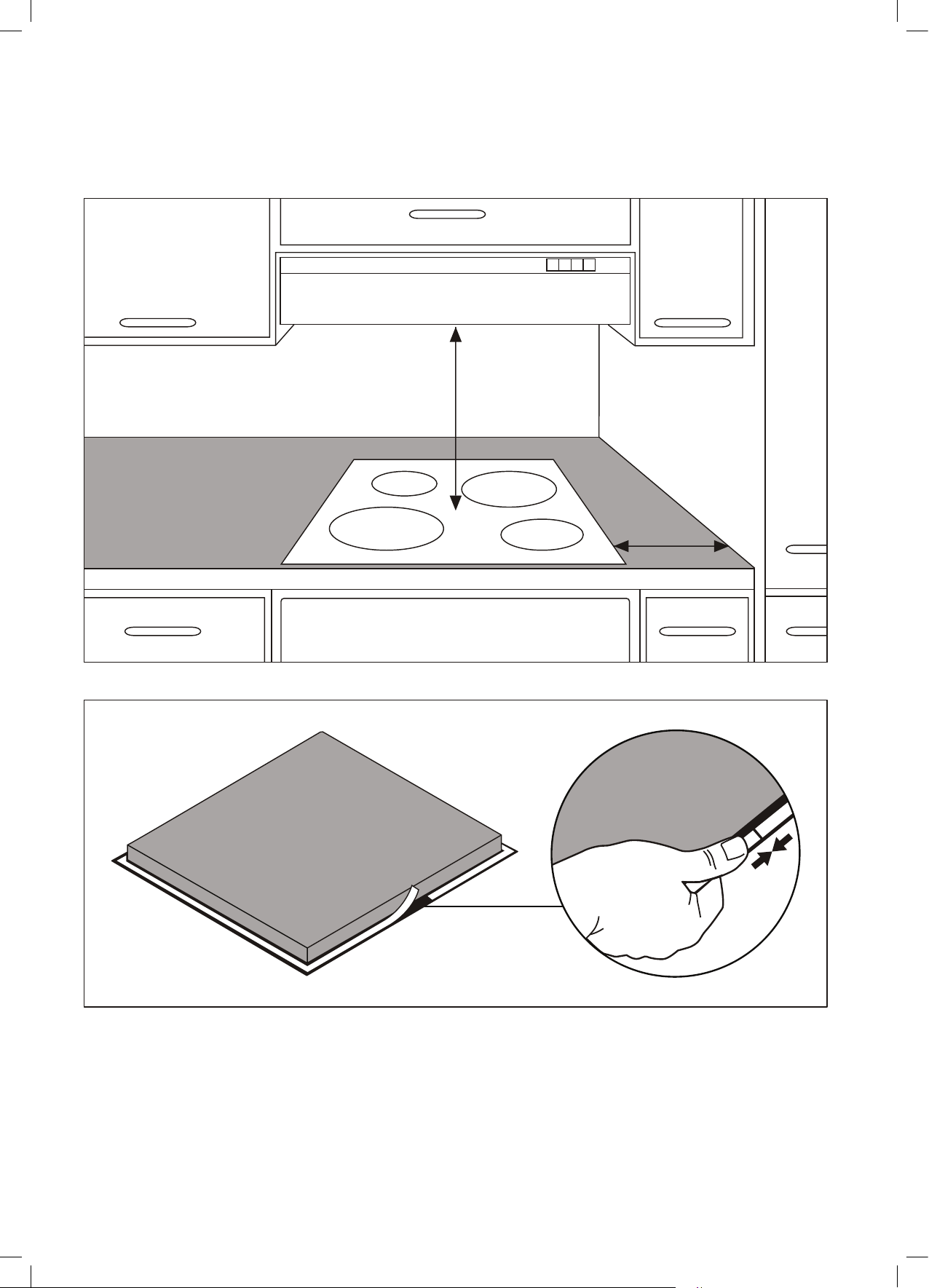

Installation Instructions .......................................... 10
Electrical connection ................................................ 10

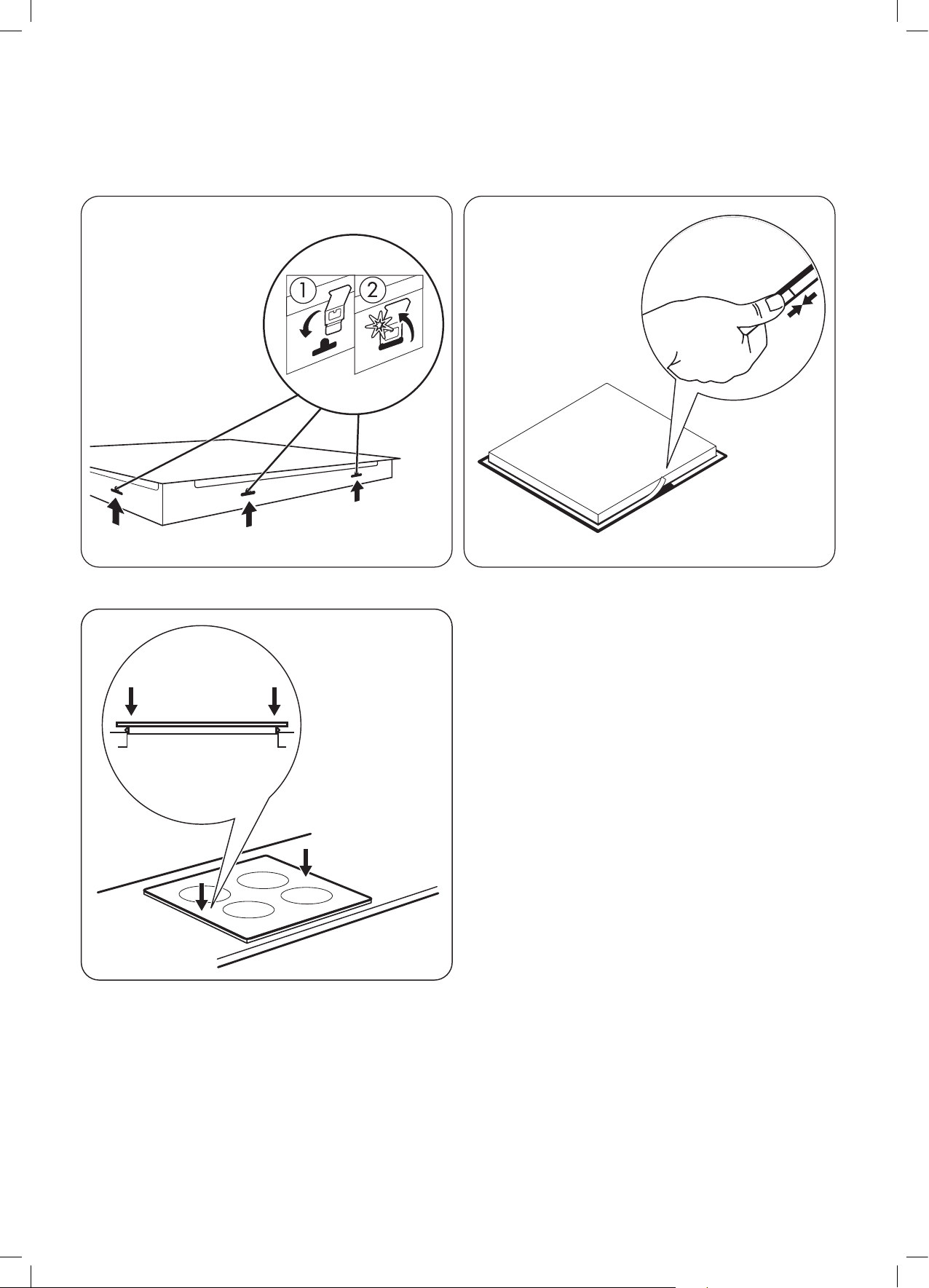

Assembly .................................................................. 11
Disposal .................................................................... 14
Technical Data .......................................................... 14
Warranty .................................................................. 15
Service ...................................................................... 15
CAUTION
Indicates information on how to avoid damaging the appliance
IMPORTANT
Indicates tips and information about use of the appliance
ENVIRONMENTAL TIPS
Indicates tips and information about economical and ecological use of the appliance
2 CONTENTS Ceramic Cooktops
general safety
WARNING
CAUTION
Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.
General safety
• This appliance may only be installed and connected by trained, registered service engineers.
• Built-in appliances may only be used after they have built-in units and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric shock.
• Repairs to the appliance must only be carried out by trained registered service engineers.
Children’s safety
• The cooking zones will become hot when you cook. Therefore, always keep small children away from the appliance.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
Correct use
• This appliance should be used only for normal domestic cooking and frying of food.
Safety during use
• Remove stickers and film from the glass ceramic.
• There is the risk of burns from the appliance if used carelessly.
• Cables from electrical appliances must not touch the hot surfaces of the appliance or hot cookware.
• Overheated fats and oils can ignite very quickly. When cooking with fat or oil (e.g Chips) do not leave the appliance unattended.
• Switch the cooking zones off after each use.
Safety when cleaning
• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or high pressure cleaning equipment is not permitted.
How to avoid damage to the appliance
• The glass ceramic can be damaged by objects falling onto it.
• The edge of the glass ceramic can be damaged by being knocked by the cookware.
• Cookware made of cast iron, cast aluminum or with damaged bottoms can scratch the glass ceramic if pushed across the surface.
• Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway.
• To avoid damaging cookware and glass ceramics, do not allow saucepans or frying pans to boil dry.
• Do not use the cooking zones with empty cookware or without cookware.
• The appliance must not be used as a work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
Ceramic Cooktops GENERAL SAFETY 3
description
CHC644BB
Cooking surface layout
1 2 3 54
1
2
1 Cooking zone
2 Cooking zone
3 Cooking zone
4 Control panel
5 Cooking zone
3
45
Use the sensor fields to operate the appliance. The displays and indicators tell which functions operate.
SENSOR FIELD FUNCTION
1 Activates and deactivates the appliance
2 Locks/unlocks the control panel
3
4
5
4 DESCRIPTION Ceramic Cooktops
Activates the cooking zone
Increases and decreases the heat settings
Activates the cooking zone
Heat setting displays
WARNING
DISPLAY DESCRIPTION
The cooking zone is deactivated.
-
Residual heat indicator
WARNING
The risk of burns from residual heat!
The cooking zone operates.
There is a malfunction.
A cooking zone is still hot (residual heat).
The Automatic Switch Off function operates.
The Lock/the child safety device is in operation
Ceramic Cooktops DESCRIPTION 5
