540M

M UPRIGHT COOKERS

User Manual

CFE532, CFE533, CFE535, CFE536, CFE537, CFE547, CFG501, CFG503, CFG504, CFG505, CFG513, CFG517

cooking

The Chef in Aussie kitchens for over 70 years

CONGRATULATIONS

WARNING

TIPS & INFORMATION

ENVIRONMENTAL TIPS

TIPS & INFORMATION

ENVIRONMENTAL TIPS

Congratulations and thank you for choosing your Chef upright cooker. We are sure you will find your new appliance a pleasure to use and a great asset to your cooking. Before you use the appliance, we recommend that you read through the whole user manual which provides a description of the product and its functions. For future reference, please store this booklet in a safe place.

To avoid the risks that are always present when you use a gas appliance, it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

This appliance complies with the requirements of Australia standards AS/NZS 60335.2.6 and AS/NZS 5263.

Contents

Important safety instructions

Installation

Gas conversion instructions

Operating for the first time

Installing your oven accessories

Using the gas cooker

Using the electric cooker

General hints and tips

Cleaning the cooker

Getting to know your oven

..................................................................4

...........................................3

..........................................11

...........................................18

.................................................20

.............................................22

................................................24

..................................................26

..........................................30

....................................19

CONDITIONS OF USE

This appliance is intended to be used in household andsimilar applications such as:

• Staff kitchen areas in shops, offices and other working environments

• Farm houses

• By clients in hotels, motels and other residential type environments

• Bed and breakfast type environments.

Record model and serial number here:

Model:

Serial number: ........................................................

The symbols you will see in this booklet have these meanings:

This symbol indicates information concerning your personal safety

This symbol indicates information on how to avoid damaging the appliance

This symbol indicates tips and information about use of the appliance

..................................................................

warning

caution

tips and information

environmental tips

Oven guide

Troubleshooting

Warranty

If you find the appliance is damaged or marked, you must report it within 7 days if you wish to claim for damage/ marks under the manufacturer’s warranty. This does not affect your statutory rights.

• Most of the packing materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers

• If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

Important Information that may impact your Manufacturer’s Warranty

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Chef manufacturer’s warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Chef manufacturer’s warranty in the event that your product fault is due to failure to adhere this manual.

..............................................................31

.........................................................32

.................................................................34

Important – check for any damage or marks

Information on disposal for users

This symbol indicates tips and information about economical and ecological use of the appliance

2 Chef 540 Upright Cooker

Important safety instructions

WARNING

TIPS & INFORMATION

WARNING

To avoid an electric shock or fire

This appliance is NOT intended for use by persons (including children) with reduced physical, sensory or mental capability, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING - Accessible parts may become hot during use. To avoid burns, young children should be kept away.

Young children should be supervised to ensure they do not play with this appliance.

DO NOT operate the hotplates with external timers or separate remote control system.

During use this appliance becomes hot. Care should be taken to avoid touching hot external, internal surfaces and hot elements when in use. Use oven gloves.

This appliance must NOT be used as a space heater.

DO NOT install an after market lid or cover over this appliance.

DO NOT spray aerosols in the vicinity of this appliance while it is in operation.

DO NOT use or store flammable materials in the appliance (incl storage drawer) or near this appliance.

Ensure all specified vents, openings and airspaces are not blocked

Install cooker, shelving and fittings in accordance with the Guide and Installation Instructions, to avoid accidents.

DO NOT operate the gas appliance if the smell of gas persists.

DO NOT MODIFY THIS APPLIANCE.

The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

DO NOT install this appliance behind a decorative door in order to avoid overheating

DO NOT use this appliance as a space heater

Grill warnings

DO NOT leave grill on unattended.

Oven warnings

DO NOT use oven door as a shelf.

DO NOT push down on open oven door.

If the gas oven does not light in 8 seconds, allow 1 minute for gas to clear before trying again.

DO NOT line oven with foil or place anything on the bottom of the oven while baking, as trapped heat will crack or craze the floor of the oven cavity liner.

DO NOT use poly-unsaturated oils (vegetable oils) as this type of oil can cause black spots or deposits inside the oven. This residue is very difficult to remove.

Hotplate and burner warnings

DO NOT allow pots to boil dry, as damage to hotplate (and pan) may result.

DO NOT operate without a pot, fry pan etc on hotplates.

DO NOT allow cookware to overhang hob onto adjacent bench tops, this will cause scorching to the bench top surface.

Gas models: Ensure burner caps and crowns are in their correct position.

Do not store items on the cooking surface, to avoid fire.

Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.

General appliance description

Electric Separate Grill Oven depicted

Grill with removable grill

dish side supports grill and

rack (where ﬁtted)

Control panel

Grill door

(where ﬁtted)

Splashback

Grill element burner

(Fan forced model)

Fat left on a grill dish is a fire hazard! Keep grill clean and turn off grill immediately after use.

If gas burner does not light in 15 seconds, allow one minute for gas to clear before trying again.

Placing thick portions of food under grill can be a fire hazard.

DO NOT cover the grill dish insert with foil.

Separate grill model: Grill with door open

Grill in oven model: Grill with door closed

Removable

shelves

Oven door

Removeable inner glass

Kick panel

Front adjustable feet

Chef 540 Upright Cooker 3

Anti-tilt

Rear adjustable feet

Installation

WARNING

Location

The appliance has been designed to ﬁt a 550mm gap in kitchen cabinetry or have free space on either side. Ensure the top of the hotplate is at least 10mm higher than the level of the benchtop.

Electric hob models must not be installed in a corner; they must be installed at least 100mm from the side wall.

Gas hob models must be installed with a minimum clearance of 100mm to side walls made of unprotected combustible material. For gas models, refer to section 6.10.1 in AS/NZS 5601.1 for all relevant clearance.

Note: The splashback

must be ﬁtted.

Clearance to side wall (see notes above)

Overhead clearance (see notes)

540mm

910mm

550mm Minimum

1050mm

Anti-tilt Plate

Ceramic Tiled Area

150mm min.

For Gas Models

For existing installations where only the gas appliance is being replaced:

The overhead clearance from the highest part of the highest burner or the h

ob of this gas appliance to the range hood shall be not less than 600mm and not less than 750mm for an exhaust fan. Any other downward facing combustible surface less than 600mm above from the highest part of the highest burner of this gas appliance shall be protected for the full width and depth of the hob in accordance with AS/NZS 5601.

For all other installations:

The overhead clearance between the supporting surface for the cooking vessels (top of the trivets) of this gas cooking appliance and a range hood or exhaust fan (overhead clearance) shall be not less than 650mm for range hood, and not less than 750mm for an exhaust fan. A range hood or exhaust fan shall be installed in accordance with the range hood or exhaust fan manufacturer`s relevant instructions. Any other downward facing combustible surface less than 650mm above the supporting surface for the cooking vessels shall be protected for the full width and depth of the hob in accordance with AS/NZS 5601.

1.25m

Electrical service

cord (If ﬁtted)

Overhead Clearance

warning

Where the range hood or exhaust fan manufacturer`s relevant instructions specify a greater clearance, then this greater clearance shall apply.

Clearance to any overhead surface shall be not less than 450mm.

For Electrical Models

The overhead clearance between the supporting surface of this appliance and a range hood or exhaust fan shall be not less than 600mm.

Note 1: Removable accessories such as a wok trivet that sits upon a hob trivet are not taken into account in determination of the supporting surface for the cooking vessels. Note 2: Minor elevations in trivets such as a wok trivet formed into a trivet are not taken into account in determination of the supporting surface for the cooking vessels. Note 3: The height of the top of the pan supports (top of the trivets) with respect to the bench top (built-in) or supporting surface (elevated) or the floor (freestanding) are detailed separately in these instructions.

4 Chef 540 Upright Cooker

Installation

warning

In order to avoid accidental tipping of the appliance (for example, by a child climbing onto the open oven door), the anti tilt plate and stabilising bolt MUST be installed.

Rear Cover

25mm to side of bracket

5mm Clearance

Cooker Width 540mm

Rear Adjustable Foot

Anti-Tilt Plate

Position anti-tilt plate to the rear wall and 25mm from side of cupboard. Securely fix anti-tilt plate to the floor with fasteners. Adjust levelling feet on cooker as required.

2.3.Remove screws from kick panel. To remove kick panel lift kick panel upwards to release the two Location Tabs from the holes in the bottom of the panel. Position cooker into the ant-tilt plate and then mark the position for the Stability Bolt hole on the floor

4. Pull cooker out and drill the bolt hole, using a 6.5mm masonry or wood drill. Minimum 30mm deep for concrete.

5. Reposition cooker back into place and ﬁt the Stability Bolt through the slot and into the drilled hole.

6. If the cooker is placed on a base, measures must be taken to prevent the appliance slipping from the base.

7. Carefully remove any protective plastic ﬁlm to prevent damage to the appliance.

warning

For your safety this cooker is designed to be moved out of position by a qualiﬁed person only.

The unit must be pushed up against the wall on installation. On gas units check that the gas hose, if used, has not been kinked during installation.

Procedure to remove the door

Splashback must be fitted to the rear using the two screws used to fasten the anti-tilt plate and splashback on the rear of the product.

Stabilising bolt

Stability bolt

Kick-panel

6.5mm DIA drilled location hole.

Front adjustable feet

1. Remove oven door - to be done by qualified personnel only. (Refer to procedure).

Stirrup

1. With door fully open, rotate the two stirrups to its rest position (to engage the stirrups).

Chef 540 Upright Cooker 5

Installation

Frame slot

Hinge

Notch

Frame slot

Hinge

Notch

2. Close the door until it stops against the stirrups.

Procedure to assemble the door

Notch

3. Close the door further.

4. Lift the door slightly and evenly while continuing to slowly close the door.

1. Hold door with both hands.

2. Locate both hinges into the frame slots at the same time.

Frame slot

Hinge

Notch

3. Ensure that the location notch drops into frame slot. Care should be taken not to damage other parts of the cooker.

5. Remove the door by lowering gently and pull away from the frame of the oven. Care should be taken not to damage kick panel and other parts of the cooker.

6 Chef 540 Upright Cooker

Stirrup

4. Open door fully and rotate stirrups away from you back to their original position.

5. Close the door fully.

6. Carefully remove any protective plastic film to prevent damage to the appliance.

WARNING

Installation

Electric wiring requirements

The cooker MUST be installed in compliance with:

• Wiring connections in AS/NZS 3000 Wiring Rules.

• Local regulations, municipal building codes and other statutory regulations.

• Data Plate – Gives information about the rating and is located behind the bottom of the oven door.

• A functional switch MUST be provided near the appliance in an accessible position (AS/NZS 3000).

• Wiring MUST be protected against mechanical failure (AS/ NZS 3000).

• Disconnection from the fixed wiring must occur as required by AS/NZS 3000 wiring rules.

• This range must be connected with cable of 75°C rating minimum.

• This product has passed the insulation resistance test after manufacture. If the resistance reading is low at installation, it is probably caused by moisture from the atmosphere being absorbed by the elements after the range has been produced. (pass at 0.01MΩ AS/NZS 3000 Wiring Rules).

• The cooker MUST be properly earthed.

• When connections are made to a multiphase 230/240V supply, the bridge piece MUST be removed from between the active connections.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance must be fixed in position or must be connected to the supply by a supply cord fitted with a male connector.

Hard wiring

1. Remove rear panel.

2. Fit wires through hole at bottom centre using the appropriate gland to protect insulation of wires from the hole edge. Note that the secondary insulation of the wires will probably need to be removed to fit through gland. If the conduit to appliance is required to bend due to rear wall an elbow may be required to achieve this.

3. Set the length of wiring from the gland to terminal block, ensuring length is sufficient but not excessive.

4. Make connections to terminals and engage wires into plastic clip. Cable tie as per diagram and secure plastic clip with two long screws supplied.

5. Replace rear cover.

Plastic Clip

Plastic clip screw securing points

Cable tie

Gland

Model

CFE532 8.2 35.7 6.0

CFE533 9.5

CFE535

CFE536 8.2 35.7 6.0

CFE537

CFE547

Total kW

9.5

Total Current

(Amps)

41.9 10.0

43.7 10.0

41.9 10.0

Cable Section

(mm

)

Min Temp

(°C)

warning

Ensure wires cannot contact hot element ends or sharp edges.

Rated power input

Model Total kW A1 kW A2 kW

CFE532 8.2 2.2 6.0

CFE533 9.5

CFE535 6.0

CFE536 8.2 2.2 6.0

CFE537

CFE547

9.5

3.6 6.0

3.6

4.0 6.0

4.0 5.6

Chef 540 Upright Cooker 7

Restraining Device Anchor Points

Connection

Gas

Point

150mm

650m m

Installation

Gas requirements

This appliance must be installed by an authorised person, according to all codes and regulations of:

• AS/NZS 5601 series (particular attention to specific requirements for domestic gas cooking appliances)

• Local gas fitting regulations, municipal building codes and other statutory regulations.

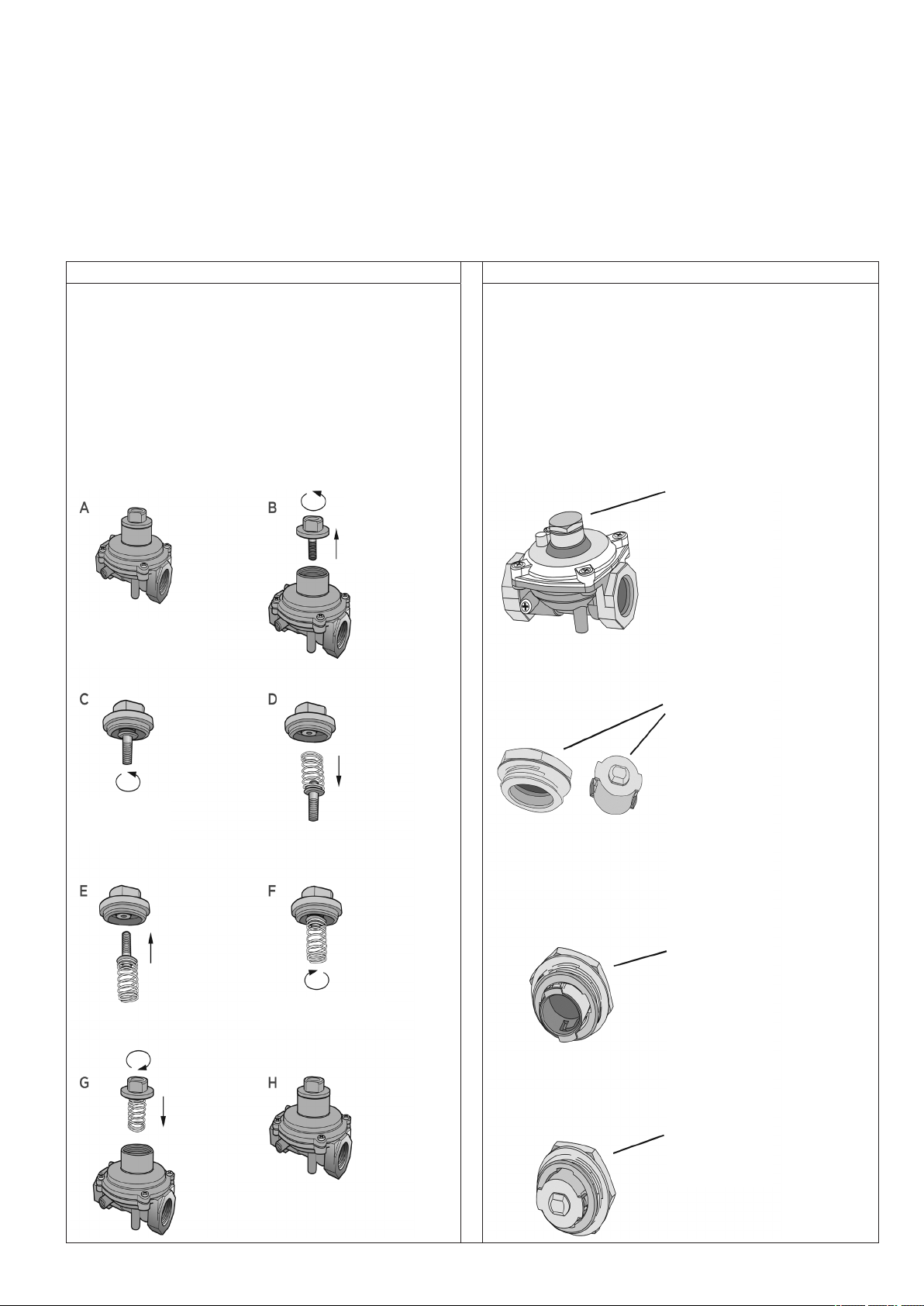

The cookers are made for Natural Gas. Conversion to Propane (Australia) or ULPG (NZ) is possible. The cooker is supplied with a kit for conversion to Propane (Australia only). Refer to Gas Conversion Instructions on Page 11 in this user manual.If the cooker is required to use ULPG (NZ only), a conversion kit can be obtained by contacting the Customer Care Centre for details. Before installation, check that the cooker is configured for the gas supply.

The following table shows the supply and operating pressures for various supplies.

Gas type Natural gas Universal LPG Propane

Supply pressure at inlet to appliance regulator (if fitted)

Operating pressure at appliance test point

1.13 (kPa) Minimum

1.00 (kPa) 2.75 (kPa) 2.75 (kPa)

2.75* (kPa) 2.75* (kPa)

Fitting of Gas Regulator

• The appliance regulator MUST be orientated so that the pressure nipple is accessible

• The arrow showing the direction of flow MUST be pointed correctly

• The regulator has a ½” BSP internal thread at the inlet and outlet.

Gas Regulator

1/2”B SP

Internal Thread

Pressure test point

Use AS/NZS 5601 to ensure adequate gas supply

* If the regulator is placed upstream of the cooker inlet, as

is normal for cookers operating on LPG, then the supply pressure and operating pressure are the same. The injector sizes for each burner are shown in the Gas Conversion Instructions on Page 16.

8 Chef 540 Upright Cooker

Installation

Restraining Device

Checking pipe size

To work out a suitable pipe size for connection use the information in this table.

Gas Consumption (MJ/h)

Model Natural gas Universal LPG Propane

CFG501

CFG503 58.1 45.7 56.5

CFG504 47 36.7 47.5

CFG505 47 36.7 47.5

CFG513 60.2 48.2 58.3

CFG517 49.1 39.2 49.3

58.1 45.7 56.5

Wiring connection for gas cooker

To allow for disconnection of the appliance after installation, the plug must be accessible after installation, or a functional switch must be provided near the appliance in an accessible position.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Gas connection

Read these points before connecting to the gas supply:

• The cooker inlet connection point has a ½” BSP externalthread. See Diagram below

• A gas regulator is supplied

• It is recommended to fit the regulator to the applianceconnection point, then fit either hard piping or a high levelflexible connection (AS/NZS 5601.1) which is then attached

• Ensure installation allows withdrawal of appliance.

to the consumer hard piping

150mm

Restraining Device

Anchor Points

Gas

Gas Connection Point

Connection Point

650mm

Chef 540 Upright Cooker 9

WARNING

Installation

Conversion to SNG or ULPG (NZ only)

Please contact Electrolux Customer Service for conversion kit and instructions.

Testing the gas cooker

warning

You MUST test the cooker after installation, before you hand it over to the customer.

You MUST have a manometer and a connecting tube. Checking the gas supply

1. Check the manometer zero point is correct.

2. Connect the manometer to the cooker pressure test point. This is located on the regulator.

3. Turn on the gas supply and the electricity (if applicable) and try to ignite the gas. Note: It will take additional time to light the gas for the first time, as air needs to be purged from the pipes.

4. Check the operating pressure for the particular gas type (see'Gas Type' table).

Regulators are supplied pre-adjusted and configured by the component maker for use with Natural Gas. The appliance installer is not required to make an adjustment to obtain the correct outlet pressure setting. An arrow on the base of the regulator indicates the direction of the gas flow when the inlet and outlet of the regulator are orientated correctly.

5. When the regulator has been fitted check for leaks from the

connections with soapy water.

Checking regulator function

With the appliance operating, check the outlet pressure:

1. When all the burners of the appliance are operating at maximum.

2. When the smallest burner of the appliance is operating at minimum, Under these conditions the outlet pressure should not vary from nominal operating pressure of 1.0kPa (for Natural Gas) or 2.75kPa (for Propane and ULPG) by more than ± 20% (ie ±0.20kPa for Natural Gas).

If the regulator appears to not be performing satisfactorily then check the following points:

1. If the outlet pressure is consistently too low then.

• the inlet pressure may be too low and adjustment of an upstream regulator may be needed, or

• an upstream regulator or valve with insufficient flowcapacity may be present in the gas supply line. It may benecessary to repeat the checks whilst measuring both theinlet and outlet pressure to determine if the inlet pressure is1.13 - 5kPa for NG, 2.75 - 7 kPa for Propane and ULPG.

2. Check that the regulator has been fitted to the gas supply

line in the correct orientation.

3. Replace the regulator if it fails to perform after the checks.

Testing cooker features

• Observe the flame appearance on each burner. If it is smaller or larger than expected, then the injector size needs checking

• If the flame is unsatisfactory, then refer to the Electrolux Technical Publications and correct the fault if possible

• When maximum flame appearance is correct, check the turn down setting on each burner. If incorrect, proceed as follows:

warning

1. Disconnect electric power.

2. Remove the control panel and adjust the bypass screw

mounted on the body of each hotplate control cock.

3. Check the ignition on all burners both separately and in

combination.

4. Check the operation of the electrical components, if

applicable.

5. When operating correctly, show customer how to use the

cooker.

6. If not operating correctly, advise the customer to ring

Electrolux service. Place a warning sign on cooker or if dangerous, disconnect cooker.

10 Chef 540 Upright Cooker

ARNING

Gas conversion instructions

Conversion to LP/Propane Gas

For conversion to Universal LPG/propane gas types, all gas injectors need to be changed, all gas valves are adjusted, the gas regulator is converted, and the gas grill burner aeration shutter is changed where the gas grill is provided.

If the conversion kit is not available, please reach out to our Customer Care team at 131349 (if you are in Australia) or 0800436245 (if you are in New Zealand) or by email.

After converting the appliance, attach the ULPG or Propane sticker to the cooker, near the gas supply inlet. Cover the Natural Gas label that is factory fitted.

Important: The conversion must be performed by a qualified service technician in accordance with the kit instructions and all local codes and requirements. Failure to follow instructions could result in serious injury or property damage.

WARNING

Failure to make the appropriate conversion can result in serious personal injury and property damage.

Note: Always perform a gas leak test after converting the appliance.

Gas Hob Conversion

Tools required:

• 7mm hex socket screwdriver or 7mm nut runner.

• Small flat-blade screwdriver.

8. Locate the recessed turndown adjustment screw in each gas valve, insert the screwdriver, and turn the adjustment screw clockwise until the screw stops.

Note: If a Gas Oven is present its control can be adjusted the same way. If access to adjustment screws is not clear, see “Gas Separate Grill Conversion” instructions on how to remove the control panel.

22300

Adjustment screws at each gas valve for hob and gas grill where fitted

Adjustment screw for oven thermostat where fitted

Note: If the thermostat body is brass (dull yellow colour), replace the existing adjustment screw with the LPG adjustment screw supplied in the conversion kit and turn the screw clockwise until the screw stops. If the thermostat body is all aluminium (silvery white colour), turn the existing adjustment screw clockwise until the screw stops.

9. Install control knobs (with separate skirts where used) by pushing them on fully.

Gas Separate Grill Conversion (Where used)

1. Remove trivets/pan supports, burner crown, and top caps from burner bases.

2. Using a 7mm socket, remove Natural Gas injectors.

3. Using the Injector table and hob layout diagram, select the correct gas injector for each burner and intended gas type.

4. Using a 7mm socket, screw in gas injectors. Set injectors in place firmly but not with excessive torque.

5. Reinstate trivets/pan supports, burner crown, and top caps ensuring that these components are sitting correctly on their respective lower parts.

6. If Gas Separate Grill is provided, please go to “Gas Separate Grill Conversion”, otherwise proceed to the next step.

7. Remove all control knobs on the front of the cooker by gripping each knob behind its skirt and pulling away from the control panel.

Injector on the injection block

Tools required:

• 7mm open-ended or ring spanner.

• #2 Phillips head screwdriver.

Chef 540 Upright Cooker 11

Gas conversion instructions

1. Warning: Risk of electric shock. Ensure the

cooker is NOT plugged into a power point before proceeding.

2. Remove all control knobs on the front of the cooker by gripping each knob behind its skirt and pulling away from the control panel if not already done as part of the Gas Hob conversion.

3. Remove the control panel by removing the 2 screws behind the grill door below the Control Panel. Rest the control panel on the open grill door being careful not to stretch or damage the wiring.

4. Warning: Risk of laceration. The now exposed front edge and other edges of the grill compartment panel can have sharp edges. Wear appropriate gloves.

5. Remove the grill burner gas injector using the 7mm spanner from its holder in front of the aeration shutter. To loosen the injector, rotate the spanner in a clockwise direction as you are working from behind it!

6. Remove the gas injector holder from the burner by

Lower internal baffle plate

bending up the 2 metal tabs at the end of the burner holding the gas injector, then slide the injector holder out of the burner body.

Metal tabs of the burner

6. Select the correct gas injector for the grill burner and the intended gas type and replace the grill burner gas injector. Set the injector in place firmly but not with excessive torque.

7. Locate the recessed turndown adjustment screw in each gas valve, insert the screwdriver, and turn the adjustment screw clockwise until the screw stops. Note: All gas valves for the Gas Hob, Gas Oven, and Gas Separate Grill need to be adjusted the same way.

8. Replace the control panel being careful to ensure any wires do not get trapped between the grill compartment panel and the control panel as per the reverse of step 3.

9. Install control knobs (with skirts where used) by pushing them on fully.

Gas Oven - Freestanding Cookers (Where used)

Tools required:

• 7mm open-ended or ring spanner or 7mm hex socket

screwdriver or nut runner.

• #2 Phillips head screwdriver.

1. Warning: Risk of electric shock. Ensure the cooker is NOT plugged into a power point before proceeding.

2. Remove the plastic cover behind the gas connection point by unscrewing 2x Phillips screws).

7. Remove the oven burner gas injector from its holder using the 7mm spanner or socket or nut runner.

8. Select the correct gas injector for the oven burner and the intended gas type and replace the oven burner gas injector. Set the injector in place firmly but not with excessive torque.

9. Slide the gas injector holder back into the burner and bend down the 2 metal tabs to ensure that the injector holder cannot slide out of the burner body.

10. Install the internal baffle (where used), rear cover, and plastic cover behind the gas connection as per the reverse of steps 1 to 4.

Note: Adjustment of the turndown of the Gas Oven valve (thermostat) should have been done as part of the Gas Hob Conversion.

3. Warning: Risk of laceration. The rear cover

and internal components can have sharp edges. Wear appropriate gloves and long sleeve & leg clothes.

4. Remove the rear panel by unscrewing 2 (or 4 where used) Phillips screws.

5. Inside the lower back of the cooker, remove the lower internal baffle plate (where fitted).

12 Chef 540 Upright Cooker

Gas conversion instructions

Gas Oven - Elevated Cookers

Tools required:

• 7mm open-ended or ring spanner or 7mm hex socket

screwdriver or nut runner.

• #2 Phillips head screwdriver.

1. Warning: Risk of electric shock. Ensure the cooker is NOT plugged into a power point before proceeding.

2. Remove the rear bridging plate between the oven and hob at the rear of the cooker.

3. Warning: Risk of laceration. The rear cover and internal components can have sharp edges. Wear appropriate gloves and long sleeve & leg clothes.

4. Remove the oven rear panel by unscrewing 2 (or 4 where used) Phillips screws.

5. Remove the gas injector holder from the burner by bending up the 2 metal tabs at the end of the burner holding the gas injector, then slide the injector holder out of the burner body. Refer to the figure above.

6. Remove the oven burner gas injector from its holder using the 7mm spanner or socket or nut runner.

7. Select the correct gas injector for the oven burner and the intended gas type and replace the oven burner gas injector. Set the injector in place firmly but not with excessive torque.

8. Slide the gas injector holder back into the burner and bend down the 2 metal tabs to ensure that the injector holder cannot slide out of the burner body.

9. Install the rear cover and bridging plate as per the reverse of steps 1 to 3. Note: Adjustment of the turndown of the Gas Oven valve (thermostat) should have been done as part of the Gas Hob Conversion.

Chef 540 Upright Cooker 13

Gas conversion instructions

Gas Regulator Conversion

Chant Regulator Dong Yang Regulator

1. Unscrew the top hat nut from the regulator. The top hat nut and control pressure spring assembly will disengage as an assembly. See figures A&B.

2. Unscrew the threaded pin from top hat. See figures C&D.

3. Turn over threaded pin, so spring is free and screw pin back into the top hat until firm. See figures E&F.

4. Screw the top hat nut assembly back into the regulator ensuring that it is fully screwed down. See figures G&H. The regulator is now set for connection to LPG.

Turn top hat nut anti-clockwise and remove

1. Unscrew the hex nut from the regulator. The hex nut, brass washer and nylon insert will disengage as an assembly. See Fig. 1.

2. Unclip the nylon insert from the nut assembly by rotating the insert ¼turn, and pulling it free. See Fig. 2.

3. Turn over the insert, and clip back into position. See Fig. 3&4.

4. Screw the hex nut assembly back into the regulator ensuring that it is fully screwed down. The regulator is now set for connection to LPG.

Fig. 1

Hex nut assembly, fully screwed down

Top hat nut assembly, fully screwed down

Configuration for Natural Gas

Fig. 2

Hex nut assembly, removed from regulator and insert disassembled

Fig. 3

Insert oriented for Natural Gas operation

Configuration for LPG

14 Chef 540 Upright Cooker

Fig. 4

Insert oriented for LPG operation

Gas conversion instructions

Commissioning Gas Type Conversion

Tools required:

• A manometer capable of reading from 0 to at least

3.0kPa.

1. Remove the Test Point (TP) from the appliance Gas Regulator and connect a manometer capable of reading from 0 to at least 3.0kPa.

2. Turn on the gas supply to the appliance and test for leaks.

Gas Hob Commissioning

1. Turn on a Gas Hob burner to high and hold the gas valve control knob in. At the same time use the inbuilt (240v powered models) or a gas match applied to that burner to provide an ignition source.

2. Once the burner is lit and after 5s release the valve knob and observe for the following:

a. Flames have traveled to all burner ports promptly.

b. Burner stays alight once gas valve knob is released.

c. Burner flames are almost entirely blue. Some light

yellow within the flame may be present but there should be no yellow at the tip at the outer end of the flame.

d. The TP pressure as indicated by the manometer

should be between 2.2kPa and 3.3kPa. (2.75kPa +/- 20%)

e. See "Fault Finding" if any of these requirements are

not met.

igniter

Gas Separate Grill Commissioning (Where used)

1. Turn on the Gas Grill burner to high, press in, and hold the gas valve control knob in. At the same time use the inbuilt igniter to provide an ignition source.

2. Once the burner is lit observe the following:

a. Flames travel to all burner ports promptly.

b. Burner stays alight once gas valve knob is released.

c. Burner flames are almost entirely blue. Some light

yellow within the flame may be present but there should be no yellow at the tip at the outer end of the flame.

d. The TP pressure as indicated by the manometer

should be between 2. (2.75kPa+/- 20%)

e. See "Fault Finding" if any of these requirements are

not met.

3. Rapidly move the gas valve of the lit burner from high to low and back again a few times. The burner should stay alight. If the burner does not stay alight, adjust the turndown for that burner at the gas valve slightly counterclockwise to increase the gas rate at minimum turndown. Refer to Gas Hob Conversion instructions.

Gas Oven Commissioning (Where used)

1. Turn on the Gas Oven Thermostat to 120°C, press in, and hold the gas valve control knob in. At the same time use the inbuilt igniter to provide an ignition source.

2. Once the burner is lit observe the following:

2kPa and 3.3kPa.

4. Shut off the burner and repeat for all other Gas Hob Burners.

5. Light all Gas Hob Burners and repeat step 2.

a. Flames travel to all burner ports promptly.

b. Burner stays alight once gas thermostat knob is

released.

c. Burner flames are almost entirely blue. Some light

yellow within the flame may be present but there should be no yellow at the tip at the outer end of the flame.

d. The TP pressure as indicated by the manometer

should be between 2. (2.75kPa+/- 20%)

e. See "Fault Finding" if any of these requirements are

not met.

2kPa and 3.3kPa.

Chef 540 Upright Cooker 15

Gas conversion instructions

3. Close the door and wait for the thermostat to operate and turn the burner down to maintain 120°C. The burner should stay alight. If the burner does not stay alight, adjust the turndown for the burner at the gas valve slightly counterclockwise. Refer to Gas Hob Conversion instructions on how to locate the adjustment screw.

Table for injector sizes

The following table shows the injector sizes for each burner.

Injector Size (mm)

Burner

(Nominal test point pressure:

Intense heat wok burner 1.75 1.00 1.00

High heat burner 1.60 0.95 0.90

Medium heat burner 1.35 0.82 0.70

Low heat burner 1.00 0.62 0.55

Grill 1.50 0.82 0.82

Oven 1.60 0.95 0.82

Oven - bypass screw* 0.73 0.45 0.45

*See instructions on page 11.

Natural gas

1.00kPa)

Propane – For Australia only (Nominal test point pressure:

2.75kPa)

ULPG - For NZ o

(Nominal test poi

2.75kPa)

nly

nt pressure:

16 Chef 540 Upright Cooker

Gas conversion instructions

Fault Finding

PROBLEM POSSIBLE CAUSES WHAT TO DO

Burner will not light Gas not turned on Check supply

Air not purged from gas pipes Purge gas pipe to appliances

Keep gas valve open for a longer time while keeping ignition source present at that burner

Ignition source not operating Check appliance is plugged in and 240V power

supply is available Check spark at burner (Gas Oven and Gas Separate

Grill only with piezo ignition) Attempt to light burner with gas match to confirm

presence of fuel gas

Burner flames are very big and/or very yellow

Burner flames are small when gas valve on high

Burner flames are uneven - Gas Hob Burners

Burner flames are uneven - Gas Separate Grill

Incorrect Gas Injector size Check injector against requirement in gas injector

table for the required gas type

Hob burner crown and/or cap not correctly set in place

Gas Oven injector holder not set in place or pipe bent at oven injector holder

Incorrect gas pressure Check Gas Regulator outlet pressure at Test Point on

Incorrect Gas Injector size Check injector against requirement in gas injector

Incorrect gas pressure Check Gas Regulator outlet pressure at Test Point on

Hob burner crown and/or cap not correctly set in place

Gas injector not screwed in correctly Check that Gas Injector orifice is pointing straight up

Check that hob burner crown is seated in base and cap is seated on the burner crown

Check oven injector holder is fully in the receptacle of the oven burner, adjust pipe to burner assembly to give blue flame

Gas Regulator Check Gas Regulator inlet supply pressure Check that Gas Regulator conversion instructions have

been followed correctly

table for the required gas type

Gas Regulator Check Gas Regulator inlet supply pressure Check that Gas Regulator conversion instructions have

been followed correctly

Check that hob burner crown is seated in base and cap is seated on the burner crown

Burner flames are uneven - Gas Oven

No ignition spark Wires disconnected at the back of piezo

Burner flames on the left is higher than the right side flames as looking at the oven

Gas injector not screwed in correctly or Gas injector holder not fitted correctly

ignitor (piezo ignition only)

Wires disconnected at the back of switch (240V)

No 240V power Check whether power supply is available and turn on

This is normal. No action required

Check that Gas Injector is fitted correctly, and injector assembly is inserted into burner

Remove control panel and check wiring

Turn off and disconnect from 240V outlet, then remove control panel to check no wires have become disconnected

Chef 540 Upright Cooker 17

Operating for the first time

WARNING

TIPS & INFORMATION

Choosing utensils for gas and electric hotplates

Refer to diagram below

GOOD BAD

(recessed base)

Installation and service warning

• Only an authorised person must install and service this

appliance (Certificate of Compliance to be retained)

• In order to avoid tipping of appliance the anti-tilt plate

MUST be installed

• Appliances requiring connection to 230 – 240V MUST

be earthed

• An authorised person should inspect this appliance every

5 years

• This appliance must NOT be installed on a base, box or

in a closed cupboard

• If the electrical supply cord is damaged, a qualified

person MUST replace the cord to avoid a hazard or void your warranty

•

Surrounding kitchen cabinets MUST WITHSTAND

85°C

BAD

(convex base)

BAD

(undersize)

Before operating first time

1. Read all the Warning and Safety information.

2. Remove all internal boxes and bags from oven.

3. Clean out the oven interior with detergent and hot water and polish with a soft cloth. DO NOT close oven door until the oven is completely dry.

4. New appliances can have an odour during first operation. It is recommended to ‘run in’ the oven before you cook. Run the oven at 180°C for 2 – 4 hours and ensure that the room is well ventilated.

5. If your appliance is fitted with solid hotplates, turn heat setting to high for 3 minutes to fully harden the hotplate coating.

BAD

(oversize)

BAD

(moisture on hotplate)

BAD

(no utensil)

• In order to avoid a hazard the installation instructions MUST be followed.

18 Chef 540 Upright Cooker

Installing your oven accessories

WARNING

Fitting oven shelves

1. Ensure shelf orientation is correct (refer to diagram below).

2. Slide oven shelves onto oven supports (side runners) at an angle until raised back of shelf is past the stop on oven supports (side runners).

3. Lower front of shelf and push in until stop is reached.

4. To remove oven shelves, withdraw to the stop and raise the front of shelf to clear the stop.

Fitting the grill dish

Separate Grill: Ensure rear of the dish is engaged with the side support before sliding backwards. To remove, simply pull forwards and upwards.

To ensure proper grill operation, slide the grill dish fully rearward to the stop.

To remove, simply pull forwards and upwards.

Engagement of rear of dish

NOTE: Models CFG505 and CFG517 contains single position side racks.

Grill in Oven: see Fitting Oven Shelves

The grill dish with wire insert can be used in any of the two upper height positions (shelf positions 4 and 5) between the runners.

Note the orietaton of the

side and rear features

Oven shelf location

Not a shelf

position

NOTE: the top ledge is not a shelf position. There are no stops for shelf withdrawal.

NOTE: You must remove the grill dish when baking in the oven.

Replacing the oven light

warning

Ensure the appliance is switched off at power supply (not just the control knobs) before replacing the light globe to avoid possibility of electric shock.

Turn light anti-clockwise

to remove it for globe

Chef 540 Upright Cooker 19

Using the gas cooker

CFG505WBNG / CFG505WBLP / CFG505SBNG / CFG505SBLP

WARNING

Gas oven features and descriptions

CFG517

CFG505

CFG501 / CFG503 / CFG513

1. Burner Control Knob – sets burner temperature.

2. Grill Control Knob – sets grilling temperature.

3. Oven Control Knob – sets oven temperature.

4. Timer 60 Minute (where fitted) – sets reminder time. When

timer returns to zero, timer gives a short ring.

NOTE: for any time below 15 minutes, turn knob past

15minutes, then back to required time setting.

5. Manual Grill or Oven Igniter or Hotplates

– ignitesgrillburner, oven burner or hotplates when appropriate control knobs are set.

6. Light Switch (where fitted) – turns oven light on/off.

7. Fan Switch – turns oven fan on/off.

Gas oven conventional baking

The heat comes from the bottom oven burner. The temperature at the centre of oven is the same temperature set on the control knob. When oven is used on this mode, shelf position is important, (refer to ‘Oven Guide’). As hot air naturally rises, the upper half of the oven will be approximately 10°C higher and the lower half approximately 10°C cooler than the set temperature.

CFG504

warning

For CFG504 models only, do not operate the gas oven and grill together.

For best results from your gas oven use dark coloured trays and baking dishes on a single shelf. Refer to ‘General Hints and Tips’ section for more information.

Gas oven fan forced baking

Fan Forced baking generally requires lower temperatures than conventional baking. Most recipe books, unless stated, are for conventional oven temperatures. It is recommended when using the fan forced mode to reduce the oven temperature by 10°C.

In a fan forced gas oven the heat comes from the bottom burner. Hot air is distributed by an electrically operated fan located behind the rear wall of the compartment, providing an even temperature on all shelf levels. This means batches of the same food can be baked using multiple shelf positions simultaneously.

Fan Forced operation can be used for single shelf baking with equal success.

For best baking results preheat oven for 30 minutes before turning on the fan.

20 Chef 540 Upright Cooker

Using the gas cooker

WARNING

Gas hotplate

Ensure burner caps, crowns and trivets are properly assembled. For wok ONLY use the trivet and burner dedicated for wok cooking.

Burner cap and burner crown must be clean and located correctly for the burner to light.

Burner Cap

Burner Crown

Flame Sensor (Thermocouple)

Spark Plug

Burner Crown

The knob may be released once the flame is established, and turned further anticlockwise to reduce the flame height as desired.

• Before releasing the knob, ensure the knob is fully depressed.

• If the flame goes out when the knob is released, simply repeat the ignition procedure again.

Hotplate Ignition – (Manual)

To light a burner, depress the corresponding knob fully and while continuing to depress the knob approximately 5seconds, turn anti-clockwise to 'HI' position. At the same time, hold hand-ignitor next to the burner and ignite (handignitors not supplied). The flame sensor must warm up in order for the flame to stay alight

Grill Ignition – Electronic

While pressing the electronic ignitor switch, depress the corresponding knob fully and while continuing to depress the knob for approximately 5 seconds, turn anti-clockwise to 'HI' position. The flame sensor must warm up in order for the flame to stay alight.

Grill Ignition – Piezo

Spark Plug

Flame Sensor (Thermocouple)

Gas oven burner flame

From a cold start the oven burner flame will be higher on the left hand-side. After reaching the set temperature, the flame will become even. This does not affect cooking results.

LIGHTING GAS HOTPLATE, GRILL AND OVEN

Electronic ignition with flame safeguard

This hob is fitted with mains powered electronic ignition. When the appliance has been connected and the power is on, depressing ignite button will release sparks to all burners.

To light a burner, depress the corresponding knob fully and while continuing to depress knob for approximately 5seconds, turn anticlockwise to ‘HI’ position. The flame sensor must warm-up in order for the flame to stay alight.

Depress the grill control knob fully and while continuing to depress the knob for approximately 5 seconds, turn anticlockwise to 'HI' position. The flame sensor must warm up in order for the flame to stay alight.

Grill – in Oven

Grill is electric and is operated by control knob only.

Oven Ignition – Electronic

While pressing the Electronic Ignitor Switch, push turn and hold the Oven Control Knob to the desired temperature. Hold Control Knob in for 15 seconds after ignition.

Oven Ignition – Piezo

With the left hand push and hold the Oven Control Knob in and turn it a quarter of the way anti-clockwise. Keep the oven Control Knob pushed in firmly and at the same time push the Oven Piezo Ignitor button on the right hand side of the control panel (several times if necessary). It will make a loud ‘clack’ noise as the Piezo mechanism creates a spark. Hold control knob in for 15 seconds after ignition.

warning

• Keep hands clear of burners when lighting.

• If burner does not light within 5 seconds, turn knob to ‘Off’ position, allow gas to disperse, then try lighting again.

• Burners MUST be operated between ‘HIGH’ and ‘LOW’ settings only.

Chef 540 Upright Cooker 21

Using the electric cooker

WARNING

TIPS & INFORMATION

Electric features and descriptions

Grill in Oven Models

CFE532

1 2/3

CFE536

1 52/3

Separate Grill Models

CFE533 / CFE535 / CFE537

4. Grill/Oven Indicator Light(s) – Comes on when grill/oven

temperature knob is operated. Oven indicator light cycles

on and off when temperature is reached.

5. Timer 60 Minute – (where fitted) sets reminder time.

– When timer returns to zero, timer gives a short ring.

NOTE: For any time below 15 minutes, turn knob past 15 minutes, then back to required time setting.

6. Burner control knob – sets burner temperature.

7. Hotplates ignitor – ignites gas hotplates when appropriate

control knobs are set.

Solid hotplates

If present, the red dot in the centre of hotplate changes colour when heated.

When necessary to keep element looking good, apply coating of ‘hot plate protection’ onto solid hot plates.

Ceramic Hotplates

warning

If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• The ceramic cooktop is made from ceramic glass, a tough, durable material that withstands heating and cooling without breaking. However, it must be noted that as it is glass, it may break, and must therefore be treated with care. Should you have any questions about the glass in your new appliance, please contact the service centre by dialling 13 13 49

1 2

CFE547

1 2 3 5

1. Solid/Ceramic Hotplate Control Knob

– setshotplatetemperature.

2. Grill Control Knob – sets grilling temperature.

3. Oven Control Knob – sets oven temperature.

22 Chef 540 Upright Cooker

3 5

• The smooth glass surface has a pattern to show where the elements under the glass are located

• When a hotplate is on, the hot surface warning light will come on. After switching off, this light will continue to glow until the temperature of the hotplate drops below 60°C.

Electric oven conventional baking

Heat comes from two elements, one above and one below the food. The bottom element is hidden below the floor of the oven. As hot air rises naturally, the upper part of the oven will be approximately 10°C higher than the set temperature and the lower part of the oven approximately 10°C cooler.

For Grill in Oven Models, the grill dish must be removed when baking.

Using the electric cooker

Electric oven fan forced baking

In a fan forced electric oven the heat comes from the rear oven element. Hot air is distributed by a fan behind the rear wall of the compartment, providing an even temperature on all shelf levels. This means, batches of food can be baked using multiple shelf positions simultaneously.

Fan forced operation can be used for single food baking with equal success.

Fan Forced baking generally requires lower temperatures than conventional baking. Most recipe books, unless stated, are typically for conventional oven temperatures. It is recommended that when using the fan forced mode, reduce the oven temperature by 10 degrees (refer to ‘Oven Guide’).

Chef 540 Upright Cooker 23

General hints and tips

WARNING

TIPS & INFORMATION

WARNING

Using the Grill

• Separate Grill: Grill with door open.

Grill dish must be fully inserted.

• Grill in oven: Grill with door closed.

Hints general

• For best baking results, across all models, preheat oven for

30minutes.

• The material and finish of baking trays and dishes used will affect the way foods are baked, especially base browning.

• Enamelware, anodised aluminium, dark bakeware or nonstick interiors and coloured exteriors will assist in maintaining or reducing the baking time and increase base browning

• Ovenproof glassware or ceramics are poor conductors of heat. The shiny surface of aluminium or polished steel utensils and trays also reflects the heat rather then passing it through to the food being baked

• Always place dishes centrally on the shelf to ensure even browning

• Stand casseroles dishes or similar-type dishes on suitably sized baking trays to prevent spillage onto the base of oven to make cleaning of oven easier

•

• Use ovenproof cookware, which will withstand

• DO NOT use baking trays larger than 30 x 35cm

• Use shallow casserole dishes in preference to deeper ones

Conventional Oven

• The shelf position is critical. The temperature in centre of

• DO NOT place baking trays, oven dishes or foil directly

Fan Forced

• DO NOT place baking trays and oven dishes directly

• DO NOT Place oven dishes directly on the oven base

• Make sure shelves are evenly spaced

• When baking more than one dish in fan forced oven,

• When the oven is full you may need to allow a slightly

• When using different size trays or cooking different types

DO NOT place dishes, trays or baking pans directly on the oven base as they become very hot and will crack and craze the oven liner

temperatures of 250°C

(12x14inches) as they will restrict the circulation of the

heat and may affect cooking performance of the oven

as this shortens cooking time in the oven.

the oven is the temperature shown on the oven control knob. Single shelf baking gives optimal cooking results.

on the base of oven, as trapped heat will crack and craze the floor of the oven liner.

against the grid covering the fan at the back of the oven

place dishes centrally on shelves rather than several dishes on one shelf

longer baking time

of food, cooking times may vary for each dish.

General tips

Condensation and Steam

• Always stand back from heated oven when opening oven door to allow any build-up of steam or heat to release

• During cooking steam may be produced which can be released when opening the oven door. This is quite normal

• If there is any build-up of condensation on the oven door it is recommended that it be carefully wiped away either during or after cooking.

Cleaning the cooker

Ovens and hotplates are made from steel and enamel. Do not use abrasives and harsh scourers as they may scratch the surface

Do not use steam cleaners

Stainless Steel

• All grades of stainless steel can stain, discolour or become greasy. You must clean these areas regularly by following the procedures below if you want your appliance to look its best, perform well and have a long life

• Care must be taken when wiping exposed stainless steel edges as they can be sharp

• The front frame around the oven can be cleaned with stainless steel cleaners if it comes soiled or discoloured

• A suitable cleaner can be purchased from Electrolux Customer Care Centres

• Make sure you follow the polish or brushing lines in the steel.

General

• Always clean appliance after use, especially food spillage. DO NOT use steel wool, wax polishes or caustic based commercial cleaners as these will damage your oven

• DO NOT use steam cleaners, as this may cause moisture build-up especially in the glass door

• Door Glass – DO NOT use harsh abrasive cleaners or sharp metal scrapers to clean glass since they can scratch the surface, which may result in shattering of the glass.

warning

Door glass is a tough and durable material designed to withstand heating and cooling without breaking. However it must be remembered that it is glass and may break, therefore must be treated with care.

If you have any questions about the glass in the oven please contact the Service centre on 13 13 49.

24 Chef 540 Upright Cooker

General hints and tips

WARNING

Cleaning the Oven Door

Cool air circulates through the door to lower the surface temperature on the outside of the oven door.

•

Do not remove the oven door

• This product has a removable inner door glass.

To remove the inner door glass for cleaning

• Open the door fully to access the hinges then rotate the “stirrups” on both hinges fully towards the door.

Stirrup

• Using both hands, gently remove the inner glass by sliding out and lifting away from the door

• Inner door glass: some products have heat reflective glass on the inner door glass. These are identified by a black dot on the lower left hand corner of the inner door glass.

Top trims

Inner glass

The black dot to be located on the lower left hand corner where applicable

• Slowly close the door until it stops against the ‘stirrups’ (about 45°)

• To remove the top trims (2 off), press the ribbed release clips at each end and lift top trim away from the door.

• Wipe inner and outer glass gently with detergent and warm water

• Wipe clean and dry thoroughly.

Re-Assembling the oven door inner glass

• Replace the inner glass back to the door with the black dot located on the lower left hand corner where applicable

• Replace the top trim ensuring the clips snap back into position

• Fully open the door, rotate the stirrups back to their original position and close the door.

warning

DO NOT use the oven without the inner door glass fitted.

DO NOT use harsh abrasives on glass as this may damage the glass DO NOT place glass in dishwasher. Hand wash only with a soft cloth and warm soapy water. When dry, polish with a soft cloth and ensure the glass is dry before re-assembly.

Chef 540 Upright Cooker 25

WARNING

Cleaning the cooker

caution

• Ensure the appliance is off and cool before cleaning.

Oven

•

• Make sure oven knobs are in the off position

• Clean immediately after use as a warm oven is easier to

• Use detergent, hot water (and household ammonia/

• Remove shelves when cleaning oven

• If there is a build-up of grease, place a small oven proof

Oven Shelves

• Chrome shelves: use detergent and hot water. If very dirty

• Enamel dishes and tray: use detergent and hot water. If

• DO NOT clean oven parts with abrasive or caustic-type

Oven – Grill Dish and Insert

• After every use, and while still warm, sprinkle grill insert

• Wash pan and grid with hot, soapy water with a little

• If the ceramic glass surface is cracked, switch off the

Ceramic Hotplates

• Clean with detergent and hot water and polish with a soft

• For harder to clean spills a blade scraper is supplied

• Aluminium foil, plastic and high sugar content food can

• Sometimes SURFACE stains appear to be ‘bubble’ marks

Do not remove the oven door

clean

cloudy ammonia if necessary) and a soft cloth. Dry thoroughly.

dish containing ¼ cup (62mL) household ammonia/ cloudy ammonia and ¾ cup (187mL) water in the oven. Heat oven to 110 degrees and turn oven off when 110 degrees is reached. Leave over-night. The fumes will loosen stubborn grease and stains. Remove bowl, wash with hot, soapy water and dry well before closing oven door again.

use a non-abrasive nylon scourer

very dirty a non-abrasive nylon scourer

cleaners.

with detergent and cover with wet paper towel as this will loosen food particles and grease

household ammonia/cloudy ammonia added. Rinse and dry before replacing in position.

caution

appliance immediately to avoid the possibility of electric shock.

cloth

cause pitting if not removed before the hotplate has cooled.

under the ceramic glass. These can be cleaned off with a razor blade scraper and ceramic cleaner.

Solid Hotplates

• Solid hotplates are fitted with stainless steel trim rings, which after initial use, change colour to light brown. Thisis a normal characteristic of stainless steel and will not affect the operation or performance of your hotplates

• Clean off any spillage after hot plate has cooled down

• At regular intervals, clean hotplate with a nylon scouring pad and soapy water. Wipe clean then warm hotplate for 30 seconds to dry the surface

• Apply ‘hot plate protector’’. Set hotplate on high for

3minutes to allow coating to harden.

Gas Trivets and Burners

• Flame port blockages should be removed with a small metal cake skewer or nylon brush.

• Clean dirty spark plugs very gently with a nylon scourer. DO NOT use steel wool. DO NOT bend spark plug as it may break.

• For enamelled burner skirts and trivets, persistent stains may require rubbing with a nylon scourer or creamed powder cleansers. Household enamel cleaners are available, follow the manufacturer’s instructions in their use. Harsh abrasive cleaners, powder cleaners, steel wool or wax polishes should not be used.

• These can all be lifted off and removed for separate cleaning.

• NOTE! When refitting the burners, ensure that they are correctly seated.

• Ensure burners are thoroughly dried after cleaning or spillage. When cleaning the burners, ensure that all the flame ports are free of any blockage (refer to Figure 1b on page 4). If necessary, use a toothpick or brush to clear ports. The outer surface of the burner caps have a polished finish and extra care needs to be taken to avoid scratching this surface during cleaning. In instances of heavy soiling, it may be necessary to apply a nonabrasive cleaning compound and rub with a cloth until the soiling is removed and then finish with a soft, dry cloth.

• NOTE! DO NOT place trivets or burners in the dishwasher.

Stainless steel (Models with Stainless Steel hob)

• Simply wipe with a soft cloth using warm water and a mild detergent and rinse with clean water. Where stainless steel has become extremely dirty or discoloured, use a stainless steel cleaner – but be sure to follow the brushing lines.

26 Chef 540 Upright Cooker

Cleaning the cooker

Ignition spark plug and flame safeguard sensor

GENTLY clean the ignition spark plug and flame safeguard sensor with a damp cloth to avoid lighting difficulties. Ensure that they are dry before use.

Injector

Ensure the injector remains free of any foreign material. When cleaning the burner spill bowl, first put tape over the injector hole before wipe out the spill bowl to avoid to block the injector hole, then remove the tape after cleaning.

If necessary, use a thin piece of wire to clear the orifice.

Do’s Don’ts

Use pots with a flat base.

Clean when cold unless sugar spills which should be removed with a ceramic scraper.

Clean after every use with a sponge and soapy water then dry.

Use a non-scratch scourer (usually blue in colour) if required.

Difficult stains should be removed with a ceramic scraper and cleaning cream specific for ceramic glass cooktops. Cerapol

At least once per week use ceramic sealer cream. Ceraseal

Do not slide pots across the glass as this can results in scratches to the surface

Do not clean when hot as it is dangerous and cleaning products can burn and stain.

Do not leave food residues or water on the ceramic as the contamination can damage the ceramic and screening printed graphics

Do not use steel wool or scourer pads that are not specified as nonscratch (usually green in colour). Heavy duty scourers are too abrasive

Do not use general abrasive cleaners as these can cause microscratches, dulling the glass surface and increasing the likelihood of contamination embedding into the glass

Do not use the ceramic top as a cutting board or work bench as this will cause scratches.

Ceramic Cooktop Cleaning

CUSTOMER ADVICE Sometimes SURFACE stains appear to be a “bubble” mark under the ceramic glass. These can be cleaned off with a razor blade scraper and ceramic cleaner. Keeping the ceramic cooktop clean and protected will keep it in good condition and help avoid breakage.

Ceramic Scraper 0383001001

Cerapol Cleaner ACC019

Ceraseal Protector ACC018

Available at the following web shops.

https://shop.electrolux.com.au

Chef 540 Upright Cooker 27

Cleaning the cooker

If the deposit is minimal, simply wipe off with a dry cloth. If the deposit is more stubborn, clean off with a moist soapy sponge then rinse off. If the deposit still does not clean off easily, use a non-abrasive nylon scratch pad and special purpose ceramic glass cleaning agent such as Cerapol cleaner (ACC019 - Available from our web shop). If the deposits are still burnt on and above methods did not work, use a specially designed ceramic glass scraper (0383001001-Available from our web shop). After having successful cleaned the cooktop, apply a ceramic glass conditioner Ceraseal protector (ACC018 - Available from our web shop). The conditioner will leave a protective coating that will help prevent future stains from becoming baked on. Marks which appear to be bubbles under the ceramic will also clean off. Use Ceraseal (ACC018) to help protect the ceramic and allow for easier cleaning. Polish on with a dry clean cloth.

Marks which appear to be bubbles under the ceramic will also clean off.

Use Ceraseal (ACC018) to help protect the ceramic and allow for easier cleaning. Polish on with a dry clean cloth.

28 Chef 540 Upright Cooker

Cleaning the cooker

Stainless Steel Cooktop Cleaning

NOTE: Ensure any oil is cleaned off the hob before use, otherwise it may cause the hob to turn a yellowish colour. All grades of stainless steel may stain, discolour or attain an adhering layer of grime in normal operation. To achieve maximum surface appearance, stainless steel must be kept clean.

Do’s Don’ts

Clean in the direction of stainless steel brushing lines.

Wash with warm soapy water. Do not use caustic cleaners.

For stains use a specific stainless-steel cleaner ACC031.

Always clean the stainless steel after food spillage. Some foods may discolour the stainless steel.

Do not clean against the stainless steel brushing lines as this will cause scratching.

Do not use abrasive cleaners, scourers or steel wool as this will cause scratching.

Use the correct sized pot as described in the owner manual.

Do not oversized pots as they can reflect heat onto the stainless steel causing discolouration.

NOTE: Do not use stainless steel cleaners on oven doors or control panels with finger print proof coating. Refer to owner manual for specific models.

Steel Kleen ACC032

Steel Power ACC031

Available at the following web shops or distributors.

https://shop.electrolux.com.au/

Remove deposits with a soft cloth and warm soapy water then wipe with a dry soft cloth. If there are signs of yellowing or stubborn stains, use a suitable stainless steel cleaner Steel Kleen (ACC032 - Available from our web shop), apply with a soft cloth and clean in the direction of the stainless steel grain only.

After the cooktop is clean, apply stainless steel protectant Steel Power (ACC031 - Available from our web shop) which will leave a protective coating to help prevent future stains from occurring.

Before After

Chef 540 Upright Cooker 29

Getting to know your oven

Getting to know your new oven with this ‘Simple Test Cake’

When baking, it is possible that there will be some variation in colour. Therefore, we suggest to make this simple, easy and delicious test cake to help you understand your new oven. All ovens do sometimes have hot or cold spots, therefore it is important to judge with your eye as you may need to rotate your dishes during baking.

‘Simple Test Cake’

125g butter, softened to room temperature 1 cup caster sugar 1 teaspoon pure vanilla essence 4 large eggs 2 cups self-raising flour pinch of salt 4 tablespoons (80mL) full-cream milk

Method:

1. Butter base and sides of two, 20cm straight-sided round

or square cake pans. Then line the base with grease proof paper or baking paper.

2. Preheat oven to moderate ‘180ºC’ (170ºC fan forced) for

30m and ensure oven shelf is in position 2 of the oven.

3. Cream softened butter and sugar until light in colour.

4. Add vanilla essence.

5. Add eggs one at a time, beating well after each addition.

6. Sift flour and salt into the mixture and beat until well

combined.

7. Add milk and beat or stir to combine.

8. Spoon mixture equally between prepared cake pans.

9. Bake in preheated oven, position 2 for about 25 to 35

minutes. Tip: Insert a fine cake skewer into the cake mix. If it comes out clean, or if the edges of the cake have come away slightly from the sides of the cake pan, the cake is ready.

10. Remove from oven and place on wire cake rack and rest for

5 minutes before removing from cake pans. Cool completely.

To Serve: sandwich together with your favourite jam or conserve, and dust top with pure icing sugar.

FOOT NOTE: if desired, substitute butter for either margarine or olive oil spread.

Recipe is based on the Australian standard metric 250mL cup and 20mL tablespoon sets.

30 Chef 540 Upright Cooker

Oven guide

The following is intended as a guide and experience may show some slight variation in order to meet individual requirements. Where the gas models vary from the electric models, details for gas cooking is shown in brackets. For best results when baking, preheat your oven for 30 minutes.

Food Conventional Oven Fan forced oven Time in minutes

Temperature °C Oven shelf position* Temperature °C Oven shelf position*

Plain or fruit scones 220 2 (3) 210 Any 10 –15

Rolled biscuits

Spooned biscuits

Shortbread biscuits

Hard individual meringues

Soft individual meringues

Pavlova – 6 eggs

Cup cakes

Sponge – 4 eggs

Plain butter cake

Rich fruit cake

Shortcrust cornish pasty

Shortcrust custard tart

Cream puffs 210 2 200 Any 25 – 30

Yeast bread 210 1 200 Any 25 – 30

Pizza 220 2 220 Any 15 – 25

170 (180) 2 150 (170) Any 10 –15

190 2 180 Any 12 –15

160 1 or 2 150 Any 30 – 35

110 2 100 Any 90

180 2 165 Any 15 – 20

110 (120) 1 100 Any 75

190 2 180 Any 15 – 20

180 2 170 Any 20 – 30

180 2 170 Any 25 – 40

140 (150) 2 130 Any 180

200 (200/180) 2 180 (180/160) Any 40 – 45 (10/35)

200/180 (220/180)

1(3) 190/170 (200/180) Any 20 – 30 (10/25)

* Shelf position is counted from the bottom shelf up. Bottom shelf position is 1. # Turn down temperatures shown.

Meat/Poultry/Fish Recommended temperature 0C Minutes per kilogram

Beef – Rare 200 35 - 40

– Medium 200 45 - 50

– Well done 200 55 - 60

Lamb – Medium 200 40

– Well done 200 60

eal 180 60

Pork 200 60

Chicken 180 - 200

Duck 180 - 200

Turkey 180

Fish 180 20

– 50

– 70

– 45 (less than10kg) – 40 (more than10kg)

Chef 540 Upright Cooker 31

Troubleshooting

Problem Causes What to do

Uneven cooking Incorrect shelf position Select shelf that puts food in centre of oven

Oven tray too large Try other trays or dishes

Trays not in centre Put trays in centre

Air flow in oven uneven Rotate food during cooking

Grill tray affecting thermostat Remove grill tray from oven on bake modes

Baked products too brown on top Oven not preheated Preheat the oven

Baking tins too large for recipe Use correct size tins

Baking tins not evenly spaced Stagger baking tins at least 3cm between tins and

the oven walls

Products not evenly sized or spaced on tray

Baked products too brown on bottom

Cakes have a cracked thick crust Baking temperature too high Lower the temperature

Baked products are pale, flat and undercooked

Cakes fallen in centre Baking temperature too low Raise the temperature

Roast meat and potatoes not brown in fan oven

Juices running out of meat Do not pierce meat with fork, turn with tongs

Grilled meats overcooked on outside and raw in the centre

Grilled chops and steaks curling Cut into fat every 2cm (¾")

The oven seal is loose The oven seal is only attached at each corner. It

Baking tins too large Use correct size tins

Baking tins are dark metal or glass Change to shiny, light tins or lower the

Food too low in oven Cook one shelf higher

Oven door opened too frequently during baking

Baking temperature too high Lower the temperature

Grill tray affecting thermostat Remove grill tray from oven on bake modes

Food too low in oven Cook one shelf higher

Cake batter over mixed Mix just long enough to combine the ingredients

Baking tin too deep Check size of tin and use recommended size

Baking tins dark Change to shiny light tins

Baking temperature too low Raise the temperature

Food too low in oven Cook one shelf higher

Baking time too short Increase cooking time

Incorrect baking tin size Use correct size tin

Baking time too short Increase cooking time

Proportions of ingredients incorrect for recipe Check recipe

Opening door too early during baking Do not open door until the last quarter of cooking

Poor hot air circulation Elevate food onto a rack to allow air circulation

Grill tray affecting thermostat Remove grill tray from oven on bake modes

Make into same size and shape and spread evenly over trays

temperature by 10°C

Don’t open the oven door until at least half the cooking time has passed

time

Grill at lower insert position

may seem like loose fit but when the oven door is closed it will function correctly.

32 Chef 540 Upright Cooker

Troubleshooting

If you have a problem with your appliance check the following before you ring the service line.

Problem What to do

Operational problems

ie: Oven, grill or hob not working

Heat up problems Oven not pre-heated – Pre-heat oven for 30 minutes

Unit smoking odours Turn oven/grill on high to remove protective oils

Condensation

Note: some condensation is normal and is to be expected during cooking

Timer not audible Turn Timer knob past 15-minute mark then to the required number of minutes

Oven shelf tight Remove shelf and insert as per diagram

Stains appear to be under ceramic These stains are on the SURFACE of the glass and can be cleaned off with a razor blade

Check the electricity is turned on

Check your fuses. If the fuse continues to blow, call the Service Centre

Check the circuit breaker

Ensure correct knob is turned

Gas only – Dry or clean ignition electrodes

Gas only – Make sure flame ports and ignition areas are clean and dry

Gas only – Check gas supply is on

Gas only – Ensure cap/crown correctly fitted.

Replace or tighten light globes (where fitted)

See also Gas Conversion Fault Finding on Page 17

Check oven door is closed properly

Remove foil or trays from bottom of oven

Change set oven temperature

Preheat your oven/grill before you put the food in to be cooked

Persistent gas smell – do not operate appliance. Call service 131349

Reduce the amount of water used for cooking

Leave the door open after cooking if food remains in cooker for warming

scraper and ceramic glass cleaner.

When you need information, service or replacements please quote:

1. Mo

del Number

2. Serial Number: You can find these on the data plate, which can be seen when the oven door is open. If you need more information, please contact the Customer Care Centre on 13 13 49 (Australia – Centre is open 8.00am to 5.00pm Monday to Friday EST) Or 0800 436 245 (New Zealand –Centre is open 8.00am to 5.00pm Monday to Friday). Only authorised service centres should carry out servicing. Otherwise warranty may be void. Ifyou have a warranty or spare parts enquiry, you should call the numbers listed on the back page.

Chef 540 Upright Cooker 33

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: CHEF BUILT-IN OVENS, COOKTOPS AND FREESTANDING

COOKER

This document sets out the terms and conditions of the product warranties for Chef Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance. This warranty is in addition to other rights you may have under the Australian Consumer Law.

1. In this warranty:

(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the

Competition and Consumer Act 2010;

(b) ‘Appliance’ means any Electrolux product purchased by you and

accompanied by this document; (c) ‘ASC’ means Electrolux’s authorised serviced centres; (d) ‘Chef’ is the brand controlled by Electrolux Home Products Pty Ltd of

163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341

in respect of Appliances purchased in Australia and Electrolux (NZ)

Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount

Wellington, in respect of Appliances purchased in New Zealand; (e) ‘Warranty Period’ means the period specified in clause 3 of this

warranty; (f) ‘you’ means the purchaser of the Appliance not having purchased the

Appliance for re-sale, and ‘your’ has a corresponding meaning.

2. Application: This warranty only applies to new Appliances, purchased

and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) other rights and remedies under a law to which the Appliances or services relate, including any nonexcludable statutory guarantees in Australia and New Zealand.

3. Warranty Period: Subject to these terms and conditions, this warranty

continues in Australia for a period of 24 months and in New Zealand for a period of 24 months, following the date of original purchase of the Appliance.

4. Repair or replace warranty: During the Warranty Period, Electrolux

or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux may, in its absolute discretion, choose whether the remedy offered for a valid warranty claim is repair or replacement. Electrolux or its ASC may use refurbished parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux.

5. Travel and transportation costs: Subject to clause 7, Electrolux

will bear the reasonable cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as part of any valid warranty claim.

6. Proof of purchase is required before you can make a claim under this

warranty.

7. Exclusions: You may not make a claim under this warranty unless the

defect claimed is due to faulty or defective parts or workmanship. This warranty does not cover:

(a) light globes, batteries, filters or similar perishable parts; (b) parts and Appliances not supplied by Electrolux; (c) cosmetic damage which does not affect the operation of the

Appliance;

(d) damage to the Appliance caused by:

(i) negligence or accident; (ii) misuse or abuse, including failure to properly maintain or service; (iii) improper, negligent or faulty servicing or repair works done by

anyone other than an Electrolux authorised repairer or ASC; (iv) normal wear and tear; (v) power surges, electrical storm damage or incorrect power supply; (vi) incomplete or improper installation; (vii) incorr ect, improper or inappropriate operation; (viii) insect or vermin infestation; (ix) failure to comply with any additional instructions supplied with the

Appliance;

In addition, Electrolux is not liable under this warranty if:

(a) the Appliance has been, or Electrolux reasonably believes that the

Appliance has been, used for purposes other than those for which the Appliance was intended, including where the Appliance has been used for any non-domestic purpose;

(b) the Appliance is modified without authority from Electrolux in writing; (c) the Appliance’s serial number or warranty seal has been removed or

defaced

8. How to claim under this warranty: To enquire about claiming

under this warranty, please follow these steps: (a) carefully check the operating instructions, user manual and the terms

of this warranty;

(b) have the model and serial number of the Appliance available; (c) have the proof of purchase (e.g. an invoice) available; (d) telephone the numbers shown below.

9. Australia: For Appliances and services provided by Electrolux in

Australia: Electrolux goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. ‘Acceptable quality’ and ‘major failure’ have the same meaning as referred to in the ACL.

10. New Zealand: For Appliances and services provided by Electrolux

in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

11. Confidentiality: You accept that if you make a warranty claim,

Electrolux and its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Before calling for service, please ensure that the steps listed in clause 8 above have been followed.

AUSTRALIA

NEW ZEALAND

CCook_Warr_ Jul19

34 Chef 540 Upright Cooker

Important Notice

or to find the address of your nearest authorised service centre in Australia

or to find the address of your nearest

PLEASE CALL 0800 10 66 10

FOR SERVICE

PLEASE CALL 13 13 49

For the cost of a local call

FOR SERVICE

authorised service centre in New

Zealand

FOR SPARE PARTS

or to find the address of your nearest

spare parts centre in Australia

PLEASE CALL 13 13 50

For the cost of a local call

FOR SPARE PARTS

or to find the address of your nearest

spare parts centre in New Zealand

PLEASE CALL 0800 10 66 20

NOTES

Chef 540 Upright Cooker 35

Like to know more?

For further information on all Chef appliances, or to obtain detailed dimension and installation information, call into your Retailer, phone or email our Customer Care team or visit our website:

Australia

phone:

..........................................................13 13 49

email:

............................. customercare@electrolux.com.au

web:

............................................chefappliances.com.au

Chef. We are part of the Electrolux family. Share more of our thinking at electrolux.com.au

ANC A03786307 Rev A

ABN 51 004 762 341

C_MAN_Upright_Front_Control_Gas_Conversion_Apr24

Chef CFE532, CFE533, CFE535, CFE536, CFE537 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
