UHF-RFID Reader WRTZ-1500 User’s Manual
0058256
1
Last Updated: August 18, 2011
Version 1.0
Checkpoint Systems International GmbH
esterwaldstrasse 3-13
W
64646 Heppenheim
(06252)703-0
UHF-RFID READER WRTZ-1500
Copyright © 2011 by Checkpoint Systems, Inc.
Released July 11
Published by:
Checkpoint Systems International GmbH.
Westerwaldstrasse 3-13
64646 Heppenheim
Germany
UHF-RFID Reader WRTZ-1500 Users Manual, Version 1.0
1
st Edition - 8- -2011
Part Number: 10058256
Trademarks
Checkpoint is a registered trademark of Checkpoint Systems, Inc.
Other product and company names herein may be trademarks of their respective owners.
Other products © or ® their respective manufacturers or copyright holders.
Copyright and Warranty Information
The information in this guide is subject to change without notice.
Because of the changing nature of this product information presented in the UHF-RFID Reader
RTZ-1500 Users Manual, Checkpoint Systems, Inc. is not liable for any omissions, misstatements,
W
or other errors of information.
The information presented in the Users Manual may not be copied, used or disclosed to others for the
purpose of procurement or manufacturing without the written permission of Checkpoint Systems, Inc.
This guide and the products discussed in this guide are the exclusive property of Checkpoint Systems
Inc. Copyright laws of the United States protects all information and products.
Copyright© 2011 Checkpoint Systems, Inc. All rights reserved.
UHF-RFID READER WRTZ-1500
Checkpoint Systems Intern. GmbH Company Confidential
Table of contents
1 REVISION CONTROL ...................................................................................... 4
1.1 REVISION HISTORY ....................................................................................... 4
2 BASIC SAFETY INFORMATION ........................................................................... 5
2.2 NOTE ABOUT THE DISPOSAL OF OLD UNITS ............................................................... 6
3 INTRODUCTION ........................................................................................... 6
4 TECHNICAL DATA ......................................................................................... 8
4.1 MECHANICAL DATA ...................................................................................... 8
4.2 FRONT VIEW ............................................................................................. 8
4.3 REAR VIEW .............................................................................................. 8
4.4 READER SPECIFICATIONS ................................................................................. 9
4.5 ENVIRONMENT SPECIFICATIONS .......................................................................... 9
4.6 DIGITAL I/O SPECIFICATION ............................................................................ 10
4.7 ETHERNET LAN SPECIFICATION ......................................................................... 10
4.8 RS-232 SPECIFICATIONS ................................................................................ 11
5 ORDERING INFORMATION ............................................................................. 11
6 GLOSSARY ............................................................................................... 12
7 ANNEX DECLARATION OF CONFORMITY ............................................................ 12
Last Updated: 8/24/2011 1:16 PM 3 of 12
Checkpoint Systems Intern. GmbH Company Confidential For Internal Use Only
1 Revision Control
1.1 Revision History
Content changes to this document from its previous version to the current level are indicated by
Microsoft Word track changes bars (|) in the left margin of the document unless a complete rewrite
is indicated. Accept all tracked changes to the current document before updating it. This procedure
highlights the new changes made to the document by the author thus facilitating efficient review of
the document.
Revision # Revision
Date
60 July 7, 2011 Initial Draft Heiko Döring
Change Description and Explanation Created/Changed By
Last Updated: 8/24/2011 1:16 PM 4 of 12
Checkpoint Systems Intern. GmbH Company Confidential For Internal Use Only
Transmit antennas should be installed such that a person can't come within 20cm of the
radiating structure.
.
2 Basic safety information
• Read these operating instructions before using the UHF-RFID READER WRTZ-
1500 for the first time! Make yourself completely familiar with the installation and
operation of the UHF-RFID READER WRTZ-1500! Retain these operating
instructions for later reference.
• The UHF-RFID READER WRTZ-1500 is used for contact less reading of RFID
(Radio Frequency Identification) Tags. Only use the UHF-RFID READER
WRTZ-1500 in the manner described in these operating instructions!
• Note all the detailed safety information given within the individual work steps.
All safety information in these operating instructions is identified with the warning
symbol shown here.
• Never use the UHF-RFID READER WRTZ-1500 in areas where there is a danger
of explosion.
• Note that the electric installation of the UHF-RFID READER WRTZ-1500 may
only be done by a professional.
• It is essential to comply with the electrical, mechanical and climatic specifications
given in the Technical Data section. For further information see Chapter Technical
data.
• Do not make any changes or modifications to the UHF-RFID READER WRTZ-
1500. If changes or modifications are made, all guarantee claims are voided.
Furthermore, the radio approval required for its operation is void!
• Have a faulty UHF-RFID READER WRTZ-1500 inspected and repaired by our
repair center. Never make any repairs yourself under any circumstances.
• Dispose of the UHF-RFID READER WRTZ-1500 properly after taking out of
service. Never put the UHF-RFID READER WRTZ-1500 into the normal
household waste.
ederal Communications Commission (FCC) Approval Note:
F
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Industry Canada Approval
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Last Updated: 8/24/2011 1:16 PM 5 of 12
Checkpoint Systems Intern. GmbH Company Confidential For Internal Use Only
2.2 Note about the disposal of old units
Within the member countries of the European Union In accordance with the European
Union guideline 2002/96/EC, Checkpoint Systems takes back old devices within the member countries
of the European Union and disposes of them in an appropriate way. The devices concerned by this are
marked with the symbol shown aside.
• For further information on the return procedure, please contact your local sales
contact. You will find the addresses of all sales partners in the internet on
www.checkpointsystems.com. Please take into consideration also the national
implementation of the EU guideline 2002/96/EC of your country.
For all other countries
• Dispose of the WRTZ-1500 properly after taking out of service.
bserve the regulations valid in your country for the disposal of electronic devices.
• O
• Never put the WRTZ-1500 into the normal household waste.
3 Introduction
UHF-RFID Reader WRTZ-1500 is the electronics system of an Ultra High Frequency
(UHF) radio frequency identification (RFID) system (typically called an interrogator or
reader) which communicates with targets that are applied to or incorporated into an item.
The targets (typically referred to as tags or labels) serve to identify the item to which it is
attached based on a unique ID stored on the target.
Last Updated: 8/24/2011 1:16 PM 6 of 12
Checkpoint Systems Intern. GmbH Company Confidential For Internal Use Only
ATTENTION
The UHF-RFID READER WRTZ-1500 antenna ports may be susceptible to damage from
static discharge or other high voltage. Use proper Electrostatic Discharge (ESD) precautions
to avoid static discharge when handling or making connections to the WRTZ-1500 antenna
or communication ports. Equipment failure can result if the antenna or communication ports
are subjected to ESD.
3.1 Installation
The UHF-RFID READER WRTZ-1500 is build in a Portal System, for the installation guidelines refer to the
ser Manual 7412044 FRONT STORE BACK STORE SYSTEM.
U
Block Diagram of the FSBS System.
Last Updated: 8/24/2011 1:16 PM 7 of 12
Checkpoint Systems Intern. GmbH Company Confidential For Internal Use Only
4 Technical Data

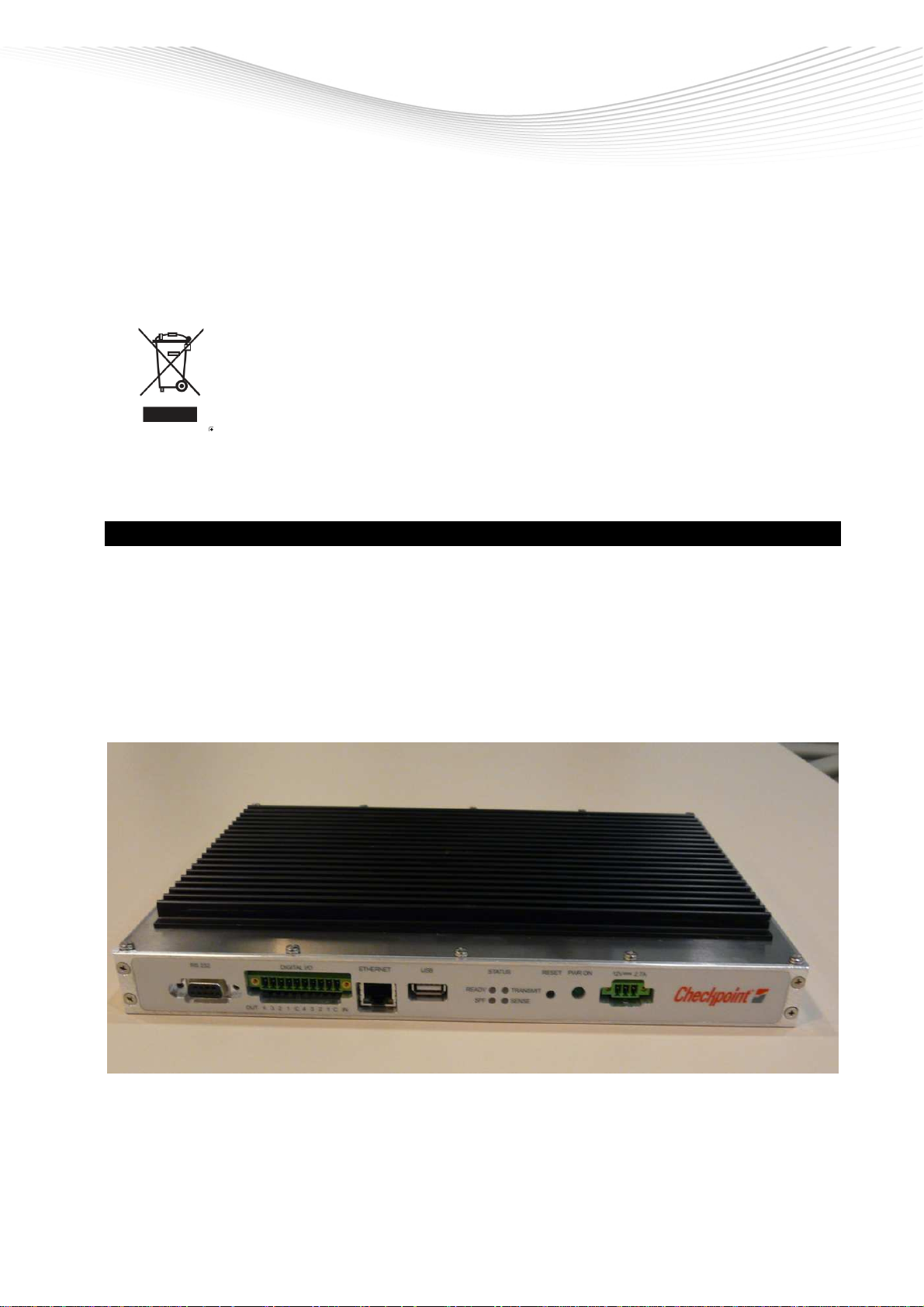

4.1 Mechanical Data
Size : 11.8 x 9.5 x 1.8 in (300 x 240 x 45 mm)
Weight: 4.5 lbs (2 Kg)
Case material Aluminum
Connectors
Ethernet RJ45
RS232 D SUB 9 pol. Female
DC-Input 3 pol
I/O Connector 10 pol
RF
TX 1-4 TNC-RP
RX 1-4 TNC-RP

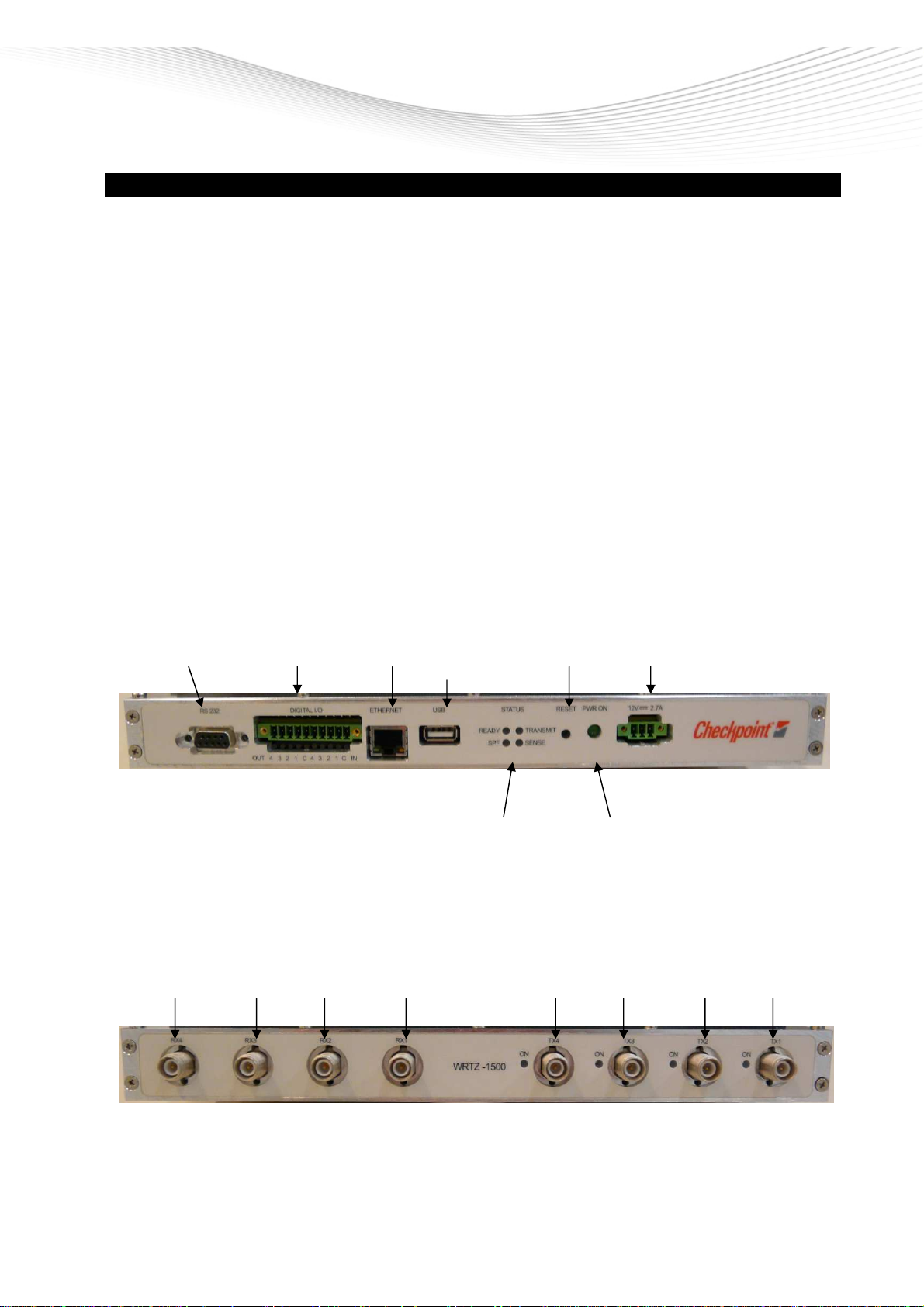

4.2 Front view
S232 I/O RESET DC
R
Connector Connector LAN USB Button Connector
Status LED’s Power On
LED
4.3 Rear view
Inputs Outputs
RX4 RX3 RX2 RX1 TX4 TX3 TX2 TX1
Last Updated: 8/24/2011 1:16 PM 8 of 12
Checkpoint Systems Intern. GmbH Company Confidential For Internal Use Only
4.4 Reader Specifications
Power Connection
Input Voltage 10,2-13,8 Vdc
Input current 2.7 A at 12 Vdc
Power Consumption 20W ( typical while idle)
27 W ( typical at 1 W conducted output power)
33 W ( typical at 2 W conducted output power)
Usable Power Supply’s
- LFZVC60NP12E4 Part Number: 7284242
- AEB70US12 Part Number: 7421850
Frequency Range 865-868 MHz 902-928 MHz
RF Output Power 10mW - 2 W conducted (10 - 33 dBm)
RF Input Power 100mW max. (20 dBm)
RF Connections
RF Outputs 4
RF Inputs 4
Impedance 50 Ohm
Caution: This device has been designed to operate with no more than 1 Watt into the antenna and an
antenna gain of no more than 6 dBic. Antenna having a higher gain is strictly prohibited per
regulations of Industry Canada, unless power into the antenna is decreased to compensate
for the increased antenna gain. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent isotropic radiated power (EIRP) is not more than that required
for successful communication.
The installer of this radio equipment must ensure that the antenna is located or pointed such
that it does not emit an RF field in excess of Health Canada limits for the general
population; consult Safety Code 6, obtainable from Health Canada’s website at
www.hc-sc.gc.ca
4.5 Environment Specifications
Operating temperature 32°
Storage temperature - 40° F to 185° F ( -40° C to 85° C )
Relative Humidity 5% to 95 % non-condensing
Last Updated: 8/24/2011 1:16 PM 9 of 12
F to 131° F ( 0° C to 55° C )
Checkpoint Systems Intern. GmbH Company Confidential For Internal Use Only
4.6 Digital I/O Specification
Connector PHOENIX Part Number: 1844294 (1x10)
Input 5 Vdc, 10 mA, Optically Isolated
Output Open Collector (3 to 24 V, 100 mA Max)
Signals Pin 2 – D_IN1 (Digital Input 1)
Pin 3 – D_IN2 (Digital Input 2)
Pin 4 – D_IN3 (Digital Input 3)
Pin 5 – D_IN4 (Digital Input 4)
Pin 1 – Digital input common
Pin 7 – D_OUT1 (Digital Output 1)
Pin 8 – D_OUT2 (Digital Output 2)
Pin 9 – D_OUT3 (Digital Output 3)
Pin 10 – D_OUT4 (Digital Output 4)
Pin 6 – Digital output common
4.7 Ethernet LAN Specification
onnector RJ-45
C
Ethernet 10/100 BaseT
Indicators Yellow - Indicates link is operational
Green - Indicates network traffic detected.
Signals Pin 1 – TXD+ (Transmit Data +)
Pin 2 – TXD- (Transmit Data -)
Pin 3 – RXD+ (Receive Data +)
Pin 4 – NC
Pin 5 – NC
Pin 6 – RXD- (Receive Data -)
Pin 7 – NC
Pin 8 – NC
Last Updated: 8/24/2011 1:16 PM 10 of 12
Checkpoint Systems Intern. GmbH Company Confidential For Internal Use Only
4.8 RS-232 Specifications
Connector DB-9S
Baud rate 600 - 115200 (Default = 115200)
Parity None
Data bits 8
Stop bits 1
Signals Pin 1 NC
Pin 2 RXD Processor
Pin 3 TXD Processor
Pin 4 TXD FPGA
Pin 5 GND
Pin 6 RXD FPGA
Pin 7 NC
Pin 8 NC
Pin 9 NC
4.9 USB Specification
Connector Female USB Type A
ignals Pin 1 Vcc (+5V max 500mA)
S
Pin 2 - DATA
Pin 3 + DATA
Pin 4 GND
Pin 5 GND
5 Ordering Information
The UHF-RFID Reader is available with the following number
Order Number: 70034075 WRTZ-1500
Last Updated: 8/24/2011 1:16 PM 11 of 12
Checkpoint Systems Intern. GmbH Company Confidential For Internal Use Only
6 Glossary
RFID Radio Frequency Identification.
EPC Electronic Product Code, a unique item identification number
EPC Global A new global standard that combines RFID technology, existing communications network
infrastructure and the Electronic Product Code to enable immediate and automatic
identification and tracking of an item through the whole supply chain globally, resulting in
improved efficiency and visibility of the supply chain.
7 Annex Declaration of Conformity
EMC limits and radio approvals
EMV for Short Range Device ETSI EN 301 489-3
Safety of equipment of low voltage device EN 60950-1
Approval for Short Range Device; Europe ETSI EN 300 440
Approval for Short Range Device; USA FCC 47 CFR Part 15
Approval for Short Range Device; Canada RSS 210 Issue 7
Last Updated: 8/24/2011 1:16 PM 12 of 12
Loading...
