Universal Socket Connectivity
Embedded Device Networking Solutions
SocketModem – MT5600SMI
SocketModem – MT5656SMI
SocketModem – MT2456SMI-22
SocketModem IP – MT2456SMI-IP
SocketEthernet IP – MTXCSEM
SocketModem ISDN – MT128SMI
SocketModem GPRS – MTSMC-G
SocketModem CDMA – MTSMC-C
SocketWireless Bluetooth® – MTS2BTSMI
SocketWireless EDGE – MTSMC-E
Hardware Guide for Developers
Copyright and Technical Support
Universal Socket Connectivity Developer's Guide
PN S000342D, Version D
Copyright
This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi­Tech Systems, Inc. All rights reserved.
Copyright © 2004-5 by Multi-Tech Systems, Inc.
Multi-Tech Systems, Inc. makes no representations or warranties with respect to the contents hereof and specifically disclaim any implied warranties of merchantability or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes.
Revisions
Revision Level Date Description
A 06/17/04 Initial release of Universal Socket Connectivity hardware guide. B 10/01/04 Added SocketWireless with Bluetooth Technology chapter. Changed pinouts:
TXCLK to TCLK and RXCLK to RCLK. Added the schematics for the MT128SMI.
Added note to the SocketEthernet IP filtering drawing.
C 11/11/04 Revised GSM/GPRS mechanical drawing. More information location information
about AT commands, fax commands, and voice commands. Update Bluetooth chapter.
D 10/28/05 Added SocketWireless EDGE chapter. Added Recycling Statement (WEEE)
Trademarks
Registered Trademarks of Multi-Tech Systems, Inc. are SocketModem, SocketWireless, and the Multi-Tech logo. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Bluetooth is a registered trademark of Bluetooth.
Patents
This device covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; 5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; 5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289; 5,450,425; 5,355,365; 5,309,562; 5,301,274. Other Patents Pending.
World Headquarters
Multi-Tech Systems, Inc. 2205 Woodale Drive Mounds View, Minnesota 55112 Phone: 763-785-3500 or 800-328-9717 Fax: 763-785-9874
Technical Support
Country By Email By Phone
France: support@multitech.fr (33) 1-64 61 09 81 India: support@multitechindia.com 91 (124) 6340778 U.K.: support@multitech.co.uk (44) 118 959 7774 U.S. and Canada: oemsales@multitech.com (800) 972-2439 Rest of the World: oemsales@multitech.com (763) 717-5863 Internet Address: http://www.multitech.com
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 2
Table of Contents
Table of Contents
Chapter 1 - Universal Socket Connectivity ................................................................................................................ 8
Multi-Tech Embedded Solutions .............................................................................................................................8
Universal Socket Connectivity Features .................................................................................................................8
The Universal Socket Design..................................................................................................................................8
AT, Fax, and Voice Commands ..............................................................................................................................9
Universal Socket Configuration............................................................................................................................. 10

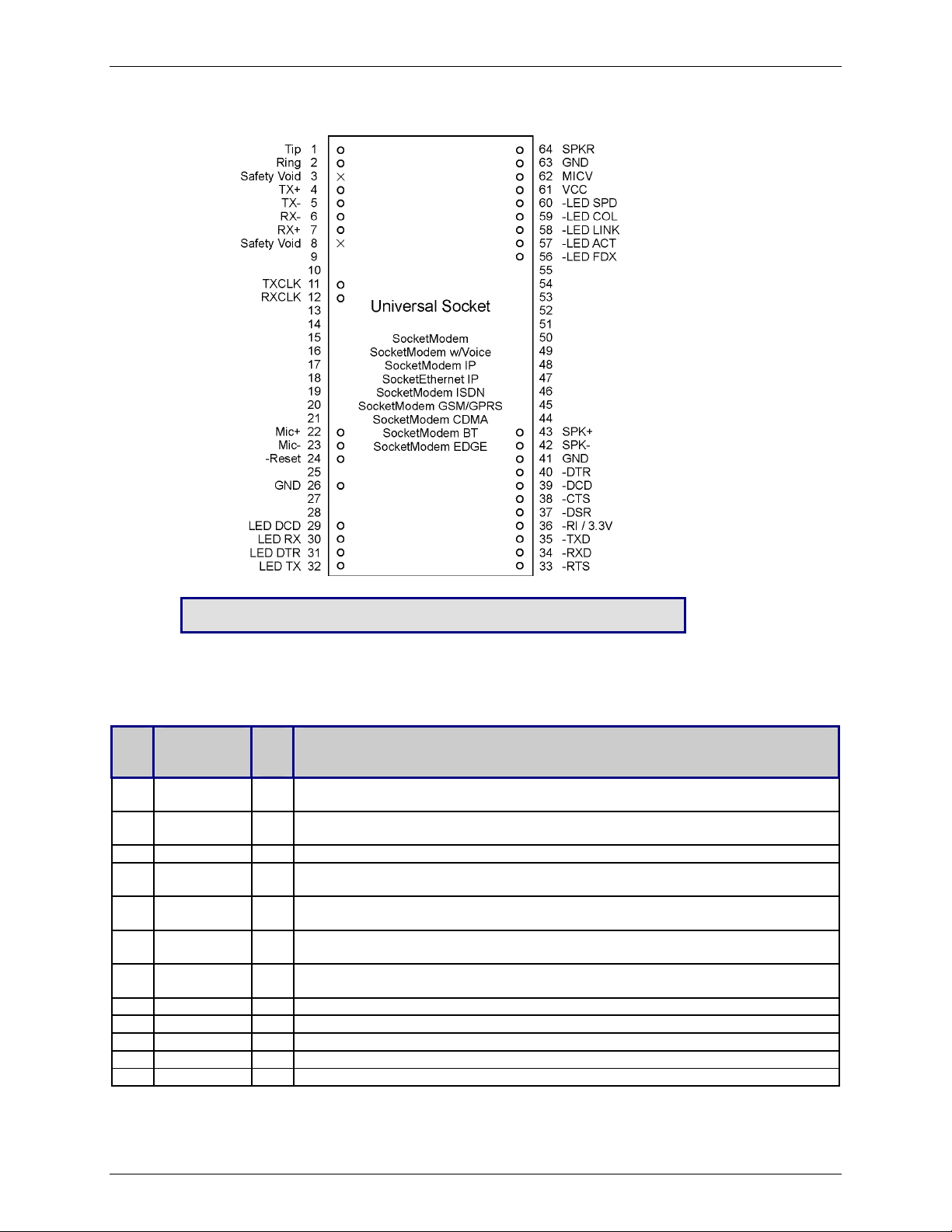

Universal Pin Descriptions ............................................................................................................................. 10
Design Considerations..........................................................................................................................................13
PC Board Layout Guidelines..........................................................................................................................13
Electromagnetic Interference (EMI) Considerations ......................................................................................14
Handling Precautions..................................................................................................................................... 14
Mechanical Dimensions in Inches.........................................................................................................................15
Mechanical Dimensions in Millimeters ..................................................................................................................16
Maximum Component Height................................................................................................................................16
SocketModem Developer Board ...........................................................................................................................17
Board Components ............................................................................................................................................... 18
SocketModem Developer Board Block Diagram............................................................................................19
Developer Board Schematics................................................................................................................................20
Developer Board Schematics................................................................................................................................21
Developer Board Schematics................................................................................................................................22
Developer Board Schematics................................................................................................................................23
Telecom Approvals for Analog Dial-up.................................................................................................................. 24
Labeling Requirements .........................................................................................................................................25
United States Labeling Requirements (for Dial-Up Modems) ........................................................................25
Canadian Labeling Requirements (for Dial-Up Modems) ..............................................................................26
Label Examples (for Dial-Up SocketModems) ...............................................................................................27
Regulatory Compliance Statements......................................................................................................................28
EMC, Safety, and R&TTE Directive Compliance ...........................................................................................28
International Modem Restrictions ..................................................................................................................28
EMC Requirements for the United States...................................................................................................... 28
EMC Requirements for Industry Canada .......................................................................................................28
New Zealand Telecom Warning Notice..........................................................................................................29
South African Statement ................................................................................................................................ 29
Other.............................................................................................................................................................. 29
Restriction of the Use of Harzardous Substances (RoHS).................................................................................... 30
Waste Electrical and Electronic Equipment Statement .........................................................................................31
Flash Upgrade ......................................................................................................................................................32
Multi-Tech Systems, Inc. Flash Programming Protocol .................................................................................35
Wireless Account Activation.................................................................................................................................. 38
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI) .........................................................................................42
Introduction ...........................................................................................................................................................42
Product Ordering Information................................................................................................................................ 42
Developer Kit ........................................................................................................................................................43
Technical Specifications .......................................................................................................................................44
SocketModem Configuration................................................................................................................................. 46
MT5600SMI Serial Configuration...................................................................................................................46
MT5656SMI Serial with Voice Configuration..................................................................................................46
Parallel Configuration.....................................................................................................................................47
Differences - Legacy Voice Modems and Current Modems .................................................................................. 48
Differences between the SFxxxD/SP and the MT5656SMI............................................................................48
Electrical Characteristics....................................................................................................................................... 49
3.3 V Serial SocketModem ............................................................................................................................49
3.3 V Parallel SocketModem..........................................................................................................................49
5 V Serial SocketModem ...............................................................................................................................49
5 V Parallel SocketModem.............................................................................................................................49
Parallel Host Bus Timing Table............................................................................................................................. 50
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 3
Table of Contents
SocketModem Parallel Interface ...........................................................................................................................51
Overview........................................................................................................................................................ 51
Transmitter FIFO Interrupt Operation.............................................................................................................51
Register Functional Definitions ......................................................................................................................52
IER – Interrupt Enable Register ..................................................................................................................... 53
FCR – FIFO Control Register ........................................................................................................................54
IIR – Interrupt Identifier Register....................................................................................................................55
LCR – Line Control Register ..........................................................................................................................56
MCR – Modem Control Register....................................................................................................................57
LSR – Line Status Register............................................................................................................................58
MSR – Modem Status Register .....................................................................................................................59
RBX – RX Buffer (Receiver Buffer Register)..................................................................................................59
THR – TX Buffer (Transmitter Holding Register) ...........................................................................................59
SCR – Scratch Register................................................................................................................................. 60
Divisor Registers............................................................................................................................................60
Application Notes ..................................................................................................................................................61
Tip and Ring Interface....................................................................................................................................61
Microphone and Speaker...............................................................................................................................62
Recommended Parts .....................................................................................................................................63
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92) ...............................................................................65
Introduction ...........................................................................................................................................................65
Product Ordering Information................................................................................................................................ 65
Developer Kit ........................................................................................................................................................65
Technical Specifications .......................................................................................................................................66
SocketModem Configuration................................................................................................................................. 68
Serial Configuration .......................................................................................................................................68
Parallel Configuration.....................................................................................................................................69
Electrical Characteristics....................................................................................................................................... 70
3.3 V Serial – Industrial Temperature (SMI-ITP) Build Option .......................................................................70
3.3 V Parallel – Standard (SMI) and Industrial Temperature (SMI-ITP) Build Options................................... 70
5 V Serial – Standard (SMI) and Medical Device (SMI-HV) Build Options.....................................................70
5 V Parallel – Standard (SMI) and Medical Device (SMI-HV) Build Options .................................................. 70
Timing Requirements............................................................................................................................................71
SocketModem Parallel Interface Internal Registers ..............................................................................................72
Overview........................................................................................................................................................ 72
Register Functional Definitions ......................................................................................................................74
RBR – Receive Buffer (RX FIFO) ..................................................................................................................75
THR – Transmit Holding Register (TX FIFO) ................................................................................................. 75
IER – Interrupt Enable ...................................................................................................................................75
IIR – Interrupt Identification (Read Only)........................................................................................................75
FCR – FIFO Control....................................................................................................................................... 76
LCR – Line Control ........................................................................................................................................76
MCR – Modem Control ..................................................................................................................................76
LSR – Line Status..........................................................................................................................................77
MSR – Modem Status.................................................................................................................................... 77
SCR – Scratch ...............................................................................................................................................78
DLL – Divisor Latch (LSByte).........................................................................................................................78
DLM – Divisor Latch (MSByte).......................................................................................................................78
Application Notes ..................................................................................................................................................79
Tip and Ring Interface....................................................................................................................................79
Recommended Parts .....................................................................................................................................80
Chapter 4 – SocketModem (MT2456SMI-22) ............................................................................................................82
Introduction ...........................................................................................................................................................82
Product Ordering Information................................................................................................................................ 82
Developer Kit ........................................................................................................................................................82
Technical Specifications .......................................................................................................................................83
SocketModem Configuration................................................................................................................................. 85
Serial Configuration .......................................................................................................................................85
Electrical Characteristics....................................................................................................................................... 86
3.3 V and 5 V Serial SocketModem ...............................................................................................................86
Applications Notes ................................................................................................................................................87
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 4
Table of Contents
Tip and Ring Interface....................................................................................................................................87
Recommended Parts .....................................................................................................................................88
Chapter 5 – SocketModem IP (MT2456SMI-IP).........................................................................................................90
Introduction ...........................................................................................................................................................90
Product Ordering Information................................................................................................................................ 90
Developer Kit ........................................................................................................................................................90
Technical Specifications .......................................................................................................................................91
SocketModem Configuration................................................................................................................................. 93
Serial Configuration .......................................................................................................................................93
Electrical Characteristics....................................................................................................................................... 94
3.3 V Serial ....................................................................................................................................................94
Application Notes ..................................................................................................................................................95
Tip and Ring Interface....................................................................................................................................95
Recommended Parts .....................................................................................................................................96
Chapter 6 – SocketEthernet IP (MTXCSEM)............................................................................................................. 98
Introduction ...........................................................................................................................................................98
Product Ordering Information................................................................................................................................ 98
Developer Kit ........................................................................................................................................................98
Technical Specifications .......................................................................................................................................99
SocketModem Configuration............................................................................................................................... 101
Serial Configuration .....................................................................................................................................101
Electrical Characteristics..................................................................................................................................... 102
3.3 V Serial ..................................................................................................................................................102
5 V Serial .....................................................................................................................................................102
Application Notes ................................................................................................................................................103
Ethernet Interface – Non-Isolated Design .................................................................................................... 103
Ethernet Interface – Isolated Design............................................................................................................ 103
Recommended Parts ...................................................................................................................................103
Chapter 7 – SocketModem ISDN (MT128SMI) ........................................................................................................ 105
Introduction .........................................................................................................................................................105
Product Ordering Information.............................................................................................................................. 105
Developer Kit ......................................................................................................................................................105
Technical Specifications .....................................................................................................................................106
SocketModem ISDN Configuration .....................................................................................................................107
Serial Configuration .....................................................................................................................................107
Electrical Characteristics..................................................................................................................................... 108
3.3 V and 5 V Serial SocketModem ISDN....................................................................................................108
Application Notes ................................................................................................................................................108
Safety Warning Telecom / ISDN-ST ............................................................................................................108
Interface Connector Contact Assignments...................................................................................................108
ISDN Interface .............................................................................................................................................108
Chapter 8 – SocketModem GPRS (MTSMC-G)....................................................................................................... 110
Product Description............................................................................................................................................. 110
Product Ordering Information.............................................................................................................................. 110
Developer Kit ......................................................................................................................................................110
Technical Specifications .....................................................................................................................................111
Mechanical Dimensions ......................................................................................................................................112
SocketModem Configuration............................................................................................................................... 113
Serial Configuration .....................................................................................................................................113
Electrical Characteristics..................................................................................................................................... 114
Power Consumption.....................................................................................................................................114
SIM Interface Electrical Characteristics .......................................................................................................115
Application Notes ................................................................................................................................................116
Flashing LED Interface ................................................................................................................................116
SIM Interface ...............................................................................................................................................116
RF Interface ................................................................................................................................................. 116
Sources for Peripheral Devices ...................................................................................................................117
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 5
Table of Contents
Chapter 9 – SocketModem CDMA (MTSMC-C) ......................................................................................................119
Product Ordering Information.............................................................................................................................. 119
Developer Kit ......................................................................................................................................................119
Technical Specifications .....................................................................................................................................120
Mechanical Dimensions ......................................................................................................................................121
SocketModem Configuration............................................................................................................................... 122
Serial Configuration .....................................................................................................................................122
Electrical Characteristics..................................................................................................................................... 122
Electrical Characteristics for the 5V Serial SocketModem ...........................................................................122
Power Consumption.....................................................................................................................................122
Application Notes ................................................................................................................................................123
Flashing LED Interface ................................................................................................................................123
RF Interface ................................................................................................................................................. 123
Sources for Peripheral Devices ...................................................................................................................124
Chapter 10 – SocketWireless Bluetooth (MTS2BTSMI) ........................................................................................126
Introduction .........................................................................................................................................................126
Notes about Byte Gaps and Data Latency................................................................................................... 126
Product Ordering Information.............................................................................................................................. 126
Developer Kit ......................................................................................................................................................126
Technical Specifications .....................................................................................................................................127
Mechanical Dimensions ......................................................................................................................................129
SocketWireless Bluetooth Configuration ............................................................................................................. 130
Serial Configuration .....................................................................................................................................130
Electrical Characteristics..................................................................................................................................... 130
3.3 V and 5 V Serial SocketWireless ...........................................................................................................130
Application Notes ................................................................................................................................................131
Example of a Master Discovery/Connection Sequence ...............................................................................131
Example of a Slave Command Sequence ...................................................................................................132
Changing Configuration ......................................................................................................................................132
Sources for Peripheral Devices...........................................................................................................................133
Chapter 11 – SocketModem EDGE .........................................................................................................................134
Product Description............................................................................................................................................. 134
AT Commands .................................................................................................................................................... 134
Developer Kit ......................................................................................................................................................134
Technical Specifications .....................................................................................................................................135
Physical Dimensions...........................................................................................................................................136
Pin Configurations...............................................................................................................................................137
EDGE Pin Descriptions................................................................................................................................ 137
Pin 58 – LED Mode...................................................................................................................................... 138
Electrical Characteristics & Power Consumption ................................................................................................139
I/O Electrical Characteristics........................................................................................................................ 139
Voice Mode Power Consumption................................................................................................................. 139
Data Mode Power Consumption .................................................................................................................. 139
SIM Interface Electrical Characteristics .......................................................................................................140
Other Characteristics ..........................................................................................................................................140
Radio Characteristics................................................................................................................................... 140
Receiver Features .......................................................................................................................................140
Transmitter Features....................................................................................................................................140
Speaker Output............................................................................................................................................ 140
Microphone Input .........................................................................................................................................140
Peripheral Devices..............................................................................................................................................141
Antenna .......................................................................................................................................................141
SIM Connector.............................................................................................................................................141
Index..........................................................................................................................................................................142
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 6
Chapter 1
Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 7
Chapter 1 – Universal Socket Connectivity
Chapter 1 - Universal Socket
Connectivity
Multi-Tech Embedded Solutions
Multi-Tech’s family of embedded solutions creates communication-ready devices by integrating dialup, wireless, or Ethernet connectivity into a single, universal socket design. Now you have the ability to provide remote monitoring, diagnostics, data collection, or virtually any communication ability to your existing or new device via interchangeable dial-up, wireless, or Ethernet communication modules.
Universal Socket Connectivity Features
• Flexible comm-port architecture
• Interchangeable socket modules
• Cost-effective system design
• Easy migration to future technologies
• Complete global compliance
The SocketModem's flexible comm-port architecture provides dial-up, wireless, or Ethernet socket connectivity with interchangeable modules. This means you can utilize one system design and populate it with your communication module of choice. In addition, you are assured a seamless migration to future technologies.
The Universal Socket Design
Each pin on a SocketModem corresponds to a particular function. The universal socket design provides a universal location for each function pin. This allows each SocketModem to be used in a common developer's test board.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 8
Chapter 1 – Universal Socket Connectivity
AT, Fax, and Voice Commands
AT Commands
Multi-Tech provides Reference Guides for each SocketModem's AT commands, fax commands, and voice commands. These reference guides are available on the CD included in the Developer Kit. They are also available by email at oemsales@multitech.com or by request using the Developer Guide Request Form on Multi-Tech's Web site.
Fax Commands
Fax Commands are included in the AT Command Reference Guide when applicable to the product. They are available on the CD included in the Developer Kit.
Note: Fax Commands supported by product:
• SocketModem MT5600SMI supports Class 1 & 1.0
• SocketModem MT5656SMI supports Class 1 & 2 (not 2.0/2.1)
• SocketModem MT5634SMI supports all Class 1 and Class 2 commands (Class 1, 1.0, 2, 2.0/2.1)
• Wireless GSM/GPRS MTSMC-G supports Class 1 core commands only (defined by ITU T.31)
• Wireless CDMA MTSMC-C supports Class 2.0
Voice Commands
Voice Commands Reference Guides are available on the CD included in the Developer Kit.
• SocketModem MT5600SMI supports +V commands
• SocketModem MT5656SMI supports +V (including speakerphone)
• SocketModem MT5634SMI supports +V commands
Table of Available Command Documents
Product AT Commands Fax Commands Voice Commands
SocketModem (MT5600SMI) (MT5656SMI) SocketModem (MT5634SMI-xx) SocketModem (MT2456SMI-22 & 22L) SocketModem IP (MT2456SMI-IP)
SocketEthernet IP (MTXCSEM)
SocketModem ISDN (MT128SMI)
SocketModem GPRS (MTSMC-G)
SocketModem GPRS IP (MTSMC-G)
SocketModem CDMA (MTSMC-C)
SocketWireless Bluetooth (MTS2BTSMI) SocketModem EDGE (MTSC-E)
MT5600/5656SMI AT Commands Reference Guide (S000306x)
MT5634SMI AT Commands Reference Guide (S000263x) MT2456SMI-22 AT Commands Reference Guide (S000281x) MT2456SMI-IP Command Line Interface Guide and Application Examples (S000368x) MTXCSEM Command Line Interface Guide and Application Examples (S000278x) MT128SMI AT Commands Reference Guide and Application Examples (S000352x) GSM/GPRS AT Commands Reference Guide and Application Examples (S000293x) GSM/GPRS IP AT Commands Reference Guide and Application Examples (S000333x) CDMA AT Commands Reference Guide and Application Examples (S000294x) SocketWireless Commands Reference Guide (S000360x) SocketModem EDGE AT Commands Reference Guide and Application Examples (S000371x)
Bluetooth AT
Class 1 & 2 included in
S000306x
Class 1 & 2 included in
S000263x
Fax Not Supported Voice Not Supported
Fax Not Supported Voice Not Supported
Fax Not Supported Voice Not Supported
Fax Not Supported Voice Not Supported
Applicable Fax Commands included S000293x Fax Not Supported Voice Not Supported
Applicable Fax Commands included in S000294x Fax Not Supported Voice Not Supported
Applicable Fax Commands included in S000371x
Included in S000306x
Included in S000263x
Voice Not Supported
Voice Not Supported
Applicable Voice Commands included in S000371x
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 9
Chapter 1 – Universal Socket Connectivity
Universal Socket Configuration
Note: Pin 6 is RX- for the SocketEthernet IP. For ISDN, Pin 6 is RX+.
Pin 7 is RX+ for the SocketEthernet IP. For ISDN, Pin 7 is RX-.
Universal Pin Descriptions
Pin Signal
Name
1 Tip I/O
2 Ring I/O
3 Safety Void NA 4 TX+ O
5 TX- O
6 RX+ or
RX- (ISDN)
7 RX- or
RX+ (ISDN) 8 Safety Void NA 11 TCLK O 12 RCLK O 22 MIC+ I 23 MIC- O
In
Description
Out
Type
Tip Signal from Telco. Tip connection to the phone line (RJ-11 Pin 4). The
SocketModem is Tip/Ring polarity insensitive. Ring Signal from Telco. Ring connection to the phone line (RJ-11 Pin 3). The SocketModem is Tip/Ring polarity insensitive.
Safety Clearance. 2.5 mm is required between TNV circuits and SELV circuits. Transmit Outputs (TX+ and TX-). Differential transmit outputs for Ethernet and
ISDN. Transmit Outputs (TX+ and TX-). Differential transmit outputs for Ethernet and ISDN. Receive Inputs (RX+ and RX-). Differential receive input pins for Ethernet and
I
ISDN. Receive Inputs (RX+ and RX-). Differential receive input pins for Ethernet and
I
ISDN.
Safety Clearance. 2.5 mm is required between TNV circuits and SELV circuits. Transmit Data Sync Clock. TX synchronous data clock for ISDN sync data mode. Receive Data Sync Clock. RX synchronous data clock for ISDN sync data mode. Wireless GSM/GPRS, CDMA, EDGE. Wireless GSM/GPRS, CDMA, EDGE.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 10
Pin Signal
Name 24
–RESET I
26
GND GND
29
LED DCD O
30
LED RX O
31
LED DTR O
32
LED TX O
33
–RTS I
34
–RXD O
35
–TXD I
36
–RI or
PIO5
In/Out Description
Device Reset (with pull-up).
The active low –RESET input resets the device logic and returns the configuration of the device to the original factory default values or "stored values" in the NVRAM. –RESET is tied to VCC through a time-constant circuit for “Power-on-Reset” functionality. The module is ready to accept commands after a fixed amount of time (“X” Time) after power-on or reset.
Model Time Constant "X" Time Minimum Reset Pulse*
MT5600SMI 250 ms 6 seconds 100us MT5656SMI 250 ms 6 seconds 100us MT5634SMI 400 ms 6 seconds 100us MT2456SMI-22 250 ms 6 seconds 100us MT2456SMI-IP 250 ms 6 seconds 100us MTXCSEM 250 ms 6 seconds 100us MT128SMI 200 ms 6 seconds 100us MTS2BTSMI 250 ms 6 seconds 100us MTSMC-E 250 ms 6 seconds 100us
*The SocketModem device may respond to a shorter reset pulse.
Reset Line Interface for the MT5656SMI, MT2456SMI, MT2456SMI-IP
The modem’s reset line employs a .01uF cap and a 10K pull up resistor. Care must be taken to ensure the system the modem is place into is not affected by the added capacitance of the reset line. It is not advisable to use an open collector driver in the embedded system's reset circuitry to drive a reset signal to the embedded modem and other I.C.s in the customer’s design. Rather, if an open collector driver is to be used, run that output to the modem only and use a separate driver for other embedded components. The modem’s reset signal may also be driven by a circuit that both sinks and sources current if desired. It is also important to note that these modems do not require an external reset. They have their own internal reset circuitry and voltage monitor and will function correctly even if the reset input is open.
Reset Wireless GSM/GPRS and CDMA
This signal is used to force a reset procedure by providing low level during reset of at least 500us. The signal is considered an emergency reset only. A reset procedure is already driven by internal hardware during the power-up sequence. If no external reset is necessary, this input can be left open. If used (emergency reset), it has to be driven by an open collector or an open drain.
Logic Ground. DCD (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series.
SocketWireless Bluetooth (MTS2BTSMI): When lit, indicates a connection. No
series resistor.
RX (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series. SocketWireless Bluetooth (MTS2BTSMI): No series resistor.
DTR (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series. SocketWireless Bluetooth (MTS2BTSMI): No series resistor.
TX (Active High). Output from 74LCX14 with a 1000 Ohms resistor in series. SocketWireless Bluetooth (MTS2BTSMI): No series resistor. Request to Sent (Active Low). –RTS signal is used for hardware flow control. –RTS
input ON (low) indicates that the DTE is ready to send data to the modem. In the command state, the modem ignores –RTS.
Note: When the –RTS pin is not in use, it should be tied low. Received Data. The module uses the RXD line to send data to the DTE and to send
module responses to the DTE. In command mode, –RXD data presents the module responses to the DTE. Module responses take priority over incoming data when the two signals are in competition for –RXD. When no data is transmitted, the signal is held in mark condition. Transmitted Data. The DTE uses the –TXD line to send data to the module for transmission or to transmit commands to the module. The DTE holds this circuit in mark state when no data is being transmitted or during intervals between characters.
RING (Active Low). Incoming ring signal from phone.
O
Ring Indicate. –RI output ON (low) indicates the presence of an ON segment of a ring signal on the telephone line. The modem will not go off-hook when –RI is active; the modem waits for –RI to go inactive before going off-hook.
SocketWireless
Strobes 1/sec for slave indication.
Chapter 1 – Universal Socket Connectivity
Bluetooth (MTS2BTSMI): PIO5 – User definable I/O pin PIO5.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 11
Chapter 1 – Universal Socket Connectivity
Pin Signal
Name 37
–DSR or
PIO7
38
–CTS O
39
–DCD O
40
–DTR or
PIO6
41
GND GND
42
SPK- O
43
SPK+ O
56
–LED FDX O
57
–LED ACT O
58
–LEDLINK O
Pin 58 LED Mode Operating Status
Off SCME is off or run in SLEEP and Alarm modes.
600 ms ON / 600ms OFF No SIM card inserted or no PIN entered, or network search in progress, or ongoing
75 ms ON / 75 ms OFF / 75 ms ON
3 s OFF
Flashing
ON Depending on type of call:
59
–LEDCOL O
60
–LEDSPD O
61
VCC PWR
62
MICV I/O
63
AGND GND
64
SPKR O
In/Out Description
Data Set Ready (Active Low). –DSR indicates module status to the DTE. –DSR
O
OFF (high) indicates that the DTE is to disregard all signals appearing on the interchange circuits except Ring Indicator (–RI). It reflects the status of the local data set and does not indicate an actual link with any remote data equipment. SocketWireless Bluetooth (MTS2BTSMI): PIO7 – User definable I/O pin PIO7. Defaults as input. Clear to Send (Active Low). –CTS is controlled by the module to indicate whether or not the module is ready to transmit data. –CTS ON indicates to the DTE that signals on TXD will be transmitted. –CTS OFF indicates to the DTE that it should not transfer data on TXD. Data Carrier Detect (Active Low). –DCD output is ON (low) when a data connection is established and the module is ready to send/receive data.
Data Terminal Ready (Active Low). The –DTR input is turned ON (low) when the
I
DTE is ready to communicate. –DTR ON prepares the modem to be connected, and, once connected, maintains the connection. –DTR OFF places the modem in the disconnect state under control of the &Dn and &Qn commands.
Note: When the –DTR pin is not in use, it should be tied low. SocketWireless Bluetooth (MTS2BTSMI): PIO6 – User definable I/O pin PIO6.
Default: Input.
Logic Ground. Wireless GSM/GPRS, CDMA, and EDGE. Negative analog speaker output. Wireless GSM/GPRS, CDMA, and EDGE. Positive analog speaker output. LED Full Duplex (Active Low). LED Output. During normal operation, this pin lights
the FDX LED to indicate a full duplex mode. LED Active (Active Low). LED Output. During normal operation, this pin lights the Activity LED when transmitting or receiving. It flashes at a rate of 50ms high and 50ms low when active. LED LINK (Active Low). LED Output. During normal operation, this pin lights the LINK LED to indicate a good link is detected.
LED Collision (Active Low). LED Output. During normal operation, this pin lights the COL LED to indicate a collision. It flashes at 50ms high and 50ms low when active. LED Speed (Active Low). LED Output. During normal operation, this pin lights the SPEED LED to indicate 100Mbps is selected.
DC Input Power. 3.3 V or 5 V DC power, depending upon the build. Single-Ended Microphone. Single-ended microphone input for dial-up
SocketModem speakerphone and TAM functions. Analog Ground. Analog ground is tied common with DGND on the SocketModem. To minimize potential ground noise issues, connect audio circuit return to AGND.
Speaker. Dual purpose output for call progress signals or speakerphone functions.
Call Progress signaling on MT5600SMI, MT5656SMI, and MT2456SMI-22 is a
square wave output that can be optionally connected to a low-cost single-ended speaker; e.g., a sounducer or an analog speaker circuit.
Call progress on the MT5634SMI is an analog output.
Speakerphone Output on the MT5656SMI is under the control of +FCLASS. This is a single-ended analog output. SPKR is tied directly to the CODEC. One side of a differential AC output coupled through a 6.8K ohm resistor and capacitor.
user authentication, or network login in progress. One or more GPRS contexts activated.
Indicates GPRS data transfer: When a GPRS transfer is in progress, the LED goes on within 1 second after data packets were exchanged. Flash duration is approximately 0.5 s.
Voice Call: Connected to remote party. Data Call: Connected to remote party or exchange of parameters while setting up
or disconnecting a call.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 12
Chapter 1 – Universal Socket Connectivity
Design Considerations
Good engineering practices must be adhered to when designing a printed circuit board (PCB) containing the SocketModem module. Suppression of noise is essential to the proper operation and performance of the modem itself and for surrounding equipment.
Two aspects of noise in an OEM board design containing the SocketModem must be considered: on-board/off-board generated noise that can affect digital signal processing. Both on-board and off-board generated noise that is coupled on-board can affect interface signal levels and quality. Of particular concern is noise in frequency ranges affecting modem performance.
On-board generated electromagnetic interference (EMI) noise that can be radiated or conducted off-board is a separate, but equally important, concern. This type of noise can affect the operation of surrounding equipment. Most local government agencies have stringent certification requirements that must be met for use in specific environments.
Proper PC board layout (component placement, signal routing, trace thickness and geometry, etc.) component selection (composition, value, and tolerance), interface connections, and shielding are required for the board design to achieve desired modem performance and to attain EMI certification.
The aspects of proper engineering practices are beyond the scope of this designer guide. The designer should consult noise suppression techniques described in technical publications and journals, electronics and electrical engineering text books, and component supplier application notes.
PC Board Layout Guidelines
In a 4-layer design, provide adequate ground plane covering the entire board. In 4-layer designs, power and ground are typically on the inner layers. All power and ground traces should be 0.05 inches wide.
The recommended hole size for the SocketModem pins is 0.036 in. +/-0.003 in. in diameter. Spacers can be used to hold the SocketModem vertically in place during the wave solder process. A spacer should be placed on pin 32 and pin 64 of the SocketModem. A suggested part number for the spacer is BIVAR 938-0.130 for P1 (0.310in) option SocketModems. The spacers can be left on permanently and will not effect operation.
All creepages and clearances for the SocketModem have been designed to meet requirements of safety standards EN60950. The requirements are based on a working voltage of 250V. When the recommended DAA circuit interface is implemented in a third party design all creepage and clearance requirements must be strictly adhered to. The third party safety design must be evaluated by the appropriate national agency per the required specification.
User accessible areas: Based on where the third party design is to be marketed, sold, or used, it may be necessary to provide an insulating cover over all TNV exposed areas. Consult with the recognized safety agency to determine the requirements.
Note: Even if the recommended design considerations are followed, there are no guarantees that a particular
system will comply with all the necessary regulatory requirements. It is imperative that specific designs be completely evaluated by a qualified/recognized agency.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 13
Chapter 1 – Universal Socket Connectivity
Electromagnetic Interference (EMI) Considerations
The following guidelines are offered to specifically help minimize EMI generation. Some of these guidelines are the same as, or similar to, the general guidelines but are mentioned again to reinforce their importance. In order to minimize the contribution of the SocketModem-based design to EMI, the designer must understand the major sources of EMI and how to reduce them to acceptable levels.
1. Keep traces carrying high frequency signals as short as possible.
2. Provide a good ground plane or grid. In some cases, a multilayer board may be required with full layers for
ground and power distribution.
3. Decouple power from ground with decoupling capacitors as close to the SocketModem module power pins
as possible.
4. Eliminate ground loops, which are unexpected current return paths to the power source and ground.
5. Decouple the telephone line cables at the telephone line jacks. Typically, use a combination of series
inductors, common mode chokes, and shunt capacitors. Methods to decouple telephone lines are similar to decoupling power lines; however, telephone line decoupling may be more difficult and deserves additional attention. A commonly used design aid is to place footprints for these components and populate as necessary during performance/EMI testing and certification.
6. Decouple the power cord at the power cord interface with decoupling capacitors. Methods to decouple
power lines are similar to decoupling telephone lines.
7. Locate high frequency circuits in a separate area to minimize capacitive coupling to other circuits.
8. Locate cables and connectors so as to avoid coupling from high frequency circuits.
9. Lay out the highest frequency signal traces next to the ground grid.
10. If a multilayer board design is used, make no cuts in the ground or power planes and be sure the ground
plane covers all traces.
11. Minimize the number of through-hole connections on traces carrying high frequency signals.
12. Avoid right angle turns on high frequency traces. Forty-five degree corners are good; however, radius turns
are better.
13. On 2-layer boards with no ground grid, provide a shadow ground trace on the opposite side of the board to
traces carrying high frequency signals. This will be effective as a high frequency ground return if it is three times the width of the signal traces.
14. Distribute high frequency signals continuously on a single trace rather than several traces radiating from one
point.
Handling Precautions
All electronic devices should be handled with certain precautions to avoid damage due to the accumulation of static charge. Although input protection circuitry has been incorporated into the devices to minimize the effect of this static buildup, proper precautions should be taken to avoid exposure to electrostatic discharge during handling and mounting.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 14
Chapter 1 – Universal Socket Connectivity
Mechanical Dimensions in Inches
Note: This tooling hole is not on all models.
63
64
12345
626160
5958575655
67 89
10111213141516
5453525150
4948474645444342414039383736353433
202122
232425
26272829303132
171819
Dimensions Are Shown in Inches
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 15
Chapter 1 – Universal Socket Connectivity
Mechanical Dimensions in Millimeters
Dimensions Are Shown in Millimeters
Maximum Component Height
Product
SocketModem – MT5600SM .110 inches (2.80 mm) .110 inches (2.80 mm) SocketModem – MT5656SMI .212 inches (5.38 mm) .110 inches (2.80 mm)
SocketModem – MT5634SMI
SocketModem – MT2456SMI-22 SocketModem IP – MT2456SMI-IP .228 inches (5.79 mm) .114 inches (2.90 mm)
SocketEthernet IP – MTXCSEM .315 inches (8.00 mm) .075 inches (1.90 mm) SocketModem GPRS – MTSMC-G .153 inches (3.88 mm) .162 inches (4.11 mm) SocketModem CDMA – MTSMC-C .238 inches (6.04 mm) .162 inches (4.11 mm) SocketWireless Bluetooth – MTS2BTSMI .270 inches (6.86 mm) 0
SocketModem EDGE – MTSC-E .253 inches (6.42 mm) .118 inches (2.99 mm)
Measurement from top of board to highest topside component
.290 inches (7.36 mm)
.212 inches (5.38 mm)
.114 inches (2.90 mm) .110 inches (2.80 mm)
Measurement from bottom of board to lowest bottom-side component
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 16
SocketModem Developer Board
This developer board drawing shows the major board components for all SocketModems.
Chapter 1 – Universal Socket Connectivity
See the next page for description of Board Components
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 17
Board Components
Jumper Description JP1
JP2 & 4
JP3
JP6 & JP9
JP7 & JP13
JP8
JP10 & JP11
JP12
JP19
Switch 3
Switch Block
Mutes the speaker. Default positions are 1 and 2 (speaker is not muted).
Testing interface (debugging) for the RS-232 signals.
Changes the speed of the driver. For Multi-Tech use only. Default positions are 1 and 2 (transceiver operates normally).
JP6 & JP9 are the 5V / 3.3V regulators. The operating voltage factory default setting is 3.3V.
JP1 jumper must be set to 3.3V.
Warning – Be sure to that 5V / 3.3V jumper is set to match the requirements of your SocketModem. If this jumper is set incorrectly, damage to the SocketModem and/or the Test/Demo card could result.
Caution – Use only the provided Multi-Tech Systems, Inc. transformer with the Test/Demo board. Use of any other power source will void the warranty and will likely damage the Test/Demo board and the SocketModem. The transformer connector is keyed to prevent improper connection to the Test/Demo board.
Testing interface (debugging) for the serial TTL signals.
Enables/disables the Watchdog interface.
100 OHM terminator for ISDN. Default positions are 1 and 2 (off).
Ties the TX and RX clock lines together. Default positions are 1 and 2 (transmit and receiver clock act independently.
Allows a stereo jack feed. Default is ON. If ON, then left and right stereo channels are combined and form a mono channel.
Sets the alternate ISDN clock. Default position is OFF (the alternate ISDN clock is off).
Set the switch to the product being used.
Chapter 1 – Universal Socket Connectivity
Tables of Pins and Corresponding Signals
J4 and J7
10 PWR 8 CTS 6 DSR 4 DTR 2 RXD
9 RI 7 RTS 5 GND 3 TXD 1 DCD
J2 and J13
2 RXC 1 TXC
Table of Switch Blocks
Module Style Board Labels & Block Settings Board Labels & Block Settings
SocketModems (except ISDN) SocketEthernet IP
Standard ISDN “ALT ISDN
Alternate ISDN “ALT ISDN
“MODEM ETHERNET”
MT ISDN”
MT ISDN”
“MT ISDN / ETHERNET MODEM”
“MT ISDN / ETHERNET MODEM”
“ALT ISDN”
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 18
SocketModem Developer Board Block Diagram
Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 19
Developer Board Schematics
C45 470pF
GND
P6
SHUNT
VIN4,5
GND
JP6
1 2 3
HEADER-3
TXCLK3
SHUNT ON: 1&2=TDCLK
2&3=SYNC
RXCLK3
MBAUD3
R69 22K
16 V
C46 .1uF
GND
VCC
VCC
SHUNT
P12
GND
JP12
HEADER-3
U9
3
VRNG
4
FCB
9
EXTVCC
5
ITH
1
RUN/SS
6
SGND
2
PGOOD
7
ION
LTC1 778
R1 100K
R32 24.3K
R71 2.2M
1 2 3
VCC GND GND
INTVCC BOOST
PGND
VFB
U26
21
R10UT R1IN
20
R2OUT
18
R3OUT
24
T1IN
23
T2IN
22
T3IN
19
T4IN
17
T5IN
27
V+
4
V-
16
R1OUTB
15
MBAUD
26
VCC
2
GND
ICL3237E
SW
TG
BG
VIN
11 16
13 14 15 12 8
10
VIN
T1OUT T2OUT T3OUT T4OUT T5OUT
SHDN
R2IN R3IN
C1+
C2+
C43 10uF
+
CR1 MMBD301LT1
C44 .22uF 16 V
GND GND
R70 49.9K
R31 15.8K
1 2 3
GND
4
8 9
11
5 6 7 10 12
28 25
C1-
1 3
C2-
14 13
EN
10 V
U15
S2S3D3
G1S1D1
Si4840DY
GND
GND
VCC
GND
8
D4
7 6
D2
5
C49 100uF 6.3 V C48 100uF 6.3 V
C176 .01uF C177 .1uF 16 V
L1 15uH
CR2 40V/3A
U14 1 2 3 4
Si4840DY
VCC
S2S3D3
G1S1D1
GND
D4
D2
Chapter 1 – Universal Socket Connectivity
S1
R247 1
15
VCC
+
+
+
+
8 7 6 5
GND
1 2
2 4
GND
VR1 L D29300
1 3
VIN VOUT
GND
U22 TC1262
1
VIN VOUT
GND
D1 MB4S
3
SW-SPDT
P9
SHUNT
J7
3 2 1
ZDX-POWER- CON
1
4
L2
2 3
ZJYS-2
GND
VCC5
C175 1uF 16 V
GND
VCC
3
VDD3_3 C178 1uF 16 V
GND
JP9
1 2 3
HEADER-3
SLP3
TXD3
RXD3
RTS3
CTS3
DSR3
DTR3 DCD3
RI3
RING3,4
TIP3,4
VCC
GND
GND
JP4
12 34 56 78 910
HEADER-5x2
VCC
GND
JP2 1
2 HEADER-2
GND
R16 3 30
R245 0
R246 0
GND
J1
1
14
2
15
3
16
4
17
5
18
6
19
7
20
26
8
21
9 22 10 23 11
24
12 25
13
25-POS/D-SUB
27
CGND
CGND
CGND
CGND
CGND
CGND
R84 0
R85 0
R86 0
R87 0
GND
GND
GND
GND
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 20
Developer Board Schematics
DSRTTL5
CTSTTL5
5
RXDTTL
MBAUD2
4
4
2
SLP2
RITTL5
RTSTTL5
TXDTTL5
DTRTTL5
DTR2 TXD2 RTS2
RXD2 CTS2 DSR2 DCD2 RI2
RING2,4
TX+
TX-4 RX­RX+4
TXCLK2
RXCLK
S3-4
5
SW-4PDT
U12F
12
74LCX04
U3
8 9
R2IN
11
R3IN
5
T1OUT
6
T2OUT
7
T3OUT
10
T4OUT
12
T5OUT
28
C1+
25
C1-
1
C2+
3
C2-
14
SHDN
13
GND
EN
ICL3237E
S3-1
6
4
3
2
1
SW-4PDT
13
R10UTR1IN R2OUT R3OUT
T1IN T2IN T3IN T4IN T5IN
V+
R1OUTB
MBAUD
VCC GND
R194 47K
21 20 18
24 23 22 19 17
27 4
V-
16 15
26 2
GND
S3-3
8
SW-4PDT
DTRTTL TXDTTL RTSTTL
RXDTTL CTSTTL DSRTTL
RITTL
GND
7
9
GND
GND
GND
VCC
HEADER-3
R195 0
R196 0
S3-2
11
SW-4PDT
10
12
JP3
1 2 3
VCC
VCC5
GND
VCC
P3
SHUNT
R235 4.7K
C5 .01uF
GND
U25
1
RESET
2
GND
3
ADM6318
R7 0 R8 0 R9 0
SW3
6
4
3
1
SW-DPDT
VCC
WDIRESET
Chapter 1 – Universal Socket Connectivity
S5
1
3
VCC
5 4
VCC
VCC
GND
R236 0
JP7 1 2
3 4 5 6
7 8 9 10
HEADER-5x2
GND
4
C9 .01uF
U8
7S32
JP8
1 2
HEADER-2
VCC
5 1
2 3
GND
VCC
VCC
GND GND
CTSTTL DSRTTL RITTL
RXDTTL
J5
14 13 12 11
10
9 8 7 6 5 4 3 2 1
14-PIN-SOC
J4
1 2 3 4 5 6 7 8
DCIND
9
RXIND
10
DTRIND
11
TXIND
12
12-PIN-SOC
2 4 SW-SPST
RESET
GND
R46 150 R45 150
R44 150 R43 150
VCC
GND
LED9 RED LED8 RED LED7 RED LED6 RED
Place close to
+
the Module.
SPK_N 4 SPK_P 4
MIC_P 4 MIC_N 4
GND
JP13
2 1
HEADER-2
C24 .01uF
VCC
TIP RING
U5A
3
74VHC00
J3
1 2 3
4 5 6 7 8 9 10 11 12
5
2
14 1
2 7
GND
VCC
C6 10uF
GND
R57 10K
J6
1 2 3 4
SPD
5
COL
6
LINK
7
ACT
8
FDX
9
10
10-PIN-SOC
U5B
74VHC00
4
5
VCC
6
+
GND
16 V
VCC
GND
VCC
R42 200 R41 200
R40 200 R39 200 R38 200
LED5 RED LED3 RED LED2 RED LED1 RED
LED4 RED
GND
VCC
DCDTTL 5
SPKR 4,5TIP2,4
MIC 5
LINK 4 ACT 4
12-PIN-SOC
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 21
Chapter 1 – Universal Socket Connectivity
Developer Board Schematics
C26 10uF
16 V
VIN2,5
16 V
GND
3
1
R22 4.7K
C3 10uF
R56 1K
16 V
VCC
GND
GND
S4-4
6
5
4
SW-4PDT
14
1 2
7
3 4
U13A
74LCX04
U13B
74LCX04
P10
SPKR3,5
RING2,3
TIP2,3
VIN2,5
ACT
3
LINK
3
RX+3 RX-3 TX+3
TX-3
C27 .1uF
VCC
S4-1
2
SW-4PDT
C12 .01uF
SHUNT ON: 1&2=OPEN 2&3=100 OHM
MIC_N3 SPK_P3 SPK_N3
MIC_P3
SHUNT
RX TERM.
R23 10K
S4-3
8
SW-4PDT
JP10
1 2
3
HEADER-3
R58 4.7K
2
R73 47K
R75 47K
7
9
11
SW-4PDT
R237 100
GND
R72 2.7K
Q19 2N3904
GND
R74 2.7K
Q21 2N3904
GND
E_RX-
E_RX+ E_TX-
E_TX+
S4-2
10
12
U4 LM386
3
2
5
GND
C42 .001uF
GND
GND
I_TX+ I_RX+ I_RX­I_TX-
R238 100
C28 100uF
+
2KV
R55 0
HEADER-3
TX TERM.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 22
P1
JP1
1 2
SHUNT
16 V
3
HEADER-3
Safety Isolation Barrier
FB23 600-OHM FB24 600-OHM
R14 75
R13 75
P11
JP11
1 2 3
SHUNT
GND
R10 0
SHUNT ON: 1&2=OPEN
2&3=100 OHM
R240 9.09 R241 9.09
GND
C57 15pF
C56 15pF C55 15pF C54 15pF
R6 0
R3 0 R2 0
1 2
SPEAKER
R239 0
F1 145mA
F2 145mA
GND
GND
DS1
VCC
C52 220pF
CGND
C53 220pF
CGND
CR3
1
2
3
DALC208SC6
GND
6
5
4
GND
5KV
5KV
GND
BLM18AG102SN1
FB26 FB27
FB28
FB29
J2
5 4
6X4-MODJACK
3 2
J10 8 7 6 5
4 3 2 1
8X8-MODJACK-2LEDS
C192 .01uF
C193 .01uF
C194 .01uF
C195 .01uF
9 10 11 12 13 14
CGND
CGND CGND
J21 1 2 3 4 5 6
7 8
8X8-MODJACK
CGND CGND
HANDSET
J22 1
2 3 4
4X4-MODJACK
Developer Board Schematics
MIC
3,4
3
SPKR
GND
R210 0
C180 .01uF
R209 47K
VCC
R211 10K
R207 47K
GND
C190 .1uF 16 V
GND
C13 .01uF
GND
VCC
U17A
V+
3
+
2
­V-
TL082
GND
R212 47K
C183 .001uF
C184 .47uF
R213 10K
R214 2.7K C187 4.7pF
U23
4
IN-
3
IN+
2
BYPASS
1
SHUTDOWN
LM4861
C14 .01uF
GND
VCC
25 V
VO1 VDD
GND
VO2
1
VCC
5 6
VCC
7
GND
8
C181 1uF
R215 0
R216 0
R205 10K
VCC
R208 301K
C179 10uF
C185 .01uF
C191 .01uF
+
16V
GND
GND
GND
Chapter 1 – Universal Socket Connectivity
FB25
MLB20
C182 .001uF
100 V
GND
C186 .001uF
100 V
GND
5-PIN-STEREO-JACK
P19
J19
SHUNT
5-PIN-STEREO-JACK
HEADER-2
J18
4 3 5 2 1
J20
4 3 5 2 1
VIN
2,4
3
3
3
3
DTRTTL
RTSTTL
CTSTTL
DSRTTL
VCC
VCC
GND
C1 .01uF
14
U12A
1 2
7
74LCX04
U12B
3 4
74LCX04
U12C
5 6
74LCX04
U12D
74LCX04
GND
R76 47K
R78 47K
R80 47K
R82 47K
89
R4 2.7K
Q12 2N3904
LED10 RED
GND
R17 2.7K LED11 RED
Q13 2N3904
GND
R5 2.7K LED12 RED
Q14 2N3904
GND
R18 2.7K
Q15 2N3904
LED13 RED
GND
LED14 RED R19 2.7K
LED15 RED
LED16 RED R60 2.7K
LED17 RED
R20 2.7K
R59 2.7K
Q16
2N3904
Q20
2N3904
Q18
2N3904
Q17
2N3904
GND
GND
GND
R83 47K
GND
R77 47K
R79 47K
R81 47K
U12E
10
74LCX04
U13E
10
74LCX04
U13D 8 9
74LCX04
U13C
6
74LCX04
11
11
DCDTTL 3
RITTL 3
TXDTTL 3
5
RXDTTL 3
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 23
Chapter 1 – Universal Socket Connectivity
Telecom Approvals for Analog Dial-up
Multi-Tech's Analog Dial-up Global* SocketModems are designed and approved for connection to the public switched telephone network in more than 50 countries or regions worldwide. Multi-Tech's SocketModems have been approved as host independent, which means our certification efforts can be transferred directly to your end product. Multi-Tech supports our approvals by supplying our customers with supporting documentation and offering a compliance label with country or region approval logos and approval numbers to be attached to an end product.
The following is a list of countries or regions that Multi-Tech completes testing and obtains** certification test reports or certificates at or near the initial release of the product. After the initial release, the product may be tested and certified for other countries or regions. Check the Multi-Tech Systems, Inc. Web site at
http://www.multitech.com/products/info/approvals/smi.asp or contact Multi-Tech at oemsales@multitech.com to obtain a current list of approvals for the SocketModem.
Countries or Regions
Argentina France Latvia Russia
Australia Germany Liechtenstein Singapore
Austria Greece Lithuania Slovakia Republic
Belgium Hong Kong, S.A.R. of China Luxembourg Slovenia
Brazil Hungary Malaysia South Africa
Canada Iceland Malta Spain
Chile India Mexico Sweden
China Indonesia Netherlands Switzerland
Cyprus Ireland New Zealand Taiwan
Czech Republic Israel Norway Thailand
Denmark Italy Philippines Turkey
Estonia Japan Poland United Kingdom
Finland Korea Portugal United States
The above list is our target set of countries or regions in which the global* SocketModems are approved. Many of the approvals are completed at the time the product is released to market; whereas, others may take additional months to complete the approval.
* Refer to each chapter for Product Ordering Information identifying the modem as Global or Regional.
** Some countries or regions have special import requirements that require us to facilitate additional paperwork
application in partner with our customers. Contact Technical Support or Multi-Tech at
oemsales@multitech.com for more information.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 24
Chapter 1 – Universal Socket Connectivity
Labeling Requirements
Note to OEMs: The following labeling requirements and regulatory compliance statements may be used in the documentation for your final product applications.
United States Labeling Requirements (for Dial-Up Modems)
Telecom does not apply to all products. For example, this not applicable for the Wireless GSM/GPRS and CDMA products.
Approved terminal equipment and approved protective circuitry shall prominently display the following information using the format shown below:
• Responsible party
• Product Identification
• Equipment Code
• Ringer Equivalence
• Ringer Type
• Indication that the product meets the requirements of FCC Part 68
The information required by the first five items shall correspond to the records in the ACTA (America's Carriers Telecommunications Association) database of approved equipment. The required information shall be encoded in the following format:
US: AAAEQ##TXXX
Where:
US: Is a fixed field that indicates the equipment meets all requirements of 47 CFR Part 68, including the requirements published by ACTA (America's Carriers Telecommunications Association).
AAA is the responsible party’s Grantee Code obtained previously from the FCC’s Common Carrier Bureau or currently from ACTA.
EQ Is an Equipment Code indicating to the Service Provider any special signal handling or billing requirements. The Equipment codes are listed in Annex A (normative).
## is the Ringer Equivalence Number without a decimal point (e.g. REN of 1.0 = 10, REN of 0.3 = 03). In the case of a “Z” ringer, ZZ shall appear. In the case of approved equipment without a network interface and equipment not connecting to circuits with analog ringing supplied then “NA” shall appear.
T is the ringer type letter associated with the Ringer Equivalence Number, in accordance with the technical requirements. In the case of approved equipment without a network interface and equipment not connecting to circuits with analog ringing supplied, the letter “N” shall appear.
XXX Is a product identifier, unique when combined with the responsible party’s Grantee Code, of at least one and up to nine alphanumeric characters (including one or more dashes (-) if desired. A dash shall not appear as the first or last character nor shall the identifier consist entirely of dashes). The responsible party shall define this identifier.
Label Physical Characteristics
The information required above shall be permanently affixed and legible without magnification. It may be etched, engraved, stamped, indelibly printed, or otherwise permanently marked. Alternatively, the required information may be permanently marked on a nameplate of metal, plastic or other material fastened to the enclosure by welding, riveting or with a permanent adhesive. Such a nameplate shall be able to last for the expected lifetime of the equipment and shall not be readily detachable.
Labeling Continuity and Changes
The labeling content and format requirements in effect when a product was approved shall be effective for the life of the product. The labeling content and format requirements in effect at approval shall also continue to be effective for modified products. However, the responsible party shall have the option of conforming a product's labeling to current content and format requirements at any time.
Other Label Requirements
The label shall be placed in one of the following locations in a location where it can be found after installation:
• on an outside surface
• inside a readily available access door or panel
• on another readily accessible surface
For example, the label should not be placed on the rear of a permanently wall-mounted device in a manner such that it is not readily accessible.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 25
Chapter 1 – Universal Socket Connectivity
Canadian Labeling Requirements (for Dial-Up Modems)
The following requirements are established under section 69.3 of the Telecommunications Act for purposes of section 5 of the Telecommunications Apparatus Regulations.
Registered equipment shall bear the following identifying marks, and the Declaring Party shall ensure that these marks are permanently affixed to the equipment:
(a) The registration number — Specifications of this mark are given in the document: Self-Marking of the
Certification/Registration Number on Terminal Equipment — Application Procedure and Agreement; and
(b) The model identification number under which the product was registered.
A statement of compliance with Industry Canada requirements, such as the one given below, shall accompany each unit of equipment whether registered under this procedure or previously certified:
"This product meets the applicable Industry Canada technical specifications"
For terminal equipment intended for connection to loop-start or ground-start interfaces, the Ringer Equivalence Number (REN) must be calculated as per Section 1.8 of CS-03, Part I. A REN higher than that determined may be assigned by manufacturers to allow for production variations. The REN must be marked on the terminal equipment itself or added to the note below. A note similar to the following shall accompany each unit of equipment whether registered under this procedure or previously certified:
"The Ringer Equivalence Number is an indication of the maximum number of devices allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the devices does not exceed five".
Pursuant to section 69.3 of the Telecommunications Act, certified or self-declared TE will bear a valid identifying certification number or registration number. The marking of the certification or registration number on the product shall be as follows:
(a) TAC holder/DP will be responsible for permanently affixing the certification/registration number on the
TE. The certification/registration number (see example below) identifies Certified or self-declared TE to the public, representatives of the telecommunications common carriers, the Department, and other interested parties. The letter height must be no less than 1.5 mm and the letters must be legible without magnification.
(b) For integrated devices, e.g. a modem or one that is intended to become a sub-assembly of host
equipment e.g. a data terminal, computer etc. that are designed to interface directly with the network, the certification/registration number shall be affixed to the integrated device itself.
(c) The certification/registration number for a packaged TE will denote that the total package has been
registered. However, the marking will normally be placed on that unit of the package which connects to the network; e.g., in a PBX the marking will be placed on the common equipment which connects to the network, rather than on plug-in components which may be added later. The Terminal Equipment List will show the common equipment but not the standard station apparatus or any proprietary station apparatus.
(d) The marking format of the certification/registration number is as follows:
IC: XXXXXX-YYYYYYYY
Where:
• The letters "IC" have no other meaning or purpose than to identify the Industry Canada
certification/registration number, and
• “XXXXXX-YYYYYYYY” is the certification/registration number; “XXXXXX” is the Company Number¹
(CN); it consists of up to six alphanumeric characters (A-Z, 0-9) assigned by Industry Canada; and “YYYYYYYY” is the Unique Product Number (UPN); it consists of up to eight alphanumeric characters (A-Z, 0-9) assigned by the applicant. Other characters, (such as & # *-) may not be used. Alphabetic characters must be capitalized.
¹ Note: The Company Number of registered equipment ends with an alphabetic character.
(e) Certification Numbers granted prior to the implementation of the above marking format are
grandfathered.
(i) For previously certified TE, the self-marking format shall consist of the old certification number
preceded by “IC:” For example, if the certification number is “123 1234 A”, then the self-mark would read “IC: 123 1234 A”.
(ii) For a new model that is registered to a family of previously certified TE, the self-marking format
shall be: IC: XXXXXX-ZZZZZZZZ
Where:
• “XXXXXX” is the Company Number, as in (d) above; and
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 26
• “ZZZZZZZZ” is either the old certification number minus the old company number, or a new
Unique Product Number assigned by the applicant. For example, if a new model is registered to the family of products with certification number “123 1234 A”, and that the Company Number for the registration is “123A”, then the self-mark for this new model would read “IC: 123A-1234 A”. If the applicant decides to replace “1234 A” with a new UPN, say “5678", then the self-mark would read “IC: 123A-5678".
Label Examples (for Dial-Up SocketModems)
Note: These do not apply to the Wireless GSM/GPRS and CDMA products.
Chapter 1 – Universal Socket Connectivity
This label shows the modem model (M/N), build option (B/O), date of manufacture (DOM), serial number, and North America and European Union regulatory information.
This is a Telecom compliance label.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 27
Chapter 1 – Universal Socket Connectivity
Regulatory Compliance Statements
EMC, Safety, and R&TTE Directive Compliance
The CE mark is affixed to this product to confirm compliance with the following European Community Directives:
Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of Member States relating to electromagnetic compatibility; and Council Directive 73/23/EEC of 19 February 1973 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits; and Council Directive 1999/5/EC of 9 March on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.
International Modem Restrictions
Some dialing and answering defaults and restrictions may vary for international modems. Changing settings may cause a modem to become non-compliant with national telecom requirements in specific countries. Also note that some software packages may have features or lack restrictions that may cause the modem to become non-compliant.
EMC Requirements for the United States
FCC Part 15 Regulation
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Plug the equipment into an outlet on a circuit that is different from the one used by the receiver.
Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. Operation of this device is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation.
WARNING – Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
EMC Requirements for Industry Canada
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Reglement Canadien sur le matériel brouilleur.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 28
Chapter 1 – Universal Socket Connectivity
New Zealand Telecom Warning Notice
1. The grant of a Telepermit for any item of terminal equipment indicates only that Telecom has
accepted that the item complies with minimum conditions for connection to its network. It indicates
no endorsement of the product by Telecom, nor does it provide any sort of warranty. Above all, it
provides no assurance that any item will work correctly in all respects with another item of
Telepermitted equipment of a different make or model, nor does it imply that any product is
compatible with all of Telecom’s network services. This equipment is not capable under all operating conditions of correct operating conditions of
correct operation at the higher speed which it is designated. 33.6 kbps and 56 kbps connections
are likely to be restricted to lower bit rates when connected to some PSTN implementations.
Telecom will accept no responsibility should difficulties arise in such circumstances.
2. Immediately disconnect this equipment should it become physically damaged, and arrange for its
disposal or repair.
3. This modem shall not be used in any manner which could constitute a nuisance to other Telecom
customers.
4. This device is equipped with pulse dialing, while the Telecom standard is DTMF tone dialing. There
is no guarantee that Telecom lines will always continue to support pulse dialing. Use of pulse dialing, when this equipment is connected to the same line as other equipment, may
give rise to 'bell tinkle' or noise and may also cause a false answer condition. Should such
problems occur, the user should NOT contact the Telecom Faults Service. The preferred method of dialing is to use DTMF tones, as this is faster than pulse (decadic) dialing
and is readily available on almost all New Zealand telephone exchanges.
5. Warning Notice: No '111' or other calls can be made from this device during a mains power failure.
6. This equipment may not provide for the effective hand-over of a call to another device connected to
the same line.
7. Some parameters required for compliance with Telecom’s Telepermit requirements are dependent
on the equipment (PC) associated with this device. The associated equipment shall be set to
operate within the following limits for compliance with Telecom’s Specifications: For repeat calls to the same number:
• There shall be no more than 10 call attempts to the same number within any 30 minute
period for any single manual call initiation, and
• The equipment shall go on-hook for a period of not less than 30 seconds between the end
of one attempt and the beginning of the next attempt.
For automatic calls to different numbers:
• The equipment shall be set to ensure that automatic calls to different numbers are spaced
such that there is no less than 5 seconds between the end of one call attempt and the beginning of another.
8. For correct operation, total of the RN’s of all devices connected to a single line at any time should
not exceed 5.
South African Statement
This modem must be used in conjunction with an approved surge protection device.
Other
The above country-specific examples do not cover all countries with specific regulations; they are included to show you how each country may differ. If you have trouble determining your own country's requirements, check with Multi-Tech's Technical Support for assistance.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 29
Chapter 1 – Universal Socket Connectivity
Restriction of the Use of Harzardous Substances (RoHS)
Certificate of Compliance
2002/95/EC
Multi-Tech Systems Inc. confirms that MTxxxxSMI now complies with the chemical concentration limitations set forth in the directive 2002/95/EC of the European Parliament (Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS)
MTxxxxSMI does not contain the following banned chemicals:
Lead, [Pb] > 1000 PPM
Mercury, [Hg] > 1000 PPM
Hexavalent Chromium, [Cr+6] > 1000 PPM Cadmium, [Cd] > 100 PPM
Polybrominated Biphenyl, [PBB] > 1000 PPM
Polybrominated Diphenyl Ether, [PBDE] > 1000 PPM
Moisture Sensitivity Level (MSL) =1
Tin Whisker Growth = None detected
Maximum Soldering temperature = 260C (wave only)
Notes:
1. Lead usage in some components is exempted by the following RoHS annex; therefore, higher lead
concentration would be found in some modules (>1000ppm).
• Lead in high melting temperature type solders (i.e., tin-lead solder alloys containing more than 85%
lead).
• Lead in electronic ceramic parts (e.g., piezoelectronic devices).
2. Moisture Sensitivity Level (MSL) – Analysis is based on the components/material used on the board.
3. Tin Whisker Study was done per NEMI guidelines (Elevated temperature cycle of 60°C and non-condensing
relative humidity of 87% exposed to this environment for 1000 hours).
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 30
Chapter 1 – Universal Socket Connectivity
Waste Electrical and Electronic Equipment Statement
WEEE Directive
The WEEE directive places an obligation on EU-based manufacturers, distributors, retailers, and importers to take-back electronics products at the end of their useful life. A sister Directive, ROHS (Restriction of Hazardous Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all Multi-Tech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.
Instructions for Disposal of WEEE by Users in the European Union
The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the product.
July, 2005
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 31
Chapter 1 – Universal Socket Connectivity
Flash Upgrade
Your modem is controlled by semi-permanent firmware, which is stored in flash memory. Multi-Tech's firmware is nonvolatile; that is, it remains stored in memory when the modem is turned off and can be upgraded as new features are added.
Multi-Tech's Flash Wizard can be downloaded from Multi-Tech’s FTP site and is available on CD. Use this Flash Wizard for upgrading your firmware. Documentation for using the Flash Wizard is included with the wizard.
The following table shows you which products support the Flash Wizard.
SocketModem MT5600SMI No Flash Upgrade
SocketModem MT5656SMI No Flash Upgrade
SocketModem MT5634SMI-xx
SocketModem MT2456SMI-22 No Flash Upgrade
SocketModem MT2456SMI-IP XMODEM serial port upgrade or TFTP Ethernet
SocketEthernet IP MTXCSEM XMODEM serial port upgrade or TFTP Ethernet
SocketModem ISDN MT128SMI
SocketModem GPS/GPRS/CDMA MTSMC No Flash Upgrade
SocketWireless Bluetooth No Flash Upgrade
Flash Wizard Software for Windows: ftp://ftp.multitech.com/Utilities/FlashWizard/
Flash Wizard Software for Linux: http://mtflashwiz.sourceforge.net/
Important Note: Do not use the Flash Wizard for the wireless modems. Contact Multi-Tech for wireless modem
firmware upgrade directions.
Flash Wizard Software for Windows Flash Wizard Software for Linux Multi-Tech Flash Wizard Protocol
upgrade. See the next page for information about the XMODEM upgrade.
upgrade. See the next page for information about the XMODEM upgrade.
Flash Wizard Software for Windows Flash Wizard Software for Linux Multi-Tech Flash Wizard Protocol
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 32
Chapter 1 – Universal Socket Connectivity
XMODEM Serial Port Upgrade or TFTP Ethernet Upgrade
The SocketEthernet IP Module, for example, contains a 2 MB flash wherein the boot image, the firmware and configuration files are stored in a compressed format. The flash can easily be upgraded both locally as well as remotely.
Serial Port Upgrade
The flash of the SocketEthernet IP can be upgraded locally through serial port using the upload feature of serial applications.
Serial Port Configuration
The default serial port parameters should be:
Data length – 8 bits
Parity – None
Stop bits – 1
Baud-rate of the serial port to which the SocketEthernet IP Module is connected should be set to
115200 bps for proper operation.
Example of a Serial Flash Upgrade
Following steps explain the procedure to upgrade a flash using the serial COM port (serial flash upgrade).
Connect the SocketEthernet IP Module to a PC COM Port.
• Open an application through which we can access the serial device (e.g., Meterm, zoc,
hyperterm).
• Reboot the SocketEthernet IP Module.
• Wait for the boot message and prompt “press d to download” to appear.
• Press d when prompted.
• Select the XMODEM Protocol from the Terminal application.
• Choose a file (MTXCSEM-TFTP-…) file to be uploaded.
• Perform a file upload.
The SocketEthernet IP Module reboots and will be up after a few seconds (10-15 seconds).
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 33
Chapter 1 – Universal Socket Connectivity
TFTP Ethernet Upgrade
The flash can be upgraded remotely through the Ethernet using TFTP.
The SocketEthernet IP Module flash contains two main files, which are required for an upgrade.
1. Binary File
The binary file contains the firmware of the Module. The name of this binary file would be in the following format.
MTXCSEM-TFTP-v<version>w-<date in ddMmmyyyy format>
2. Gun-zipped http.tar.gz File This contains the HTML pages of the serial device and other files related to it, such as http- host-param (http page configuration file). The name of this tar file would always be http.tar.gz
Enabling TFTP Server
Enable TFTP server on SocketEthernet IP Module by issuing the following command:
# set ip tftp enable
OK
Example of an Ethernet Flash Upgrade
The IP module can be remotely upgraded over a network. Make sure a TFTP client is already installed on the machine. The following steps explain the method to perform flash upgrade from Ethernet.
• Make sure the SocketEthernet IP Module is reachable on the LAN.
• Perform a TFTP to the SocketEthernet IP Module from a TFTP client.
– Set binary mode ON. Note: This step is very important. – Binary
• Put the binary file.
– put <binary filename>
• Exit the TFTP session.
– Quit
The SocketEthernet IP Module reboots after it has been successfully upgraded.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 34
Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Flash Programming Protocol
This information is provided exclusively for the users of Multi-Tech Systems, Inc. SocketModems, specifically the MT5634SMI and the MT128SMI. Multi-Tech Systems, Inc. SocketModem owners have the right to use, modify, and incorporate this code into other products provided they include the Multi-Tech Systems, Inc. notice and the associated copyright notice with any such product.
Copyright (C) Multi-Tech Systems, Inc. 1995
All Right Reserved
The flash programming protocol is provided "AS IS” without warranty.
Important: When interacting with the boot code, it is possible to make the modem inoperable.
Use extreme caution.
Programming the Modem
There are two ways to start flash programming a modem. It can be programmed
1. From “AT” mode
2. When the modem powers up.
The following table shows how a modem is programmed.
DTE Modem Comments
AT*FS\r This effectively “restarts” the modem so that it enters the boot code. Handshake Sequence
M’s Many M’s are sent (10 milliseconds apart) at 19200 baud.
This is where the handshake starts if the modem is just powered up.
U U is sent at 19200 baud if M’s are received within 100 milliseconds of
power up. If the M’s are not received within 100 milliseconds, then the modem starts up normally. If the AT*FS command is used, then
you have 1 second (1000mS) to perform the handshake. D Sent at 19200 baud. M M if can receive at 9600/19200/38400/57600/115200 I|J|K|L|M I if modem will be programmed at 9600
J if modem will be programmed at 19200
K if modem will be programmed at 38400
L if modem will be programmed at 57600
M if modem will be programmed at 115200 \r\nOK\r\n Modem is ready to be programmed
Program Sequence: DTE Modem Comments
ATFLP\r Request to the modem to program G Modem is ready for next program packet [Length High] High byte of data packet length [Length Low] Low byte of data packet length
Packet lengths can be up to 4096 bytes in size for most boot code
versions [Address High] High byte of program address [Address Middle] Middle byte of program address [Address Low] Low byte of program address
Addresses are 3 byte values with a range of 00000h-FFFFFh [Data Bytes] These are the data bytes to be programmed at the address specified
above. They must be the same number of bytes as specified above. [Checksum] This checksum is generated by exclusive ORing together all of the
Data Bytes (do not include the Length or Address bytes in that
calculation). \nOK\r\n
\nERROR\r\n
…. ATFLEND\r This ends programming and restarts the modem.
….
If bytes are programmed and verified.
If verify fails or checksum is bad.
Retry the block 3 times on an ERROR.
More of the above sequence until all the data bytes have been sent
to the modem.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 35
Other Supported Boot Code Commands
2.1 ATI0 - returns 000 or 247 for ISDN
2.2 ATI1 - returns boot code version number MM.mmn where MM = unique code for each different platform that has boot code mm = version number of boot code n = version letter of the boot code Examples: 2.05e, 2.12d, 35.15
ATI4- Boot code date and time.
Other Programming Concerns
1. The values programmed into Addresses 0000h, 0001h and 0002h should always be forced to C3h 00 01 (i.e., JP 100h).
This is because the boot code starts at address 100h, while all normal modem code starts at 200h. By
allowing 0000h to be programmed to a jump value other than 0100h, the boot code would be bypassed and no further upgrades could occur.
2. Addresses 0100h-01FFh through 70000h-7FFFFh should not be allowed to be programmed under normal circumstances, as this is the main body of the boot up code.
3. The packets sent to the modem must be presorted by address and aligned on 128 byte boundaries (i.e., each packet must start on an address that is a multiple of 128).
4. The packets should also be a minimum of 128 bytes with the non-programmed bytes set to the hex value of FF.
5. The packets sent to the modem must not span a 4K boundary (i.e., start the packet before it and go over the boundary in the middle of the packet).
6. The 10-millisecond delay between M’s at the beginning of the handshake is so that the modem can sync up to the start bit. If the M’s are sent one right after another, a data bit might be mistaken as a start bit.
7. Multi-Tech firmware files are in Intel Hex Format and must be read in and formatted into 128-4096 byte blocks before being sent to the modem.
Chapter 1 – Universal Socket Connectivity
Information about the Intel Hex Format
An Intel Format Hex File is a text file consisting of “records”, one per line, that start with a “:” character and include only digits 0-9 and letters A-F. There are three different record types: Extended Address Records, Data Records, and End of File Records.
Data records contain the actual data that is to be programmed into a device. The address contained in the data record needs to be combined with an extended address (by adding the extended address shifted four bits left to the data record address) to determine the actual programming address for the data. If no extended address record is before a given data record in the file, then the extended address value is assumed to be zero.
Data Record
Char Pos Field Type Value Description
1 Record Start “:” 2-3 Data Byte Count “NN”
4-7 Address “XXXX” Lower 16 bits of 20 bit address, most significant byte
8-9 Record Type “00” Data Record 10+N Data Bytes “YY..YY” The data bytes in hex. Each byte is two characters. NN+1,2 Checksum “ZZ” Zero minus the two’s complement addition of all data
NN+3,4 End of Line “\r\n” Carriage Return followed by a Line Feed Example Data Record in Intel Format :2000A0005BB66DDBB66CD8B060C183060D1B366DDBB66DDBB76FDFBF7EFDFBF6EDDBB66DD4
Maximum value is FF (which is 255 data bytes). Typical is 20h which causes the hex record to fit in 80 columns.
first. This must be added to Extended Address left shifted four bits.
hex values.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 36
Extended Address Record
Char Pos Field Type Value Description
1 Record Start “:” 2-3 Data Byte Count “02” Always 2 bytes for this record type 4-7 Address “0000” Not used for this record type (must be zero) 8-9 Record Type “02” Extended Address Record 10-13 Extended Address “EEEE” Top 16 bits of 20 bit address, most significant byte first 14-15 Checksum “ZZ” Zero minus the two’s complement addition of all data hex values 16-17 End of Line “\r\n” Carriage Return followed by a Line Feed Example Extended Address Record in Intel Format :020000021000EC
End of File Record
Char Pos Field Type Value Description
1 Record Start “:” 2-3 Data Byte Count “00” Always 2 bytes for this record type 4-7 Address “0000” Transfer Address (usually be zero) 8-9 Record Type “01” End of File Record 10-11 Checksum “ZZ” Zero minus the two’s complement addition of all data hex values 12-13 End of Line “\r\n” Carriage Return followed by a Line Feed Example End of File in Intel Format :00000001FF
Chapter 1 – Universal Socket Connectivity
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 37
Chapter 1 – Universal Socket Connectivity
Wireless Account Activation
Multi-Tech – A Certified National Activation Agent
Multi-Tech Systems, Inc. is a certified national Cingular and Sprint activation agent for Cingular and Sprint wireless. To obtain information about available data plans and to purchase and activate a wireless data account, contact Multi­Tech at:
888-288-5470
Pre-Configured Multi-Tech Products
Each Multi-Tech CDMA wireless product has been pre-configured to operate on specific CDMA wireless networks.
Please see the individual Cingular, Sprint, and Verizon Activation Notices included in the Developer Kit.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 38
Chapter 1 – Universal Socket Connectivity
Multi-Tech Warranty Statement
Multi-Tech Systems, Inc., (hereafter “MTS”) warrants that its products will be free from defects in material or workmanship for a period of two, five, or ten years (depending on model) from date of purchase, or if proof of purchase is not provided, two, five, or ten years (depending on model) from date of shipment.
MTS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED.
This warranty does not apply to any products which have been damaged by lightning storms, water, or power surges or which have been neglected, altered, abused, used for a purpose other than the one for which they were manufactured, repaired by Customer or any party without MTS’s written authorization, or used in any manner inconsistent with MTS’s instructions.
MTS’s entire obligation under this warranty shall be limited (at MTS’s option) to repair or replacement of any products which prove to be defective within the warranty period or, at MTS’s option, issuance of a refund of the purchase price. Defective products must be returned by Customer to MTS’s factory — transportation prepaid.
MTS WILL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES, AND UNDER NO CIRCUMSTANCES WILL ITS LIABILITY EXCEED THE PRICE FOR DEFECTIVE PRODUCTS.
Repair Procedures for U.S. and Canadian Customers
In the event that service is required, products may be shipped, freight prepaid, to our Mounds View, Minnesota factory:
Multi-Tech Systems, Inc. 2205 Woodale Drive Mounds View, MN 55112 Attn: Repairs, Serial # ____________
A Returned Materials Authorization (RMA) is not required. Return shipping charges (surface) will be paid by MTS to destinations in U.S. and Canada.
Please include, inside the shipping box, a description of the problem, a return shipping address (must have street address, not P.O. Box), your telephone number, and if the product is out of warranty, a check or purchase order for repair charges.
For out-of-warranty repair charges, go to COMPANY/Policies/warranty/
Extended two-year overnight replacement service agreements are available for selected products. Please call MTS customer service at (888) 288-5470 or visit our web site at
http://www.multitech.com/PARTNERS/Programs/overnight_replacement/
Please direct your questions regarding technical matters, product configuration, verification that the product is defective, etc., to our Technical Support department at (800) 972-2439 or email support@multitech.com direct your questions regarding repair expediting, receiving, shipping, billing, etc., to our Repair Accounting department at (800) 328-9717 or (763) 717-5631, or email mtsrepair@multitech.com
Repairs for damages caused by lightning storms, water, power surges, incorrect installation, physical abuse, or user­caused damages are billed on a time-plus-materials basis.
for details on rates and coverage’s.
. Please
.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 39
Chapter 1 – Universal Socket Connectivity
Repair Procedures for International Customers (Outside U.S.A. and Canada)
Your original point of purchase Reseller may offer the quickest and most economical repair option for your Multi-Tech product. You may also contact any Multi-Tech sales office for information about the nearest distributor or other repair service for your Multi-Tech product. The Multi-Tech sales office directory is available at
http://www.multitech.com/COMPANY/contact_us/
In the event that factory service is required, products may be shipped, freight prepaid to our Mounds View, Minnesota factory. Recommended international shipment methods are via Federal Express, UPS or DHL courier services, or by airmail parcel post; shipments made by any other method will be refused. Please include, inside the shipping box, a description of the problem, a return shipping address (must have street address, not P.O. Box), your telephone number, and if the product is out of warranty, a check in U.S. dollars drawn on a U.S. bank or your company’s purchase order for repair charges. Repaired units shall be shipped freight collect, unless other arrangements are made in advance.
Please direct your questions regarding technical matters, product configuration, verification that the product is defective, etc., to our Technical Support department nearest you or email support@multitech.com. When calling the U.S., please direct your questions regarding repair expediting, receiving, shipping, billing, etc., to our Repair Accounting department at +(763) 717-5631 in the U.S.A., or email mtsrepair@multitech.com.
Repairs for damages caused by lightning storms, water, power surges, incorrect installation, physical abuse, or user­caused damages are billed on a time-plus-materials basis.
Repair Procedures for International Distributors
International distributors should contact their MTS International sales representative for information about the repairs for their Multi-Tech product.
Please direct your questions regarding technical matters, product configuration, verification that the product is defective, etc., to our International Technical Support department at +(763)717-5863. When calling the U.S., please direct your questions regarding repair expediting, receiving, shipping, billing, etc., to our Repair Accounting department at +(763) 717-5631 in the U.S.A. or email mtsrepair@multitech.com
Repairs for damages caused by lightning storms, water, power surges, incorrect installation, physical abuse, or user­caused damages are billed on a time-plus-materials basis.
.
Replacement Parts
SupplyNet, Inc. can supply you with replacement power supplies, cables, and connectors for selected Multi-Tech products. You can place an order with SupplyNet via mail, phone, fax, or the Internet at the following addresses:
Mail: SupplyNet, Inc. 614 Corporate Way Valley Cottage, NY 10989 Phone: 800 826-0279 Fax: 914 267-2420 Email: info@thesupplynet.com Internet: http://www.thesupplynet.com
October 2005
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 40
Chapter 2
SocketModem
MT5600SMI
MT5656SMI
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 41
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Chapter 2 – SocketModem
(MT5600SMI & MT5656SMI)
Introduction
The Multi-Tech SocketModem creates communication-ready devices by integrating data/fax/voice functionality into a single product design. The SocketModem is a space-efficient (1" × 2.5"), embedded modem that provides V.92 or V.34/33.6K data communication. The complete, ready-to-integrate modem dramatically reduces development time and costs for system designers.
The MT5600SMI/MT5656SMI SocketModem is a standard 64-pin modem used for integrating data communications.
• It is a single-port modem that integrates the controller, DSP, and DAA in a 1" x 2.5" form factor and
communicates to a host controller via an asynchronous serial interface.
• It is available with an 8-bit parallel interface
Product Ordering Information
Product Description Region
MT5600SMI
MT5600SMI-32 V.32bis Serial Data/Fax - 5 V Global MT5600SMI-L-32 V.32bis Serial Data/Fax - 3.3 V Global MT5600SMI-P-32 V.32bis Parallel Data/Fax - 5 V Global MT5600SMI-34 V.34bis Serial Data/Fax - 5 V Global MT5600SMI-L-34 V.34bis Serial Data/Fax - 3.3 V Global MT5600SMI-X-L-34 V.34bis Serial Data/Fax Exclude LED pins - 3.3 V Global MT5600SMI-P-34 V.34bis Parallel Data/Fax - 5 V Global MT5600SMI-P-L-34 V.34bis Parallel Data/Fax - 3.3 V Global MT5600SMI-92 V.92 Serial Data/Fax - 5 V Global MT5600SMI-L-92 V.92 Serial Data/Fax - 3.3 V Global MT5600SMI-X-L-92 V.92 Serial Data/Fax Exclude LED pins - 3.3 V Global MT5600SMI-P-92 V.92 Parallel Data/Fax - 5 V Global MT5600SMI-P-L-92 V.92 Parallel Data/Fax - 3.3 V Global
Telecom Label
MT5600SMI-LS MT5600SMI-Global Regulatory Label Global
MT5656SMI
MT5656SMI-V-32 V.32bis Serial Data/Fax, Speakerphone Interface - 5 V U.S./Can/Euro MT5656SMI-P-V-32 V.32bis Parallel Data/Fax, Speakerphone Interface - 5 V U.S./Can/Euro MT5656SMI-V-34 V.34 Serial Data/Fax, Speakerphone Interface - 5 V U.S./Can/Euro MT5656SMI-P-V-34 V.34 Parallel Data/Fax, Speakerphone Interface - 5 V U.S./Can/ Euro MT5656SMI-V-92 V.92 Serial Data/Fax, Speakerphone Interface - 5 V U.S./Can/Euro MT5656SMI-P-V-92 V.92 Parallel Data/Fax, Speakerphone Interface - 5 V U.S./Can/Euro
Developer Kits
MTSMI-DK SocketModem Serial Developer Kit Global MTSMI-P-DK SocketModem Parallel Developer Kit Global
How to Read the Product Codes in the Above Table:
32 V.32bis/14.4K data rate L 3.3 V power input (default is 5 V) 34 V.34/33.6K data rate P Parallel interface (serial is default) 92 V.92/56K data rate X Excludes LED pinouts V Voice (speakerphone) DK Developer Kit
Other Product Codes:
Rx “R” indicates product revision. “x” is the revision number. RoHs ordering part number includes an .R2 or greater.
Order this
Product
3
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 42
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Developer Kit
A Developer Kit is available. The serial kit allows you to plug in the SocketModem and use it as a serial modem for testing, programming, and evaluation. The parallel kit turns the parallel module into an ISA modem. Each kit includes:
• Developer board with an RS-232 DB-25 connector
• Wall Power Adapter
• RJ-11 Jack
• RS-232 Cable
• Developer Kit CD
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 43
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Technical Specifications
The SocketModem meets the following specifications:
Category Description
Data Format Data
Error Correction Data Compression Fax Fax Class
Modes of Operation Advanced
Flow Control Command Buffer Interface
Telephony/TAM
Weight Dimensions Power Consumption 3.3 V (MT5600SMI Only) Typical: 115 mA (.38W @ 3.3 V DC);
Operational Temperature Storage Temp. Voltage
Manufacturing Information
Approvals Safety Certifications
Serial or parallel interface available for all products V.92; V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21 Bell 212A & Bell 103 (see product ordering chart at the beginning of this chapter) V.42 (LAP-M or MNP 2–4) V.42bis, MNP 5 V.17, V.29, V.27ter, V.21 ch.2 Class 1 – All MT5600SMI builds and all MT5656SMI builds Class 1.0 – MT5600SMI builds only Class 2 (does not include 2.0 & 2.1) – MT5656SMI builds only Full duplex over dial-up lines; data mode, command mode, online command mode Extension pickup detection, remote hang-up detection, line-in-use detection, digital PBX detection and protection XON/XOFF (software), RTS/CTS (hardware) 60 characters Serial or 8-bit parallel interface
V.253 commands: V.253 2-bit and 4-bit ADPCM, 8-bit linear PCM, and 4-bit IMA coding 8 kHz sample rate Concurrent DTMF, distinctive ring, and U.S. Caller ID detection
0.6 oz. (0.017 kg.)
1.045” × 2.541” × 0.680” (2.65 x 6.45 x 1.7 cm)
Maximum: 116 mA (.41 W @ 3.47 V DC) 5 V (MT5600SMI & MT5656SMI) Typical: 117 mA (.58 W @ 5 V DC); Maximum: 118 mA (.61 W @ 5.25 V DC) 0 to +70° C Humidity Range: 20 to 90% (non-condensing)
-10º to +85° C
3.3 V Serial (see product ordering chart at the beginning of this chapter) 5 V Serial or Parallel
Trade Name: SocketModem Model Number: MT5600SMI Registration No: AU7USA-46014-MD-E Ringer Equivalence: 0.1B Modular Jack (USOC): RJ11
UL 60950 cUL60950 EN 60950 ACA TS 001 / AS 3260 CCC
EMC Approvals
FCC Part 15 (Class B) Canada (Class B) EN 55022 (Class B) EN 55024
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 44
Category Description
Intelligent Features
Integrates the controller, data pump, and data access arrangement (DAA) in one module. Backward compatibility with lower speed data standards V.22bis Fast Connect FastPOS (V.29) Voice send and receive functions LED pin output option Industry-standard error correction and data compression DTMF detection and distinctive ring Audio circuit outputs for audio call-progress monitoring Three-number storage for automatic dialing capabilities and non-volatile memory (NoVRAM)
to store user profiles Speaker interface for call progress monitoring Full-duplex data transmission over dial-up lines Line quality monitoring and retrain Line protection circuitry included Auto-dial, redial, and auto-answer Pulse or tone dial Call status display Extension pickup detection U.S. Caller ID detection Remote hang-up detection Digital PBX detection and protection 60-character command line buffering AT command compatibility Global approvals with a single module design Intelligent DAA technology detects line status MT5656SMI supports speaker/microphone features
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 45
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
SocketModem Configuration
MT5600SMI Serial Configuration
The serial interface use an 16-pin interface to provide an on-board DAA with tip and ring connections, audio circuit for call-progress monitoring and serial interface via logic level signals.
Note: The bolded, shaded pins are the active SocketModem pins.
Serial SocketModem Pinout
MT5600SMI (Available with or without LEDs)
MT5656SMI Serial with Voice Configuration
Serial SocketModem
MT5656SMI Pinout with Voice Configuration
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 46
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Parallel Configuration
Note: The parallel configuration is not compatible with the serial universal socket.
The parallel interface SocketModem uses a 22-pin interface to provide an on-board DAA with tip and ring connections, audio circuit for call-progress monitoring, and parallel interface.
Parallel Pin Descriptions
Pin # Signal
Name
1
Tip I/O
2
Ring I/O
24
–RESET I
25
A1
26
DGND GND
27
D7 O
29
D2 O
30
INT O
31
A0 I
32
–WT I
33
–RD I
34
A2 I
35
D4 O
36
D5 O
37
D0 O
38
D1 O
39
D3 O
40
–CS I
41
D6 O
61
VCC PWR
63
AGND GND
64
SPKR O
In Out
Type
Description
Telephone Line Interface – TIP Telephone Line Interface – RING Modem Reset (CMOS input with pull-up). The active low –RESET input
resets the SocketModem logic and returns the AT command set to the original factory default values or to "stored values" in NVRAM. The modem is ready to accept commands within 6.5 seconds of power-on or reset. Reset must be asserted for a minimum of 15ms.
Host Bus Address Line 1 Digital Ground Host Bus Data Line 7 Host Bus Data Line 2 Host Bus Interrupt Line (Active High, Resets on Low) Host Bus Address Line 0 Host Bus Write. When low, allows host to write to SocketModem. Host Bus Read. When low, allows host to read from SocketModem. Host Bus Address Line 2 Host Bus Data Line 4 Host Bus Data Line 5 Host Bus Data Line 0 Host Bus Data Line 1 Host Bus Data Line 3 Host Bus Chip Select (Active Low) Host Bus Data Line 6
3.3 V or 5 V Supply (depends upon model). Analog Ground. This is tied common with DGND on the SocketModem. To
minimize potential ground noise issues, connect audio circuit return to AGND.
Speaker – Call monitor.
Parallel SocketModem Pinout
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 47
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Differences - Legacy Voice Modems and Current Modems
Differences between the SFxxxD/SP and the MT5656SMI
Note: The SFxxxD/SP is the legacy voice modem with speakerphone I/O.
Pin 54 – “VC” This pin provided a reference voltage that is available from the data pump. This pin is not
supported on the MT5656SMI SocketModem.
Pin 55 – “~Voice” This function, when active, closes the relay to switch the handset from the telephone line to a
current source to power the handset where it could be used as a speaker and microphone interface to the modem. This pin is not provided on the SocketModem
Pin 57 – “LCS” (Line Current Sense) When enabled, the LCS input indicates whether the associated handset
of off-hook (high) or on-hook (low). This pin is not available on the MT5656SMI SocketModem, but the functionality is part of the Smart DAA.
Pin 58 – “Telout” (Telephone Handset Output). This pin is not supported on the SocketModem.
Pin 59 – “Telin” (Telephone Handset Input). This pin is not supported on the SocketModem.
Pin 60 – “Micm” (Microphone Modem Input). This pin is not supported on the SocketModem.
Pin 62 – “Micv” (Microphone Voice Input). This pin is supported on the MT5656SMI SocketModem in the same
way as the "SF" modem.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 48
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Electrical Characteristics
3.3 V Serial SocketModem
3.3 V DC Characteristics (TA = 0°C to 70°C; VDD = 3.3 V ± 0.3 V) VDDMAX = 3.6 V
Inputs
–DTR (40), –TXD (35), –RTS (33), –RESET (24) Outputs –DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34) 2 mA, Z INT = 120 Ω
Digital Input Capacitance
3.3 V Parallel SocketModem
Electrical characteristics for Parallel SocketModem devices are presented below.
3.3 V DC Characteristics (TA = 0°C to 70°C; VDD = 3.3 V ± 0.3 V)
Digital Inputs –DS (40) Digital Inputs (hysteresis input buffer)
A0 (31), A1 (25), A2 (34), –WR (32), –RD (33) 8mA Z
Digital Input/Output
DO (37), D1 (38), D2 (29), D3 (39), D4 (35), D5 (36), D6 (41), D7 (27) 2 mA, Z
Digital Output
INT (30) 2 mA, Z
Digital Input Capacitance
= 50Ω 2 mA Z
INT
= 120 Ω
INT
= 120 Ω
INT
= 120 Ω
INT
Input High Min 2.0 V Output High Min 2.4 V
VDDMAX = 3.6 V
Input High Min 2.0 V Input High Min 2.0 V
Input High
Min 2.0 V
Output High Min 2.4 V
Output High Min 2.4 V
Input Low Max 0.8 V Output Low Max 0.5 V
Input Low Max 0.8 V Input Low Max 0.8 V
Input Low
Max 0.8 V
Output Low Max 0.5 V
Output Low Max 0.5 V
50pF
50pF
5 V Serial SocketModem
5 V DC Characteristics (TA = 0 °C to 50 °C; VDD = 5 V ± 0.25 V) VDDMAX = 5.25 V
Digital Inputs –DTR (40), –TXD (35), –RTS (33), –RESET (24) Digital Outputs –DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34) Digital Input Capacitance
Input High Min 2 V Output High Min 2.4 V
Input Low Max 0.8 V Output Low Max 0.5 V
5 V Parallel SocketModem
5 V DC Characteristics (TA = 0 °C to 50 °C; VDD = 5 V ± 0.25 V) VDDMAX = 5.25 V
Digital Inputs –DS (40) Digital Inputs (hysteresis input buffer) A0 (31), A1 (25), –WR (32), –RD (33) Digital Input / Output
DO (37), D1 (38), D2 (29), D3 (39), D4 (35), D5 (36), D6 (41), D7 (27)
Digital Output INT (30) Digital Input Capacitance 5 PF
Input High Min 2 V Input High Min 2 V Input High
Min 2 V
Output High
Min 2.4 V
Input Low
Max 0.8 V
Input Low Max 0.8 V Input Low
Max 0.8 V
Output Low Max 0.5 V
Current Drive 15 mA 5 PF
Current Drive
8 mA
Current Drive
8 mA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 49
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Parallel Host Bus Timing Table
Symbol Parameter Min Max Units
t
AS
t
AH
t
CS
tCH
tRD
tDD
t
DRH
t
AS
t
AH
t
CS
tCH
tWT
tDS
t
DWH
Address Setup 5 - ns Address Hold 10 - ns Chip Select Setup 0 - ns Chip Select Hold 10 - ns RD Strobe Width 45 - ns Read Data Delay - 25 ns Read Data Hold 5 - ns
WRITE (See Notes) Address Setup 5 - ns Address Hold 15 - ns Chip Select Setup 0 - ns Chip Select Hold 10 - ns WT Strobe Width 75 - ns Write Data Setup (see Note 4) - 20 ns Write Data Hold (see Note 5) 5 - ns
Notes:
1. When the host executes consecutive Rx FIFO reads, a minimum delay of 2 times the internal CPU clock cycle plus 15 ns (85.86 ns at 28.224 MHz) is required from the falling edge of RD to the falling edge of the next Host Rx FIFO RD clock.
2. When the host executes consecutive Tx FIFO writes, a minimum delay of 2 times the internal CPU clock cycle plus 15 ns (85.86 ns at 28.224 MHz) is required from the falling edge of WT to the falling edge of the next Host Tx FIFO WT clock.
t
3.
RD' tWT
4. tDS is measured from the point at which both CS and WT are active.
t
DWH is measured from the point at which either CS and WT become active.
5.
= t
CYC
+ 15 ns.
6. Clock Frequency = 28.224 MHz clock.
READ (See Notes)
Parallel Host Bus – Read Parallel Host Bus - Write
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 50
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
SocketModem Parallel Interface
The modem supports a 16550A interface in parallel interface versions. The 16550A interface can operate in FIFO mode or non-FIFO mode. Non-FIFO mode is the same as the 16450-interface operation. FIFO mode’s unique operations are described in this chapter.
Overview
The modem emulates the 16450/16550A interface and includes both a 16-byte receiver data first-in first-out buffer (RX FIFO) and a 16-byte transmit data first-in first-out buffer (TX FIFO).
FIFO Mode Selected
When FIFO mode is selected in the FIFO Control Register (FCR0 = 1), both FIFOs are operative. Furthermore, when FIFO mode is selected, DMA operation of the FIFO can also be selected (FCR3 = 1).
FIFO Mode Not Selected
When FIFO mode is not selected, operation is restricted to a 16450-interface operation.
Receive Data
Received Data is read by the host from the Receiver Buffer (RX Buffer). The RX Buffer corresponds to the Receiver Buffer Register in a 16550A device. In FIFO mode, the RX FIFO operates transparently behind the RX Buffer. Interface operation is described with reference to the RX Buffer in FIFO and non-FIFO modes.
Transmit Data
Transmit Data is loaded by the host into the Transmit Buffer (TX Buffer). The TX Buffer corresponds to the Transmit Holding Register in a 16550A device. In FIFO mode, the TX FIFO operates transparently behind the TX Buffer. Interface operation is described with reference to the TX Buffer in both FIFO and non-FIFO modes.
Receiver FIFO Interrupt Operation
Receiver Data Available Interrupt
When the FIFO mode is enabled (FCR0 = 1) and receiver interrupt (RX Data Available) is enabled (IER0 = 1), receiver interrupt operation is as follows:
1. The Receiver Data Available Flag (LSR0) is set as soon as a received data character is available in the RX FIFO. LSR0 is cleared when RX FIFO is empty.
2. The Receiver Data Available Interrupt code (IIR0-IIR4 = 4h) is set whenever the number of received data bytes in the RX FIFO reaches the trigger level specified by FCR6-FCR7 bits. It is cleared whenever the number of received data bytes in the RX FIFO drops below the trigger level specified by FCR6-FCR7 bits.
3. The HINT interrupt is asserted whenever the number of received data bytes in the RX FIFO reaches the trigger level specified by FCR6-FCR7 bits. HINT interrupt is de-asserted when the number of received data bytes in the RX FIFO drops below the trigger level specified by FCR6­FCR7 bits.
Receiver Character Timeout Interrupts
When the FIFO mode is enabled (FCR0 = 1) and receiver interrupt (Receiver Data Available) is enabled (IER0 = 1), receiver character timeout interrupt operation is as follows:
1. A Receiver character timeout interrupt code (IIR0-IIR3 = Ch) is set if at least one received character is in the RX FIFO, the most recent received serial character was longer than four continuous character times ago (if 2 stop bits are specified, the second stop bit is included in this time period), and the most recent host read of the RX FIFO was longer than four continuous character times ago.
Transmitter FIFO Interrupt Operation
Transmitter Empty Interrupt
When the FIFO mode is enabled (FCR0 = 1) and transmitter interrupt (TX Buffer Empty) is enabled (IER0 =1), transmitter interrupt operation is as follows:
1. The TX Buffer Empty interrupt code (IIR0-IIR3 = 2h) will occur when the TX Buffer is empty. It is cleared when the TX Buffer is written to (1 to 16 characters) or the IIR is read.
2. The TX Buffer Empty indications will be delayed 1 character time minus the last stop bit time whenever the following occur: THRE = 1 and there have not been at least two bytes at the same time in the TX FIFO Buffer since the last setting of THRE was set. The first transmitter interrupt after setting FCR0 will be immediate.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 51
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Register Functional Definitions
The following table delineates the assigned bit functions for the twelve internal registers. The assigned bit functions are more fully defined in the following paragraphs.
Internal Registers
No.
7 Scratch Register
6 Modem Status
5 Line Status
4 Modem Control
3 Line Control
2 Interrupt Identify
2 FIFO Control
1
(DLAB = 0)
0
(DLAB = 0)
0
(DLAB = 0)
1
(DLAB = 1)
0
(DLAB = 1)
Register
Name
(SCR)
Register (MSR)
Register (LSR)
Register (MCR)
Register (LCR)
Register (IIR) (Read Only)
Register (FCR) (Write Only) Interrupt Enable Register (IER)
Transmitter Buffer Register (THR) Receiver Buffer Register (RBR) Divisor Latch MSB Register (DLM) Divisor Latch LSB Register (DLL)
7 6 5 4 3 2 1 0
Data Carrier Detect
(DCD)
RX FIFO
Error
0 0 0 Local
Divisor
Latch
Access Bit
(DLAB)
FIFOs
Enabled
Receiver
Trigger
MSB
0 0 0 0 Enable
Ring
Indicator
(RI)
Transmitter
Empty
(TEMT)
Set
Break
FIFOs
Enabled
Receiver
Trigger
LSB
Data Set
Ready (DSR)
Transmitter
Buffer
Register
Empty
(THRE)
Stick
Parity
0 0 Pending
Reserved Reserved DMA
Transmitter FIFO Buffer Register (Write Only)
Receiver FIFO Buffer Register (Read Only)
BIT No. Register
Scratch Register
Clear to
Interrupt
Loopback
Select
Delta Data Send CTS)
Break
(BI)
Even
Parity
(EPS)
Divisor Latch MSB
Divisor Latch LSB
Carrier
Detect
(DDCD)
Framing
Error (FE)
Out 2 Out 1 Request
Parity
Enable
(PEN)
Interrupt ID
Bit 2
Mode
Select
Modem
Status Interrupt (EDSSI)
Trailing
dge of Ring
Indicator
(TERI)
Parity
Error
(PE)
Number
of Stop
Bits
(STB)
Pending
Interrupt ID
Bit 1
TX FIFO
Reset
Enable
Receiver
Line Status
Interrupt
(ELSI)
Delta Data
Set Ready
(DDSR)
Overrun
Error (OE)
to Send
(RTS)
Word
Length
Select
Bit 1 (WLS1) Pending
Interrupt ID
Bit 0
RX FIFO
Reset
Enable
Transmitter
Holding
Register
Empty Interrupt (ETBEI)
Delta Clear
to Send (DCTS)
Receiver
Data
Ready
(DR)
Data
Terminal
Ready (DTR)
Word
Length
Select
Bit 0
(WLSO)
“0” if Interrupt Pending
FIFO
Enable
Enable
Received
Data
Available
Interrupt (ERBFI)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 52
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
IER – Interrupt Enable Register
(Addr = 1, DLAB = 0)
The IER enables five types of interrupts that can separately assert the HINT output signal (See the Interrupt Sources and Reset Control table in the IIR section of this chapter). A selected interrupt can be enabled by setting the corresponding enable bit to a 1, or disabled by setting the corresponding enable bit to a 0. Disabling an interrupt in the IER prohibits setting the corresponding indication in the IIR and assertion of HINT. Disabling all interrupts (resetting IER0 – IER3 to a 0) inhibits setting of any Interrupt Identifier Register (IIR) bits and inhibits assertion of the HINT output. All other system functions operate normally, including the setting of the Line Status Register (LSR) and the Modem Status Register (MSR).
The IER enables five types of interrupts that can separately assert the HINT output signal. A selected interrupt can be enabled by setting the corresponding enable bit to a 1, or disabled by setting the corresponding enable bit to a 0. Disabling an interrupt in the IER prohibits setting the corresponding indication in the IIR and assertion of HINT. Disabling all interrupts (resetting IER0 - IER3 to a 0) inhibits setting of any Interrupt Identifier Register (IIR) bits and inhibits assertion of the HINT output. All other system functions operate normally, including the setting of the Line Status Register (LSR) and the Modem Status Register (MSR).
Bits 7-4 Not used.
Always 0.
Bit 3 Enable Modem Status Interrupt (EDSSI).
This bit, when a 1, enables assertion of the HINT output whenever the Delta CTS (MSR0),
Delta DSR (MSR1), Delta TER (MSR2), or Delta DCD (MSR3) bit in the Modem Status Register (MSR) is a 1. This bit, when a 0, disables assertion of HINT due to setting of any of these four MSR bits.
Bit 2 Enable Receiver Line Status Interrupt (ELSI).
This bit, when a 1, enables assertion of the HINT output whenever the Overrun Error (LSR1),
Parity Error (LSR2), Framing Error (LSR3), or Break Interrupt (LSR4) receiver status bit in the Line Status Register (LSR) changes state. This bit, when a 0, disables assertion of HINT due to change of the receiver LSR bits 1-4.
Bit 1 Enable Transmitter Holding Register Empty Interrupt (ETBEI).
This bit, when a 1, enables assertion of the HINT output when the Transmitter Empty bit in the
Line Status Register (LSR5) is a 1.This bit, when a 0, disables assertion of HINT due to LSR5.
Bit 0 Enable Receiver Data Available Interrupt (ERBFI) and Character Timeout in FIFO Mode.
This bit, when a 1, enables assertion of the HINT output when the Receiver Data Ready bit in
the Line Status Register (LSR0) is a1 or character timeout occurs in the FIFO mode. This bit, when a 0, disables assertion of HINT due to the LSR0 or character timeout.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 53
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
FCR – FIFO Control Register
(Addr = 2, Write Only)
The FCR is a write-only register used to enable FIFO mode, clear the RX FIFO and TX FIFO, enable DMA mode, and set the RX FIFO trigger level.
Bits 7-6 RX FIFO Trigger Level
FCR7 and FCR6 set the trigger level for the RX FIFO (Receiver Data Available) interrupt.
FCR7 FCR6 RX FIFO Trigger Level (Bytes)
0 0 01 0 1 04 1 0 08 1 1 14
Bits 5, 4
Bit 3 DMA Mode Select
Bit 2 TX FIFO Reset
Bit 1 RX FIFO Reset
Bit 0 FIFO Enable
Not used
When FIFO mode is selected (FCR0 = 1), FCR3 selects non-DMA operation (FCR3 = 0) or DMA operation (FCR3 = 1). When FIFO mode is not selected (FCR0 = 0), this bit is not used (the modem operates in non-DMA mode in 16450 operation).
DMA Operation in FIFO Mode
RXRDY will be asserted with the number of characters in the RX FIFO us equal to or greater
than the value in the RX FIFO Trigger Level (IIR0-IIR3 = 4h) or the received character timeout (IIRO-IIR3 = Ch) has occurred. RXTDY will go inactive when there are no more characters in the RX FIFO.
TXRDY will be asserted when there are one or more empty (unfilled) locations in the TX
FIFO. TXRDY will go inactive when the TX FIFO is completely full.
Non-DMA Operation in FIFO Mode
RXRDY will be asserted when there are one or more characters in the RX FIFO. RXRDY
will go inactive when there are no more characters in the RX FIFO.
TXRDY will be asserted when there are no characters in the TX FIFO. TXRDY will go
inactive when the character is loaded into the TX FIFO Buffer.
When FCR2 is a 1, all bytes in the TX FIFO are cleared. This bit is cleared automatically by the modem.
When FCR1 is a 1, all bytes in the RX FIFO are cleared. This bit is cleared automatically by the modem.
When FCR0 is a 0, 16450 mode is selected and all bits are cleared in both FIFOs. When FCR0 is a 1, FIFO mode (16550A) is selected and both FIFOs are enabled. FCR0 must be a 1 when other bits in the FCR are written or they will not be acted upon.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 54
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
IIR – Interrupt Identifier Register
(Addr = 2)
The Interrupt Identifier Register (IIR) identifies the existence and type of up to five prioritized pending interrupts. Four priority levels are set to assist interrupt processing in the host. The four levels, in order of decreasing priority, are Highest: Receiver Line Status, 2: Receiver Data Available or Receiver Character Timeout. 3: TX Buffer Empty, and 4: Modem Status.
When the IIR is accessed, the modem freezes all interrupts and indicates the highest priority interrupt pending to the host. Any change occurring in interrupt conditions are not indicated until this access is complete.
Bits 7-6 FIFO Mode
These two bits copy FCR0.
Bits 5-4 Not Used
Always 0.
Bits 3-1 Highest Priority Pending Interrupt
These three bits identify the highest priority pending interrupt (Table below). Bit 3 is applicable only when FIFO mode is selected; otherwise, bit 3 is a 0.
Bit 0 Interrupt Pending
When this bit is a 0, an interrupt is pending; IIR bits 1-3 can be used to determine the source of the interrupt. When this bit is a 1, an interrupt is not pending
Interrupt Sources and Reset Control Table
Interrupt Identification Register Interrupt Set and Reset Functions
Bit 3
(Note 1)
Notes:
1. FIFO Mode only.
Bit 2 Bit 1 Bit 0 Priority
Level
0 0 0 1 — None None — 0 1 1 0 Highest Receiver Line
0 1 0 0 2 Received Data
1 1 0 0 2 Character Timeout
0 0 1 0 3 TX Buffer Empty TX Buffer Empty Reading the IIR
0 0 0 0 4 Modem Status Delta CTS (DCTS) (MSR0),
Interrupt Type Interrupt Source Interrupt Reset
Overrun Error (OE) (LSR1),
Status
Available
Indication
1
Parity Error (PE) (LSR2), Framing Error (FE) (LSR3), or Break Interrupt (BI) (LSR4)
Received Data Available (LSR0) or RX FIFO Trigger Level (FCR6-FCR7) Reached1 The RX FIFO contains at least 1 character and no characters have been removed from or input to the RX FIFO during the last 4 character times.
Delta DSR (DDST) (MSR1), Trailing Edge Ring Indicator (TERI) (MSR3), or Delta DCD (DCD) (MSR4)
Control
Reading the LSR
Reading the RX Buffer or the RX FIFO drops below the Trigger Level Reading the RX Buffer
or writing to the TX Buffer Reading the MSR
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 55
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
LCR – Line Control Register
(Addr = 3)
The Line Control Register (LCR) specifies the format of the asynchronous data communications exchange.
Bit 7 Divisor Latch Access Bit (DLAB)
This bit must be set to a 1 to access the Divisor Latch Registers during a read or write operation. It must be reset to a 0 to access the Receiver Buffer, the Transmitter Buffer, or the Interrupt Enable Register.
Bit 6 Set Break
When bit 6 is a 1, the Transmit data is forced to the break condition, i.e., space (0) is sent. When bit 6 is a 0, break is not sent. The Set Break bit acts only on the Transmit data and has no effect on the serial in logic.
Bit 5 Stick Parity
When Parity is enabled (LCR3 = 1) and stick parity is selected (LCR5 = 1), the parity bit is transmitted and checked by the receiver as a 0 if even parity is selected (LCR4 – 1) or a 1 if odd parity is selected (LCR4 = 0). When the stick parity is not selected (LCR3 = 0), parity is transmit and checked as determined by the LCR3 and LCR4 bits.
Bit 4 Even Parity Select (EPS)
When parity is enabled (LCR3 = 1) and stick parity is not selected (LCR5 = 0), the number of 1s transmitted or checked by the receiver in the data word bits and parity bit is either even (LCR4 =
1) or odd (LCR4 = 0).
Bit 3 Enable Parity (PEN)
When bit 3 is a 1, a parity bit is generated in the serial out (transmit) data stream and checked in the serial in (receive) data stream as determined by the LCR4 and LCR5 bits. The parity bit is located between the last data bit and the first stop bit.
Bit 2 Number of Stop GBITS (STB)
This bit specifies the number of stop bits in each serial out character. If bit 2 is a 0, one stop bit is generated regardless of word length. If bit 2 is a 1 and 5-bit word length is selected, one and one-half stop bits are generated. If bit 2 is a 1 and 6-, 7-, or 8-bit word length is selected, two stop bits are generated. The serial in logic checks the first stop bit only, regardless of the number of stop bits selected.
Bit 1-0 Word Length Select (WLS0 and WLS1)
These two bits specify the number of bits in each serial in or serial out character. The encoding of bits 0 and 1 is:
Bit 1 Bit 0 Word Length
0 0 5 Bits (Not supported) 0 1 6 Bits (Not supported) 1 0 7 Bits 1 1 8 Bits
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 56
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
MCR – Modem Control Register
(Addr = 4)
The Modem Control Register (MCR) controls the interface with modem or data set.
Bit 7-5 Not used
Always 0
Bit 4 Local Loopback
When this bit is set to a 1, the diagnostic mode is selected and the following occurs:
1. Data written to the Transmit Buffer is looped back to the Receiver Buffer.
2. The DTS (MCR0), RTS (MCR1), Out1 (MCR2), and Out2 (MCR3) modem control register bits are internally connected to the DSR (MSR5), CTS (MSR4), RI (MSR6), and DCD (MSR7) modem status register bits, respectively.
Bit 3 Output 2
When this bit is a 1, HINT is enabled. When this bit is a 0, HINT is in the high impedance state.
Bit 2 Output 1
This bit is used in local loopback (see MCR4).
Bit 1 Request to Send (RTS)
This bit controls the Request to Send (RTS) function. When this bit is a 1, RTS is on. When this bit is a 0, RTS is off.
Bit 0 Data Terminal Ready (DTR)
This bit controls the Data Terminal Ready (DTR) function. When this bit is a 1, DTR is on. When this bit is a 0, DTR is off.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 57
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
LSR – Line Status Register
(Addr = 5)
This 8-bit register provides status information to the host concerning data transfer
Bit 7 RX FIFO Error
In the 16450 mode, this bit is not used and is always 0. In the FIFO mode, this bit is set if there are one or more characters in the RX FIFO with parity
error, framing error, or break indication detected. This bit is reset to a 0 when the host reads the LSR and note of the above conditions exist in the RX FIFO.
Bit 6 Transmitter Empty (TEMT)
This bit is set to a 1 whenever the TX Buffer (THR) and equivalent of the Transmitter Shift Register (TRS) are both empty. It is reset to a 0 whenever either the THR or the equivalent of the TSR contains a character.
In the FIFO mode, this bit is set to a 1 whenever the TX FIFO and the equivalent of the TSR are both empty
Bit 5 Transmitter Holding Register Empty (THRE) [TX Buffer Empty]
This bit, when set, indicates that the TX Buffer is empty and the modem can accept a new character for transmission. In addition, this bit causes the modem to issue an interrupt to the host when the Transmit Holding Register Empty Interrupt Enable bit (IIR1) is set to 1. The THRE bit is set to a 1 when a character is transferred from the TX Buffer. The bit is reset to 0 when a byte is written into the TX Buffer by the host.
In the FIFO mode, this bit is set when the TX FIFO is empty; it is cleared when at lease one byte is in the TX FIFO.
Bit 4 Break Interrupt (BI)
This bit is set to a 1 whenever the received data input is a space (logic 0) for longer than two full word lengths plus 3 bits. The BI is reset when the host reads the LSR.
Bit 3 Framing Error (FE)
This bit indicates that the received character did not have a valid stop bit. The FE bit is set to a 1 whenever the stop bit following the last data bit or parity bit is detected as a logic o (space). The FE bit is reset to a 0 when the host reads the LSR.
In the FIFO mode, the error indication is associated with the particular character in the FIFO it applies to. The FE bit set to a 1 when this character is loaded into the RX Buffer.
Bit 2 Parity Error (PE)
This bit indicates that the received data character in the RX Buffer does not have the correct even or odd parity, as selected by the Even Parity Select bit (LCR4) and the Stick Parity bit (LCR5). The PE bit is reset to a 0 when the host reads the LSR.
In the FIFO mode, the error indication is associated with the particular character in the FIFO it applies to. The PE bit set to a 1 when this character is loaded into the RX Buffer.
Bit 1 Overrun Error (OE)
This bit is set to a 1 whenever received data is loaded into the RX Buffer before the host has read the previous data from the RX Buffer. The OE is reset to a 0 when the host reads the LSR.
In the FIFO mode, if data continues to fill beyond the trigger level, an overrun condition will occur only if the RX FIFO is full and the next character has been completely received.
Bit 0 Receiver Data Ready (DR)
This bit is set to a 1 whenever a complete incoming character has been received and transferred into the RX Buffer. The DR bit is reset to a 0 when the host reads the RX Buffer.
In the FIFO mode, the DR bit is set when the number of received data bytes in the RX FIFO equals or exceeds the trigger level specified in the FCR0-FCR1.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 58
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
MSR – Modem Status Register
(Addr = 6)
The Modem Status Register (MSR) reports current state and change information of the modem. Bits 4-7 supply current state and bits 0-3 supply change information. The change bits are set to a 1 whenever a control input form the modem changes state from the last MSR read by the host. Bits 0-3 are reset to 0 when the host reads the MSR or upon reset.
Whenever bits 0, 1, 2, or 3 are set to a 1, a Modem Status Interrupt (IIR0-IIR3 = 0) is generated.
Bit 7 Data Carrier Detect (DCD)
This bit indicates the logic state of the DCH# (RLSD#) output. If Loopback is selected (MCR4 =
1), this bit reflects the state of the Out2 bit in the MCR (MCR3).
Bit 6 Ring Indicator (RI)
This bit indicates the logic state of the RI# output. If Loopback is selected (MCR4 = 1), this bit reflects the state of the Out1 bit in the MCR (MCR2).
Bit 5 Data Set Ready (DSR)
This bit indicates the logic state of the DSR# output. If Loopback is selected (MCR4 = 1), this bit reflects the state of the DTR in the MCR (MCR0).
Bit 4 Clear to Send (CTS)
This bit indicates the logic state of the CTS# output. If Loopback is selected (MCR4 = 1), this bit reflects the state of the RTS bit in the MCR (MCR1).
Bit 3 Delta Data Carrier Detect (DDCD)
This bit is set to a 1 when the DCD bit changes state since the host last read the MSR.
Bit 2 Trailing Edge of Ring Indicator (TERI)
This bit is set to a 1 when the RI bit changes from a 1 to a 0 state since the host last read the MSR.
Bit 1 Delta Data Set Ready (DDSR)
This bit is set to a 1 when the DSR bit has changed since the host last read the MSR.
Bit 0 Delta Clear to Send (DCTS)
This bit is set to a 1 when the CTS bit has changed since the MSR the host last read the MSR.
RBX – RX Buffer (Receiver Buffer Register)
(Addr = 0, DLAB = 0)
The RX Buffer (RBR) is a read-only register at location 0 (with DLAB = 0). Bit 0 is the least significant bit of the data and is the first bit received.
THR – TX Buffer (Transmitter Holding Register)
(Addr = 0, DLAB = 0)
The TX Buffer (THR) is a write-only register at address 0 when DLAB = 0. Bit 0 is the least significant bit and the first bit sent.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 59
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
SCR – Scratch Register
(Addr = 7)
The Scratchpad Register is a read-write register at location 7. This register is not used by the modem and can be used by the host for temporary storage.
Divisor Registers
(Addr = 0 and 1, DLAB = 1)
The Divisor Latch LS (least significant byte) and Divisor Latch MS (most significant byte) are two read-write registers at locations 0 and 1 when DLAB = 1, respectively.
The baud rate is selected by loading each divisor latch with the appropriate hex value. Programmable values corresponding to the desired baud rate are listed in Table on following page.
Divisor Latch (Hex)
MS LS
06 00 1536 75 04 17 1047 110 03 00 768 150 01 80 384 300 00 C0 192 600 00 60 96 1200 00 30 48 2400 00 18 24 4800 00 0C 12 9600 00 06 6 19200 00 04 4 28800 00 03 3 38400 00 02 2 57600 00 01 1 115600 00 00 NA 230400
Divisor (Decimal) Baud Rate
Programmable Baud Rates
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 60
Application Notes
Tip and Ring Interface
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
OEM Motherboard
Filtering and Surge Protection Options
See also Design Considerations and Recommended Components.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 61
Microphone and Speaker
Note: Applies to the MT5656SMI only.
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Microphone Input Option
Speaker Output Option 1
Speaker Output Option 2
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 62
Chapter 2 – SocketModem (MT5600SMI & MT5656SMI)
Recommended Parts
Disclaimer: Multi-Tech Systems makes no warranty claims for vendor product recommendations listed below. Other vendor products may or may not operate satisfactorily. Multi-Tech System’s recommended vendor products only indicate that the product has been tested in controlled conditions and were found to perform satisfactorily.
Surface mount ferrites are used on T&R (Tip and Ring) to mitigate emission levels out the RJ-11 cable. 220pF capacitors are also used on T&R to reduce the common mode emissions that may be present in certain systems. The ferrite and capacitors also aid in reducing the effects of transients that may be present on the line.
Recommended Ferrite (SMT)
Manufacturer – Associated Component Technology (ACT) – Part # - YCB-1206 Manufacturer – Murata Erie – Part # - BLM31AJ601SN1
Recommended Ferrite (Thru-Hole)
Manufacturer – Associated Component Technology (ACT) – Part # - WB2-2.OT
Recommended Capacitor
Manufacturer – NOVACAP – Part # - ES2211NKES502NXT Manufacturer – Murata Erie – Part # - GA355DR7GC221KY02L (Surface mount device)
Part # - DE0807B221K-KH (Thru-hole device)
Manufacturer – Ever Grace Electronic Industrials -- Part # - YP221K2EA7PS
Note: The capacitors used on T&R must have the Y2 safety rating.
Recommended Connector
Manufacturer – Stewart – Part # - SS-6446-NF-A431
Recommended Poly Switch Thermal Fuse (can be reset)
Manufacturer – RayChem – Part # - TS600-170
Note: This fuse or its equivalent is required to meet UL60950 for protection against over-voltage from power
line crosses.
Telecom
The RJ-11 connector must meet FCC Part 68 requirements. Refer to FCC Part 68 section 68.500 subpart F for connector specifications. A self-healing fuse is used in series with line to help prevent damage to the DAA circuit. This fuse is needed for FCC Part 68 compliance.
Common Mode Choke
Manufacturer – TDK – Part # - ZJYS51R5-2PT
Recommended Sidactor
Manufacturer – Teccor Electronics – Part # - P#3100SA Manufacturer – ST Microelectronics -- Part 1 – SMP100LC-270
Recommended Transceiver
Manufacturer – Analog Devices – Part # - ADM207EAR
Dip Connector for the MT5600SMI-P92
Manufacturer – Specialty Electronics (www.connectorsolutions.com) 4-Pin 2.0mm SIP Socket (2 Each) 10-Pin 2.0mm SIP Socket (2 Each)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 63
Chapter 3
SocketModem
MT5634SMI-34 MT5634SMI-92
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 64
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
Chapter 3 – SocketModem
(MT5634SMI-34 & MT5634SMI-92)
Introduction
Multi-Tech’s SocketModem creates communication-ready devices by integrating data/fax/voice functionality into a single product design. The SocketModem is a space-efficient (1" × 2.5"), embedded modem that provides V.92/56K communication. The complete, ready-to-integrate modem dramatically reduces development time and costs for system designers.
The MT5634SMI SocketModem is used for integrating data and fax communications:
• It is a single-port modem, which integrates the controller, DSP, and DAA in a 1" x 2.5" form factor and
communicates to a host controller via an asynchronous serial interface
• It is available with an 8-bit parallel interface
Product Ordering Information
Product Description Region Order
this
Product
3
MT5634SMI-34 V.34 Serial Data V.34 Fax - 5 V Global MT5634SMI-92 V.92 Serial Data V.34 Fax - 5 V Global MT5634SMI-P-92 V.92 Parallel Data V.34 Fax - 5 V Global MT5634SMI-ITP-92 V.92 Serial Data V.34 Fax - Industrial Temperature - 3.3 V Global MT5634SMI-P-ITP-92 V.92 Parallel Data V.34 Fax - Industrial Temperature - 3.3 V Global MT5634SMI-HV-92 V.92 Serial Data V.34 Fax - High Voltage Medical Device - 5 V Global MT5634SMI-P-HV-92 V.92 Parallel Data V.34 Fax - High Voltage Medical Device - 5 V Global
Telecom Label
MT5634SMI-LS MT5634SMI – Global Regulatory Label Global
Developer Kits
MTSMI-DK SocketModem Serial Developer Kit Global MTSMI-P-DK SocketModem Parallel Developer Kit Global
How to Read the Product Codes in the Table Above:
34 V.34/33.6K data rate 92 V.92/56K data rate HV High Voltage Medical Device Build ITP Industrial Temperature Build P Parallel interface (serial is default) LS Telecom Label DK Developer Kit
Other Product Codes:
Rx “R” indicates product revision. “x” is the revision number. RoHs ordering part number includes an .R2 or greater.
Developer Kit
Two SocketModem Developer Kits are available, one for serial and the other for parallel. The serial kit allows you to plug in the SocketModem and use it as a serial modem for testing, programming, and evaluation. The parallel kit turns the parallel module into an ISA modem. Each kit includes:
• Developer Board with an RS-232 DB-25 Connector
• Wall Power Adapter
• RJ-11 Jack
• RS-232 Cable
• Developer Kit CD
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 65
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
Technical Specifications
The SocketModem meets the following specifications:
Category Description
Serial or Parallel Interface
Client-to-Server Data Rates
AGC Dynamic Range
Client-to-Client Data Rates
Data Compatibility
Data Format
Error Correction (ECM) Data Mode V.44; V.42 LAPM, MNP 2-4
Data Compression
Fax Compatibility
Fax Classes
Fax Data Rates
Fax Compression
Command Buffer
DAA Isolation
Dimensions
Flow Control
Frequency Stability
Modes of Operation
Operating Voltage Standard
Operational Temperature Range
Power Consumption Standard
Receiver Sensitivity
Serial Speeds
Storage Temperature
Transmit Level
See product descriptions on the first page of this chapter
Supports V.92 (All builds except MT5634SMI-34)
43 dB
33,600; 31,200; 28,800; 26,400; 24,000; 21,600; 19,200; 16,800; 14,400; 12,000; 9600; 7200; 4800; 2400; 1200; 0-300 bps
V.92, V.34 enhanced, V.34, V.32bis, V.32, V.22bis, V.22; Bell 212A and 103/113, V.21 & V.23
Serial, binary, asynchronous (available with parallel interface)
Fax Mode T.30 Annex A & C
V.42bis & MNP Class 5
V.34, V.17, V.29, V.27, & V.21 Ch. 2
Class 1 &1.0 – All builds Class 2, 2.0 &2.1 – All builds except MT5634SMI-34
33,600; 31,200; 28,800; 26,400; 24,000; 21,600; 19,200; 16,800; 14,400; 12,000; 9600; 7200; 4800; 2400; 1200; 0-300 bps
MH, MR, MMR (V.92 build only)
60 characters
MT5634SMI-92 (all V.92 builds) 1500 Vac
MT5634SMI-HV-92 EN60601 - 3000 Vac
1.045" × 2.541" × 0.680" (2.7 x 6.5 x 1.8 cm)
XON/XOFF (software), RTS/CTS (hardware)
±0.01%
Fax online modes; full duplex over dial-up lines; data mode; command mode; online command mode; V.54 test mode
5 V DC ± 5% Absolute Maximum Supply Voltage: 5.5 V DC
MT5634SMI-ITP-92 (Industrial Temperature {3.3 V} Build Option)
3.3 V DC, 180mA Absolute Maximum Supply Voltage: 3.6 V DC
Standard
0 to+70° C ambient under closed conditions; humidity range 20–90% (non­condensing)
MT5634SMI-ITP-92 (Industrial Temperature {3.3 V} Build Option)
-40 to +85° C ambient under closed conditions; humidity range 20–90% (non­condensing)
Typical: 245 mA (1.25 W @ 5 V DC) Standby or Sleep Mode: 148 mA Maximum: 420 mA (2.1 W @ 5.25 V DC)
MT5634SMI-ITP-92 (Industrial Temperature {3.3 V} Build Option)
Typical: 180 mA (0.59 W @ 3.3 V DC) Standby or Sleep Mode: 88 mA Maximum: 290 mA (1.04 W @ 3.6 V DC)
–43 dBm under worst-case conditions
Serial port data rates adjustable to 300, 1200, 2400, 4800, 9600, 19,200, 38,400, 57,600, 115,200, and 230,400 bps
–50 to +100° C
–11 dBm (varies by country setting)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 66
Category Description
Voice Compatibility
Weight
Cleaning
Manufacturing Information
Approvals Safety Certifications
Intelligent Features
TAM (Telephone Answering Machine): S-101 AT+V commands (no CODEC for speakers/microphone interface)
0.02 Kg. (0.04 lb.)
No cleaning/washing due to the manufacturing process used to produce this
product.
Trade Name: SocketModem Model Number: MT5634SMI-34 & MT5634SMI-92 Registration No: AU7USA-25814-M5-E Ringer Equivalence: 0.3B Modular Jack (USOC): RJ11
UL60950 cUL60950 EN60950 IEC60950 ACA TS001 / AS 3260 CCC
Safety Certifications for HV Builds
UL60601-1 EN60601-1
EMC Approvals
FCC Part 15 Canadian EMC EN 55022 EN 55024
GB4943, GB9254 Fully AT command compatible Leased-line operation Sleep mode Autodial, redial Pulse or tone dial Dial pauses Auto answer Adaptive line probing Automatic symbol and carrier frequency during start-up, retrain, and rate
renegotiations DTMF detection Distinctive ring Voice record and playback Call status display, auto-parity and data rate selections Keyboard-controlled modem options On-screen displays for modem option parameters Remote configuration DTR dialing Phone number storage Flash memory for firmware updates NVRAM storage for user-defined parameters
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 67
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
SocketModem Configuration
Serial Configuration
The MT5634SMI SocketModem uses a 20-pin interface to provide an on-board DAA with tip and ring connections, audio circuit for call-progress monitoring, LED driver for call status annunciation, and serial interface.
Note: The bolded, shaded pins are the active MT5634SMI pins.
Serial SocketModem Pinout
Note: Pin 6 is RX- for the SocketEthernet IP. For ISDN, Pin 6 is RX+.
Pin 7 is RX+ for the SocketEthernet IP. For ISDN, Pin 7 is RX-.
For pin descriptions, see the Universal Pinout Description on pages 10-12.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 68
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
Parallel Configuration
The parallel configuration is not compatible with the serial universal socket. The MT5634SMI-P (Parallel) SocketModem uses a 22-pin interface to provide an on-board DAA with tip and ring connections, audio circuit for call-progress monitoring, and parallel interface.
Note: The bolded, shaded pins are the active MT5634SMI-P (Parallel) pins.
Parallel SocketModem Pins
Pin Descriptions for a Parallel SocketModem Device
Pin # Signal I/O Description
1 Tip I/O 2 Ring I/O
24 –RESET I
25 A1 I 26 DGND GND 27 D7 O 29 D2 O 30 INT O
31 A0 I 32 –WR I
33 –RD I
34 A2 I
35 D4 O 36 D5 O 37 D0 O 38 D1 O 39 D3 O
40 –DS I
41 D6 O 61 VCC PWR 63 AGND GND
64 SPKR O
Telephone Line Interface – TIP Telephone Line Interface – RING Modem Reset (with pull-up). Active low –RESET input resets the SocketModem logic and
returns AT command set to original factory defaults or to NVRAM 'stored values' . The modem is ready to accept commands within 6.5 seconds of power-on or reset. Reset must be asserted for a minimum of 30ms.
Host Bus Address Line 1 Digital Ground Host Bus Data Line 7 Host Bus Data Line 2 Host Bus Interrupt Line. INT output is set high when the receiver error flag, receiver data
available, transmitter holding register empty, or modem status interrupt have an active high condition. INT is reset low upon the appropriate interrupt service or master reset operation.
Host Bus Address Line 0. Host Bus Write. –WR is an active low, write control input. When –DS is low, –WR low allows the host to write data or control words into a selected modem register. Host Bus Read. –RD is an active low, read control input. When –DS is low, –RD low allows
the host to read status information or data from a selected modem register.
Host Bus Address Line 2 Host Bus Data Line 4 Host Bus Data Line 5 Host Bus Data Line 0 Host Bus Data Line 1 Host Bus Data Line 3 Host Bus Device Select. –DS input low enables the modem for read or write. Host Bus Data Line 6 +5 V or 3.3 V Supply (depends upon model). Analog Ground. This is tied common with DGND on the SocketModem. To minimize potential
ground noise issues, connect audio circuit return to AGND. Speaker Output. SPKR is a single ended-output. It is tied to the CODEC through a series 6.8K resistor and .1uf cap.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 69
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
Electrical Characteristics
3.3 V Serial – Industrial Temperature (SMI-ITP) Build Option
3.3 V DC Characteristics (TA = -40 °C to 85 °C; VDD = 3.3 V ± 0.3 V) VDDMAX = 3.6 V
Digital Inputs
–DTR (40), –TXD (35), –RTS (33) –Reset (24) Input High
Digital Outputs –DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34) Digital Input Capacitance
3.3 V Parallel – Standard (SMI) and Industrial Temperature (SMI-ITP) Build Options
MT5634SMI for Parallel MT5634SMI SocketModem devices are presented below.
3.3 V DC Characteristics (TA = –40 °C to 85 °C; VDD = 3.3 V ± 0.3 V)
Digital Inputs –DS (40) Digital Inputs (hysteresis input buffer) A0 (31), A1 (25), A2 (34), –WR (32), –RD (33) Digital Input/Output Output buffer can source 12 mA at 0.4 V
DO (37), D1 (38), D2 (29), D3 (39), D4 (35), D5 (36), D6 (41), D7 (27)
Digital Output INT (30) Digital Input Capacitance 5 pF
Input High
Min 2.52 V
Min 2.52 V
Output High
Min. 2.3 V
VDDMAX = 3.6 V
Input High Min 2.52 V Input High Min 2.52 V Input High Min 2.52 V
Output High Min 2.3 V
Input Low Max 0.9 V Input Low
Max 0.3 V
Output Low Max 0.4 V
Input Low Max 0.9 V Input Low Max 0.9 V Input Low Max 0.9 V
Output Low Max 0.4 V
Current Drive 2 mA 5 pF
Current Drive 2 mA
5 V Serial – Standard (SMI) and Medical Device (SMI-HV) Build Options
5 V DC Characteristics (TA = 0 °C to 50 °C; VDD = 5 V ± 0.25 V) VDDMAX = 5.25 V
Digital Inputs
–DTR (40), –TXD (35), –RTS (33) –Reset (24) Input High
Digital Outputs –DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34) Digital Input Capacitance
Input High
Min 3.675 V
Min 3.675 V
Output High Min. 4 V
Input Low Max 1.4 V Input Low
Max 0.3 V
Output Low Max 0.4 V
Current Drive 2 mA 5 PF
5 V Parallel – Standard (SMI) and Medical Device (SMI-HV) Build Options
5 V DC Characteristics (TA = 0 °C to 50 °C; VDD = 5 V ± 0.25 V) VDDMAX = 5.25 V
Digital Inputs –DS (40) Digital Inputs (hysteresis input buffer) A0 (31), A1 (25), A2 (34), –WR (32), –RD (33) Digital Input / Output Output buffer can source 12 mA at 0.4 V
DO (37), D1 (38), D2 (29), D3 (39), D4 (35), D5 (36), D6 (41), D7 (27)
Digital Output INT (30) Digital Input Capacitance 5 pF
Input High Min. 3.675 V Input High Min. 3.675 V Input High
Min. 3.675 V
Output High Min. 4 V
Input Low
Max. 1.4 V
Input Low Max. 1.4 V Input Low
Max. 1.4 V
Output Low Max 0.4 V
Current Drive
2 mA
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 70
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
Timing Requirements
Timing Requirements for Parallel Write
Parameter Min Max Unit
–DS to –WR Setup (low to low) 10 - ns A0, A1, A2 to –WR Setup (valid to low) 15 - ns –WR Pulse Width (low to high) 40 - ns D0–D7 to –WR Setup (valid to high) 30 - ns –WR to –DS hold (high to high) 0 - ns –WR to A0–A2 Hold (high to invalid) 0 - ns –WR to D0–D7 Hold (high to invalid) 0 - ns –WR interaccess (high to low)
Non-MIMIC Accesses MIMIC Accesses
Timing Requirements for Parallel Read
Parameter Min Max Unit
–DS to –RD Setup (low to low) 10 - ns A0, A1, A2 to –RD Setup (valid to low) 15 - ns –RD Pulse Width (low to high) 40 - ns –RD to –DS hold (high to high) 0 - ns –RD to A0–A2 Hold (high to invalid) 0 - ns –WR interaccess (high to low)
Non-MIMIC Accesses MIMIC Accesses
10 110
10 110
-
-
-
-
ns ns
ns ns
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 71
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
SocketModem Parallel Interface Internal Registers
The SocketModem parallel interface is a mimic of a 16C550A UART. It is similar to the MIMIC interface used in the Zilog Z80189. The SocketModem mimic (MMM) takes advantage of this standard interface while replacing the serial to parallel data transfer with a less complicated parallel to parallel data transfer.
The MMM interface controls an 8-bit parallel data transfer which is typically interrupt driven. Interrupts usually indicate one or both of two conditions: (1) the receive (RX) FIFO has either reached a trigger level or time-out condition and needs to be emptied and/or (2) the transmit (TX) FIFO is empty and waiting for more data from the Host. An interrupt can also be triggered by a change in the modem status register (i.e., loss of carrier) or by the occurrence of errors in the line status register (overrun, parity, framing, break detect).
In addition to the receive and transmit FIFOs, there are twelve other control/status registers called the MMM register set which can be accessed through this interface.
Overview
SocketModem MIMIC (MMM) Operation
Data flow through MMM is bi-directional. Simultaneously, data can flow from the host through the transmit FIFO to the SocketModem controller, and data can flow from SocketModem controller through the receive FIFO to the Host. In the receive path, 8-bit data is asynchronously received (from the SocketModem controller) by the receive FIFO where it is stored along with associated three error bits. The error bits must arrive (via a SocketModem controller I/O write to MMM shadow line status register) prior to receiving the actual data bits. The error bits are then temporarily stored so they may be written, with associated data bits, to the 11-bit wide RX FIFO.
After every data write, the RX FIFO write pointer is incremented. RX FIFO trigger levels, data ready signal, and time­out counter are checked to see if a Host interrupt needs to be sent. The data ready signal will be activated and MMM sits poised to accept another data word.
We highly recommend the host should read the MMM IIR register to determine the type of interrupt. Then it might check bit 7 of the LSR to see if there are any errors in the data currently residing in the receive FIFO. Finally, it will (1) alternately read a data word through the RX FIFO read pointer and the error bits via the MMM LSR until the FIFO is empty, or (2) read successive data words (knowing there were no errors in the FIFO) until the trigger count is met.
A similar sequence occurs when data flows in the other direction (from host through transmit FIFO), except there is no error bit manipulation/checking involved.
FIFO Operation
The 16-byte transmit and receive data FIFOs are enabled by the FIFO Control Register (FCR) bit-0. You can set the receive trigger level via FCR bits 6/7. The receiver FIFO section includes a time-out function to ensure data is delivered to the external host. An interrupt is generated whenever the Receive Holding Register (RHR) has not been read following the loading of a character or the receive trigger level has been reached.
Receive (RX) FIFO
The RX FIFO can be configured to be 16 words deep and 11 bits wide. Each word in the RX FIFO consists of 8 data bits and 3 error bits. The RX block of the MMM contains read and write pointers and status flag circuitry that need only to be presented with data (for input), reset, read/write control signals, and read/write clock signals. The RX block of the MMM internally manages the FIFO register file and pointers, and it provides simultaneous read/write capability (no contention problems).
The RX block of the MMM provides data (for output), FIFO full flag, FIFO empty flag, and an almost full flag which uses an associated predefined trigger level (obtained from the MMM FCR control register) to signal when the trigger level has been met. Four possible trigger levels may be selected by programming bits 6-7 of the FCR control register.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 72
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
A typical (interrupt driven) write to the RX block is a two-step process. The MMM micro-controller must first write the 3 error bits to a shadow MMM LSR status register. Next, the micro-controller writes the data to the RX FIFO and during this write operation, the 3 error bits are directly loaded from the LSR shadow register into the bits 8­10 of the selected (11 bit-wide) FIFO register. These error bits represent the parity error, framing error, and break interrupt signals associated with each data work transmission into the receive FIFO. When the receive FIFO is read, these error bits are loaded directly into bits 2-4 of the MMM LSR register.
A2 A1 A0 Register Name Register Description Host Access
0
0
0
RBR
0
0
0
THR
0
0
1
IER
0
1
0
IIR
0
1
0
FCR
0
1
1
LCR
1
0
0
MCR
1
0
1
LSR
1
1
0
MSR
1
1
1
SCR
0
0
0
DLL
0
0
1
DLM
1
1
1
DLX
1
0
0
MCX
Note 1* The General Register set is accessible only when DS is a logic 0.
Note 2* The Baud Rate register set is accessible only when DS is a logic 0 and LCR bit-7 is a logic 1.
Receive Buffer (RX FIFO) Transmit Holding (TX FIFO) Interrupt Enable Interrupt Identification FIFO Control Line Control Modem Control Line Status Modem Status Scratch pad LSB of Divisor Latch MSB of Divisor Latch Divisor Latch Status/Control
DLAB = 0 R only DLAB = 0 W only DLAB = 0 R/W DLAB = X R only DLAB = X W only DLAB = X R/W DLAB = 0 R/W DLAB = X R only DLAB = X R only DLAB = 0 R/W
DLAB = 1 R/W DLAB = 1 R/W DLAB = 1 R/W DLAB = 1 R/W
Time Out Interrupts
The interrupts are enabled by IER bits 0-3. Care must be taken when handling these interrupts. Following a reset the transmitter interrupt is enabled, the SocketModem will issue an interrupt to indicate that transmit holding register is empty. This interrupt must be serviced prior to continuing operations.
The LSR register provides the current singular highest priority interrupt only. A condition can exist where a higher priority interrupt may mask the lower priority interrupt(s). Only after servicing the higher pending interrupt will the lower priority interrupt(s) be reflected in the status register. Servicing the interrupt without investigating further interrupt conditions can result in data errors. When two interrupt conditions have the same priority, it is important to service these interrupts correctly.
Receive Data Ready and Receive Time Out have the same interrupt priority (when enabled by IER bit-3). The receiver issues an interrupt after the number of characters received have reached the programmed trigger level. In this case the MMM FIFO may hold more characters than the programmed trigger level. Following the removal of a data byte, the user should recheck LSR bit-0 for additional characters. A Receive Time Out will not occur if the receive FIFO is empty. The time out counter is reset at the center of each stop bit received or each time the receive holding register (RHR) is read.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 73
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
Register Functional Definitions
The following table delineates the assigned bit functions for the twelve internal registers. The assigned bit functions are more fully defined in the following paragraphs.
Internal Registers
A2 A1 A0 Register
[Default] *3
General Register Set: Note 1*
0 0 0 RBR [XX] Bit-7 Bit-6 Bit-5 Bit-4 Bit-3 Bit-2 Bit-1 Bit-0
0 0 0 THR [XX] Bit-7 Bit-6 Bit-5 Bit-4 Bit-3 Bit-2 Bit-1 Bit-0
0 0 1 IER [00] 0 0 0 0 Modem
0 1 0 IIR [XX] FIFO
0 1 0 FCR [00] RX
0 1 1 LCR [00] Divisor
1 0 0 MCR [00] 0 0 0 Loop
1 0 1 LSR [60] RX
1 1 0 MSR [X0] CD RI
1 1 1 SCR [FF] Bit-7 Bit-6 Bit-5 Bit-4 Bit-3 Bit-2 Bit-1 Bit-0
Special Register Set: Note *2
0 0 0 DLL [00] Bit-7 Bit-6 Bit-5 Bit-4 Bit-3 Bit-2 Bit-1 Bit-0
0 0 1 DLM [00] Bit-7 Bit-6 Bit-5 Bit-4 Bit-3 Bit-2 Bit-1 Bit-0
Note: 1* The General Register set is accessible only when DS is a logic 0.
2* The Baud Rate register set is accessible only when DS is a logic 0 and LCR bit-7 is a logic 1. 3* The value between the square brackets represents the register's initialized HEX value, X = N/A.
BIT-7 BIT-6 BIT-5 BIT-4 BIT-3 BIT-2 BIT-1 BIT-0
enable
Trigger (MSB)
latch access (DLAB)
FIFO data error
FIFO enable RX trigger (LSB) Set break
TX empty THR empty
Receive Status Interrupt
0 0 Interrupt
ID
Detect change in FCR Stick parity
THR Empty
DSR CTS Delta
TX FIFO overrun bit Even parity
back Break interrupt
DMA mode select Parity enable
INT enable Framing error
-CD
Line
Status
interrupt
Interrupt
ID
XMIT
FIFO
reset
0 Word
OUT 1 -RTS -DTR
Parity
error
Delta
-RI
Transmit Holding Register interrupt Interrupt ID RCVR FIFO reset
length bit­1
Overrun error
Delta
-DSR
Receive Holding Register interrupt Interrupt Pending FIFO enable
Word length bit-0
Receive data ready
Delta
-CTS
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 74
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
RBR – Receive Buffer (RX FIFO)
All eight bits are used for receive channel data (host read/data in; host write/data out). The three error bits per byte are copied into bits 2, 3, and 4 of the LSR during each host I/O read; therefore, they are available for monitoring on a per-byte basis.
THR – Transmit Holding Register (TX FIFO)
All eight bits are used for transmit channel data (host write/data out; host read/data in).
IER – Interrupt Enable
Bits 4–7: Reserved and will always read 0.
Bits 0-3: Set by host software only and cleared by software control or host reset.
Bit 3: Enables modem status IRQ. If bits 0–3 of the MSR are set and this bit is set to 1 (enabled),
a host interrupt is generated.
Bit 2: Enables receive line status IRQ. If bits 1–4 (overrun, parity, framing, break errors) of the
LSR are set and this bit is set to a logic 1, a host interrupt is generated.
Bit 1: Enables transmit holding register IRQ. If bit 5 (transmit holding register empty) of the LSR is
set and this bit is set to a 1, a host interrupt is generated.
Bit 0: Enables received data available IRQ. If bit 0 (data ready) of the LSR is set and this bit is set
to a 1, a host interrupt is generated.
IIR – Interrupt Identification (Read Only)
Bits 6–7: (FIFO enabled bits). These bits will read a 1 if FIFO mode is enabled and the 16450 enable
bit is 0 (no force of 16450 mode).
Bits 4–5: Reserved and always read a 0.
Bits 1–3: Interrupt ID bits.
Bit 0: Interrupt pending. If logic 0 (in default mode), an interrupt is pending.
When the host accesses IIR, the contents of the register are frozen. Any new interrupts will be recorded, but not acknowledged during the IIR access. This requires buffering bits (0–3, 6–7) during IIR reads.
Interrupt Sources and Reset Control Table
Bit 3 Bit 2 Bit 1 Priority Interrupt Source Interrupt Reset Control
0 1 1 Highest Overrun, parity, framing, error
or break detect bits set by SocketModem Controller
0 1 0 2nd Received data trigger level
1 1 0 2nd Receiver time-out with data in
RX FIFO
0 0 1 3rd TX holding register empty Writing to TX holding
0 0 0 4th MODEM status: CTS, DSR, RI
or DCD
Reading the LSR
RX FIFO drops below trigger level Read RX FIFO
register or reading IIR when TX holding register is source of error Reading the MSR
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 75
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
FCR – FIFO Control
Bits 6–7: Used to determine RX FIFO trigger levels. Bit 5: Used to detect a change in the FCR. Bit 4: TX FIFO overrun bit. Bit 3: DMA mode select. If bit 3 is a 0, the 16450 mode is enabled which does only single-byte
transfers. When bit 3 is a 1, it enables a multiple byte (FIFO mode) data transfer.
Bit 2: TX FIFO reset. This will cause TX FIFO pointer logic to be reset (any data in TX FIFO will be
lost). This bit is self clearing; however, a shadow bit exists that is cleared only when read by the host, thus allowing the host to monitor a FIFO reset.
Bit 1: RX FIFO reset. This will cause RX FIFO pointer logic to be reset (any data in RX FIFO will
be lost). This bit is self clearing; however, a shadow bit exists that is cleared only when read by the host, thus allowing the host to monitor a FIFO reset.
Bit 0: FIFO enable. The host writes this bit to logic 1 to put the block in FIFO mode. This bit must
be a 1 when writing other bits in this register or they will not be programmed. When this bit changes state, any data in the FIFOs or the RBR and THR registers will be lost and any pending interrupts are cleared.
Bit 7 Bit 6 16 Deep FIFO Trigger Levels (# of bytes) Default
0 0 1 0 1 4 1 0 8 1 1 14
LCR – Line Control
Bit 7: Divisor latch access bit. This bit allows the host, access to the divisor latch. Under
normal circumstances, the bit is set to 0 (provides access to the RX and TX FIFOs at address 0). If the bit is set to 1, access to transmitter, receiver, interrupt enable, and modem control registers is disabled. In this case, when an access is made to address 0, the divisor latch least (DLL) significant byte is accessed. Address 1 accesses the most significant byte (DLM). Address 7 accesses the DLX divisor latch register. Address 4 accesses the MCX status/control register.
Bit 6: Used to denote a host-generated set break condition. Bits 0,1,3,4,5: Used only in parity bit generation for the 7 bit data byte case. Bits 0 and 1 are used for
word length select (b0 = 0 and b1 = 1 is used for 7 bit data). Bit 3 is parity enable. Bit 4 is even parity select. Bit 5 is stick parity.
MCR – Modem Control
Bits 5–7: Reserved, and will always be 0. Bit 4: Used for loopback. When a 1, bits 0–3 of the MCR are reflected in modem status register
(MSR) as follows: RI <= OUT1, DCD <= OUT2, DSR <= DTR, CTS <= RTS. Emulation of loopback feature of 16550 UART must be done by the host except for the above conditions. Also, when this bit is set, it allows for data loop back. This means the host can write a data word to the TX and immediately read back the same data word from the RX (in a manner similar to the 16550A).
Bit 3: Controls the signal used to 3-state the host interrupt. If 0, then an active-low L33xV output
will be set to 0, and this signal will be used to 3-state the host interrupt output pin.
Bits 0–2: Used during LOOP function. Bit 2: OUT1. Bit 1: Request to Send (RTS). Bit 0: Data terminal ready (DTR).
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 76
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
LSR – Line Status
Bit 7: Error in RX FIFO. This bit is always set to 1 if at least one data byte in the RX FIFO has an
error. This will clear when there are no more errors in the RX FIFO.
Bit 6: Transmitter empty. This bit is the same as LSR bit 5 (THRE) in MMM
Bit 5: Transmitter holding register empty. This bit is set to 1 when either the transmitter holding
register has been read (emptied) by the micro-controller (16450 mode) or the TX FIFO is empty (16550 mode). This bit is set to 0 when either the THR or the TX FIFO becomes not empty in 16450 mode. In 16550 mode, it is set to 0 only after the trigger level has been met since the last occurrence of TX FIFO empty. If the transmitter timer is enabled, a shadow bit exists which delays the timer setting this bit to 1. When reading this bit, the micro-controller will not see the delay. Both shadow and register bits are cleared when the host writes to the THR or TX FIFO in 16450 mode. The trigger level must be reached to clear the bit in 16550 (FIFO) mode.
Bits 2–4: Used for parity error, framing error, and break detect. These bits are written, indirectly, by the
micro-controller as follows: The bits are first written to the shadow bit locations when the micro­controller write accesses the LSR. When the next character is written to the receive buffer (RBR) or the RX FIFO, the data in the shadow bits is then copied to the RBR (16450 mode) or RX FIFO (16550 mode). In FIFO mode, bits become available to the host when the data byte associated with the bits is next to be read. In FIFO mode, with successive reads of the receiver, the status bits will be set if an error occurs on any byte. Once the micro-controller writes to the RBR or RX FIFO, the shadow bits are auto cleared. The register bits are updated with each host read.
Bit 1: Overrun error. This bit is set if the micro-controller makes a second write to RBR before the
host reads data in the buffer (16450 mode) or with a full RX FIFO (16550 mode). No data will be transferred to the RX FIFO under these circumstances. This bit is reset when the host reads the LSR.
Bit 0: Data ready bit. This bit is set to 1 when received data is available, either in the RX FIFO
(16550 mode) or the RBR (16450 mode). This bit is set immediately upon the micro-controller writing data to the RBR or FIFO if the receive timer is not enabled, but it is delayed by the timer interval if the receive timer is enabled. For micro-controller read access, a shadow bit exists so that the micro-controller does not see the delay that the host sees. Both bits are cleared to logic 0 immediately upon reading all data in either RBR or RX FIFO.
MSR – Modem Status
Bits 4 through 7 of the MSR can also take on the MCR bits 0 through 3 value when in MCR loop mode (i.e. when MCR b4 = 1). The transfer of bits in loop back has a null modem twist (i.e. MCR b0 goes to MSR b5 and MCR b1goes to MSR b4).
Bit 7: Data carrier detect (DCD) bit.
Bit 6: Ring indicator (RI) bit.
Bit 5: Data set ready (DSR) bit.
Bit 4: Clear to send (CTS) bit.
Bit 3: Delta data carrier detect pin. This bit is set to a 1 whenever the data carrier detect bit changes
state. It is reset when the host reads the modem status register.
Bit 2: Trailing edge ring indicator bit. This bit is set to 1 on the falling edge of the ring indicator bit. It
is reset when the host reads the modem status register.
Bit 1: Delta data set ready bit. This bit is set to 1 whenever the data set ready changes state. It is
reset when the host reads the modem status register.
Bit 0: Delta clear to send bit. This bit is a one whenever the clear to send bit changes state. It is reset
when the host reads the modem status register.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 77
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
SCR – Scratch
The host programmer uses this register for temporary data storage.
DLL – Divisor Latch (LSByte)
This register contains low-order byte for the 16-bit clock divider. It is kept to maintain register set compatibility with the 16C550A interface. However, it is not used for clock generation since MMM does not require the generation of a real baud clock.
DLM – Divisor Latch (MSByte)
This register contains high-order byte for the 16-bit clock divider. It is kept to maintain register set compatibility with the 16C550A interface. However, it is not used for clock generation, since MMM does not require the generation of a real baud clock.
Programming the Baud Rate Generator Registers DLM (MSB) and DLL (LSB) provides a user capability for selecting the desired final baud rate. The example in the Table below shows the selectable baud rates available when using a 1.8432 MHz external clock input.
BAUD RATE GENERATOR PROGRAMMING TABLE
Baud Rate
110 300 600 1200 2400 4800 9600
19.2K
38.4K
57.6K
115.2K
16 x Clock Divisor (Decimal) DLM Value (HEX) DLL Value (HEX)
1047 384 192 96 48 24 12 6 3 2 1
04 01 00 00 00 00 00 00 00 00 00
17 80 C0 60 30 18 0C 06 03 02 01
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 78
Application Notes
Tip and Ring Interface
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
OEM Motherboard
Filtering and Surge Protection Options
Note: See Design Considerations and Recommended Components.
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 79
Chapter 3 – SocketModem (MT5634SMI-34 & MT5634SMI-92)
Recommended Parts
Disclaimer: Multi-Tech Systems makes no warranty claims for vendor product recommendations
listed below. Other vendor products may or may not operate satisfactorily. Multi-Tech System’s recommended vendor products only indicate that the product has been tested in controlled conditions and were found to perform satisfactorily.
Surface mount ferrites are used on T&R (Tip and Ring) to mitigate emission levels out the RJ-11 cable. 220pF capacitors are also used on T&R to reduce the common mode emissions that may be present in certain systems. The ferrite and capacitors also aid in reducing the effects of transients that may be present on the line.
Recommended Ferrite (SMT)
Manufacturer – Associated Component Technology (ACT) – Part # - YCB-1206 Manufacturer – Murata Erie – Part # - BLM31AJ601SN1
Recommended Ferrite (Thru-Hole)
Manufacturer – Associated Component Technology (ACT) – Part # - WB2-2.OT
Recommended Capacitor
Manufacturer – NOVACAP – Part # - ES2211NKES502NXT Manufacturer – Murata Erie – Part # - GA355DR7GC221KY02L (Surface mount device)
Part # - DE0807B221K-KH (Thru-hole device)
Manufacturer – Ever Grace Electronic Industrials -- Part # - YP221K2EA7PS
Note: The capacitors used on T&R must have the Y2 safety rating.
Recommended Connector
Manufacturer – Stewart – Part # - SS-6446-NF-A431
Recommended Poly Switch Thermal Fuse (can be reset)
Manufacturer – RayChem – Part # - TS600-170
Note: The fuse is also needed to meet UL60950 for protection against over-voltage from power line crosses.
Telecom
The RJ-11 connector must meet FCC Part 68 requirements. Refer to FCC Part 68 section 68.500 subpart F for connector specifications. A self-healing fuse is used in series with line to help prevent damage to the DAA circuit. This fuse is needed for FCC Part 68 compliance.
Common Mode Choke
Manufacturer – TDK – Part # - ZJYS51R5-2PT
Recommended Sidactor
Manufacturer – Teccor Electronics – Part # - P#3100SA Manufacturer – ST Microelectronics -- Part 1 – SMP100LC-270
Recommended Transceiver
Manufacturer – Analog Devices – Part # - ADM207EAR
Dip Connector for the MT5600SMI-P92
Manufacturer – Specialty Electronics (www.connectorsolutions.com) 4-Pin 2.0mm SIP Socket (2 Each) 10-Pin 2.0mm SIP Socket (2 Each)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 80
Chapter 4
SocketModem
MT2456SMI-22
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 81
Chapter 4 – SocketModem (MT2456SMI-22)
Chapter 4 – SocketModem
(MT2456SMI-22)
Introduction
The Multi-Tech SocketModem supports analog data modem operation with V.22bis Fast Connect, V.42bis data compression, and V.80 synchronous access mode. The SocketModem is a space-efficient (1" × 2.5"), embedded modem that is ready-to-integrate into your applications; therefore, dramatically reducing development time and costs for system designers.
The MT2456SMI-22 SocketModem is a standard 64-pin modem used for integrating data communications. It is a single-port 5 V or 3.3 V modem that integrates a modem controller, DSP, and DAA in a 1" x 2.5" form factor and communicates to a host controller via an asynchronous serial interface.
Product Ordering Information
Product Description Region
MT2456SMI-22 V.22bis Serial Data Only – 5 V Global MT2456SMI-L-22 V.22bis Serial Data Only – 3.3 V Global
Telecom Label
MT2456SMI-LS MT2456SMI-Global Regulatory Label Global
Developer Kit
MTSMI-DK SocketModem Serial Developer Kit Global
How to Read the Product Codes in the Table Above:
22 5 Volt Build L22 3.3 Volt Build LS Telecom Label DK Developer Kit
Other Product Codes:
Rx “R” indicates product revision. “x” is the revision number. RoHs ordering part number includes an .R2 or greater.
Order this
Product
3
Developer Kit
A SocketModem Developer Kit is available for the MT2456SMI-22. It includes:
• Developer Board with an RS-232 DB-25 Connector
• Wall Power Adapter
• RJ-11 Jack
• RS-232 Cable
• Developer Kit CD
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 82
Technical Specifications
The SocketModem meets the following specifications:
Category Description
Chapter 4 – SocketModem (MT2456SMI-22)
Client-to-Server Data Rates
Client-to-Client Data Rates
Data Format
Modem Compatibility
Error Correction
Data Compression
Speed Conversion
Modes of Operation
Flow Control
Command Buffer
Transmit Level
Frequency Stability
Receiver Sensitivity
Interface
Diagnostics
Weight
V.22 bis
2400, 1200, 0-300 bps
Serial, asynchronous
V.22bis, V.22; Bell 212A and 103/113; ITU-T V.21 & V.23
ITU-T V.42 (LAP-M or MNP 2–4)
ITU-T V.42bis
Serial port data rates adjustable to 300, 1200, 2400, 4800, 9600, 19,200, 38,400, 57,600, and 115,200
Full duplex over dial-up lines; data mode, command mode, and online command mode
XON/XOFF (software), RTS/CTS (hardware)
50 characters
–12 dBm (varies by country setting)
±0.01%
–43 dBm under worst-case conditions
Serial ITU-T V.24 logical interface
Local analog loop
0.02 Kg. (0.04 lb.)
Dimensions
Power Consumption 3.3 Volt: Typical: 60 mA (.235 W @ 3.3 V DC);
Operating Voltage
Operational Temperature
Storage Temperature
Manufacturing Information
1.045" × 2.541" × 0.680" (2.7 x 6.5 x 1.8 cm)
Maximum: 70 mA (.264 W @ 3.6 V DC) 5 Volt: Typical: 60 mA ( .300 W @ 5 V DC); Maximum: 70 mA
Typical: 3.3 V DC ± 5%; Absolute Maximum Supply Voltage: 3.6 V DC
Typical: 5 V DC ± 5%; Absolute Maximum Supply Voltage: 5.5 V DC
0 to +70° C ambient under closed conditions; humidity range 20% to 90% (non­condensing)
-10° to +85° C
Trade Name: SocketModem Model Number: MT2456SMI-22 & MT2456SMI-22L Registration No: US: AU7MD04B2456 Ringer Equivalence: 0.4B Modular Jack (USOC): RJ11 or RJ11W (Single Line)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 83
Category Description
Approvals Safety Certifications
UL60950 cUL60950 EN60950 IEC60950 ACA TS001 / AS 3260 CCC
EMC Approvals
FCC Part 15 (Class B) Canadian EMC (Class B) EN 55022 (Class B) EN 55024
Intelligent Features
TIA-602 AT command compatible V.22bis fast connect Supports V.80 Supports Fast POS 9600 Line polarity reversal detection Line current loss detection Line-in-use detection during on-hook operation Extension pickup detection Call waiting detection Caller ID (US configuration only) Autodial, redial Pulse or tone dial Auto answer Call status display
Chapter 4 – SocketModem (MT2456SMI-22)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 84
Chapter 4 – SocketModem (MT2456SMI-22)
SocketModem Configuration
Serial Configuration
The MT2456SMI-22 SocketModem with a serial interface use a 16-pin interface to provide an on-board DAA with tip and ring connections, audio circuit for call-progress monitoring and serial interface via logic level signals.
Note: The bolded, shaded pins are active MT2456SMI-22 pins.
Serial SocketModem Pinout
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 85
Chapter 4 – SocketModem (MT2456SMI-22)
Electrical Characteristics
3.3 V and 5 V Serial SocketModem
3.3 V DC Characteristics (TA = 0°C to 70°C; VDD = 3.3 V ± 0.3 V) VDDMAX = 3.6 V
5 V DC Characteristics (TA = 0°C to 50°C; VDD = 5 V ± 0.25 V)
Inputs Input High Input Low
–DTR (40), –TXD (35), –RTS (33), –RESET (24) Min 2.0 V Max 0.8 V
Outputs Output High Output Low
–DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34)
2mA, Z
= 120 Ω
INT
Digital Input Capacitance
VDDMAX = 5.25 V
Min 2.4 V Max 0.4 V
50pF
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 86
Applications Notes
Tip and Ring Interface
Chapter 4 – SocketModem (MT2456SMI-22)
OEM Motherboard
Filtering and Surge Protection Options
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 87
Chapter 4 – SocketModem (MT2456SMI-22)
Recommended Parts
Disclaimer: Multi-Tech Systems makes no warranty claims for vendor product recommendations listed below.
Other vendor products may or may not operate satisfactorily. Multi-Tech System’s recommended vendor products only indicate that the product has been tested in controlled conditions and were found to perform satisfactorily.
Surface mount ferrites are used on T&R (Tip and Ring) to mitigate emission levels out the RJ-11 cable. 220pF capacitors are also used on T&R to reduce the common mode emissions that may be present in certain systems. The ferrite and capacitors also aid in reducing the effects of transients that may be present on the line.
Recommended Ferrite (SMT)
Manufacturer – Associated Component Technology (ACT) – Part # - YCB-1206 Manufacturer – Murata Erie – Part # - BLM31AJ601SN1
Recommended Ferrite (Thru-Hole)
Manufacturer – Associated Component Technology (ACT) – Part # - WB2-2.OT
Recommended Capacitor
Manufacturer – NOVACAP – Part # - ES2211NKES502NXT Manufacturer – Murata Erie – Part # - GA355DR7GC221KY02L (Surface mount device)
Part # - DE0807B221K-KH (Thru-hole device)
Manufacturer – Ever Grace Electronic Industrials -- Part # - YP221K2EA7PS
Note: The capacitors used on T&R must have the Y2 safety rating.
Recommended Connector
Manufacturer – Stewart – Part # - SS-6446-NF-A431
Recommended Poly Switch Thermal Fuse (can be reset)
Manufacturer – RayChem – Part # - TS600-170
Note: The fuse is also needed to meet UL60950 for protection against over-voltage from power line crosses.
Telecom
The RJ-11 connector must meet FCC Part 68 requirements. Refer to FCC Part 68 section 68.500 subpart F for connector specifications. A self-healing fuse is used in series with line to help prevent damage to the DAA circuit. This fuse is needed for FCC Part 68 compliance.
Common Mode Choke
Manufacturer – TDK – Part # - ZJYS51R5-2PT
Recommended Sidactor
Manufacturer – Teccor Electronics – Part # - P#3100SA Manufacturer – ST Microelectronics -- Part 1 – SMP100LC-270
Recommended Transceiver
Manufacturer – Analog Devices – Part # - ADM207EAR
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 88
Chapter 5
SocketModem IP
MT2456SMI-IP
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 89
Chapter 5 – SocketModem IP (MT2456SMI-IP)
Chapter 5 – SocketModem IP
(MT2456SMI-IP)
Introduction
The Multi-Tech SocketModem IP integrates dial-up PSTN modem functionality and a complete TCP/IP protocol stack into a single product design.
The SocketModem IP is a complete ready-to-integrate module that embeds Internet protocols inside your product device allowing it to send and receive data over the Internet without connecting to a PC or gateway server.
The space efficient (1” x 2.5”) embedded modem of the SocketModem IP sends and receives data via e-mail, HTTP, or socket interfaces.
The SocketModem IP has successfully completed international compliance testing (homologation) for global approval. This means you can specify one module for each system used across the world. And, since the SocketModem IP is a host independent device, the associated telecom approvals are portable across any solution for which it is integrated.
Product Ordering Information
Product Description Region Order this
Product
3
MT2456SMI-IP-L22 V.22bis/2400 SocketModem and IP – 3.3 V Global
MT2456SMI-IP-L32 V.32bis/14.4K SocketModem and IP – 3.3 V Global
MT2456SMI-IP-L34 V.34/33.6K SocketModem and IP – 3.3 V Global
MT2456SMI-IP-L92 V.92/56K SocketModem and IP – 3.3 V Global
Telecom Label
MT2456SMI-LS MT2456SMI-Global Regulatory Label Global
Developer Kit
MTSMI-DK SocketModem Serial Developer Kit Global
How to Read the Product Codes in the Table Above:
IP TCP/IP Protocol Stack L 3.3 Volt LS Telecom Label DK Developer Kit
Other Product Codes:
Rx “R” indicates product revision. “x” is the revision number. RoHs ordering part number includes an .R2 or greater.
Developer Kit
The SocketModem IP Developer Kit allows you to plug in the SocketModem IP and use it externally connected to your PC for testing, programming and evaluation. The kit includes:
• Developer Board
• Universal Power Supply
• RS-232 Cable
• Developer Kit CD
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 90
Technical Specifications
Category Description
Chapter 5 – SocketModem IP (MT2456SMI-IP)
Data Format Flash Memory
Client-to-Client Data Rates
Data Error Correction Data Compression Modes of Operation
Command Buffer
Diagnostics Weight
Dimensions Power Consumption
Operating Voltage Operational
Temperature Storage Temperature
Manufacturing Information
Approvals
Serial, asynchronous 2 MEG
33,600, 31,200, 28,800, 26,400, 24,000, 21,600, 19,200, 16,800 bps 14,400, 12,000, 9600, 7200, 4800 bps 2400, 1200, 0-300 bps
V.92; V.34, V.32, V.32bis, V.22 V.42 (LAP-M or MNP 2–4) V.44, V.42bis Full duplex over dial-up lines; data mode, command mode, online command mode 50 characters
Local analog loop
0.001 kg. (0.04 lb.)
1.045" x 2.541" x 0.680" (2.7 x 6.5 x 1.8 cm) V.22bis: Typical: .135 mA (.445 W @ 3.3 V DC); Maximum: 195 mA (.702 W @ 3.6V DC)
V.92, V.34, V.32:
Typical: 165 mA (.545W @ 3.3 V DC); Maximum: 225 mA (.780 W @ 3.47 V DC) Typical: 3.3 V DC ± 10%; Absolute Maximum Supply Voltage: 3.6 V DC 0° C to +70° C ambient under closed conditions; humidity range 20% to 90% (non-
condensing)
-10 to +85° C Trade Name: SocketModem IP Model Number: MT2456SMI-IP Registration No: US:AU7MD0432456 Ringer Equivalence: 0.4B Modular Jack (USOC): RJ11
Safety Certifications
UL60950 cUL60950 EN60950 IEC60950 ACA TS001 / AS 3260 CCC
EMC Approvals
FCC Part 15 (Class B) Canadian (Class B) EN 55022 (Class B) EN 55024 GB4943, GB9254
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 91
Category Description
Telephony/TAM
Intelligent Features
Software Features
TAM (Telephone Answering Machine) In modem (transparent) mode V.253 commands: V.253 2-bit and 4-bit ADPCM, 8-bit linear PCM, and 4-bit IMA coding 8 kHz sample rate Concurrent DTMF, ring, and Caller ID detection
AT command compatible in modem (transparent) mode autodial, redial pulse or tone dial dial pauses auto answer adaptive line probing automatic symbol and carrier frequency during start-up, retrain, and rate
renegotiations DTMF detection call status display auto-parity and data rate selections Speaker interface for user-supplied call progress monitoring Caller ID (US configuration only) Serial interface supports DTE speeds to 230K bps Space efficient (1” x 2.5”) universal socket connectivity Internet processor runs DNS, Dial in PPP, LCP, HTTP, ICMP,IP, LCP, IPCP, LCP, POP3, PPP, SMTP, SNMP, SNTP, TCP, Telnet and TFTP protocols Binary Base 64 encoding and MIME email formats PAP, CHAP, and script authentication CCP Compression Web Server supports 64K of HTML web pages HTTP version 1.0 and 1.1 support Complete data modem solution, including controller, data pump, & DAA Modem mode bypasses the IP features AT command compatibility in modem (transparent) mode for modem configuration Command Line API for Internet configuration Flash memory to update firmware with the latest enhancements Dial-in PPP using remote dial-up networking
Internet Applications
Telnet Server & Telnet Client Terminal Server TFTP Server Command line configuration/management via serial interface User name and password authentication using local database PPP HTTP Server SMTP Client POP3 Client FTP Client SNTP Client DDNS
Other
Flash Upgrade
Chapter 5 – SocketModem IP (MT2456SMI-IP)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 92
Chapter 5 – SocketModem IP (MT2456SMI-IP)
SocketModem Configuration
Serial Configuration
The SocketModem IP use a 16-pin interface to provide an on-board DAA with tip and ring connections, audio circuit for call-progress monitoring and serial interface via logic level signals.
Note: 5 Volt Tolerant Signal Inputs are –DTR –TXD, –RTS and –RESET.
Drawing Note: The bolded, shaded pins are the active SocketModem IP pins.
SocketModem IP Pinout
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 93
Electrical Characteristics
3.3 V Serial
3.3 V DC Characteristics (TA = -40 °C to 85 °C; VDD = 3.3 V ± 0.3 V)
Digital Inputs
–DTR (40), –TXD (35), –RTS (33)
Note: These digital inputs are 5 volt tolerant
Digital Inputs
–RESET (24)
Note: These digital inputs are 5 V tolerant
Digital Outputs –DCD (39), –CTS (38), –DSR (37), –RI (36), –RXD (34)
Digital Input Capacitance
Input High Min 2.52 V
Input High
Min. 2.52 V
Output High
Min. 2.3 V
Chapter 5 – SocketModem IP (MT2456SMI-IP)
= 3.6 V
VDDMAX
Input Low Max 0.8 V
Input Low
Max. 0.3 V
Output Low Max 0.4 V
Current Drive 2 mA 5 pF
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 94
Application Notes
Tip and Ring Interface
Chapter 5 – SocketModem IP (MT2456SMI-IP)
OEM Motherboard
Filtering and Surge Protection
See Design Considerations and Recommended Components
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 95
Chapter 5 – SocketModem IP (MT2456SMI-IP)
Recommended Parts
Disclaimer: Multi-Tech Systems makes no warranty claims for vendor product recommendations
listed below. Other vendor products may or may not operate satisfactorily. Multi-Tech System’s recommended vendor products only indicate that the product has been tested in controlled conditions and were found to perform satisfactorily.
Surface mount ferrites are used on T&R (Tip and Ring) to mitigate emission levels out the RJ-11 cable. 220pF capacitors are also used on T&R to reduce the common mode emissions that may be present in certain systems. The ferrite and capacitors also aid in reducing the effects of transients that may be present on the line.
Recommended Ferrite (SMT)
Manufacturer – Associated Component Technology (ACT) – Part # - YCB-1206 Manufacturer – Murata Erie – Part # - BLM31AJ601SN1
Recommended Ferrite (Thru-Hole)
Manufacturer – Associated Component Technology (ACT) – Part # - WB2-2.OT
Recommended Capacitor
Manufacturer – NOVACAP – Part # - ES2211NKES502NXT Manufacturer – Murata Erie – Part # - GA355DR7GC221KY02L (Surface mount device)
Part # - DE0807B221K-KH (Thru-hole device)
Manufacturer – Ever Grace Electronic Industrials -- Part # - YP221K2EA7PS
Note: The capacitors used on T&R must have the Y2 safety rating.
Recommended Connector
Manufacturer – Stewart – Part # - SS-6446-NF-A431
Recommended Poly Switch Thermal Fuse (can be reset)
Manufacturer – RayChem – Part # - TS600-170
Note: The fuse is also needed to meet UL60950 for protection against over-voltage from power line crosses.
Telecom
The RJ-11 connector must meet FCC Part 68 requirements. Refer to FCC Part 68 section 68.500 subpart F for connector specifications. A self-healing fuse is used in series with line to help prevent damage to the DAA circuit. This fuse is needed for FCC Part 68 compliance.
Common Mode Choke
Manufacturer – TDK – Part # - ZJYS51R5-2PT
Recommended Sidactor
Manufacturer – Teccor Electronics – Part # - P#3100SA Manufacturer – ST Microelectronics -- Part 1 – SMP100LC-270
Recommended Transceiver
Manufacturer – Analog Devices – Part # - ADM207EAR
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 96
Chapter 6
SocketEthernet IP
MTXCSEM
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 97
Chapter 6 – SocketEthernet IP (MTXCSEM)
Chapter 6 – SocketEthernet IP
(MTXCSEM)
Introduction
The Multi-Tech SocketEthernet IP is a complete, ready to integrate serial-to-Ethernet module for connecting legacy devices to an IP network for remote monitoring, control and configuration. The space efficient module (1” x 2.5”) provides a high performance Ethernet bridge as well as a complete TCP/IP protocol stack into a single, universal socket design. The SocketEthernet IP can make your existing and next generation device, machine, or system, IP­ready while you focus on developing its core features.
Product Ordering Information
Product Description Region Order this Product
MTXCSEM Serial to Ethernet + IP - 5 V Global
MTXCSEM-L Serial to Ethernet + IP - 3.3 V Global
Developer Kit
MTSEM-DK SocketEthernet IP Developer Kit Global
3
How to Read the Product Codes in the Table Above:
IP TCP/IP Protocol Stack L 3.3 Volt DK Developer Kit
Other Product Codes:
Rx “R” indicates product revision. “x” is the revision number. RoHs ordering part number includes an .R2 or greater.
Developer Kit
The SocketEthernet IP Developer Kit allows you to plug in the SocketEthernet IP and use it externally connected to your PC for testing, programming and evaluation.
The kit includes:
• Developer Board
• Universal Power Supply
• RS-232 Cable
• Developer Kit CD
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 98
Technical Specifications
Category Description
Processor
Memory
Flash Memory
Board Dimensions
Weight
Protocols Supported
LAN Interface
Ethernet Interface
Serial Interface
Data Formats
Data Rates
Flow Control
Management
Security
System Software
LEDs
Power Usage
Operating Temperature
Storage Temperature
Cleaning
Manufacturing Information
150 MHz, ARM 9
8 MEG byte
2 MEG byte
1.045” w x 2.541” h x 0.680” d; 0.6 oz. (2.65cm x 6.45cm x 1.7cm; 0.017 kg.)
0.602 lb. (0.017 kg.)
ARP, DHCP client, ICMP, IP, UDP, TCP, Telnet, TFTP, HTTP server, SMTP client, POP3 client, FTP client, SNTP client, SNMPv1 Agent, AG server support for discovery and status, PPP, and PPP compression
10/100BaseT Ethernet
IEEE 802.3
Standard DCE Serial
Serial, binary, asynchronous
300; 1200; 2400; 4800; 9600; 19200; 38400; 57600; 115200; 230400 bps
RTS/CTS (hardware)
Serial; Telnet
Username and password authentication using local database
Flash ROM standard: downloadable from a TCP/IP host (TFTP) or Xmodem via Serial port
Speed, Collision, Link, Activity, Duplex
Power Consumption @ 3.3 V
Ethernet @ 10mbps Typical – 230 mA Maximum – 270 mA Ethernet @ 100mbps Typical – 260 mA Maximum – 300 mA
Power Consumption @ 5 V
Ethernet @ 10mbps Typical – 240 mA Maximum – 280 mA Ethernet @ 100mbps Typical – 270 mA Maximum – 310 mA
0 to +70C; humidity range 20-90% (non-condensing)
-40C to +85C
No cleaning/washing due to the manufacturing process used to produce this product
Trade Name: SocketEthernet IP Model Number: MTXCSEM
Chapter 6 – SocketEthernet IP (MTXCSEM)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 99
Category Description
Approvals Safety Certifications
UL60950 EN60950 IEC60950 ACA TS001 / AS 3260
Safety Certifications for High Voltage Build
UL60601-1 EN60601-1
EMC Approvals
FCC Part 15 Canadian EMC EN 55022 EN 55024
Intelligent Features
Software Features
Serial interface supports DTE speeds to 230K bps High performance 10/100BaseT Ethernet bridge High performance processor runs ARP, DHCP client, ICMP, IP, PPP, TCP, Telnet,
TFTP, HTTP server, SMTP client, POP3 client, and PPP compression.
LED driver outputs for visual monitoring speed, link, activity, collision and duplex
mode Half duplex or full duplex support on the LAN interface 256 frame buffer for Ethernet bridging Stores 10,000 MAC addresses Automatically learns MAC addresses Command line interface Central site setup and control of the remote modules Flash memory to update firmware with the latest enhancements Developer Kit available for testing, programming and evaluation
Internet Applications
DHCP Client Telnet Server & Telnet Client Terminal Server PPP UDP Server and UDP Client HTTP Server SMTP Client POP3 Client FTP Client SNTP Client SNMP Agent RAW UDP/TCP Socket Support via Serial Modem Emulation MII Tool Discovery Support and Remote Port Capture Using WinMCSI Port Redirector Command line configuration/management via Serial or Ethernet Username and password authentication using local database
Chapter 6 – SocketEthernet IP (MTXCSEM)
Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342D) 100
