Check Point

IP690 Security Platform

Installation Guide

Part No. N450000890 Rev 001

Published March 2009

All rights reserved. This product and related documentation are protected by copyright and distributed under licensing restricting their use, copying, distribution, and decompilation. No part of this product or related documentation may be reproduced in any form or by any means without prior written authorization of Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions. This publication and features described herein are subject to change without notice.

RESTRICTED RIGHTS LEGEND:

Use, duplication, or disclosure by the government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS

252.227-7013 and FAR 52.227-19.

TRADEMARKS:

Please refer to http://www.checkpoint.com/copyright.html for a list of our trademarks.

For third party notices, see http://www.checkpoint.com/3rd_party_copyright.html.

Check Point Contact Information

For additional technical information about Check Point products, and for the latest version of this document, see the Check Point Support Center at http://support.checkpoint.com/.

Check Point is engaged in a continuous effort to improve its documentation. Please help us by sending your comments to:

cp_techpub_feedback@checkpoint.com

2 Check Point IP690 Security Platform Installation Guide

Contents

Check Point Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

In this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Conventions this Guide Uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Command-Line Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Text Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

About the Check Point IP690 Security Platform. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Managing the Check Point IP690 Security Platform . . . . . . . . . . . . . . . . . . . . . . . . 16

Check Point IP690 Security Platform Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Four-Port 10/100/1000 Ethernet NIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

PMC Expansion Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Auxiliary Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

System Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Logging Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using Hard-Disk Drives for Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using PC Card for Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Power Supplies and Fan Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Fan Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Site Requirements, Warnings, and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Product Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2 Installing the Check Point IP690 Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Rack-Mounting the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Check Point IP690 Security Platform Installation Guide 3

3 Performing the Initial Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Using a Console Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Connecting Power and Turning the Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Performing the Initial Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Connecting Network Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Using Check Point Network Voyager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Viewing Check Point IPSO Documentation by Using

Check Point Network Voyager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Using the Command-Line Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Using Check Point Horizon Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4 Installing and Replacing Network Interface Cards . . . . . . . . . . . . . . . . . . . . . . . 41

Deactivating Configured Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

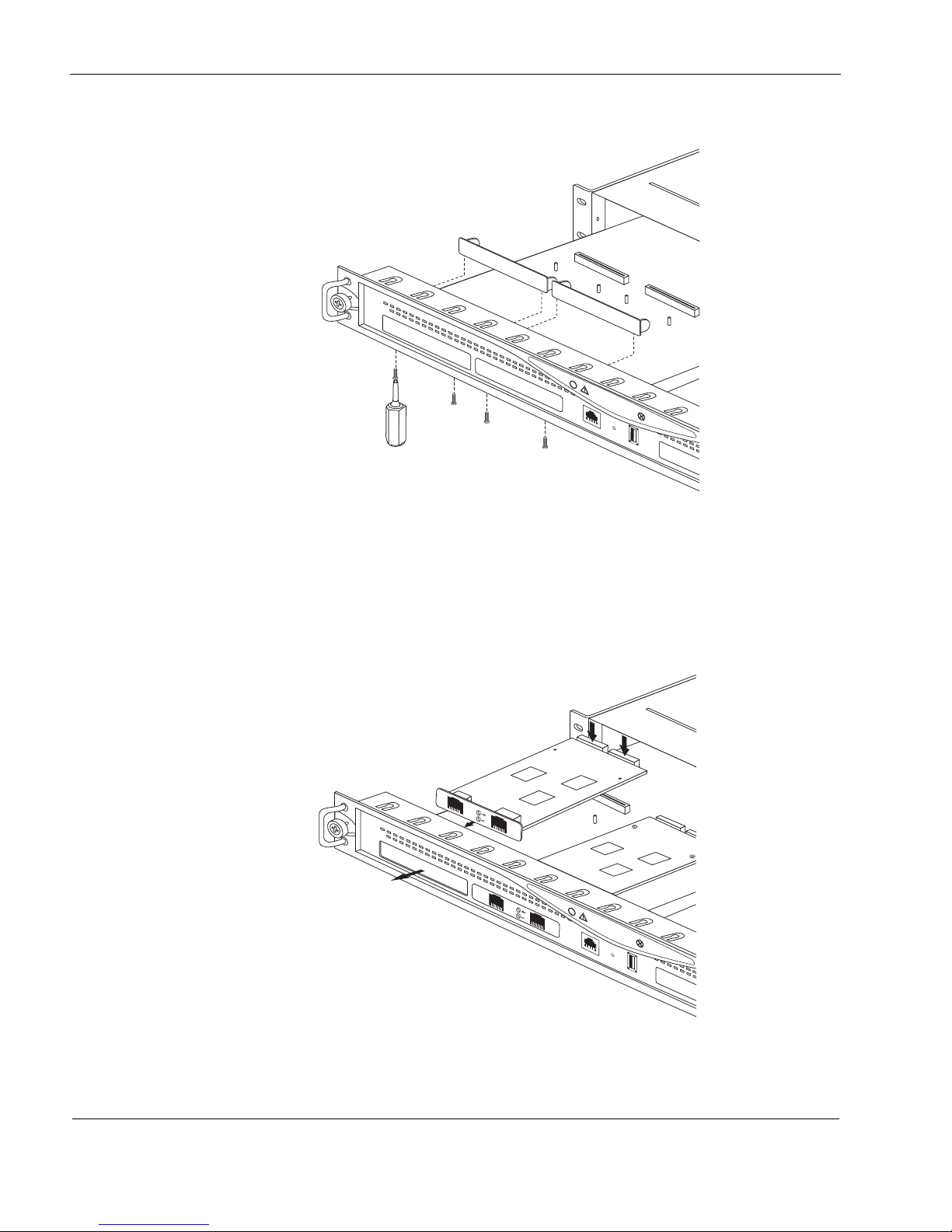

Installing NICs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Configuring and Activating Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Monitoring Network Interface Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

5 Connecting PMC Network Interface Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Four-Port 10/100 Ethernet NIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

10/100 Ethernet NIC Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Ethernet NIC Connectors and Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Two-Port and Four-Port Copper Gigabit Ethernet NIC . . . . . . . . . . . . . . . . . . . . . . 50

Copper Gigabit Ethernet NIC Features in the IP690 . . . . . . . . . . . . . . . . . . . . . . 50

Copper Gigabit Ethernet NIC Connectors and Cables. . . . . . . . . . . . . . . . . . . . . 51

Two-Port Fiber-Optic Gigabit Ethernet NICs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Fiber-Optic Gigabit Ethernet NIC Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Fiber-Optic Gigabit Ethernet NIC Connectors and Cables. . . . . . . . . . . . . . . . . . 54

6 Installing, Using, and Replacing ADP Services Modules . . . . . . . . . . . . . . . . . . 57

Installing and Replacing ADP Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Check Point ADP Module LED Reference Information . . . . . . . . . . . . . . . . . . . . . . 66

Configuring Check Point IPSO with IP690 ADP Interfaces. . . . . . . . . . . . . . . . . . . 67

Effect on Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Check Point ADP Module Interface Names for IP690 Appliances . . . . . . . . . . . . 68

Configuring Network Topology with an IP690 Appliance . . . . . . . . . . . . . . . . . . . 68

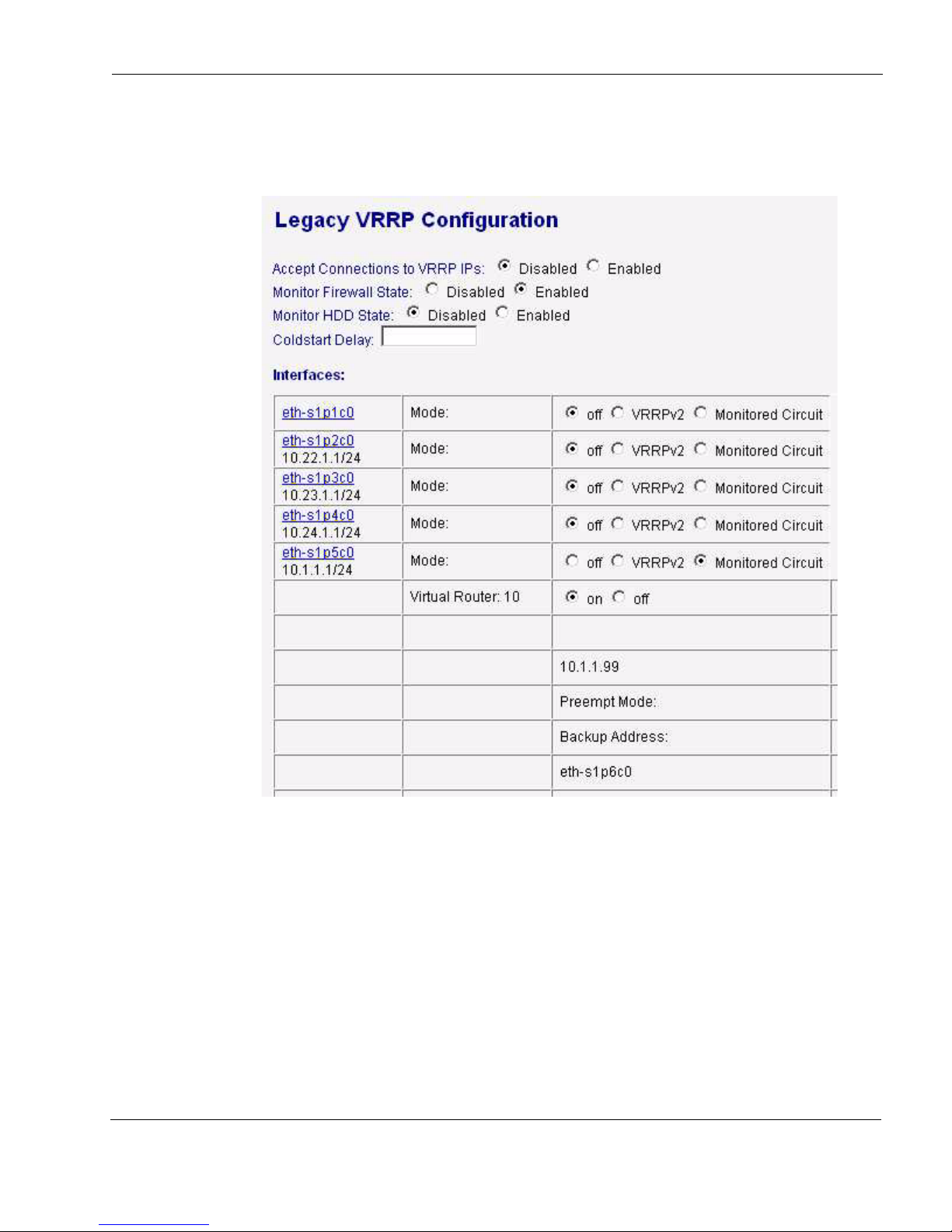

Configuration Example with VRRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Deleting VRRP Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Reconfiguring Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Reconfiguring VRRP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

7 Installing and Replacing Components Other than Network Interface Cards (NICs)

4 Check Point IP690 Security Platform Installation Guide

and Accelerated Data Path (ADP) Services Modules . . . . . . . . . . . . . . . . . . . . . 77

Replacing the Compact Flash Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Installing and Using a PC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Installing a Hard-Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

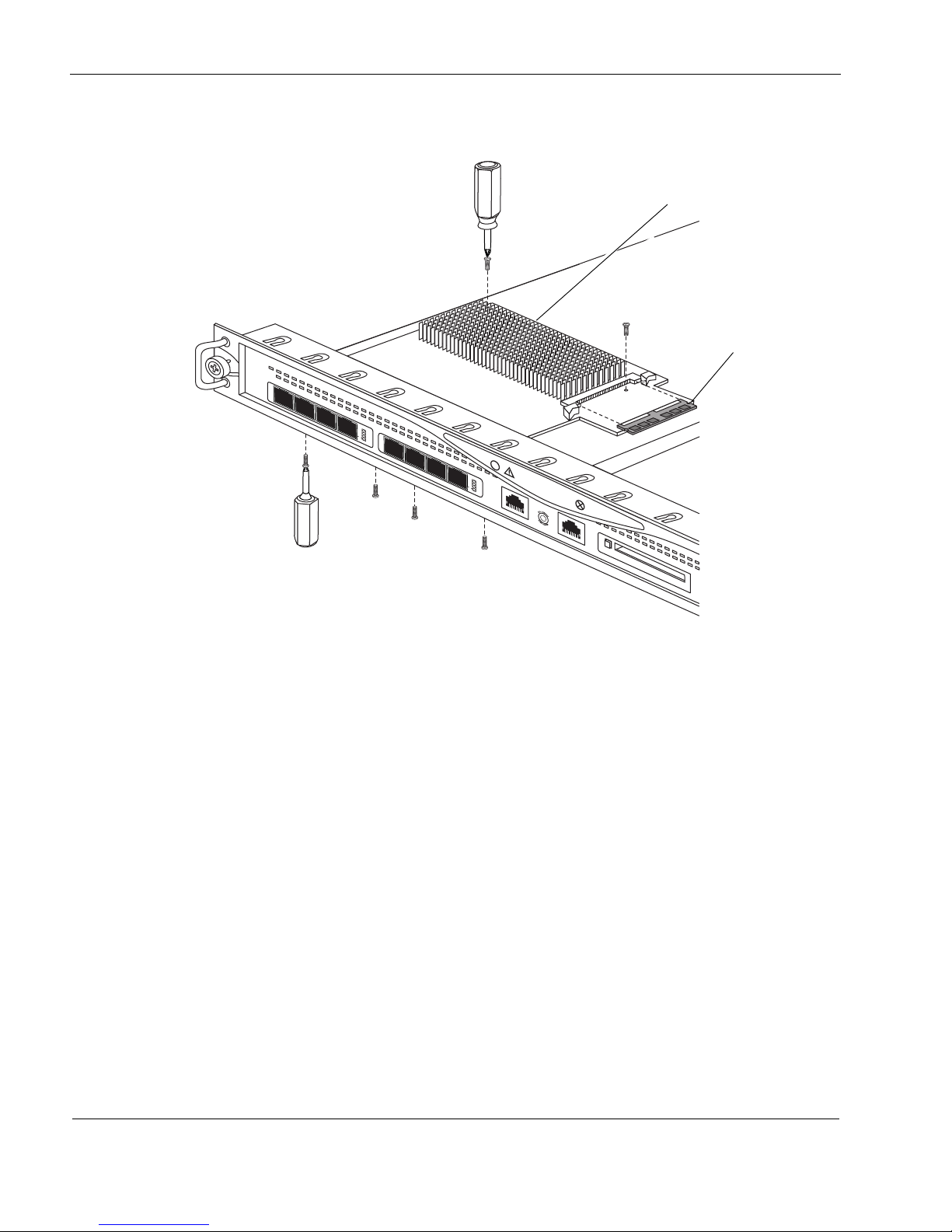

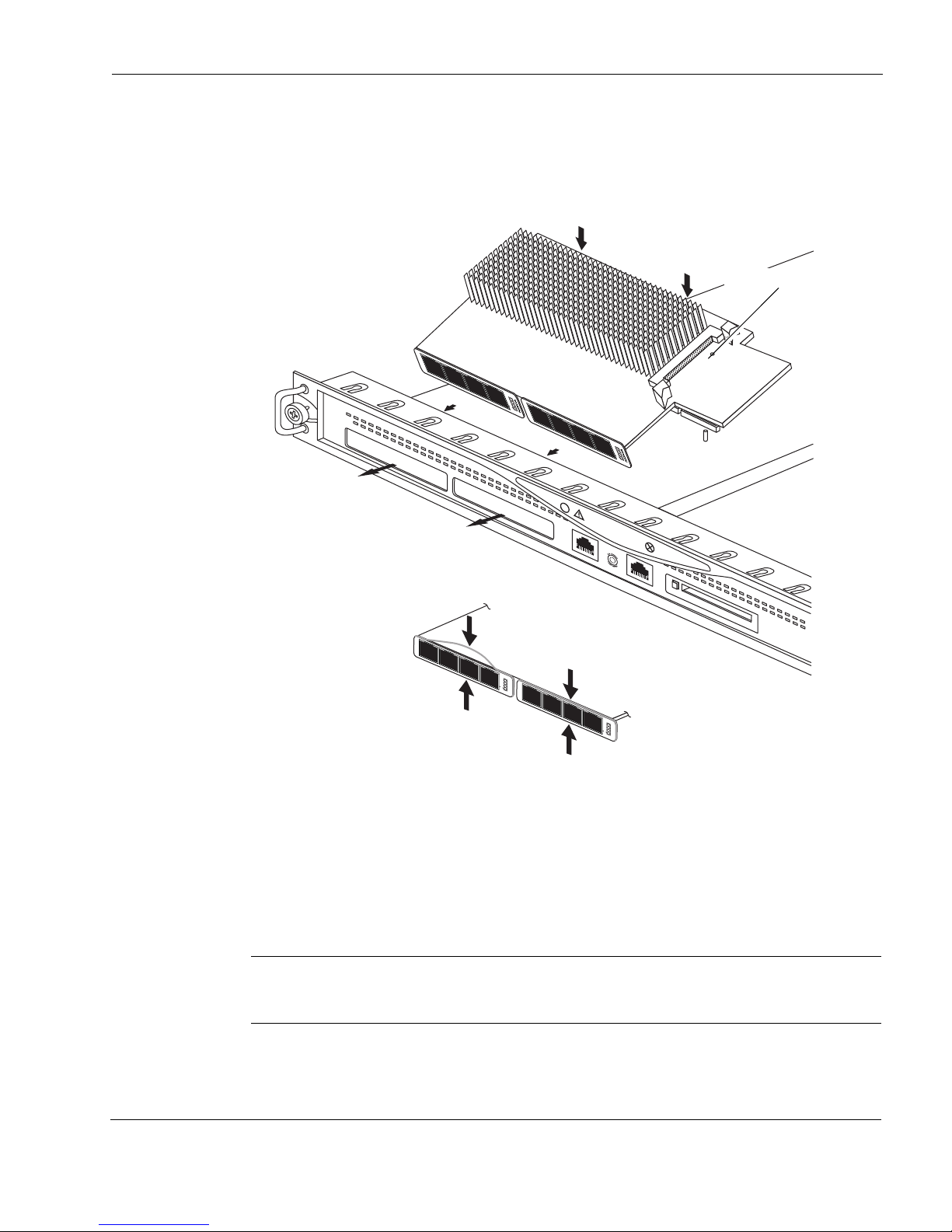

Replacing a Check Point Encryption Accelerator Card . . . . . . . . . . . . . . . . . . . . . . 86

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Configuring Software to Use Hardware Acceleration . . . . . . . . . . . . . . . . . . . . . . 90

Replacing a Fan Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Replacing a Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Monitoring the IP690 Appliance Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

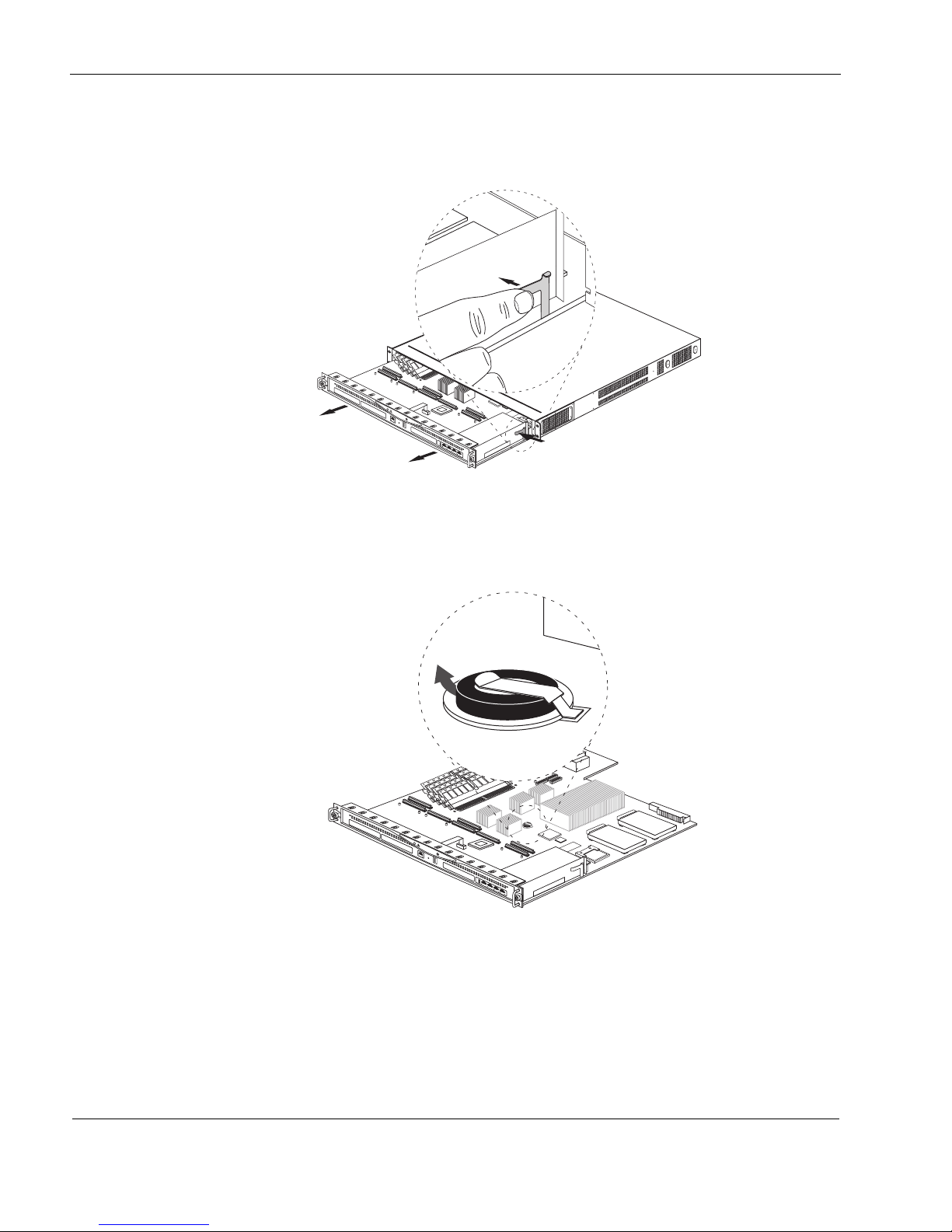

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

General Troubleshooting Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Troubleshooting Routing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

A Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Space Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Other Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

B Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Compliance Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

FCC Notice (US) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Check Point IP690 Security Platform Installation Guide 5

6 Check Point IP690 Security Platform Installation Guide

Figures

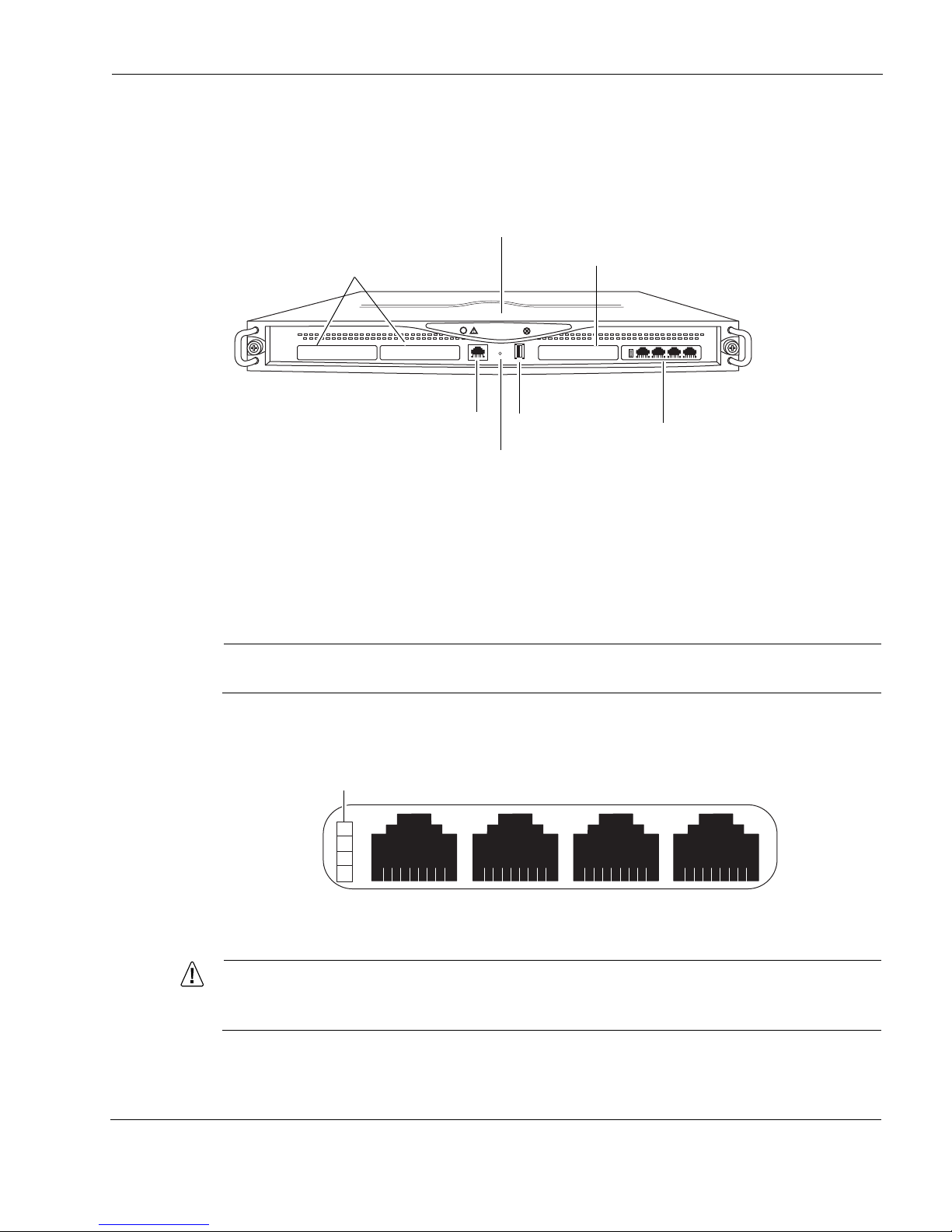

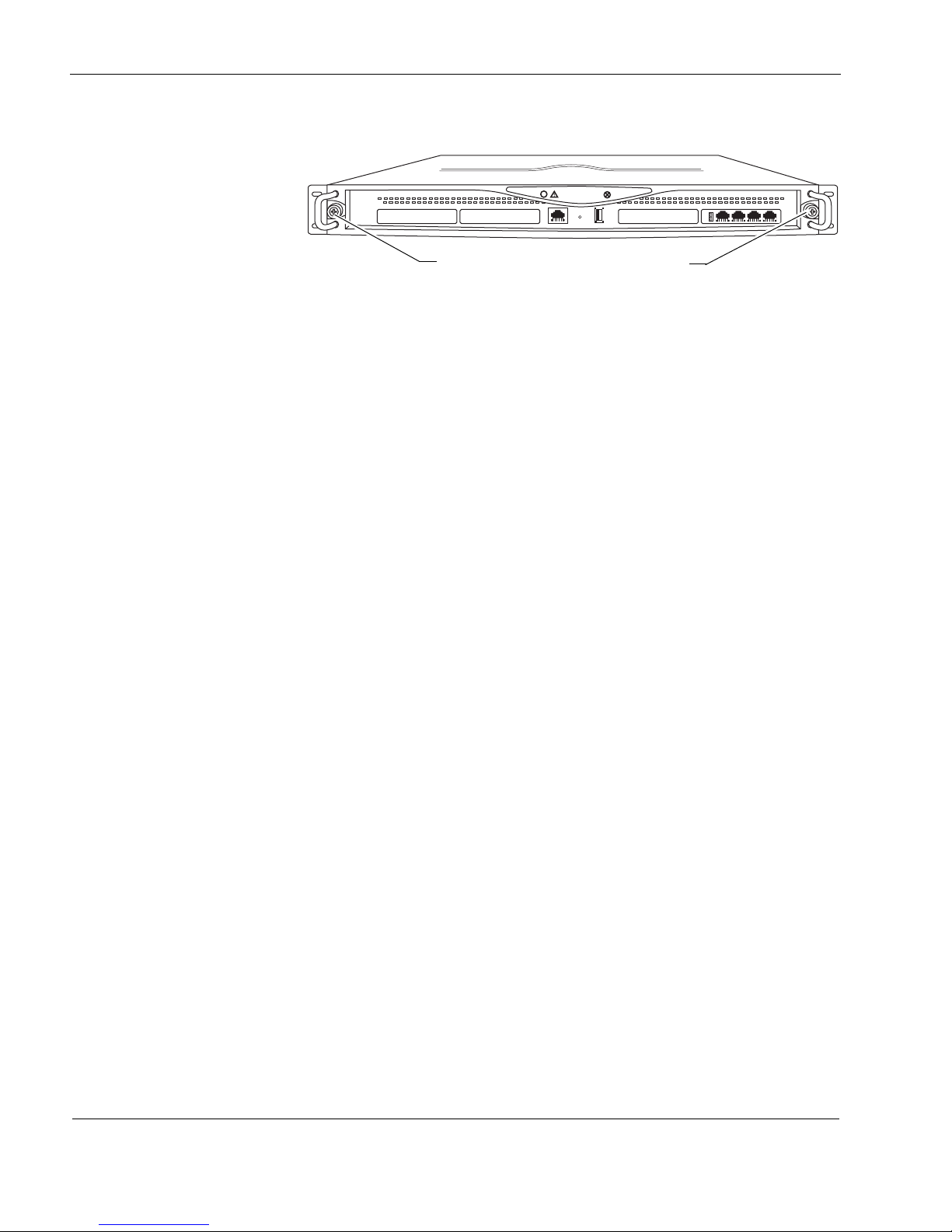

Figure 1 Component Locations Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 2 Four-Port 10/100/1000 Ethernet PMC Details . . . . . . . . . . . . . . . . . . . . 17

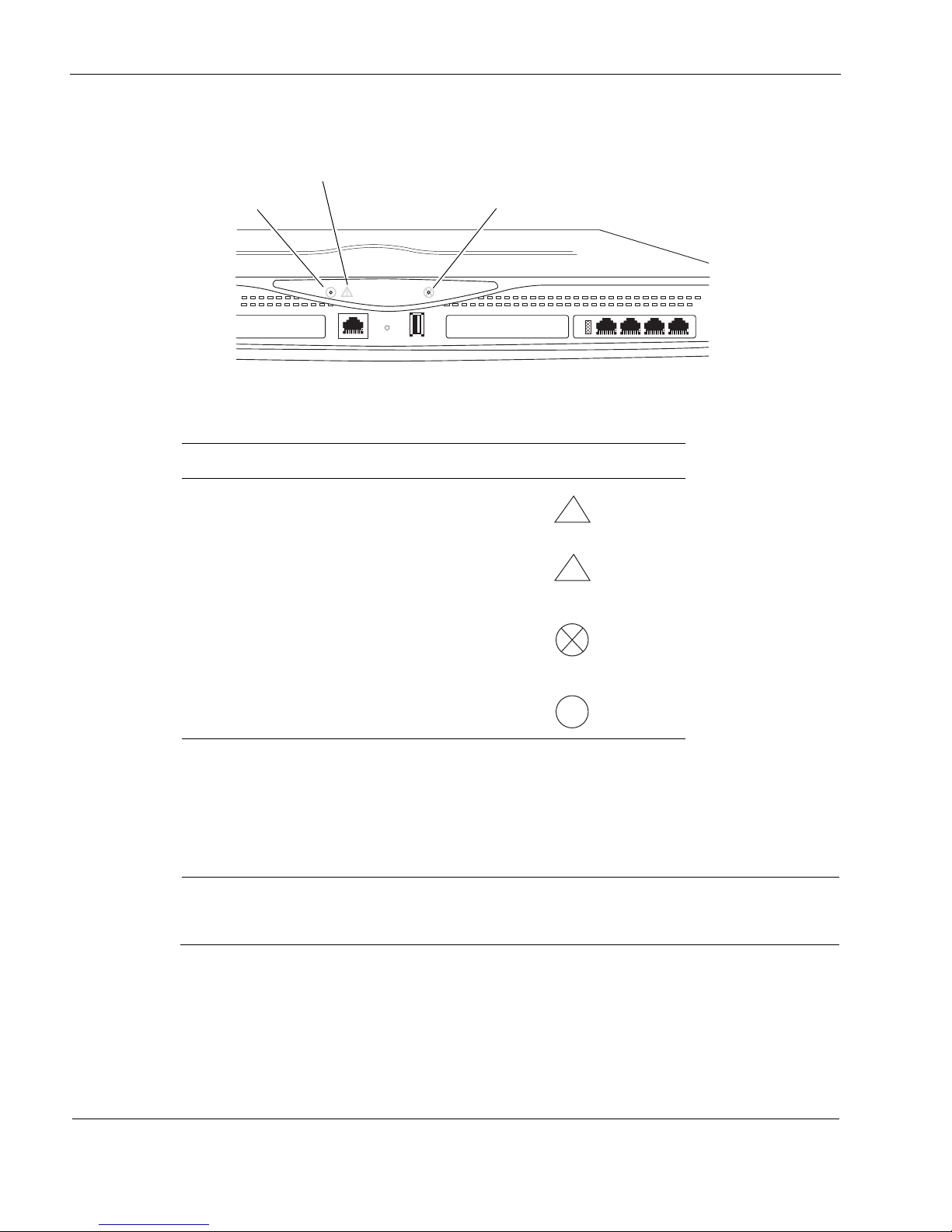

Figure 3 Check Point IP690 Security Platform System Status LEDs . . . . . . . . . . 20

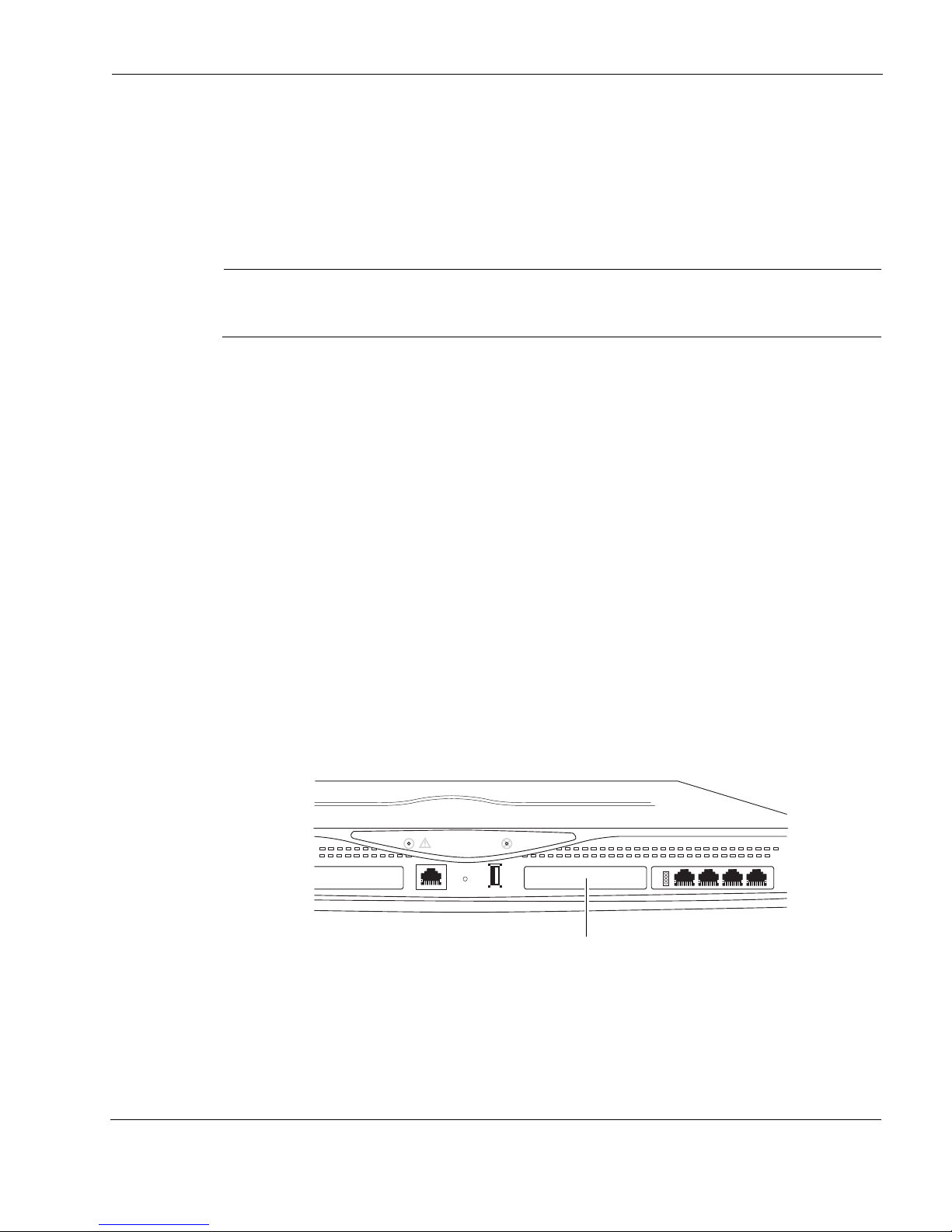

Figure 4 Location of the PMC PC Card Carrier Slot . . . . . . . . . . . . . . . . . . . . . . . 21

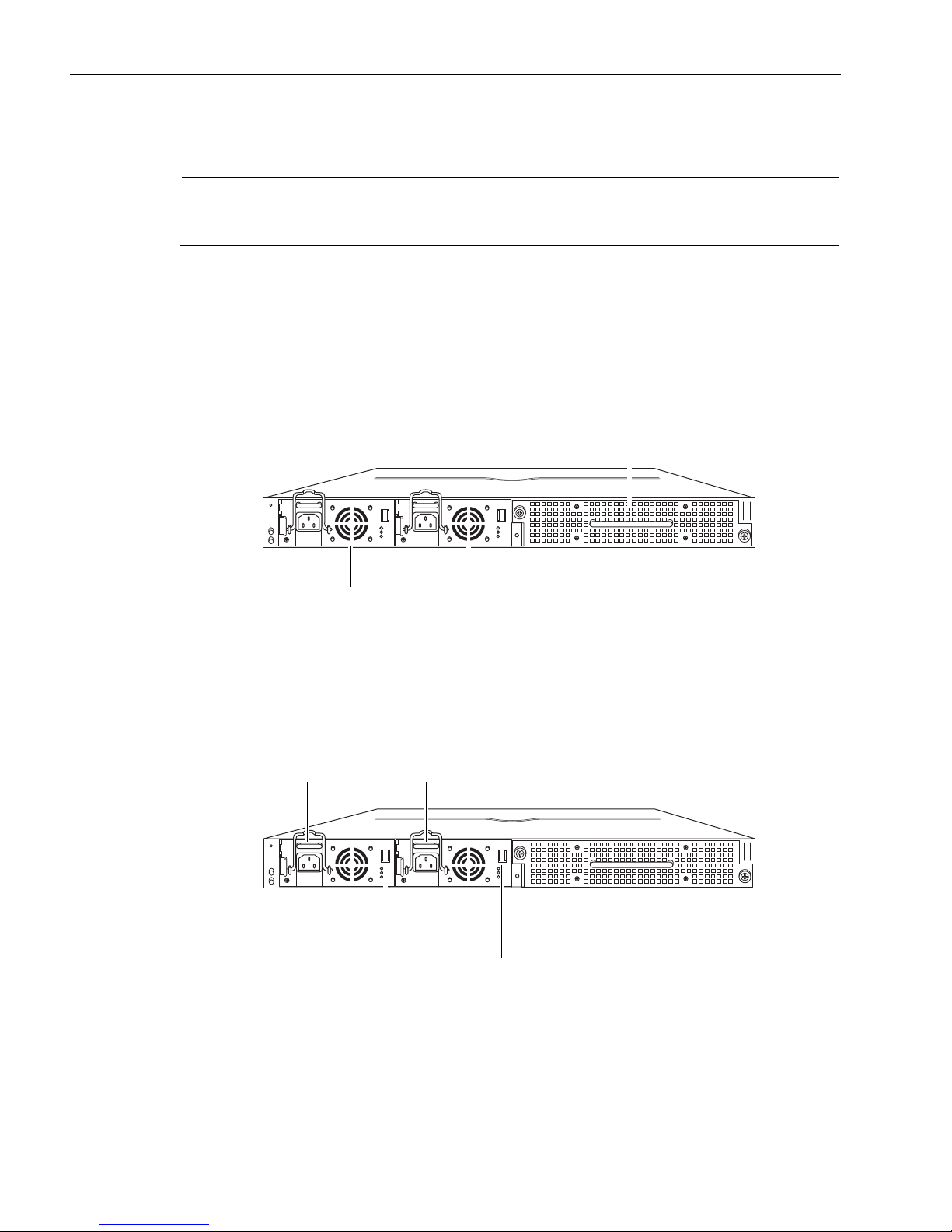

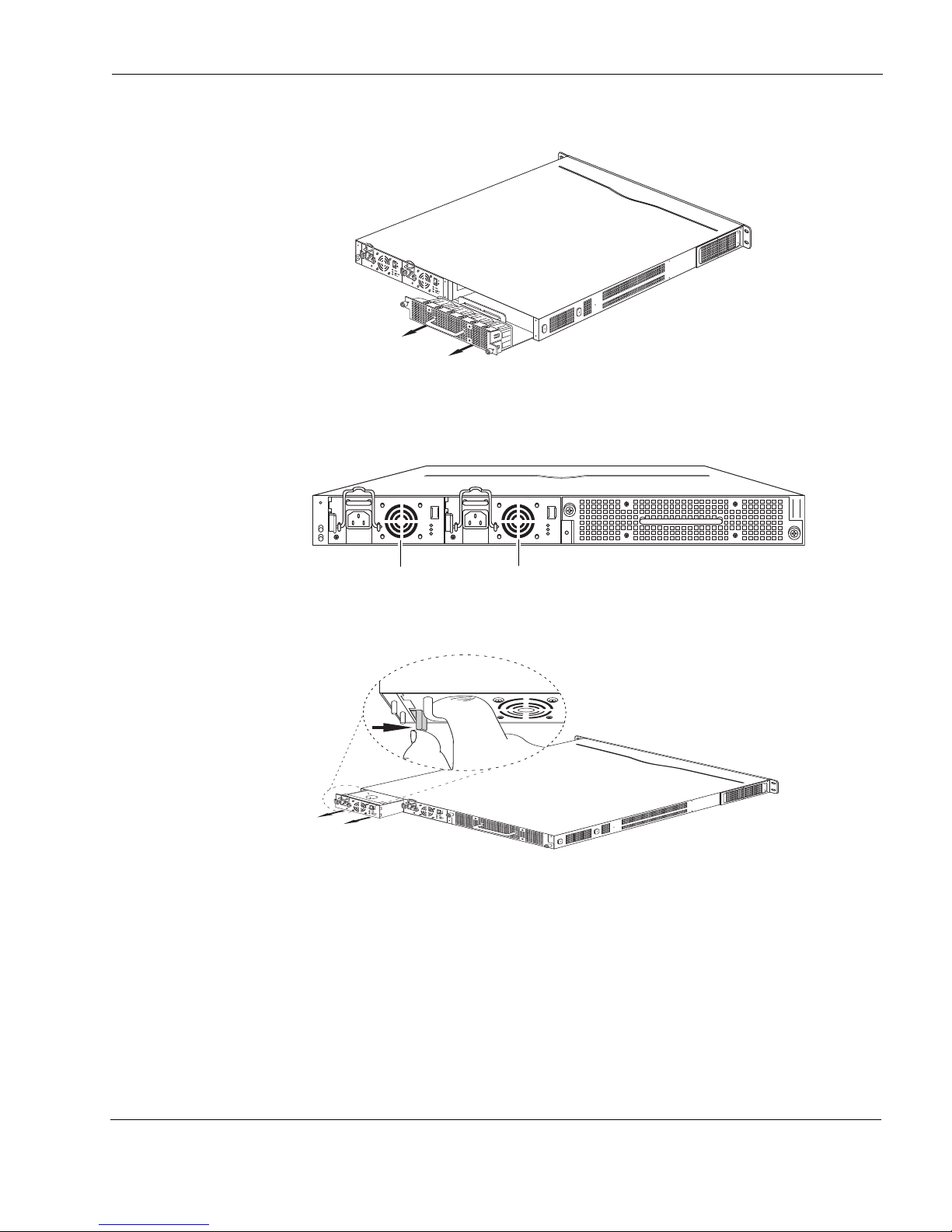

Figure 5 Power Supplies and Fan Unit Locations . . . . . . . . . . . . . . . . . . . . . . . . . 22

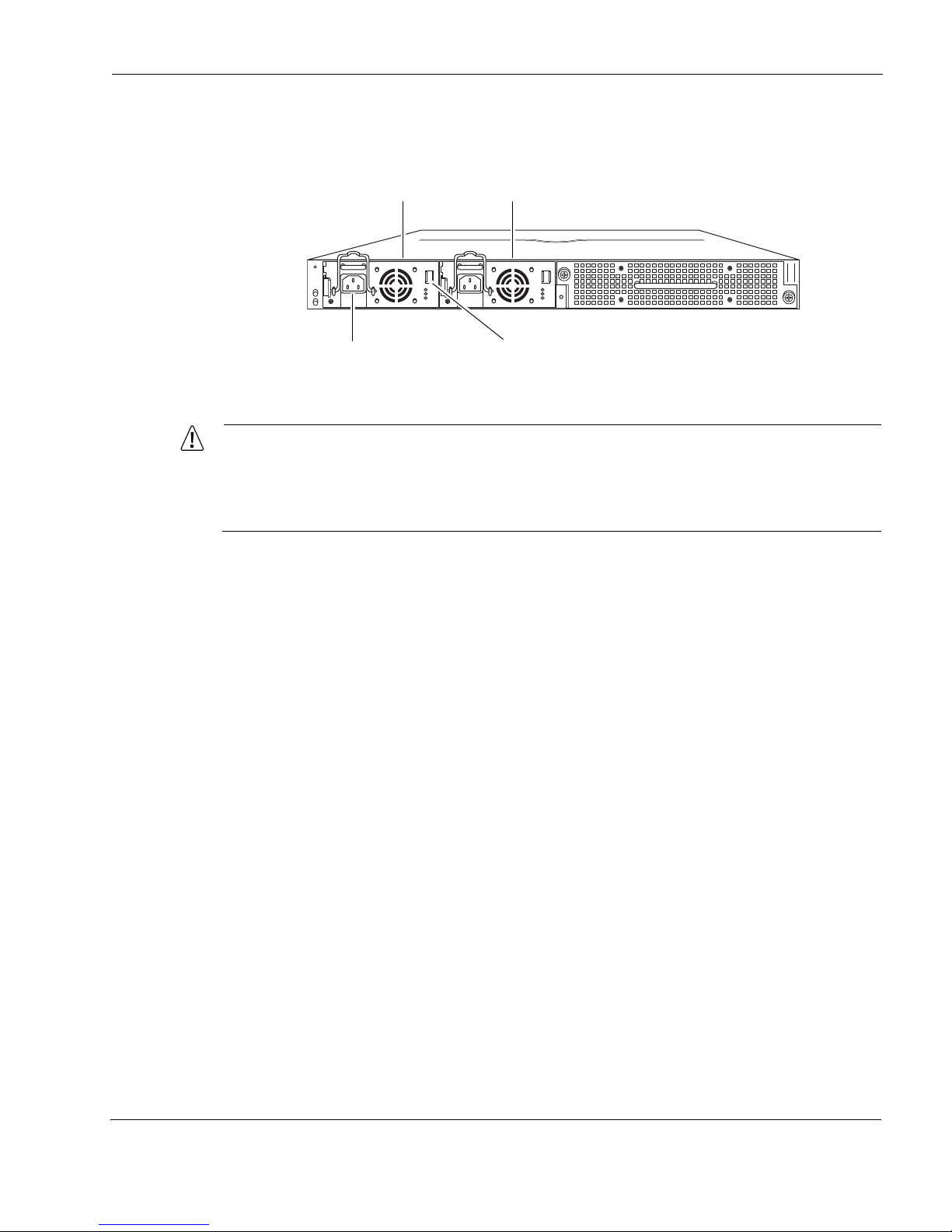

Figure 6 Power Supply Receptacle and Switch Locations . . . . . . . . . . . . . . . . . . 22

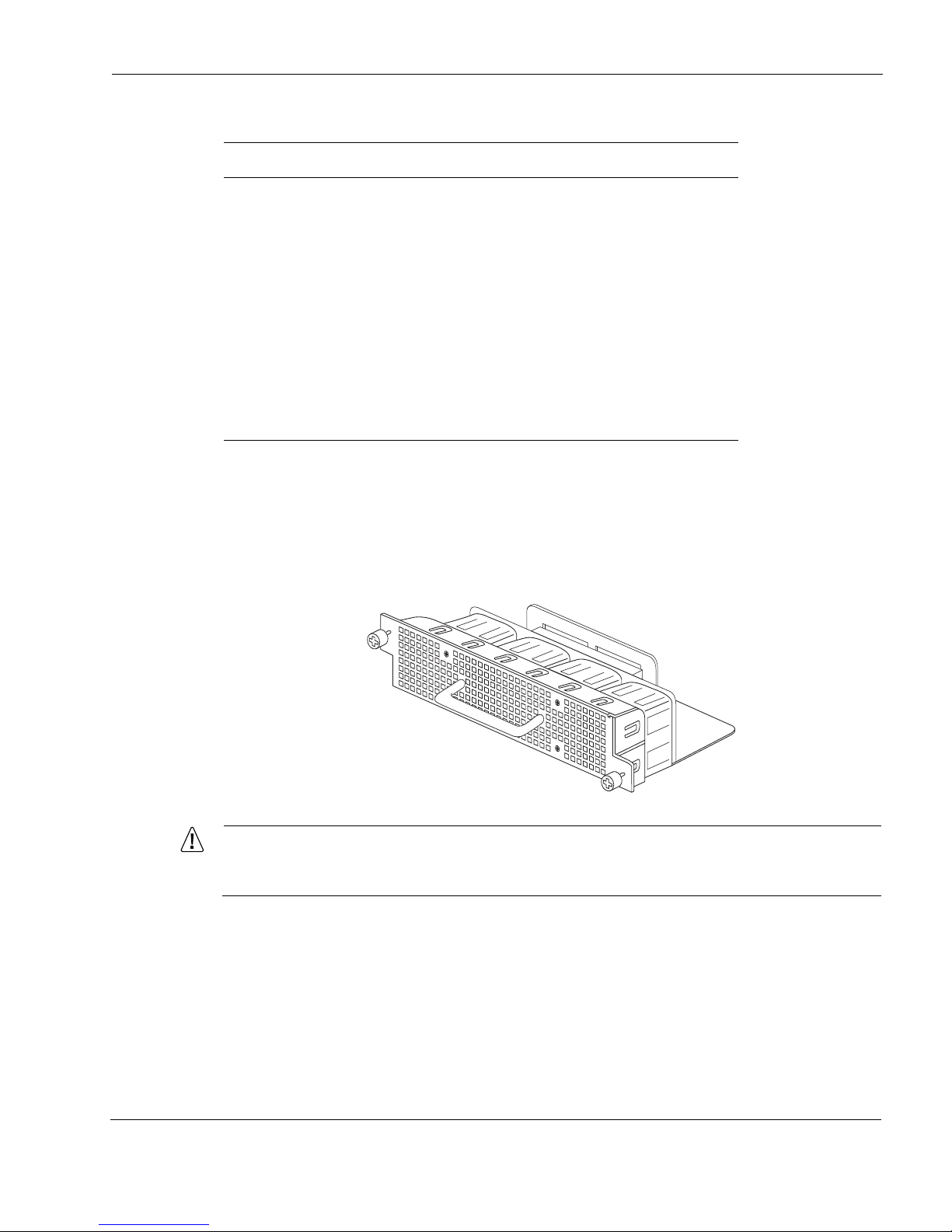

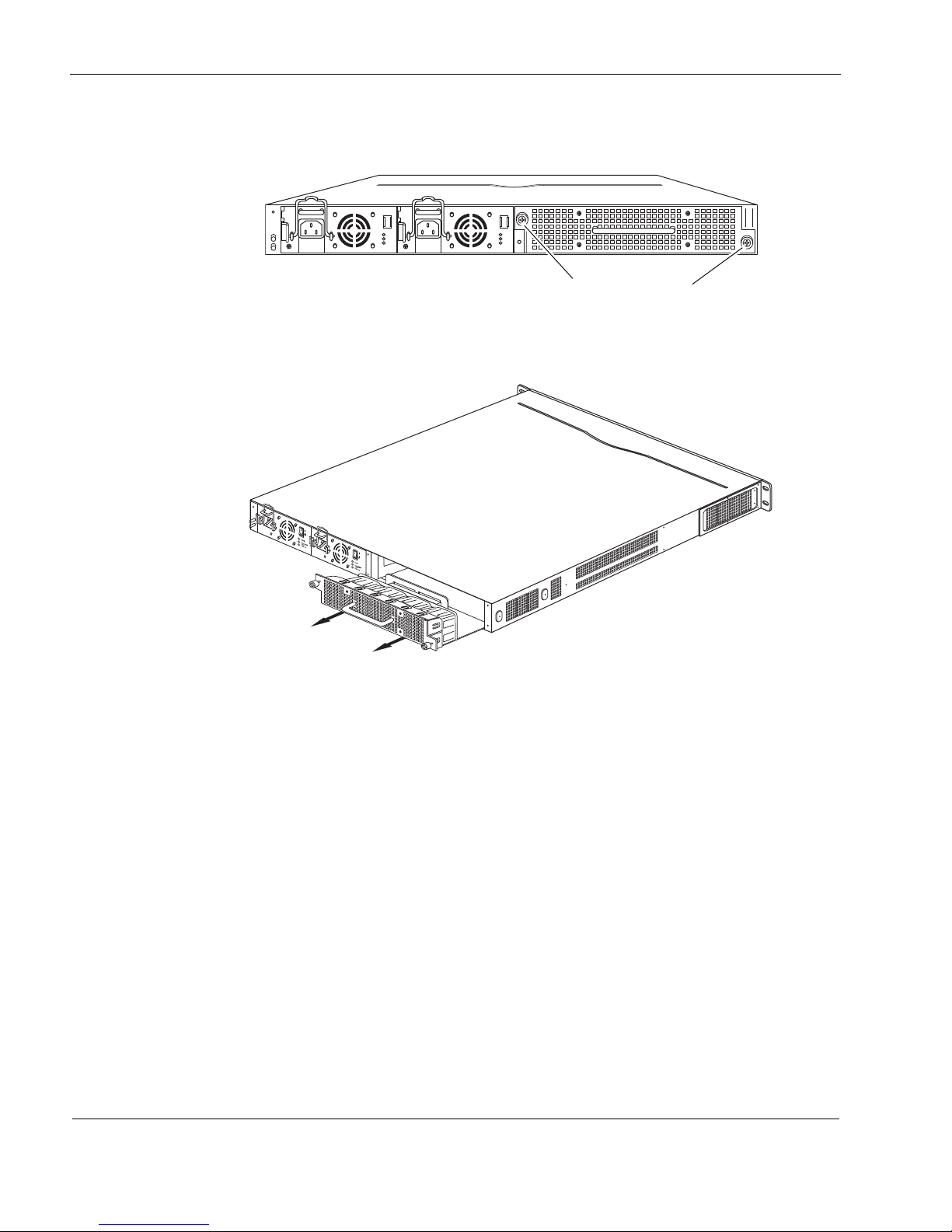

Figure 7 Fan Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

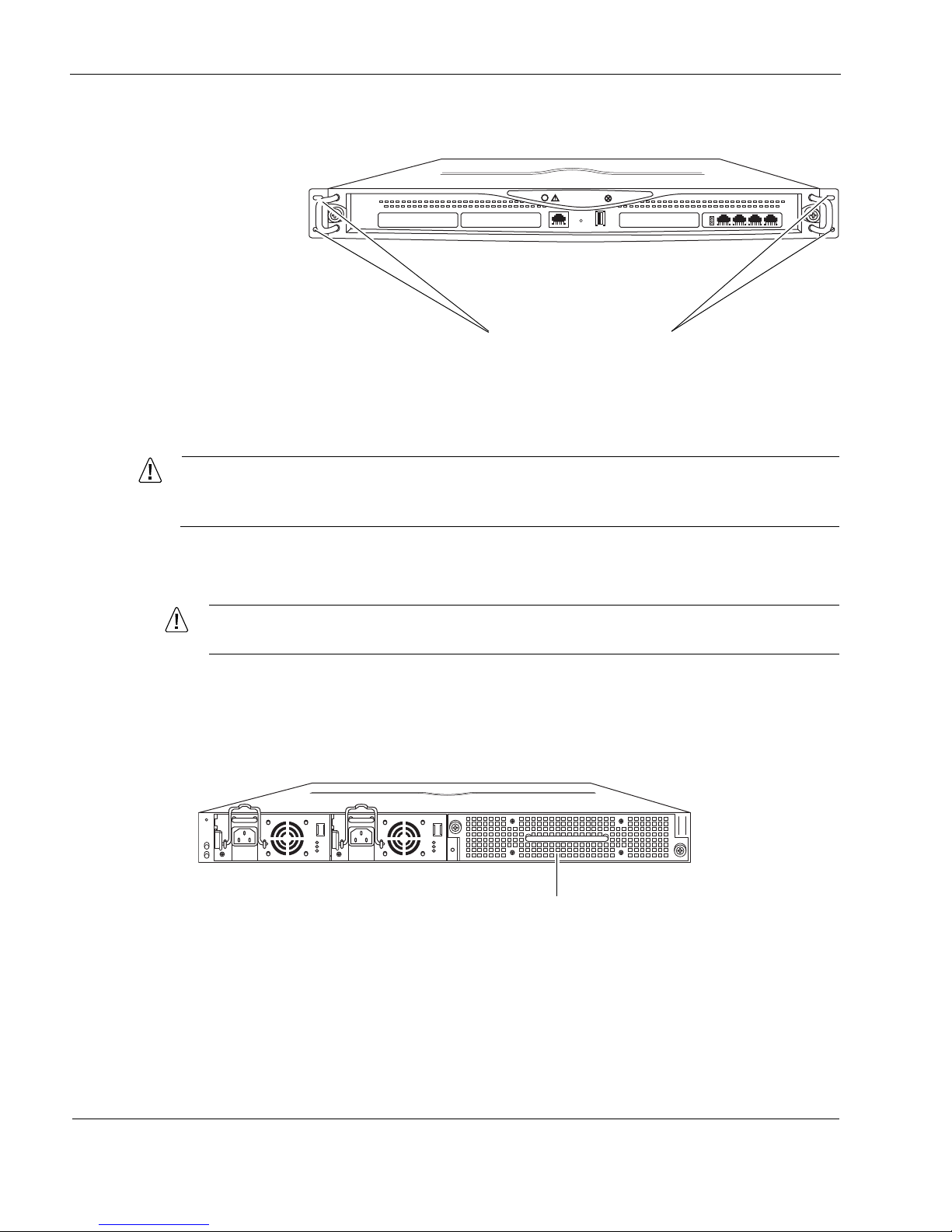

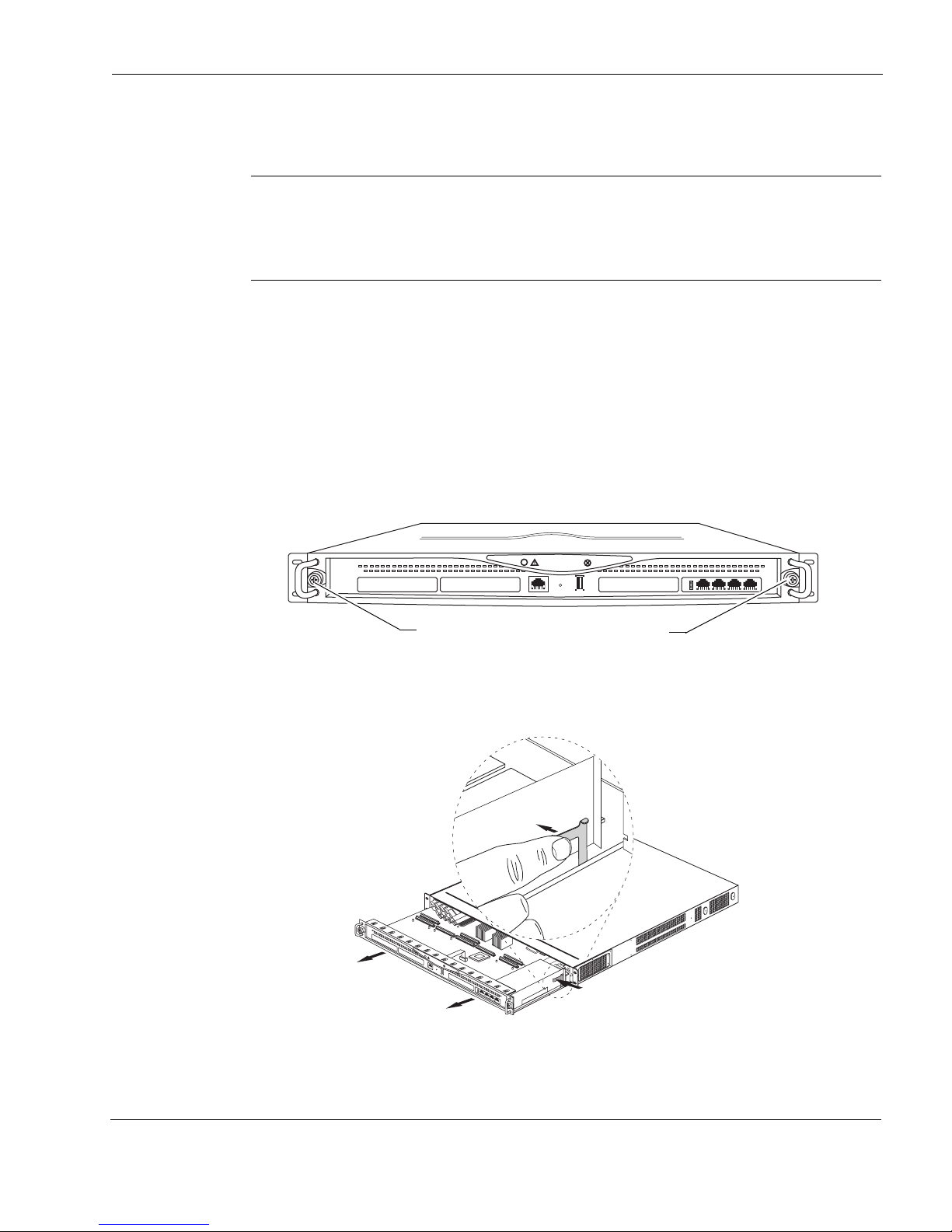

Figure 8 Rack-Mounting Screw Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 9 Power Switch Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

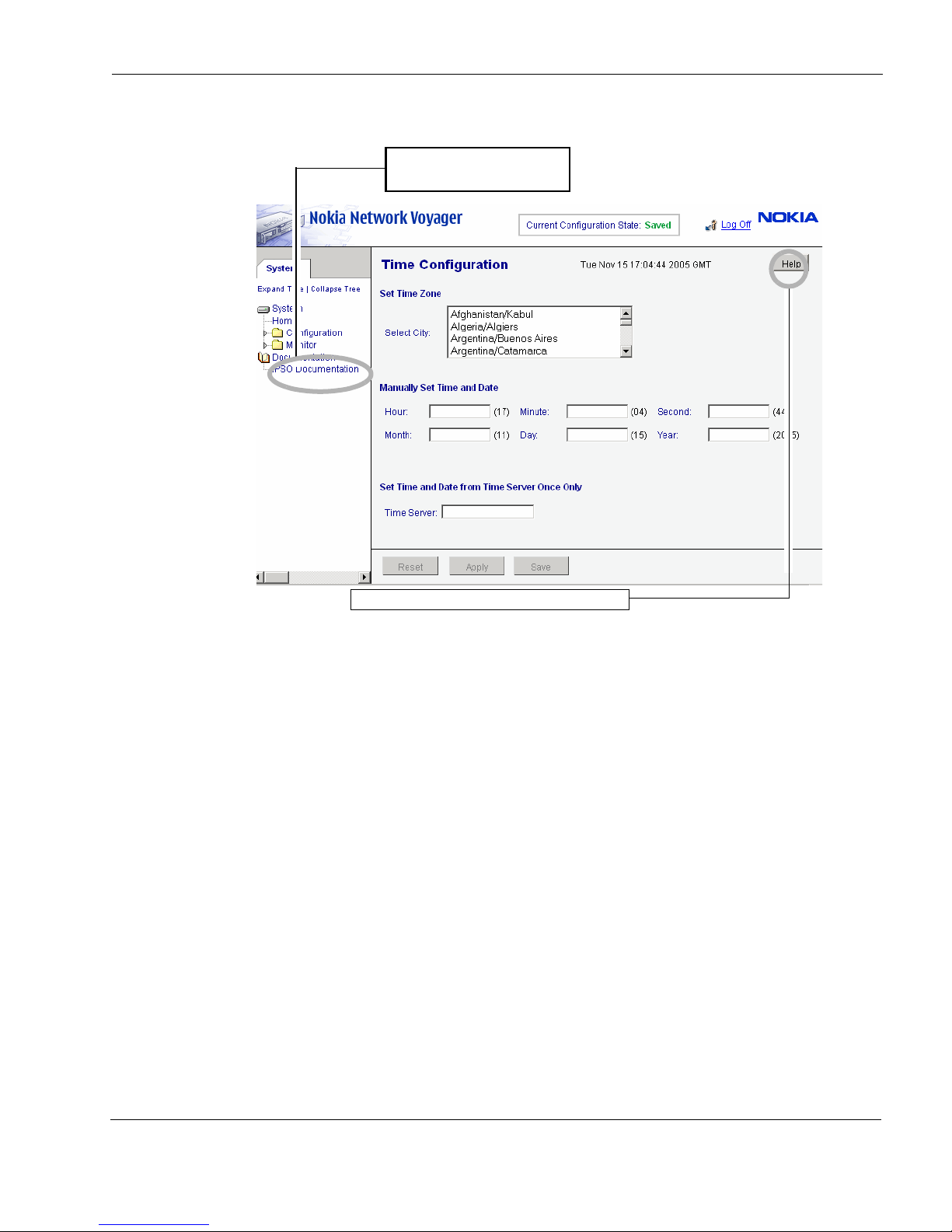

Figure 10 Check Point Network Voyager Reference Access Points . . . . . . . . . . . 39

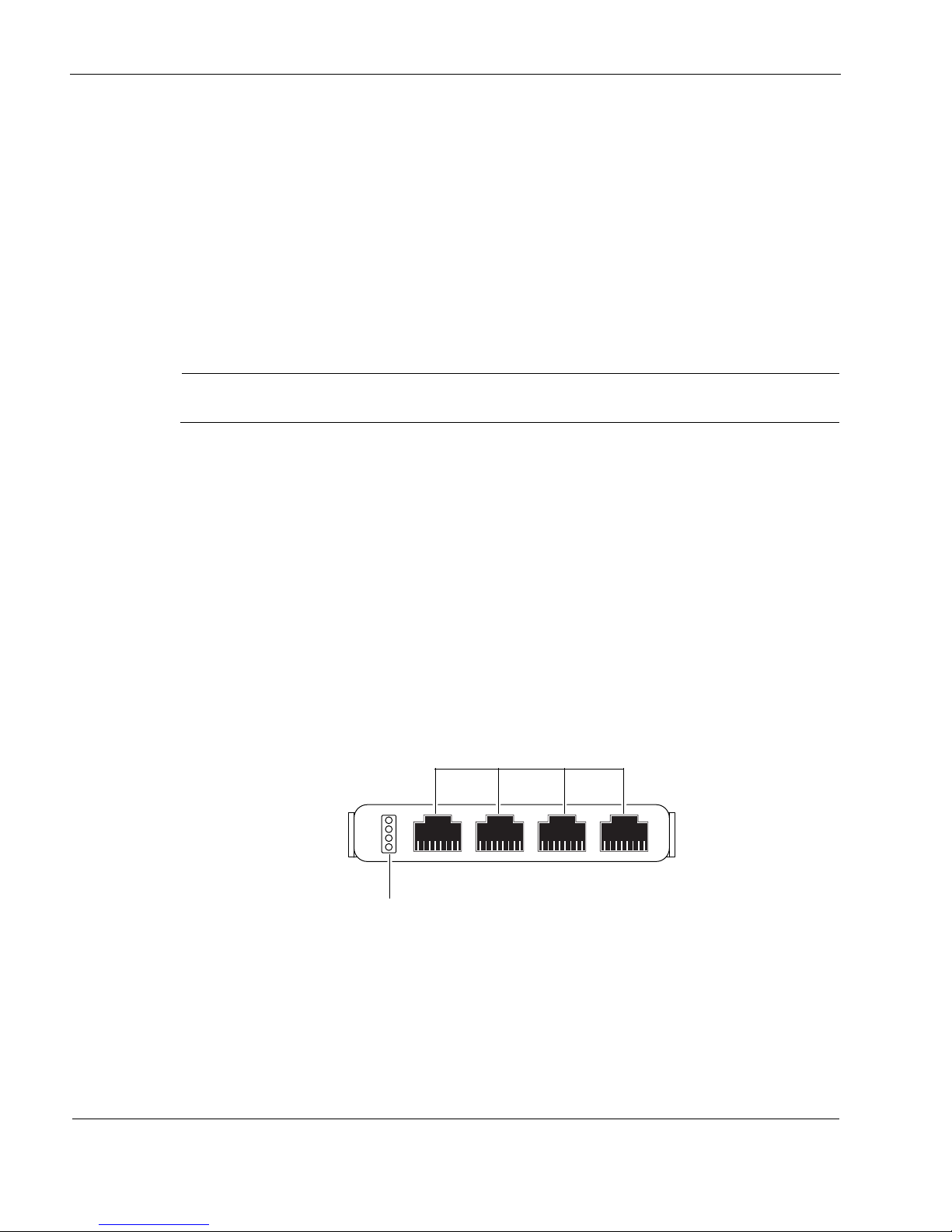

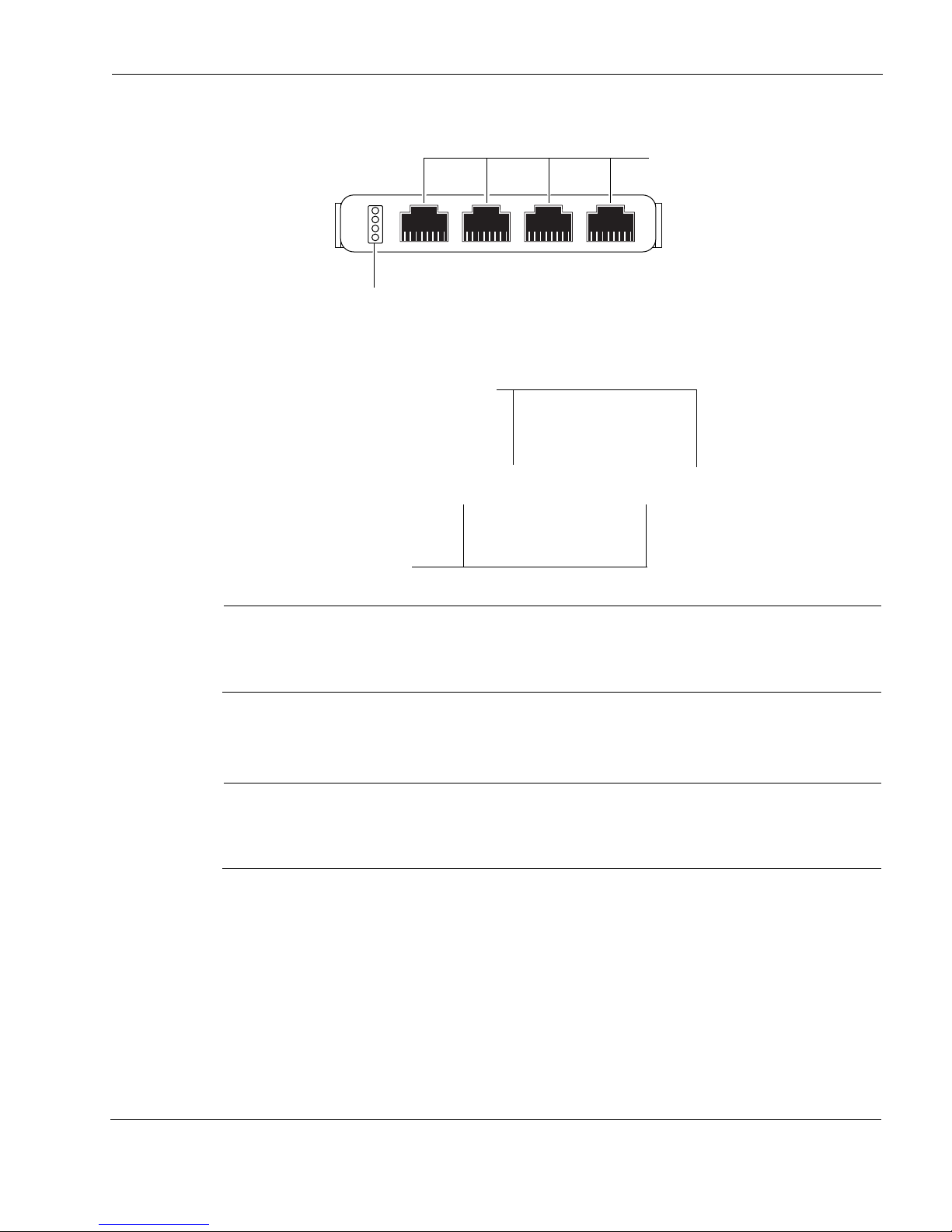

Figure 11 Four-Port 10/100 Ethernet NIC Front Panel Details . . . . . . . . . . . . . . . 48

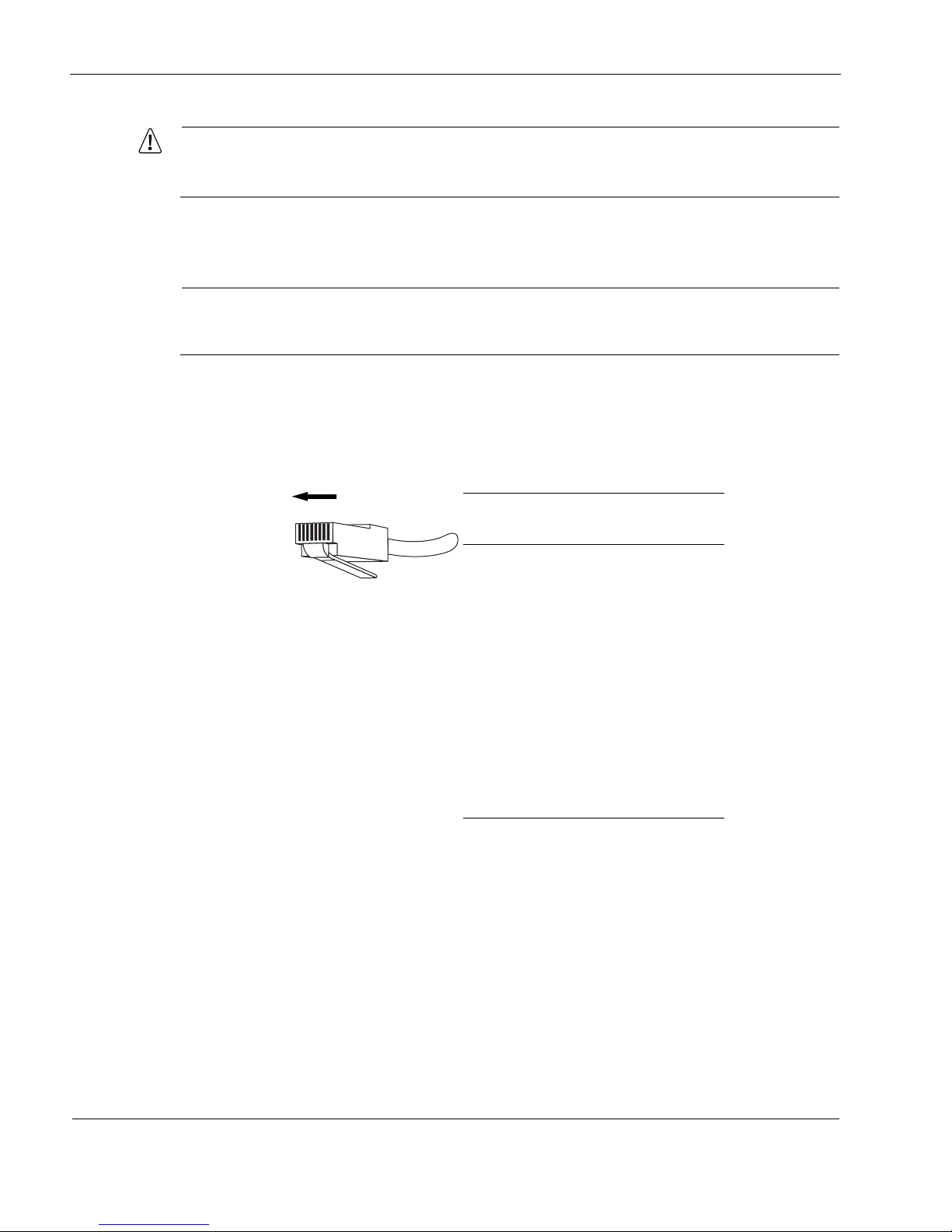

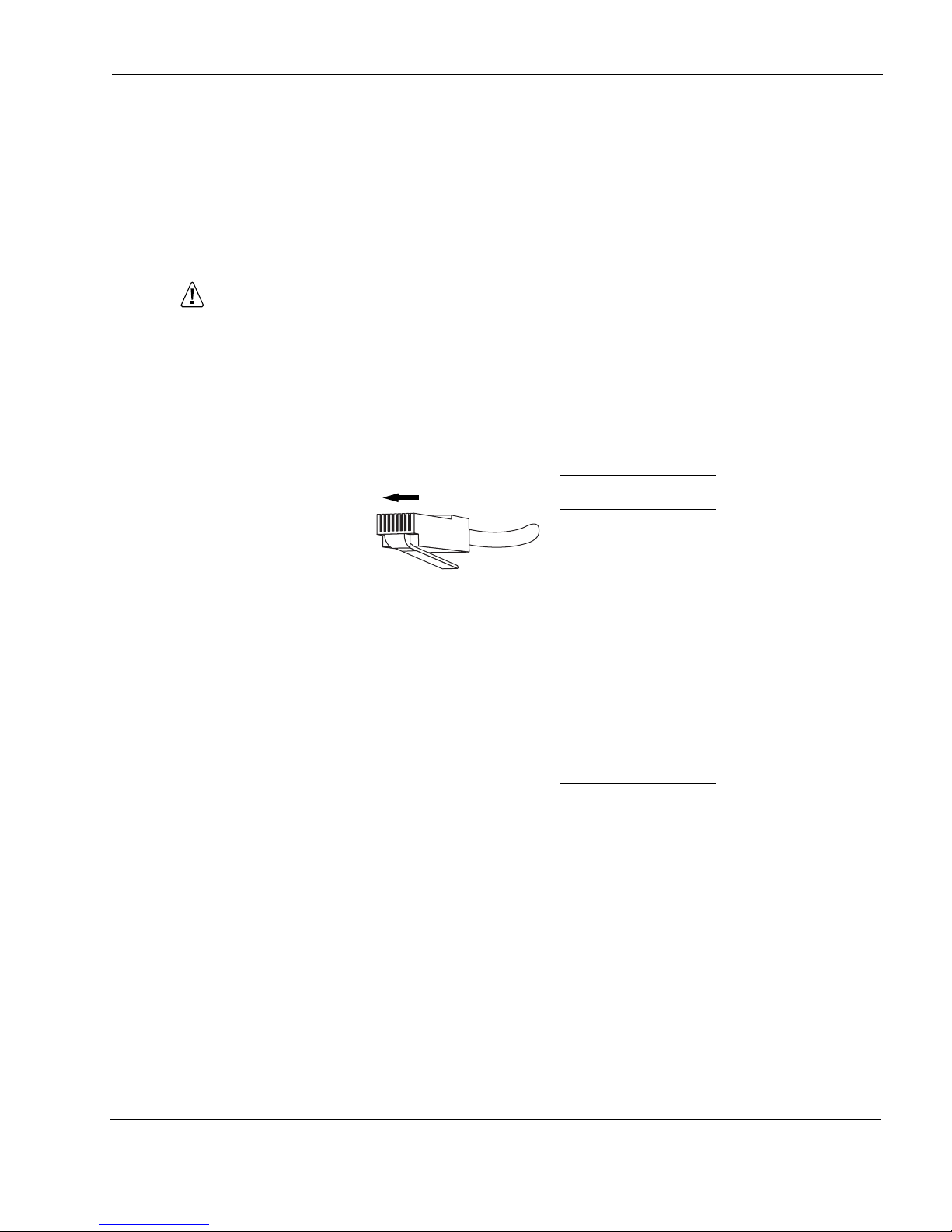

Figure 12 Output Connector for the Ethernet Cable . . . . . . . . . . . . . . . . . . . . . . . 49

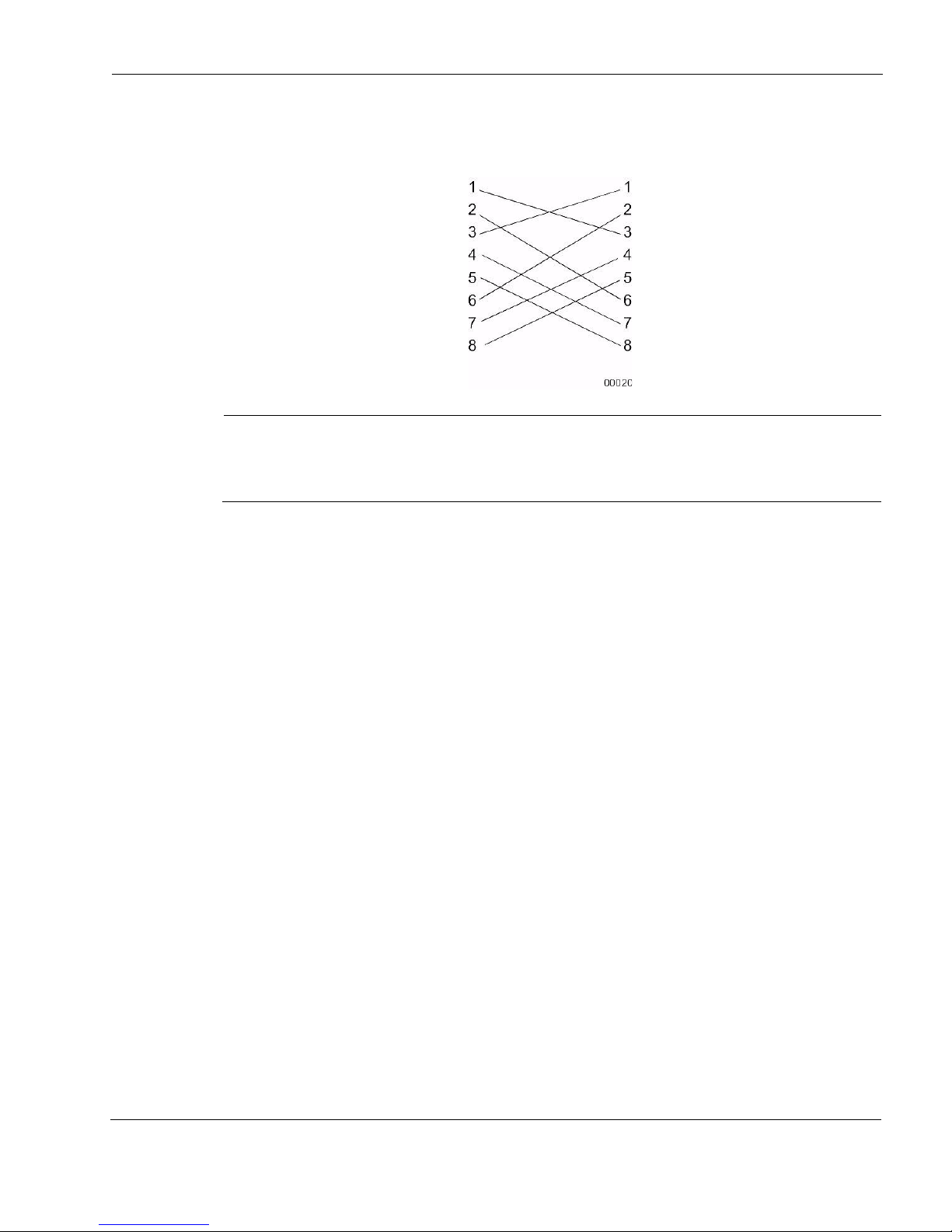

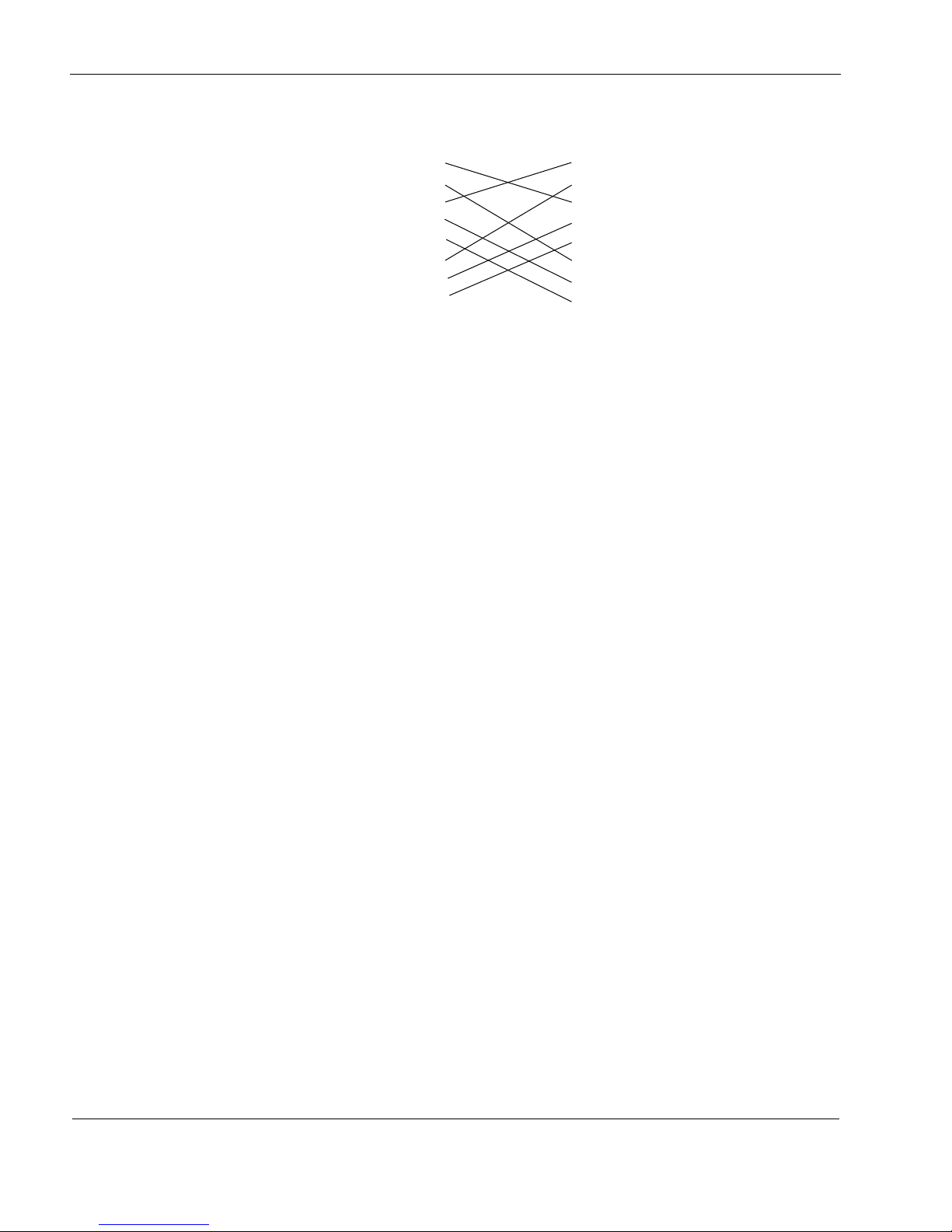

Figure 13 Ethernet Crossover-Cable Pin Connections . . . . . . . . . . . . . . . . . . . . . 50

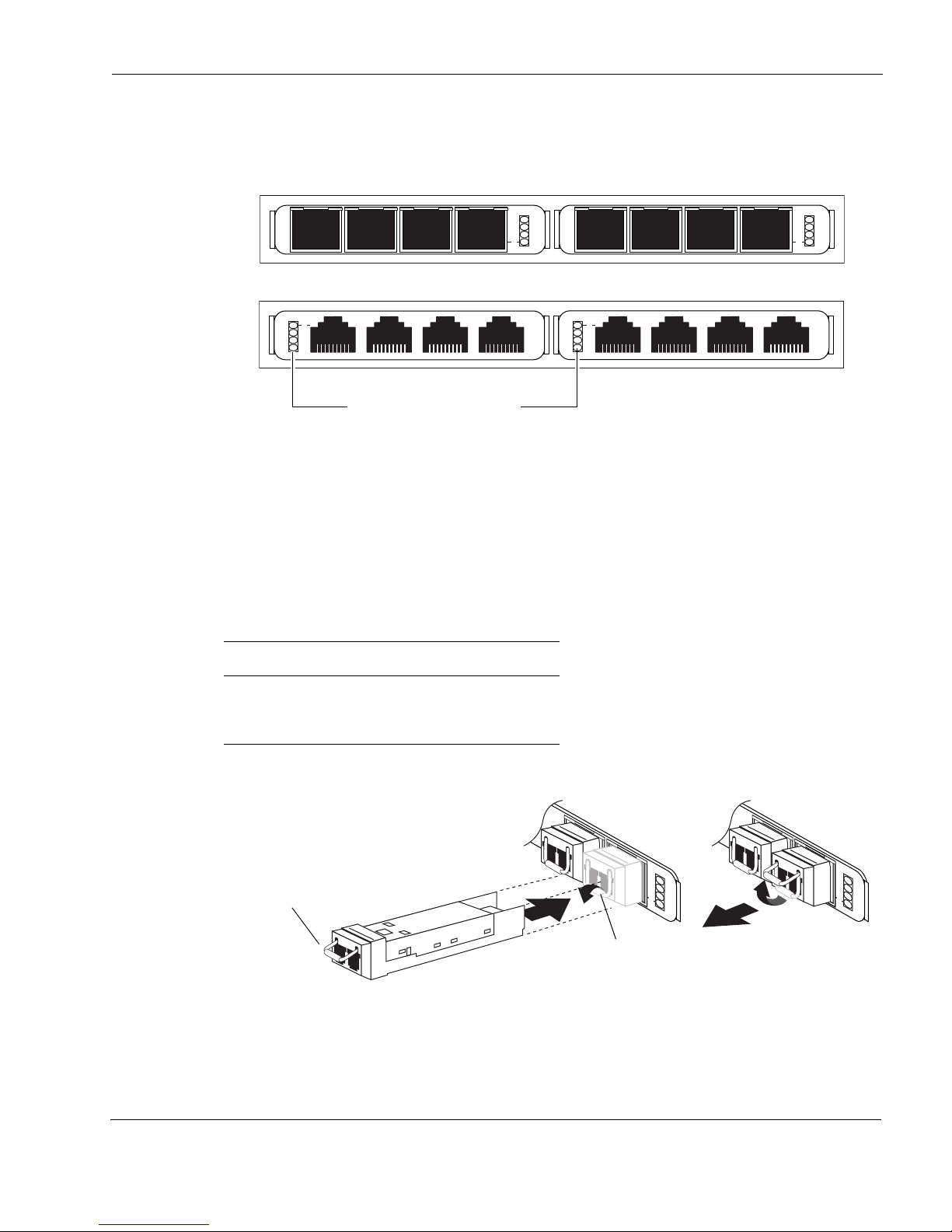

Figure 14 Four-Port Copper Gigabit Ethernet NIC Front Panel Details . . . . . . . . 51

Figure 15 Two-Port Copper Gigabit Ethernet NIC Front Panel Details . . . . . . . . . 51

Figure 16 Gigabit Ethernet Cable Connector Output Pin Assignments . . . . . . . . . 52

Figure 17 Gigabit Ethernet Crossover Cable Pin Connections . . . . . . . . . . . . . . . 53

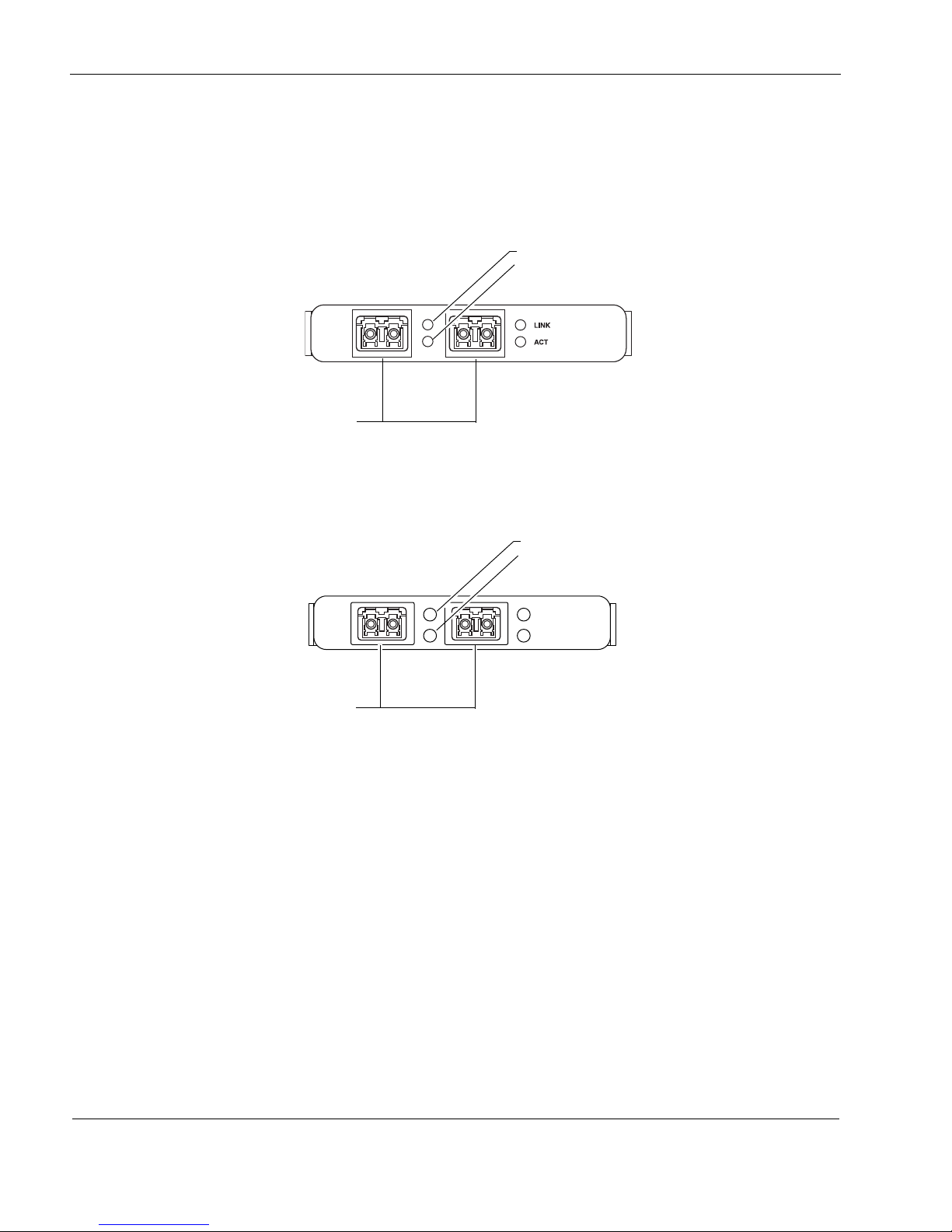

Figure 18 PMC Two-Port Short-Range Gigabit Ethernet NIC . . . . . . . . . . . . . . . . 54

Figure 19 PMC Two-Port Long-Range Gigabit Ethernet NIC . . . . . . . . . . . . . . . . 54

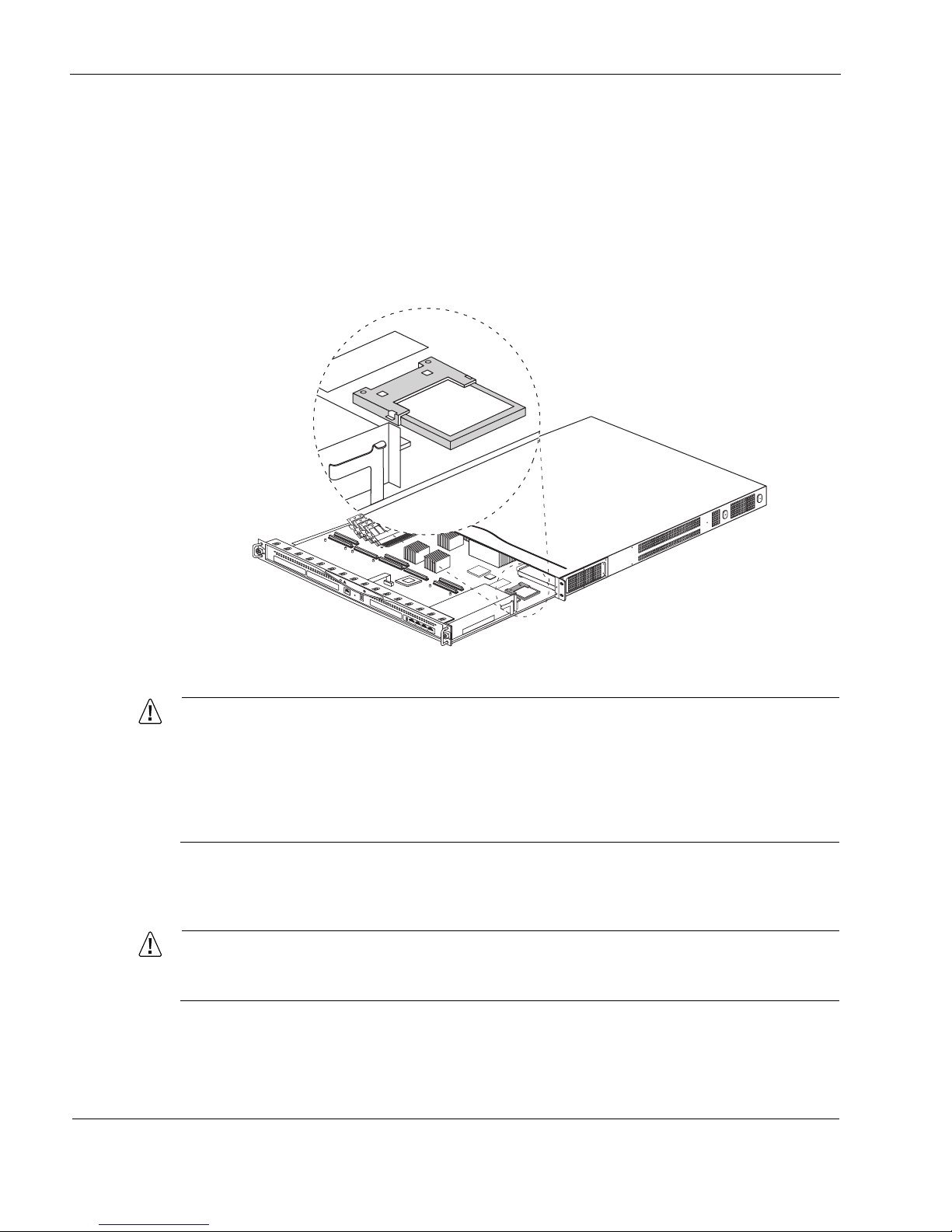

Figure 20 Compact Flash Memory Card Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Figure 21 External PC Card Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

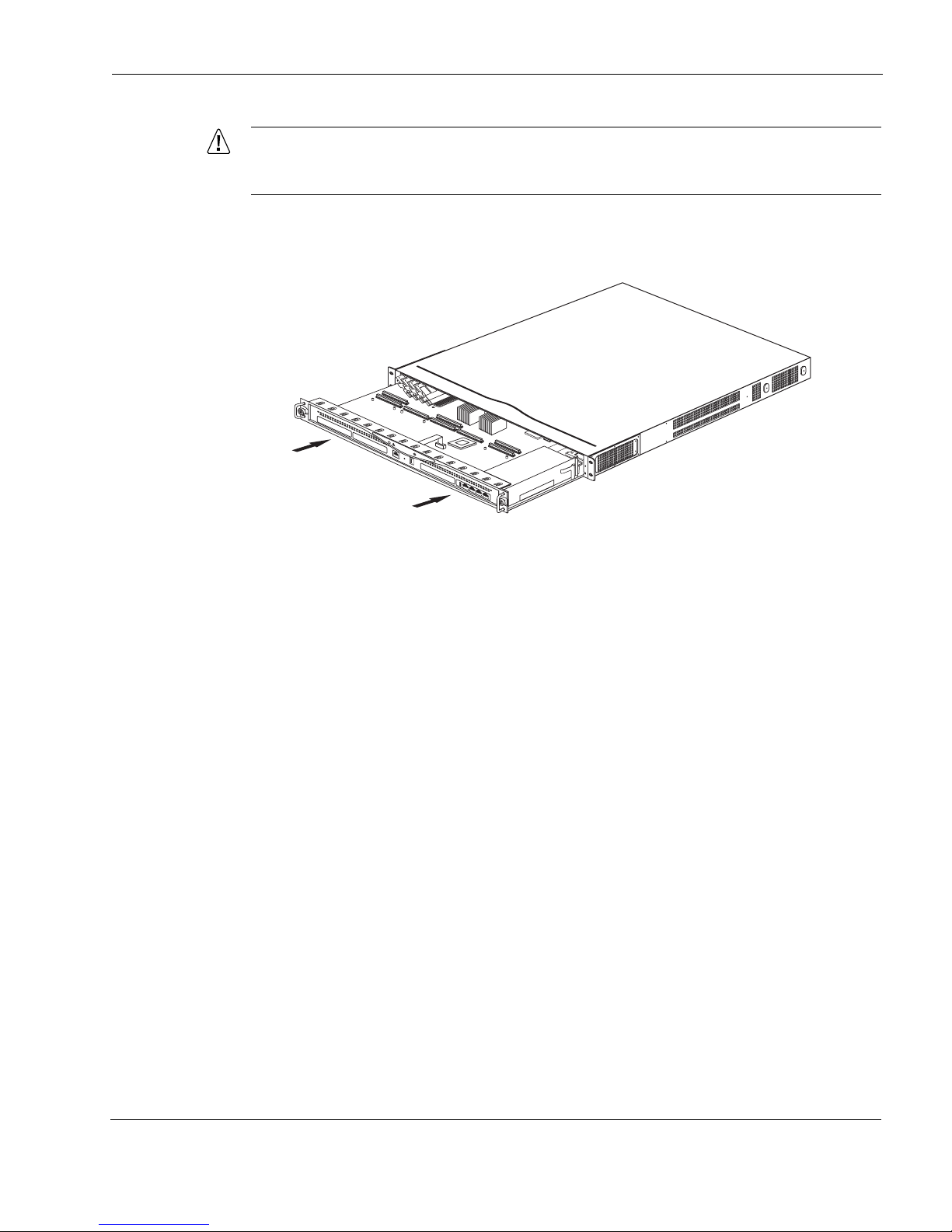

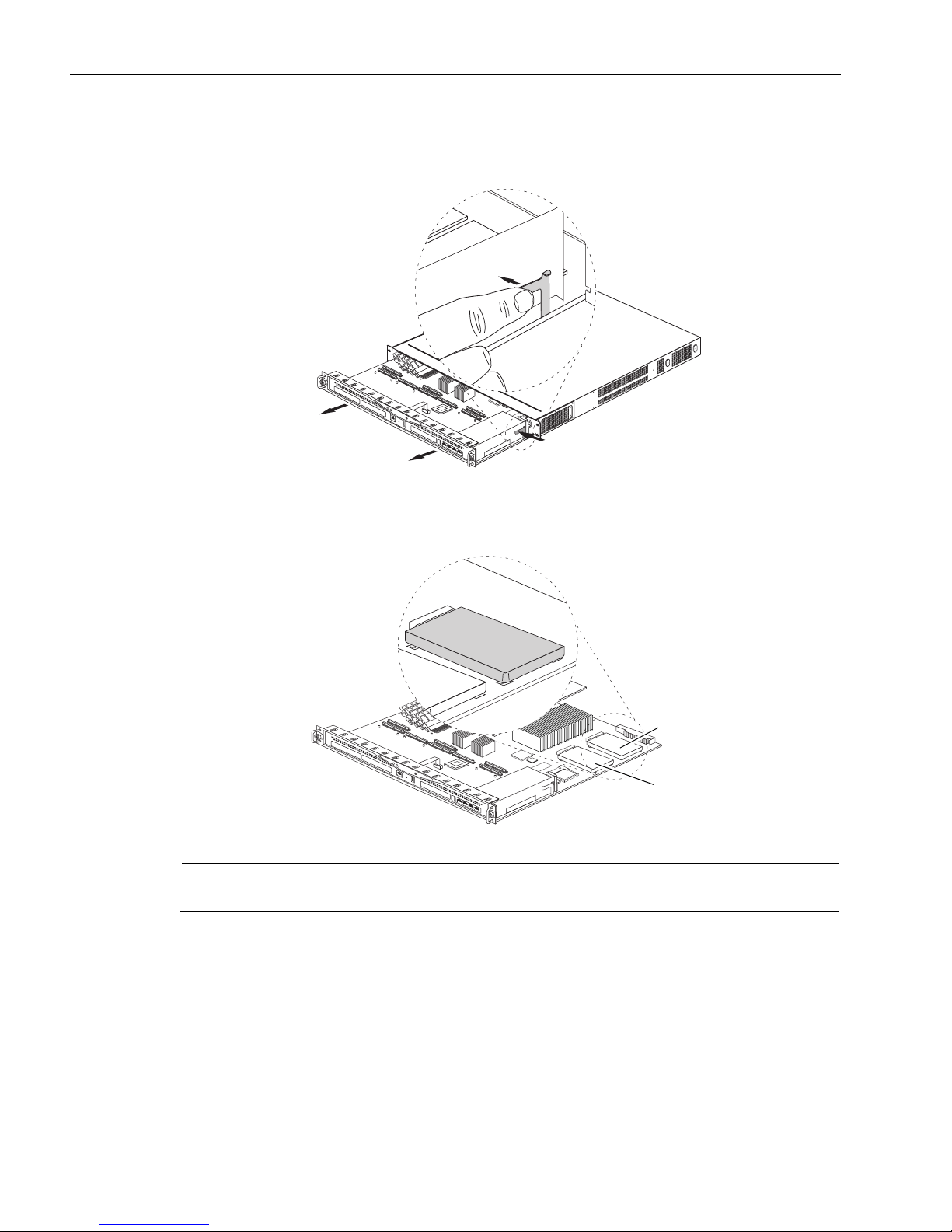

Figure 22 Location of Hard-Disk Drive on Chassis Tray Assembly . . . . . . . . . . . . 84

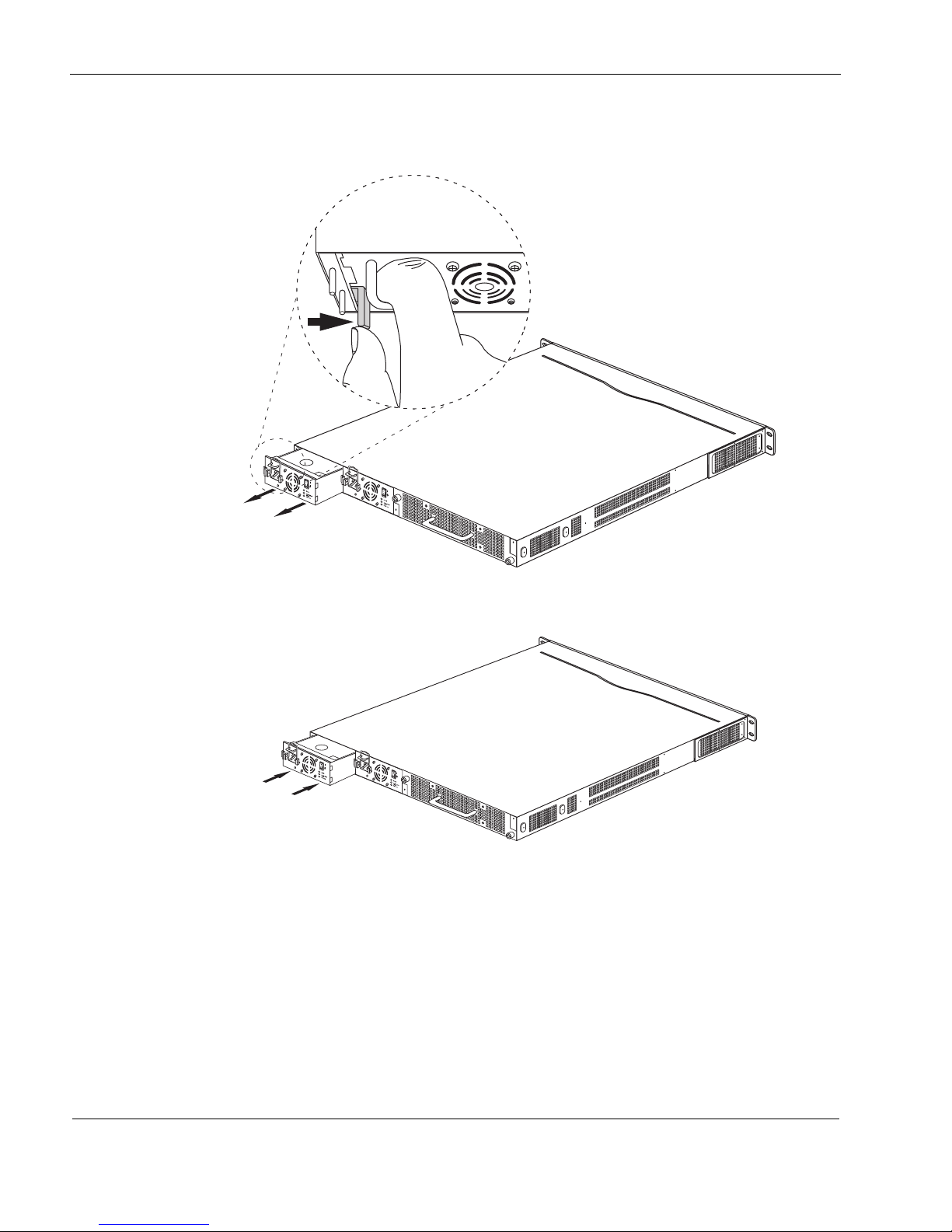

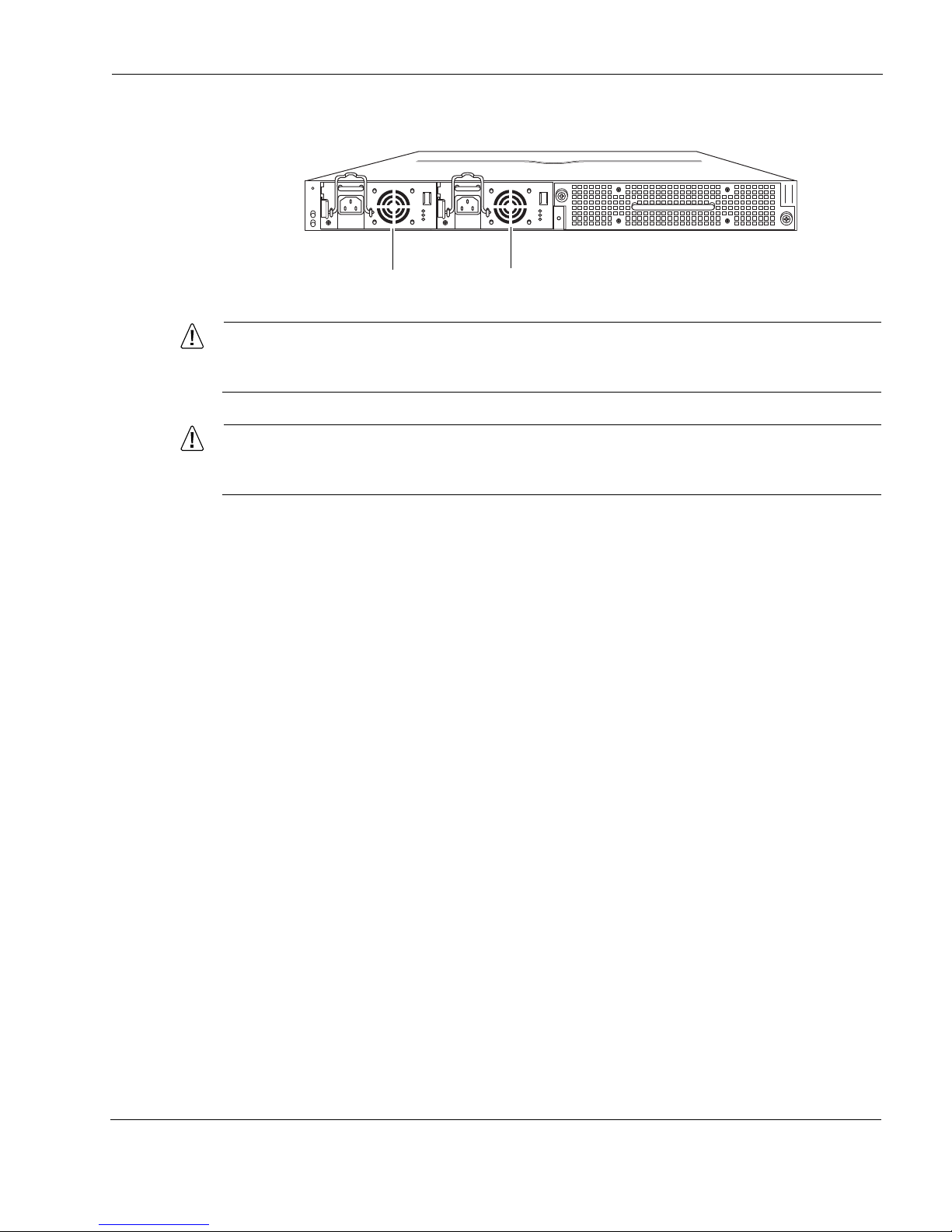

Figure 23 Power Supply Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Check Point IP690 Security Platform Installation Guide 7

8 Check Point IP690 Security Platform Installation Guide

Tables

Table 1 Command-Line Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 2 Text Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 3 Pin Assignments for Console Connector and Console Cable . . . . . . . . . 18

Table 4 System Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 5 Power Supply Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Table 6 NIC PCI Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Check Point IP690 Security Platform Installation Guide 9

10 Check Point IP690 Security Platform Installation Guide

About this Guide

This manual provides information for the installation and use of the Check Point IP690 security platforms. Installation and maintenance should be performed by experienced technicians or Check Point-approved service providers only.

This preface provides the following information:

 In this Guide

 Conventions this Guide Uses

In this Guide

This guide is organized into the following chapters and appendixes:

 Chapter 1, “Overview” presents a general overview of the Check Point IP690 security

platform.

 Chapter 2, “Installing the Check Point IP690 Appliance” describes how to rack-mount the

appliance.

 Chapter 3, “Performing the Initial Configuration” describes how to physically connect the

Check Point IP690 security platform to a network and to a power source and how to make the security platform available on the network.

 Chapter 4, “Installing and Replacing Network Interface Cards” describes how to install,

monitor, and replace network interface cards (NICs) and Accelerated Data Path (ADP) services modules.

 Chapter 5, “Connecting PMC Network Interface Cards” describes how to connect to and use

each of the supported NICs.

 Chapter 6, “Installing, Using, and Replacing ADP Services Modules” describes how to

install and use Accelerated Data Path (ADP) services modules with your appliance.

 Chapter 7, “Installing and Replacing Components Other than Network Interface Cards

(NICs) and Accelerated Data Path (ADP) Services Modules” describes how to install or

replace memory, hard-disk drives, the fan unit, power supplies, battery, compact flash memory card, PC card, and the Check Point encryption accelerator card.

 Chapter 8, “Troubleshooting” discusses problems you might encounter and proposes

solutions to these problems.

 Appendix A, “Technical Specifications” provides technical specifications such as interface

characteristics.

Check Point IP690 Security Platform Installation Guide 11

 Appendix B, “Compliance Information” provides compliance and regulatory information.

Warning

Caution

Note

Conventions this Guide Uses

The following sections describe the conventions this guide uses, including notices, text conventions, and command-line conventions.

Notices

Warnings advise the user that either bodily injury might occur because of a physical hazard, or that damage to a structure, such as a room or equipment closet, might occur because of equipment damage.

Cautions indicate potential equipment damage, equipment malfunction, loss of performance, loss of data, or interruption of service.

Notes provide information of special interest or recommendations.

Command-Line Conventions

Table 1 describes the elements of commands that are available in Check Point business security

products. You might encounter one or more of the following elements on a command-line path.

Table 1 Command-Line Conventions

Convention Description

command This required element is usually the product name or other short

word that invokes the product or calls the compiler or preprocessor script for a compiled Check Point product. It might appear alone or precede one or more options. You must spell a command exactly as shown and use lowercase letters.

Italics Indicates a variable in a command that you must supply. For

example:

delete interface if_name

Supply an interface name in place of the variable. For example:

delete interface nic1

12 Check Point IP690 Security Platform Installation Guide

Conventions this Guide Uses

Table 1 Command-Line Conventions (continued)

Convention Description

angle brackets < > Indicates arguments for which you must supply a value:

retry-limit <1–100>

Supply a value. For example:

retry-limit 60

Square brackets [ ] Indicates optional arguments.

delete [slot slot_num]

For example:

delete slot 3

Vertical bars, also called a

pipe

(|)

Separates alternative, mutually exclusive elements.

framing <sonet | sdh>

To complete the command, supply the value. For example:

framing sonet

framing sdh

-flag A flag is usually an abbreviation for a function, menu, or option name, or for a compiler or preprocessor argument. You must enter a flag exactly as shown, including the preceding hyphen.

.ext A filename extension, such as .ext, might follow a variable that

represents a filename. Type this extension exactly as shown, immediately after the name of the file. The extension might be optional in certain products.

( . , ; + * - / ) Punctuation and mathematical notations are literal symbols that

you must enter exactly as shown.

' ' Single quotation marks are literal symbols that you must enter as

shown.

Check Point IP690 Security Platform Installation Guide 13

Text Conventions

Table 2 describes the text conventions this guide uses.

Table 2 Text Conventions

Convention Description

monospace font

Indicates command syntax, or represents computer or screen output, for example:

Log error 12453

bold monospace font Indicates text you enter or type, for example:

# configure nat

Key names Keys that you press simultaneously are linked by a plus sign (+):

Press Ctrl + Alt + Del.

Menu commands Menu commands are separated by a greater than sign (>):

Choose File > Open.

The words enter and type Enter indicates you type something and then press the Return or

Enter key. Do not press the Return or Enter key when an instruction says

type.

Italics

• Emphasizes a point or denotes new terms at the place where they are defined in the text.

• Indicates an external book title reference.

• Indicates a variable in a command:

delete interface if_name

14 Check Point IP690 Security Platform Installation Guide

1 Overview

This chapter provides an overview of the Check Point IP690 security platform and the requirements for its use. The following topics are covered:

 About the Check Point IP690 Security Platform

 Managing the Check Point IP690 Security Platform

 Check Point IP690 Security Platform Overview

 Logging Options

 Site Requirements, Warnings, and Cautions

 Software Requirements

 Product Disposal

About the Check Point IP690 Security Platform

The Check Point IP690 security platform combines the power of the Check Point IPSO for IP appliances operating system with the Check Point VPN-1/FW-1 firewall application. The Check Point IP690 security platform is a high-end, multi-port security platform that is ideally suited for the enterprise data center.

The IP690 is a one rack-unit appliance that incorporates a serviceable slide-out tray into the chassis design. In its base configuration, the IP690 consists of:

 Solid state IDE compact flash storage, which stores the Check Point IPSO operating system

 2-GB system RAM

 Redundant hot-swappable AC power supplies

 Fan unit

 Encryption accelerator card to further enhance VPN performance

The front panel of the IP690 security platform contains:

 Four PMC slots for network interfaces cards (NICs) and Accelerated Data Path (ADP)

services modules, including:

 An option for single-slot PCMCIA PMC carrier card in slot 3

 A four-port Ethernet 10/100/1000 interface in slot 4

 A console port

 An auxiliary port

Check Point IP690 Security Platform Installation Guide 15

1 Overview

Note

 Front-panel reset button

Any slot can be used for an Ethernet NIC. The PCMCIA PC card carrier that is an option for slot 3 is removable; slot 3 can accept a Check Point-approved NIC.

You can purchase optional 2.5-inch hard-disk drives to use for logging. You can also purchase an optional PC card for logging.

The IP690 security platform is designed to meet other mid- to high-end availability requirements, including port density for connections to redundant internal, external, DMZ, and management networks. In addition, the IP690 security platform provides N + 1 cooling.

As a network device, the IP690 security platform supports a comprehensive suite of IP-routing functions and protocols.

The integrated router functionality eliminates the need for separate intranet and access routers in security applications.

Managing the Check Point IP690 Security Platform

You can manage the IP690 security platform by using the following interfaces:

 Check Point Network Voyager for IP appliances—an SSL-secured, Web-based element

management interface to Check Point IP security platforms. Network Voyager is preinstalled on the IP690 security platform and enabled through the Check Point IPSO operating system. With Network Voyager, you can manage, monitor, and configure the IP690 security platform from any authorized location within the network by using a standard Web browser. Use one of the four Ethernet ports to access the Network Voyager interface.

For information about how to access Network Voyager and the related reference materials, see “Using Check Point Network Voyager” on page 38.

 The Check Point IPSO command-line interface (CLI)—an SSHv2-secured interface that

enables you to easily configure Check Point IP security platforms from the command line. Everything that you can accomplish with Network Voyager—manage, monitor, and configure the IP690 security platform—you can also do with the CLI.

For information about how to access the CLI, see the CLI Reference Guide for the version of Check Point IPSO you are using.

 Check Point Horizon Manager for IP appliances—a secure GUI-based software image

management application. With Horizon Manager, you can securely install and upgrade the proprietary Check Point IPSO operating system, plus hardware and applications. Horizon Manager can perform installations and upgrades on up to 2,500 Check Point IP security platforms, offering administrators the most rapid and dependable upgrade to Check Point NG.

For information about how to obtain Horizon Manager, contact the Check Point Support Center at http://support.checkpoint.com/.

16 Check Point IP690 Security Platform Installation Guide

Check Point IP690 Security Platform Overview

Note

Caution

00577

SLOT 1 SLOT 2 SLOT 3

RESET

SLOT 4

1 2 3 4

IP690

AUXCONSOLE

System status LEDs

AUX port

Console port

Four-port Ethernet 10/100/1000 (slot 4)

PC-card slot (slot 3)

PMC NIC slots (slots 1 and 2)

Reset button

00120a

RJ-45 connectors

LInk LEDs (green)

Port 2 Port 4Port 1

Port 3

Check Point IP690 Security Platform Overview

Figure 1 shows the component locations for the IP690.

Figure 1 Component Locations Front View

Four-Port 10/100/1000 Ethernet NIC

The four-port 10/100/1000 Mbps Ethernet ports are located in slot 4. Figure 2 shows the layout of the Ethernet ports and link LEDs. The top link LED represents the left-most port (port 1). The remaining LEDs represent the remaining ports from top to bottom and left to right.

The Ethernet ports are intended for management or high-speed traffic.

Figure 2 Four-Port 10/100/1000 Ethernet PMC Details

Cables that connect to the Ethernet NIC must be compliant with IEEE 802.3ab, Cat 5E, or Cat 5 cables to prevent potential data loss.

Check Point IP690 Security Platform Installation Guide 17

1 Overview

Note

PMC Expansion Slots

The IP690 security platform provides two additional PMC expansion slots for network interface card (NIC) and Accelerated Data Path (ADP) services modules options.

For information about NICs, see Chapter 5, “Connecting PMC Network Interface Cards.”

For information about ADP modules, see Chapter 6, “Installing, Using, and Replacing ADP

Services Modules.”

Check Point products only support NICs and ADP modules purchased from Check Point or Check Point-approved resellers. The Check Point support services group can only provide support for Check Point products that use Check Point-approved accessories. For sales or reseller information,

support.checkpoint.com/..

Console Port

The default configuration of the serial ports are: 9600 baud, 8 bits, no parity, and 1 stop. Table 3 provides pin assignment information for console connections. If you need to access the device locally, you must use the console port.

contact the Check Point Support Center at http://

Table 3 Pin Assignments for Console Connector and Console Cable

RJ-45 to DB-9 Console Port (DTE)

Signal RJ-45 Pin RJ-45 Pin DB-9 Pin Signal

RTS 1 8 8 CTS

DTR 2 7 6 DSR

TxD 3 6 2 RxD

GND 4 5 5 GND

GND 5 4 5 GND

RxD 6 3 3 TxD

DSR 7 2 4 DTR

CTS 8 1 7 RTS

RJ-45 to RJ-45 Rollover Cable

Ter min al

Adapter Console Device

The console cable provided with the IP690 is comprised of two parts:

 A 6’ rollover cable with RJ-45 terminations

18 Check Point IP690 Security Platform Installation Guide

 An RJ-45 to DB-9 adapter

Note

One RJ-45 termination has a retractable shroud that releases or secures the RJ-45 tab. Use this end of the cable when connecting to the console port of the IP690. You can easily remove the console cable by pulling back on the shroud.

On the opposite end of the console cable, connect the RJ-45 to the DB-9 adapter, which you can then connect to the host terminal.

Auxiliary Port

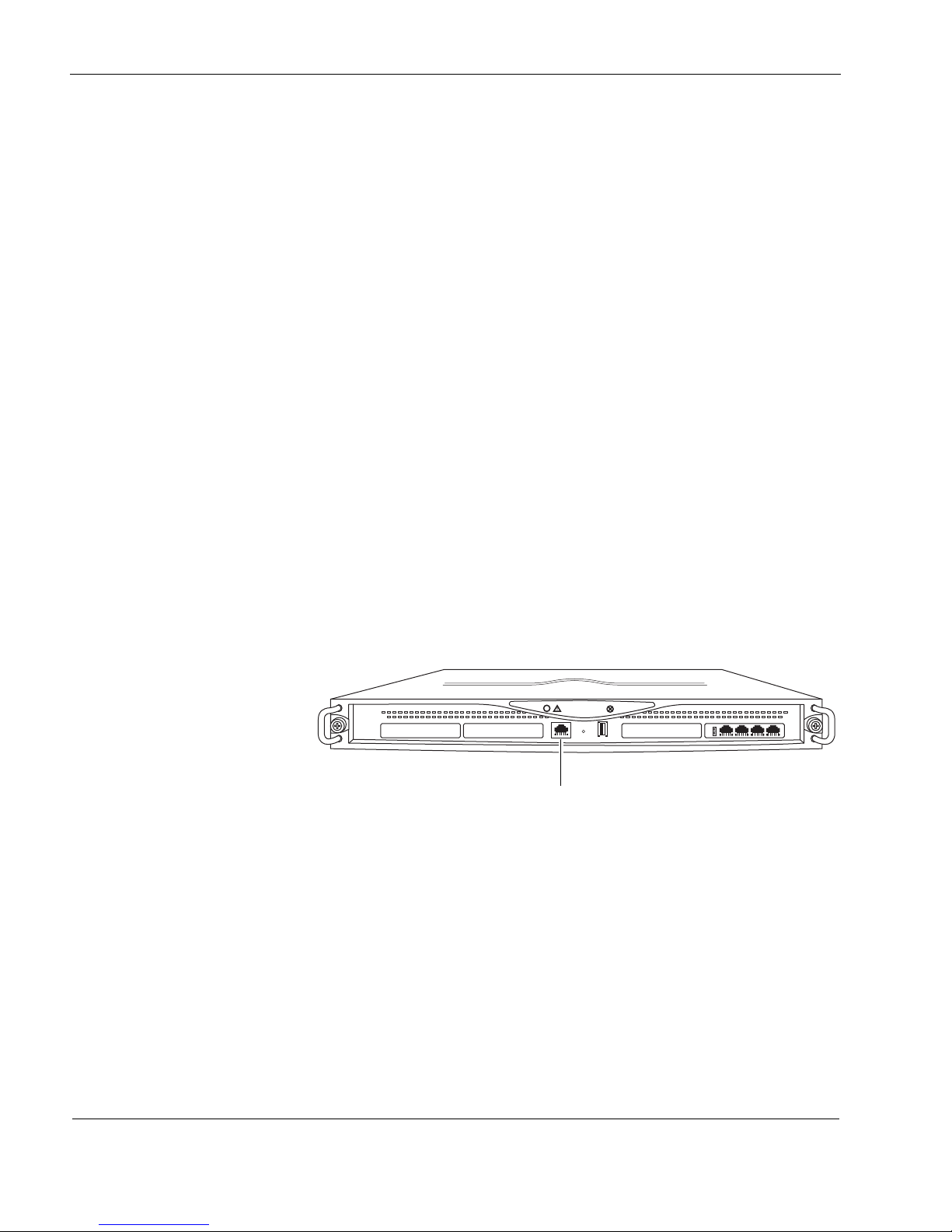

Use the built-in serial (AUX) port, shown in Figure 1, to establish a modem connection for managing the appliance remotely or out-of-band. Use USB cables with a standard USB A-style connector and pinout for the AUX port. For Check Point approved modem connections, you will need a USB to RS232 adaptor.

The only modem approved for use with Check Point security appliances with USB AUX ports is the Radicom model V92MB-U-E, and you must be using IPSO 6.1 or greater.

Check Point IP690 Security Platform Overview

System Status LEDs

You can visually monitor the status of the IP690 security platform by checking the system status LEDs. The system status LEDs are located on the center of the front panel, as shown in Figure 3.

Check Point IP690 Security Platform Installation Guide 19

1 Overview

Note

00578

SLOT 2 SLOT 3

RESET

SLOT 4

1 2 3 4

AUXCONSOLE

Fault (red)

Warning

(yellow) System OK (green)

Figure 3 Check Point IP690 Security Platform System Status LEDs

Table 4 shows the system status LEDs and describes their meaning.

Table 4 System Status LEDs

Status Indicator Definition Symbol

Solid yellow Appliance is experiencing an

internal voltage problem.

Blinking yellow Appliance is experiencing a

temperature problem.

Solid red One or more fans are not

operating properly. Power supply over temperature fault.

Blinking green System activity indicator

The location and definition of the status LEDs for the installed network interface cards (NICs) is described in Chapter 5, “Connecting PMC Network Interface Cards.”

The location and definition of the status LEDs for the installed ADP modules is described in

Chapter 6, “Installing, Using, and Replacing ADP Services Modules.”

The Fault and Warning symbols in Tab le 4 are visible only if there is an alarm condition, as specified.

20 Check Point IP690 Security Platform Installation Guide

Logging Options

Note

00578

SLOT 2 SLOT 3

RESET

SLOT 4

1 2 3 4

AUXCONSOLE

PMC card carrier slot

The IP690 supports two options for storing local system log files, as described in the following topics:

 Using Hard-Disk Drives for Logging

 Using PC Card for Logging

You can use only one device for logging (whether hard-disk drive or PC card) so only one should be plugged into the system at any one time.

Using Hard-Disk Drives for Logging

The IP690 security platform is either a flash-based or disk-based appliance, and the appliance also supports one or two optional hard-disk drives that plug into connectors on the motherboard. Each hard-disk drive provides 40 GB of disk storage.

A hard-disk drive is not included with a standard flash-based IP690, nor is a second hard-disk drive included with a standard disk-based IP690. When you purchase your IP690, you can order one or two hard-disk drives for factory installation or order them later and install them yourself, as described in “Installing a Hard-Disk Drive” on page 82.

Logging Options

You can use a single hard-disk drive for storing log files.

Using PC Card for Logging

The IP690 slot 3 populated with an optional PCMCIA card carrier can support an optional PC card with 1 GB flash memory. The slot, labeled Slot 3, is located on the front panel of the appliance, as Figure 4 shows. The IP690 supports using only one PC card at a time.

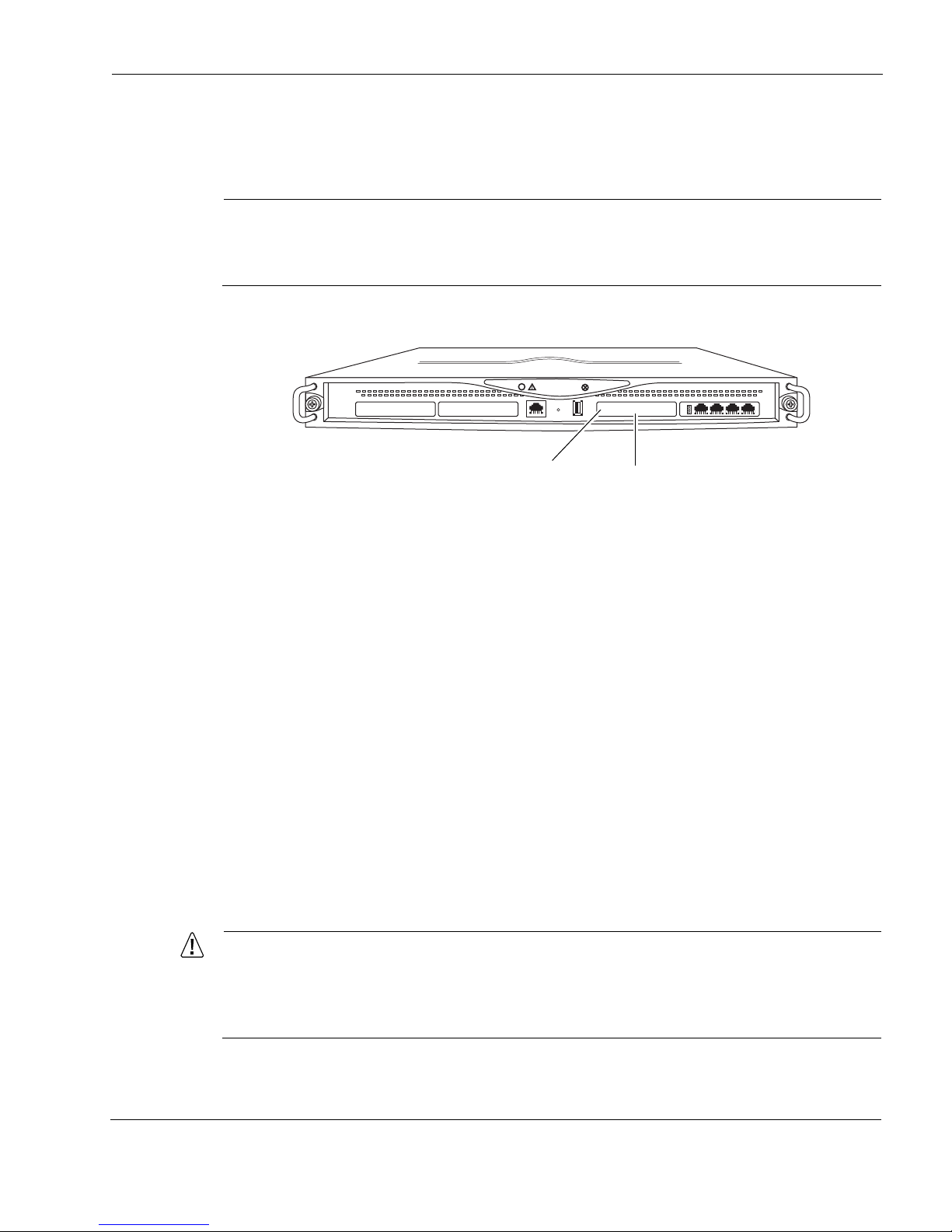

Figure 4 Location of the PMC PC Card Carrier Slot

You can use the PC card flash memory to store local system logs.

Check Point only supports PC cards purchased from Check Point or Check Point-approved resellers. For more information, contact the appropriate Check Point customer support site listed in “For additional technical information about Check Point products, and for the latest version of

Check Point IP690 Security Platform Installation Guide 21

1 Overview

Note

00580

FAULT

OVER TEMP OVER

PWER OK

FAULT

OVER TEMP OVER

PWER OK

Power supplies

Fan unit

00580

FAULT

OVER TEMP OVER

PWER OK

FAULT

OVER TEMP OVER

PWER OK

AC power receptacle

Power supply switches

this document, see the Check Point Support Center at http://support.checkpoint.com/.” on

page 2.

The slot that the PCMCIA card carrier uses also supports other PMC cards approved by Check Point.

Power Supplies and Fan Unit

The redundant power supplies and fan unit are located at the rear of the IP690 appliance, as shown in Figure 5.

Figure 5 Power Supplies and Fan Unit Locations

Power Supplies

The IP690 supports two redundant power supplies. Each power supply is autosensing and can accept input voltages between 47Hz-64Hz and 85VAC-264VAC.

Figure 6 Power Supply Receptacle and Switch Locations

For information about how to install or remove and replace a failed power supply, see

“Replacing a Power Supply” on page 92.

The power supply status LEDs provide the status of the power supply as described in Table 5.

22 Check Point IP690 Security Platform Installation Guide

Logging Options

Caution

00586

Table 5 Power Supply Status LEDs

LED LED status Meaning

Fault Red Power supply has a voltage problem

and power was turned off.

One power supply in a redundant system is not turned on.

Over Temp Yellow Power supply has an internal

temperature problem. All power to the unit is turned off. After the internal temperature returns to normal, power will be turned back on.

PWR OK Green Power is on and the power supply is

functioning properly.

Fan Unit

The IP690 fan is a single unit made up of four individual fans to provide the air flow required to maintain a proper operating temperature. The fan unit can provide proper airflow for a short time even if an individual fan fails.

Figure 7 Fan Unit

If an individual fan fails, replace the fan unit as soon as possible. For information about how to replace a failed fan unit, see “Replacing a Fan Unit” on page 91.

The system status LEDs on the front panel of the appliance show the status of the fan unit. For more information about the system status LEDs, see “System Status LEDs” on page 19.

Check Point IP690 Security Platform Installation Guide 23

1 Overview

Warning

Caution

Site Requirements, Warnings, and Cautions

Before you install a Check Point IP690 security platform, ensure that your computer room or wiring closet conforms to the environmental specifications listed in Appendix A, “Technical

Specifications.”

Excessive electromagnetic interference (EMI) can occur if you use controls, make performance adjustments, or follow procedures that are not described in this document.

To reduce the risk of fire, electric shock, and injury when you use telephone equipment, follow basic safety precautions. Do not use the product near water.

On Check Point IP690 security platforms intended for shipment outside of the United States, the cord set might be optional. If a cord set is not provided, use a power cord rated at 10A, 250V, maximum 15 feet long, made of HAR cordage and IEC fittings approved by the country of end use.

Do not block any of the ventilation holes on the appliance. The components might overheat and become damaged.

Software Requirements

The Check Point IP690 security platform supports the following operating system and applications as of the publication date for this guide:

 IPSO v4.2 or later operating system

 Check Point VPN-1/FW-1 firewall application

For information about updates to the software requirements or additional applications that have become available since this guide was published, see the Check Point Support Center at http://

support.checkpoint.com/.

24 Check Point IP690 Security Platform Installation Guide

Product Disposal

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office or your household waste disposal service.

Check Point IP690 Security Platform Installation Guide 25

1 Overview

26 Check Point IP690 Security Platform Installation Guide

2 Installing the Check Point IP690

Caution

Note

Appliance

This chapter describes how to install the IP690 appliance. The following topic is discussed:

 Before You Begin

 Rack-Mounting the Appliance

Before You Begin

To rack-mount the appliance, you need:

 Phillips-head screwdriver

 Grounding wrist strap

 Suitable, grounded work surface on which to place the chassis tray assembly

Rack-Mounting the Appliance

The Check Point IP690 security platform mounts in a standard 19-inch equipment rack with four mounting screws, as Figure 8 shows.

To avoid damaging your equipment, Check Point recommends that you use all four rackmounting bolts when you install your appliance on the rack.

Check Point IP690 Security Platform Installation Guide 27

2 Installing the Check Point IP690 Appliance

Caution

00581

SLOT 1 SLOT 2 SLOT 3 SLOT 4

1 2 3 4

IP690

RESET

AUXCONSOLE

Rack-mounting screw locations

00580

FAULT

OVER TEMP OVER

PWER OK

FAULT

OVER TEMP OVER

PWER OK

Fan unit

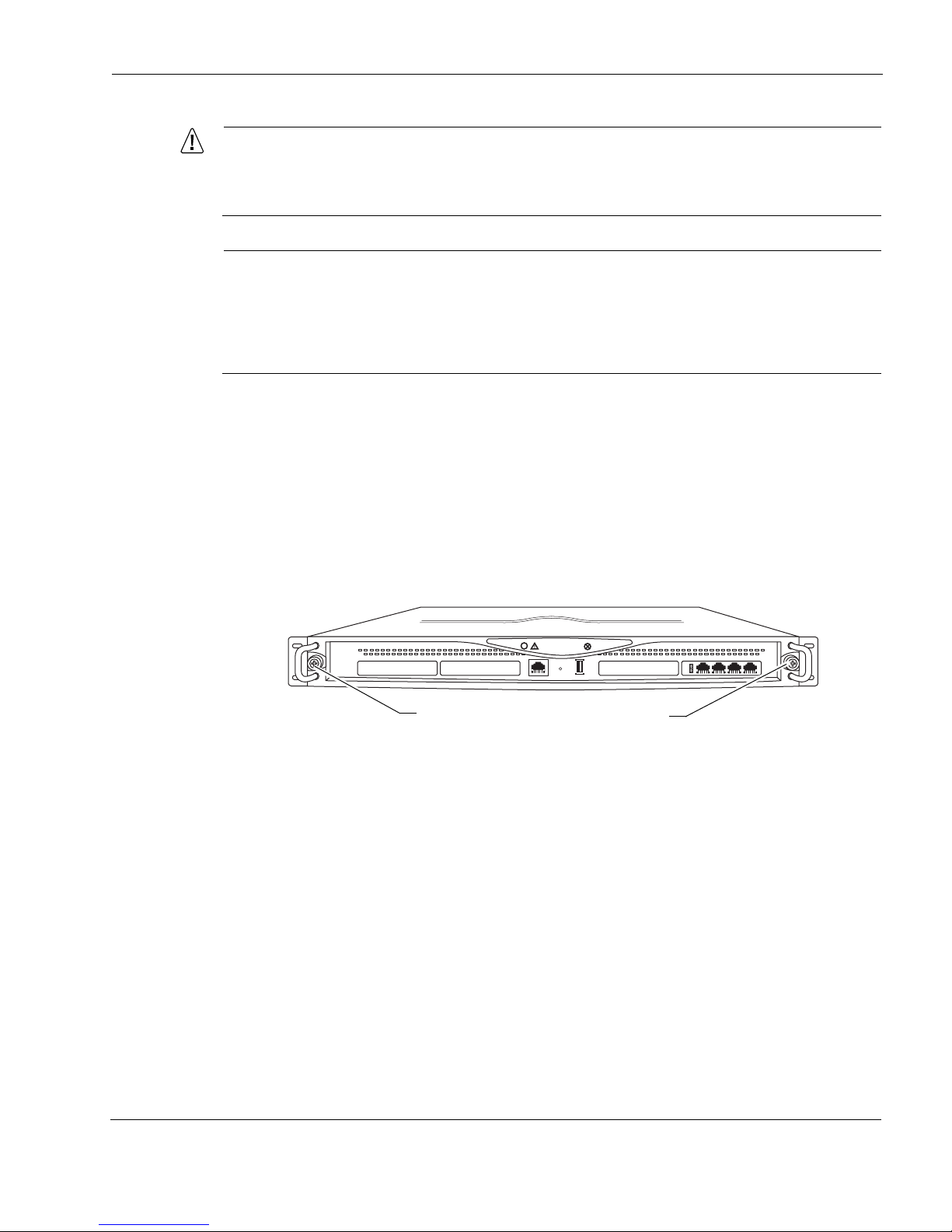

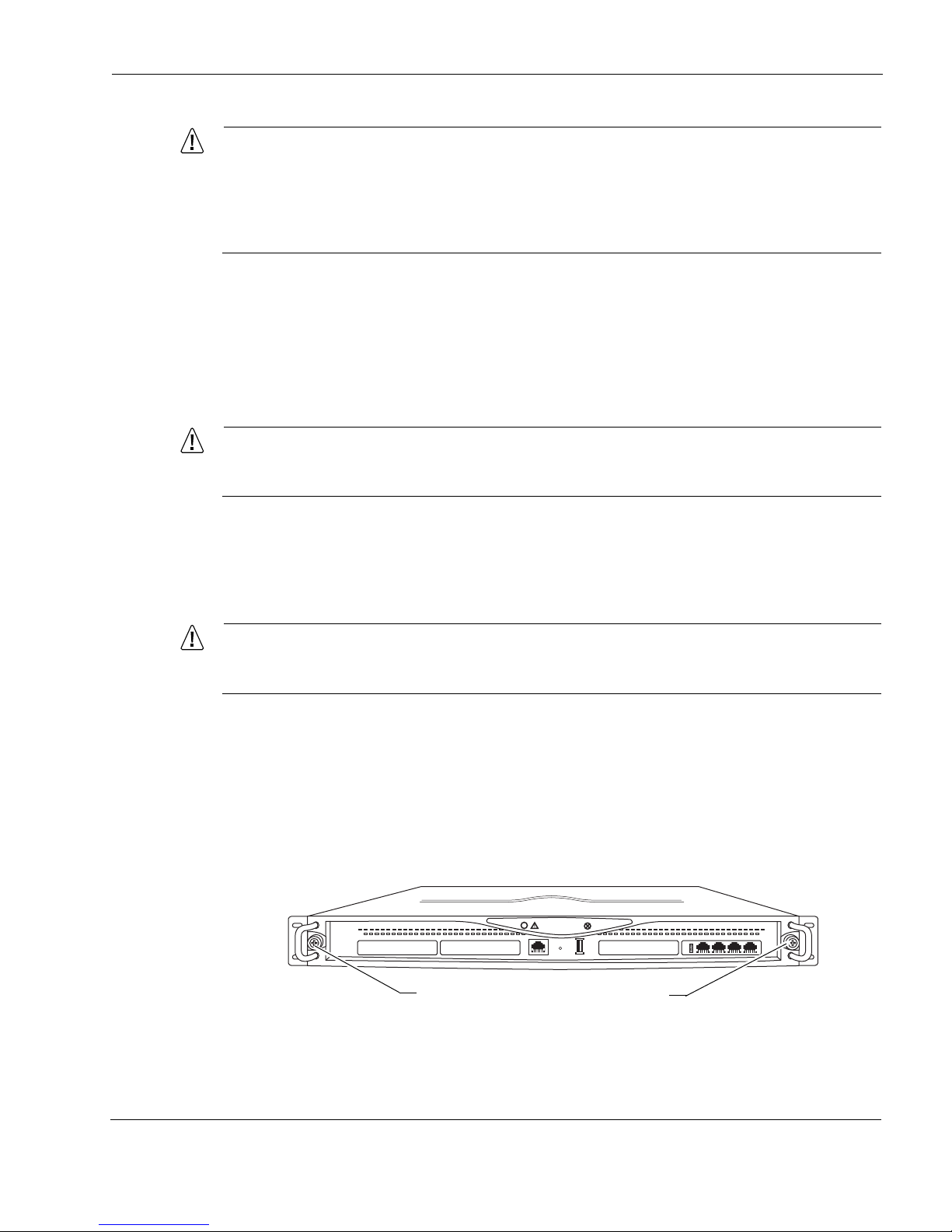

Figure 8 Rack-Mounting Screw Locations

Two rack-mounting positions allow you to mount the appliance either flush with the rack, or two inches forward of the equipment rack. If the space behind the rack is insufficient, the rackmounting brackets can be attached further back on the side of the appliance.

During installation, do not block any ventilation openings. Doing so might result in damage to the appliance when it is turned on.

To rack-mount the appliance

The appliance is heavy. Use care when you remove it from the packaging.

1. Remove the appliance from the packaging.

2. Optionally, remove the fan unit from the back of the appliance to lighten it.

a. Locate the fan unit and the two retaining screws that secure it on the back of the IP690.

b. Loosen the retaining screws by turning them counterclockwise.

28 Check Point IP690 Security Platform Installation Guide

Rack-Mounting the Appliance

00587

00580

FAULT

OVER TEMP OVER

PWER OK

FAULT

OVER TEMP OVER

PWER OK

Power supplies

00588

c. Slowly pull the fan unit out of the chassis toward the rear.

3. Optionally, remove the power supplies from the rear of the appliance to reduce weight, as

follows.

a. Locate the power supplies on the back of the IP690.

b. Grasp the handle and release lever as shown in the following figure, and use the handle to

firmly pull each power supply out of the chassis.

Check Point IP690 Security Platform Installation Guide 29

2 Installing the Check Point IP690 Appliance

00581

SLOT 1 SLOT 2 SLOT 3 SLOT 4

1 2 3 4

IP690

RESET

AUXCONSOLE

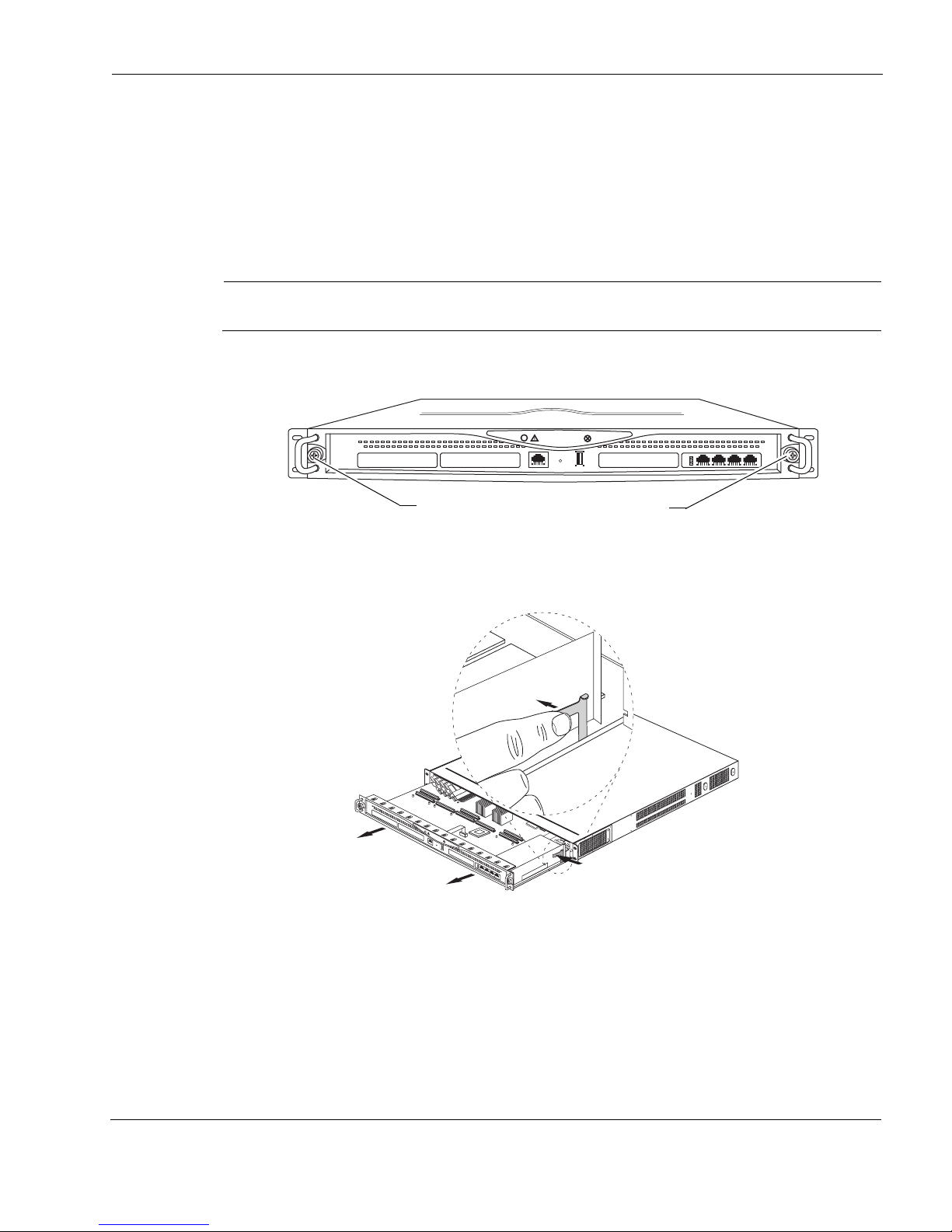

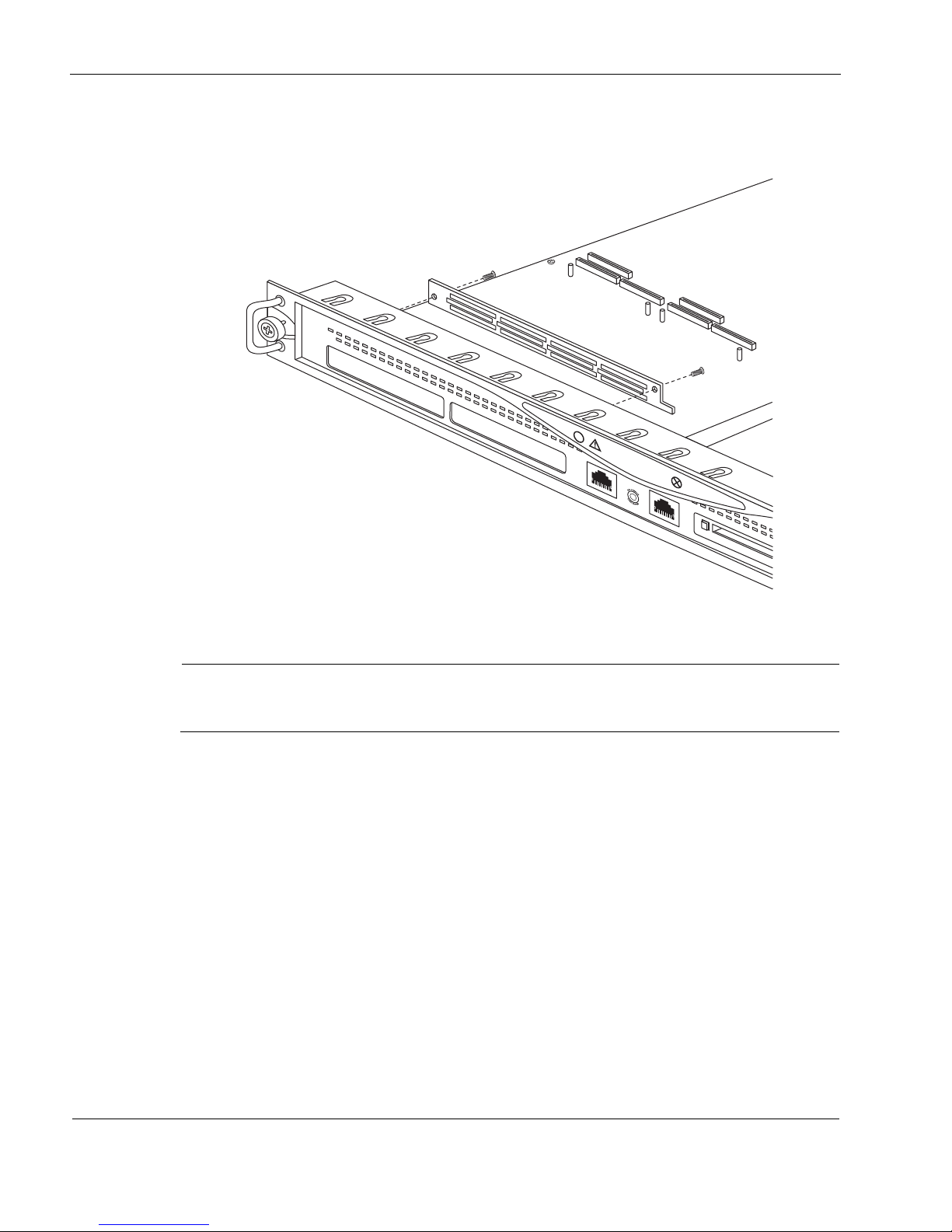

Chassis tray assembly retaining screws

S L

O T

S L

O T

S L

O T

1 2 3 4

IP690

R E S

E T

A U X

C O N

S O L

00597

S L

O T

S L

O T

S L

O T

L O

1 2 3 4

E S

E T

A U

O N

S O

L E

00584

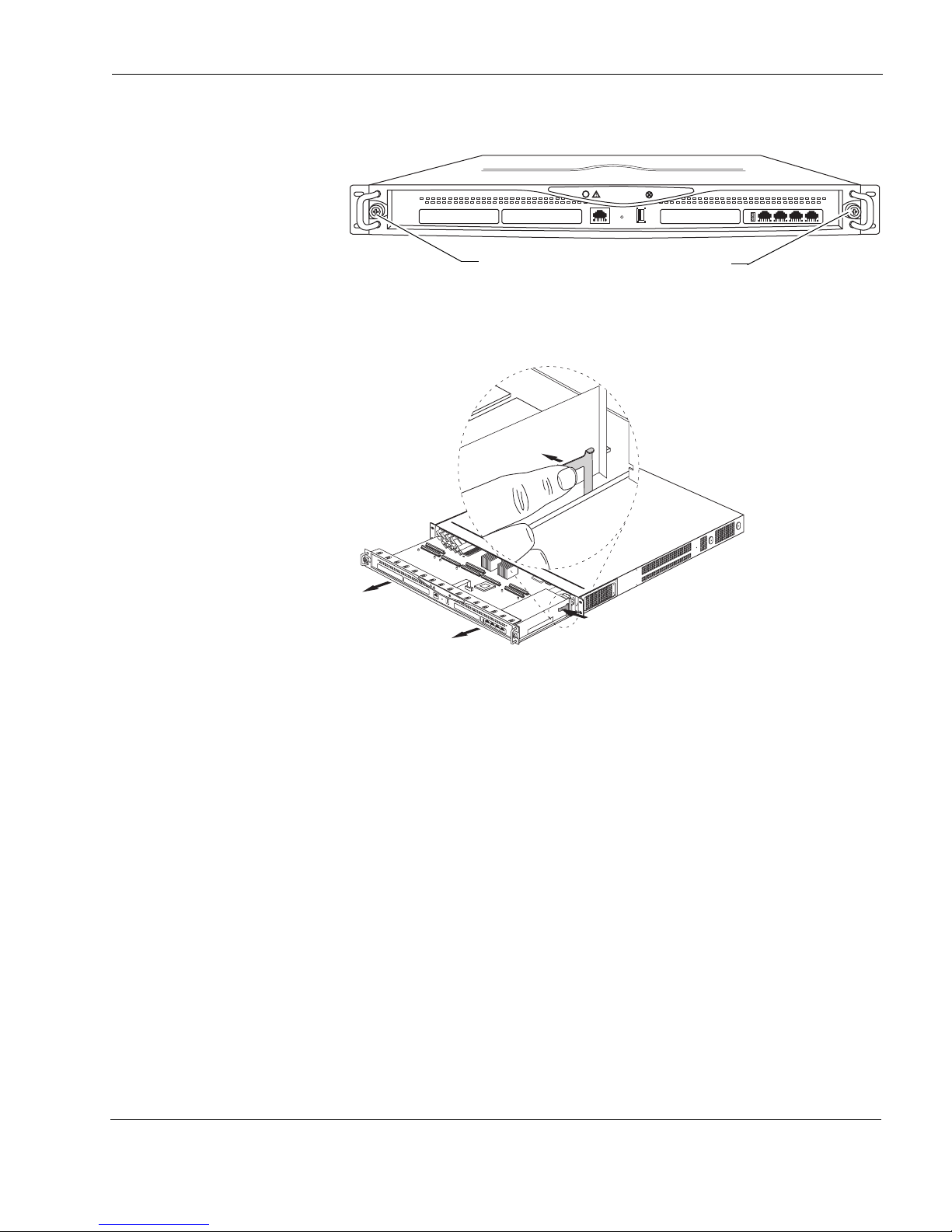

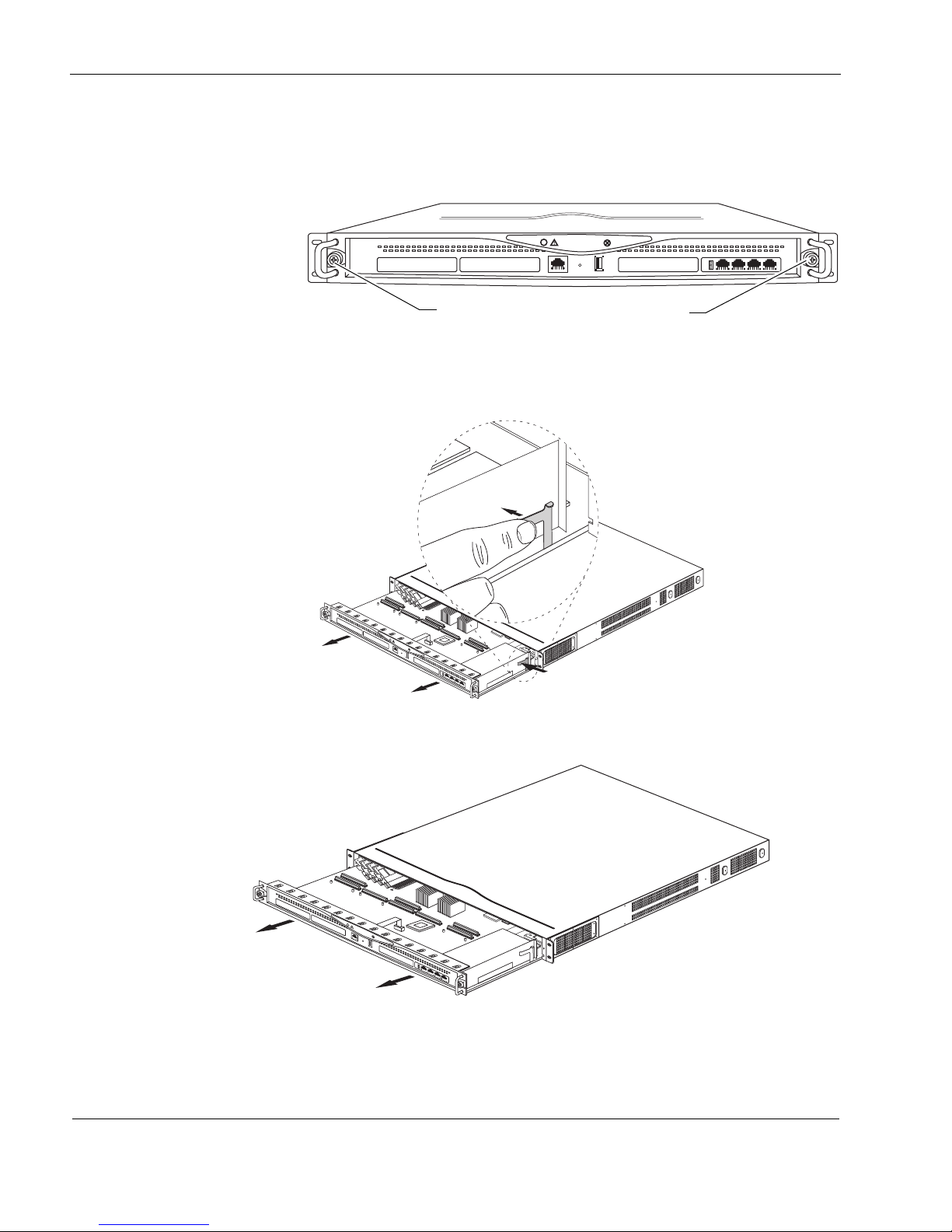

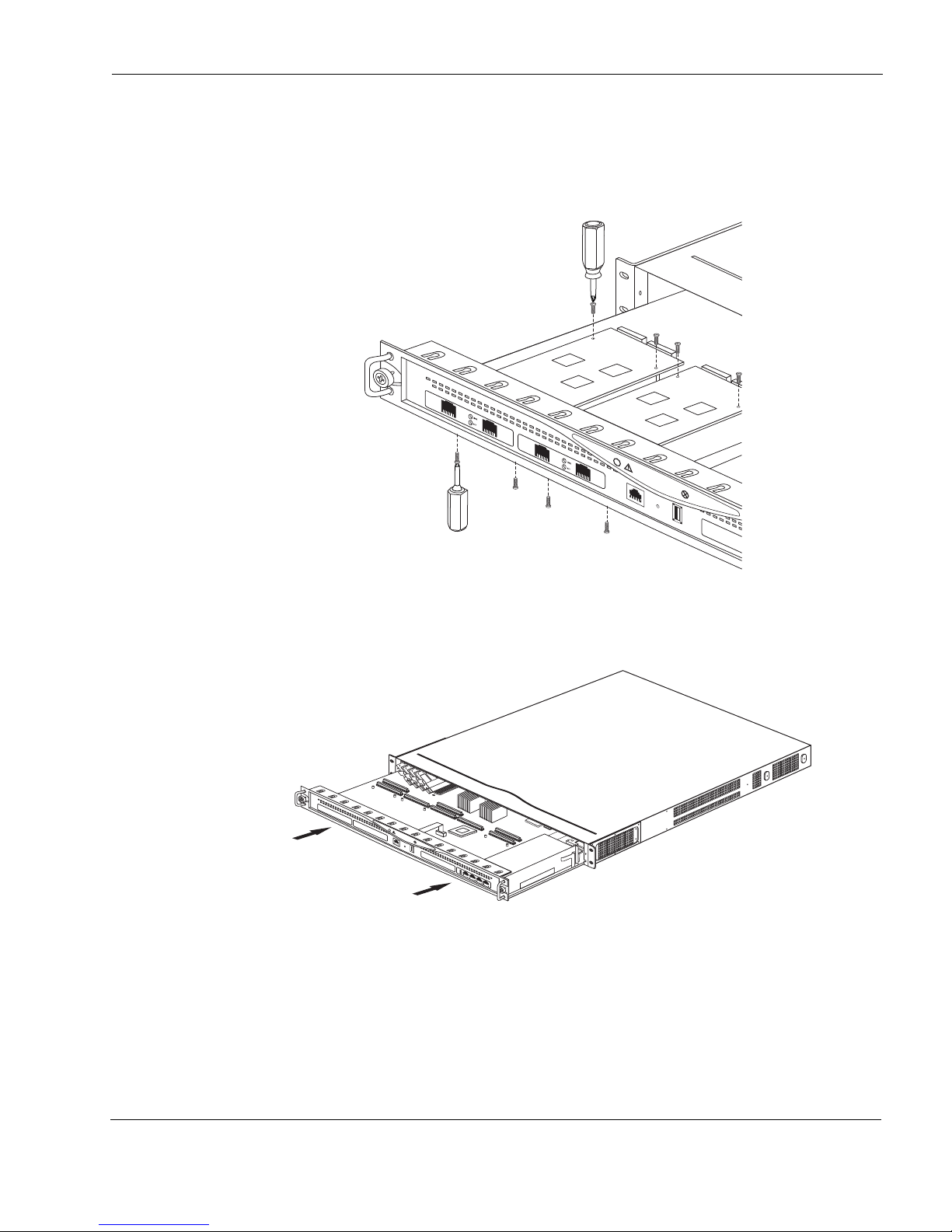

4. Optionally, remove the chassis tray assembly from the appliance.

a. Loosen the two chassis tray assembly retaining screws from the front panel of the

appliance.

b. Slowly slide the chassis tray assembly forward, taking care to prevent damaging

components, press the release tab on the right side of the assembly, and completely remove the chassis tray assembly to expose the motherboard components.

c. Place the chassis tray assembly on a properly grounded surface.

30 Check Point IP690 Security Platform Installation Guide

Rack-Mounting the Appliance

S L

O T

S L

O T

S L

O T

L O

1 2 3 4

E S

E T

A U X

O N

S O

00583

5. Adjust the mounting brackets on the side of the appliance if necessary.

6. Mount the appliance into a standard 19-inch rack by using the mounting screws located on

the mounting brackets. You can use the rear brackets for additional chassis support.

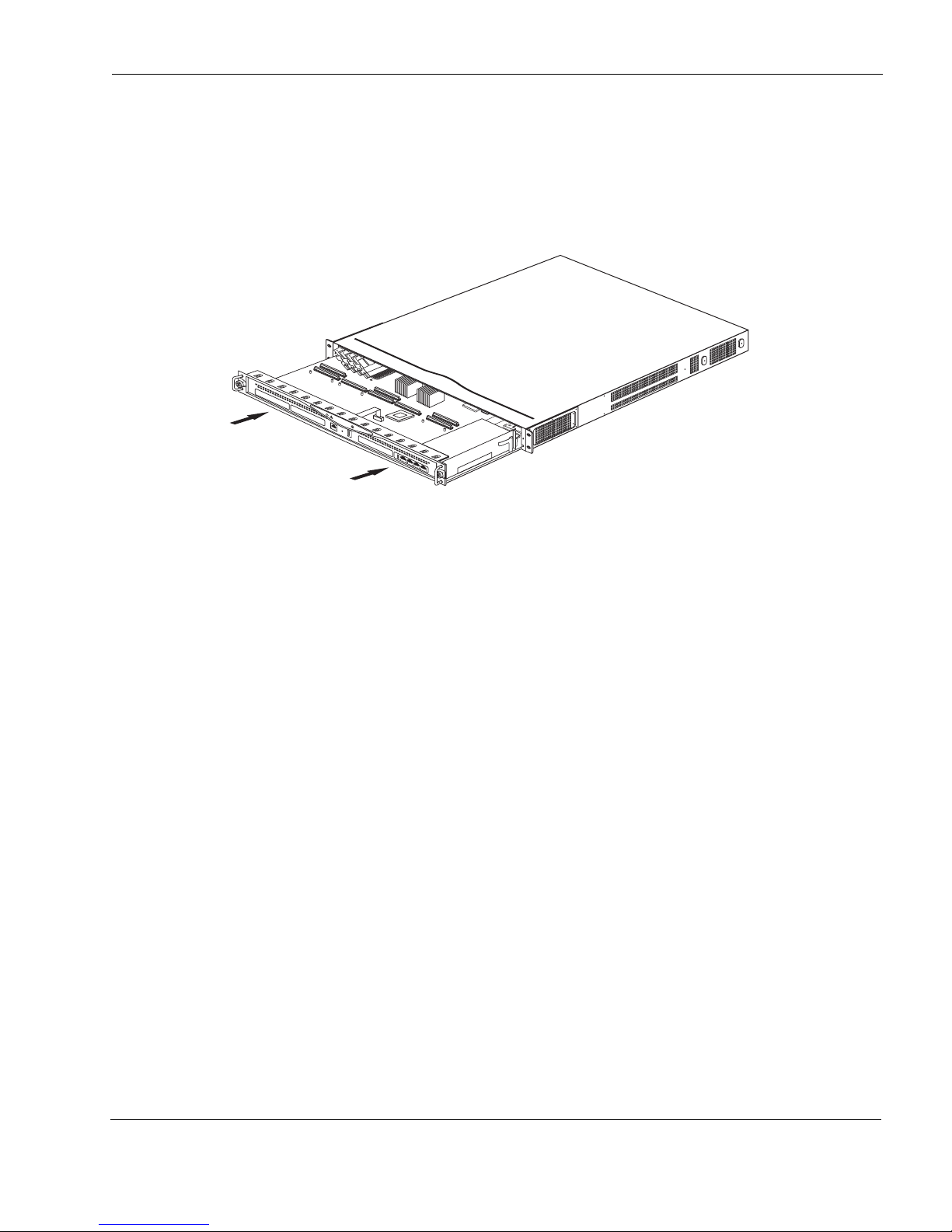

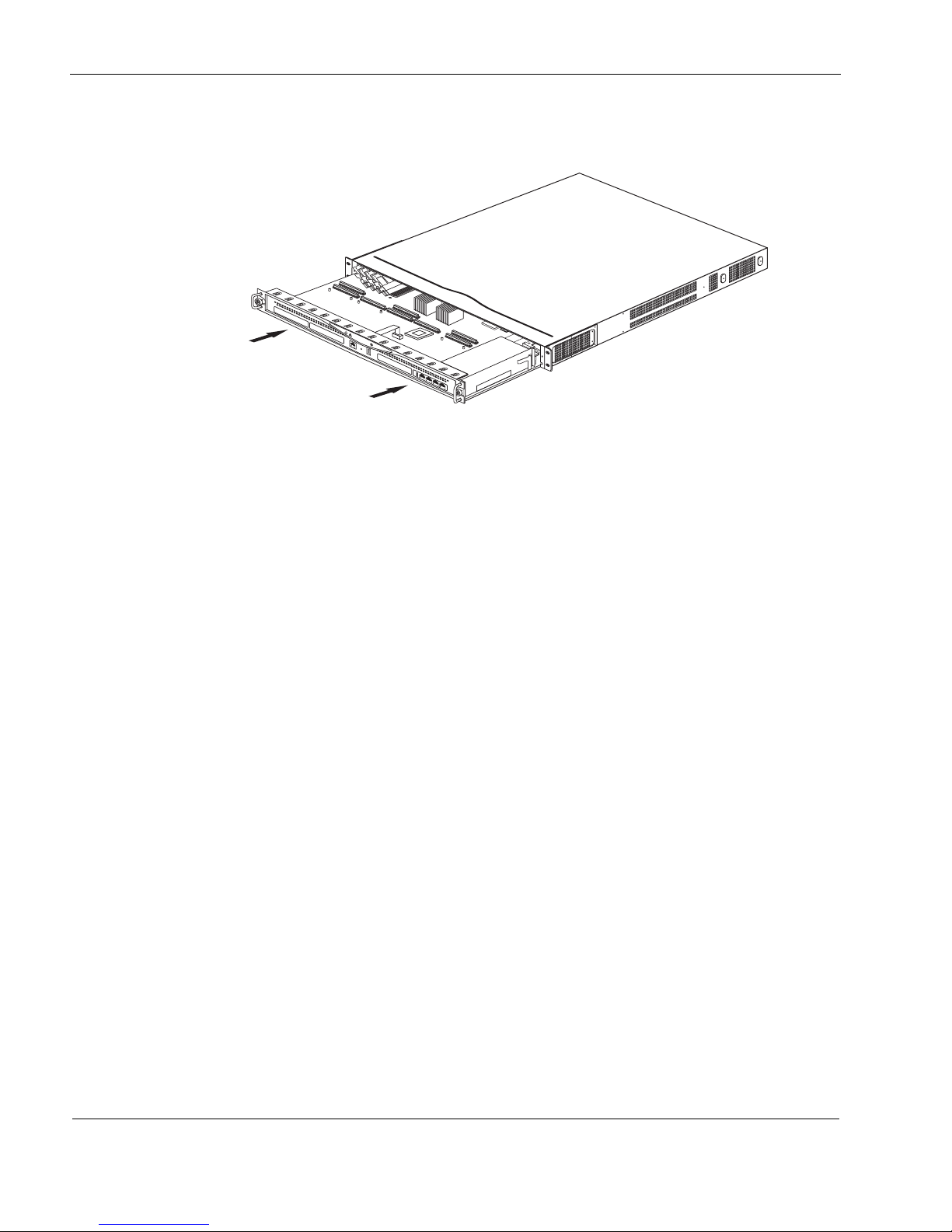

7. Slowly slide the chassis tray assembly back into the appliance, taking care to prevent

damaging components, and resecure the two chassis tray assembly retaining screws.

8. Reinstall the fan unit into the rear of the appliance.

9. Reinstall the power supplies.

After you rack-mount the appliance, you can ground it by using the grounding lugs provided.

Check Point IP690 Security Platform Installation Guide 31

2 Installing the Check Point IP690 Appliance

32 Check Point IP690 Security Platform Installation Guide

3 Performing the Initial Configuration

Note

The first time you turn on power to a Check Point IP690 appliance, the initial configuration process begins. This process enables you to configure the network settings and provides access to the admin account.

You can perform the initial configuration in two ways:

 Configure a DHCP server to provide the initial configuration information the first time the

appliance is started.

 Perform the initial configuration manually by using a console connection.

This chapter describes how to perform the initial configuration manually by using a console connection. It includes the following sections:

 Using a Console Connection

 Connecting Power and Turning the Power On

 Performing the Initial Configuration

 Connecting Network Interfaces

 Using Check Point Network Voyager

 Using the Command-Line Interface

 Using Check Point Horizon Manager

For information about how to use the DHCP client for initial configuration, see the Read Me First document, Using DHCP to Configure Your Appliance.

Check Point recommends that you physically install all NICs, ADP modules, and other hardware components before you perform the initial configuration procedure this chapter describes. For information about how to install NICs, see Chapter 4, “Installing and

Replacing Network Interface Cards.” For information about how to install ADP modules, see Chapter 6, “Installing, Using, and Replacing ADP Services Modules.” For information about

how to install other components, see Chapter 7, “Installing and Replacing Components

Other than Network Interface Cards (NICs) and Accelerated Data Path (ADP) Services Modules.”

Check Point IP690 Security Platform Installation Guide 33

3 Performing the Initial Configuration

00577

SLOT 1 SLOT 2 SLOT 3

RESET

SLOT 4

1 2 3 4

IP690

AUXCONSOLE

Console port

Using a Console Connection

If you do not use DHCP to perform the initial configuration of your Check Point IP690 security platform, you must use a serial console connection (cable included). After you perform the initial configuration, you no longer need the console connection.

You can use any standard VT100-compatible terminal with an RS-232 data terminal equipment (DTE) interface or terminal-emulation program configured with the following settings for the console:

 9600 bps

 8 data bits

 No parity

 1 stop bit

To connect to the console

1. Connect the supplied null-modem cable (console cable) to the console port on the front

panel of the IP690.

Use only the RJ-45 port labeled Console on the front panel; the serial (AUX) port is an auxiliary port.

If you connect the console port to a data communications equipment (DCE) device, use a straight-through cable.

For cable pin assignments for the console connection, see “Console Port” on page 18.

2. Connect the other end of the cable to the VT100 console or to a system running a terminal-

emulation program.

Connecting Power and Turning the Power On

A power switch and a receptacle for the power cord are located on each power supply on the back of the appliance as shown in Figure 9.

34 Check Point IP690 Security Platform Installation Guide

Connecting Power and Turning the Power On

Caution

00580

FAULT

OVER TEMP OVER

PWER OK

FAULT

OVER TEMP OVER

PWER OK

Power cord receptacle

Power switch

Power supplies

Figure 9 Power Switch Location

To avoid potential service interruptions from momentary facility power interruptions and potential power spikes that might damage your equipment, Check Point strongly recommends that you use an uninterruptible power supply (UPS) with surge protection with your IP690.

To connect the power supplies

1. Connect the power cord securely into the power cord receptacle on each power supply.

2. Plug the other end of the power cords into a three wire grounded power strip or wall outlet.

3. Toggle the 1/O power switch to the 1 position on each power supply to provide power to the

IP690.

The fan unit on the power supply turns on when you press the power switches. Verify that the power supply fans are running after you press the switches.

4. Check the power LED on the front panel of the appliance to ensure that the power supply is

operating correctly.

The power LED should be illuminated. For more information about the system status LEDs, see

“System Status LEDs” on page 19.

If the fans are not running, or if the power LED is not illuminated, make sure:

 The power cords are properly connected.

 The power supply switches are on.

 The chassis tray assembly is pushed all the way in from the front of the appliance.

 That power is turned on to the power strip or wall receptacle into which you plugged the

appliance.

If the fans are still not running, or if the power LED does not illuminate, see the Check Point Support Center at http://support.checkpoint.com/.

Check Point IP690 Security Platform Installation Guide 35

3 Performing the Initial Configuration

Note

Performing the Initial Configuration

To perform the initial configuration

1. Press the power switch to the “on” position to turn on power to the appliance.

The fan son the back of the appliance turn on when you press the power switch. Verify that the fans are running after you press the switch.

Check the power LED on the front panel of the appliance to ensure that the power supply is operating correctly. The power LED should be illuminated. For more information about the system status LEDs, see “System Status LEDs” on page 19.

If the power supply fans are not running, or if the power LED is not illuminated:

 Check the power supply cord to make sure it is properly connected.

 Make sure the power switch is on.

 Make sure the chassis tray assembly is pushed all the way in from the front of the

appliance and that the front panel retaining screws are tightened.

 Make sure that power is turned on to the power strip or wall receptacle you plugged the

appliance in to.

If the fans are still not running, or if the power LED does not illuminate, see the Check Point Support Center at http://support.checkpoint.com/.

2. At the console a series of startup messages appears, then the console prompt appears.

The prompt remains on the screen for about five seconds. If you type any character during this time, the appliance activates the IPSO boot manager.

BOOTMGR[0]>

For information about using the boot manager, see the IPSO Boot Manager Reference Guide.

After some miscellaneous output, the following prompt appears:

Hostname?

If the Hostname? prompt does not appear on the console, check the console port and console display connections to ensure that the serial cable is completely plugged in at both ends. If you verify the console connections and still do not see either the BOOTMGR> or Hostname? prompts, verify that the terminal or terminal emulator program settings are correct. If the settings are correct, see the Check Point Support Center at http://

support.checkpoint.com/.

3. Respond to the Hostname? prompt within 30 seconds to prevent the DHCP client from

starting.

36 Check Point IP690 Security Platform Installation Guide

Connecting Network Interfaces

Note

If the DHCP client starts, it might configure the appliance with an incorrect host name and IP address (this could happen if a DHCP server on your network is configured to respond to any request). To reset the incorrect host name and IP address:

a. Establish a console connection to the appliance.

b. Log into the system using the user name admin and the password password.

c. Enter the following:

rm /config/active

mv /config/active /config/active.old

d. Reboot the appliance.

e. Respond to the Hostname? prompt within 30 seconds to prevent the DHCP client from

restarting.

4. At each subsequent prompt, type the requested configuration information and then press

Enter.

For more information about how to respond to the prompts during the initial configuration process, see the Getting Started Guide and Release Notes for the version of IPSO you are using.

5. After you complete the initial configuration, you can use Network Voyager to configure the

remaining network ports.

Connecting Network Interfaces

Connect at least one network interface to the network to use as the Check Point Network Voyager system-management interface. This interface is configured during the initial configuration process.

You can also connect the remaining LAN interface cables at this point, although you are not required to do so.

Check Point recommends that you use one of the four front-panel Ethernet ports for this connection.

 To connect Ethernet devices, use a straight-through RJ-45 cable to connect to a 10-Mbps or

100-Mbps or 1000-Mbps hub.

For details, see “Ethernet NIC Connectors and Cables” on page 49.

 To connect Gigabit Fiber Ethernet devices, use a fiber-optic cable with an LC connector for

each NIC interface. The destination end of the cable can be either LC or SC, depending on the type of connector required for the destination Gigabit Ethernet device.

For details, see “Fiber-Optic Gigabit Ethernet NIC Features” on page 53.

Check Point IP690 Security Platform Installation Guide 37

3 Performing the Initial Configuration

Note

Using Check Point Network Voyager

Use Check Point Network Voyager to configure and monitor your appliance.

To open Check Point Network Voyager

1. Open a Web browser on the host you plan to use to configure or monitor your appliance.

2. In the Location or Address field, enter the IP address of the initial interface you configured

for the appliance.

You are prompted to enter the admin username and the password you entered when you performed the initial configuration.

If the username login screen does not open, you might not have a physical network connection between the host and your appliance, or you might have a network routing problem. Confirm the information you entered during the initial configuration and check that all cables are firmly connected. For more information, see the troubleshooting section in the installation guide for your appliance.

Viewing Check Point IPSO Documentation by Using Check Point Network Voyager

The following documentation is available from the Check Point Network Voyager interface, as shown in Figure 10:

 Network Voyager Reference Guide—This guide is the comprehensive reference source for

Check Point Network Voyager. To access this source, look at the list in the navigation tree on the left side of the window (as shown in Figure 10).You can also access this guide and other Check Point IPSO documentation at the Check Point Support Center at http://

support.checkpoint.com/.

 Network Voyager online help—You can access online help when you use Check Point

Network Voyager. Online help is the context-sensitive information source for Check Point Network Voyager

Close button is available at the bottom of each online help window you view.

. To access online help for the window you are viewing, click Help. A

38 Check Point IP690 Security Platform Installation Guide

Using the Command-Line Interface

Link to complete user documentation

Link to online help (context sensitive help)

Figure 10 Check Point Network Voyager Reference Access Points

Using the Command-Line Interface

You can also use the Check Point IPSO command-line interface (CLI) to manage and configure Check Point IP security appliances from the command line. Nearly everything that you can accomplish with Check Point Network Voyager you can also do with the CLI.

To access the command-line interface

1. Log on to the appliance by using a command-line connection (SSH, console, or Telnet) over

a TCP/IP network as an admin, cadmin, or monitor user:

 If you log in as a cadmin (cluster administrator) user, you can change and view

configuration settings on all the cluster nodes. For information about how to administer a cluster, see the traffic management commands section in the CLI Reference Guide for the version of Check Point IPSO you are using.

2. If you log in as a monitor user, you can execute only the show form of commands. That is,

you can view configuration settings, but you cannot change them.

You can now execute CLI commands from the CLI shell and the Check Point IPSO shell. The Check Point IPSO shell is what you see when you initially log on to the appliance.

Check Point IP690 Security Platform Installation Guide 39

3 Performing the Initial Configuration

Execute from To Implement Purpose

Check Point IPSO command line

Command files From inside the CLI shell, enter

Enter the following command to invoke the CLI shell:

clish

The prompt changes, and you can then enter CLI commands.

Enter

clish -c “cli-command”

load commands

filename

Enter any CLI commands in an interactive mode with help text and other helpful CLI features.

Execute a single CLI command. You must place double-quotation marks

around the CLI command.

Load commands from a text file that contains commands. The argument must be the name of a regular file.

For more information about how to access and use the CLI, see the CLI Reference Guide for the version of Check Point IPSO you are using.

Using Check Point Horizon Manager

Check Point Horizon Manager is an extension of the Check Point Network Voyager management functionality.

While Check Point Network Voyager provides the device administrator access to network configuration tasks (such as interface configuration and routing configuration) and security configuration tasks (such as user configuration and access configuration), Check Point Horizon Manager concentrates on secure software image, inventory, and platform management of Check Point IP security platforms.

Using Check Point Horizon Manager, an administrator can obtain configuration information, upgrade (or downgrade) the operating system, perform application installations, and distribute necessary licensing to multiple platforms simultaneously, thereby reducing potential human error and improving productivity.

Using Check Point Horizon Manager, a network security professional can manage multiple devices simultaneously, perform parallel software upgrades, device verifications, device configuration, file backups, and more.

Check Point Horizon Manager is designed to manage and configure a large number of Check Point IP security appliances that reside on a corporate enterprise, managed service provider (MSP), or hosted applications service provider network (ASP).

For information about how to obtain Check Point Horizon Manager or to learn more about the Check Point Horizon Manager, see the Check Point Web site at www.checkpoint.com.

40 Check Point IP690 Security Platform Installation Guide

4 Installing and Replacing Network

Caution

Interface Cards

Your Check Point IP690 security platform comes with any network interface cards (NICs) or Accelerated Data Path (ADP) services modules you ordered already installed. All NICs and ADP modules installed in the appliance are housed in PMC expansion slots. You should have a working knowledge of networking equipment before you attempt to service a appliance.

This chapter describes how to remove, add, or replace NICs later if it becomes necessary.

The following topics are covered:

 Deactivating Configured Interfaces

 Installing NICs

 Configuring and Activating Interfaces

 Monitoring Network Interface Cards

For detailed information about specific network interface cards, see Chapter 5, “Connecting

PMC Network Interface Cards.”

For installation and other information about Accelerated Data Path (ADP) services modules, see

Chapter 6, “Installing, Using, and Replacing ADP Services Modules.”

Limit service of the appliance to the procedures described in this chapter.

Deactivating Configured Interfaces

If you are removing or replacing an installed NIC, use Check Point Network Voyager to deactivate any configured ports on the NIC before removing it.

 Deactivate all of the logical interfaces on the NIC.

Check Point IP690 Security Platform Installation Guide 41

4 Installing and Replacing Network Interface Cards

Note

 Deactivate all of the physical interfaces on the NIC.

If you do not deactivate the interfaces before removing the NIC, you may have to reinstall the NIC to deactivate its logical and physical interfaces in Network Voyager.

For information about how to access Network Voyager, see “Using Check Point Network

Voyager” on page 38.

Installing NICs

Before removing a configured network interface card with these instructions, you must deactivate the NIC by using Check Point Network Voyager. For additional information, see

“Deactivating Configured Interfaces” on page 41.

Use these instructions to install a NIC in the IP690. Some steps are not applicable to all procedures. The instructions point out steps appropriate to each procedure.

Before You Begin

To install a NIC, you need the following:

 A Phillips-head screwdriver

 Physical access to the appliance

 Access to the appliance by using Check Point Network Voyager or the CLI

 A suitable, grounded work surface

 A field replaceable unit kit, including the NIC

You do not need to manually disconnect power for this procedure. If the power supply switches at the rear of the appliance are difficult to reach, you can safely disconnect power when you remove the chassis tray assembly from the front of the appliance. Any servicing of the appliance, however, should be completed with the chassis tray assembly fully removed from the appliance.

To install a network interface card

1. Use Check Point Network Voyager or command-line interface (CLI) to perform an orderly

shutdown of the IP690 appliance.

For information about how to access Network Voyager and the related reference materials, see “Using Check Point Network Voyager” on page 38.

2. Turn off the power to the IP690 appliance.

42 Check Point IP690 Security Platform Installation Guide

Installing NICs

00581

SLOT 1 SLOT 2 SLOT 3 SLOT 4

1 2 3 4

IP690

RESET

AUXCONSOLE

Chassis tray assembly retaining screws

S L O

T 3

S L O

1 2 3 4

IP690

R E S

E T

A U X

C O N

S O L

00597

3. Loosen the two front panel retaining screws.

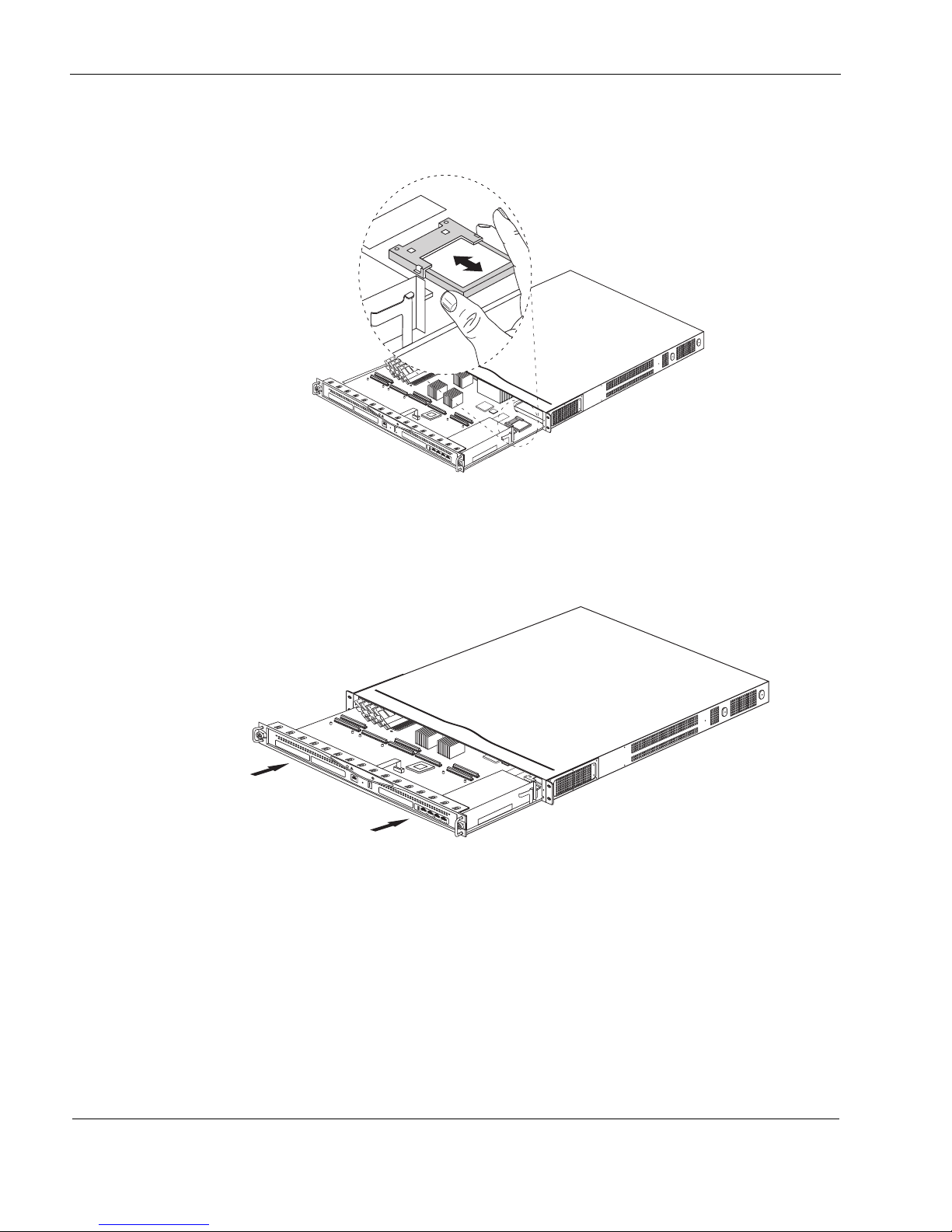

4. Slowly slide the chassis tray assembly forward, taking care to prevent damaging

components, press the release tab on the right side of the assembly, and completely remove the chassis tray assembly to expose the motherboard components.

5. Place the chassis tray assembly on a table top.

Check Point IP690 Security Platform Installation Guide 43

4 Installing and Replacing Network Interface Cards

SLOT 1

SLOT 2

00590

RESET

AUX

CONSOLE

SLOT 1

SLOT 2

00592

RESET

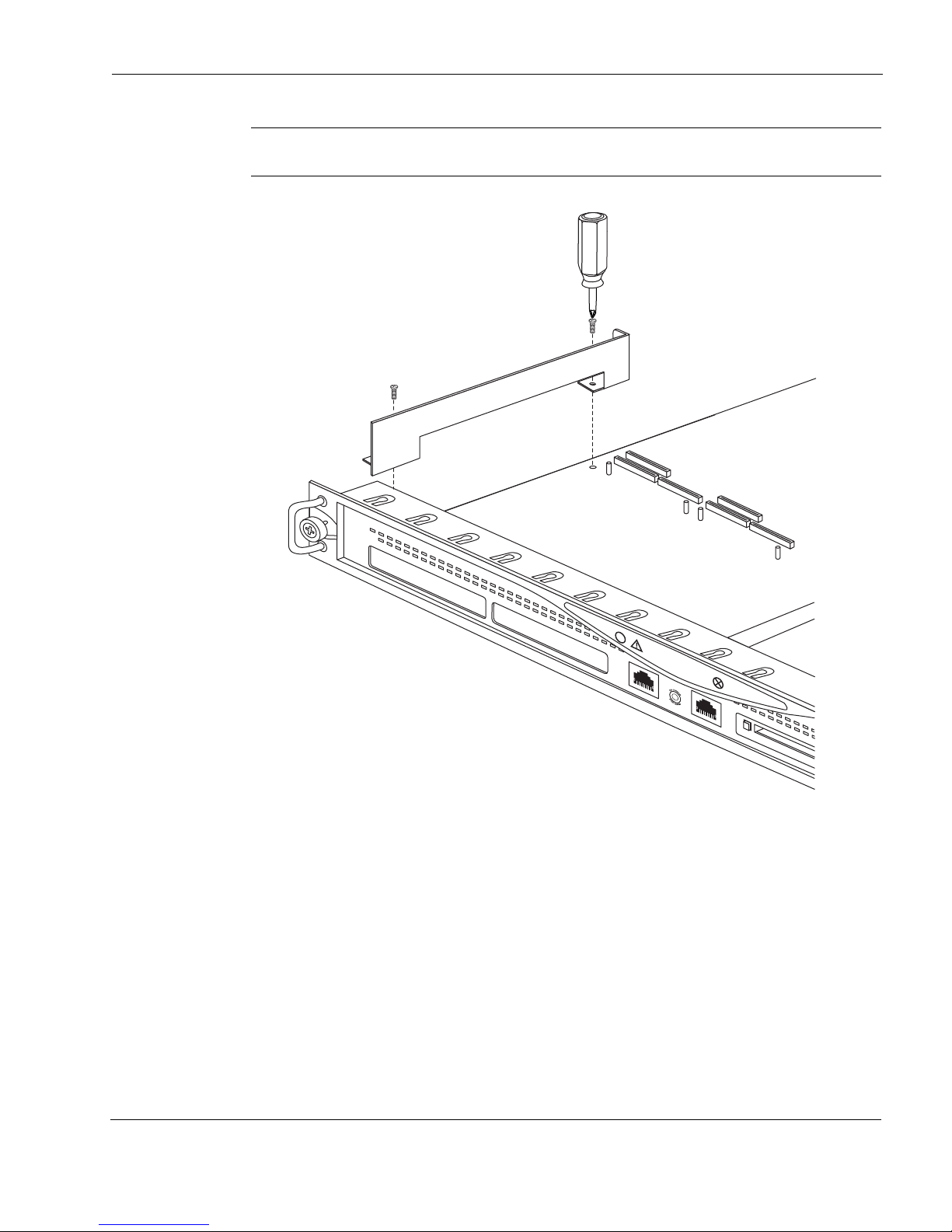

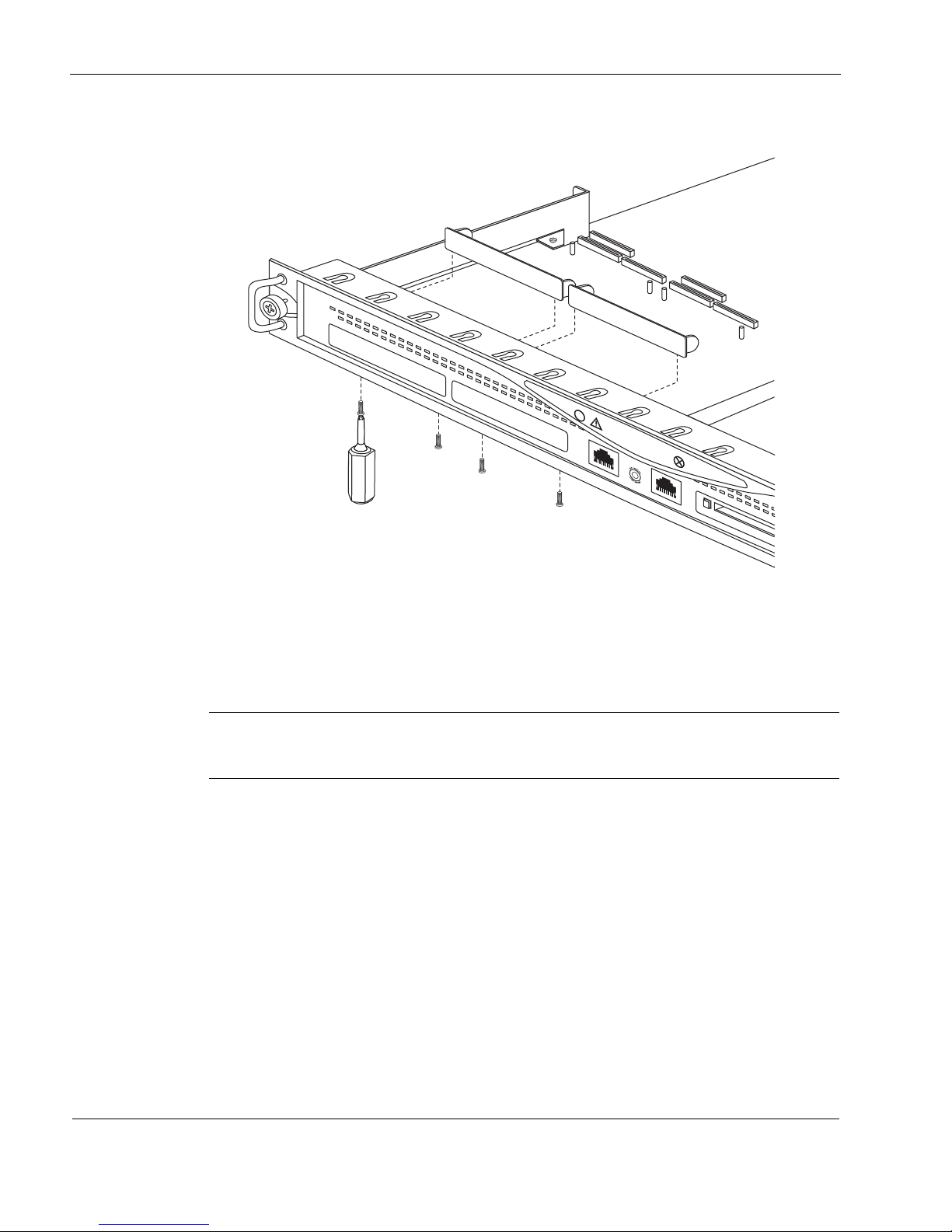

6. From underneath the chassis tray assembly, remove the bezel or NIC retaining screws.

If you are installing a NIC in an unoccupied slot, remove the blank bezel that occupies the space in the appliance front panel and retain it for future use.

If you are removing an installed NIC, remove it by pulling up on the back of the NIC adjacent to the two interface connectors.

7. Insert the new NIC.

a. Insert the NIC bezel into the front panel.

44 Check Point IP690 Security Platform Installation Guide

Installing NICs

SLOT 1

OT 2

00591

R ES

AUX

CONSOLE

S L

O T

S L

O T

S L

O T

L O

1 2 3 4

E S

E T

A U X

O N

S O

00583

b. Gently push down on the two connectors on the back of the NIC until they are fully

seated.

8. From the top of the chassis tray assembly, screw the NIC retaining screws into the standoffs

on the back of the NIC.

9. From beneath the chassis tray assembly, screw in the bezel retaining screws.

10. Insert and close the chassis tray assembly until it clicks into place.

The IPSO operating system automatically recognizes the NIC and applies the original configuration to the new NIC.

Check Point IP690 Security Platform Installation Guide 45

4 Installing and Replacing Network Interface Cards

00581

SLOT 1 SLOT 2 SLOT 3 SLOT 4

1 2 3 4

IP690

RESET

AUXCONSOLE

Chassis tray assembly retaining screws

11. Tighten the retaining screws that hold the chassis tray assembly.

12. Turn the power on.

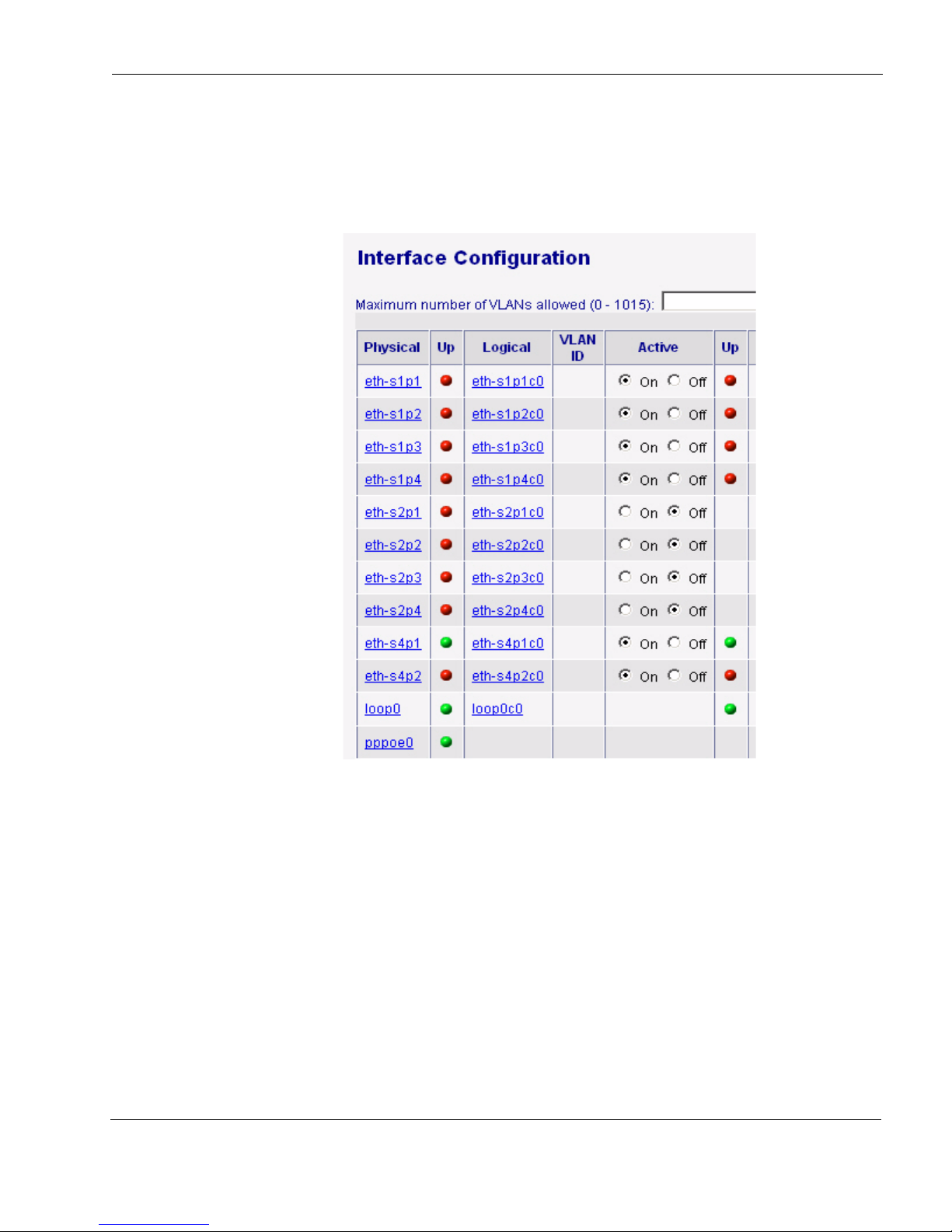

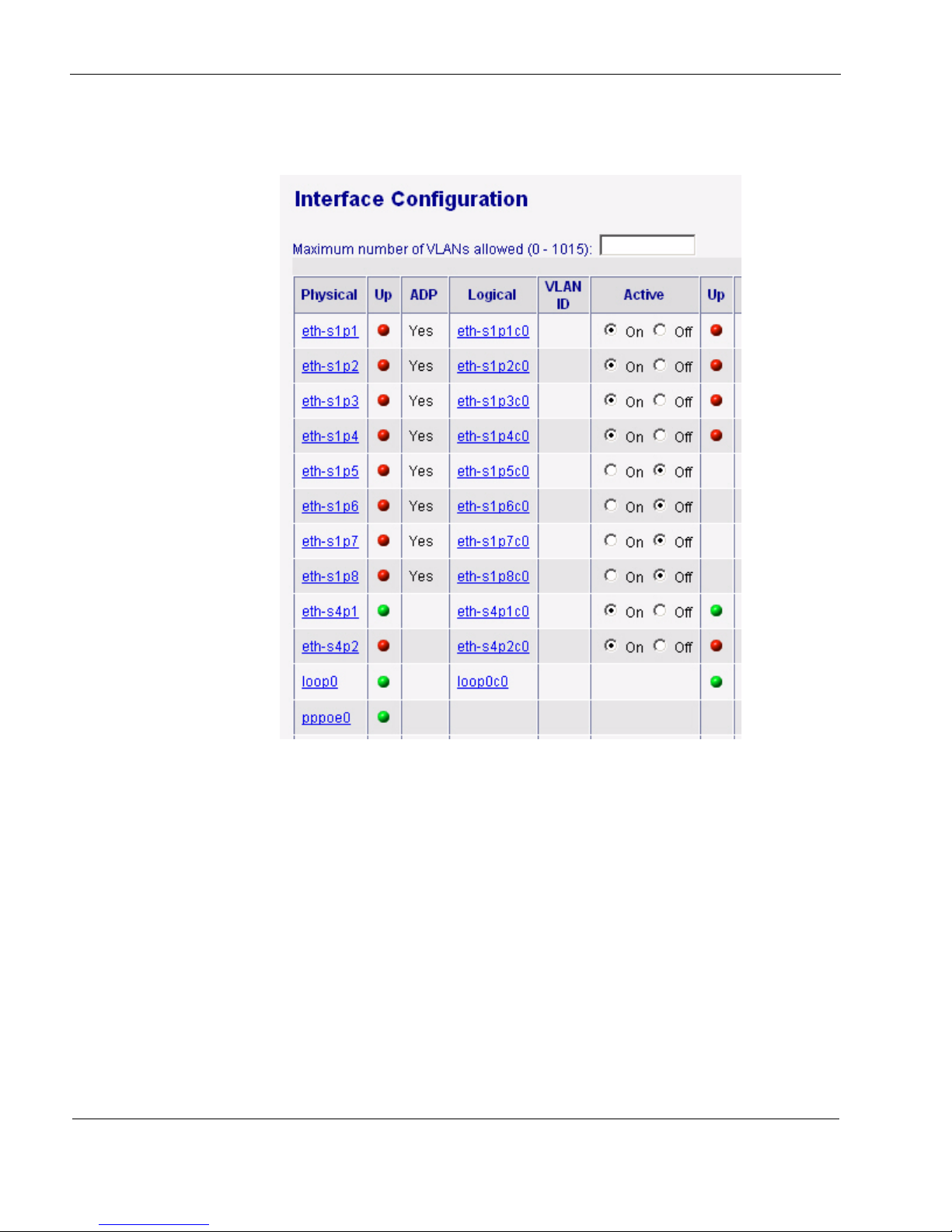

Configuring and Activating Interfaces

The IP690 appliance automatically detects any new NIC when the appliance is restarted. Use Check Point Network Voyager to configure and activate the logical and physical interfaces on the NIC.

For information about how to access Network Voyager and the related reference materials, see

“Using Check Point Network Voyager” on page 38.

Monitoring Network Interface Cards

You can asses the general operating condition of the NIC in your appliance by looking at the LED status indicators on the NIC. The status indicators for each NIC are explained in Chapter 5,

“Connecting PMC Network Interface Cards.”

Use Network Voyager to access detailed port information. For information about accessing Network Voyager, see “Using Check Point Network Voyager” on page 38. You can also use the tcpdump command to examine the track on a specific port.

46 Check Point IP690 Security Platform Installation Guide

5 Connecting PMC Network Interface

Caution

Cards

This chapter describes the network interface cards available for the Check Point IP690 security platform and how to connect those NICs to your network. The following NICs are described:

 Four-Port 10/100 Ethernet NIC

 Two-Port and Four-Port Copper Gigabit Ethernet NIC

 Two-Port Fiber-Optic Gigabit Ethernet NICs

For instructions about how to add or replace NICs, see Chapter 4, “Installing and Replacing

Network Interface Cards.”

The NICs supported in the Check Point IP690 security platform operate at the peripheral component interconnect (PCI) frequency listed in Table 6.

Table 6 NIC PCI Frequency

NIC or interface port Maximum PCI operation supported

Four-port 10/100 Ethernet 133 MHz

Two-port copper Gigabit Ethernet (10/100/1000)

Four-port copper Gigabit Ethernet (10/100/1000)

Two-port fiber-optic Gigabit Ethernet 133 MHz

To protect the IP690 and the memory modules from electrostatic discharge damage, make sure you are properly grounded before you touch these components. Use a grounding wrist strap and follow the instructions provided with the wrist strap before you handle the components or open the appliance.

133 MHz

Check Point IP690 Security Platform Installation Guide 47

5 Connecting PMC Network Interface Cards

Note

00026.2

321 1 2 3 4

10/100 BaseT

Link LED (solid green) Activity LED (blinking green)

Ports

Four-Port 10/100 Ethernet NIC

The IP690 supports Check Point-approved, four-port UTP5 dual-mode (10-Mbps and 100Mbps) Ethernet NICs installed in a PMC expansion slot. When you purchase a 10/100 Ethernet NIC with your IP690, the NIC is installed before the appliance is delivered to you. For information about how to add or replace a NIC, see Chapter 4, “Installing and Replacing

Network Interface Cards.”

10/100 Ethernet NIC Features

The four-port 10/100 Ethernet NIC supports PCI operation at 133 MHz.

The IP690 appliance requires IPSO 4.2 or later.

In the IP690, the four-port Ethernet NIC supports the following features:

 Tracing through tcpdump

 High bandwidth

 Full-duplex mode operation up to 100 Mbps

 Link speed auto advertising (10/100)

 PCI operation at 133 MHz

 Compliance with IEEE 802.3ab Gigabit Ethernet specifications

You can configure and monitor Ethernet NIC interfaces by using Check Point Network Voyager. Specifically, you set the port speed and full-duplex or half-duplex mode with Network Voyager.

For information about how to access Network Voyager and the related reference materials, see

“Using Check Point Network Voyager” on page 38.

Figure 11 Four-Port 10/100 Ethernet NIC Front Panel Details

After the power is turned on and the cables are connected, the Ethernet link LEDs on both the IP690 and on the remote equipment illuminate to indicate the connection. As data is transmitted, the activity LEDs on the appliance illuminate.

48 Check Point IP690 Security Platform Installation Guide

Ethernet NIC Connectors and Cables

Caution

00270

Pin Assignment

1TX +

2TX -

3RX +

6RX -

The Ethernet connectors on the four-port 10/100 Ethernet NICs are RJ-45 connectors. Use a straight-through cable to connect the NIC to a 10-Mbps or 100-Mbps hub or switch or a crossover cable to connect directly to a host.

Use ANSI TIA/EIA-568-A/B compliant (Cat 5 or Cat 5e) unshielded twisted pair cable. You can order appropriate adapter cables separately from a cable vendor of your choice.

Cables that connect to the Ethernet NIC must be ANSI TIA/EIA-568-A/B compliant (Cat 5 or Cat 5e) to prevent potential data loss.

Figure 12 shows the pin assignments for the RJ-45 cable. The connector is numbered from right

to left, with the copper tabs facing up and toward you.

Figure 12 Output Connector for the Ethernet Cable

Four-Port 10/100 Ethernet NIC

Figure 13 shows the pin assignments for the RJ-45 cross-over cable.

Check Point IP690 Security Platform Installation Guide 49

5 Connecting PMC Network Interface Cards

00017.1

1 2 3 4 5 6 7 8

Figure 13 Ethernet Crossover-Cable Pin Connections

Two-Port and Four-Port Copper Gigabit Ethernet NIC

The Check Point IP690 security platform supports Check Point-approved, four-port and two-port copper Gigabit Ethernet NICs installed on a PMC expansion slot. The IP690 can accommodate up to four Gigabit Ethernet NICs.

When you purchase a copper Gigabit Ethernet NIC with your IP690, the NIC is installed before the appliance is delivered to you. For information about how to add or replace a NIC, see

Chapter 4, “Installing and Replacing Network Interface Cards.”

Copper Gigabit Ethernet NIC Features in the IP690

The copper Gigabit Ethernet NIC supports:

 Tracing through tcpdump

 High bandwidth

 Full-duplex mode operation up to 1 Gbps

 Link speed auto advertising (10/100/1000)

 PCI operation at 133 MHz on the IP690

 Compliance with IEEE 802.3ab Gigabit Ethernet specifications

You can configure and monitor Gigabit Ethernet NIC interfaces with Check Point Network Voyager. Specifically, you can use Network Voyager to set the port speed and full-duplex mode to 1000, 100, or 10 Mbps.

For information about how to access Network Voyager and the related reference materials, see

“Using Check Point Network Voyager” on page 38.

50 Check Point IP690 Security Platform Installation Guide

Two-Port and Four-Port Copper Gigabit Ethernet NIC

Note

00641

321 1 2 3 4

1000 BaseT

Link LED (solid green) Activity LED (blinking green)

RJ-45 receptacles

Link LEDs (green or yellow) Activity LEDs (yellow)

Ports

Figure 14 Four-Port Copper Gigabit Ethernet NIC Front Panel Details

Figure 15 Two-Port Copper Gigabit Ethernet NIC Front Panel Details

Copper Gigabit Ethernet NIC Connectors and Cables

The two-port copper Gigabit Ethernet NIC you use in IP690 appliance must be the Version 2 type, as indicated on the right end of the NIC faceplate. These NICs are sold by Check Point under the order code NIF4425.

After the power is turned on and the cables are connected, the Ethernet Link LEDs on both the IP690 and on the remote equipment illuminate to indicate the connection.

The Link LED on the NIC is bicolored. A green LED indicates a 1 Gbps link speed, and a yellow LED indicates a 10/100 Mbps link speed. As the NIC transmits data, the activity LEDs on the appliance illuminate.

The copper Gigabit Ethernet NIC receptacles are for RJ-45 connectors.

Check Point IP690 Security Platform Installation Guide 51

5 Connecting PMC Network Interface Cards

Caution

Note

00270

Pin#

1000 Mbps Assignment

10/100 Mbps Assignment

1BI_DA+ TX+

2BI_DA- TX-

3BI_DB+ RX+

BI_DC+

BI_DC-

6BI_DB- RX-

7 BI_DD+

8 BI_DD-

Cables that connect to the Gigabit Ethernet NIC must be ANSI TIA/EIA-568-A/B compliant (Cat 5 or Cat 5e) to prevent potential data loss.

To connect to a 1-Gbps hub, switch, or router, use a straight-through RJ-45 cable (Cat 5 or Cat 5e type cable, or as required by your network configuration).

You can use a straight-through cable to connect the NIC to a Gigabit Ethernet hub or switch or a crossover cable to connect directly to a host.

In Figure 16, the RJ-45 cable output connector is numbered from right to left, with the copper pins facing up and toward you.

Figure 16 Gigabit Ethernet Cable Connector Output Pin Assignments

52 Check Point IP690 Security Platform Installation Guide

Two-Port Fiber-Optic Gigabit Ethernet NICs

Note

To connect directly to a host, use an RJ-45 crossover cable wired as Figure 17 shows.

Figure 17 Gigabit Ethernet Crossover Cable Pin Connections

After you turn on the appliance, the Ethernet link LEDs on both the appliance and on the remote equipment illuminate to indicate the connection. As data is transmitted or received, the activity LEDs on the appliance illuminate.

To connect the IP690 to other network components, you can order appropriate adapter cables separately from a cable vendor of your choice.

Two-Port Fiber-Optic Gigabit Ethernet NICs

The IP690 supports Check Point-approved, two-port, fiber-optic Gigabit Ethernet NICs installed on a PMC expansion slot. The IP690 can accommodate up to four Gigabit Ethernet NICs.

When you purchase a Gigabit Ethernet NIC with your IP690, the NIC is installed before the appliance is delivered to you. For information about how to add or replace a NIC, see Chapter 4,

“Installing and Replacing Network Interface Cards.”

Fiber-Optic Gigabit Ethernet NIC Features

The short-range and long-range fiber-optic Gigabit Ethernet NICs support:

 High bandwidth

 Full-duplex mode operation up to 1 Gbps (no half-duplex support)

 Link speed auto advertising

 Tracing through tcpdump

 Compliance with IEEE 802.3z Gigabit Ethernet specification

You can configure and monitor Gigabit Ethernet NIC interfaces with Check Point Network Voyager. Specifically, you set the port speed and full-duplex mode with Network Voyager.

Check Point IP690 Security Platform Installation Guide 53

5 Connecting PMC Network Interface Cards

00206

GIGE

Link LEDs (solid green) Activity LEDs (blinking amber)

Ports

00555

LINK

ACT

1000B-LX

Link LEDs (solid green) Activity LEDs (blinking amber)

Ports

For information about how to access Network Voyager and the related reference materials, see

“Using Check Point Network Voyager” on page 38.

Figure 18 shows the front panel details for the two-port short-range (1000 BASE-SX) fiber-optic

Gigabit Ethernet NIC you can use in IP690 appliance.

Figure 18 PMC Two-Port Short-Range Gigabit Ethernet NIC

Figure 19 shows the front panel details for the two-port long-range (1000 BASE-LX) fiber-optic

Gigabit Ethernet NIC you can use in your IP690.

Figure 19 PMC Two-Port Long-Range Gigabit Ethernet NIC

Fiber-Optic Gigabit Ethernet NIC Connectors and Cables

For short-range NICs, to connect the fiber-optic Gigabit Ethernet NIC to other network components, use a multi-mode, fiber-optic cable with an LC connector for each NIC interface. You can use either 50 or 62.5 micron cable; 50 micron-type cable provides longer transmission reach.

For long-range NICs, to connect the fiber-optic Gigabit Ethernet NIC to other network components, use a single-mode, fiber-optic cable with an LC connector for each NIC interface.

The destination end of the cable can be either LC or SC, depending on the type of connector required for the destination Gigabit Ethernet device. You can also use a half-duplex LC-to-LC

54 Check Point IP690 Security Platform Installation Guide

Two-Port Fiber-Optic Gigabit Ethernet NICs

Caution

cable to loop back the transmit port of an interface to the receiver port. LC and SC define the fiber-optic connector types; LC connectors are smaller than SC connectors.

Depending on the product you order, one or more LC-to-SC cables are included with fiber-optic Gigabit Ethernet NICs. You can order additional cables from a cable vendor of your choice.

Cables that connect to the Gigabit Ethernet NIC must be IEEE 802.3z compliant to prevent potential data loss.

Check Point IP690 Security Platform Installation Guide 55

5 Connecting PMC Network Interface Cards

56 Check Point IP690 Security Platform Installation Guide

6 Installing, Using, and Replacing ADP

Note

Services Modules

This chapter describes the Accelerated Data Path (ADP) services modules available for the Check Point IP690 appliance and how to connect those modules to your network. It includes the following sections:

 Installing and Replacing ADP Modules

 Check Point ADP Module LED Reference Information

 Configuring Check Point IPSO with IP690 ADP Interfaces

 Effect on Interfaces

 Check Point ADP Module Interface Names for IP690 Appliances

 Configuring Network Topology with an IP690 Appliance

 Configuration Example with VRRP

In this chapter, network interface cards (NICs) refer to any installable PMC interface devices other than ADP modules.

Check Point IP690 ADP modules help to accelerate firewall and VPN throughput. ADP is a technology designed to forward packets at the highest possible rate. Check Point ADP modules provide this technology by offloading processing from the CPU to network processors.

For IP690 appliances, ADP is implemented with a single module providing a total of eight ports. For ADP modules other than the eight-port 10/100/1000 Ethernet module with built-in RJ-45 ports, the modules use swappable small form-factor pluggable (SFP) transceivers to provide Gigabit Ethernet copper, Gigabit Ethernet short-range fiber, and Gigabit Ethernet long-range fiber interface options. Check Point ADP module transceivers are hot swappable.

The eight-port 10/100/1000 Ethernet ADP module with built-in RJ-45 ports is supported only for the IP690 running IPSO 6.0 or later.

Check Point IP690 Security Platform Installation Guide 57

6 Installing, Using, and Replacing ADP Services Modules

Note

Check Point supports only ADP modules and transceivers sold by Check Point. For further information, contact your Check Point representative.

Installing and Replacing ADP Modules

Before you begin this procedure, you should review all ADP module information in the Getting Started Guide and Release Notes for the version of IPSO you are using and refer to both of these documents as needed as you complete the installation and configuration process.

Use these instructions to install an ADP module in your appliance.

Before You Begin

To install a Check Point ADP module, you need the following:

 A Phillips-head screwdriver

 Physical access to the appliance

 Access to the appliance by using Check Point Network Voyager or the CLI

 A suitable, grounded work surface

 The ADP module kit

You do not need to manually disconnect power for this procedure. Any servicing of the appliance, however, should be completed with the chassis tray assembly fully removed from the appliance.

To install an ADP module in IP690 appliances

1. You cannot preserve the configuration for slot 2 of your appliance when you replace your

PMC NICs with an ADP module or, conversely, when you replace your ADP module with

58 Check Point IP690 Security Platform Installation Guide

Installing and Replacing ADP Modules

Note

00581

SLOT 1 SLOT 2 SLOT 3 SLOT 4

1 2 3 4

IP690

RESET

AUXCONSOLE

Chassis tray assembly retaining screws

S L

O T

S L

O T

S L O

S L

O T

1 2 3 4

IP6

R E S

E T

A U X

C O N

S O L

00597

PMC NICs due to interface naming convention differences. Therefore, you need to delete all existing configurations associated with slot 2.

You do not need to delete the slot 1 configuration for the first 4 ports, as the naming conventions for the first 4 ports for Slot 1 remain the same when you use an ADP module rather than a NIC. Naming conventions for slots and ports are provided in

“Check Point ADP Module Interface Names for IP690 Appliances” on page 68.

2. Upgrade the IPSO software to the required version as described in the Getting Started Guide

and Release Notes that you received with your appliance.

3. Use Network Voyager or the command-line interface (CLI) to perform an orderly shutdown

of the IP690 appliance.

For information about how to use Network Voyager or the CLI, see the Network Voyager Reference Guide or CLI Reference Guide for the version of IPSO you are using.

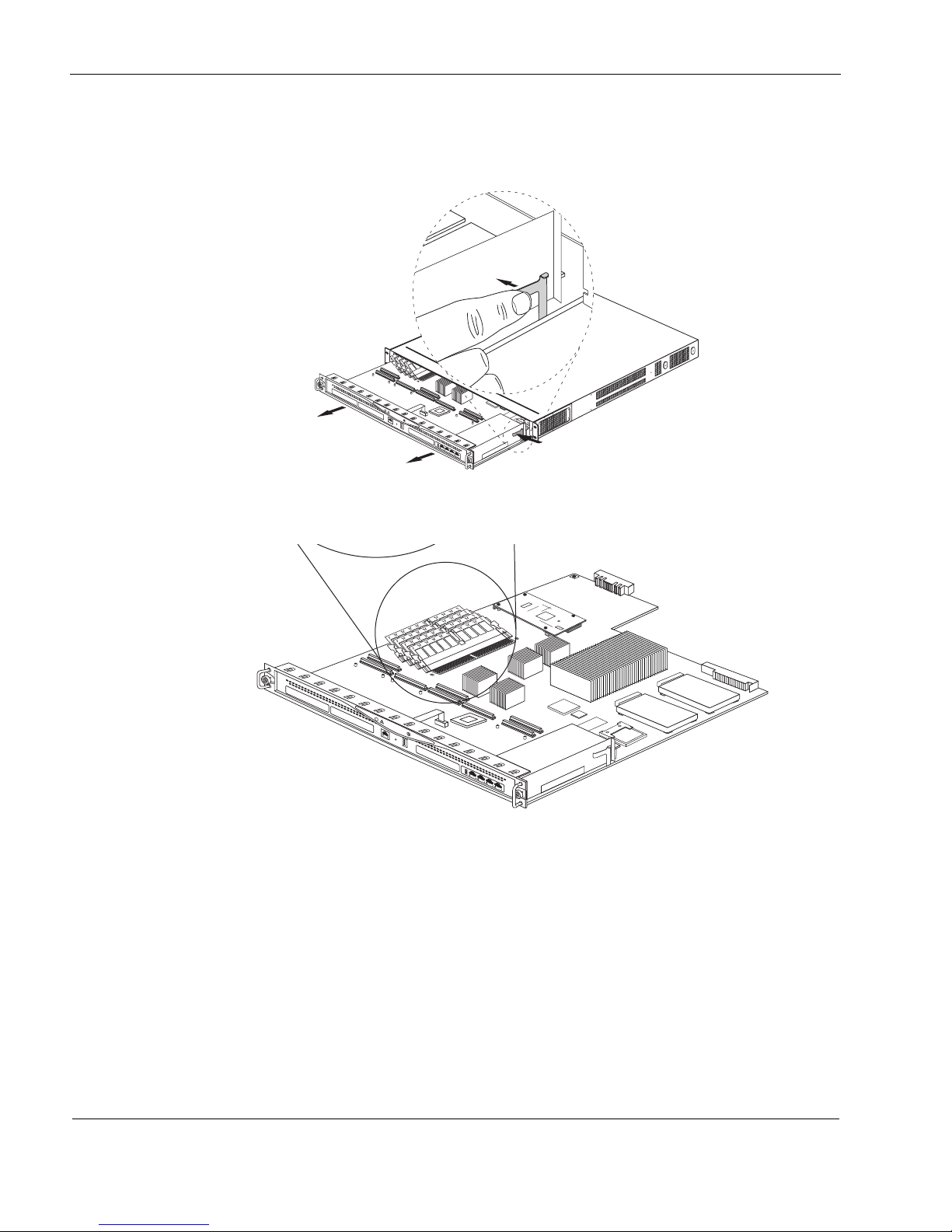

4. Turn off the power to the IP690 appliance.

5. Loosen the two front panel retaining screws.

6. Slide the chassis tray assembly forward, pressing the release tab on the right side of the

assembly, and, taking care not to damage any internal components, completely remove the chassis to expose the motherboard.

7. Place the chassis tray assembly on a table top.

Check Point IP690 Security Platform Installation Guide 59

6 Installing, Using, and Replacing ADP Services Modules

Note

LOT 1

SLOT 2

00440a

Remove the four bezel screws, and filler panels, installed PMC NICs, or ADP modules

8. From underneath the chassis tray assembly, remove the four bezel retaining screws.

If the slots you are using for the ADP module are unoccupied, remove the filler panels that occupy the spaces in the appliance front panel and retain them for future use.

If the slots you are using for the ADP module are occupied, remove the NICs or ADP modules that occupy the spaces in the appliance front panel and retain them for future use.

Remove any SFP transceivers that are installed in an ADP module first to make the procedure easier.

9. Remove the two screws that secure the left air baffle and remove the baffle. Retain the baffle

for future use. Reinstall the two baffle screws to secure the motherboard.

60 Check Point IP690 Security Platform Installation Guide

Installing and Replacing ADP Modules

Note

SLOT 1

SLOT 2

00648

Remove the two baffle screws and baffle, and reinstall the two screws

It is important that you reinstall the two baffle screws for proper motherboard operation.

Check Point IP690 Security Platform Installation Guide 61

6 Installing, Using, and Replacing ADP Services Modules

Note

SLOT 1

SLOT 2

00649

Remove the two FIPS screen screws and the screen

10. If a FIPS screen is installed, note the position of the screen, as it must be reinstalled the same

way. Remove the two screws that secure the screen, and remove the screen.

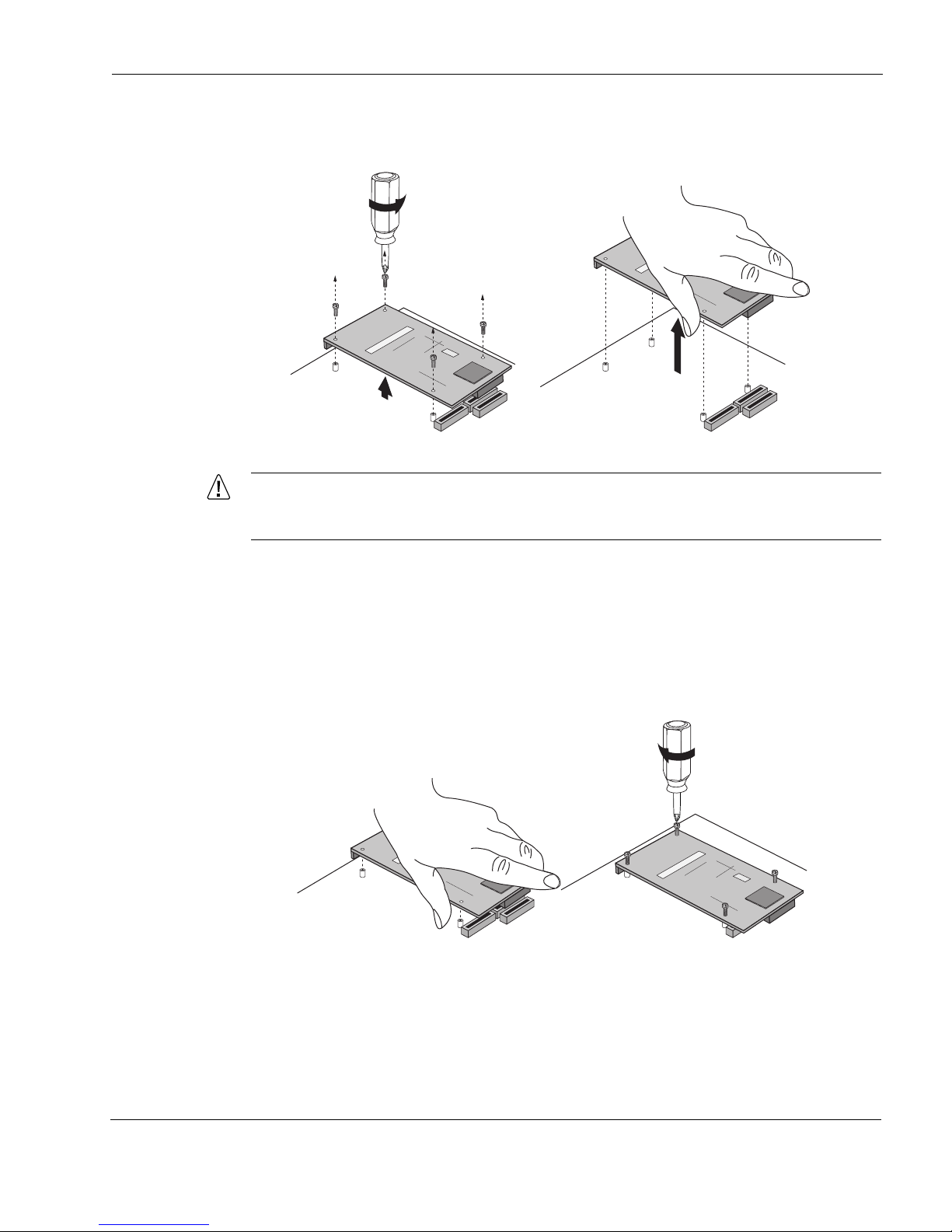

11. Insert the ADP module.

Remove any SFP transceivers that are installed in the ADP module first to make the procedure easier.

a. Angling the ADP module at a 45-degree angle to ensure that the rubber EMI gaskets seat

properly and don’t roll back, insert the module bezel into the front panel. As you lower

62 Check Point IP690 Security Platform Installation Guide

Installing and Replacing ADP Modules

Note

SLOT 1

SLOT 2

00443a

2 3

00650

1000BaseX

1 2 3 4

1000BaseX

1 2 3 4

Take care that the EMI gaskets don’t roll back during ADP module installations

Arrows indicate locations where gaskets might roll back

Push down only at these two points and ensure that both connectors are completely seated

Memory card location

the back of the module down, you should detect little or no resistance; if you do, check to ensure that the EMI gaskets have not rolled back.

b. Gently push the back of the ADP module down toward the motherboard being sure to

push down only where the module connectors are located. Be sure that the module is completely seated into both connectors on the motherboard.

12. If the ADP module memory card is installed, you should remove it to provide access the

retaining screw hole at the right side of the module.

13. From the top of the chassis tray assembly, screw the two retaining screws into the standoffs

on the back of the module.

Check Point IP690 Security Platform Installation Guide 63

Extra screws are included in your ADP module kit in case you don’t have appropriate screws on hand.

6 Installing, Using, and Replacing ADP Services Modules

00441a

1000BaseX

1 2 3 4

1000BaseX

1 2 3 4

ADP module heat sink

Reinstall the two retaining screws

Reinstall the four bezel screws

Memory card must be removed at this stage

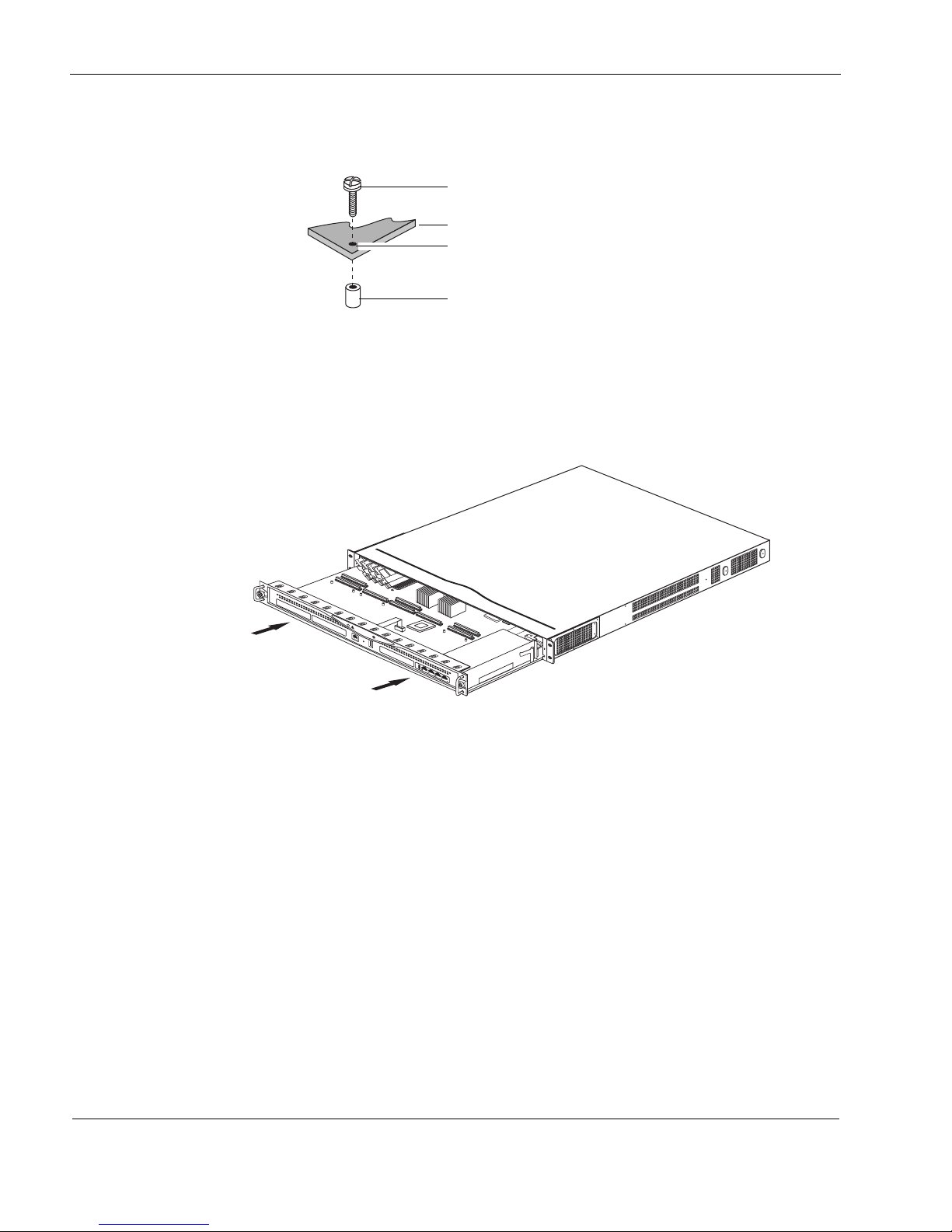

14. From beneath the chassis tray assembly, screw in the bezel retaining screws.

15. If you removed the FIPS screen, reinstall it in the same position it was previously installed in

16. Reinstall the ADP module memory card.

17. Using care to ensure that the top edge of the enclosure does not interfere with the ADP

18. Tighten the retaining screws that secure the chassis tray assembly.

19. Turn the power on.

20. Use either Network Voyager or the CLI to delete the old interfaces and configure the new

and secure the two screen screws.

module heat sink, slide the chassis tray assembly into the chassis until it clicks into place.

ADP interfaces as described in “Configuring Check Point IPSO with IP690 ADP Interfaces” on page 67. Note the interface naming conventions in “Check Point ADP Module Interface

Names for IP690 Appliances” on page 68.

64 Check Point IP690 Security Platform Installation Guide

Installing and Replacing ADP Modules

1000BaseX

1 2 3 4

00605a

1000BaseX

5 6 7 8

1000BaseT

1234 5678

1000BaseT

1 2 3 4

5 6 7 8

00660

ADP module with ports for transceivers

ADP module with fixed RJ-45 ports

Link and Activity LEDs

00652

1 2 3 4

Latch lever

Flip latch lever down before inserting the ADP transceiver

The following figure shows the IP690 ADP module front panel details.

To install or remove transceivers in a Check Point ADP module

For ADP modules that require transceivers, refer to the following figure, which shows how to install or remove the transceivers. Transceivers are hot swappable as are the interface cables you use with them. Rotate the latch levers up or down to secure transceivers, or to release them for removal. You do not need to change the interface type in Network Voyager or the CLI, as the system makes the configuration changes automatically.

To identify whether a fiber transceiver you are using is short-range or long-range, refer to the color of the latch lever as follows:

Type Latch lever color

Short-range Beige

Long range Blue

 To install an ADP transceiver:

Check Point IP690 Security Platform Installation Guide 65

6 Installing, Using, and Replacing ADP Services Modules

Note

 Push the transceiver into an available port in the ADP module.

 Rotate the transceiver latch lever down to secure the transceiver in the ADP module.

Depending on the design of your transceiver, you might need to rotate the latch lever upward to release the device.

 Insert an appropriate interface cable into the transceiver.

 To remove an ADP transceiver:

 Remove the cable.

 Release the transceiver by rotating the latch lever.

 Pull out the transceiver.

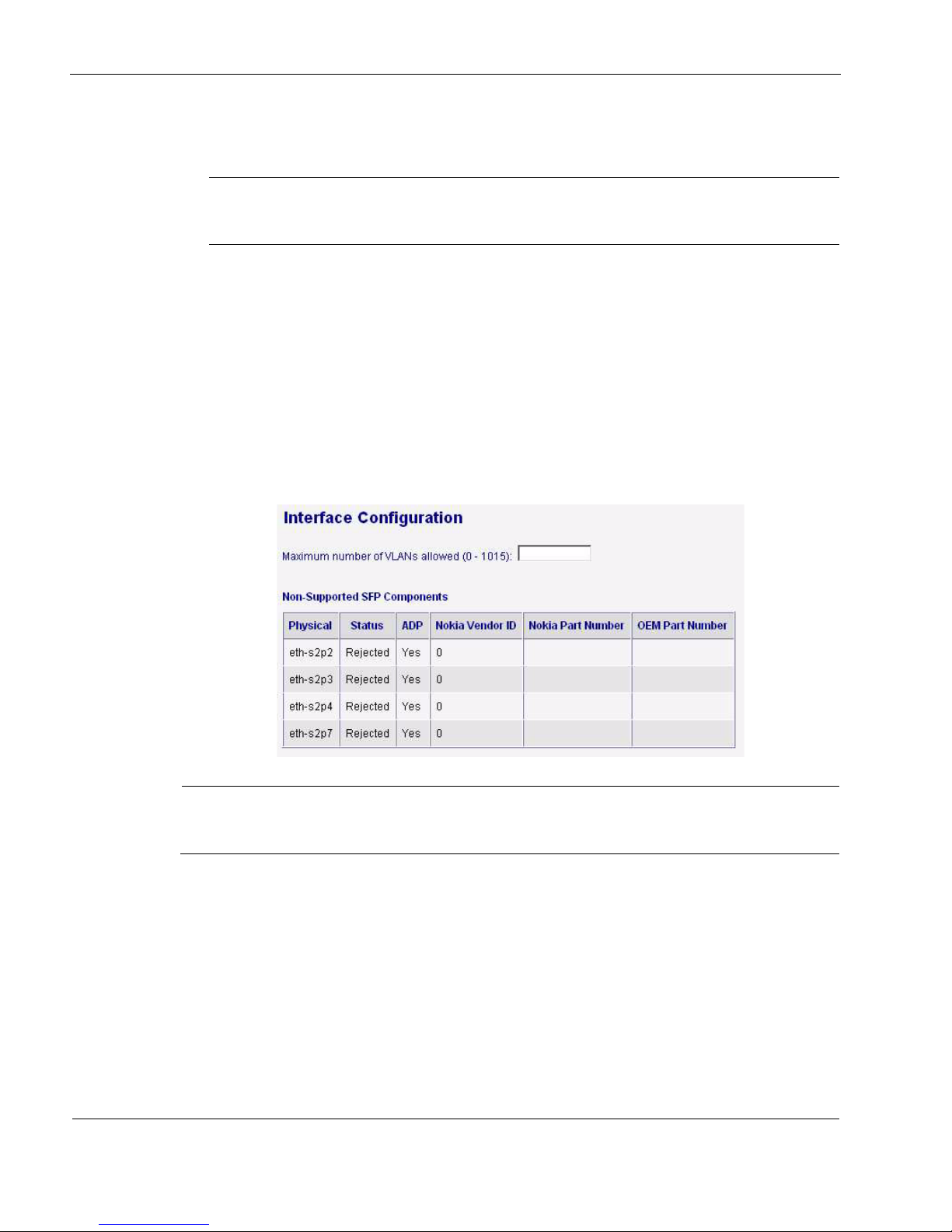

Note that if you install any ADP transceivers that are not supported by Check Point, they are not recognized by IPSO; the system rejects the transceivers and includes them in a list of rejected interfaces on the Interface Configuration page in Check Point Network Voyager, as shown in the following figure.

The Non-Supported SFP Components table appears only if you have ADP transceivers installed that are not supported by Check Point.

Check Point ADP Module LED Reference Information

All Check Point IP690 ADP modules provide a single LED for each port. The LED illuminates solid green for Link status and blinks green to indicate Activity.

66 Check Point IP690 Security Platform Installation Guide

Configuring Check Point IPSO with IP690 ADP Interfaces

Note

Configuring Check Point IPSO with IP690 ADP Interfaces

This section includes information about configuring IPSO to use the interfaces on a Check Point ADP module. To help you understand the implications of installing an ADP module, it provides an example of the steps you might perform to install an ADP module in an IP690 appliance running the Virtual Router Redundancy Protocol (VRRP).

Effect on Interfaces

When you install ADP modules, IPSO automatically creates interface names for the ADP interfaces and changes the existing interface names and configuration information, as explained below:

 If you install an ADP module in an IP690 appliance, the names and configuration

information for the interfaces previously installed in slot 2 become invalid.

The interface names of the interfaces installed in slot 1 of an IP690 appliance do not change.

These changes can affect any features or protocols that use the existing interfaces or their addresses, including the following:

 Dynamic routing protocols

 Multicast routing protocols

 Static routing configuration

 VRRP

 IP clustering

 Transparent mode

 Link aggregation

 Link redundancy

 Traffic management/QoS

After you install an ADP module, reconfigure any protocols and features that used removed interfaces to use the ADP interfaces. Reassign IP addresses from the removed interfaces to the ADP interfaces as appropriate.

Check Point IP690 Security Platform Installation Guide 67

6 Installing, Using, and Replacing ADP Services Modules

Check Point ADP Module Interface Names for IP690 Appliances

ADP module interface naming conventions differ from those for PMC NICs.

IP690 appliances support one ADP module which occupies both slots 1 and 2. However, the ADP module appears to the host as though it logically occupies only slot 1 of the appliance. The eight ports on your ADP module are named as follows:

eth-s1p1, eth-s1p2, eth-s1p3, eth-s1p4, eth-s1p5, eth-s1p6, eth-s1p7, eth-s1p8

Since the ADP interface names are not exactly the same as other PMC NIC interface names, you need to reconfigure your appliance when you replace PMC NICs with an ADP module or an ADP module with PMC NICs.

Configuring Network Topology with an IP690 Appliance

There are several constraints that are relevant to your network topology after you install an ADP module in an IP690 appliance that are also relevant to the interaction of ADP interfaces and NIC interfaces.

When you install an ADP module in an IP690 appliance, Check Point recommends that you configure your network so that your appliance does not forward traffic between ADP interfaces and PMC NIC interfaces even if the NIC interfaces are Gigabit Ethernet. Using a configuration of this type can significantly degrade throughput.

When you install an ADP module in an IP690 appliance, the network processor in the module performs all VPN encryption and decryption, even for VPN packets that are sent through PMC NIC interfaces. The built-in Check Point encryption accelerator continues to accelerate IKE traffic but does not perform any other processing. If VPN traffic ingresses or egresses through a NIC interface, throughput is negatively affected because the packets must transit the IP690 appliance backplane to reach the network processor in the ADP module. Check Point recommends that you configure your VPNs to use only ADP interfaces to avoid this performance loss.

68 Check Point IP690 Security Platform Installation Guide

Configuring Check Point IPSO with IP690 ADP Interfaces

Configuration Example with VRRP

This example describes the steps required to install an ADP module in an IP690 appliance with VRRP configured. The following figure shows the Interface Configuration page of the appliance before an ADP module is installed. Interfaces are installed in slots 1, 2, and 4.

For this example, legacy monitored-circuit VRRP is enabled and configured with these settings:

 Interface eth-s2p1c0 is assigned the IP address 10.1.1.1 and uses 10.1.1.99 as the VRRP

backup address.

 Interface eth-s2p2c0 backs up interface eth-s2p1c0.

Check Point IP690 Security Platform Installation Guide 69

6 Installing, Using, and Replacing ADP Services Modules

The following figure shows the VRRP configuration:

The rest of this section describes how to reconfigure the interfaces and VRRP to accommodate the ADP interfaces.

Deleting VRRP Configurations

After you physically remove PMC NICs that you are replacing with ADP modules, you need to delete the configuration information for those interfaces. If VRRP is active at that time, you will not be able to delete the configuration information for the interfaces used by VRRP. Therefore, you should begin by deleting the existing VRRP configuration.

70 Check Point IP690 Security Platform Installation Guide

Configuring Check Point IPSO with IP690 ADP Interfaces

Note

It is best to perform the procedures in this section on the VRRP backup system first. When the installation is complete, the upgraded system can become the new master while you upgrade the original master.

Reconfiguring Interfaces

After you install the ADP module, you need to reconfigure interface information as described below.

To reconfigure interfaces for ADP modules

1. Log into the appliance using Check Point Network Voyager.

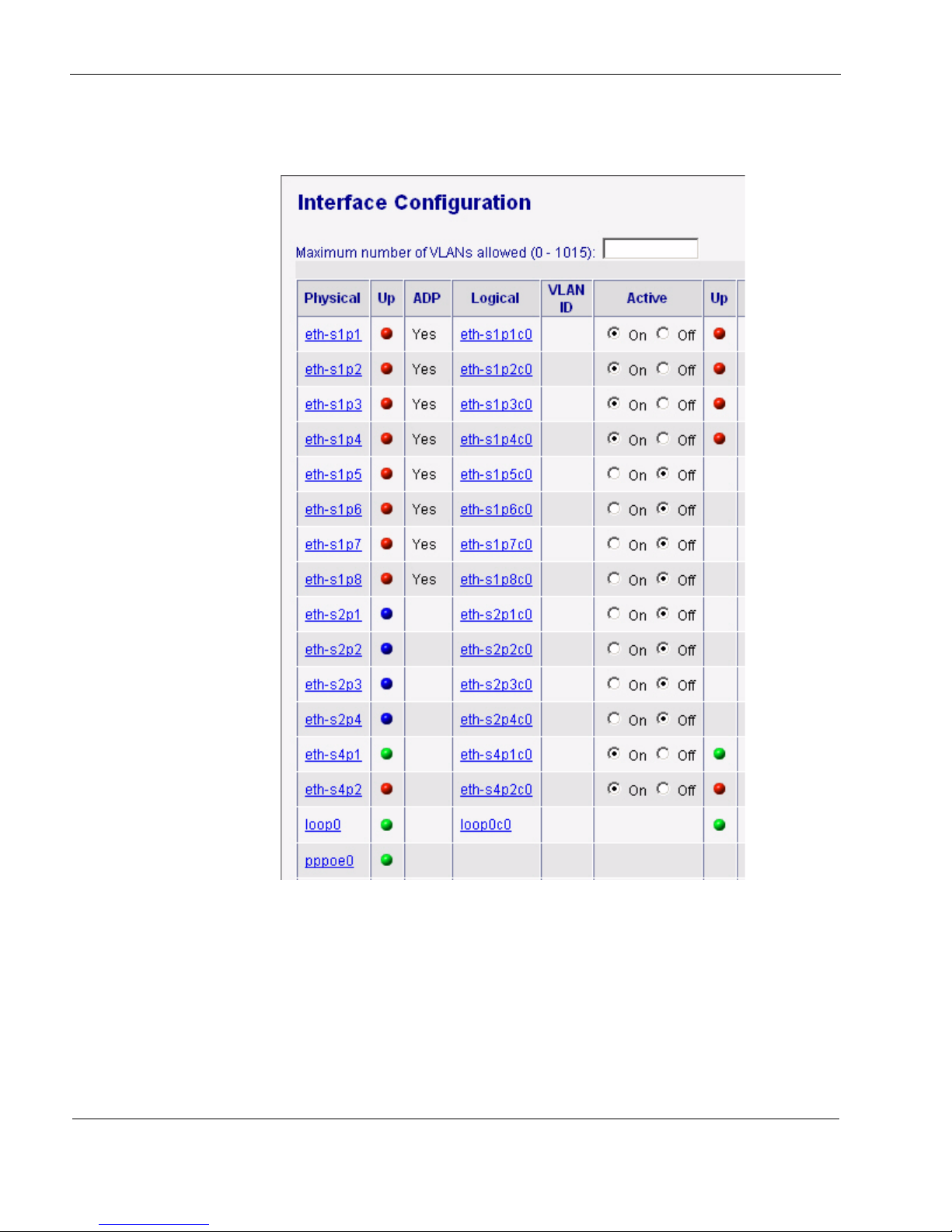

2. Navigate to the Interface Configuration page.

Notice that the names of the interfaces in slot 1 have not changed. Any configuration information for these interfaces is unchanged as well.

The interfaces in slot 2 have been replaced by the ADP interfaces named eth-s1p5 through eth-s1p8.

Check Point IP690 Security Platform Installation Guide 71

6 Installing, Using, and Replacing ADP Services Modules

The interfaces you removed from slot 2 are still listed on this page, and you see a blue indicator next to each of them in the Up column.

3. Delete the interface names and configuration information for the interfaces you removed

from slot 2 by following the remaining steps in this procedure.

72 Check Point IP690 Security Platform Installation Guide

Configuring Check Point IPSO with IP690 ADP Interfaces

Note

To delete an interface used by VRRP or IP clustering, you must first disable the feature that uses the interface. This is why you deleted the VRRP configuration before you installed the ADP module.

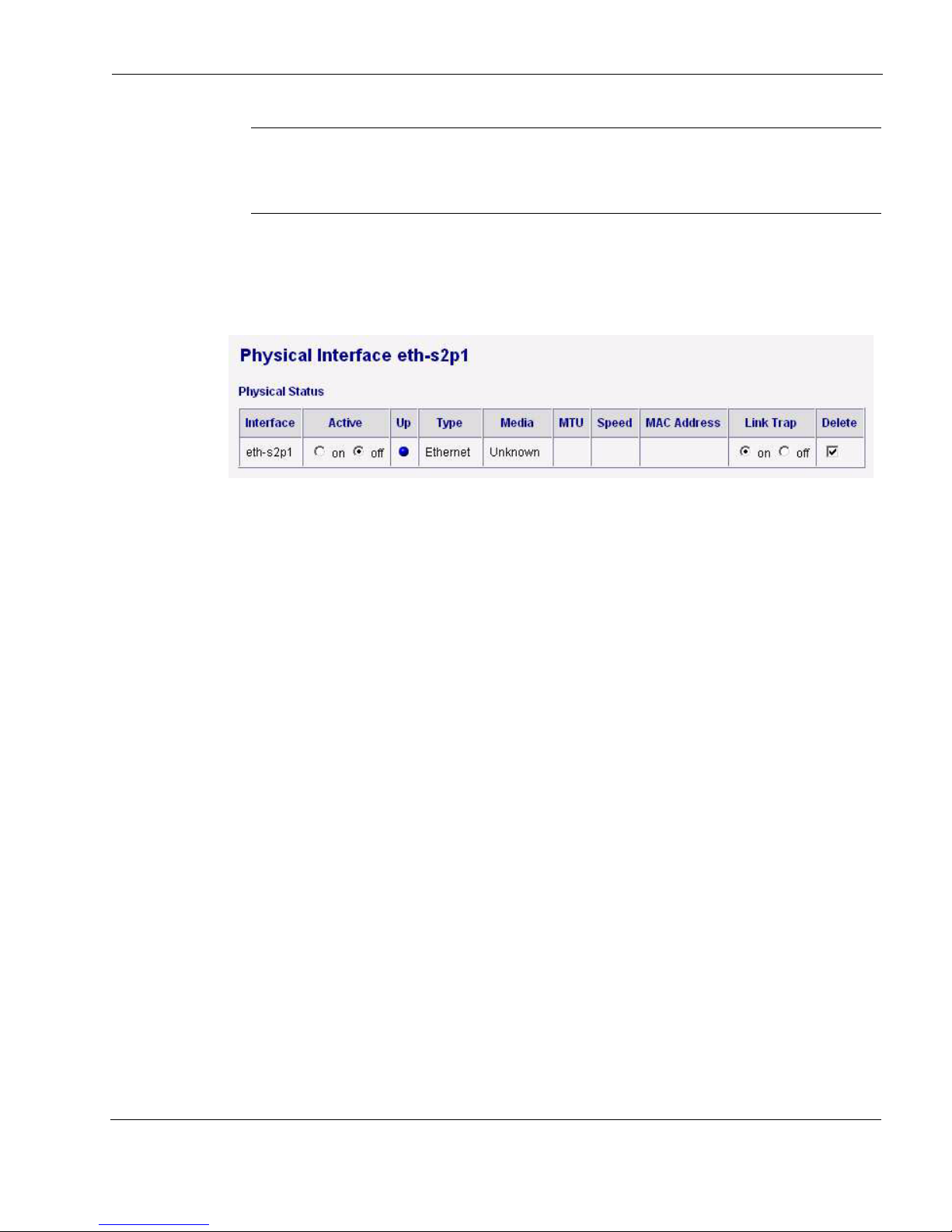

4. Click a physical interface name.

Network Voyager displays the Physical Configuration page for that interface.

5. In the Physical Status area, click the Delete check box.

6. Click Apply.

7. Delete the configuration information for the rest of interfaces that you removed by restarting

this procedure at step 2.

8. When you have deleted the configuration information for all the interfaces that you

removed, click Save.

Check Point IP690 Security Platform Installation Guide 73

6 Installing, Using, and Replacing ADP Services Modules

The following figure shows the example system after the configuration information for all of the removed interfaces has been deleted:

9. If appropriate, configure the ADP interfaces to use the IP addresses previously assigned to

the removed interfaces.

In this example, you need to assign the address 10.1.1.1 to the new interface eth-s1p5c0.

Reconfiguring VRRP

After you finish reconfiguring interfaces, you need to reconfigure any protocols and features that used the removed interfaces to use the ADP interfaces.

74 Check Point IP690 Security Platform Installation Guide

Configuring Check Point IPSO with IP690 ADP Interfaces

In this example, you need to recreate the VRRP configuration using the new interfaces eth-s1p5c0 and eth-s1p6c0. The following figure shows the example system after you recreate the VRRP configuration using the new interfaces:

Check Point IP690 Security Platform Installation Guide 75

6 Installing, Using, and Replacing ADP Services Modules

76 Check Point IP690 Security Platform Installation Guide

7 Installing and Replacing Components

Note

Other than Network Interface Cards (NICs) and Accelerated Data Path (ADP) Services Modules

This chapter provides information about how to install or replace orderable parts other than network interface cards (NICs) and Accelerated Data Path (ADP) services modules in your Check Point IP690 appliance. The following topics are covered:

 Replacing the Compact Flash Memory Card

 Installing and Using a PC Card

 Installing a Hard-Disk Drive

 Replacing a Check Point Encryption Accelerator Card

 Replacing a Fan Unit

 Replacing a Power Supply

 Replacing the Battery

For information about how to add or replace NICs, see Chapter 4, “Installing and Replacing

Network Interface Cards.”

For information about how to add or replace ADP modules, see Chapter 6, “Installing, Using,

and Replacing ADP Services Modules.”

You should have a working knowledge of networking equipment before you attempt to service an IP690 appliance. Limit service of the appliance to the procedures described in this chapter.

To protect the IP690 appliance and the memory modules from electrostatic discharge damage, make sure you are properly grounded before you touch these components. Use a grounding wrist strap and follow the instructions provided with the wrist strap before you handle the components or open the appliance.

Check Point IP690 Security Platform Installation Guide 77

7 Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path

Caution

S L

O T

L O T

S L

L O

T 4

1 2 3 4

P 69

E S E

A U

O N S

O L

00600

Replacing the Compact Flash Memory Card

The compact flash memory card stores the Check Point IPSO operating system and the boot manager program. Use the internal compact flash to boot the system and install the IPSO operating system on the compact flash memory card. The compact flash memory card is located on the motherboard in a slot in front of the hard-disk drive (slot B).

Figure 20 shows the location of the compact flash memory card.

Figure 20 Compact Flash Memory Card Slot

To protect the appliance and the compact flash memory from electrostatic discharge damage, make sure you are properly grounded before you touch these components. Use a grounding wrist strap and follow the instructions provided with the wrist strap before you handle the components or open the appliance. If you do not have a grounding wrist strap, make sure you are properly grounded before you touch any electronic component.

You must perform an orderly shutdown of the appliance and turn the power off whenever you remove the chassis tray assembly to service internal components.

You risk damage to the appliance or loss of data if you do not use the following procedure when you replace the compact flash memory.

78 Check Point IP690 Security Platform Installation Guide

Replacing the Compact Flash Memory Card

Note

00581

SLOT 1 SLOT 2 SLOT 3 SLOT 4

1 2 3 4

IP690

RESET

AUXCONSOLE

Chassis tray assembly retaining screws

S L

O T

S L

O T

S L O

S L

O T

1 2 3 4

IP690

R E S

E T

A U X

C O N

S O L

00597

To replace your compact flash

1. Use Check Point Network Voyager or the command-line interface (CLI) to perform an

orderly shutdown of the IP690 appliance.

For information about how to access Network Voyager and the related reference materials, see “Using Check Point Network Voyager” on page 38.

2. Turn off the power to the IP690 appliance.

Make sure you turn off power on the power supplies.

3. Loosen the two front panel retaining screws.

4. Slowly slide the chassis tray assembly forward, taking care to prevent damaging

components, press the release tab on the right side of the assembly, and completely remove the chassis tray assembly to expose the motherboard components.

5. Place the chassis tray assembly on a table top.

Check Point IP690 Security Platform Installation Guide 79

7 Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path

S L

O T

S L

O T

L O T

S L O

T 4

1 2 3 4

IP690

E S E

A U

C O

N S O

L E

00599

S L

O T

S L

O T

S L

O T

L O

1 2 3 4

E S

E T

A U X

O N

S O

L E

00583

6. Locate and remove the existing compact flash memory card from the slot by gently sliding it

out of the slot.

7. Gently insert the new compact flash memory card into the slot.

8. Slowly slide the chassis tray assembly back into the appliance, taking care to prevent

damaging components.

9. Resecure the two chassis tray assembly retaining screws.

10. Turn on the power supplies at the back of the appliance.

80 Check Point IP690 Security Platform Installation Guide

Installing and Using a PC Card

Note

Caution

00577

SLOT 1 SLOT 2 SLOT 3

RESET

SLOT 4

1 2 3 4

IP690

AUXCONSOLE

PMC PC card slot

Eject button

Figure 21 shows the external PC card location.

To use a PC card with the IP690, you need to install an optional PCMCIA card carrier in slot

3. Install the card carrier just as you would any PMC NIC. For information about installing PMC NICs, see Chapter 4, “Installing and Replacing Network Interface Cards.”

Figure 21 External PC Card Location

Installing and Using a PC Card

To install and use the PC card for system logging

1. Insert the PC card into the PC card slot until it snaps in place.

2. Press gently on the card until it is firmly seated in the slot.

The eject button to the left of the slot should be flush with the card.

3. Open Check Point Network Voyager and configure the PC card as an optional disk by using

Network Voyager.

A /var directory is created on the card, and log files, configuration files, monitoring information, and /tmp directory are subsequently stored in this directory.

4. Reboot the IP690.

5. Use Network Voyager to configure system logging options.

For more information, see the section on using an optional disk in the Voyager Reference Guide.

If you want to remove a PC card that was configured as an optional disk, you must turn it off as an optional disk and then perform an orderly system shutdown before you remove it, as described in the following procedure. You do not need to turn off the power.

If you do not perform this procedure before removing a PC card that is configured as an optional disk, system processes randomly fail because the system tries to find a /var directory on the optional disk. The resulting error messages indicate that some files in the /var directory are not available.

Check Point IP690 Security Platform Installation Guide 81

7 Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path

Caution

Note

Caution

To remove a PC card used for logging in an IP690

1. Perform one of the following:

 In Network Voyager, access Optional Disks and unselect the PC card as an optional disk.

 Using the CLI, enter the command:

set optional-disk device-id <1 | 2> off

where the number 1 or 2 indicates the PC-card slot.

2. Perform a system shutdown by using Network Voyager or the CLI halt command.

3. Press the eject button to remove the PC card.

To prevent the card from ejecting too quickly, hold the PC card while you push the eject button.

4. Reboot the system.

Installing a Hard-Disk Drive

The IP690 is a flash-based appliance that also supports one or two optional hard-disk drives that plug into connectors on the motherboard. Each hard-disk drive contains 40 GB of storage space.

A second hard-disk drive, which can be used for disk mirroring, is an option only for a disk-based IP690. A single optional hard-disk drive can by used in a flash-based IP690 for storing log files.

The hard-disk drives are not included in the standard package for the flash-based IP690. When you purchase your IP690, you can order one or two hard-disk drive(s) for factory installation or order them later and install them yourself, as described in this chapter.

You can use a single hard-disk drive for storing log files.

This section describes how to install a hard-disk drive.

Before You Begin

Hard-disk drives are susceptible to damage from shock. Handle them with care.

82 Check Point IP690 Security Platform Installation Guide

Installing a Hard-Disk Drive

Caution

00581

SLOT 1 SLOT 2 SLOT 3 SLOT 4

1 2 3 4

IP690

RESET

AUXCONSOLE

Chassis tray assembly retaining screws

To help guard against electrostatic discharge damage, make sure you are properly grounded by using a grounding wrist strap and following the instructions provided with the wrist strap before you handle the components or open the appliance. If you do not have a grounding wrist strap, make sure you are properly grounded before you touch any electronic component.

To install or replace a hard-disk drive, you need:

 Physical access to the appliance

 Check Point hard-disk drive kit

 A Phillips-head screwdriver

The following procedure requires removing the chassis tray assembly from the chassis.

Make sure you perform an orderly shut down of the system before attempting to remove the chassis tray assembly.

You must replace the hard-disk drive with a drive that has a capacity equal to or larger than the drive you are replacing. Back up your hard-disk drive files to a remote system on a regular basis.

To remove or replace a hard-disk drive

If you fail to use the following procedure when you remove the hard-disk drive, the drive might become damaged or you might lose data.

1. Use Check Point Network Voyager or the command-line interface (CLI) to perform an

orderly shutdown of the IP690 appliance.

For information about how to access Network Voyager and the related reference materials, see “Using Check Point Network Voyager” on page 38.

2. Turn off the power to the IP690 appliance.

3. Loosen the two front panel retaining screws.

Check Point IP690 Security Platform Installation Guide 83

7 Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path

Note

S L O

1 2 3 4

IP69

R E S

E T

A U X

C O N

S O L

00597

00579

S L

OT 3

SLO T

1 2 3 4

IP690

E S E

A U X

C O N S

O L

Slot A

Slot B

4. Slowly slide the chassis tray assembly forward, taking care to prevent damaging

components, press the release tab on the right side of the assembly, and completely remove the chassis tray assembly to expose the motherboard components.

5. Place the chassis tray assembly on a table top.

Figure 22 Location of Hard-Disk Drive on Chassis Tray Assembly

In single hard-drive configurations, install the hard-disk drive in Slot A first.

84 Check Point IP690 Security Platform Installation Guide

Installing a Hard-Disk Drive

00593

00582

00593

6. Remove the four screws from the base of the hard-disk drive and remove the hard-disk

drive.

7. Slide the new hard-disk drive onto the mounting locations.

8. Replace the four screws.

Check Point IP690 Security Platform Installation Guide 85

7 Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path

S L

O T

S L

O T

S L

O T

L O

1 2 3 4

E S

E T

A U X

O N

S O

L E

00583

9. Slowly slide the chassis tray assembly back into the appliance, taking care to prevent

damaging components.

10. Resecure the two chassis tray assembly retaining screws.

Replacing a Check Point Encryption Accelerator Card

The IP1560 comes with the Check Point encryption accelerator card preinstalled as part of its base bundle to further enhance VPN performance. The encryption accelerator card provides high-speed cryptographic processing that enhances VPN performance.

The IP690 appliance uses a PMC format encryption accelerator card. The encryption accelerator card has no external connections and requires no cables. The encryption accelerator card software package is part of IPSO, so the appliance automatically detects and configures the card.

Use Check Point Network Voyager to configure your software applications (IPSec or Check Point VPN) to make use of the available hardware accelerator. For information about how to configure software applications, see “Configuring Software to Use Hardware Acceleration” on page 90.

This section describes how to replace a previously installed encryption accelerator card.

Before You Begin

To replace the encryption accelerator card, you need:

 Physical access to the appliance

 The Check Point encryption accelerator card and installation kit

 Phillips-head screwdriver

 Four screws (included in kit)

 Grounding wrist strap (included in kit)

86 Check Point IP690 Security Platform Installation Guide

Replacing a Check Point Encryption Accelerator Card

Caution

Note

00581

SLOT 1 SLOT 2 SLOT 3 SLOT 4

1 2 3 4

IP690

RESET

AUXCONSOLE

Chassis tray assembly retaining screws

You do not need to manually disconnect power for this procedure. If the power supply switches at the rear of the appliance are difficult to reach, you can safely disconnect power when you remove the chassis tray assembly from the front of the appliance. Any servicing of the appliance should be completed with the chassis tray assembly fully removed from the appliance.

To replace the encryption accelerator card

1. Use Check Point Network Voyager or the command-line interface (CLI) to perform an

orderly shutdown of the IP690.

For information about how to access Network Voyager and the related reference materials, see “Using Check Point Network Voyager” on page 38.

2. Turn off the power to the IP690 appliance.

3. Loosen the two chassis tray assembly retaining screws.

Check Point IP690 Security Platform Installation Guide 87

7 Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path

S L O

1 2 3 4

IP69

R E S

E T

A U X

C O N

S O L

00597

00585.1

OT 1

SLOT 2

SLOT 3

SLOT 4

1 2 3 4

IP690

E S

E T

A U

O N

L E

4. Slowly slide the chassis tray assembly forward, taking care to prevent damaging

components, press the release tab on the right side of the assembly, and completely remove the chassis tray assembly to expose the motherboard components.

5. Locate the PMC encryption accelerator card on the motherboard. The encryption card is

located on the back left side of the motherboard.

88 Check Point IP690 Security Platform Installation Guide

Replacing a Check Point Encryption Accelerator Card

Caution

00517.1

00518.1

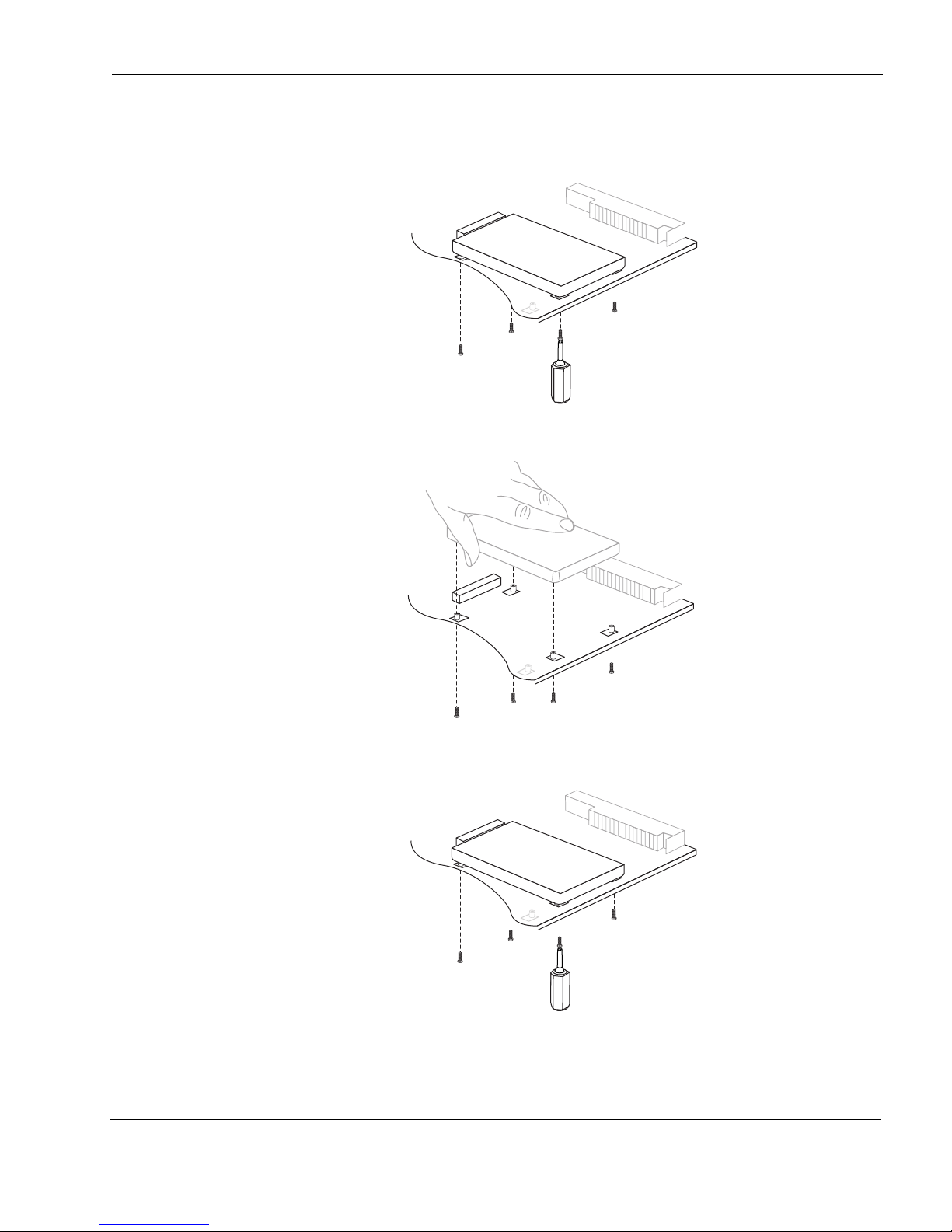

6. Loosen the four retaining screws and remove the card by pulling up from the right side of

the card above the interface connectors.

Do not use the PMC connectors located at the front of the motherboard for the encryption accelerator card. Those connectors are for NICs and ADP modules.

7. Position the three male PMC connectors on the card over the three female PMC connectors

on the motherboard.

The two sets of connectors should be aligned with each other. The four screw holes and four standoffs should also be aligned with each other.

8. Push down on the right side of the card above the interface connectors until it is properly

seated on the motherboard.

Check Point IP690 Security Platform Installation Guide 89

7 Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path

00175.1

Screw

Encryption accelerator card Standoff hole

Motherboard standoff

S L

O T

S L

O T

S L

O T

L O

1 2 3 4

E S

E T

A U X

O N

S O

L E

00583

9. Place the screws through the standoff holes on the card and into the standoffs on the

motherboard.

10. Turn each screw clockwise to attach the card to the standoffs. Do not overtighten.

Make sure that all four standoff connections are properly aligned before tightening the screws completely.

11. Slowly slide the chassis tray assembly back into the appliance, taking care to prevent

damaging components, and resecure the two retaining screws.

12. Configure your software to use hardware acceleration by following the instructions in

“Configuring Software to Use Hardware Acceleration” on page 90.

Configuring Software to Use Hardware Acceleration

The Check Point encryption accelerator software package is part of the Check Point IPSO operating system, so the appliance automatically detects and configures the Check Point encryption accelerator card.

For the Check Point IP690 appliances, SecureXL is on by default. After you install the Check Point encryption accelerator card and reboot the appliance, SecureXL automatically uses the card for encryption acceleration. If you do not want to use SecureXL for encryption acceleration, use the Check Point cpconfig utility to disable SecureXL.

You can also configure the IP690 appliances to use the Check Point encryption accelerator card for IKE acceleration. When you enable IKE acceleration, the encryption accelerator card performs cryptographic operations for IPsec tunnel negotiation.

90 Check Point IP690 Security Platform Installation Guide

To enable IKE acceleration

Caution

1. From the Network Voyager home page, click Security and Access Configuration, then click

IKE Acceleration.

For information about how to access Network Voyager and the related reference materials, see “Using Check Point Network Voyager” on page 38.

2. On the IKE Acceleration page, click Register the module.

3. Click Apply.

The PKCS#11 token that enables IKE acceleration is registered with the Check Point software on your appliance. After you register the module, you must install the Check Point security policy on the firewall for the encryption accelerator card to perform IKE acceleration.

Replacing a Fan Unit

The appliance fan unit is a single unit made up of four individual fans to provide the air flow required to maintain a proper operating temperature. The fan unit can provide proper airflow for a short time even if an individual fan fails.

Before you replace a fan unit, you must first turn off power to the appliance.

Replacing a Fan Unit

Before You Begin

To replace a fan unit, you need:

 Physical access to the IP690 appliance

 Replacement fan unit kit

 A Phillips-head screwdriver

Components inside the appliance can overheat if they are not cooled even for a short period of time. If you are replacing a failed fan unit, you must completely remove power to the appliance.

To replace a fan unit

1. Use Check Point Network Voyager or the command-line interface (CLI) to perform an

orderly shutdown of the IP690.

For information about how to access Network Voyager and the related reference materials, see “Using Check Point Network Voyager” on page 38.

2. Turn off power to the IP690 appliance.

Check Point IP690 Security Platform Installation Guide 91

7 Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path

00580

FAULT

OVER TEMP OVER

PWER OK

FAULT

OVER TEMP OVER

PWER OK

Retaining screws

00587

3. Locate the fan unit on the back of the IP690 appliance and the two retaining screws that

secure it.

4. Loosen the retaining screws by turning them counterclockwise.

5. Slowly pull the fan unit out of the chassis toward the rear.

6. Insert the new fan unit into the chassis.

7. Tighten the two retaining screws on the new fan unit.

8. Turn on the power.

Replacing a Power Supply

The appliance supports redundant 250-watt power supplies. Each power supply is autosensing and can accept input voltages between 47Hz-64Hz and 85VAC-264VAC. The power supply output is regulated to a tolerance of ± 5 percent of the specified output voltage.

Before You Begin

To install or replace a power supply, you need:

 Physical access to the appliance

 A replacement power supply

92 Check Point IP690 Security Platform Installation Guide

Replacing a Power Supply

Caution

00580

FAULT

OVER TEMP OVER

PWER OK

FAULT

OVER TEMP OVER

PWER OK

Power supplies

Figure 23 Power Supply Locations

You should have working knowledge of networking equipment before you attempt to service an appliance. Limit service to the procedures described in this document.

Protect your appliance and other electronic equipment from electrostatic discharge damage by making sure you are properly grounded before you touch any component.

To replace a power supply

1. Use Check Point Network Voyager or command-line interface (CLI) to perform an orderly

shutdown of the IP690 appliance.

For information about how to access Network Voyager, see Using Check Point Network

Voyager on page 38.

2. Locate the power supply on the back of the appliance.

3. Turn off the power to the power supply.

4. Remove the power cord.

5. Remove the grounding cable if one is in use.

Check Point IP690 Security Platform Installation Guide 93

7 Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path

00588

00598

6. Grasp the handle and release lever as shown in the following figure, and use the handle to

firmly pull the power supply out of the chassis.

7. Insert the new power supply into the empty bay until the release lever latches.

8. Replace the grounding cable if being used.

9. Plug the power cord into the new power supply.

10. Turn on the power.

Monitoring the IP690 Appliance Power Supply

You can monitor the status of the IP690 appliance power supplies with Check Point Network Voyager. Similarly, you can also use the command-line interface (CLI). For information about

94 Check Point IP690 Security Platform Installation Guide

the CLI, see the CLI Reference Guide. For more information about Network Voyager, see the

Caution

Check Point Network Voyager Reference Guide or use the Network Voyager inline help.

To monitor the IP690 appliance power supplies by using Check Point Network Voyager

1. Log on to the IP690 appliance with Network Voyager.

2. Click Monitor.

3. Click Hardware Monitoring > System Status.

To the right of the Power Supply link, the status indicator is green for normal and red for fault.

4. For more detailed information about the power supply status, click Power Supply.

Replacing the Battery

To replace the battery, you need the following:

 The appropriate Check Point battery replacement kit for your appliance

 Physical access to the appliance

 A Phillips-head screwdriver

 A grounding wrist strap

 (Optional) Safety glasses

Replacing the Battery

Risk of explosion if battery is replaced by an incorrect type. Replace the battery only with the same or equivalent type that the manufacturer recommends. Dispose of used batteries according to the manufacturer's instructions.Make certain that you are properly grounded when you handle components internal to the appliance to protect against electrostatic discharge damage to the appliance. Use the grounding strap included in the battery replacement kit.

To install the battery, perform the following tasks:

1. Use Check Point Network Voyager or the command-line interface (CLI) to perform an

orderly shutdown of the IP690.

For information about how to access Network Voyager and the related reference materials, see “Using Check Point Network Voyager” on page 38.

2. Turn off the power to the IP690 appliance.

3. Loosen the front panel retaining screws.

Check Point IP690 Security Platform Installation Guide 95

7 Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path

S L O

1 2 3 4

IP6

R E S

E T

A U X

C O N

S O L

00597

00594.1

SLOT 1

SLOT 2

SLOT 3

SLOT 4

1 2 3 4

R E S

E T

U X

C O

N S

O L E

4. Slowly slide the chassis tray assembly forward, taking care to prevent damaging

components, press the release tab on the right side of the assembly, and completely remove the chassis tray assembly to expose the motherboard components.

5. Place the chassis tray assembly on a table top.

6. Locate the battery on the motherboard.

The battery is in a black battery holder secured with a battery retaining tab.

7. Remove the old battery. Use a small nonconductive device, such as a plastic probe, to slide

the battery out of the battery holder through the cutout in the holder.

8. With the positive side facing up, slide the new battery through the cutout in the battery

holder.

96 Check Point IP690 Security Platform Installation Guide

Replacing the Battery

Caution

S L

O T

S L

O T

S L

O T

L O

1 2 3 4

E S

E T

A U X

O N

S O

L E

00583

You must place the new battery into the battery holder observing the correct polarity. The positive terminal of the battery must be facing up.

9. Slowly slide the chassis tray assembly back into the appliance, taking care to prevent

damaging components.

10. Resecure the chassis tray assembly retaining screws.

11. Turn on the power supplies at the back of the appliance.

The appliance should start up normally with the new battery installed. If it does not, repeat

step 1 through step 11. If the appliance does not start up normally after that, see the Check

Point Support Center at http://support.checkpoint.com/.

12. Reset the appliance date and time information by using Check Point Network Voyager or the

command-line interface. The battery is required to maintain the date and time whenever you shut down the appliance.

Check Point IP690 Security Platform Installation Guide 97

7 Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path

98 Check Point IP690 Security Platform Installation Guide

8 Troubleshooting

This chapter provides troubleshooting tips, problems, and solutions related to IP690 installations.

General Troubleshooting Information

The information in this section relates to non-routing problems. For information about how to troubleshoot routing problems, see “Troubleshooting Routing Problems” on page 106.

Unable to Log in to the Console Port—No Error Message

Two laptop computers (using terminal emulation programs) or terminals should be able to communicate back to back in the same way that the terminal communicates with the IP690. If this is not possible using your laptop computer or terminal, the problem is with the terminal or cable and not the appliance.

Problem You do not have a console connection to the IP690.

Solution For information about how to create a console connection,

see “Using a Console Connection” on page 34.

Problem Not connected with a null-modem cable.

Solution Verify that you are using a null-modem cable. For pinout information, see “Using a

Console Connection” on page 34.

Problem Wrong terminal settings.

Solution Verify terminal settings: 8 data, 1 stop, no parity, 9600 bps.

Problem Terminal set for flow control.

Solution The IP690 does not use flow control. The terminal should be set for no flow control.

Problem Defective IP690 or file system.

Solution See the Check Point Support Center at http://support.checkpoint.com/.

Check Point IP690 Security Platform Installation Guide 99

8 Troubleshooting

Note

Problem Database is corrupt.

Solution Return to default settings according to the instructions included in the instructions

for resetting the default password, or see the Check Point Support Center at http://

support.checkpoint.com/.

Problem Entered wrong password.

Solution Obtain a valid password or set the password to a default value.

To reset the admin password to a default value

You must have local serial access to your appliance console to perform this procedure. With a keyboard and monitor directly connected to the appliance, the appear, and you cannot perform this procedure.

1. Boot up the appliance in single-user mode by restarting or power cycling the appliance.

boot:

prompt does not

When the

boot:

prompt appears, enter -s before the appliance goes into multiuser mode;

you have about 10 seconds to do this.

2. After the appliance boots up, the following text appears:

Enter pathname of shell or RETURN for sh:

Press Enter.

3. Type

/etc/overpw

at the # prompt.

When the response asks if you want to continue, type

4. The admin password defaults to no password for admin.

Continue to boot to multiuser mode.

5. Reconfigure the password as you normally would.

Blank passwords are not accepted in Network Voyager. In such cases, enter the following command to reset the password from the command line using a blank password:

dbpasswd admin newpassword ""

The two double quotation marks at the end of the command properly indicate a blank password. After you execute this command, the system reports that the password was not successfully changed. However, the password is changed and is now newpassword.

Finally, return the entire database to its default settings and bring up the new system-startup procedure. The new system-startup procedure is described in Chapter 3, “Performing the Initial

Configuration”.

100 Check Point IP690 Security Platform Installation Guide
