Checkline ZD2 User Manual

12 1

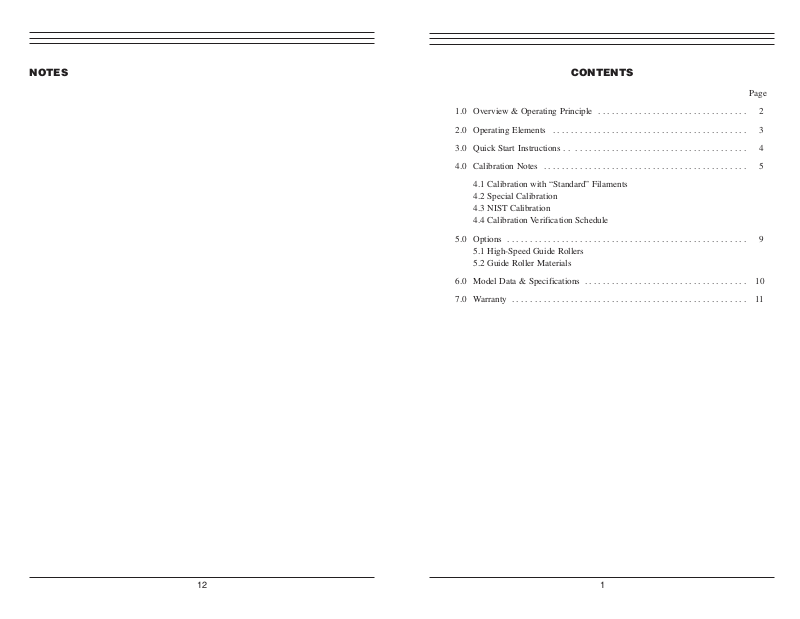

NOTES CONTENTS

Page

1.0 Overview & Operating Principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02

2.0 Operating Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03

3.0 Quick Start Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04

4.0 Calibration Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05

4.1 Calibration with “Standard” Filaments

4.2 Special Calibration

4.3 NIST Calibration

4.4 Calibration Verification Schedule

5.0 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

09

5.1 High-Speed Guide Rollers

5.2 Guide Roller Materials

6.0 Model Data & Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

7.0 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2 11

1.0 OVERVIEW & OPERATING PRINCIPLE

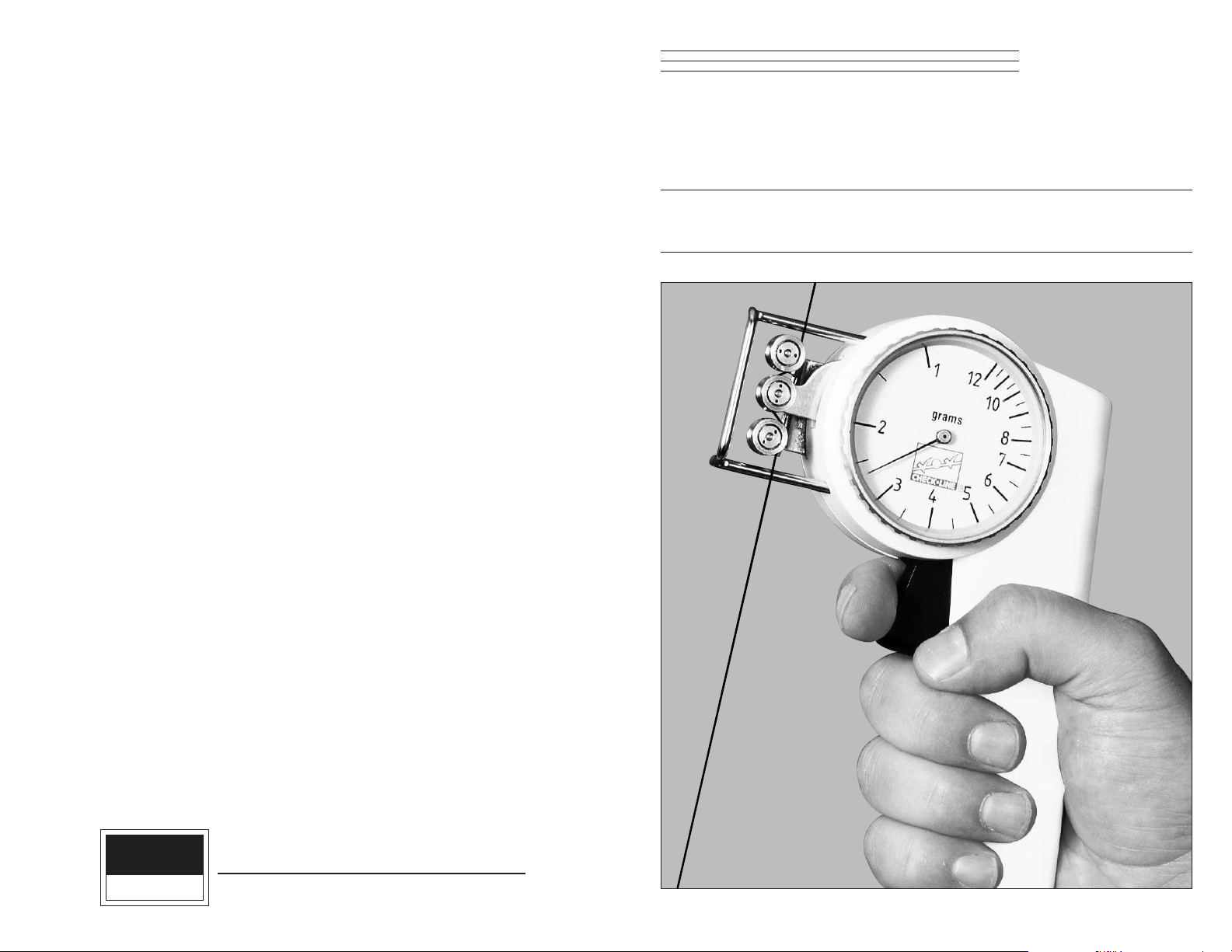

ZD2 and ZF2 Tension Meters are hand-held, mechanical instruments which accurately
measure the running as well as static tensions of a wide variety of process materials
including yarns, fibers, wires and optical fibers. They employ the 3-roller principle for
tension measurement where the outer two reference guide rollers remain fixed during
measurement to establish a wrap angle over the middle sensing roller. The middle
roller, acting against an internal calibrating spring, is displaced relative to the
running line tension. This displacement is converted to a rotary motion to turn
a pointer on a scale to give a reading in grams tension.

7.0 LIMITED WARRANTY

ELECTROMATIC Equipment Co., Inc. (ELECTROMATIC) warrants to the original purchaser that this
product is of merchantable quality and conforms in kind and quality with the descriptions and specifica­tions thereof. Product failure or malfunction arising out of any defect in workmanship or material in the
product existing at the time of delivery thereof which manifests itself within one year from the sale of
such products shall be remedied by repair or replacement of such product, at ELECTROMATIC’s
option, except where unauthorized repair, disassembly, tampering, abuse or misapplications have taken
place, as determined by ELECTROMATIC. All returns for warranty or non-warranty repairs and/or
replacement must be authorized by ELECTROMATIC, in advance, with all repackaging and shipping
expenses to the address below to be borne by the purchaser.

THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY
AND FITNESS FOR ANY PARTICULAR PURPOSE OR APPLICATION. ELECTROMATIC SHALL
NOT BE RESPONSIBLE NOR LIABLE FOR ANY CONSEQUENTIAL DAMAGE OF ANY KIND
OR NATURE RESULTING FROM THE USE OF SUPPLIED EQUIPMENT, WHETHER SUCH
DAMAGE OCCURS OR IS DISCOVERED BEFORE, UPON OR AFTER REPLACEMENT OR
REPAIR, AND WHETHER OR NOT SUCH DAMAGE IS CAUSED BY MANUFACTURER’S OR
SUPPLIER’S NEGLIGENCE.

Some State jurisdictions or States do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation may not apply to you. The duration of any implied warranty, including,
without limitation, fitness for any particular purpose and merchantability with respect to this product, is
limited to the duration of the foregoing warranty. Some states do not allow limitations on how long an
implied warranty lasts but, not withstanding, this warranty, in the absence of such limitations, shall
extend for one year from the date of invoice.

ELECTROMATIC Equipment Co., Inc.
600 Oakland Ave. Cedarhurst, NY 11516-USA
Tel: [phone] / Tel: [phone] / Fax: [phone]

10 3

Miniaturized rollers make these models ideal
for delicate fibers, low tensions or when
access space is limited.

Recommended for all applications where
miniaturized rollers are not needed.

6.0 MODEL DATA& SPECIFICATIONS

Accuracy** ± 1% of full scale

or ± 1 graduation mark on scale

Outer roller distance, c:c

ZF2 22 mm (0.87")
ZD2 33 mm (1.5")

Diameter of Dial 54 mm (2.13")

Dimensions 150 x 120 x 30 mm

(25.9" x 4.7" x 1.2")

Weight 210 g (7.5 oz.)

Maximum Speed

ZF2 (standard) 900 m/min
ZF2 (optional) 2,000 m/min (K)
ZD2 (standard) 2,000 m/min
ZD2 (optional) 3,500 m/min (K)
ZD2 (optional) 5,000 m/min (HS)

Other Options Calibration for horizontal material path (rollers

pointing down)

** Using factory standard materials and procedures. Special calibration using customer sample is available.

Specifications subject to change without notice.

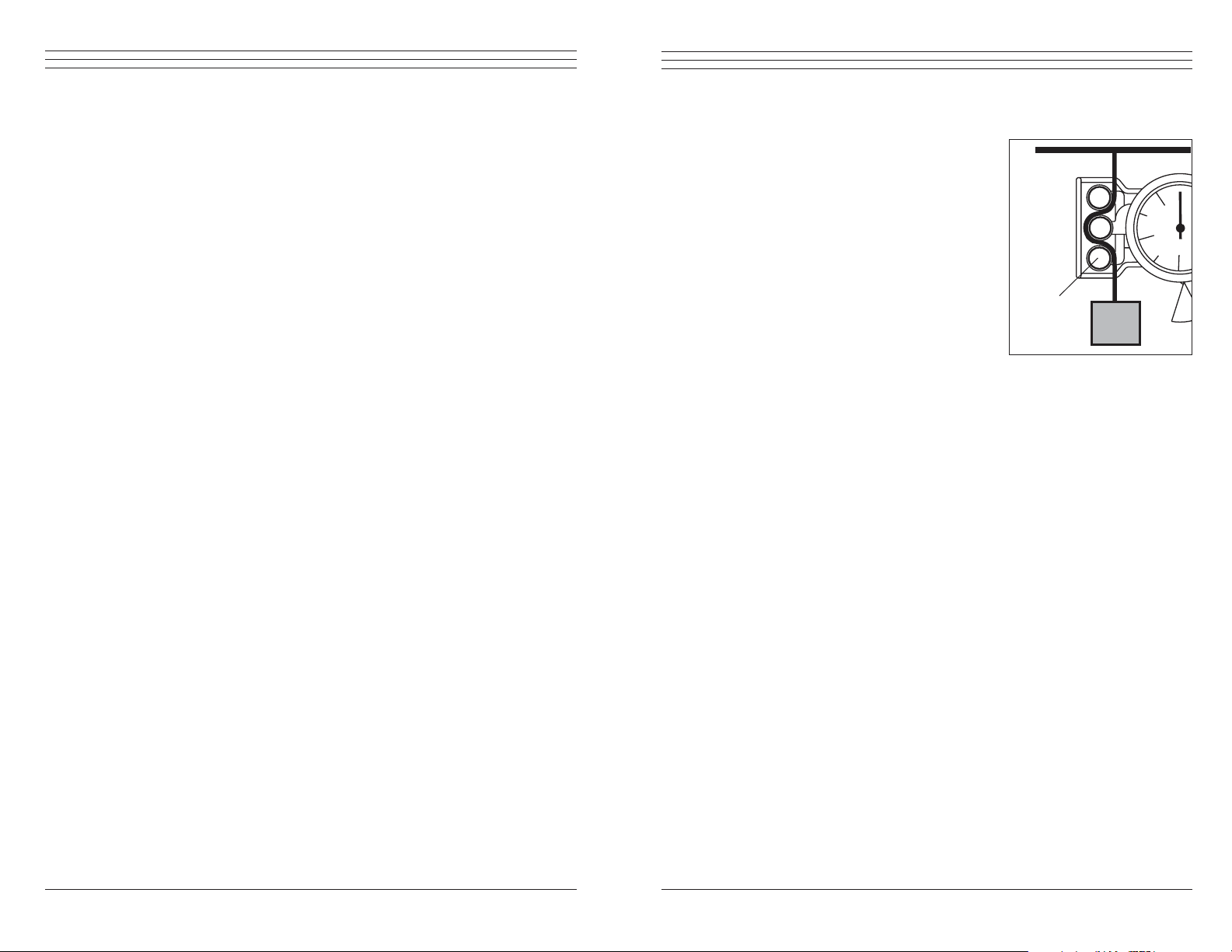

2.0 OPERATING ELEMENTS

ZF2 Models

ZD2 Models

Measured Material

Measuring Roller

Filament
Guide

Roller Guides

Trigger

Scale
