MINI-MAX Ultrasonic Bolt Tension Monitor
Chapter 1 Warranty and Safety
1.1 Warranty
The Dakota Ultrasonics MINI-MAX carries a two year limited warranty. The
warranty only applies to MINI-MAX units being operated as described in this
manual. Software and hardware failures of the unit will be repaired or replaced at
Dakota Ultrasonics discretion. Dakota Ultrasonics will not be held liable for any
damage caused, interruption of business, loss of profits, etc., resulting from such
failures. Dakota Ultrasonics will not be liable to repair or replace a unit, which has
been damaged, used inappropriately, or subject to unauthorized repair by the
purchaser.
1.2 Safety
Using the MINI-MAX while standing in water or in a wet environment can result in
serious electric shock, injury, and even death.
Operating the MINI-MAX with damaged or inadequate cables and power source
can result in serious electric shock, injury, and even death.
Failure to first read this manual and understand the proper operation of the MINI-
MAX can result in inaccurate measurements, and lead to decisions which cause
property damage, personal injury, or even death.
Use of the MINI-MAX for any other purpose, or in any other manner than
described in this manual invalidates the warranty and can result in serious
electric shock, injury, and even death.
Dakota Ultrasonics
Chapter 2 About this manual
This chapter is intended to help you make the best use of this manual. Readers
may have different knowledge of ultrasonic bolt measurement and may find parts
of this manual repetitive or unnecessary.
2.1 If you’re new to Ultrasonics
There are a variety of ultrasonic applications currently being utilized in today’s
industry. For example weld inspection, thickness measuring, immersion testing
of flaws, etc. The use of ultrasound to measure forces in fasteners is relatively
new compared to the previously mentioned traditional applications.
Ultrasonic measurement of bolts provides an extremely accurate means of
determining fastener load, provided the correct techniques are utilized. As a new
user, careful consideration of this entire manual is highly recommended.
2.2 If you’re new to fastener measurement
Assuming you are familiar with ultrasonics, but unfamiliar with fastener
measurement, the chapters on transducer selection and the theory of operation
can be skipped entirely.
The MINI-MAX measures load on the fastener by measuring the amount the
fastener stretches. As load is applied to the fastener, it stretch’s just as a spring
would stretch. The stretch is proportional to the load while the load is less than
the elastic limit of bolt. By measuring the stretch of the fastener and knowing the
physical properties of the fastener, the load of the fastener can be calculated.
The MINI-MAX measures the fastener stretch by ultrasonically measuring the
change in length.
Be sure to setup and experiment with a test fixture of some kind as a means of
becoming familiar with your MINI-MAX.
2
MINI-MAX Ultrasonic Bolt Tension Monitor
Chapter 3 Quick Start Guide
3.1 Overview
This section demonstrates the basic procedures for setting up and measuring
bolts using the MINI-MAX. More in depth explanations pertaining to the
individual functions and features can be found in the chapters that follow.
Here we go!
3.2 Getting the MINI-MAX ready
Making all the connections
In order to get the MINI-MAX ready for operation; the following connections
must be made:
1) Remove the MINI-MAX from the carrying case.
2) Connect the transducer cable to the transducer, and plug the lemo
connector into the gauge.
3) If a temperature sensor is being used, connect the sensor to the MINI-
MAX.
3.3 Setting up the MINI-MAX
Please Read: In this section the MINI-MAX will be setup in its simplest form.
Remember this is only a quick start guide to get the user up and measuring bolts.
Before we setup the gauge to measure basic elongation, the following
assumptions must be made: A preset material type will be used. The user will
not be re-measuring the fasteners at a later date to monitor relaxation of the joint
over time. This eliminates the need for a transducer zero. All these assumptions
will be answered and explained in detail in the chapters that follow.
Dakota Ultrasonics
Selecting the Quick Start Setup
1) Press the ON/OFF key to power up the MINI-MAX.
2) Press the MENU key once to activate the menu items tab. Press the
MENU key multiple times to tab right and the ESC key multiple times to
tab left until the SETUP menu is highlighted and displaying the submenu
items.

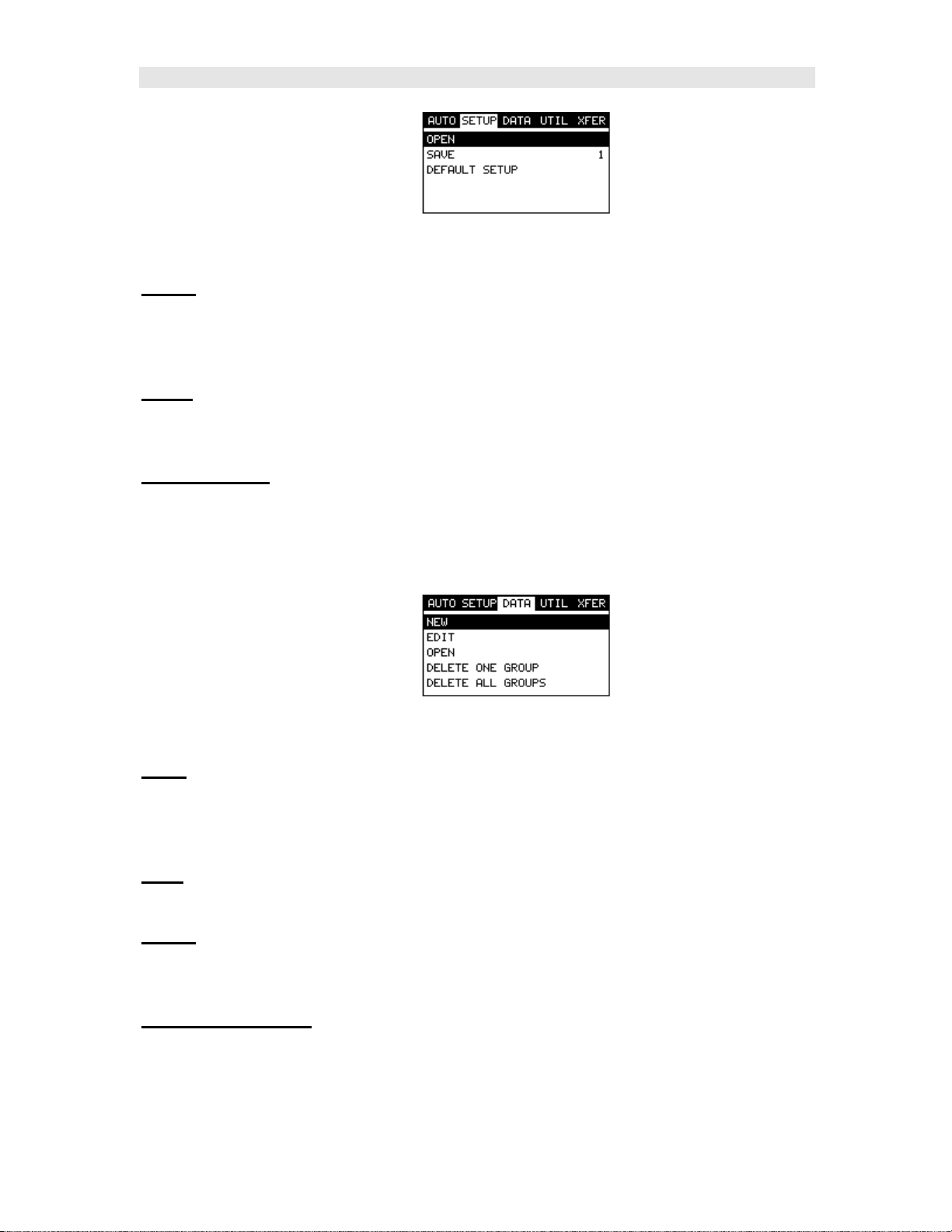

3) Use the UP and DOWN arrow keys to scroll through the sub menu items
until OPEN is highlighted.
4) Press the ENTER key to display the list of setups.
5) Press the UP and DOWN arrow keys to scroll through the setup list until
the QUICK START setup is highlighted.
6) Press the ENTER key to display the confirmation screen.
7) Press the OK key to select the setup and return to the menu screen, or
ESC to cancel the selecting the setup.
4
MINI-MAX Ultrasonic Bolt Tension Monitor
Selecting the Units

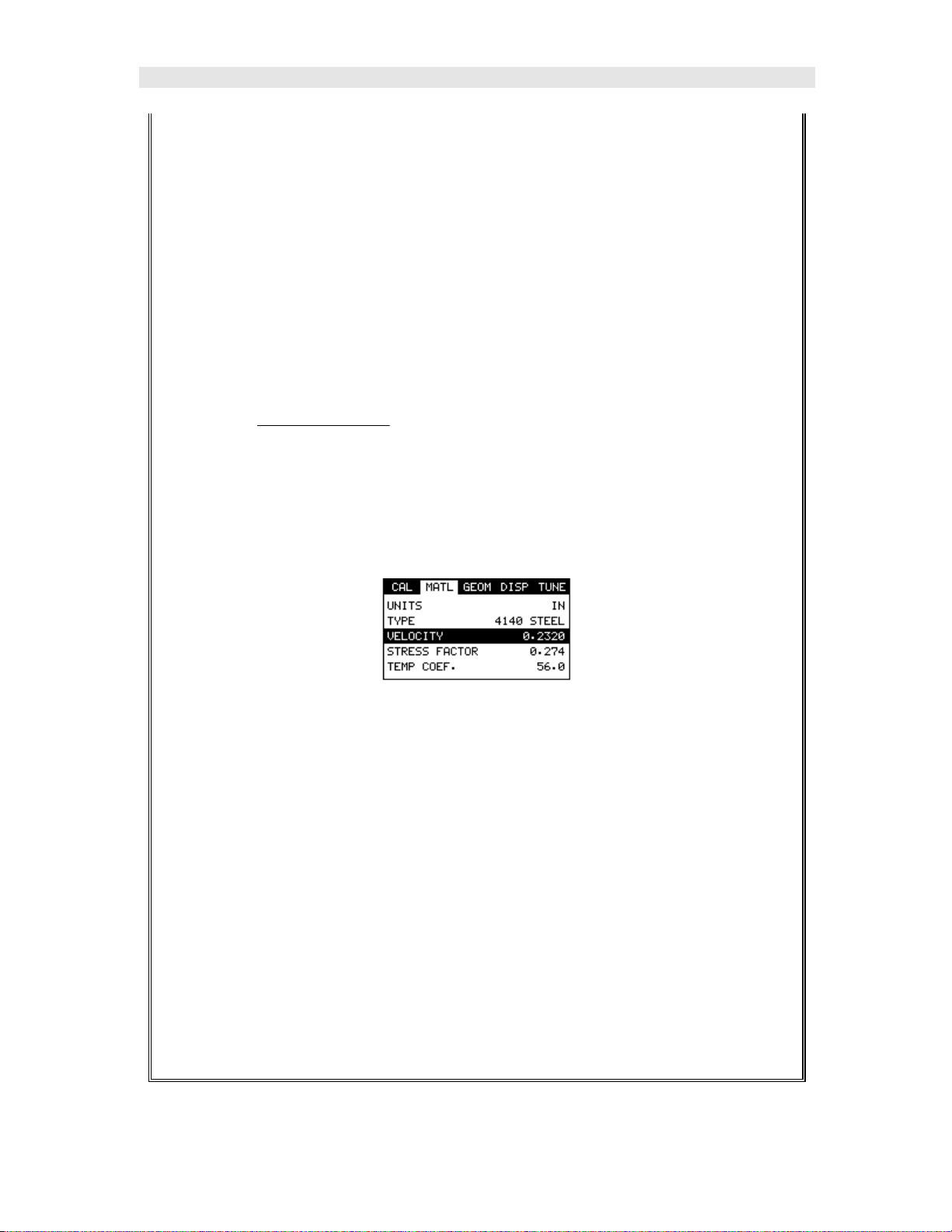

Note: The Quick Start setup, selected in the previous section,
automatically defaults to english units – inches. Follow the procedure
below to change the units to metric, if needed.
1) Press the MENU key multiple times to tab right and the ESC key
multiple times to tab left until the MATL menu is highlighted and
displaying the submenu items.
2) Use the UP and DOWN arrow keys to scroll through the sub menu items
until UNITS is highlighted.
3) Press the LEFT and RIGHT arrow keys to scroll through the unit options
IN (inches), IN HR (inches hi resolution), MM (millimeters), and MM HR
(millimeters hi resolution).
Note: The high-resolution options display an additional digit of resolution to
the measurement. This mode is typically used when measuring very short
bolts with very little elongation.
Selecting the Material Type
Dakota Ultrasonics
This section allows the user the ability to select a material from a list of
preset material types. Keep in mind that we are measuring elongation only.
If your material is not in the list, select a similar material type. When
measuring in elongation mode, the measurement consists of a difference
equation only (Loaded Length – Unloaded Length = ∆ Length). Therefore,
it doesn’t matter if the ultrasonic length is different from the actual physical
length, because the ∆ Length will be the same. Example: 2.0080” physical
loaded length – 2.0000” physical unloaded length = 0.0080” ∆ Length which
is equivalent to 2.1080” ultrasonic loaded length – 2.1000” ultrasonic
unloaded length = 0.0080” ∆ Length.
1) Use the UP and DOWN arrow keys to scroll through the sub menu items
until TYPE is highlighted.
2) Press the ENTER key to display the list material types.
3) Press the UP and DOWN arrow keys to scroll through the material list
until the appropriate type is highlighted.
4) Press the ENTER key to display the confirmation screen.
5) Press the OK key to select the type and return to the menu screen, or
ESC to cancel selecting the material type.
3.4 Creating a New Group to Store Measurements
Now that the MINI-MAX is all setup, this section will explain how to get started
measuring unloaded initial lengths. In order to do this, we need to create a group
that contains bolts. A group can have up to 250 bolts, each bolt containing 1
reference length (L-REF), and up to 51 elongations. Keep in mind that the MINI-
MAX uses a group to store measurements and all gauge settings at the time of
measurement.
6
MINI-MAX Ultrasonic Bolt Tension Monitor

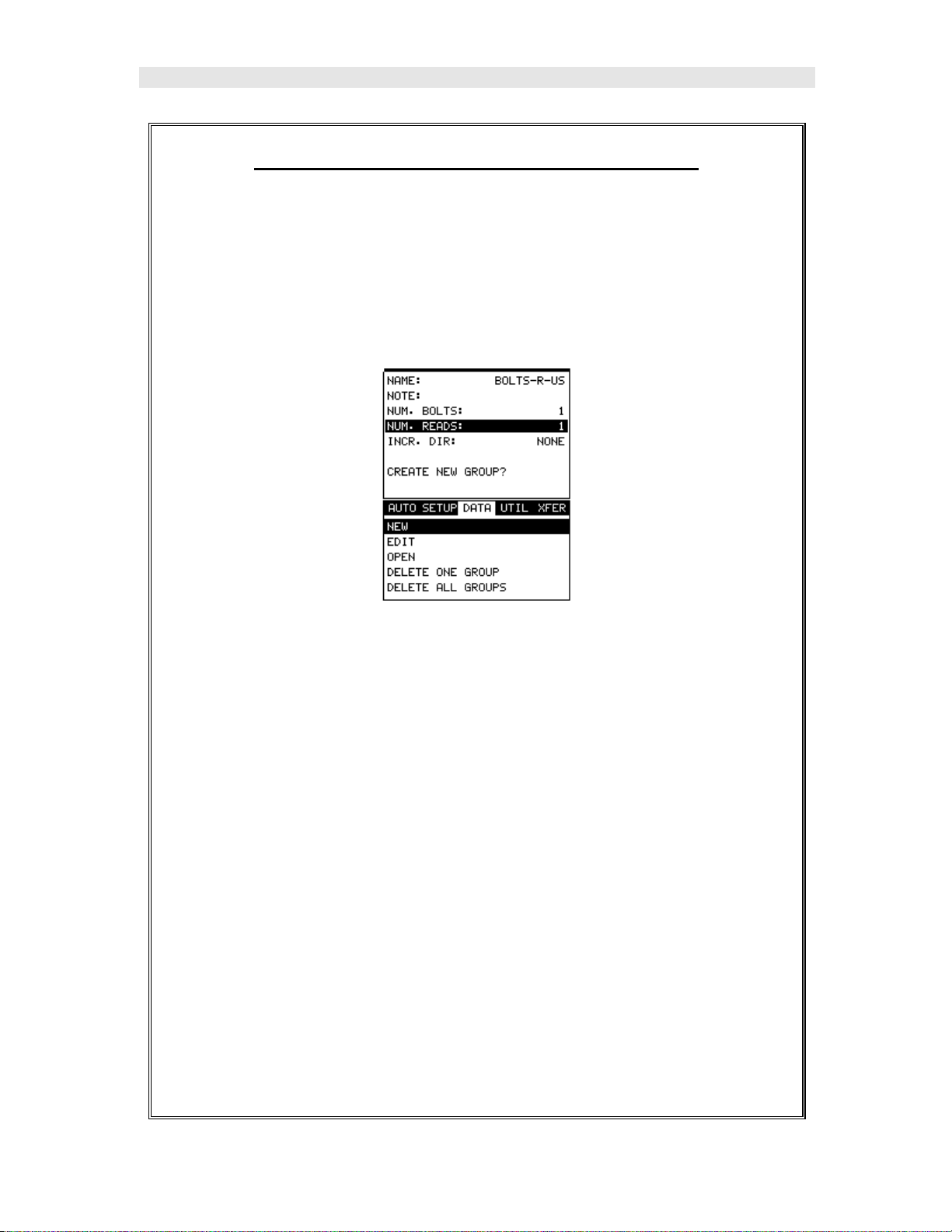

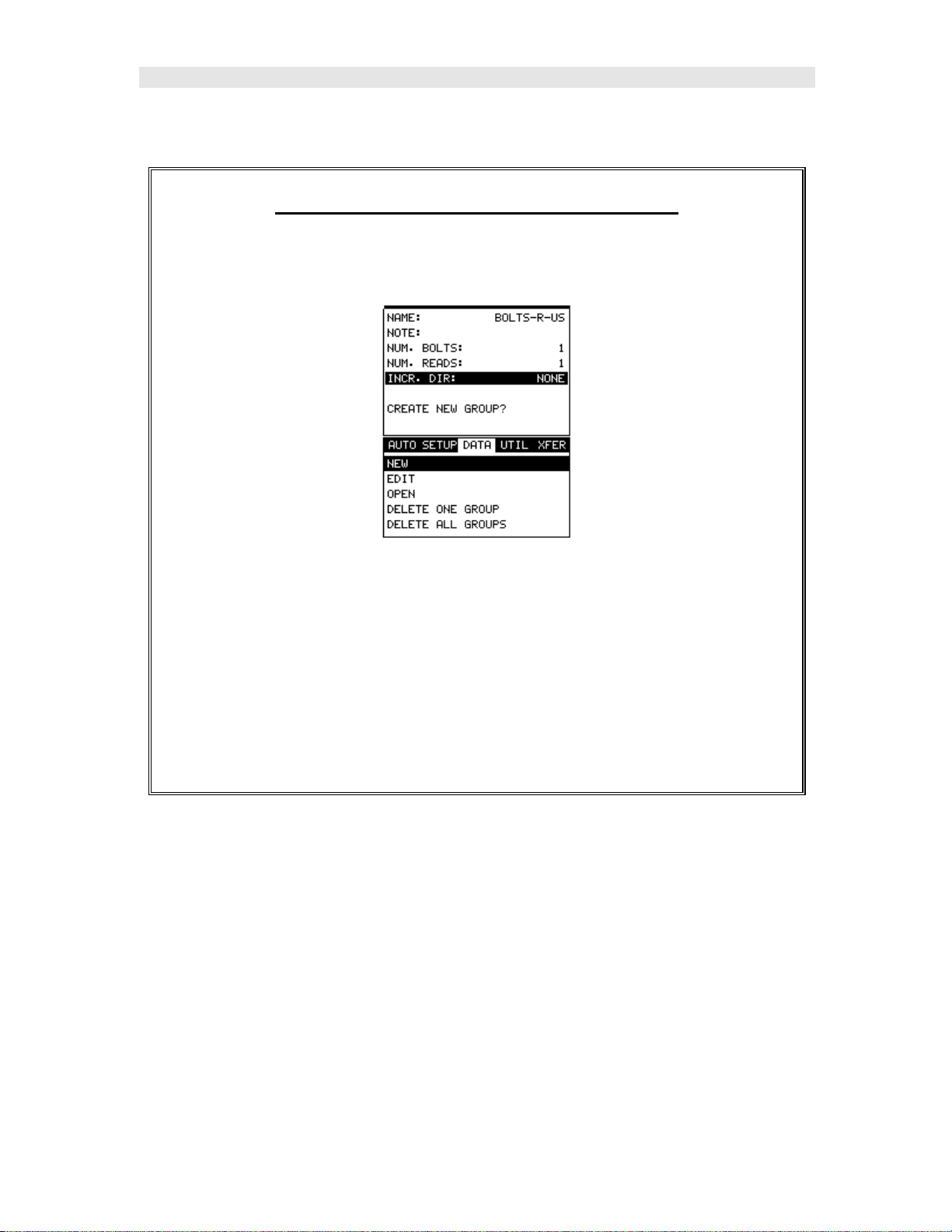

Creating a Group Name

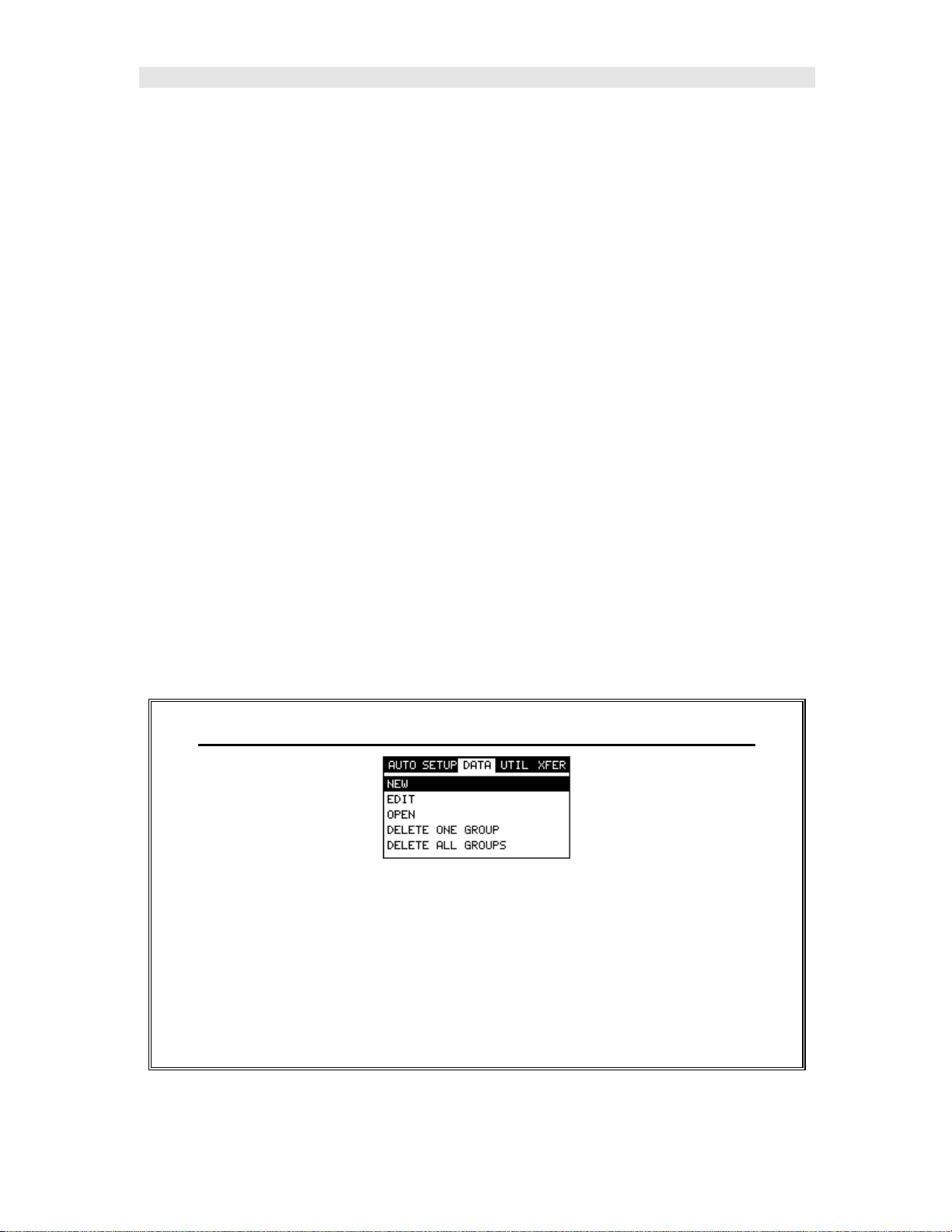

1) Press the MENU key once to activate the menu items tab. Press the
MENU key multiple times to tab right, and the ESC key multiple times to
tab left, until the DATA menu is highlighted and displaying the submenu
items.
2) Use the UP and DOWN arrow keys to scroll through the sub menu
items until NEW is highlighted.
3) Press the ENTER key to display the New Group Edit Box.

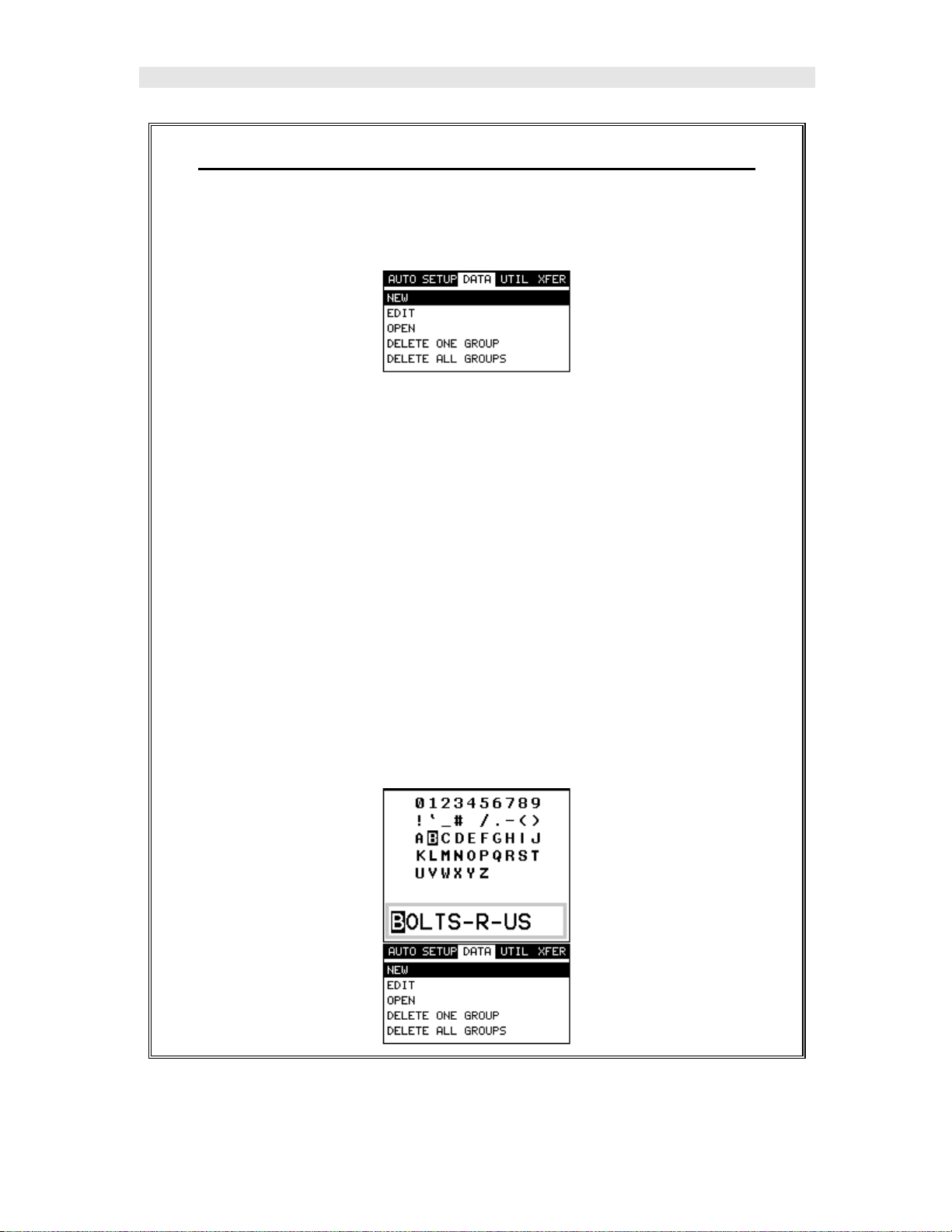

4) Use the UP and DOWN arrow keys to scroll through the new Group
List Items until NAME is highlighted.
5) Press the ENTER key to activate the Alpha Edit Box.
6) Use the UP, DOWN, LEFT, & RIGHT arrow keys to highlight the
appropriate alpha characters.
7) Press the ENTER key to select a character and advance to the next field
of the Group Name.
Dakota Ultrasonics
8) Use the CLR key to backspace if necessary.
9) Repeat steps 6 - 8 until the Group Name is completed.
10) Press the OK key to save the Group Name and return to the Group
List Items menu, or ESC to cancel entering the Group Name.
Creating a Group Note
1) Use the UP and DOWN arrow keys to scroll through the new Group
List Items until NOTE is highlighted.
2) Press the ENTER key to activate the Alpha Edit Box.
3) Use the UP, DOWN, LEFT, & RIGHT arrow keys to highlight the
8
appropriate alpha characters.
MINI-MAX Ultrasonic Bolt Tension Monitor
4) Press the ENTER key to select a character and advance to the next field
of the Group Note.
5) Use the CLR key to backspace if necessary.
6) Repeat steps 3 - 5 until the Group Note is completed.
7) Press the OK key to save the Group Note and return to the Group List
Items menu, or ESC to cancel entering the Group Note.
Selecting the Number of Bolts in the Group
Note: A group can contain up to 250 bolts. There must be at least 1 bolt in
a group.
1) Use the UP and DOWN arrow keys to scroll through the new Group
List Items until NUM BOLTS is highlighted.
2) Press the ENTER key to display the Digits Edit Box.
3) Press the UP and DOWN arrow keys to scroll the highlighted value.
4) Press the LEFT and RIGHT arrow keys to scroll the digit locations.
5) Repeat steps 3 & 4 until the NUM BOLTS value is correctly displayed.
Dakota Ultrasonics
6) Press the OK key to save the NUM BOLTS and return to the Group
List Items menu, or ESC to cancel entering the NUM BOLTS.
Note: If a number greater than 250 is entered, an error message box
“VALUE IS OUT OF RANGE” will be displayed.
7) Press the OK key to display the Digits Edit Box and re-enter the NUM
BOLTS.
8) Press the OK key to save the NUM BOLTS and return to the Group
List Items menu, or ESC to cancel entering the NUM BOLTS.
Selecting the Number of Readings Per Bolt
Note: A bolt can have up to 51 possible measurements and 1 initial length
(L-REF). There must be at least one reading per bolt.
1) Use the UP and DOWN arrow keys to scroll through the new Group
List Items until NUM READS is highlighted.
2) Press the ENTER key to display the Digits Edit Box.
3) Press the UP and DOWN arrow keys to scroll the highlighted value.
4) Press the LEFT and RIGHT arrow keys to scroll the digit locations.
10
MINI-MAX Ultrasonic Bolt Tension Monitor
5) Repeat steps 3 & 4 until the NUM READS value is correctly displayed.
6) Press the OK key to save the NUM READS and return to the Group
List Items menu, or ESC to cancel entering the NUM READS.
Note: If a number less than 1 or greater than 51 is entered, an error
message box “VALUE IS OUT OF RANGE” will be displayed.
7) Press the OK key to display the Digits Edit Box and re-enter the NUM
READS.
8) Press the OK key to save the NUM READS and return to the Group
List Items menu, or ESC to cancel entering the NUM READS.
If there’s not enough memory available to create the group, an error
message box “NOT ENOUGH MEMORY“ will be displayed. Press the OK
or ESC key to return to the Group List Items menu. It may be necessary
to free some memory in the MINI-MAX at this time.
Selecting the Auto Increment Direction
The Auto Increment feature gives the user the ability to specify which
direction to advance the cursor after storing a reading.
Dakota Ultrasonics
1) Use the UP and DOWN arrow keys to scroll through the new Group
List Items until INCR. DIR is highlighted.
2) Use the LEFT & RIGHT arrow keys to toggle the Increment direction
NONE, NORTH, EAST, SOUTH, or WEST.
3) When the correct Increment direction is displayed, continue on to the
next section “Saving the Group”.
12
MINI-MAX Ultrasonic Bolt Tension Monitor
Saving the Group
Once all the parameters are set, the user has the option of saving or
canceling the new group.
1) Use the UP and DOWN arrow keys to scroll through the new Group
List Items until CREATE NEW GROUP? is highlighted.
2) Press the ENTER key to accept the group parameters, and activate the
confirmation screen.
3) Press the OK key to save the New Group, or the ESC key to cancel the
New Group setup and return to the DATA menu.
4) Press the MEAS key to return to the measurement screen to begin
measuring reference lengths.
3.5 Setting the Approximate Length
In order for to utilize the AUTO SET feature of the MINI-MAX, when measuring
reference lengths, the MINI-MAX has to know where to start looking for the
detection. We can accomplish this by entering an approximate length into the
gauge. The MINI-MAX will automatically take the value entered and scan +/- 5%
Dakota Ultrasonics
in both directions of the approximate length for the detection signal. The
approximate length is a very valuable feature that can be used to pin point a
specific detection area. This feature will be further discussed later in the manual.

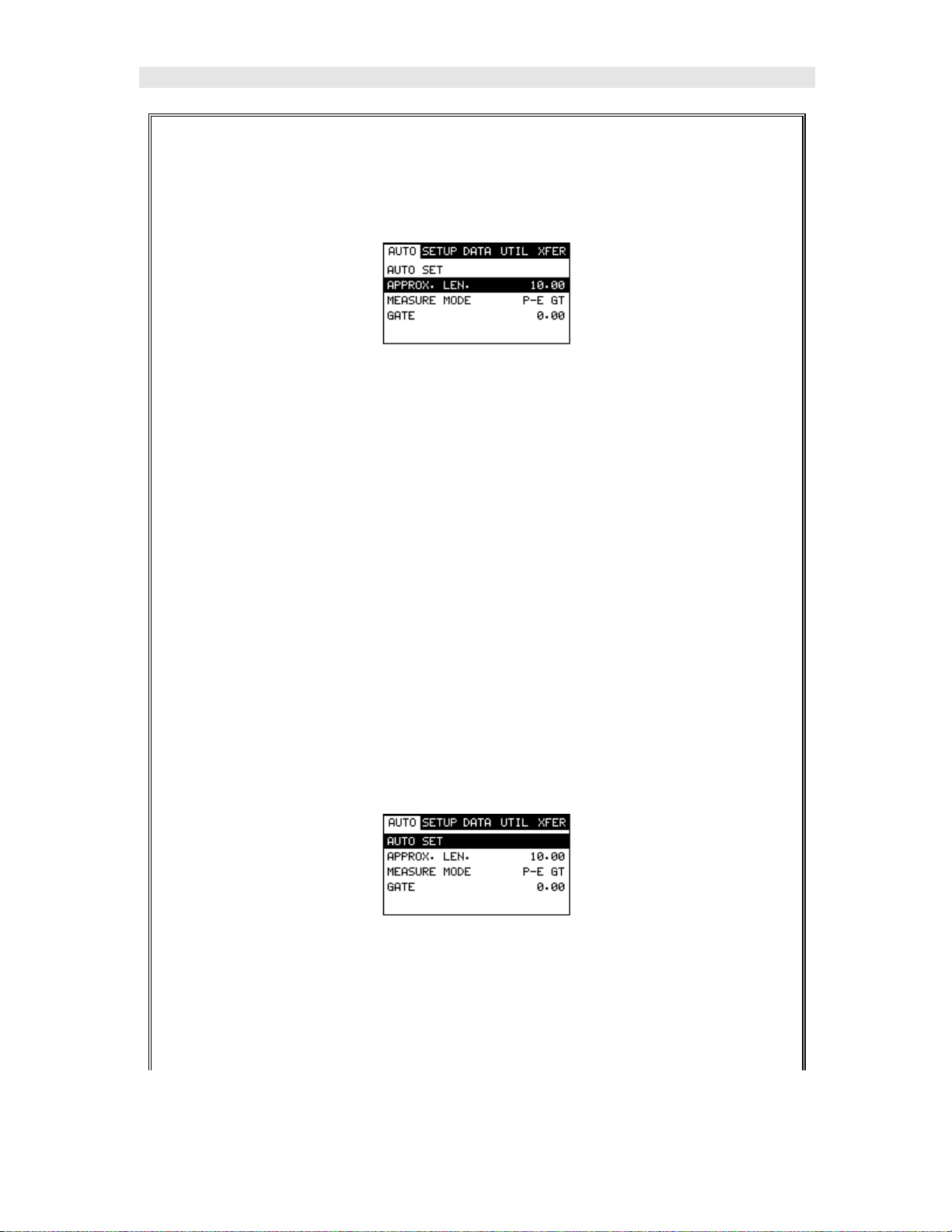

Setting the Approximate Length using the Hot Menus
1) Press the MEAS key once to activate measure menu items. Press the
MEAS key multiple times to move right and the ESC key multiple times
to move left, until the ALEN cell is highlighted.
2) Press the ENTER key to display the Digits Edit Box.
3) Press the UP and DOWN arrow keys to scroll the highlighted value.
4) Press the LEFT and RIGHT arrow keys to scroll the digit locations.
5) Repeat steps 3 & 4 until the ALEN value is correctly displayed.
6) Press the OK key to return to the measurement screen, or ESC to
cancel entering the ALEN.
The user can also access and set the approximate length from the tabbed
menus. However, this method is more tedious than making the adjustments
using the Hot Menus. The procedure using the tabbed menus is outlined below:

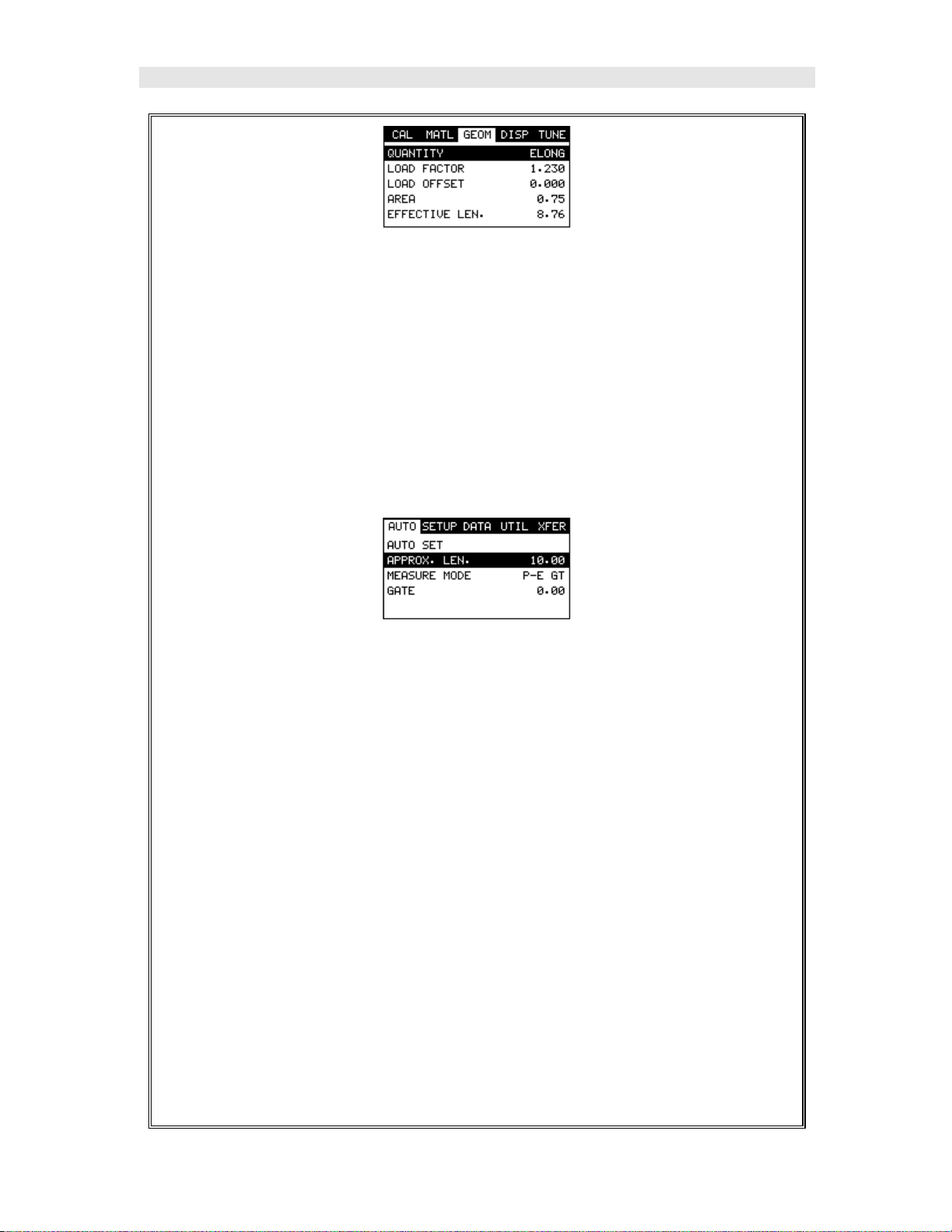

Setting the Approximate Length using the Tabbed Menus
14
MINI-MAX Ultrasonic Bolt Tension Monitor
1) Press the MENU key once to activate the menu items tab. Press the
MENU key multiple times to tab right, and the ESC key multiple times to
tab left, until the AUTO menu is highlighted and displaying the submenu
items.
2) Use the UP and DOWN arrow keys to scroll through the sub menu items
until APPROX. LEN. is highlighted.
3) Press the ENTER key to display the Digits Edit Box.
4) Press the UP and DOWN arrow keys to scroll the highlighted value.
5) Press the LEFT and RIGHT arrow keys to scroll the digit locations.
6) Repeat steps 4 & 5 until the Approx. Len. value is correctly displayed.
7) Press the OK key to set the Approx. Len. and return to the menu
screen, or ESC to cancel entering the Approx. Len..
8) Finally, press the MEAS key to return to the measurement screen and
begin measuring reference lengths.
Dakota Ultrasonics
3.6 Measuring Reference Lengths
At this point, the MINI-MAX is setup and ready to start measuring reference
lengths. We’ve already setup a bolt group to store the reference length data, and
now need to display the group storage locations prior to making measurements.

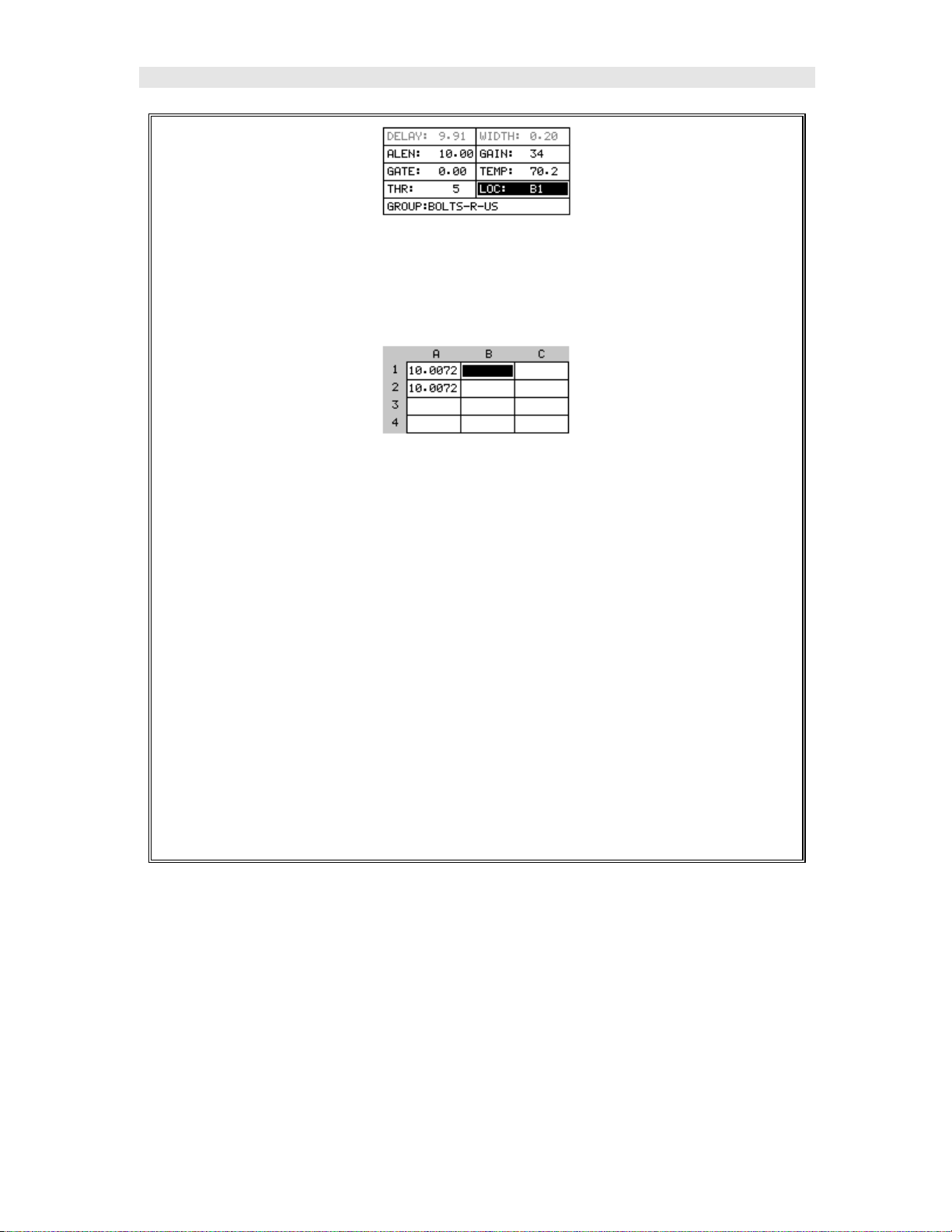

Storing a Reading
1) Press the MEAS key once to activate measure menu items. Press the
MEAS key multiple times to move right and the ESC key multiple times
to move left until the LOC cell is highlighted.
2) Press the ENTER key to display the Group View Box.
3) Press the UP, DOWN, LEFT, and RIGHT arrow keys to scroll the target
cell cursor to the desired storage location.
Note: The approximate lengths must always be located in the first column
A for all bolts in the group.
4) Place a small amount of couplant on the transducer and attached it to
the bolt. Make sure that the transducer is seated so that there is no
couplant layer creating a gap between the transducer and bolt. This can
16
be accomplished by rotating the transducer clockwise and counter
clockwise while applying a very small amount of pressure to seat the
transducer firmly against the bolt.
MINI-MAX Ultrasonic Bolt Tension Monitor
Important Note: Always be sure to attach the transducer in the same exact
location if it will be removed in between reference lengths and elongation
measurements. This will eliminate any potential sound path error caused
by moving the transducer to a completely different location on the bolt, thus
causing potentially erroneous measurements. Be consistent and as
methodical in your methods as possible. This will help to avoid transducer
placement errors.
5) Press the AUTO SET key, located in the bottom left corner of the
keypad, to locate the detection point, or end of the bolt.
6) Press the ENTER key to save the current approximate length in the
highlighted cell location.
Note: If the measurement was save in error, press the CLR key at anytime
to clear the stored reading and re-measure using the steps 4 – 6 above.
Note: The Group View Box can be aborted a t any time by pressing the
MEAS key.
3.7 Measuring Elongations
Now that the reference lengths have been measured and saved, we’re ready to
start measuring elongation values. We’ll start off by assuming the bolt has been
stretched or tightened, the transducer has been once again coupled to the bolt in
the same location as before, and we’re ready to measure the elongation as
follows:
Measuring an Elongation
Important Note (recap): Always be sure to attach the transducer in the
same exact location if it will be removed in between reference lengths and
elongation measurements. This will eliminate any potential sound path
Dakota Ultrasonics
error caused by moving the transducer to a completely different location on
the bolt, thus causing potentially erroneous measurements. Be consistent
and as methodical in your methods as possible. This will help to avoid
transducer placement errors.
1) Press the UP, DOWN, LEFT, and RIGHT arrow keys to scroll the target
cell cursor to the desired storage location.
Note: Elongation values must be stored in column B - ZZ.
2) Press the AUTO SET key, located in the bottom left corner of the
keypad, to locate the detection point, or end of the bolt.
3) Press the ENTER key to save the current elongation in the highlighted
cell location.
Note: If the measurement was save in error, press the CLR key at anytime
to clear the stored reading and re-measure using the steps 2 & 3 above.
4) Continue to repeat this process until all the elongation measurements
have been completed.
Note: The Group View Box can be aborted at any time by pressing the
MEAS key.
18
MINI-MAX Ultrasonic Bolt Tension Monitor
Chapter 4 Keyboard, Menu, & Connector
Reference
4.1 Menu Key (Operation & Sub Menus )
The Menu key activates the primary menu structure containing 10 menu tab
groups. These tab groups then contain sub menu items, or functions. The sub
menu items have been organized in tab groups according to how closely they are
related to the individual tab group names. Let’s first get familiar with how to
move around in these tabs before continuing on to the sub menu functions. This
procedure is outlined below:
Dakota Ultrasonics
Activating and Getting Around in the Menu Items
1) Press the MENU key once to activate the menu items tab. Press the
MENU key multiple times to tab right, and the ESC key multiple times to
tab left until the desired tab group is highlighted and displaying the
submenu items.
Now that your familiar with activating and moving amongst the tab groups, let’s
have a look at how to move around in the sub menu items as follows:
Getting Around in the Sub Menu Items
1) Use the UP and DOWN arrow keys to scroll through the sub menu items
until the desired function is highlighted.
2) Depending on which function is highlighted, use the LEFT, RIGHT, and
Enter keys to scroll the options or activate the Digit Edit and List Box
options.
The sections to follow will provide the user with an explanation of the sub menu
functions:
20
MINI-MAX Ultrasonic Bolt Tension Monitor
4.2 CAL – Menu
Zero Mode: The MINI-MAX is zeroed in much the same way that a mechanical
micrometer is zeroed. There are three zero mode options available in the MINI-
MAX – FIXED, ONE POINT, and TWO POINT. Selecting the proper mode is
dependent on the application requirements. Refer to Chapter 8, for an
explanation of this important procedure.
Zero Value: Depending on the Zero Mode selected above, the actual zero value
will be calculated and displayed in this sub menu item. The user can edit this
value at anytime from this sub menu item. Refer to Chapter 8 for a further
explanation.

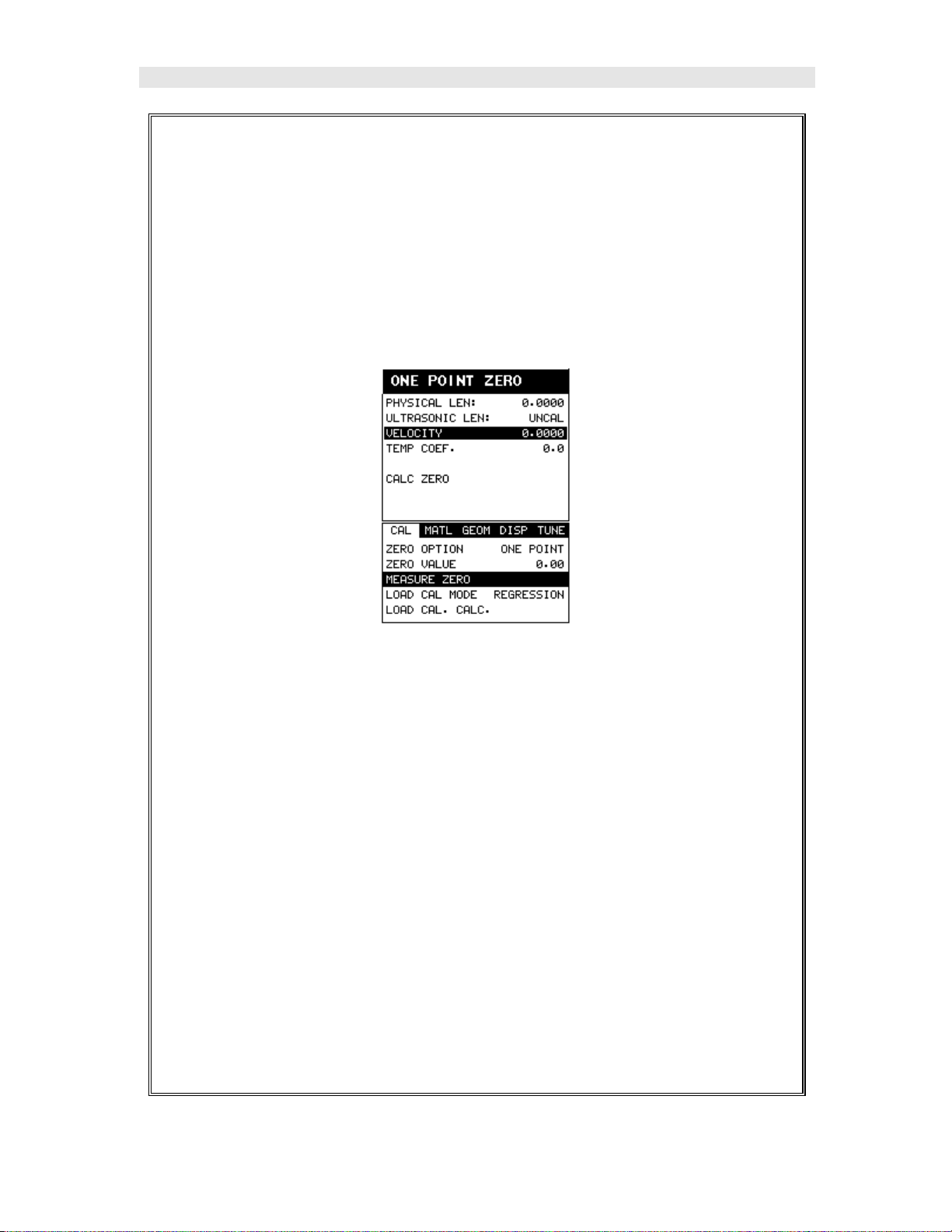

Measure Zero: Once the Zero Mode has been selected above, this function
displays and calculates the actual measurement screen containing the known
physical length, velocity, and temperature coefficient of the calibration standard
versus the ultrasonic length. . Refer to Chapter 8 for a further explanation.
Load Cal Mode: Enables and disables the field calibration feature of the MINI-
MAX. This is used to compare known and ultrasonic loads. Refer to Chapter 11
for a further explanation.
Load Cal Calc: This feature is used to calculate a linear regression or vector
curve, once the Load Cal Mode is enabled and known and ultrasonic loads have
been entered and ultrasonically measured. If the regression option was selected
in Load Cal Mode, a correction load offset and load factor will be calculated. If
the vector option was selected, a load factor will be calculated and the offset will
be set to zero. Refer to Chapter 11 for a further explanation.
4.3 MATL (material) – Menu
Units: Toggle between English and Metric units and multiple resolutions for
each unit ( IN - .0001, INHR - .00001, or MM - .001, MMHR - .0001 ), Using the
abbreviation HR to represent High Resolution.
Dakota Ultrasonics
Type: Select the bolt material type from a preset list of material types. Each
type contains a velocity, stress factor, and temperature factor. When a type is
selected, these values are displayed in the sub menu items below and can be
edited by the user at anytime.
Velocity: This feature allows the user to edit the material velocity at anytime.
Once a material type is selected, the velocity of the selected material type is
stored in this sub menu item and can be edited a by the user if necessary.
Stress Factor: This feature allows the user to edit the stress factor at anytime.
Once a material type is selected, the stress factor of the selected material type is
stored in this sub menu item and can be edited by the user if necessary. Refer to
section 10.3 for further info.
Temp Coeff: This feature allows the user to edit the material temperature
coefficient at anytime. Once a material type is selected, the temperature
coefficient of the selected material is stored in this sub menu item and can be
edited by the user if necessary. Refer to 10.4 for further info.
4.4 GEOM (geometry) – Menu
Quantity: Selectable units of measure in terms of TIME, ELONGATION, LOAD,
STRESS, and % STRAIN. Refer to section 12.1 for further info.
Load Factor: The conversion factor from elongation to Load. This value is
typically determined by performing a field calibration and running a regression or
vector using the MINI-MAX or utility software. Alternatively, the load factor can
be determined using the bolt calculator in the utility software. However, if
extreme accuracy is required, performing a field calibration is a must. This sub
menu item enables the user to edit the factor at anytime. Refer to section 11.1
for further info.
Load Offset: Normally the Load Offset is set to zero. However, when a field
calibration is performed and regression calculated a small offset (y intercept) will
result. This value is a constant added or subtracted from the measurement, and
will result in correction to the load quantity. This sub menu item enables the user
to edit the offset value at anytime. Refer to section 11.2 for further info.
22
MINI-MAX Ultrasonic Bolt Tension Monitor
Area: The cross sectional area of the fastener being measured. Used to convert
load to stress. Set to zero if the user is not measuring the quantity in terms of
stress. This sub menu item enables the user to edit the area at anytime. Refer
to section 11.1 for further info.
Effective Length: The length of the region of the fastener under stress (the
distance between the nut plus some amount of additional stress that occurs in
the head and nut(s) of the fastener). This sub menu item enables the user to
edit the effective length at anytime. Refer to section 11.1 for further info.
4.5 DISP (display) – Menu
View: Selectable RF wave, RECT (rectified), and DIGITS (large digits) views.
Refer to section 12.2 for further info.
Backlight: Selectable OFF, ON, AUTO, or INVERT back light option.
Contrast: Adjustable display contrast for variable light conditions.
Delay: Provides the user the ability to change where the left side of the display
window starts according to time which is convert to a length, in english or metric
units. Refer to section 12.3 for further info.
Width: Provides the user the ability to change the overall size of the viewable
measurement area. It functions a lot like a zoom on a camera. Refer to section
12.3 for further info.
4.6 TUNE – Menu
Dakota Ultrasonics
Gain: Increases or decreases the overall amplitude of the signal. Much like
turning the volume up or down on a stereo receiver. Refer to section 12.4 for
further info.
Threshold: Enables the user to set the sensitivity level of the MINI-MAX. The
amplitude of the signal must reach and exceed the threshold level before a
measurement is detected. Refer to section 12.5 for further info.
Polarity: The MINI-MAX operates on a zero crossing detection principal. This
feature toggles which stroke of the cycle the crossing detection uses, either
positive or negative. Refer to 13.3 for further info.
Pulse: The MINI-MAX has an adjustable pulse width for both high penetration
and resolution requirements. The pulse width refers to the duration of time the
pulser is on. The options are Spike, Thin, and Wide. Refer to 13.1 for a further
explanation.
Rect Waveform: This option provides the user an outlined or filled view option
when the display setting is in RECT (rectified) wave mode only. Refer to 13.4 for
further info.
4.7 AUTO – Menu
Auto Set: Automatically locates the detection point if the measurement is out of
the viewable display area. Refer to section 12.9 for further info.
Approx Len: In order for the user to use the Auto Set feature, an approximate
length of the fastener must be entered. The approximate length gives the MINI-
MAX some idea of where to turn on the receiver and look for the detection, or
end of the bolt. This sub menu item enables the user to edit the effective length
at anytime. Refer to section 12.9 for further info.
Measure Mode: Used to select the measurement mode for different application
requirements. The mode options are P-E (pulse-echo), or P-E GT (pulse-echo
w/gate).
Gate: Gates allow the user to view areas or sections of the waveform and ignore
others. Refer to section 12.6 for further info.
24
Loading...
