Series 4
DIGITAL FORCE GAUGES
User’s Guide
Series 4 Digital Force Gauges User’s Guide
1
Thank you…
Thank you for purchasing a Mark-10 Series 4 digital force gauge, designed
for tension and compression force testing applications from 0.12 lb to 500 lb
(0.5 N to 2,500 N) full scale. The Series 4 is an essential component of a
force testing system, typically also comprising a test stand, grips, and data
collection software.
With proper usage, we are confident that you will get many years of great
service with this product. Mark-10 force gauges are ruggedly built for many
years of service in laboratory and industrial environments.
This User’s Guide provides setup, safety, and operation instructions.
Dimensions and specifications are also provided. For additional information
or answers to your questions, please do not hesitate to contact us. Our
technical support and engineering teams are eager to assist you.
Before use, each person who is to use the Series 4 force gauge should
be fully trained in appropriate operation and safety procedures.
TABLE OF CONTENTS
OVERVIEW .........................................................2
POWER ...............................................................3
MECHANICAL SETUP .......................................4
HOME SCREEN AND CONTROLS ...................5
OPERATING MODES .........................................7
DIGITAL FILTERS ..............................................7
SET POINTS .......................................................8
DATA MEMORY AND STATISTICS ..................9
COMMUNICATIONS ....................................... 10
CALIBRATION ................................................ 15
OTHER SETTINGS .......................................... 20
SPECIFICATIONS ........................................... 21
Series 4 Digital Force Gauges User’s Guide
2
Qty.
Part No.
Description
M4-012 –
M4-20
M4-50 –
M4-100
M4-200 –
M4-500
1
12-1049
12-1049
12-1049
Carrying Case
1
AC1030 /
AC1032
AC1030 /
AC1032
AC1030 /
AC1032
AC adapter body with US, EU, or UK prong
1
08-1026
08-1026
08-1026
Battery (inside the gauge)
1
G1024
G1024
G1031
Extension rod
1
G1026
G1026
G1033
Cone
1
G1025
G1025
G1032
Chisel
1
G1027
G1027
G1034
V-groove
1
G1029
G1029
G1036
Flat 1 G1028
G1038
G1035
Hook
1
N/A
G1039
G1037
Coupling
1 - Certificate of calibration
1
09-1165
USB cable
1 - Resource CD (USB driver, user’s guides,
software, User’s Guide)
1 OVERVIEW
1.1 List of included items
AC1031 /
1.2 Safety / Proper Usag e
AC1031 /
AC1031 /
MESUR Lite software, MESURgauge DEMO
Caution!
Note the force gauge’s capacity before use and ensure that the capacity is not exceeded.
Producing a force greater than 150% of the gauge’s capacity can damage the internal load cell. An
overload can occur whether the gau g e is powered on or off.
Typical materials able to be tested include many manufactured items, such as springs, electronic
components, fasteners, caps, films, mechanical assemblies, and many others. Items that should not be
used with the gauge include potentially flammable substances or products, items that can shatter in an
unsafe manner, and any other components that can present an exceedingly hazardous situation when
acted upon by a force.
The following safety checks and procedures should be performed before and during operation:
1. Never operate the gauge if there is any visible damage to the AC adapter or the gauge itself.
2. Ensure that the gauge is kept away from water or any other electrically conductive liquids at all
times.
3. The gauge should be serviced by a trained technician only. AC power must be disconnected and
the gauge must be powered off before the housing is opened.
4. Always consider the characteristics of the sample being tested before initiating a test. A risk
assessment should be carried out beforehand to ensure that all safety measures have been
addressed and implemented.
5. Wear eye and face protection when testing, especially when testing brittle samples that have the
potential to shatter under force. Be aware of the dangers posed by potential energy that can
Series 4 Digital Force Gauges User’s Guide
3
Serial connector
Power input jack
accumulate in the sample during testi ng. Extra bodily protection should be worn if a destructive
failure of a test sample is possible.
6. In certain applications, such as the testing of brittle samples that can shatter, or other applications
that could lead to a hazardous situation, it is strongly recommended that a machine guarding
system be employed to protect the operator and others in the vicinity from shards or debris.
7. When the gauge is not in use, ensure that the power is turned off.
2 POWER
The gauge is powered either by an 8.4V NiMH rechargeable battery or by an AC adapter. Since these
batteries are subject to self discharge, it may be necessary to recharge the unit after a prolonged period
of storage. Plug the accompanying charger into the AC outlet and insert the charger plug into the
receptacle on the gauge (refer to the illustration below). The battery will fully charge in approximately 8
hours.
USB connector
Caution!
Do not use chargers or batteries other than specified or instrument damage may occur.
If the AC adapter is plugged in, a corresponding icon appears in the lower left corner of the display, as
follows:
If the AC adapter is not plugged in, battery power drainage is denoted in a three step process:
The gauge can be configured to automatically power off following a period of inactivity. Refer to the Other
Settings section for details.
If battery replacement is necessary, the battery may be accessed by separating the two halves of the
gauge. Refer to the Mechanical Setup section for details.
1. When battery life is greater than 30%, no indicator is present.
2. When battery life drops to approximatel y 30%, an indicator appears as follows:
3. When battery life drops to approximately 10%, the indicator will appear as follows:
4. When battery life drops to approximately 2%, the indicator from step 2 will be flashing.
Several minutes after (timing depends on usage and whether the backlight is turned on or
off), a message will appear, “BATTERY VOLTAGE TOO LOW. POWERING OFF”. A 4-tone
audio indicator will sound and the gauge will power off.
Series 4 Digital Force Gauges User’s Guide
4
3 MECHANICAL SETUP
3.1 Loading shaft orientation
In order to accomm odate a variet y of testin g requ irem ents, th e orienta tion of the loading s haf t ma y be set
up in either of the two positions s hown belo w. In order to change the load ing shaf t orientation, l oosen the
two captive screws on the bac k side of t he h ousing, separat e t he t wo hous ing h alves , rota te one half 180
degrees, and reass emble. Contact bet ween the two halves is made by the spring pins and contact pads
on the printed circuit boards.
Load cell shaft up Load cell shaft down
3.2 Mounting to a plate
Although the gauge may be used by hand, proper mounting is important if attached to a fixture or test
stand. The round steel insert with a hole in the back of the housing is provided to withs ta nd the loa d
during a test. A mating dowel pin should be used (see illustration below). Mounting plates on Mark-10 test
stands include a dowel pin and clearance holes for the four threaded holes located near the corners of
the housing. These holes are designed to accommodate screws in order to hold the gauge in place
(Mark-10 test stands include a set of thumb screws for gauge mounting). The screws must not
for load bearing purposes. Failure to use a dowel pin properly can result in a hazardous situation.
3.3 Mounting attachments to the gauge
The force gauge’s threaded loading shaft is designed to accommodate common grips and attachments
with female mounting holes. To mount a grip, gently thread it onto the shaft. Other mounting adapters are
also available to prevent rotation. Ensure that the grip or fixture is positioned to ensure axial load with
respect to the loading shaft of the force gauge. When using a grip, ensure that it secures the sample in
such a way that it is prevented from slipping out during a test, preventing a potential safety risk to the
be used
Series 4 Digital Force Gauges User’s Guide
5
No.
Name
Description
1
Measurement
These indicators are used throughout the display and menu.
2
Peaks
The maximum measured compression and tension readings. These readings
are reset by pressing ZERO or by powering the gauge off and on.
3
Primary reading
The current displayed force reading. See Operating Modes section for
details.
4
Load bar
Analog indicator to help identif y when an overlo ad condit ion is imm inent. T he
details.
5
Units
N – Newton
1 2 3 4 5 6 7
8 9 10
operator and others in the vicinity. If using a grip or fixture from a supplier other than Mark-10, ensure that
it is constructed of suitably rugged materials and components.
Do not use jam nuts or tools to tighten grips or attachments onto the shaft. Finger-tighten only. Antirotation mounting adapters are available.
4 HOME SCREEN AND CONTROLS
4.1 Home Screen
direction
- indicates a compression (push) direction
- indicates a tension (pull) direction
bar increases either to the right or to the left from the midpoint of the graph.
Increasing to the right indicates compression load, increasing to the left
indicates tension load. If set points are enabled, triangular markers are
displayed for visual convenience. This indicator reflects the actual load, which
may not correspond to the primary reading (depends on operating mode).
The ZERO key does not reset the load bar. See Operating Modes section for
The current measurement unit. Abbreviations are as follows:
lbF – Pound-force
ozF – Ounce-force
kgF – Kilogram-force
gF – Gram-force
Series 4 Digital Force Gauges User’s Guide
6
kN – Kilonewton
capacity / resolution table in the Specifications section for details.
6
Mode
The current measurement mode. Abbreviations are as follows:
See Operating Modes section for details about each of these modes
7
Number of stored
data points
The number of stored data points in memory, up to 50. Displayed onl y if
Memory Storage
DATA
8
Battery / AC
adapter indicator
Either the AC adapter icon, battery icon, or no icon will be shown, depending
on power conditions. Refer to the Power section for details.
9
High / low limit
Correspond to the programmed set points. Indicator definitions are as follows:
– the displayed value is less than the lower force limit
10
Set points
Set Points menu item.
Primary
Label
Primary Function
Secondary
Label
Secondary Function
home screen is displayed.
ENTER
ZERO
Zeroes the primary reading and
peaks.
(UP)
Navigates up through the menu and
sub-menus .
MENU
ESCAPE
the menu hierarchy.
MODE
Toggles between measurement
modes.
(DOWN)
Navigates down through the menu
and sub-menus.
DATA
external device, depending on setup.
DELETE
Delete
UNITS
DIRECTION
menu items.
upon powering on the gauge.
N/A
mN – Millinewton
Note: not all gauge capacities measure in all the above units. Refer to the
RT – Real Time
PC – Peak Compression
PT – Peak Tension
indicators
4.2 Controls
is enabled for the
– the displayed value is greater than the upper force limit
– the displayed value is between the limits
The programmed force limits. Typically used for pass/fail type testing. 1, 2, or
no indicators may be present, depending on the configuration shown in the
Powers the gauge on and off. Press
briefly to power on, press and hold
to power off. Active only when the
Enters the main menu.
key.
Various uses, as described in the
following sections.
Reverts one step backwards through
Stores a value to memory and/or
transmits the current reading to an
Toggles between measurement
units.
Turns the LCD backlight on and off.
Backlight turns on automatically
Enables and disables
while viewing stored data.
Reverses the display during
calibration, and toggles between
tension and compression directions
while configuring set points and other
N/A
mode
Series 4 Digital Force Gauges User’s Guide
7
4.3 Menu navigation basics
Most of the gauge’s various functions and parameters are configured through the main menu. To access
the menu press MENU. Use the UP and DOWN keys to scroll through the items. The current selection is
denoted with clear text over a dark background. Press ENTER to select a menu item, then use UP and
DOWN again to scroll through the sub-menus. Press ENTER again to select the sub-menu item.
For parameters that may be either selected or deselected, pr ess ENTER to toggle between selecting and
deselecting. An asterisk (*) to the left of the parameter label is used to indicate when the parameter has
been selected.
For parameters requiring the input of a numerical value, use the UP and DOWN keys to increment or
decrement the value. Press and hold either key to auto-increment at a gradually increasing rate. When
the desired value has been reached, press ENTER to save the change and revert back to the sub-menu
item, or press ESCAPE to revert back to the sub-menu item without saving. Press ESCAPE to revert one
step back in the menu hierarchy until back into normal operating mode.
Refer to the following sections for details about setting up particular functions and parameters.
5 OPERATING MODES
Caution!
In any operating mode, if the capacity of the instrument has been exceeded by more than 110%,
the display will show “OVER” to indic ate an overload. A continuous audible tone will be sounded
until the MENU key has been pressed or the load has been reduced to a safe level.
Three operating modes are possible with Series 4 gauges. To cycle between the modes, press MODE
while in the home screen.
5.1 Real time (RT)
The primary reading corresponds to the live measured reading.
5.2 Peak Compression (PC)
The primary reading corresponds to the peak compression reading observed. If the actual force
decreases from the peak value, the peak will still be retained in the primary reading area of the display.
Pressing ZERO will reset the value.
5.3 Peak Tension (PT)
Same as Peak Compression, but for tension readings.
6 DIGITAL FILTERS
Digital filters are provided to help smooth out the readings in situations where there is mechanical
interference in the work area or test sample. These filters utilize the moving average technique in which
consecutive readings are pushed through a buffer and the displayed reading is the average of the buffer
contents. By varying the length of the buffer, a variable smoothing effect can be achieved. The selection
of 1 will disable the filter since the average of a single value is the value itself.
To access digital filter settings, select Filters from the menu. The display will appear as follows:
Series 4 Digital Force Gauges User’s Guide
8
DIGITAL FILTERS
SET POINTS
(1 = Fastest)
Current Reading
1
Displayed Reading
1
Two filters are available:
Current Reading – Applies to the peak capture rate of the instrument. Displayed Reading – Applies to the primary reading on the display.
Available settings: 1,2,4,8,16,32,64,128,256,512,1024. It is recommended to keep the current reading
filter at its lowest value for best performance, and the displayed reading filter at its highest value for best
stability.
7 SET POINTS
7.1 General Information
Set points are useful for tolerance checking (pass/fail),
triggering an external device such as a motorized test
stand, or alarm indication in process control applications.
Two limits, high and low, are specified and stored in the
non-volatile memor y of the instrum ent and the prim ary
reading is compared to these limits. The results of the
comparisons are indicated through the three outputs
provided on the 15-pin connector, thus providing “under”,
“in range”, and “over” signaling. These outputs can be
connected to indicators, buzzers, or relays as required
for the application.
7.2 Configuration
To configure set points, select Set Points from the menu. The screen will appear as follows:
Upper Disabled
* Upper Enabled
5.000 Lower Disabled * Lower Enabled
3.500
Either one, two, or none of the set points may be enabled. To toggle between the tension and
compression directions, press the DIRECTION key.
If two set points have been enabled, they are displayed in the upper left corner of the display. If only one
set point has been enabled, the word “OFF” will app ea r in place of the value. If no set points have been
enabled, the upper left corner of the display will be blank.
Series 4 Digital Force Gauges User’s Guide
9
01 2.458 lbF
07 2.042 lbF
MEMORY
Clear All Data
When set points are enabled, the following indicators are shown to the left of the primary reading:
– the displayed value is greater than the upper
force limit (NO GO HIGH)
– the displayed value is between the limits (GO)
– the displayed value is less than the lower force
limit (NO GO LOW)
Note: Set point indicators and outputs reference the displayed reading, not necessarily the current live
load.
8 DATA MEMORY AND STATISTICS
Series 4 gauges have storage capacity of 50 data points. Readings may be stored, viewed, and output to
an external device. Individual, or all, data points may be deleted. Statistics are calculated for the data
presently in memory.
To enable memory storage, select DATA Key from the menu, then scroll to Memory Storage and press
ENTER. Then exit the menu. In the home screen, the data record number 00 will appear below the
primary reading. Press DATA at any time to save the displayed reading. The record number will
increment each time DATA is pressed. If DATA is pressed when memory is full the message “MEMORY
FULL” will be flashed at the bottom of the display and a double audio tone will be sounded.
To view, edit, and output stored readings and statistics, select Memory from the menu. The screen
appears as follows:
View Data
View Statistics
Output Data
Output Statistics
Output Data & Stats
8.1 View Data
All the saved data points may be viewed. The record number is displayed, along with the corresponding
value and presently set unit of measurement. Any readings may be deleted individually. To do so, scroll
to the desired reading and press DELETE. The letter “D” will appear to the left of the record number,
indicating that the gauge is in Delete mode, as follows:
02 2.224 lbF 03 2.446 lbF 04 1.890 lbF D 05 2.098 lbF 06 1.998 lbF
Series 4 Digital Force Gauges User’s Guide
10
Press ENTER to delete the value. To exit Delete mode, press DELETE again. Any number of readings
may be individually deleted, however, all readings may also be cleared simultaneously. Refer to the Clear
All Data section for details.
8.2 Statistics
Statistical calculations are performed for the saved values. Calculations include number of readings,
minimum, maximum, mean, and standard deviation.
8.3 Output Data
Press ENTER to output data to an external device. The display will show, “SENDING DATA…”, then
“DATA SENT”. If there was a problem with communication, the display will show, “DATA NOT SENT”.
Saved data can be downloaded by some Mark-10 data collection programs. Refer to their respective
user’s guides for details.
8.4 Output Statistics
Press ENTER to output statistics to an external device. The display will show, “SENDING STATS…”, then
“STATS SENT”. If there was a problem with communication, the display will show, “STATS NOT SENT”.
8.5 Output Data & Stats
Press ENTER to output data and statistics to an external device. The display will show, “SENDING
DATA”, then “SENDING STATS…”, then “DATA SENT”, then “STATS SENT”. If there was a problem with
communication, the display will show, “DATA NOT SENT” and/or “STATS NOT SENT”.
8.6 Clear All Data
Press ENTER to clear all data from the memory. A prompt will be shown, “CLEAR ALL DATA?”. Select
Yes to clear all the data, or No to return to the sub-menu.
For output of data and/or statistics, RS-232 or USB output must be enabled. Data formatting is
<CR><LF> following each value. Units can be either included or excluded. Output of data via the Mitutoyo
output is possible, however, output of statistics is not. Refer to the Communications section for details.
Note: Data is not retained while the gauge is powered off.
9 COMMUNICATIONS
Communication with Series 4 force gauges is achieved through the micro USB or 15-pin serial ports
located at the bottom of the instrument, as shown in the illustration in the Power section. Communication
is possible only when the gauge is in the main operating screen (i.e. not in a menu or configuration area).
9.1 Installing the USB driver
It is recommended that the USB driver be in stalled before physically connecting the gauge to the
PC with a USB cable.
1. Insert the Resource CD supplied with the gauge into the CD/DVD drive in the computer. Then,
navigate in Windows Explorer or My Computer to one of the following folders on the CD:
Windows 2000 through Vista - “Win_2K_XP_S2K3_Vista”
Windows 7 - “Windows_7”
2. Execute the installer application “Mark-10USBInstaller.exe” by double-clic king it. When the program
launches, one of the following windows will appear, depending on the operating system:
Series 4 Digital Force Gauges User’s Guide
11
or
Click “Install”.
3. The next screen appears as follows:
Click “Continue Anyway”.
4. After installation completes the following screen may appear in non-Windows 7 operating systems.
Restart the computer before connecting a Mark-10 USB device.
5. After Windows as restarted, plug in the device. The following will oc cur :
Windows 7 Operating Systems – When the Mark-10 USB device has been plugged into a USB
port, the driver will automatically be found. When the driver installation is complete, a message
will appear as follows: “The MARK-10 USB DEVICE driver is now installed and ready to use”.
Non-Windows 7 Operating Systems – When the Mark-10 USB device has been plugged into a
USB port, the following screen appears:
Series 4 Digital Force Gauges User’s Guide
12
Select “No, not this time”, then click “Next”.
6. The next screen appears as follows:
Select “Install the software automatically (Recommended)”, then click “Next”.
7. The next screen appears as follows:
Click “Continue Anyway”.
Series 4 Digital Force Gauges User’s Guide
13
8. The next, and final, screen appears as follows:
Click “Finish”. The Mark-10 USB device is now installed and ready to use. The COM port number
assigned by Windows may be identified in Device Manager, or in the communication application being
used, such as MESURgauge or HyperTerminal.
9.2 Serial / USB
To set up RS-232 and USB communication, select Serial/USB Settings from the menu. The screen appears as follows:
SERIAL/USB SET TINGS
* RS232 Selected
USB Selected
+ Baud Rate
+ Data Format
Select either RS-232 or USB input (output is always simultaneous through both the USB and RS-232
ports). RS-232 must be selected when communicating through a Mark-10 test stand controller. When
communicating from the gauge directly to a PC or data collector, either RS-232 or USB can be selected
as required. Configure the baud rate and data format as required for the application. Default values are as
follows:
Baud Rate: 9,600
Data Format: Numeric + units
Other communication settings are permanently set to the following:
Data Bits: 8
Stop Bits: 1
Parity: None
Individual data points ma y be transm itted b y pressing DATA.
The currently displayed reading may be requested from an external device by sending ASCII character ‘?’
followed by a Carriage Return character or with a Carriage Return/Line Feed combination. The gauge
responses are always terminated with a Carriage Return/Line Feed.
Series 4 Digital Force Gauges User’s Guide
14
Selection
Function when pressing DATA
RS232/USB Output
Outputs data via the serial and USB ports
Mitutoyo Output
Outputs data via Mitutoyo (Digimatic) through the serial port
Memory Storage
Stores a reading to memory (refer to the Memory section for details)
DATA KEY
Any detected errors are reported back by means of the following error codes:
*10 Illegal command
*11 Not applicable
*12 Invalid specifier
*22 Value too large
9.3 Mitutoyo BCD settings
This output is useful for connection to data collectors, printers, multiplexers, or any other device capable
of accepting Mitutoyo BCD data. Individual data points may be transmitted by pressing DATA or by
requesting it from the Mitutoyo communication device (if available). To enable Mitutoyo output, select the
desired format – either with polarity or without polarity. The screen appears as follows:
MITUTOYO BCD
* Disabled
Ena w/o Polarity
Ena w/Polarity
9.4 Analog Output
This output can be used for chart recorders, oscilloscopes, data acquisition systems, or any other
compatible devices with analo g inputs. The output produces ±1 volt at full scale of the instrument. The
polarity of the signal is positive for compression and negative for tension.
9.5 DATA Key Functions
The DATA key can be configured to perform several functions. To configure the DATA key, select DATA
Key from the menu. The display will appear as follows:
* RS232/USB Output
Mitutoyo Output
Memory Storage
Three options are available:
Any combination of the above functions may be selected.
Series 4 Digital Force Gauges User’s Guide
15
Pin No.
Description
Input / Output
1
Signal Ground
--- 2 Tension Overload
Output
3
RS-232 Receive
Input
4
RS-232 Transmit
Output
5
+12V DC
Output
6
Analog Output
Output
7
Compression Overload
Output
8
Mitutoyo Clock
Output Bit 2
Output
Output Bit 0
10
Mitutoyo Request
Input Bit 3
Input
11
“Under” Set Point
Output
12
“Over” Set Point
Output
13
“Within” Set Point
Output
14
External Trigger
Input
Output Bit 1
CALIBRATION

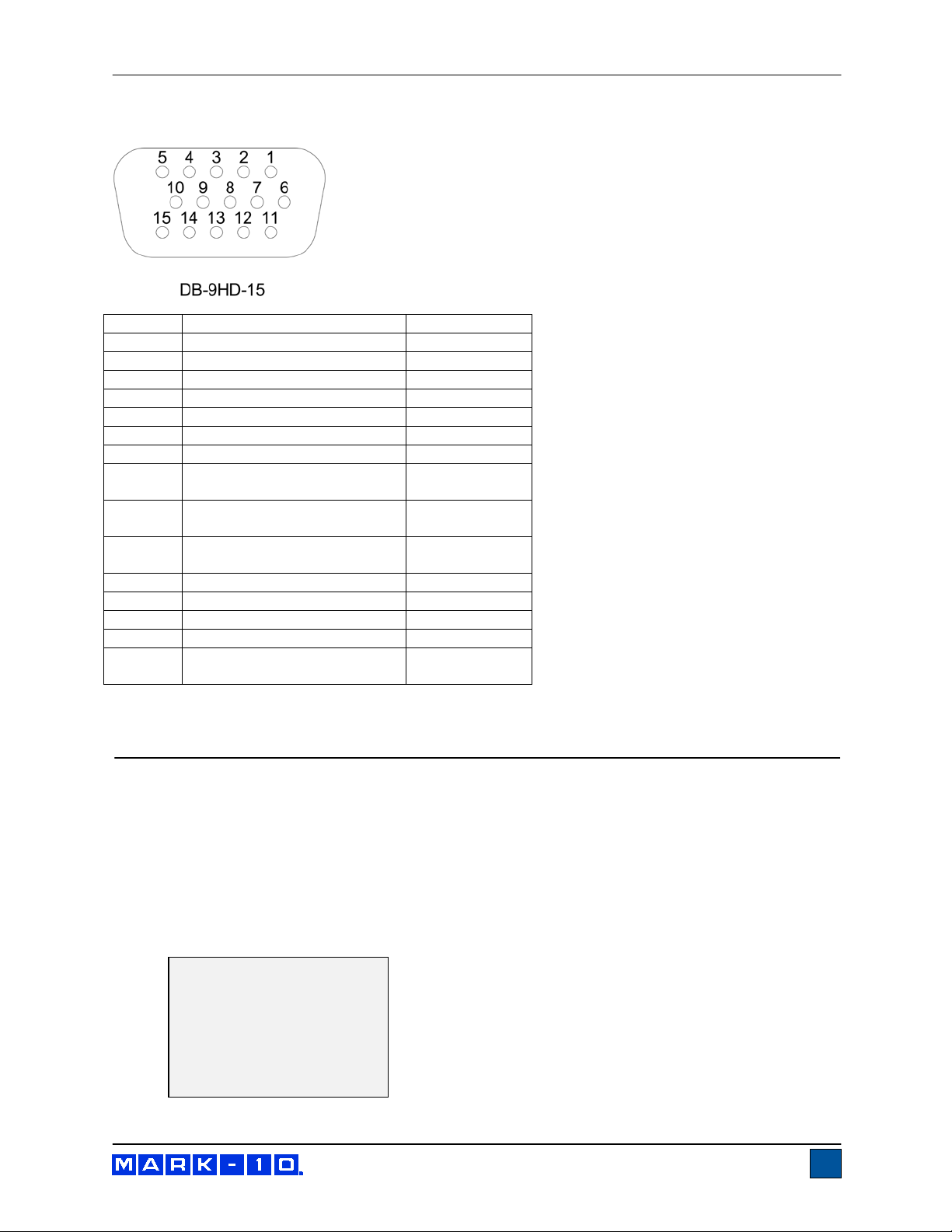

9.6 I/O Connector Pin Diagram (female)
9 Mitutoyo Data
15 Mitutoyo Ready
Output
Output
10 CALIBRATION
10.1 Initial Physical Setup
The gauge should be mounted vertically to a test stand or fixture rugged enough to withstand a load
equal to the full capacity of the instrument. Certified deadweights or master load cells should be used,
along with appropriate mounting brackets and fixtures. Caution should be taken while handling such
equipment.
10.2 Calibration Procedure
1. Select Calibration from the menu. The display will appear as follows:
To invert the
display, press the
DIRECTION button.
THEN PRESS ENTER
Series 4 Digital Force Gauges User’s Guide
16
CALIBRATION
CALIBRATION
CALIBRATION
CALIBRATION
2. Press DIRECTION to invert the display, if desired. ENTER to continue. The display will appear as
follows:
ENTER # CAL POINTS
(1 TO 10)
COMPRESSION:
5
TENSION :
5
The gauge can be calibrated at up to 10 points in each direction. Enter the number of calibration
points for each direction (compression and tension). At least one point must be selected for each
direction.
Note: To achieve the accuracy specification of ±0.1%, it is recommended to calibrate the gauge
at 5 or more even increments in both the tension and compression directions. For example, a
gauge with capacity of 10 lbF should be calibrated at 2, 4, 6, 8, and 10 lb loads in each direction.
3. To escape the Calibration menu at any time, press ESCAPE. The display will appear as follows:
NOT COMPLETE
CANCEL
EXIT W/O SAVING
Selecting “CANCEL” will revert back to the Calibration setup. Selecting “EXIT W/O SAVING” will
return to the menu without saving changes.
4. After the number of calibration points has been entered, press ENTER. The display will appear as
follows:
OFFSET
Place force gauge
horizontal
THEN PRESS ZERO
5. Place the force gauge horizontally on a level surface free from vibration, then press ZERO. The
gauge will calculate offsets, and the display will appear as follows:
OFFSET
Please wait…
Series 4 Digital Force Gauges User’s Guide
17
CALIBRATION
CALIBRATION
CALIBRATION
CALIBRATION
CALIBRATION
CALIBRATION
OFFSET
Sen.Offset Adj.Passed
Ana.Offset Adj.Passed
If failed:
6. The following screen appears after the offsets have been calculated:
COMPRESSION
Attach necessary
weight fixtures.
THEN PRESS ENTER
Attach weight fixtures (brackets, hooks, etc), as required. Do not yet a ttach any weights or apply
any calibration loads. Then press ENTER.
7. The display will appear as follows:
COMPRESSION
Optionally exercise
load cell a few times.
THEN PRESS ENTER
Optionally exercise the load cell shaft sev eral t imes (at full scale, if possible), then press ENTER.
8. The display will appear as follows:
Sen.Offset Adj.Failed
Ana.Offset Adj.Failed
OFFSET
9. After displaying “PLEASE WAIT…” the display will appear as follows:
COMPRESSION
GAIN ADJUST
APPLY FULL SCALE LOAD
10.000 LBF +/-20%
THEN PRESS ENTER
Apply a weight equal to the full scale of the instrument, then press ENTER.
COMPRESSION
ENSURE NO LOAD
THEN PRESS ZERO
Remove the load applied in Step 8, leave the fixtures in place, then press ZERO.
Series 4 Digital Force Gauges User’s Guide
18
CALIBRATION
CALIBRATION
CALIBRATION
10. The display will appear as follows:
COMPRESSION
APPLY LOAD
1 OF 5
ENTER LOAD:
2.000 LBF
THEN PRESS ENTER
Use the UP and DOWN keys to adjust the load value as required. The load values default to even
increments, as indicated by the previously entered number of data points (even increments are
recommended for best results). For example, if a 50 lbF capacity gauge is calibrated, and 5 data
points were selected, the load values w ill defau lt to 10, 20, 30, 40, and 50 lb. Appl y the calibration
load. Then press ENTER.
Repeat the above step for the number of data points selected.
11. After all the compression calibration points have been completed, the display will appear as
follows:
COMPRESSION COMPLETE
REVERSE DIRECTION
FOR TENSION
Attach necessary
weight fixtures.
THEN PRESS ENTER
Press ENTER.
12. The display will appear as follows:
To invert the
display, press the
DIRECTION button.
THEN PRESS ENTER
Reverse the orientation of the load cell shaft by rotating the gauge 180 degrees. Press
DIRECTION to invert the display. Then attach weight fixtures. The following screens will step
through the same procedure as with the compression direction. Proceed in the same manner.
Series 4 Digital Force Gauges User’s Guide
19
CALIBRATION
CALIBRATION
CALIBRATION
13. At the completion of the tension calibration, the display will appear as follows:
COMPLETE
SAVE & EXIT
EXIT W/O SAVING
To save the calibration information, select “SAVE & EXIT”. To exit without saving the data select
“EXIT W/O SAVING”.
14. Any errors are reported by the following screens:
Units must be gF.
PLEASE TRY AGAIN
PRESS ENTER
Displayed at the start of calibration if a disallowed unit is selected.
LOAD NOT STABLE
PLEASE TRY AGAIN
Ensure that the load is not swinging, oscillating, or vibrating in any manner. Then try again.
CALIBRATION
COMPRESSION
LOAD TOO LOW
PLEASE TRY AGAIN
The calibration weight does not match the set value.
TENSION
LOAD TOO CLOSE
TO PREVIOUS
PLEASE TRY AGAIN
The entered calibration point is too close to the previous point.
Series 4 Digital Force Gauges User’s Guide
20
BACKLIGHT
AUTOMATIC SHUTOFF
11 OTHER SETTINGS
11.1 Automatic Shutoff
The gauge may be configured to automatically power off following a period of inactivity while on battery
power. Inactivity is defined as the absence of any key presses or load changes of 100 counts or less. To
access these settings, select Automatic Shutoff from the menu. The display will appear as follows:
* Disabled
Enabled
Set Minutes
5
Select Disabled to disable automatic shutoff. Select Enabled to enable it. The length of time of inactivity
is programmed in minutes via the Set Minutes parameter. Available settings: 5-30, in 5 minute
increments.
Note: If the AC adapter is plugged in, the gauge will ignore these settings and remain powered on until
the POWER key is pressed.
11.2 Backlight
Although the backlight may be turned on and off at any time by pressing the BACKLIGHT key, there are
several available initial settings (applicable upon powering on the gauge). To access these settings,
select Backlight from the menu. The display will appear as follows:
Off
On
* Auto
Set Minutes
1
Select Off for the backlight to be off upon powering on the gauge.
Select On for the backlight to be on upon powering on the gauge.
Select Auto for the backlight to be on upon powering gauge, but will shut off after a period of inactivity (as
defined in the Automatic Shutoff sub-section). The backlight will turn on again when activity resumes.
The length of time of inactivity is programmed in minutes via the Set Minutes parameter. Available
settings: 1-10, in 1 minute increments.
Note: If the AC adapter is plugged in, the gauge will ignore these settings and keep the backlight on,
unless the BACKLIGHT k ey is pressed.
11.3 LCD Contrast
The contrast of the display may be adjusted. Select LCD Contrast from the menu. The screen will appear
as follows:
Series 4 Digital Force Gauges User’s Guide
21
INITIAL SETTINGS
BEEPS
LCD CONTRAST
Set Contrast
10
Press ENTER to modify the contrast. Select a value from 0 to 25, 25 producing the most contrast.
11.4 Beeps
Audible tones can be enabled for all key presses and alerts, such as overload, set point value reached,
etc. The Set Point alert can be configured to be either a momentary tone or a continuous tone (until the
load is restored to a value between the set points). To configure the functions for which audible tones will
apply, select Beeps from the menu. The screen will appear as follows:
Keys
* Alerts
Set Points
* Momentary
Continuous
11.5 Initial settings
This section is used to configure the initial settings upon powering on the gauge. The initial units of
measurement and the primary reading measurement mode may be configured. To access these settings,
select Initial Settings from the menu. The screen will appear as follows:
Units
LBF
Mode
Real Time
The default values are LBF and Real Time.
11.6 Information / Welcome Screen
The following screen is displayed at power up and can be accessed at any time by selecting Information
from the menu:
Digital Force Gauge
Series 4
Model No: M4-50
Serial No: 1234567
Version: 1.0
(c) Mark-10 Corp.
Series 4 Digital Force Gauges User’s Guide
22
Accuracy:
±0.2% of full scale ±1 digit
Sampling rate:
3,000 Hz
Power:
Measurement units:
Configurable
Warranty:
12 SPECIFICATIONS
12.1 General
AC or rechargeable battery. Low battery indicator appears when battery level is low, and
gauge powers off automatically when power reaches critical stage.
Battery life:
Outputs:
settings:
Safe overload:
Weight (gauge only):
Included accessories:
Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
lbF, ozF, gF, kgF, N, kN, mN (depending on model)
USB / RS-232: Fully configurable up to 115,200 baud.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatib le dev ices.
Analog: ±1 VCD, ±0.25% of full scale at capacity,
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Digital filters, outputs, automatic shutoff, default settings, key tones, audio alarms,
calibration
150% of full scale (display shows “OVER” at 110% and above)
M4-012 – M4-100: 1.0 lb [0.45 kg]
M4-200 – M4-500: 1.2 lb [0.54 kg]
Carrying case, chisel, cone, V-groove, hook, flat, extension rod, AC adapter, battery, USB
cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software,
and user’s guide), NIST-traceable certificate of calibration with data
3 years (see individual statement for further details)
Series 4 Digital Force Gauges User’s Guide
23
Parameter
Setting
Set points
Upper
Disabled (defaults to 80% of full scale, compression, when enable d)
Lower
Disabled (defaults to 40% of full scale, compression, when enable d)
Filters
Current
8
Displayed
1024
DATA Key Functions
RS-232/USB Output
Enabled
Mitutoyo Output
Disabled
Memory Storage
Enabled
Backlight
Auto
Minutes
1
Serial/USB
RS-232 Output Selected
Enabled
USB Output Selected
Disabled
Baud Rate
9,600
Data Format
Numeric + units
Mitutoyo BCD Output
Disabled
Automatic Shutoff
Enabled
Minutes
5
Beeps
Keys
Enabled
Alerts
Enabled
Set Points
Momentary
LCD Contrast
10
Initial Settings
Units
lbF
Mode
Real Time
12.2 Factory Settings
Series 4 Digital Force Gauges User’s Guide
24
Thread
Hex
M4-012 – M4-100
#10-32 UNF
5/16 [7.94]
M4-200 – M4-500
5/16-18 UNC
11/32 [8.74]
Load Cell
in [mm]
0.12 2 50 0.5 500 0.00005
0.001 0.02 0.0002 0.2
0.005 [0.13]
1
0.010 [0.25]
0.5 8 250 2.5 2500 0.0002
0.005 0.1 0.001 1
50 800 25 25000 250 0.02 0.5 0.01 10 0.1
1
200 3200 100 1000 1 0.1 2 0.05 0.5 0.0005
5
1
12.3 Capacity, Resolution & Load Cell Deflection
Model
M4-012
M4-025
M4-05
M4-2
M4-5
M4-10
M4-20
M4-50
M4-100
M4-200
M4-500
lbF ozF kgF gF N kN mN lbF ozF kgF gF N kN mN
0.25 4
2 32 1 1000 10
5 80 2.5 2500 25
10 160 5 5000 50
20 320 10 10000 100
100 1600 50 50000 500
500 8000 250
12.4 Dimensions
IN [MM]
Capacity Resolution
100
2500 2.5
1000 0.0001 0.002
0.001 0.02 0.0005 0.5 0.005
0.002 0.05 0.001 1 0.01
0.005
0.01
0.05
0.2
0.1 0.002 2 0.02
0.2 0.005 5 0.05
0.02 20 0.2
0.1
0.05 0.0005
0.001
Deflection
0.5
0.010 [0.25]
0.010 [0.25]
0.010 [0.25]
0.010 [0.25]
0.010 [0.25]
0.010 [0.25]
0.010 [0.25]
0.010 [0.25]
0.010 [0.25]
Series 4 Digital Force Gauges User’s Guide
25
NOTES:
.
Visit us on the World Wide Web at www.checkline.com
ELECTROMATIC Equipment Co., Inc., 600 Oakland Ave., Cedarhurst, NY 11516 – USA
Tel: 800-645-4330 (USA & Canada) ■ Tel: (516) 295-4300 ■ Fax: (516) 295-4399
CHECK•LINE is a registered trademark of ELECTROMATIC Equipment Company Inc. Printed in U.S.A.
Loading...
