Checkline PaintCheck User Manual

- 1 -

TABLE OF CONTENTS

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.0 Power Key - ON / OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

3.0 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

4.0 Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

50. Selecting the unit of measure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

6.0 Verifying gauge accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

7.0 Meathods of measurment and standards . . . . . . . . . . . . . . . . . . . . 6

8.0 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

9.0 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

- 8 -

WARRANTY

ELECTROMATIC Equipment Co., Inc. (ELECTROMATIC) warrants to the original pur­chaser that this product is of merchantable quality and confirms in kind and quality with the
descriptions and specifications thereof. Product failure or malfunction arising out of any
defect in workmanship or material in the product existing at the time of delivery thereof
which manifests itself within one year from the sale of such product, shall be remedied by
repair or replacement of such product, at ELECTROMATIC’s option, except where unautho­rized repair, disassembly, tampering, abuse or misapplication has taken place, as determined
by ELECTROMATIC. All returns for warranty or non-warranty repairs and/or replacement
must be authorized by ELECTROMATIC, in advance, with all repacking and shipping
expenses to the address below to be borne by the purchaser.

THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE WARRANTY
OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE OR
APPLICATION. ELECTROMATIC SHALL NOT BE RESPONSIBLE NOR LIABLE FOR
ANY CONSEQUENTIAL DAMAGE, OF ANY KIND OR NATURE, RESULTING FROM
THE USE OF SUPPLIED EQUIPMENT, WHETHER SUCH DAMAGE OCCURS OR IS
DISCOVERED BEFORE, UPON OR AFTER REPLACEMENT OR REPAIR, AND
WHETHER OR NOT SUCH DAMAGE IS CAUSED BY MANUFACTURER’S OR
SUPPLIER’S NEGLIGENCE WITHIN ONE YEAR FROM INVOICE DATE.

Some State jurisdictions or States do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation may not apply to you. The duration of any
implied warranty, including, without limitation, fitness for any particular purpose and mer­chantability with respect to this product, is limited to the duration of the foregoing warranty.
Some states do not allow limitations on how long an implied warranty lasts but, not with­standing, this warranty, in the absence of such limitations, shall extend for one year from the
date of invoice.

ELECTROMATIC Equipment Co., Inc.
600 Oakland Ave. Cedarhurst, NY 11516—USA
Tel: [phone]/ Tel: [phone]/ Fax: [phone]

Every precaution has been taken in the preparation of this manual. Electromatic Equipment
Co., Inc., assumes no responsibility for errors or omissions. Neither is any liability assumed
for damages resulting from the use of information contained herein. Any brand or product
names mentioned herein are used for identification purposes only, and are trademarks or reg­istered trademarks of their respective holders.

- 1 -

TABLE OF CONTENTS

1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.0 Power Key - ON / OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

3.0 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

4.0 Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

50. Selecting the unit of measure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

6.0 Verifying gauge accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

7.0 Meathods of measurment and standards . . . . . . . . . . . . . . . . . . . . 6

8.0 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

9.0 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

- 8 -

WARRANTY

ELECTROMATIC Equipment Co., Inc. (ELECTROMATIC) warrants to the original pur­chaser that this product is of merchantable quality and confirms in kind and quality with the
descriptions and specifications thereof. Product failure or malfunction arising out of any
defect in workmanship or material in the product existing at the time of delivery thereof
which manifests itself within one year from the sale of such product, shall be remedied by
repair or replacement of such product, at ELECTROMATIC’s option, except where unautho­rized repair, disassembly, tampering, abuse or misapplication has taken place, as determined
by ELECTROMATIC. All returns for warranty or non-warranty repairs and/or replacement
must be authorized by ELECTROMATIC, in advance, with all repacking and shipping
expenses to the address below to be borne by the purchaser.

THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE WARRANTY
OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE OR
APPLICATION. ELECTROMATIC SHALL NOT BE RESPONSIBLE NOR LIABLE FOR
ANY CONSEQUENTIAL DAMAGE, OF ANY KIND OR NATURE, RESULTING FROM
THE USE OF SUPPLIED EQUIPMENT, WHETHER SUCH DAMAGE OCCURS OR IS
DISCOVERED BEFORE, UPON OR AFTER REPLACEMENT OR REPAIR, AND
WHETHER OR NOT SUCH DAMAGE IS CAUSED BY MANUFACTURER’S OR
SUPPLIER’S NEGLIGENCE WITHIN ONE YEAR FROM INVOICE DATE.

Some State jurisdictions or States do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation may not apply to you. The duration of any
implied warranty, including, without limitation, fitness for any particular purpose and mer­chantability with respect to this product, is limited to the duration of the foregoing warranty.
Some states do not allow limitations on how long an implied warranty lasts but, not with­standing, this warranty, in the absence of such limitations, shall extend for one year from the
date of invoice.

ELECTROMATIC Equipment Co., Inc.
600 Oakland Ave. Cedarhurst, NY 11516—USA
Tel: [phone]/ Tel: [phone]/ Fax: [phone]

Every precaution has been taken in the preparation of this manual. Electromatic Equipment
Co., Inc., assumes no responsibility for errors or omissions. Neither is any liability assumed
for damages resulting from the use of information contained herein. Any brand or product
names mentioned herein are used for identification purposes only, and are trademarks or reg­istered trademarks of their respective holders.

- 2 -

1.0 INTRODUCTION

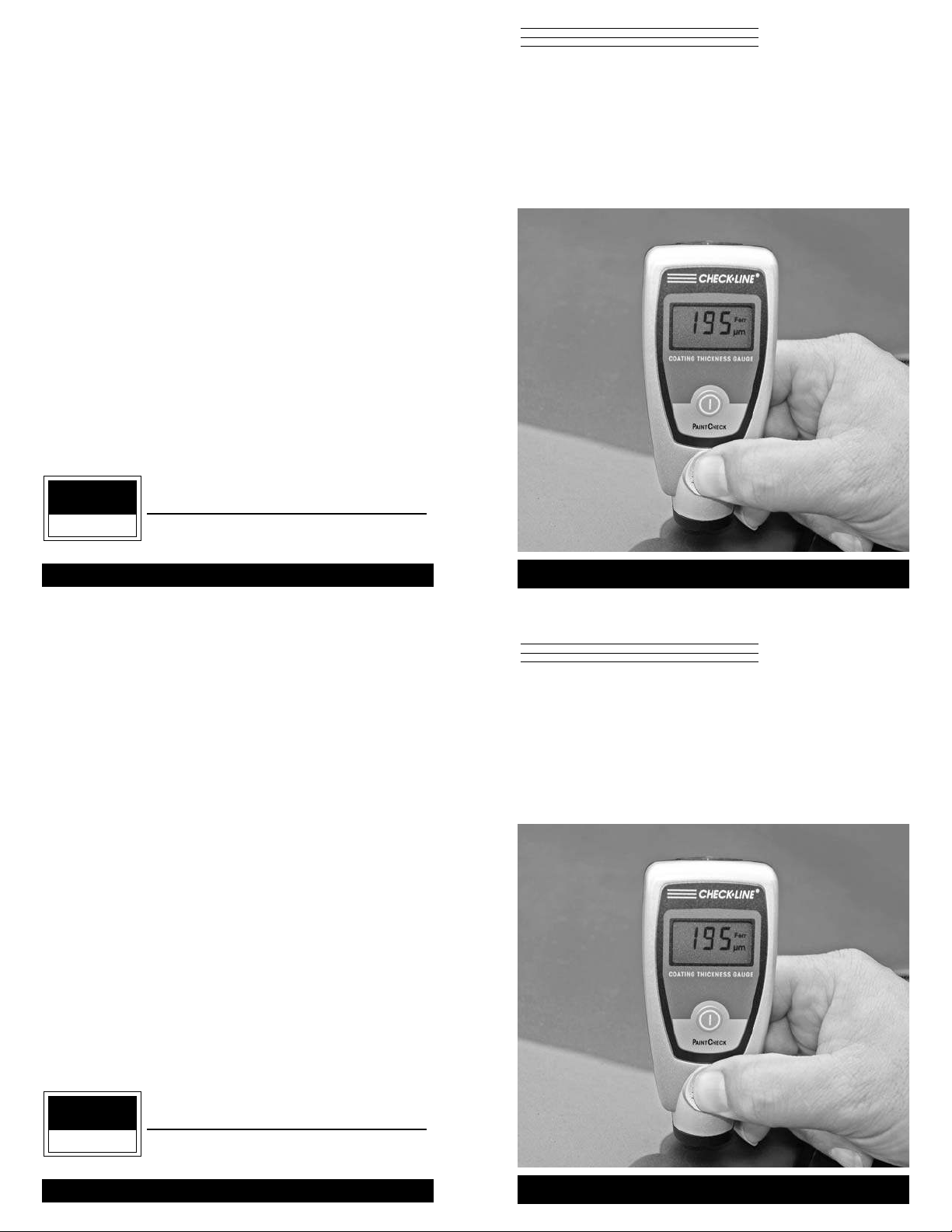

PaintCheck is a Paint Thickness Gauge especially suited for car
bodies. It non-destructively measures coatings, e.g. lacquer, paint,
plastic, rubber, enamel etc., on iron/steel and on non-ferrous metals
such as aluminium.

PaintCheck automatically recognizes the base material (iron/steel
or non-ferrous metal) and then displays the correct coating thickness.
In addition, with “Ferr” or “Non-Ferr,”,the display indicates whether
measurement was made on iron/steel or on non-ferrous metal.

2.0 POWER KEY - ON / OFF

Switching On: Press the Power Key
briefly.

Switching Off: Press AND HOLD
the Power Key for about 2 seconds.

Auto Off: 1.5 min after the last
measurement.

Power Key

- 7 -

8.0 TECHNICAL DATA

Measuring range 0" – 0.08" (0 – 2mm)

Tolerance ±5 µm (+5% of readings)

Resolution 0 – 500 µm 15 µm

500 µm – 1,000 µm 10 µm
1,000 µm – 2.000 µm 25 µm

Display/height of digits 4-digits / 0.39" (10mm)

Minimum measuring area 1.57" x 1.57" (40mm x 40mm)

Minimum curvature radius

convex 1.97" (25mm)
concave .98" (50mm)

Minimum substrate thickness

iron/steel 2.95" (0.75mm)
non-ferrous metal .98" (0.25mm)

Calibration not necessary

Temperature range 32 – 122 °F (0 – 50 °C)

Surface temperature
of specimen 59 – 140 °F (15 – 60 °C)

Power supply 2 x Micro (AAA) 1.5V

Dimensions 4.3" x 1.97" x .98"

(110 x 50 x 25mm)

Weight incl. batteries 0.2 lbs. (90 g)

Protection class IP52 protection against dust

and dripping water

- 2 -

1.0 INTRODUCTION

PaintCheck is a Paint Thickness Gauge especially suited for car
bodies. It non-destructively measures coatings, e.g. lacquer, paint,
plastic, rubber, enamel etc., on iron/steel and on non-ferrous metals
such as aluminium.

PaintCheck automatically recognizes the base material (iron/steel
or non-ferrous metal) and then displays the correct coating thickness.
In addition, with “Ferr” or “Non-Ferr,”,the display indicates whether
measurement was made on iron/steel or on non-ferrous metal.

2.0 POWER KEY - ON / OFF

Switching On: Press the Power Key
briefly.

Switching Off: Press AND HOLD
the Power Key for about 2 seconds.

Auto Off: 1.5 min after the last
measurement.

Power Key

- 7 -

8.0 TECHNICAL DATA

Measuring range 0" – 0.08" (0 – 2mm)

Tolerance ±5 µm (+5% of readings)

Resolution 0 – 500 µm

15 µm

500 µm – 1,000 µm 10 µm
1,000 µm – 2.000 µm 25 µm

Display/height of digits 4-digits / 0.39" (10mm)

Minimum measuring area 1.57" x 1.57" (40mm x 40mm)

Minimum curvature radius

convex 1.97" (25mm)
concave .98" (50mm)

Minimum substrate thickness

iron/steel 2.95" (0.75mm)
non-ferrous metal .98" (0.25mm)

Calibration not necessary

Temperature range 32 – 122 °F (0 – 50 °C)

Surface temperature
of specimen 59 – 140 °F (15 – 60 °C)

Power supply 2 x Micro (AAA) 1.5V

Dimensions 4.3" x 1.97" x .98"

(110 x 50 x 25mm)

Weight incl. batteries 0.2 lbs. (90 g)

Protection class IP52 protection against dust

and dripping water

8.8.8.8

AUTO FN

Non­Ferr

mils

µmm

8.8.8.8

AUTO FN

Non­Ferr

mils

µmm
