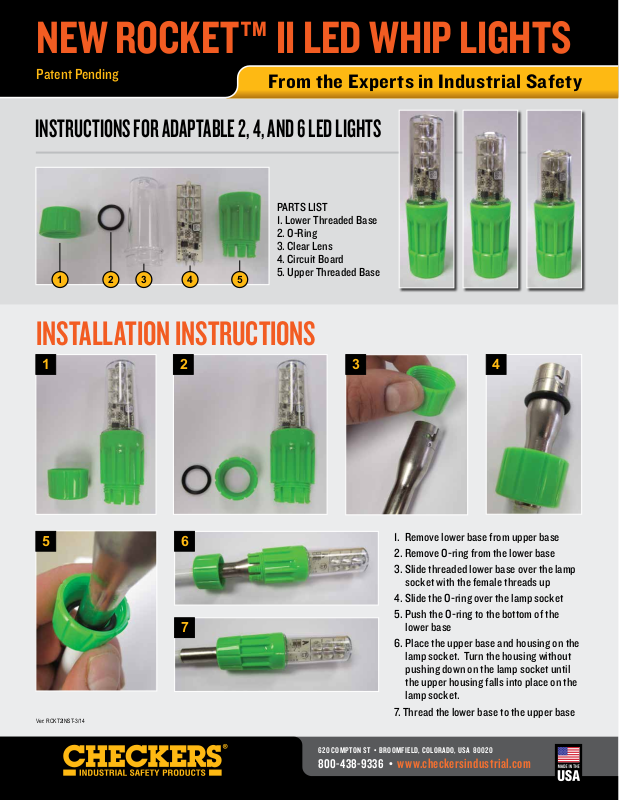

NEW ROCKET™ II LED WHIP LIGHTS
Patent Pending
From the Experts in Industrial Safety
INSTRUCTIONS FOR ADAPTABLE 2, 4, AND 6 LED LIGHTS
PARTS LIST
1. Lower Threaded Base
2. O-Ring
3. Clear Lens
4. Circuit Board
1 2 3 4 5
5. Upper Threaded Base
INSTALLATION INSTRUCTIONS
1
2 3 4
5 6
Ver: RCKT2INST-3/14
1. Remove lower base from upper base
2. Remove O-ring from the lower base
3. Slide threaded lower base over the lamp
socket with the female threads up
4. Slide the O-ring over the lamp socket
5. Push the O-ring to the bottom of the
7
620 COMPTON ST • BROOMFIELD, COLOR ADO, USA 80020
800-438-9336 • www.checkersindustrial.com
lower base
6. Place the upper base and housing on the
lamp socket. Turn the housing without
pushing down on the lamp socket until
the upper housing falls into place on the
lamp socket.
7. Thread the lower base to the upper base
NEW ROCKET™ II LED WHIP LIGHTS
Patent Pending
From the Experts in Industrial Safety
PROGRAMMING INSTRUCTIONS
1
2 4
3
2 2
1. Remove the clear lens
from the base by turning
counterclockwise
2. With the light powered on,
hold the remote close to
the sensor. You may need
to block the light emitting
from the LED’s to enhance
the communication from the
remote to the light.
3. Use the + and - buttons on
the remote to select the flash
pattern desired (see chart)
4. Afer the flash pattern has
been selected, turn the clear
lens clockwise on to the
upper base
00 .5 11 .5 22 .5 33 .5 4
20
0
20
0
20
0
20
0
20
0
20
0
INTENSITY (Joules)
20
0
20
0
20
0
TIME (Seconds)
620 COMPTON ST • BROOMFIELD, COLOR ADO, USA 80020
800-438-9336 • www.checkersindustrial.com
#
1 - Breathe followed by
16 Stockato Flashes
#
2 - Rapid Flash
#
3 - Brighten then Flash
#
4 - Breathe then Flash
#
5 - Slow Blink
#
6 - Flash
#
7 - Steady
#
8 - Increasing Sequential
Blinks
#
9 - Off
