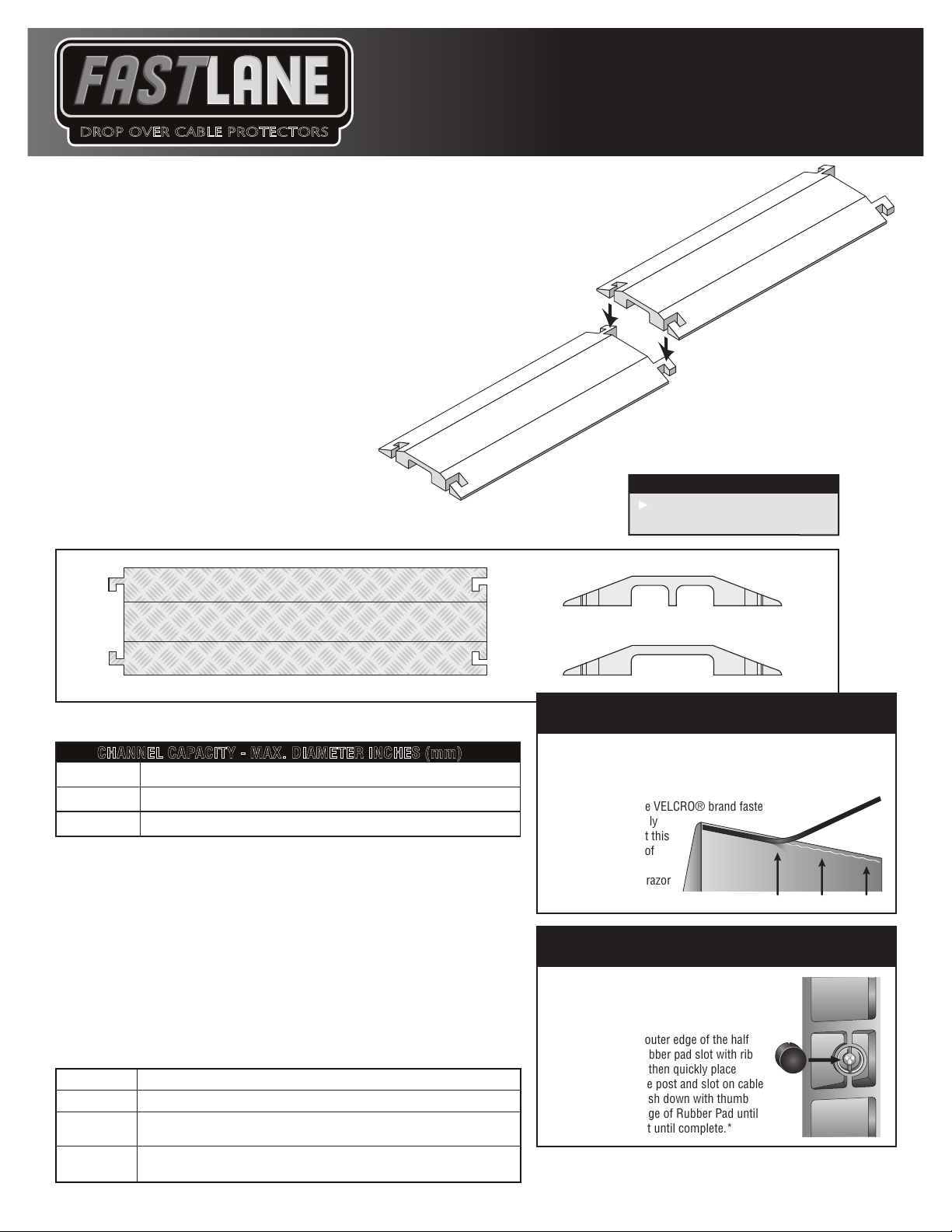

DROP OVER CABLE PROTECTORS
ASSEMBLY INSTRUCTIONS
ASSEMBLY:
• Inspect areas for safety hazards
• Place protector over cables
• Assemble sections by aligning female connectors over male connectors
• Press with foot to secure female connectors to male connectors
• Test installation for intended use
• Periodically inspect installation
NOTE:
Optional Anti-Slip Rubber Pads and Carpet Kit
with VELCRO® Brand Fasteners can be
purchased and easily installed on FastLane
Cable Protectors (see instructions below).
CABLE/HOSE MANAGEMENT COMPONENTS
DROP OVER
PROTECTORS
Simply interlock with
L-connectors to extend
protection length.
WARNING!
Drop over protectors do not prevent
abrasion to cable from below.
CHANNEL CAPACITY:
CHANNEL CAPACITY - MAX. DIAMETER INCHES (mm)
FL1X1.5
FL1X4
FL2X1.75
LOAD CAPACITY:
load supporting capabilities depending on type of vehicle and temperature.
Suitability must be verified by testing under actual conditions.
OPERATING TEMPERATURE:
CHEMICAL RESISTANCE:
motor oils, gasoline and diesel fuel. Limited resistance to brake fluids and
other chemicals.
MATERIAL:
OPTIONAL TRACTION KITS
CPRPKIT.75-18 Optional Anti-Slip Rubber Pad Kit (includes 18 rubber pads) for FL1X1.5
CPRPKIT1-8 Optional Anti-Slip Rubber Pad Kit (includes 8 rubber pads) for FL1X4 or FL2X1.75
CPGLUE
CPCARPETKIT-3
1.5 in. (39 mm) width x .5 in. (12.7 mm) height
4 in. (101.6 mm) width x 1 in. (25.4 mm) height
1.75 in. (44.5 mm) width x 1 in. (25.4 mm) height
The Cable/Hose Protection System has different
-40˚F to 120˚F (-40˚C to 48˚C)
Tested for compatibility with common
UV-stabilized polyurethane elastomer
1/2 oz Bottle of Checkers’ Clear Super Glue (best if kept refrigerated)
Use for Permanent Application of Anti-Slip Rubber Pads
Optional Carpet Kit with VELCRO® Brand Fasteners for All FastLane Models - Includes two
37" x .25" Black VELCRO® brand fastener strips and a 1/2 oz Bottle of Checkers’ Clear Super Glue (CPGLUE)
TWO CHANNEL OPTION
ONE CHANNEL OPTION
CARPET KIT INSTALLATION
1) Before installing, clean bottom edges of cable protector with a
dry rag. 2) Apply a generous bead of Checkers’ Super Glue to the
bottom edge of the cable protector (parallel with outer edge). 3)
Quickly place one end of the VELCRO® brand fastener over the
bead of glue, lay the VELCRO® brand fastener
strip down, and apply
pressure. 4) Repeat this
step for other side of
cable protector. Trim
excess strip with a razor
blade.*
RUBBER PAD INSTALLATION
Before installing, ensure circular recessed
areas are free from dirt and debris. Apply
2-3 drops of Checkers Super Glue to the
top of the center post and then place a bead
of glue around the outer edge of the half
moon area. Align rubber pad slot with rib
on Cable Protector, then quickly place
Rubber Pad over the post and slot on cable
protector. Firmly push down with thumb
around the outer edge of Rubber Pad until
fully seated. Repeat until complete.*
* For your safety, please wear safety glasses and rubber gloves.
Checkers Super Glue is best when stored refrigerated.
123
#ZIS-FL
Ver: 2/11
®
DROP OVER
PROTECTORS
DROP OVER CABLE PROTECTORS
CABLE AND HOSE MANAGEMENT SYSTEM INSTALLATION INSTRUCTIONS
FASTLANE® is a cable/hose management system intended to reduce the possibility of damage to cables and hose lines that
are subject to pedestrian and vehicular traffic. It is intended for temporary installations only and must be in accordance
with all applicable electrical, building and safety codes. DO NOT use connectors or splices within this system.
CAUTION: MISUSE CAN CAUSE ELECTRICAL SHOCK AND INJURY
• DO NOT use as work surface. NO CUTTING, NO DRILLING, NO HAMMERING.
• Use with momentary loads only, DO NOT place ladders, scaffolds, or any type of structure on the system.
• Avoid concentrated loads.
• Use only on a stable surface. Inclined surfaces, slippery surfaces and broken ground can cause injury.
• This system can be a trip hazard to pedestrian traffic if they are unaware of its presence.
• Keep the FASTLANE cable/hose management system clean and bright.
• Load-supporting capacity varies by type of loading conditions and environmental conditions. The load capacity values
are listed in the "operating parameters". The load capacity decreased in warm environments. Test before use and
inspect periodically.
• Keep various services, communications, fluids and power separated. Limit a channel to one service type.
• Polyurethane is attacked by some chemicals. Always test a small amount for chemical compatibility before using and
follow maintenance procedure.
• Vehicular traffic must pass over this system slowly and with caution.
MAINTENANCE
• Store in a clean dry area.
• Inspect system for damage and replace it if damaged. Remove any foreign materials, solids and liquids. Keep clean by
using a detergent and water solution.
WARRANTY AND LIABILITY
LIMITED WARRANTY: Checkers guarantees the products it manufactures or sells against defects in workmanship and material for a period of one (1) year
from the date of shipment or date of invoice, whichever is later. The product must be used, maintained and installed according to the instructions and
procedures provided, or this warranty is void. Any alteration or modification of the product will also void this warranty. CHECKERS’ OBLIGATION UNDER THIS
WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS. No other warranty or remedy shall be provided. This warranty
specifically does not guarantee or cover payment or reimbursement of any damages or consequential damages beyond the above.
Any claim under this warranty must be made in writing within twelve (12) months of the date of shipment or the date of invoice, whichever is later. All products
returned to Checkers under this warranty must be prepaid. If it is determined that the product is defective in material and /or workmanship the repair or
replacement will occur, at Checkers’ option, at no charge and return freight prepaid by Checkers. All other return of product to the owner shall be at the
owner’s expense.
CHECKERS AND ITS AUTHORIZED AGENTS, EMPLOYEES AND REPRESENTATIVES SPECIFICALLY AND EXPRESSLY DISCLAIM ANY AND ALL OTHER
WARRANTIES, INCLUDING THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY WARRANTY OF MERCHANTABILITY WHICH
MIGHT OTHERWISE BE APPLICABLE UNDER ANY STATE OR FEDERAL LAW.
LIMITED LIABILITY OF CHECKERS: Checkers and its authorized agents, distributors and representatives do not guarantee the performance of any Checkers
product in the customer’s use as the manufacturer is unable to assure proper use by the customer. Proper use by the customer is necessary for the effectiveness
of the product, as well as the safety of those using same. The user is solely responsible to determine the suitability of any Checkers product for any intended use.
The user assumes all risk and liability for use of any Checkers product.
User specifically acknowledges receipt of proper instructions regarding the use of the product in the original packaging and disclaims any consequential
damages to person or property, damages for loss of use, lost time, loss of profit, lost income, loss of the Checkers’ product itself and/or other incidental or
consequential damages other than as warranted by Checkers limited warranty. User accepts the responsibility of removing from service any product that
becomes worn out, unusable, unfit for intended use or defective in any way such as to make the product a potential safety hazard. Checkers is unable to
undertake such obligations or responsibilities on behalf of the user as the user is in sole possession and control of the product.
