Page 1
Safety Information
il
CHC® i80 GNSS Receiver
Revision 1.0
May 2015
Page 2
Copyright
Copyright 2014-2015 CHC | Shanghai HuaCe
Navigation Technology Ltd. All rights reserved. The
CHC are trademark of Shanghai HuaCe Navigation
Technology Limited. All other trademarks are the
property of their respective owners.
Trademarks
All product and brand names mentioned in this
publication are trademarks of their respective
holders.
Safety Warnings
The Global Positioning System (GPS) is operated by
the U.S. Government, which is solely responsible
for the accuracy and maintenance of the GPS
network. Accuracy can also be affected by poor
satellite geometry and obstructions, like buildings
and heavy canopy.
FCC interference statement
This equipment has been designed to comply with
the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules in the Portable Mode.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
i80 GNSS Receiver User Guide – Revision 1.0 May 2015
Written by January LEE
Page 3
i80 GNSS Receiver User Guide Page 1
CONTENTS
1. Introduction ................................................................................................................................................. 4
1.1. Safety information ............................................................................................................................ 4
1.1.1. Warnings and cautions .......................................................................................................... 4
1.1.2. Regulations and safety ........................................................................................................... 4
1.1.3. Use and Care .......................................................................................................................... 5
1.2. Technical support .............................................................................................................................. 5
1.3. Disclaimer ......................................................................................................................................... 5
1.4. Your comments ................................................................................................................................. 5
2. Getting started with i80 ............................................................................................................................... 6
2.1. About the receiver ............................................................................................................................ 6

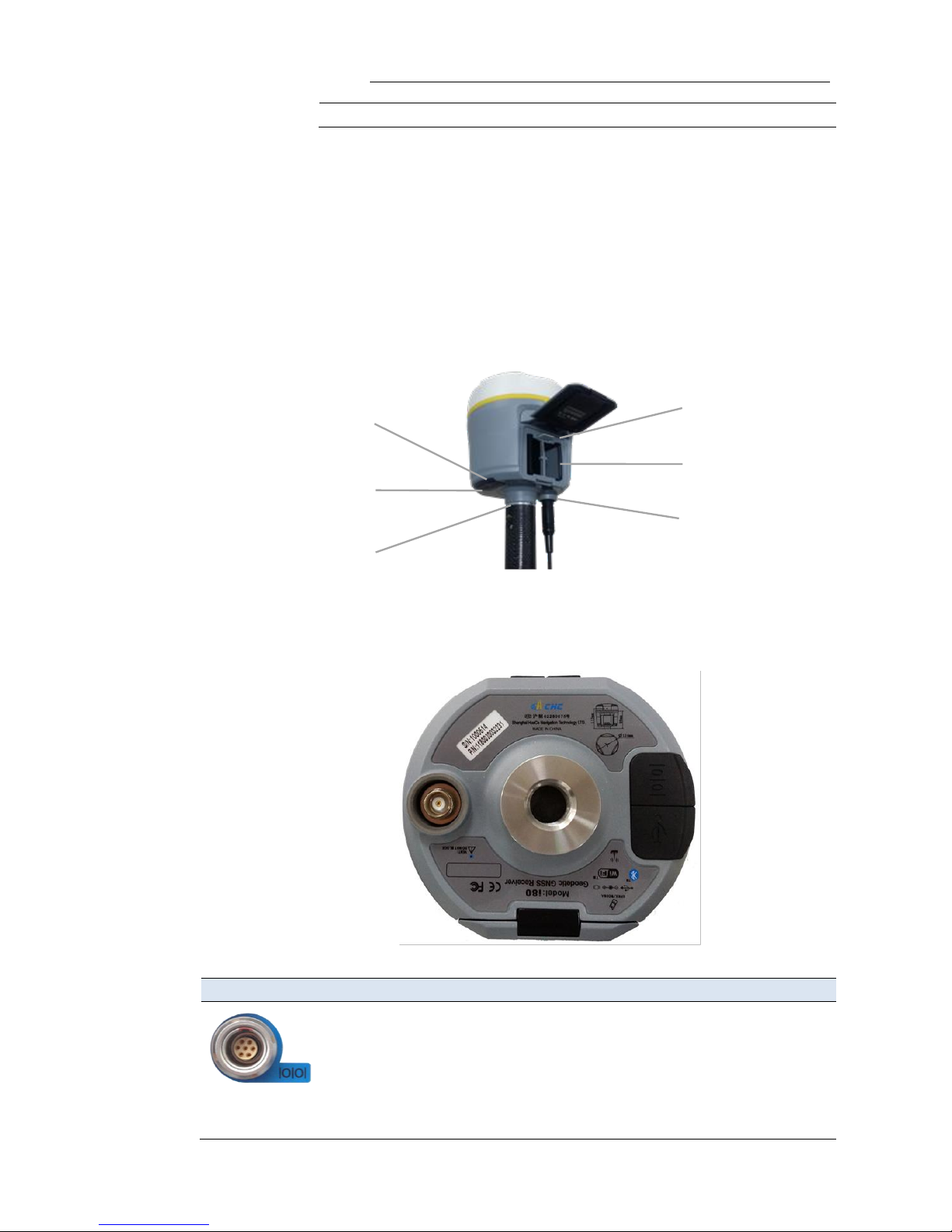

2.2. Parts of the receiver.......................................................................................................................... 6
2.2.1. Front panel ............................................................................................................................. 6
2.2.2. Lower housing........................................................................................................................ 8

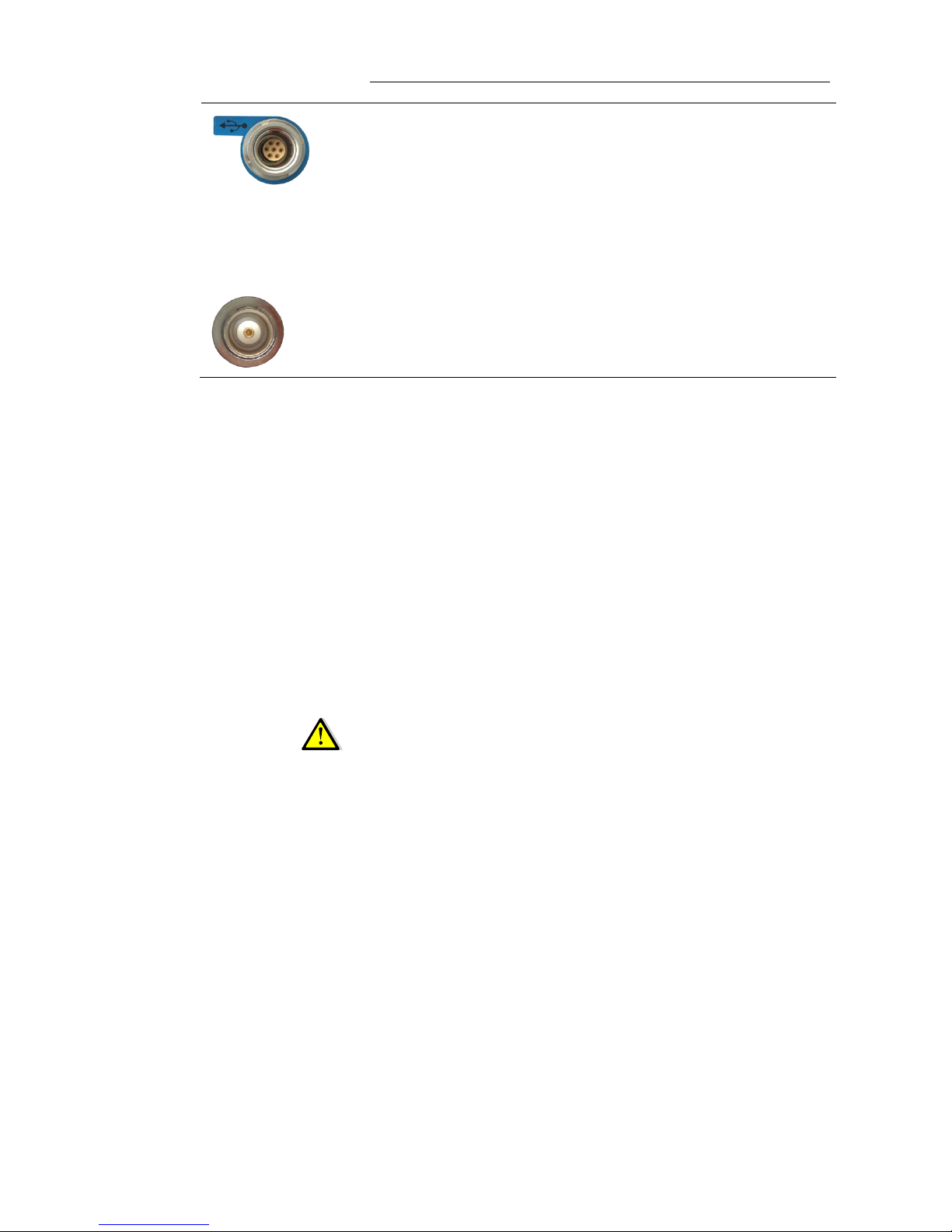

2.2.3. Receiver ports ........................................................................................................................ 8
2.3. Batteries and power ......................................................................................................................... 9
2.3.1. Internal batteries ................................................................................................................... 9
2.3.1.1. Charging the battery ................................................................................................... 9
2.3.1.2. Battery safe ............................................................................................................... 10
2.3.2. External power supply ......................................................................................................... 10

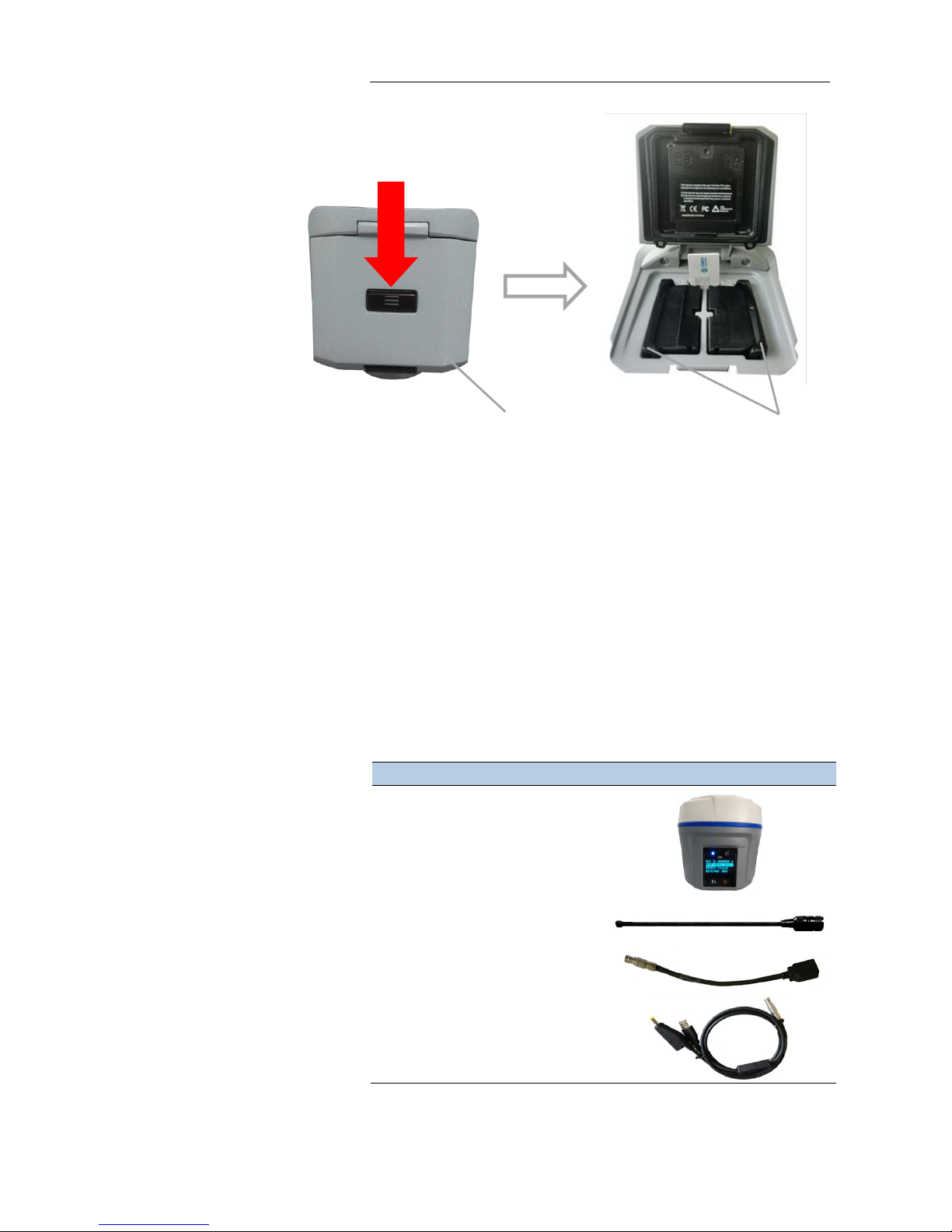

2.4. Inserting battery and SIM card ....................................................................................................... 11

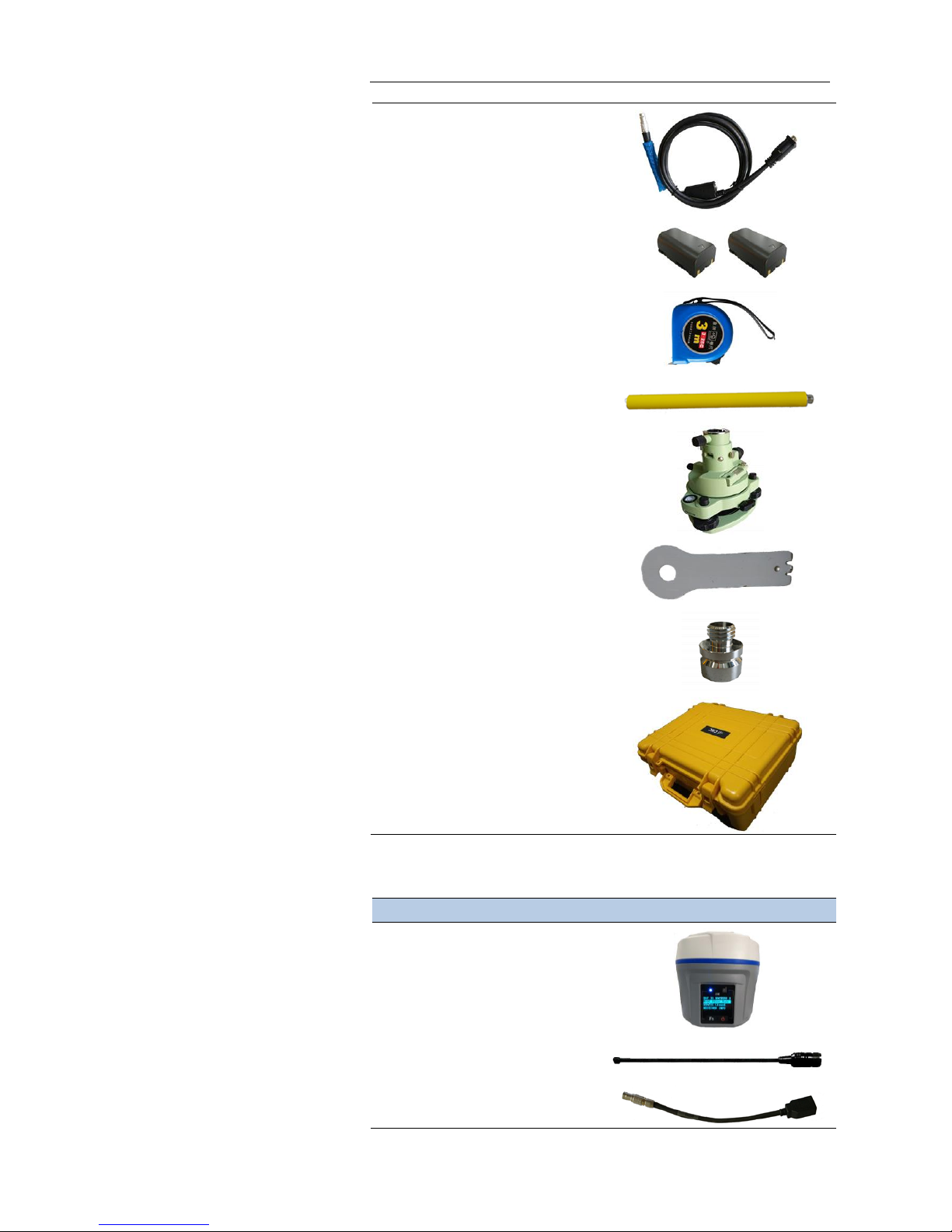

2.5. Product basic supply accessories .................................................................................................... 12
2.5.1. Base kit basic supply ............................................................................................................ 12
2.5.2. Rover kit basic supply .......................................................................................................... 13
2.6. Connecting to an office computer .................................................................................................. 14
2.7. Connecting to a controller .............................................................................................................. 15

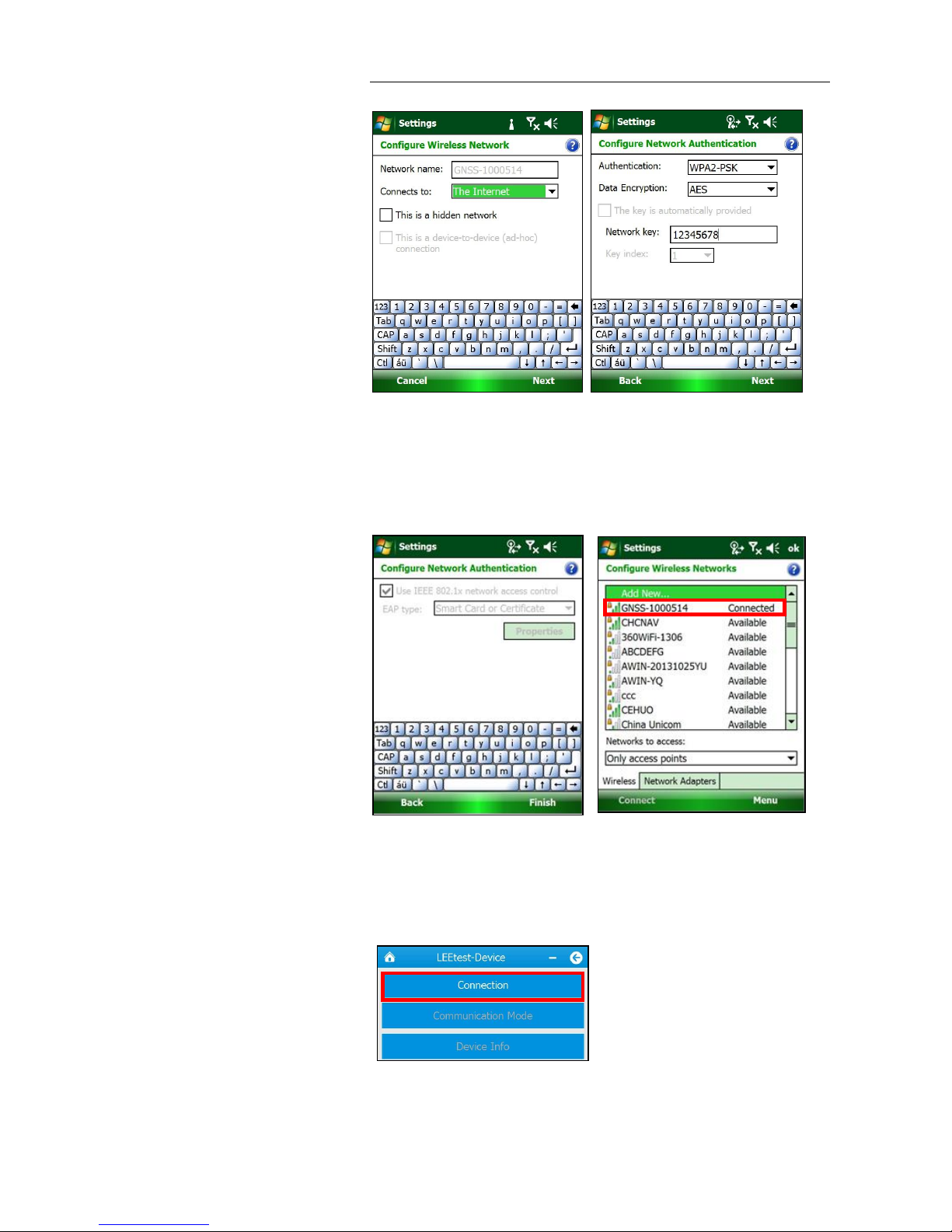

2.7.1. Connecting via Wi-Fi with Hcconfig software ...................................................................... 15
2.7.2. Connecting via Bluetooth with Hcconfig software .............................................................. 17
2.7.2.1. Via system Bluetooth ................................................................................................ 17
2.7.2.2. Via CHC Bluetooth .................................................................................................... 19
2.7.3. Connecting via Wi-Fi with LandStar 6 software ................................................................... 20
2.7.4. Connecting via Bluetooth with LandStar 6 software ........................................................... 22
2.8. Connecting to a USB drive .............................................................................................................. 23
2.8.1. For data logging ................................................................................................................... 24
2.8.2. For firmware upgrade .......................................................................................................... 25
2.9. Downloading logged data ............................................................................................................... 25
3. Front panel operation ................................................................................................................................ 27
3.1. Main operation menus ................................................................................................................... 27
3.2. Configure the working mode .......................................................................................................... 29
4. Base station setup and operation .............................................................................................................. 34
4.1. Base station setup guidelines ......................................................................................................... 34
4.2. Outputting corrections using internal radio modem ...................................................................... 35
4.2.1. Base station setup ................................................................................................................ 35
Page 4
i80 GNSS Receiver User Guide Page 2
4.2.2. Configuring the base station ................................................................................................ 36
4.2.2.1. Configuring via Hcconfig software ............................................................................ 36
4.2.2.2. Configuring via LandStar 6 software ......................................................................... 37
4.3. Outputting corrections using external radio ................................................................................... 38
4.3.1. Base station setup ................................................................................................................ 38
4.3.2. Configuring the base station ................................................................................................ 39
4.3.2.1. Configuring via Hcconfig software ............................................................................ 39
4.3.2.2. Configuring via LandStar 6 software ......................................................................... 40
5. Rover station setup and operation ............................................................................................................ 42
5.1. Rover station setup guidelines ........................................................................................................ 42
5.2. Rover station setup ......................................................................................................................... 43

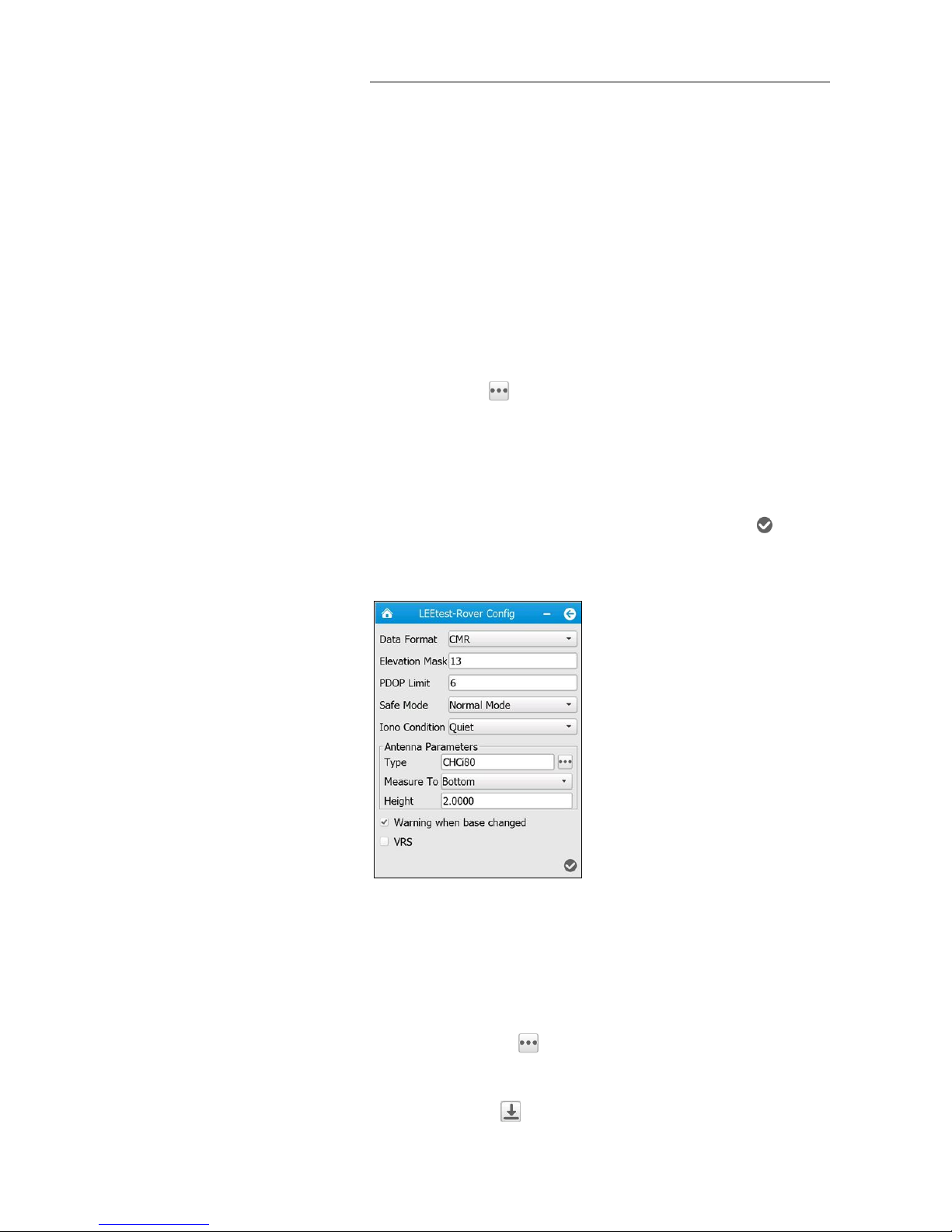

5.3. Configuring the rover station via LandStar 6 software ................................................................... 43

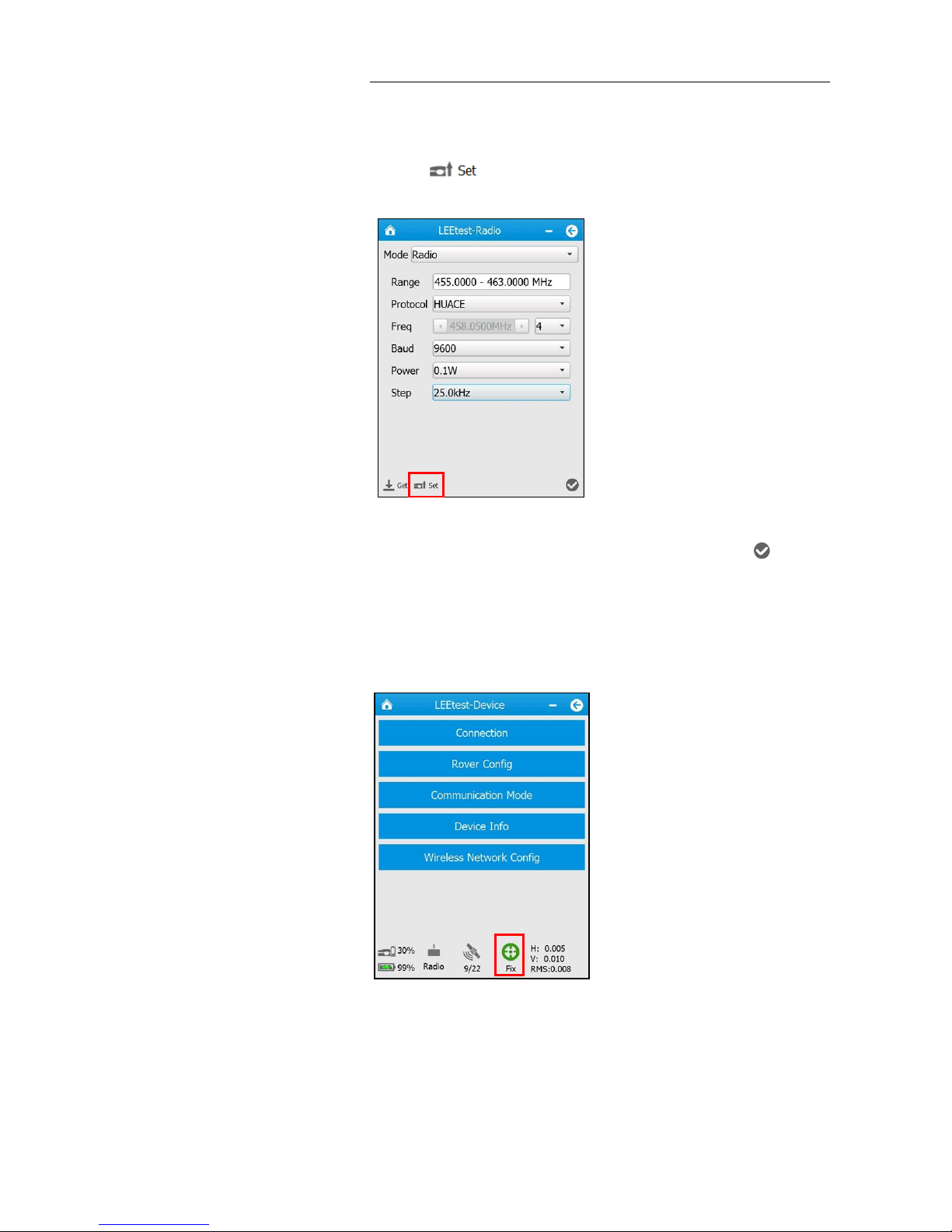

5.3.1. Receiving corrections using internal radio modem ............................................................. 43

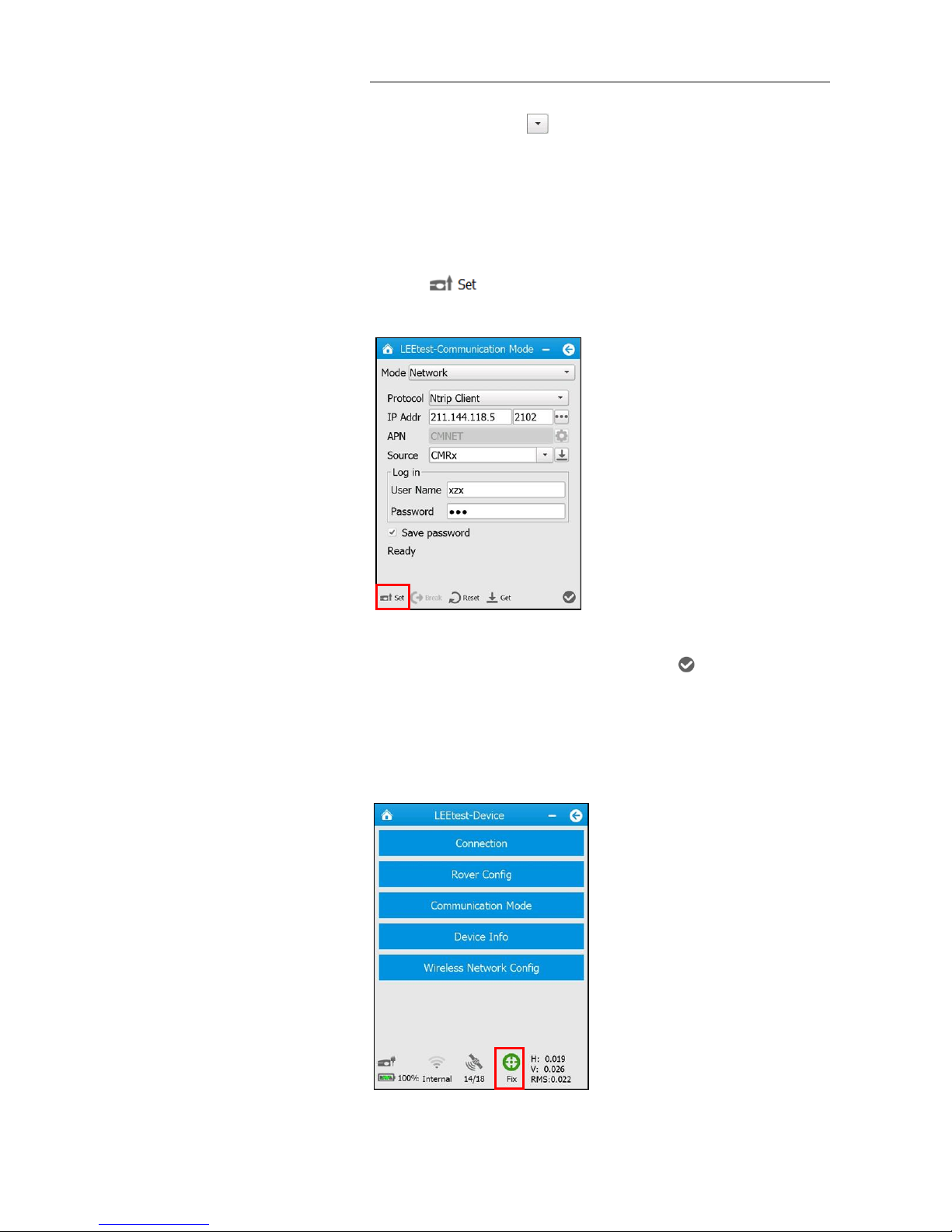

5.3.2. Receiving corrections using internal cellular modem .......................................................... 45

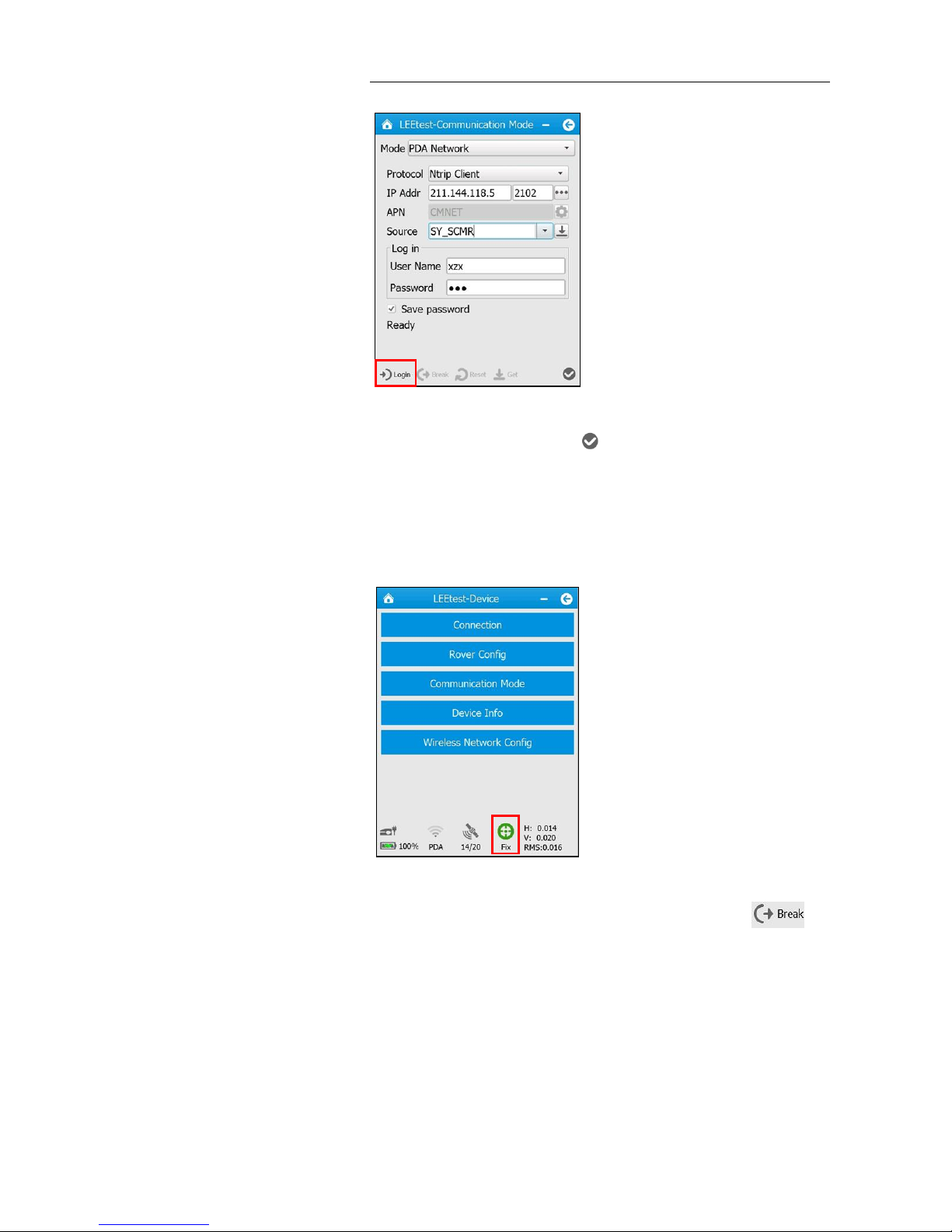

5.3.3. Receiving corrections using cellular modem in the controller ............................................. 48
6. Survey with LandStar 6 software ............................................................................................................... 51
6.1. New project .................................................................................................................................... 51
6.2. Key in points ................................................................................................................................... 54

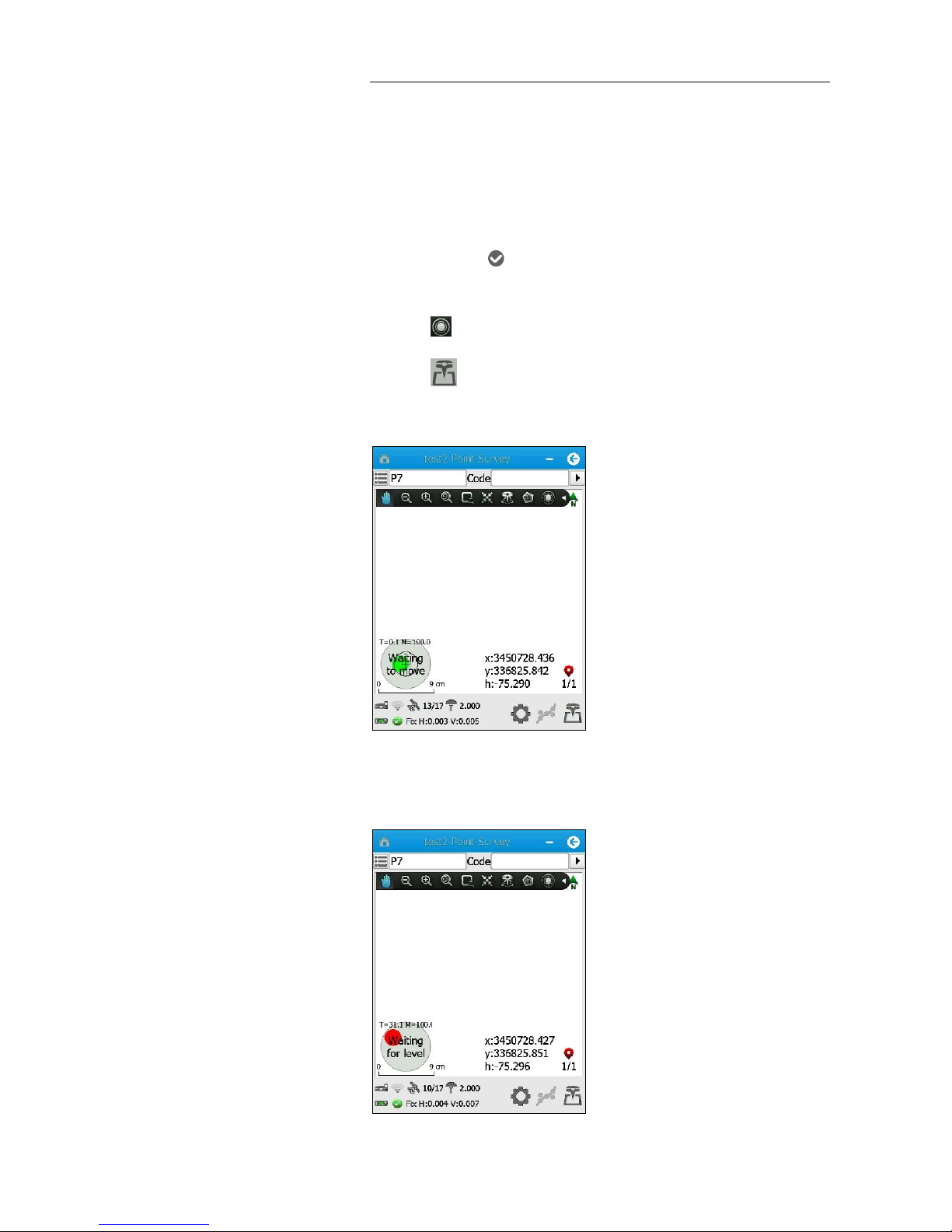

6.3. Measure points ............................................................................................................................... 55
6.3.1. Measure points in conventional mode ................................................................................ 55
6.3.2. Survey with tilt sensor ......................................................................................................... 58

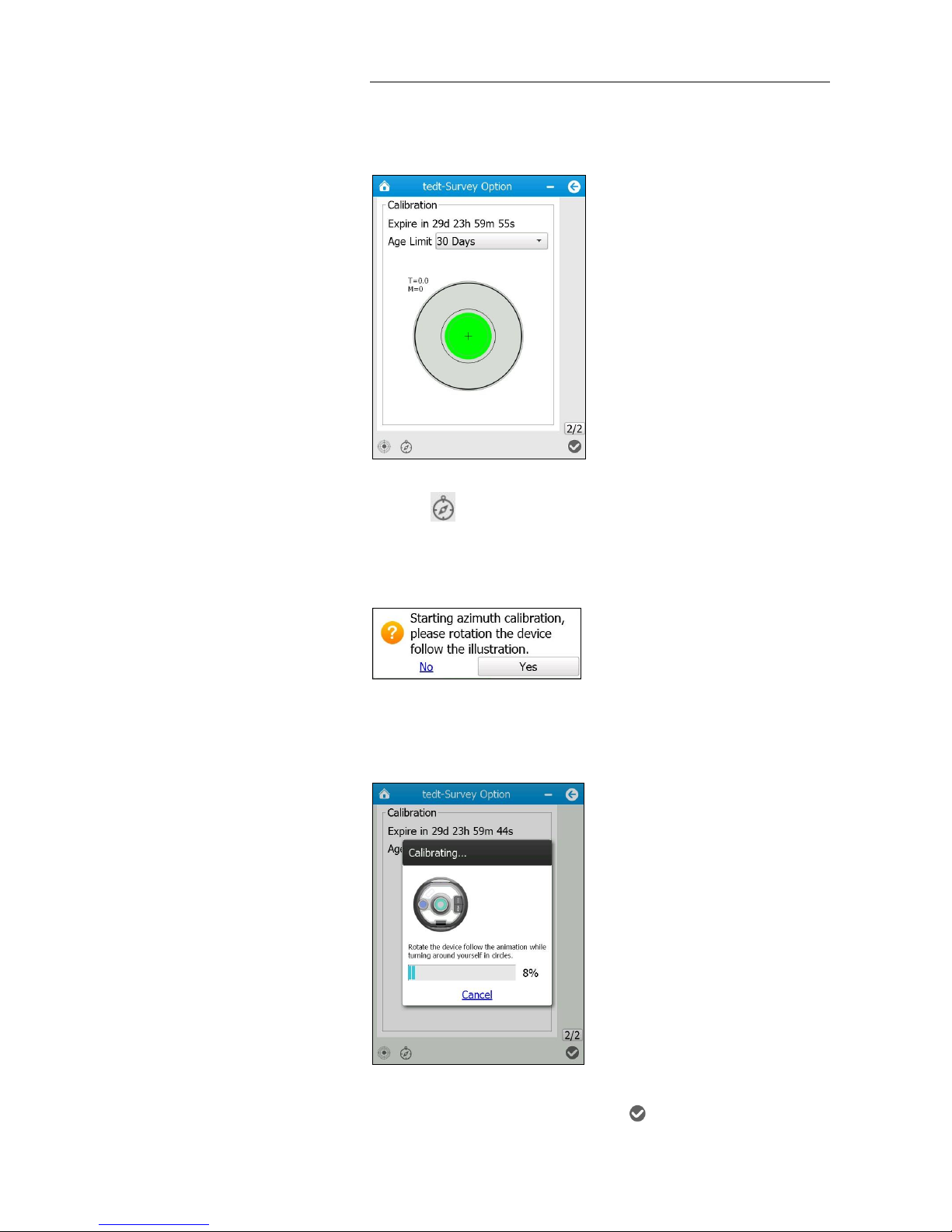

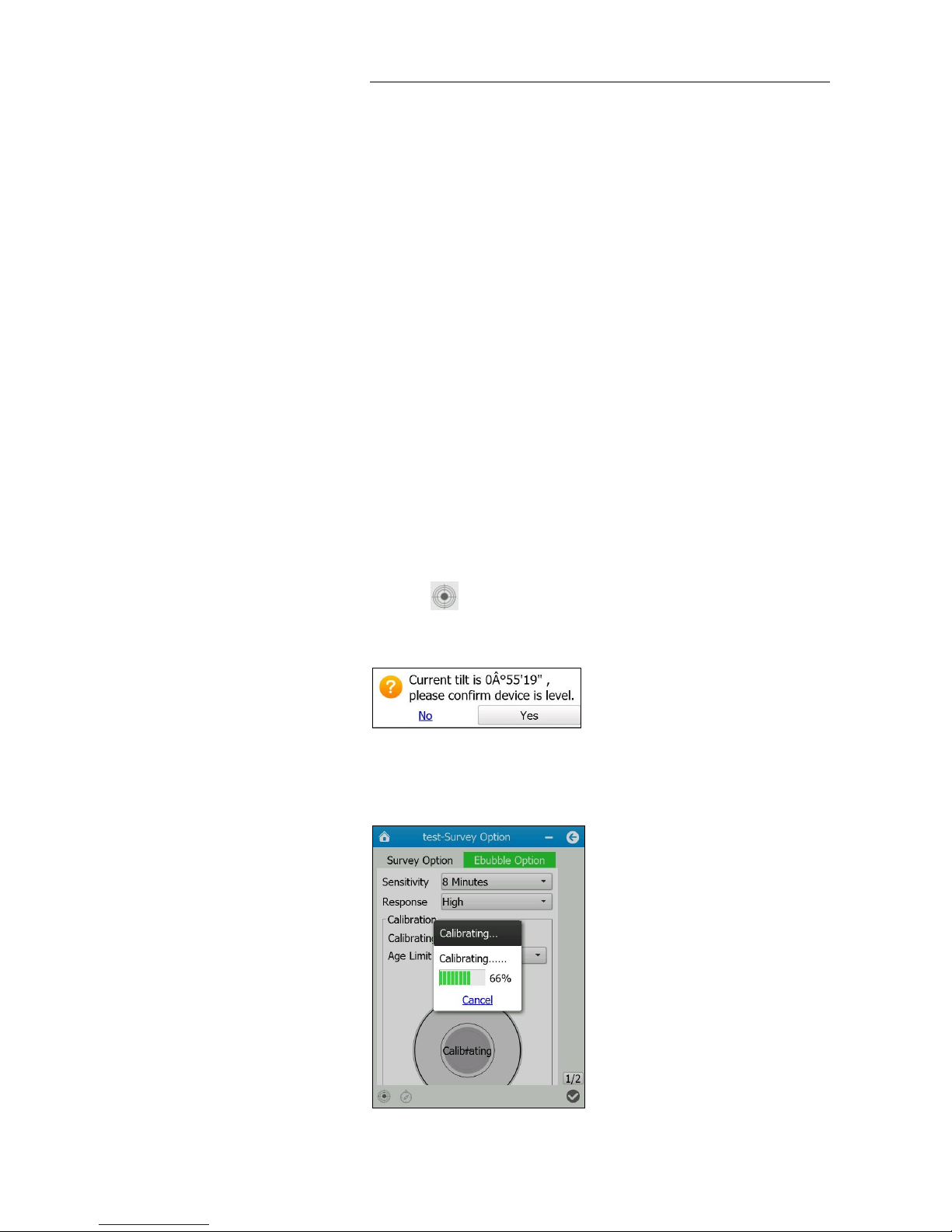

6.3.2.1. Calibrating the tilt sensor ......................................................................................... 59

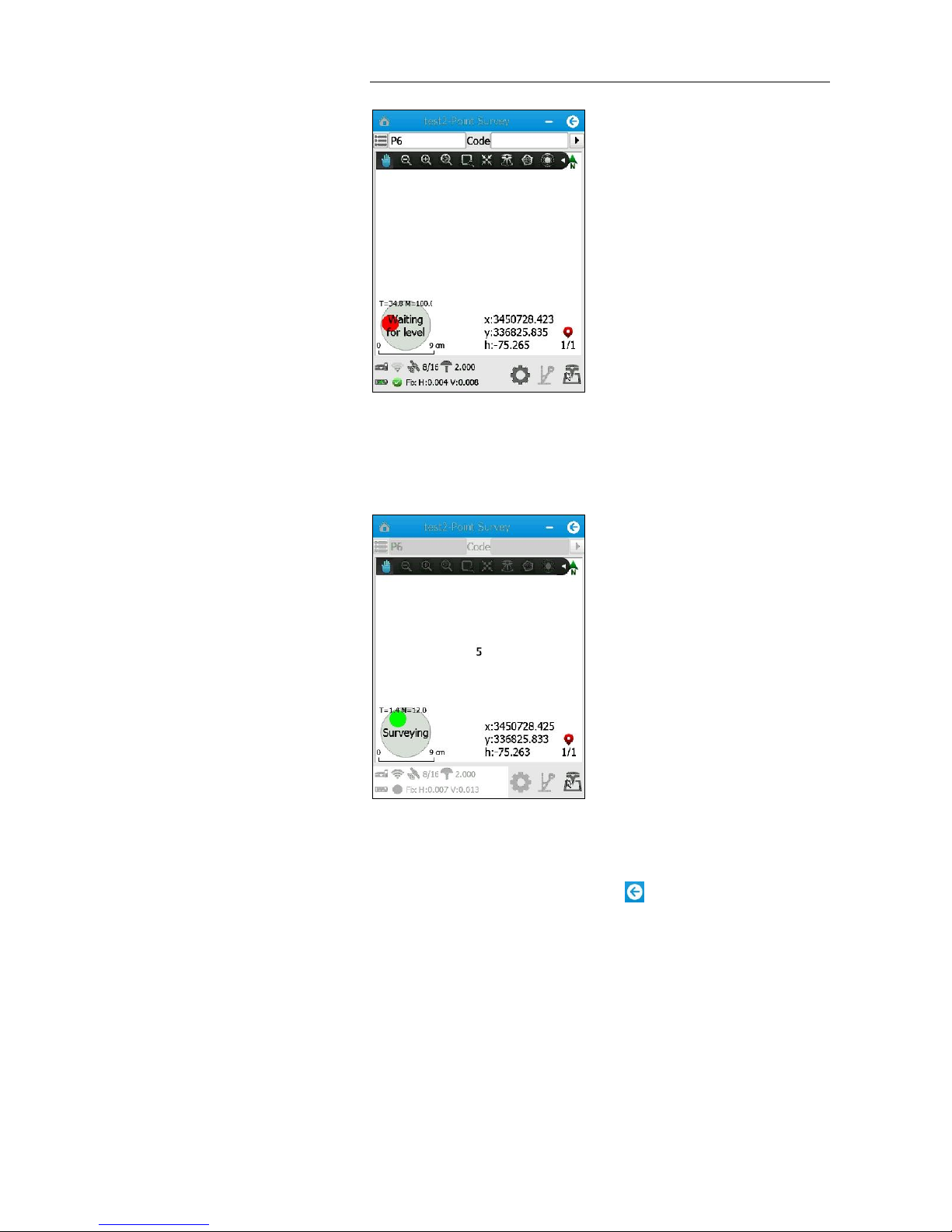

6.3.2.2. Measure points in compensated mode .................................................................... 61

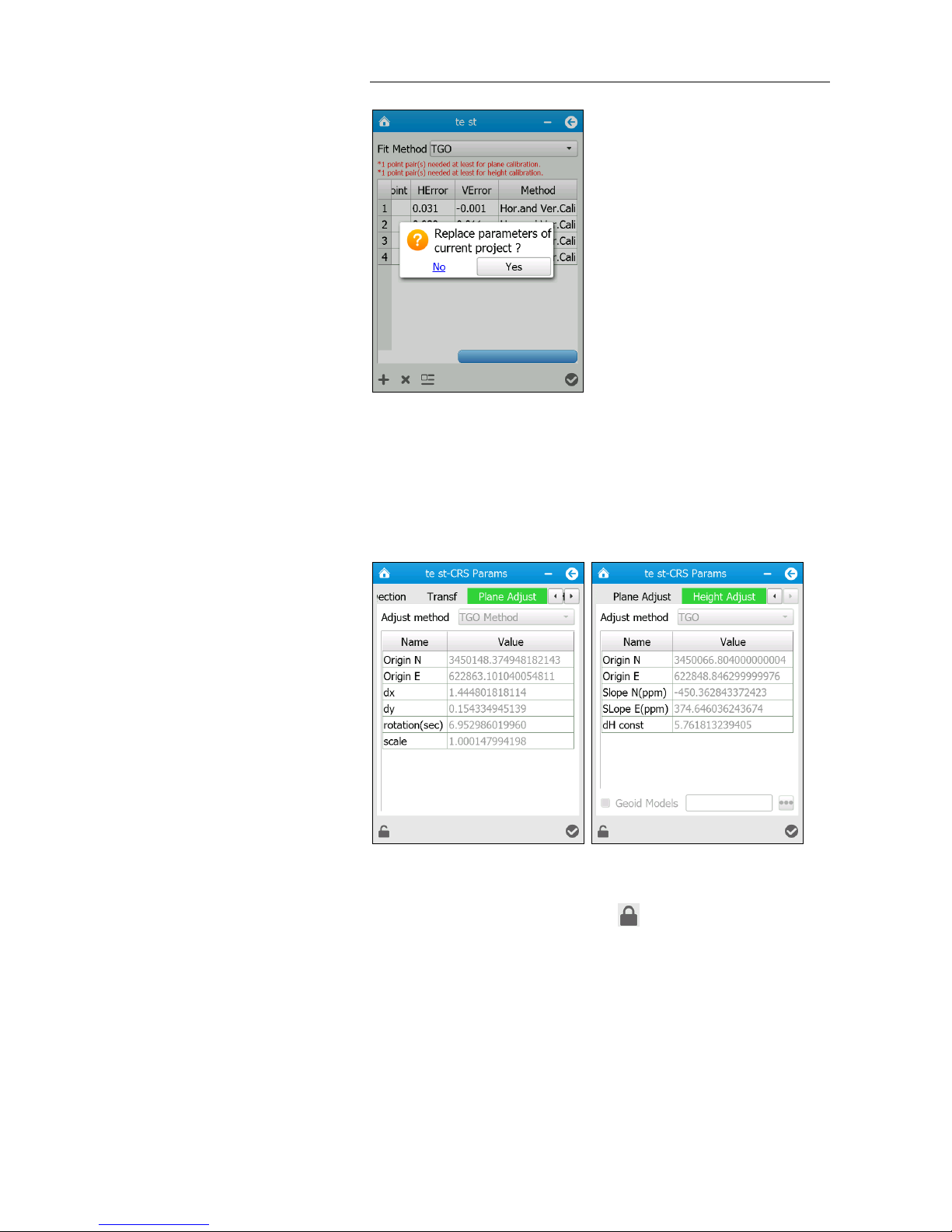

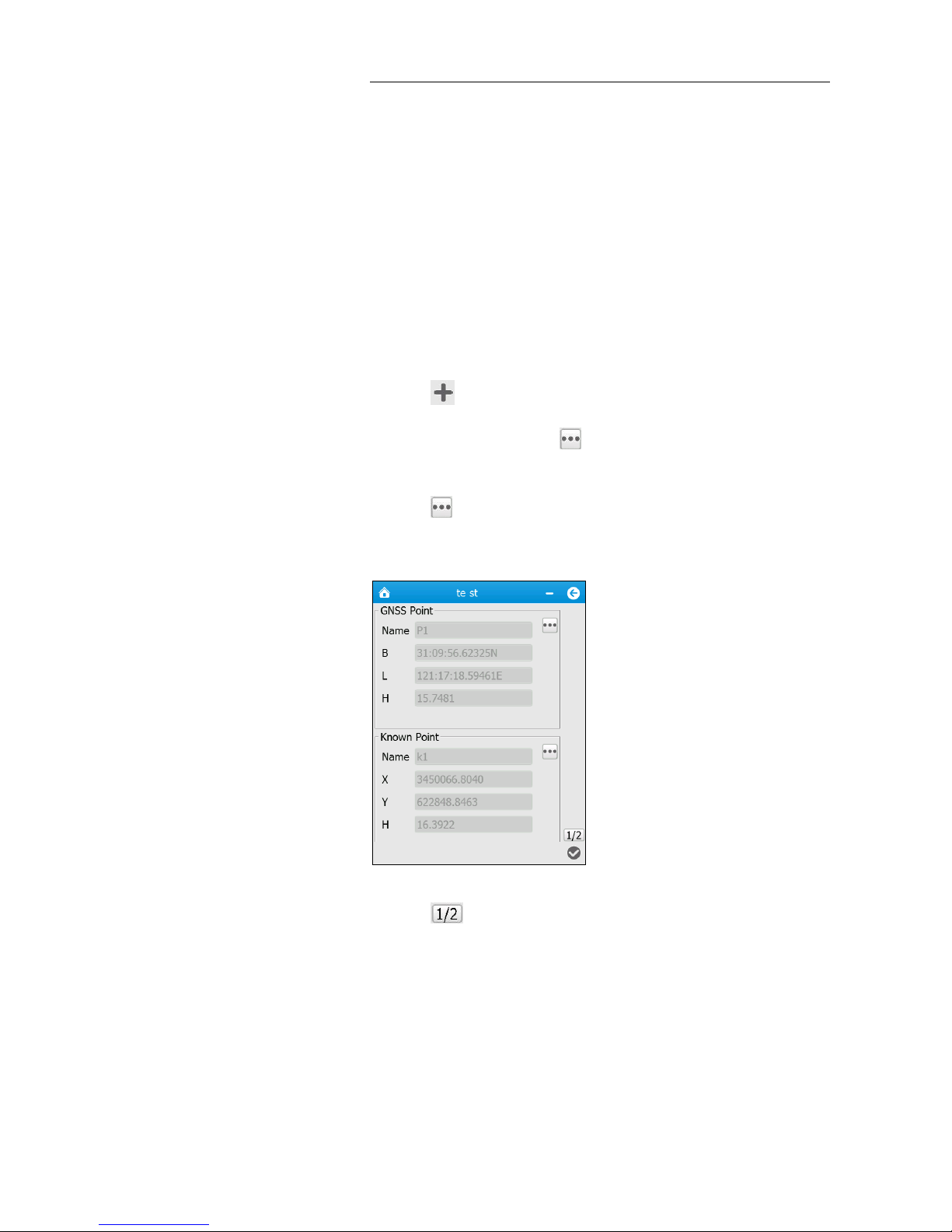

6.4. Point adjust (Site calibration) .......................................................................................................... 64

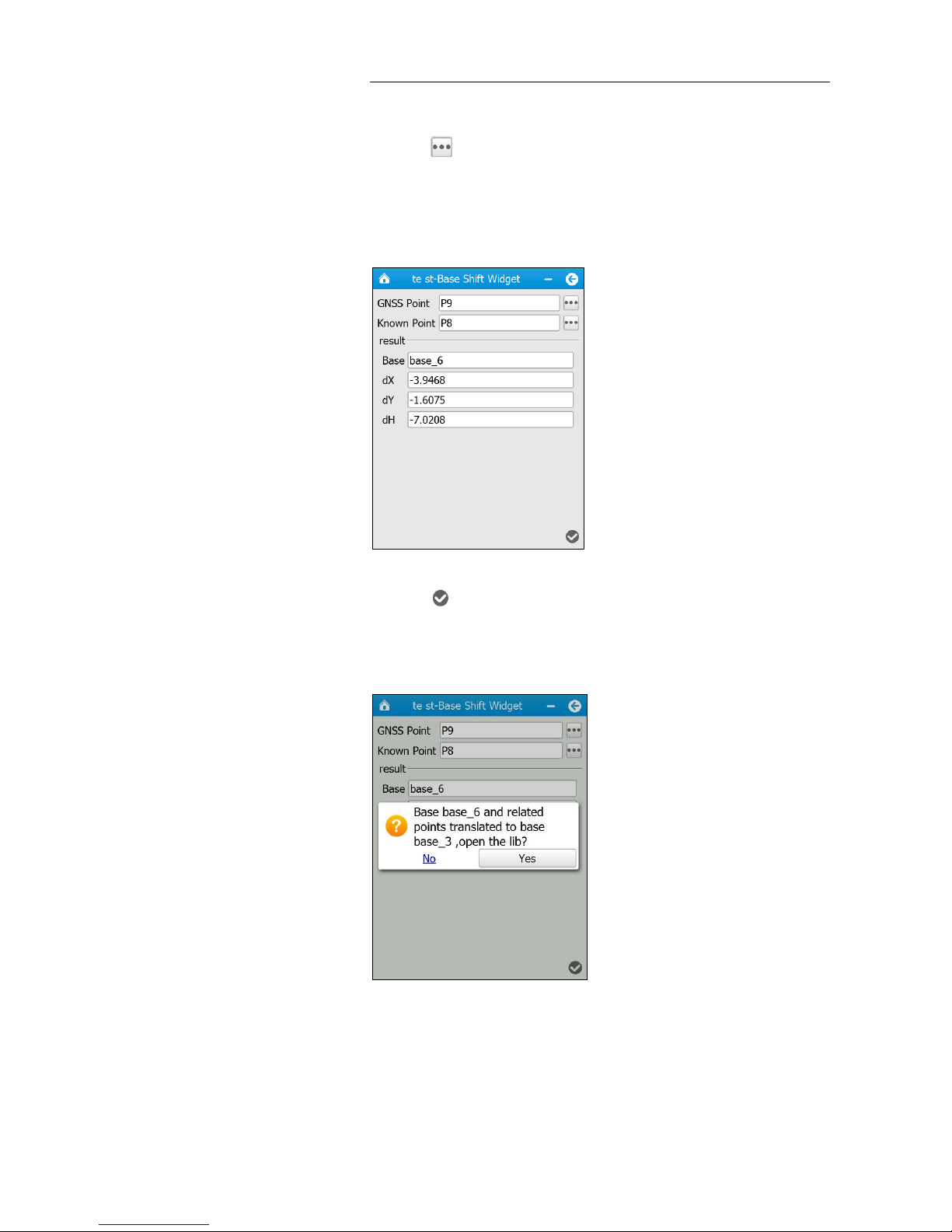

6.5. Base shift ........................................................................................................................................ 69
6.6. Data export ..................................................................................................................................... 71

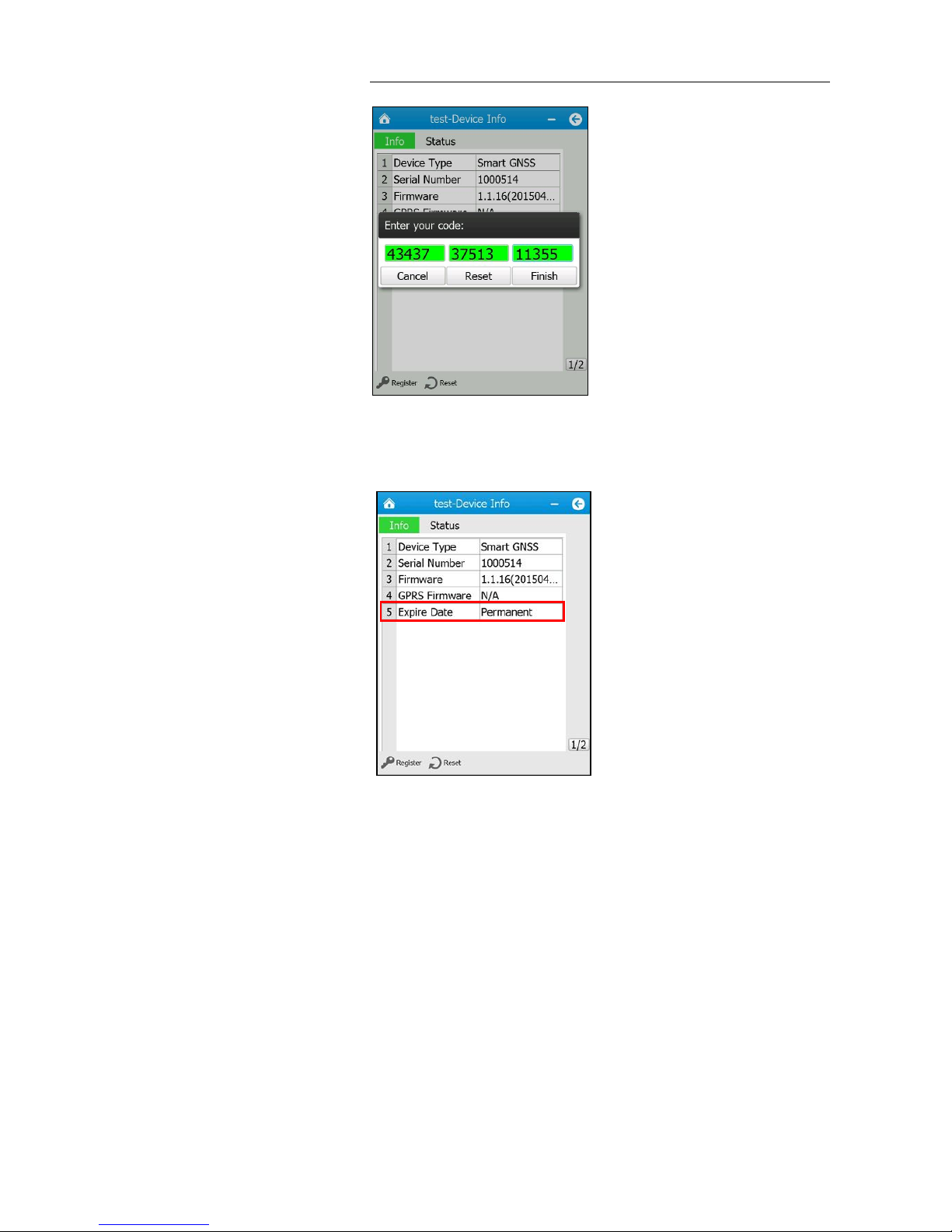

6.7. Receiver registration ....................................................................................................................... 72
7. Configuring through a web browser .......................................................................................................... 74

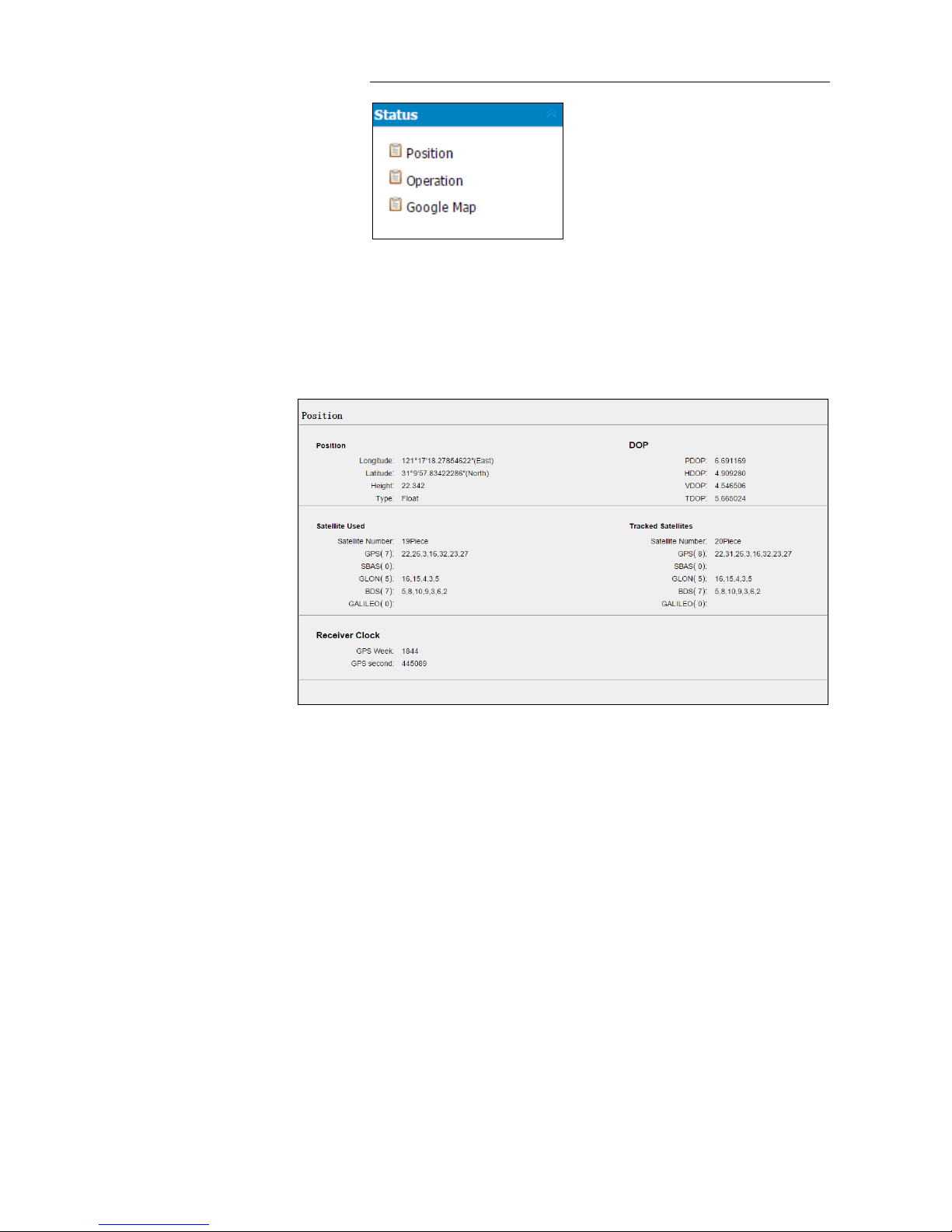

7.1. Status menu .................................................................................................................................... 75

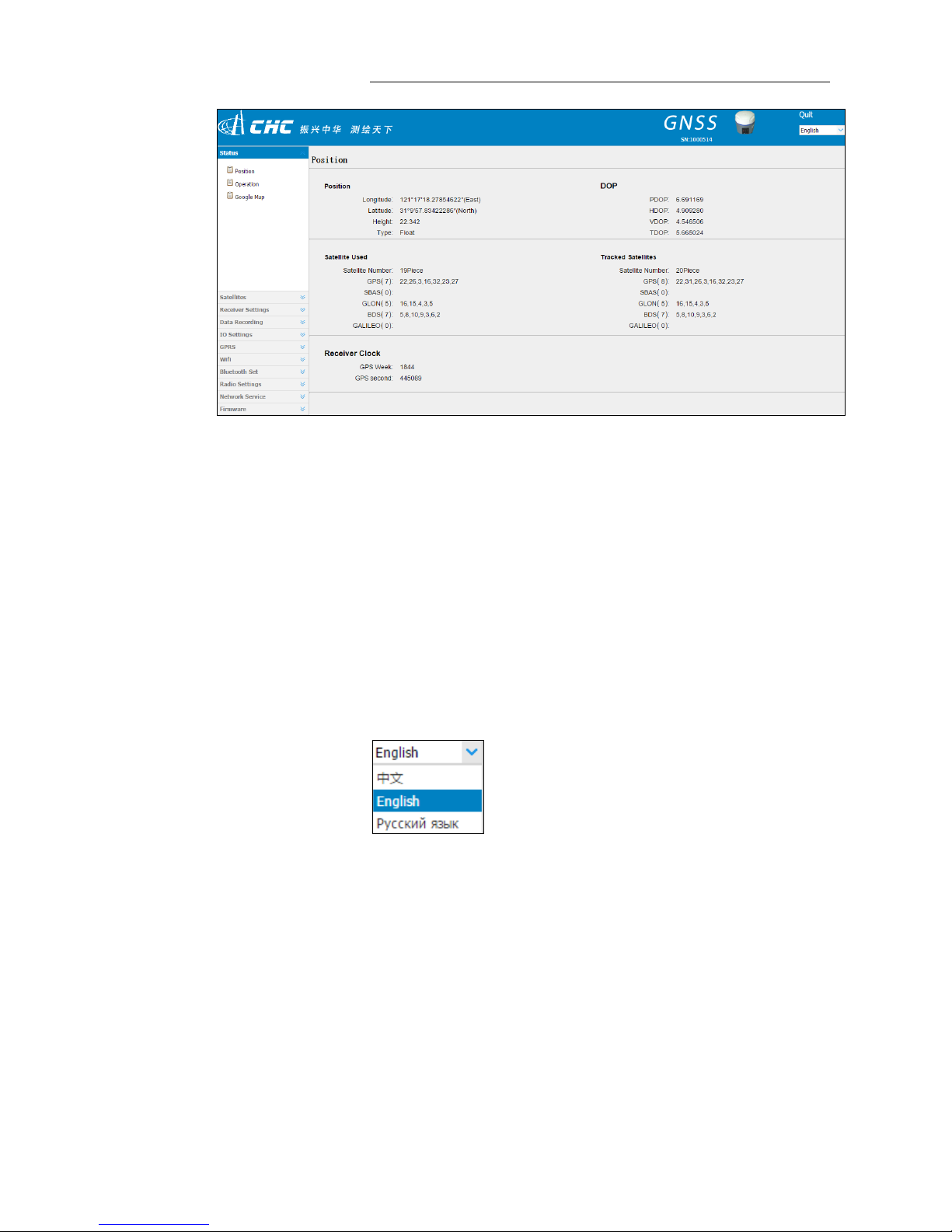

7.1.1. Position submenu ................................................................................................................ 76
7.1.2. Operation submenu ............................................................................................................. 76
7.1.3. Google Map submenu ......................................................................................................... 77

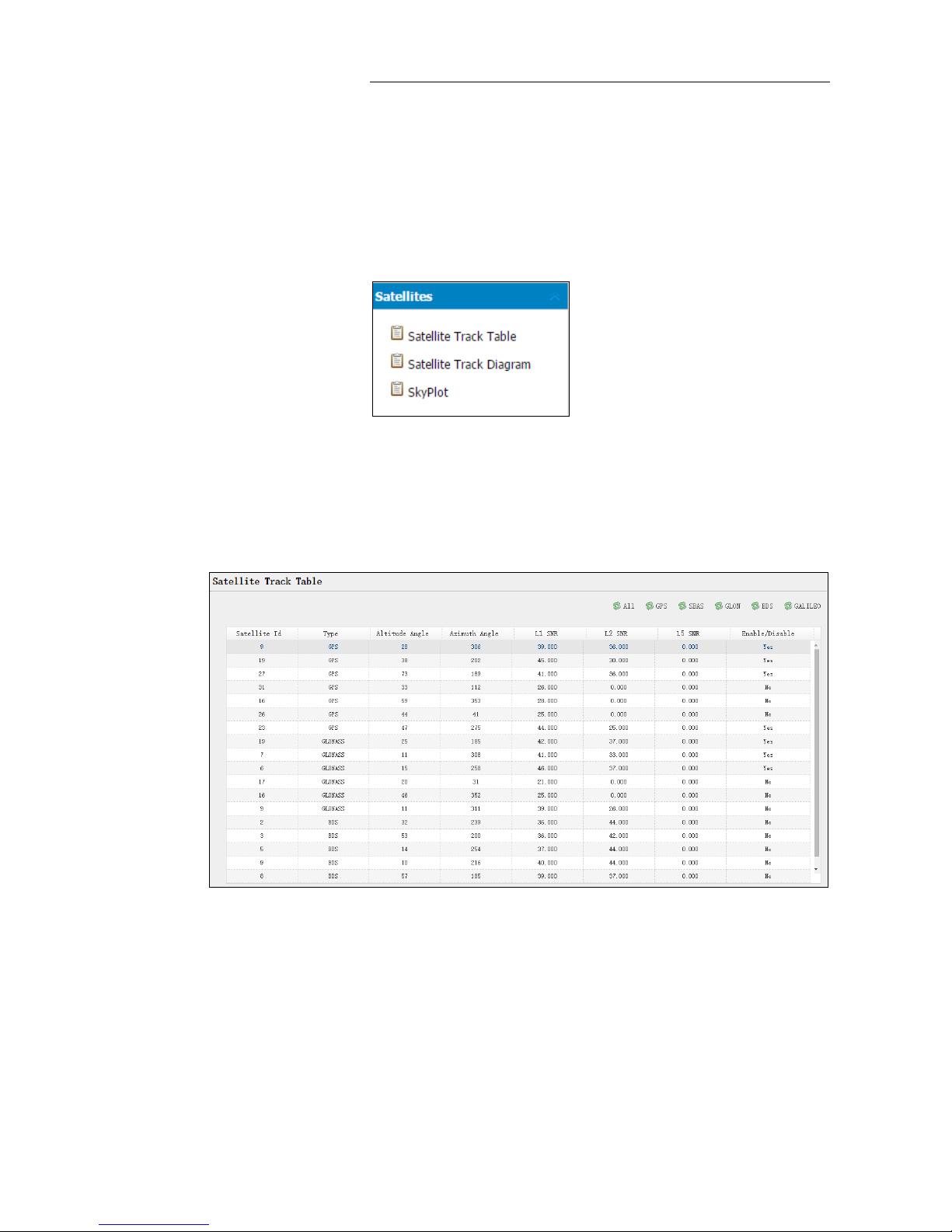

7.2. Satellites menu ............................................................................................................................... 78
7.2.1. Satellite Track Table submenu ............................................................................................. 78

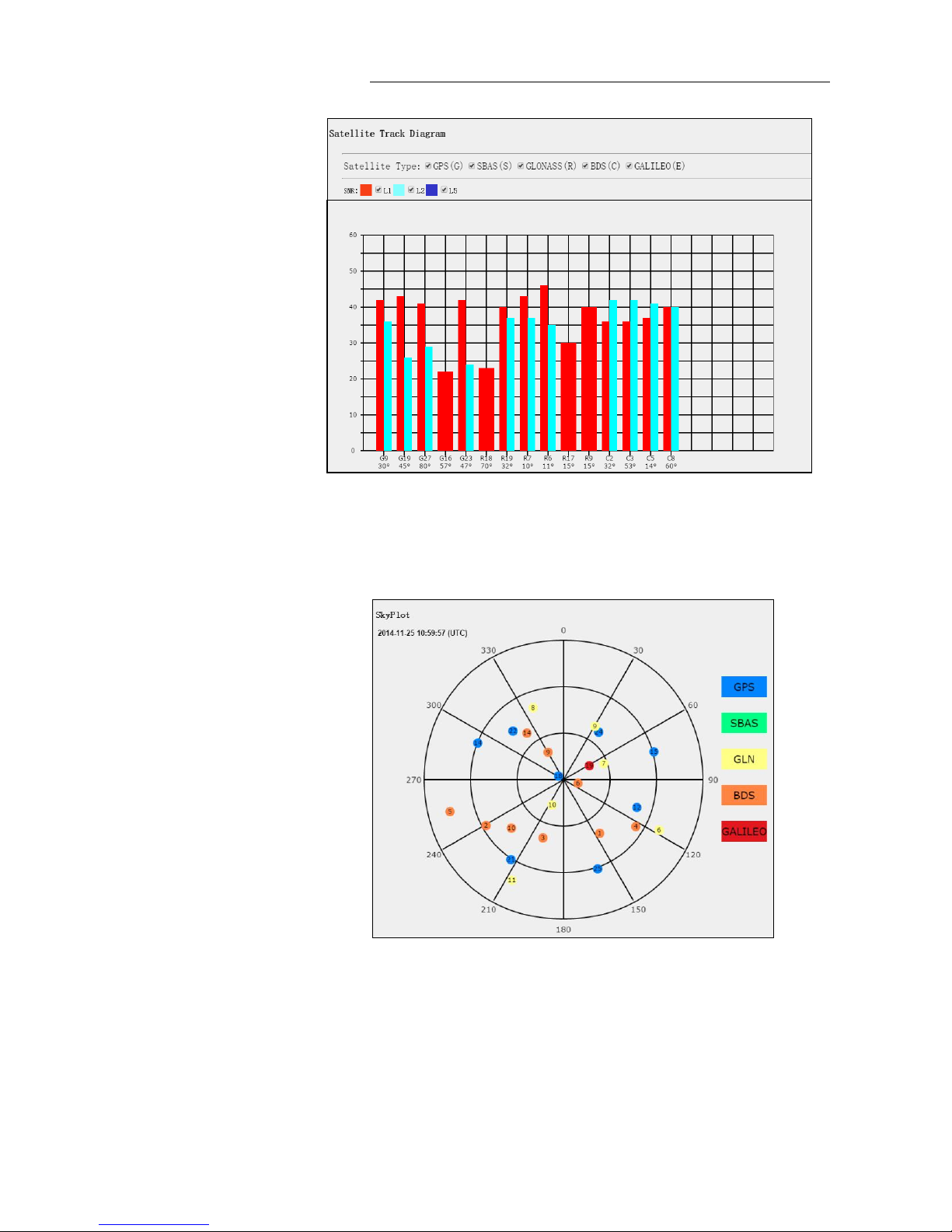

7.2.2. Satellite Track Diagram submenu ........................................................................................ 78
7.2.3. SkyPlot submenu ................................................................................................................. 79
7.3. Receiver Settings menu .................................................................................................................. 79
7.3.1. Introduction submenu ......................................................................................................... 80
7.3.2. Antenna Param Settings submenu ....................................................................................... 80
7.3.3. Reference Station Settings submenu ................................................................................... 81

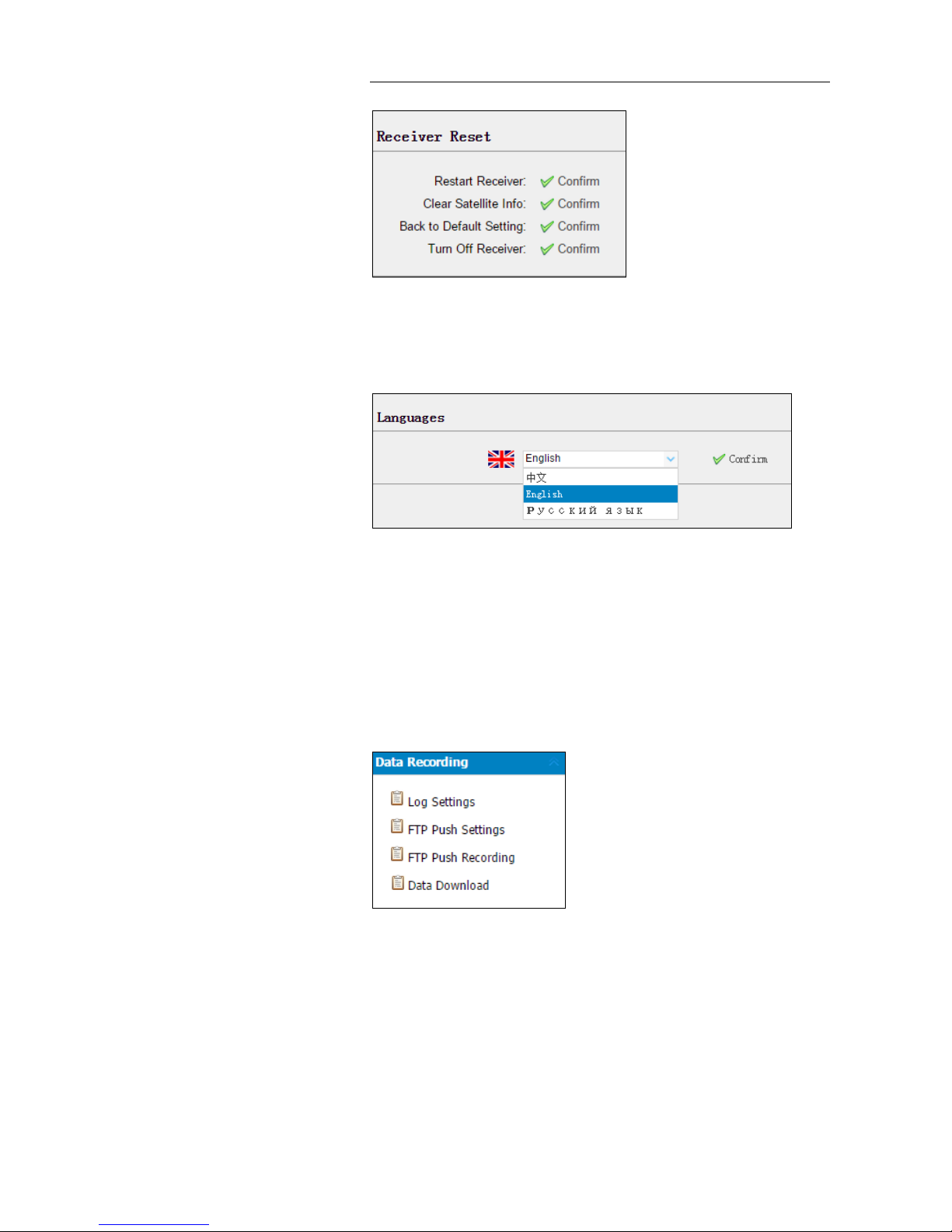

7.3.4. Receiver Reset submenu ...................................................................................................... 82
7.3.5. Languages submenu ............................................................................................................ 83
7.4. Data Recording menu ..................................................................................................................... 83

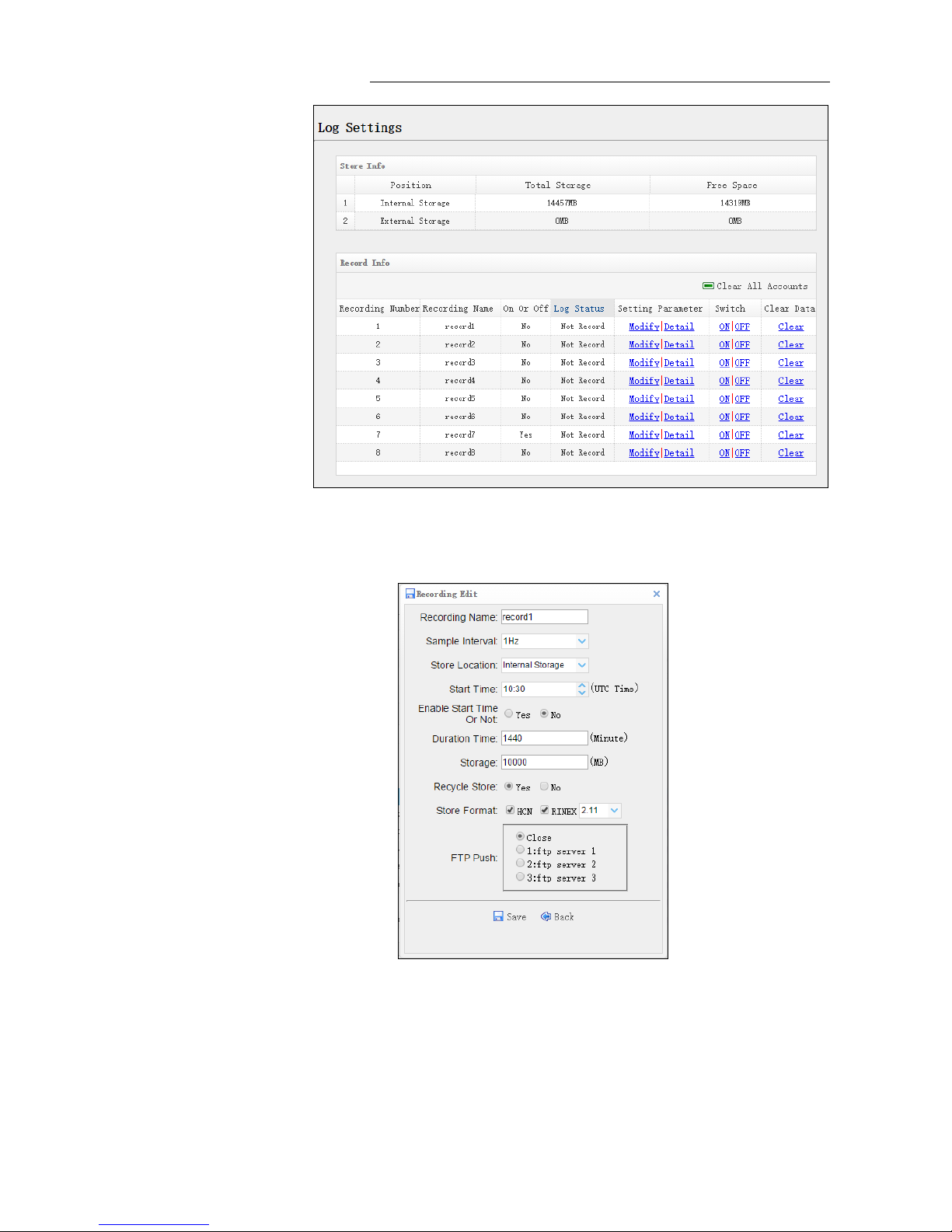

7.4.1. Log Settings submenu .......................................................................................................... 83
Page 5
i80 GNSS Receiver User Guide Page 3
7.4.2. FTP Push Settings submenu ................................................................................................. 85
7.4.3. FTP Push Recording submenu .............................................................................................. 86
7.4.4. Data Download submenu .................................................................................................... 86
7.5. IO Settings menu ............................................................................................................................ 87

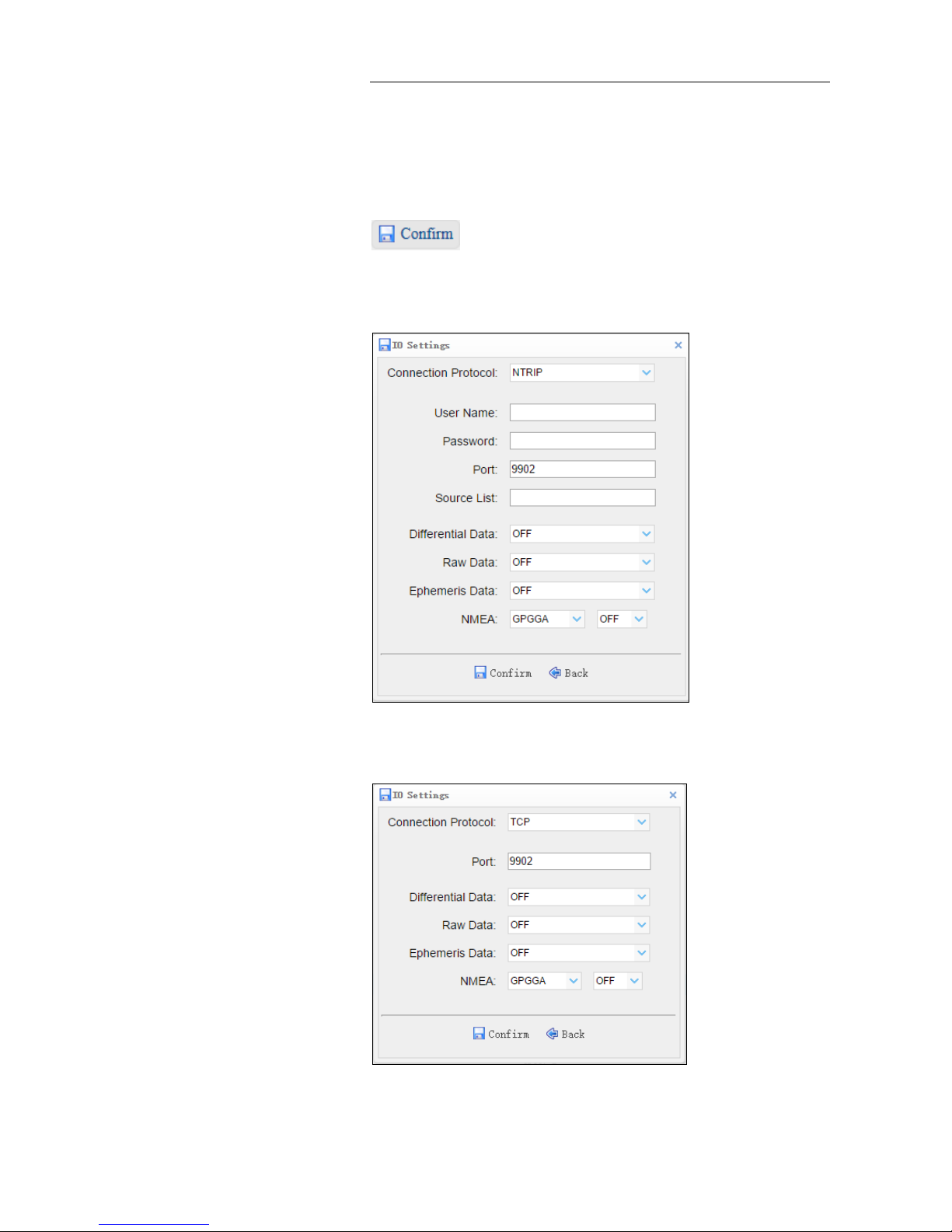

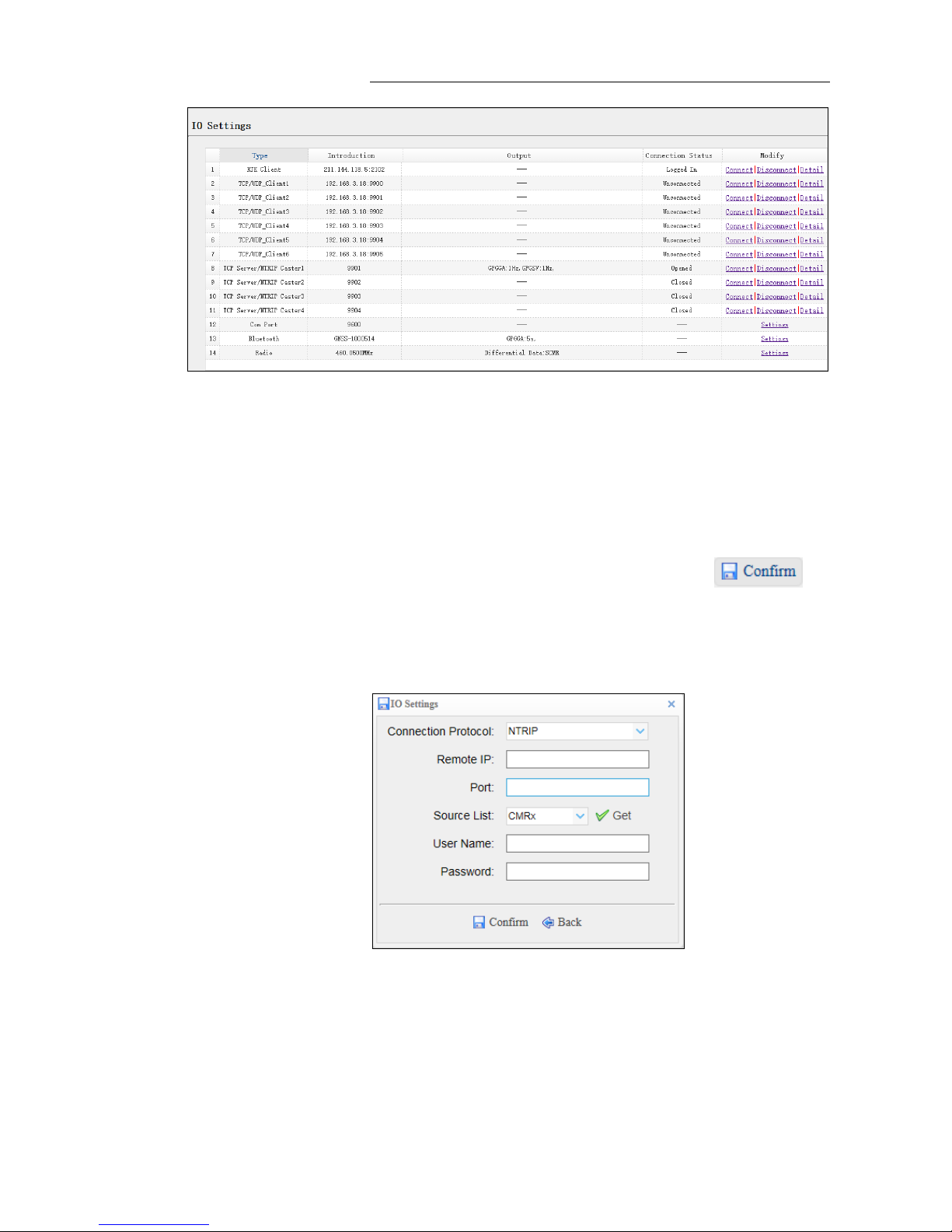

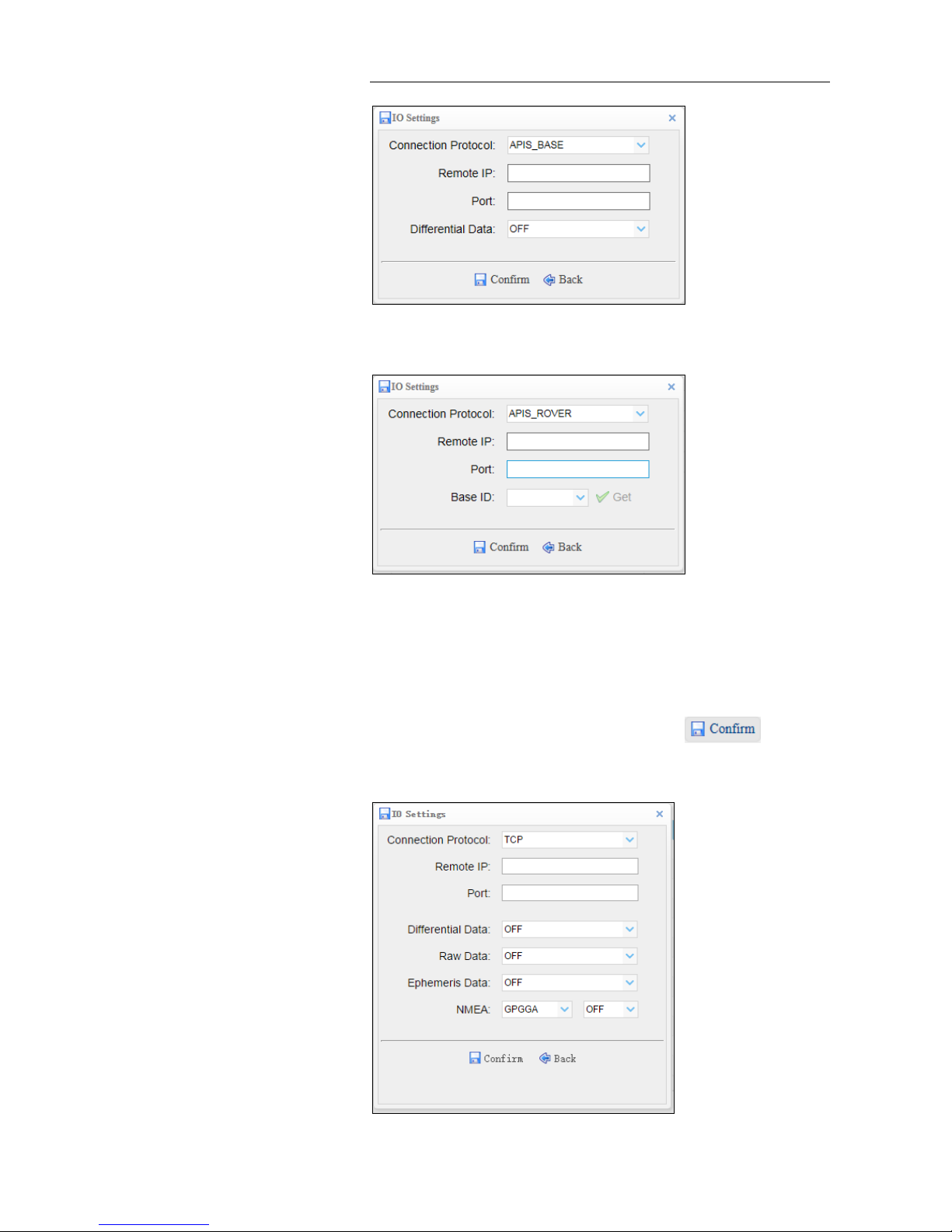

7.5.1. IO Settings submenu ............................................................................................................ 87
7.6. GPRS menu ..................................................................................................................................... 92
7.6.1. Network Info submenu ........................................................................................................ 92

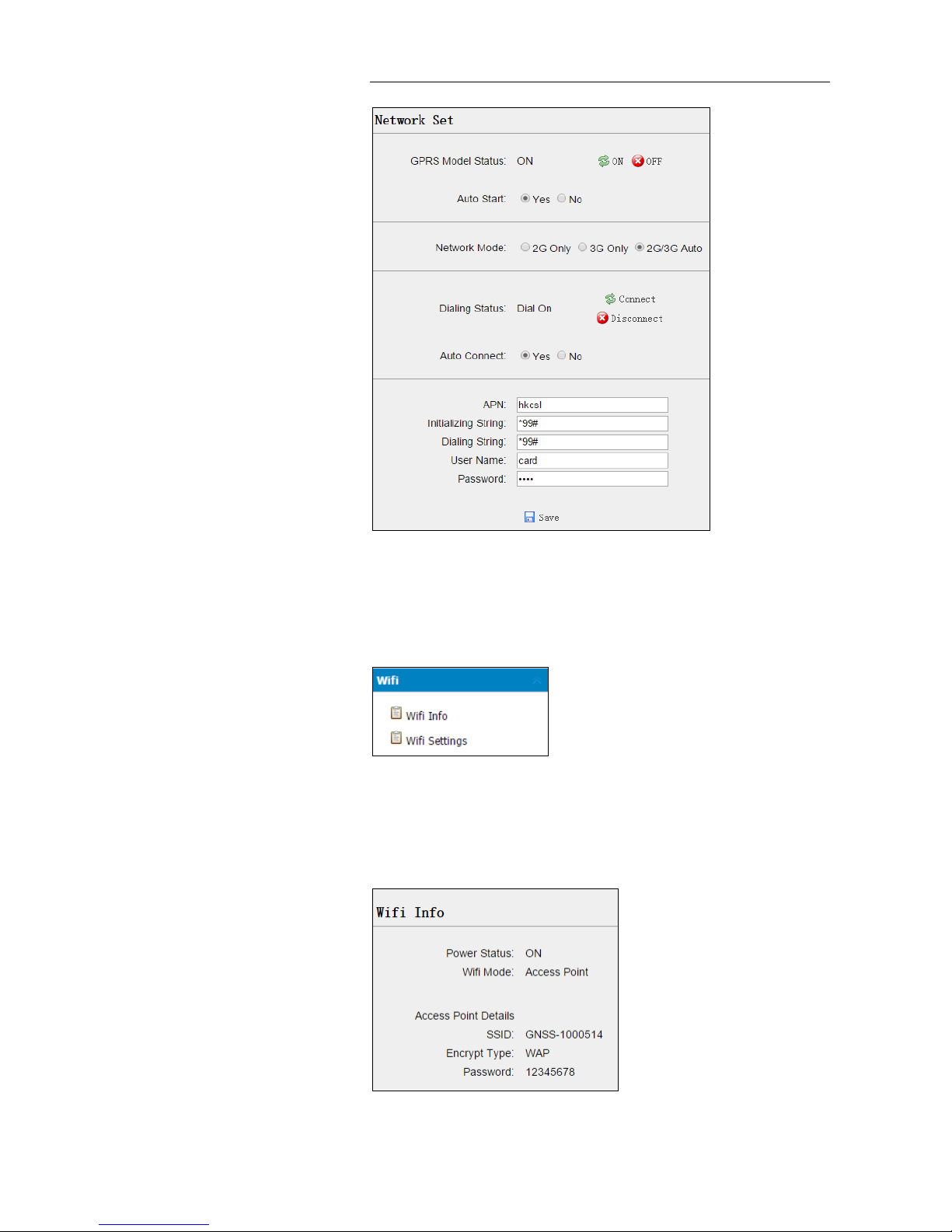

7.6.2. Network Set submenu ......................................................................................................... 92
7.7. Wifi menu ....................................................................................................................................... 93
7.7.1. Wifi Info submenu ............................................................................................................... 93

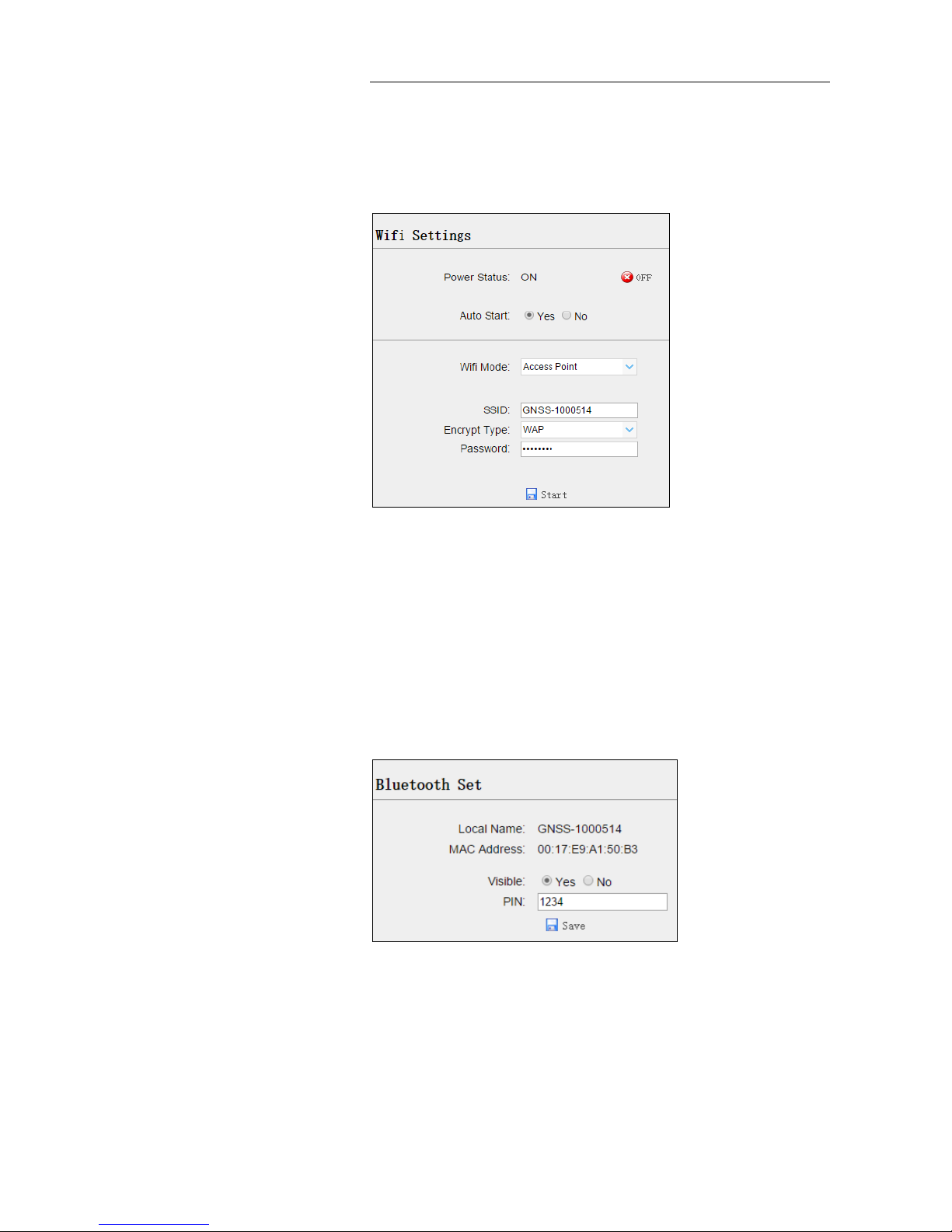

7.7.2. Wifi Settings submenu ......................................................................................................... 94

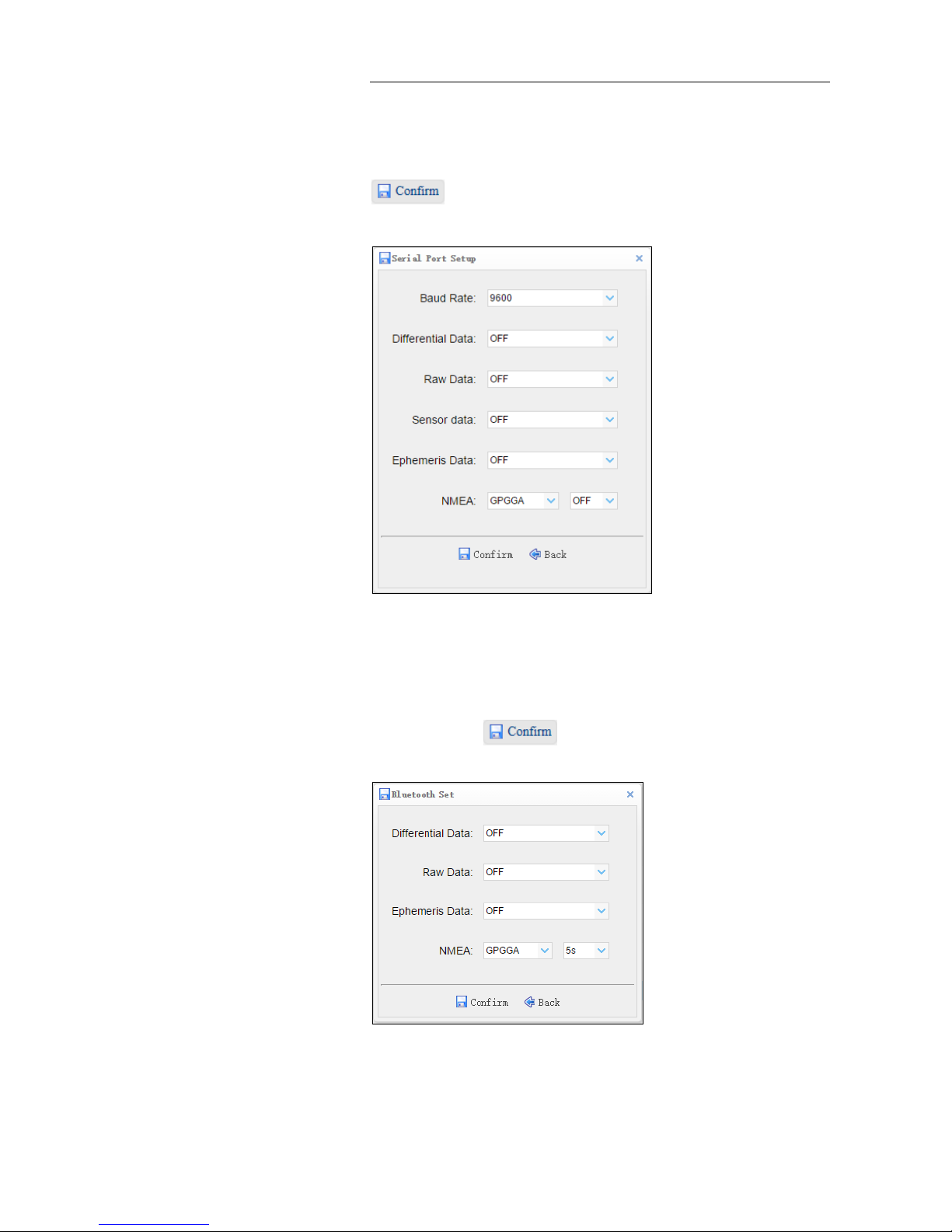

7.8. Bluetooth Set menu ........................................................................................................................ 94
7.8.1. Bluetooth Set submenu ....................................................................................................... 94

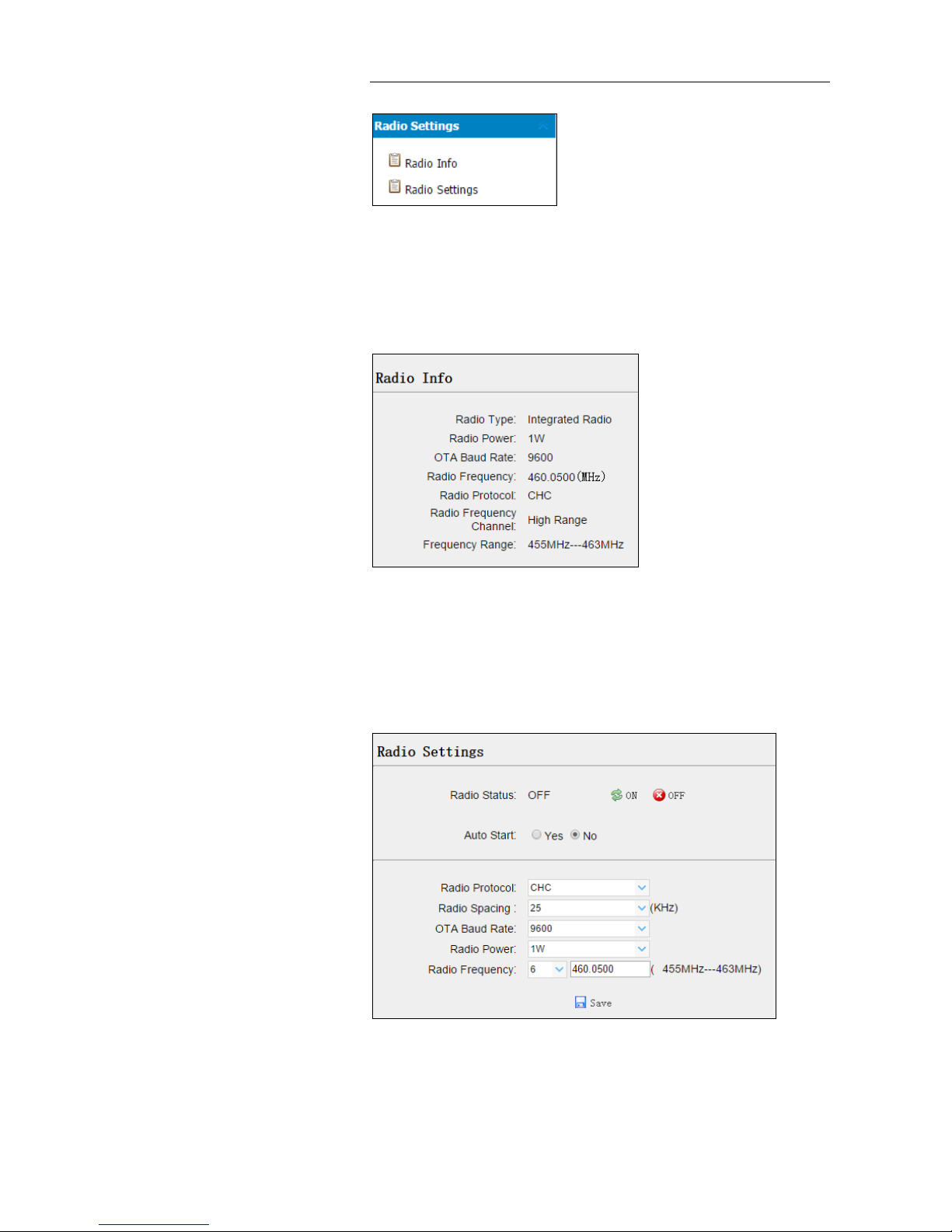

7.9. Radio Settings menu ....................................................................................................................... 94
7.9.1. Radio Info submenu ............................................................................................................. 95
7.9.2. Radio Settings submenu ...................................................................................................... 95

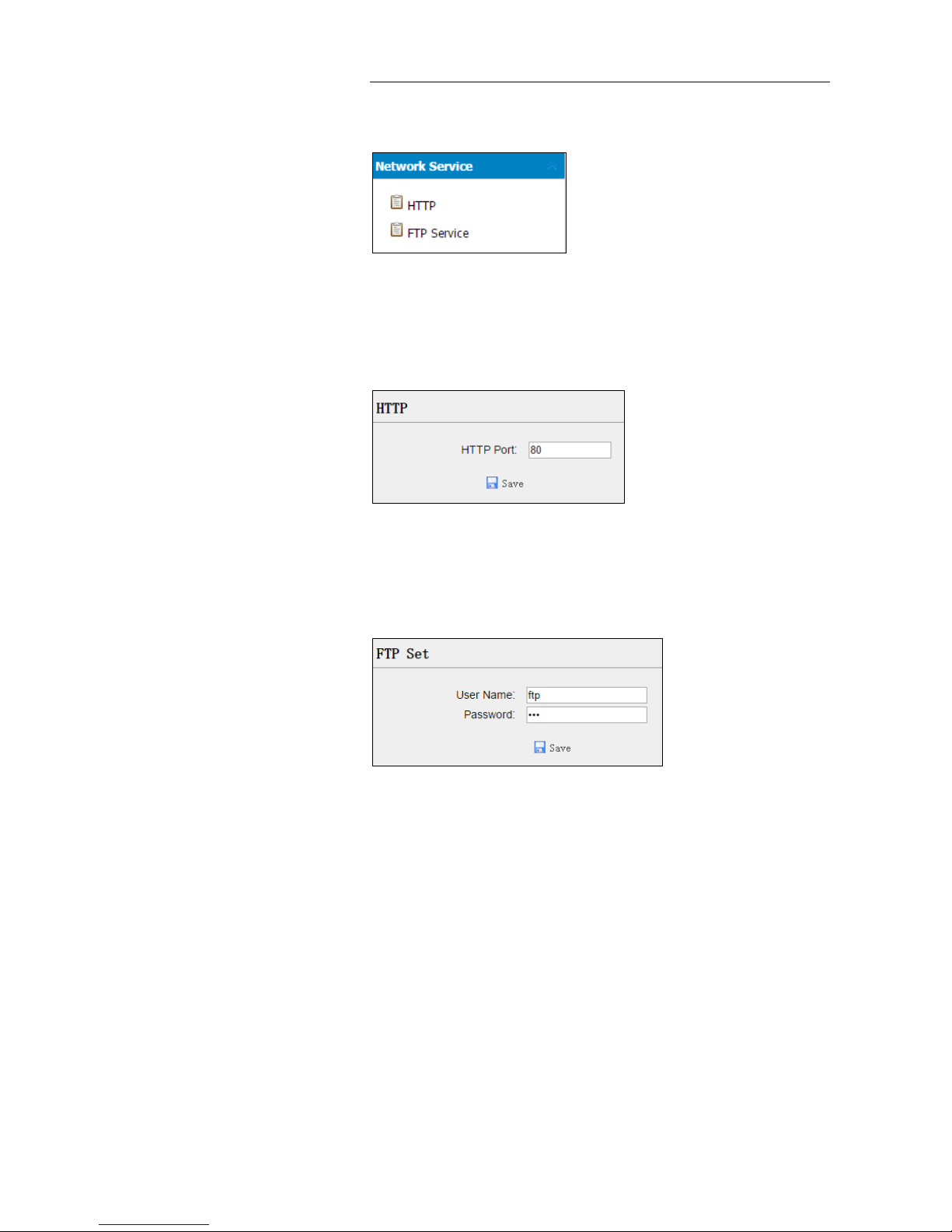

7.10. Network Service menu ................................................................................................................. 95
7.10.1. HTTP submenu ................................................................................................................... 96

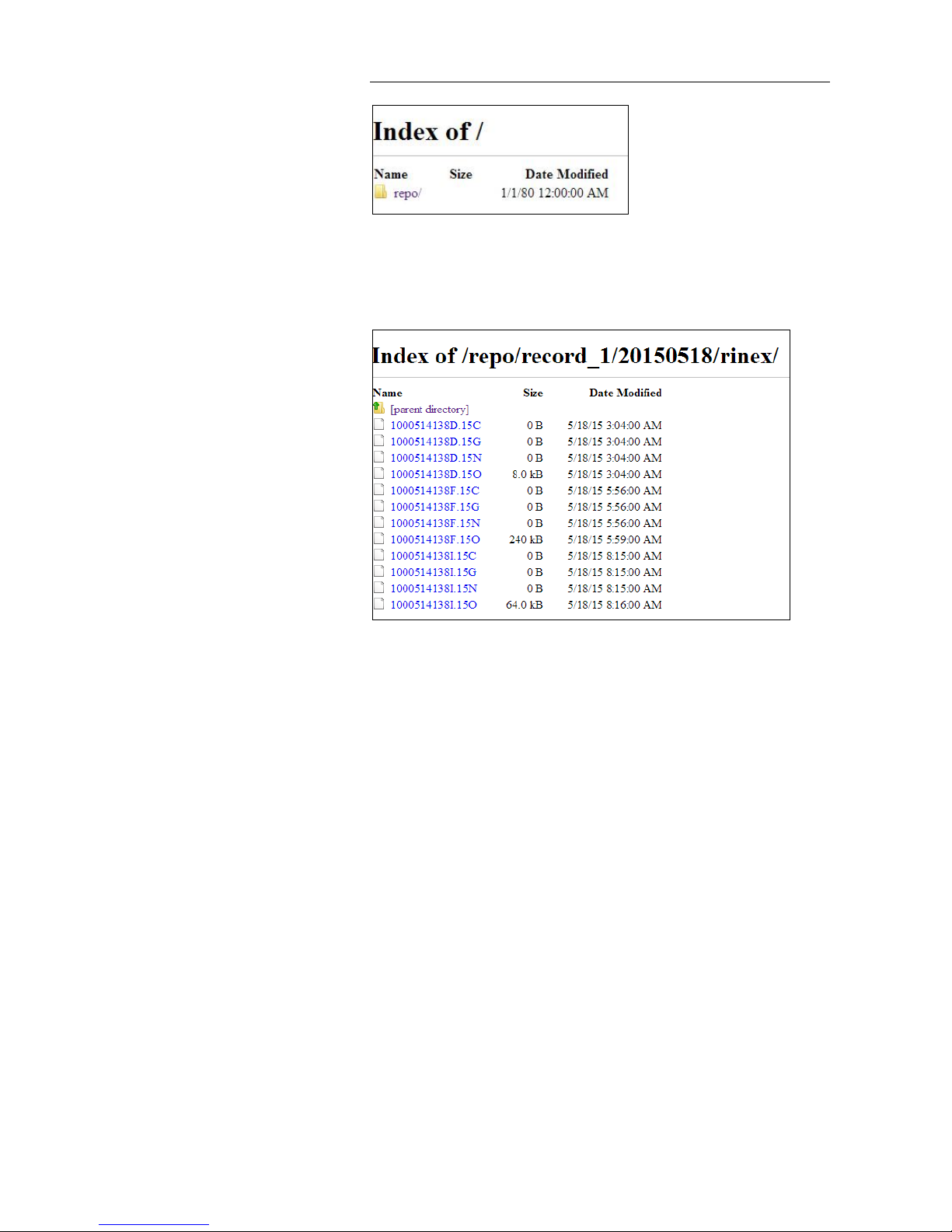

7.10.2. FTP Service submenu ......................................................................................................... 96

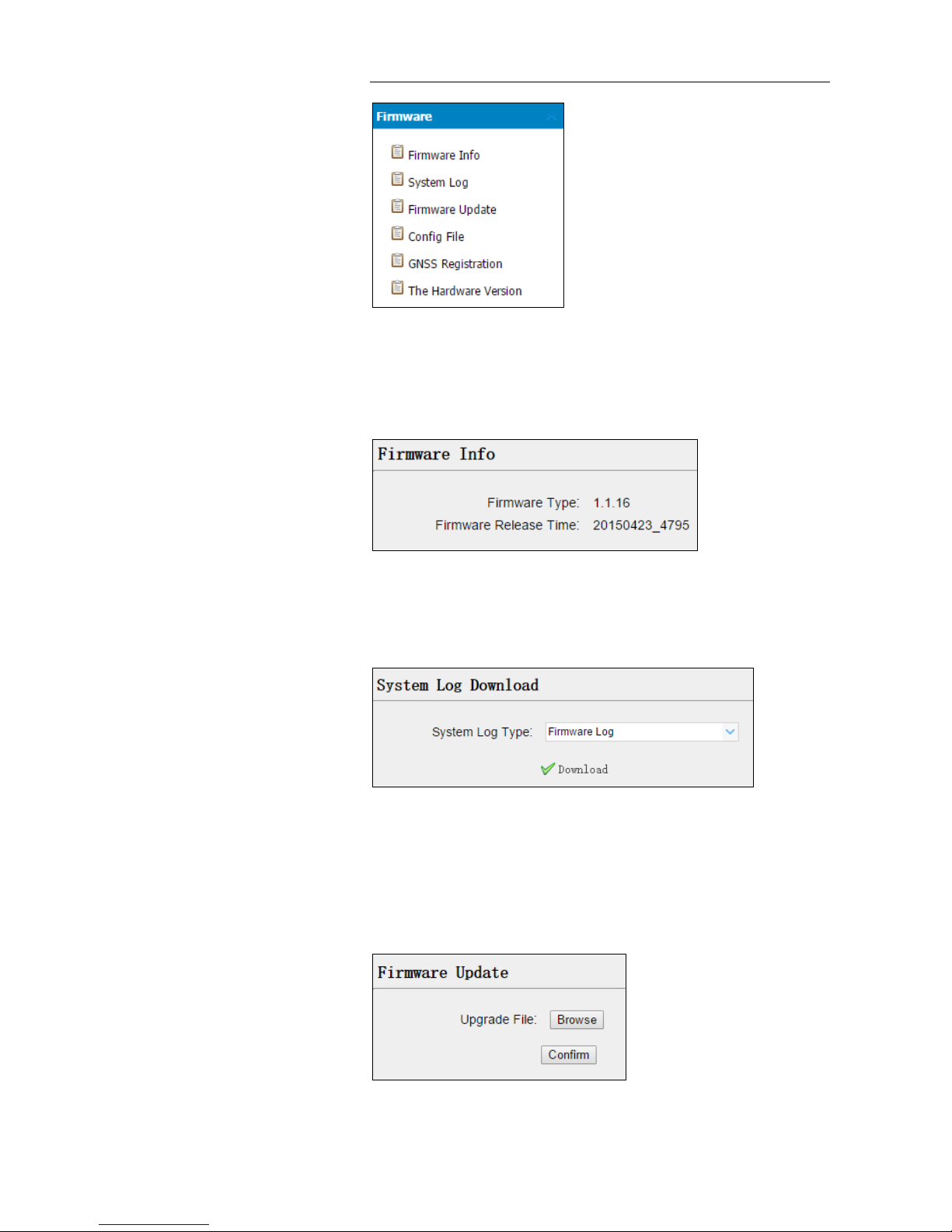

7.11. Firmware menu ............................................................................................................................ 96
7.11.1. Firmware Info submenu .................................................................................................... 97
7.11.2. System Log submenu ......................................................................................................... 97
7.11.3. Firmware Update submenu ............................................................................................... 97
7.11.4. Config File submenu .......................................................................................................... 98
7.11.5. GNSS Registration submenu .............................................................................................. 98
7.11.6. The Hardware Version submenu ....................................................................................... 98
A. Communication ports definition ............................................................................................................. 100
A.I. CHC i80 receiver IO port (7-pin Lemo port) definition .................................................................. 100
A.II. CHC i80 receiver USB port (7-pin Lemo port) definition .............................................................. 100
Page 6
i80 GNSS Receiver User Guide Page 4
1. INTRODUCTION
The i80 GNSS Receiver User Guide describes how to set up and use the CHC®
i80 GNSS receiver.
In this manual, “the receiver” refers to the i80 GNSS receiver unless
otherwise stated.
Even if you have used other Global Navigation Satellite Systems (GNSS)
products before, CHC recommends that you spend some time reading this
manual to learn about the special features of this product. If you are not
familiar with GNSS, go to www.chcnav.com for an interactive look at CHC
and GNSS.
1.1. SAFETY INFORMATION
1.1.1. WARNINGS AND CAUTIONS
An absence of specific alerts does not mean that there are no safety risks
involved.
A Warning or Caution information is intended to minimize the risk of
personal injury and/or damage to the equipment.
WARNING - A Warning alerts you to a potential misused or wrong setting of
the equipment.
CAUTION - A Caution alerts you to a possible risk of serious injury to your
person and/or damage to the equipment.
1.1.2. REGULATIONS AND SAFETY
The receivers contain a built-in wireless modem for signal communication
through Bluetooth® wireless technology or through external communication
datalink. Regulations regarding the use of the wireless modem vary greatly
from country to country. In some countries, the unit can be used without
obtaining an end-user license. However, in some countries, the
administrative permissions are required. For license information, consult
your local dealer. Bluetooth® operates in license-free bands.
Before operating a i80 GNSS receiver, determine if authorization or a license
to operate the unit is required in your country. It is the responsibility of the
end-user to obtain an operator's permit or license for the receiver for the
location or country of use.
Page 7
1. Introduction
i80 GNSS Receiver User Guide Page 5
1.1.3. USE AND CARE
This receiver is designed to withstand the rough environment that typically
occurs in the field. However, the receiver is high-precision electronic
equipment and should be treated with reasonable care.
CAUTION - Operating or storing the receiver outside the specified
temperature range will cause irreversible damage.
1.2. TECHNICAL SUPPORT
If you have a problem and cannot find the information you need in this
manual or CHC website (www.chcnav.com), contact your local CHC dealer
from which you purchased the receiver(s).
If you need to contact CHC technical support, please contact us by email
(support@chcnav.com) or Skype (chc_support).
1.3. DISCLAIMER
Before using the receiver, please make sure that you have read and
understood this User Guide, as well as the safety information. CHC holds no
responsibility for the wrong operation by users and for the losses incurred by
the wrong understanding about this User Guide. However, CHC reserves the
rights to update and optimize the contents in this guide regularly. Please
contact your local CHC dealer for new information.
1.4. YOUR COMMENTS
Your feedback about this user guide will help us to improve it in future
revision. Please email your comments to support@chcnav.com.
Page 8
i80 GNSS Receiver User Guide Page 6
2. GETTING STARTED WITH I80
2.1. ABOUT THE RECEIVER
The i80 GNSS receiver incorporates a GNSS engine, GNSS antenna, internal
radio, optional 4G cellular modem, Bluetooth, Wi-Fi, and dual-battery in a
ruggedized and miniature unit that is easy for you to set up an all-in-one RTK
rover or mobile base station.
The LCD panel enables you to check satellite-tracking status, internal battery
status, Wi-Fi status, working mode, data logging status and basic receiver
information. Bluetooth and Wi-Fi technology provide cable-free
communication between the receiver and controller.
The receiver can be used as the part of a RTK GNSS system with CHC
LansStar6 software. And you can download the GNSS data that recorded in
the internal memory of receiver to a computer.
You can change basic settings of the receiver with its LCD panel. To configure
the receiver for performing a wide variety of functions, you can use the web
interface by connecting the receiver with PC or smartphone through Wi-Fi.
2.2. PARTS OF THE RECEIVER
The operating controls are all located on the front panel. Battery
compartment and SIM card slot are on the backside. Serial ports and
connectors are located on the bottom of the unit.
2.2.1. FRONT PANEL

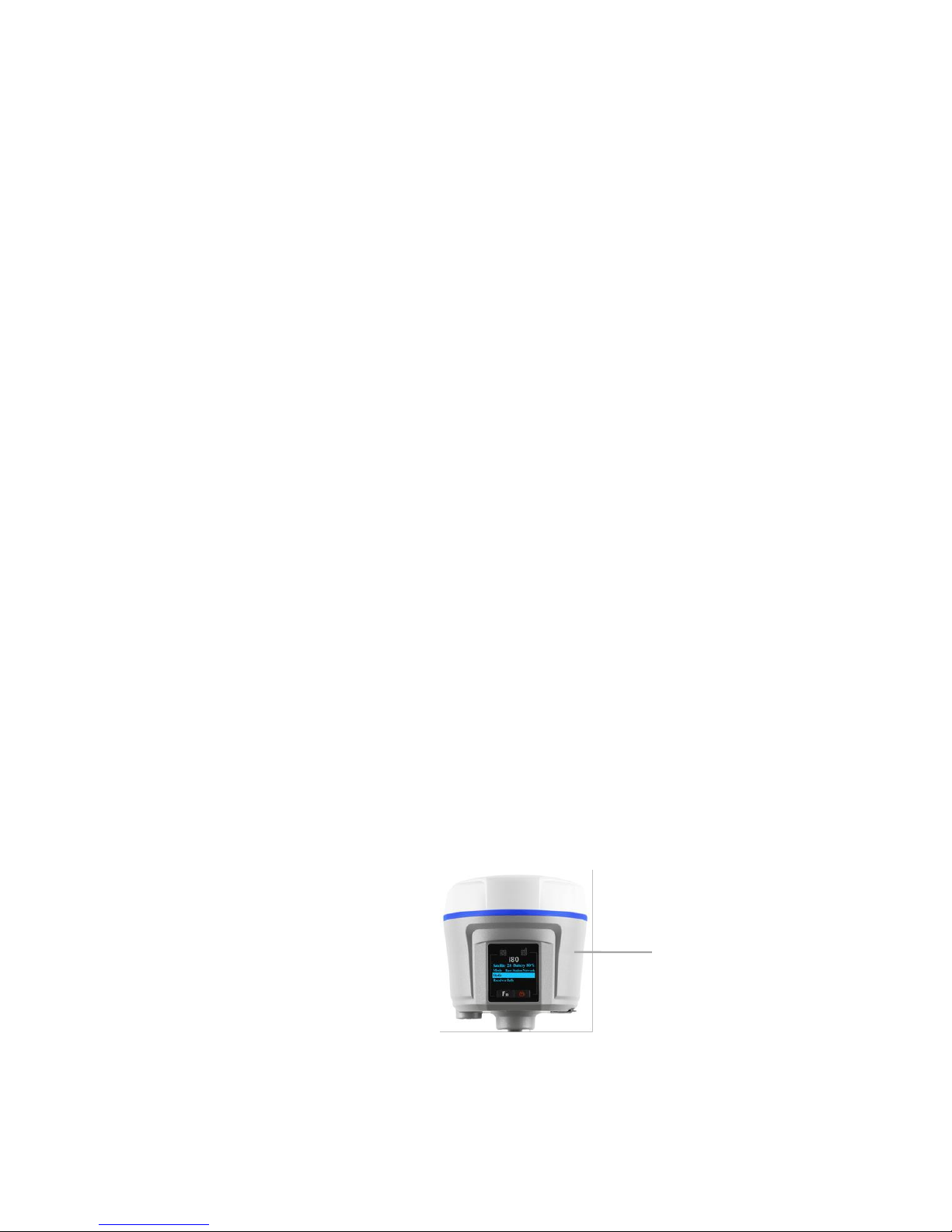

The following figure shows a front view of the receiver.
The front panel contains one LCD screen, two indicator LEDs, and two
buttons.
Front panel
Page 9
2. Getting started with i80
i80 GNSS Receiver User Guide Page 7
Name
Description
Satellite LED (Blue)
Shows the number of satellites that the receiver has
tracked.
When the receiver is searching satellites, the blue
LED flashes once every 5 seconds.
When the receiver has tracked N satellites, the blue
LED will flash N times every 5 seconds.
Correction LED (Green)
Indicates whether the receiver is transmitting/receiving
differential data.
The green LED flashes once per second when
As a Base station: successfully transmitting
differential data.
As a Rover station: successfully receiving differential
data from Base station.
LCD screen
This liquid crystal display enables you view the basic
information and current configuration settings of
receiver.
Fn button
Move to next line of the menus or options.
Move to next character of the value that you want
to make change.
Cancel the change you make on a function.
Power & Enter button
Works as a Power button:
Press and hold this button for 3 seconds to turn on
or turn off the receiver.
Works as a Enter button:
Advance to next screen.
Make change to the selected character or field.
Confirm the change you make on a function.
Confirm the changes you make on a screen.
Works as a Reset button:
Hold Fn button, and press this button for 5 times
Satellite LED
Correction LED
LCD screen
Fn button
Power & Enter
button
Page 10
2. Getting started with i80
i80 GNSS Receiver User Guide Page 8
continuously to reset the mainboard.
For more information about the front panel and relevant operations, see 3.
Front panel operation.
2.2.2. LOWER HOUSING
The lower housing contains one SIM card slot, two battery compartments,
one TNC radio antenna connector, two communication and power ports, one
5/8-11 threaded insert, and two nameplates.
2.2.3. RECEIVER PORTS
Port
Name
Description
IO port
This port is a 7-pin Lemo connector that supports RS-232
communications and external power input.
Users can use GPS to PC Data Cable supplied with the
system to realize RS-232 communications between the
receiver and computer or controller. Also, users can use a
7-pin cable to transmit differential data to an external radio.
TNC radio antenna
connector
SIM card slot
USB communication and
power in port
IO serial communication
and power in port
Battery compartment
5/8-11 threaded insert
Page 11
2. Getting started with i80
i80 GNSS Receiver User Guide Page 9
USB port
This port is a 7-pin Lemo connector that supports USB
communications and external power input.
Users can USB Cable supplied with the system to download
the logged data to a computer.
The OTG Cable supplied with the system can be used to
upgrade the receiver firmware by connecting the receiver
to a USB flash disk, or directly log the static data to a USB
flash disk.
Radio antenna
connector
Connect a radio antenna to internal radio of the receiver. And
this connector is not used if you are using an external radio.
2.3. BATTERIES AND POWER
2.3.1. INTERNAL BATTERIES
The receiver has two rechargeable Lithium-ion batteries, which can be
removed for charging.
2.3.1.1. Charging the battery
The rechargeable Lithium-ion battery is supplied partially charged. Charge
the battery completely before using it for the first time. To charge the
battery, first remove the battery from the receiver, and then place it in the
battery charger, which is connected to AC power.
WARNING - Charge and use the rechargeable Lithium-ion battery only in
strict accordance with the instructions. Charging or using the battery in
unauthorized equipment can cause an explosion or fire, and can result in
personal injury and/or equipment damage.
To prevent injury or damage:
• Do not charge or use the battery if it appears to be damaged or leaking.
• Charge the Lithium-ion battery only in a CHC product that is specified
to charge it. Be sure to follow all instructions that are provided with the
battery charger.
• Discontinue charging a battery that gives off extreme heat or a burning
odor.
• Use the battery only in CHC equipment that is specified to use it.
• Use the battery only for its intended use and according to the
instructions in the product documentation.
Page 12
2. Getting started with i80
i80 GNSS Receiver User Guide Page 10
2.3.1.2. Battery safe
WARNING - Do not damage the rechargeable Lithium-ion battery. A
damaged battery can cause an explosion or fire, and can result in personal
injury and/or property damage.
To prevent injury or damage:
• Do not use or charge the battery if it appears to be damaged. Signs of
damage include, but are not limited to, discoloration, warping, and leaking
battery fluid.
• Do not expose the battery to fire, high temperature, or direct sunlight.
• Do not immerse the battery in water.
• Do not use or store the battery inside a vehicle under hot weather
condition.
• Do not drop or puncture the battery.
• Do not open the battery or short-circuit its contacts.
WARNING - Avoid contact with the rechargeable Lithium-ion battery if it
appears to be leaking. Battery fluid is corrosive, and contact with it can result
in personal injury and/or property damage.
To prevent injury or damage:
• If the battery leaks, avoid with the battery fluid.
• If battery fluid gets into your eyes, immediately rinses your eyes with
clean water and seek medical attention. Please do not rub your eyes!
• If battery fluid gets onto your skin or clothing, immediately use clean
water to wash off the battery fluid.
2.3.2. EXTERNAL POWER SUPPLY
Two methods are available for providing the external power to the receiver
by the GPS to PC Data Cable/USB Cable+ Power Adapter, or GPS to PC Data
Cable/USB Cable + external power cable (option purchase)+ vehicle battery.
In the office:
The Power Adapter is connecting with AC power of 100-240V, the output
port of the Power Adapter connects with the Power Port of the GPS to PC
Data Cable/USB Cable.
Page 13
2. Getting started with i80
i80 GNSS Receiver User Guide Page 11

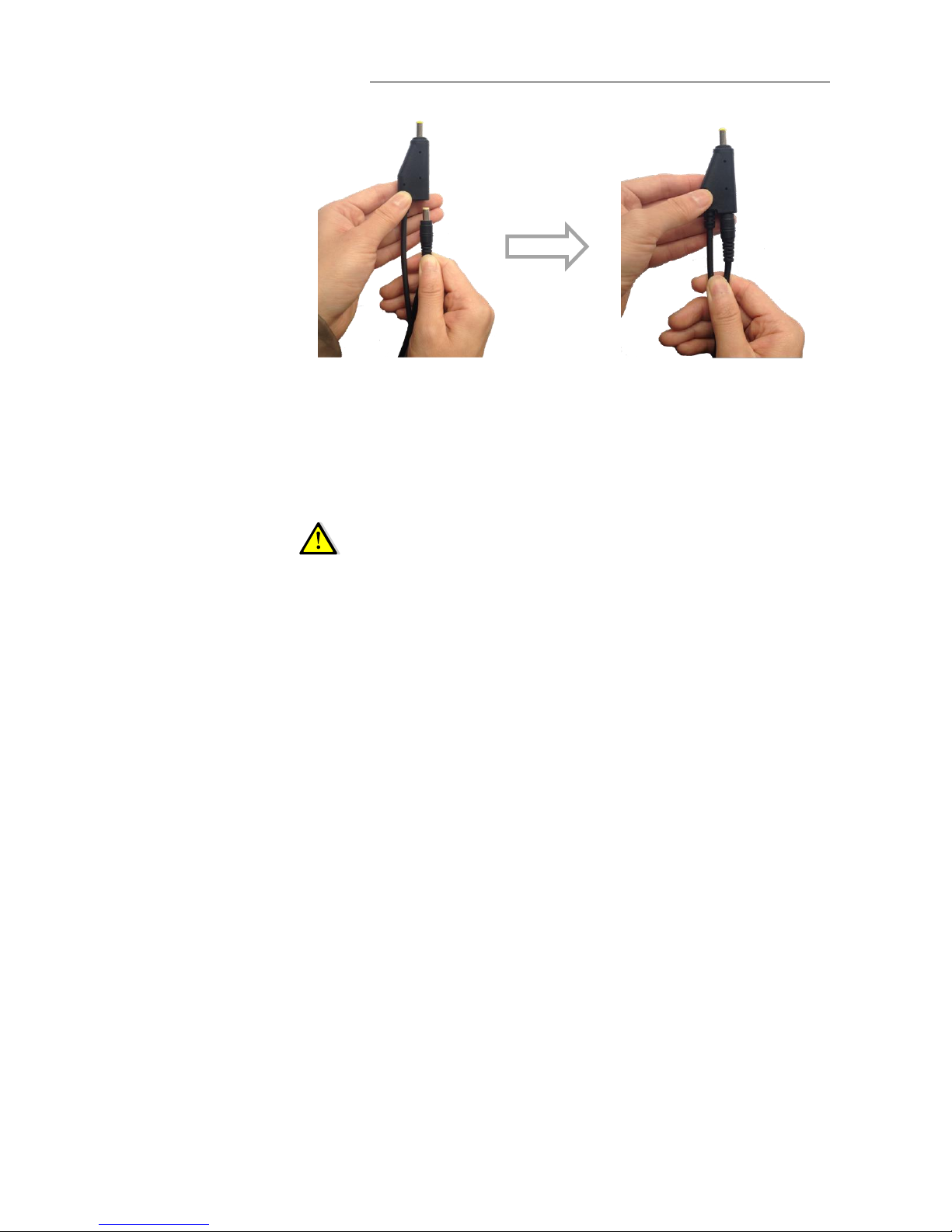

In the field:
The external power cable is connecting with a vehicle battery, the output
port of the external power cable connects with the Power Port of the GPS to
PC Data Cable/USB Cable.
WARNING - Use caution when connecting external power cable's clip leads
to a vehicle battery. Do not allow any metal object to connect (short) the
battery's positive (+) terminal to either the negative (-) terminal or the metal
part of the vehicle battery. This could result in high current, arcing, and high
temperatures, exposing the user to possible injury.
2.4. INSERTING BATTERY AND SIM CARD
Push down the spring-loaded button on the battery cover to open the cover.
Make electrode sheets of battery turn toward the receiver, align the socket
of the battery and the lug of the battery compartment, and then insert the
battery into the battery compartment until it is locked by the battery bail.
To remove the battery, slide the battery bail to the left or right.
Page 14
2. Getting started with i80
i80 GNSS Receiver User Guide Page 12
Insert the SIM card with the contacts facing upward, as indicated by the SIM
card icon next to the SIM card slot.
To eject the SIM card, slightly push it in to trigger the spring-loaded release
mechanism.
Tip – The SIM card is provided by your cellular network service provider.
2.5. PRODUCT BASIC SUPPLY ACCESSORIES
2.5.1. BASE KIT BASIC SUPPLY
Item
i80 GNSS Receiver
UHF Bar Antenna (450-470 MHz)
OTG Cable
USB Cable
Push down
Battery bail
Battery cover
Page 15
2. Getting started with i80
i80 GNSS Receiver User Guide Page 13
GPS to PC Data Cable
Lithium Battery
H.I. Tape
Extension pole
Tribrach with optical plummet
Auxiliary H.I. Tool
Tribrach adaptor
Transport Hard Case

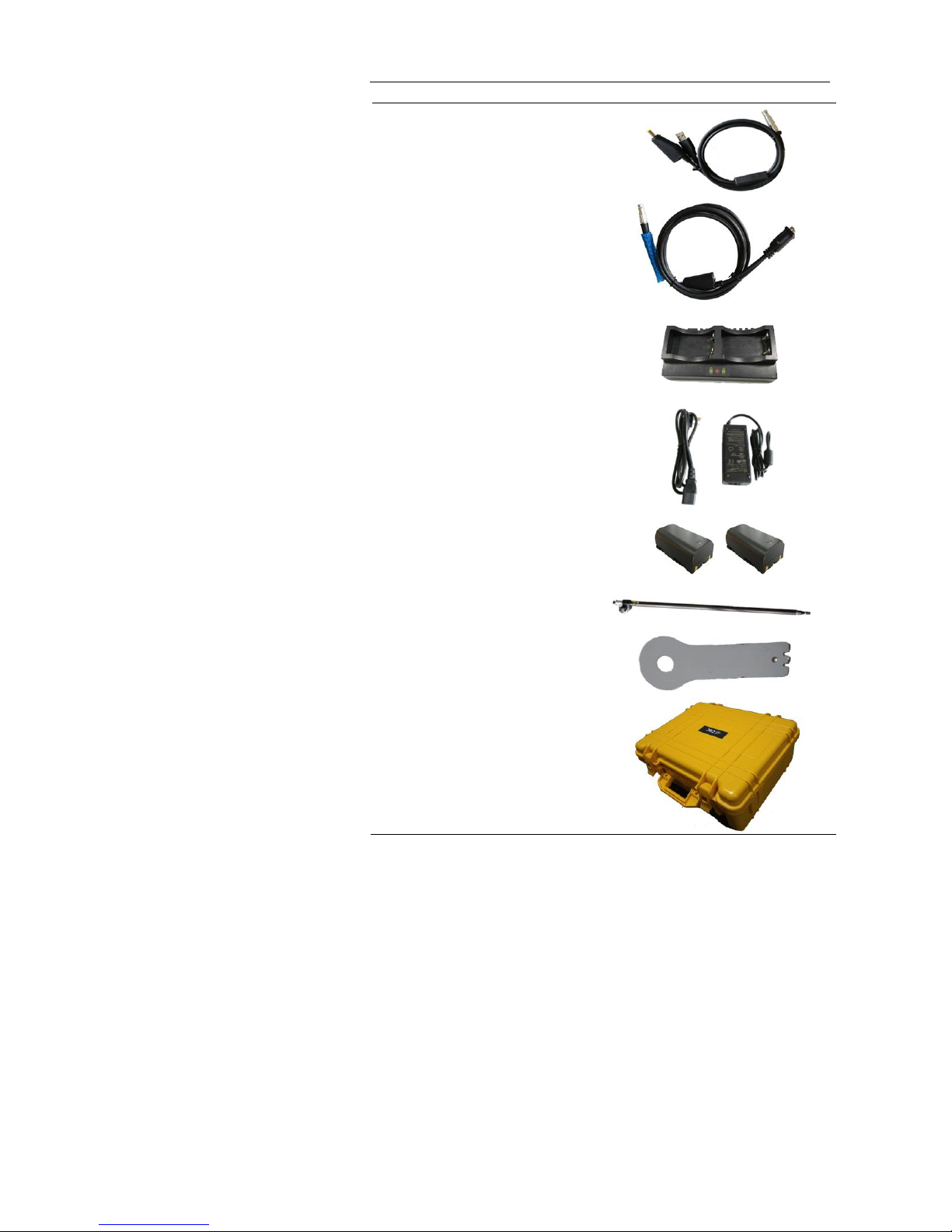

2.5.2. ROVER KIT BASIC SUPPLY
Item
i80 GNSS Receiver
UHF Bar Antenna (450-470 MHz)
OTG Cable
Page 16
2. Getting started with i80
i80 GNSS Receiver User Guide Page 14
USB Cable
GPS to PC Data Cable
Battery Charger
Power Adapter with Cord
Lithium Battery
2M Range Pole w/bag
Auxiliary H.I. Tool
Transport Hard Case
2.6. CONNECTING TO AN OFFICE COMPUTER
The receiver can be connected to an office computer for serial data transfer
or settings via a GPS to PC Data Cable. Before you connect to the office
computer, ensure that the receiver is powered on by internal battery or
external power.

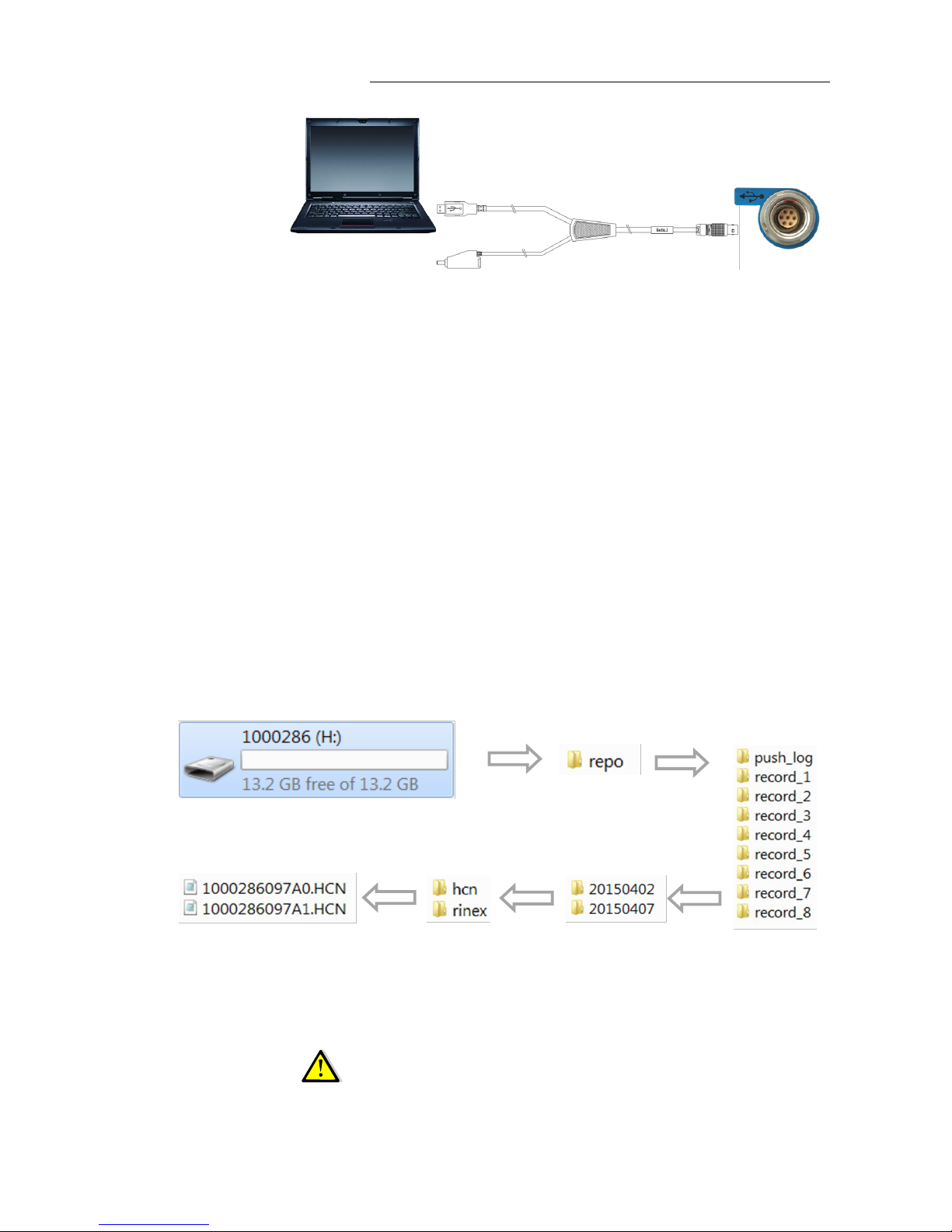

The following figure shows how to connect to the computer for serial data
transfer or settings:
Page 17
2. Getting started with i80
i80 GNSS Receiver User Guide Page 15
2.7. CONNECTING TO A CONTROLLER
2.7.1. CONNECTING VIA WI-FI WITH HCCONFIG SOFTWARE
1. Turn on the controller → run Hcconfig → tap Connection in the main
menu.
2. In the Connection screen, select CHC for the Manufacture field, Smart
GNSS for Device Type field, WIFI for Mode field.
3. Tap the setting button next to Mode field → turn on the Wi-Fi function
→ tap Menu button → tap Wi-Fi Settings.

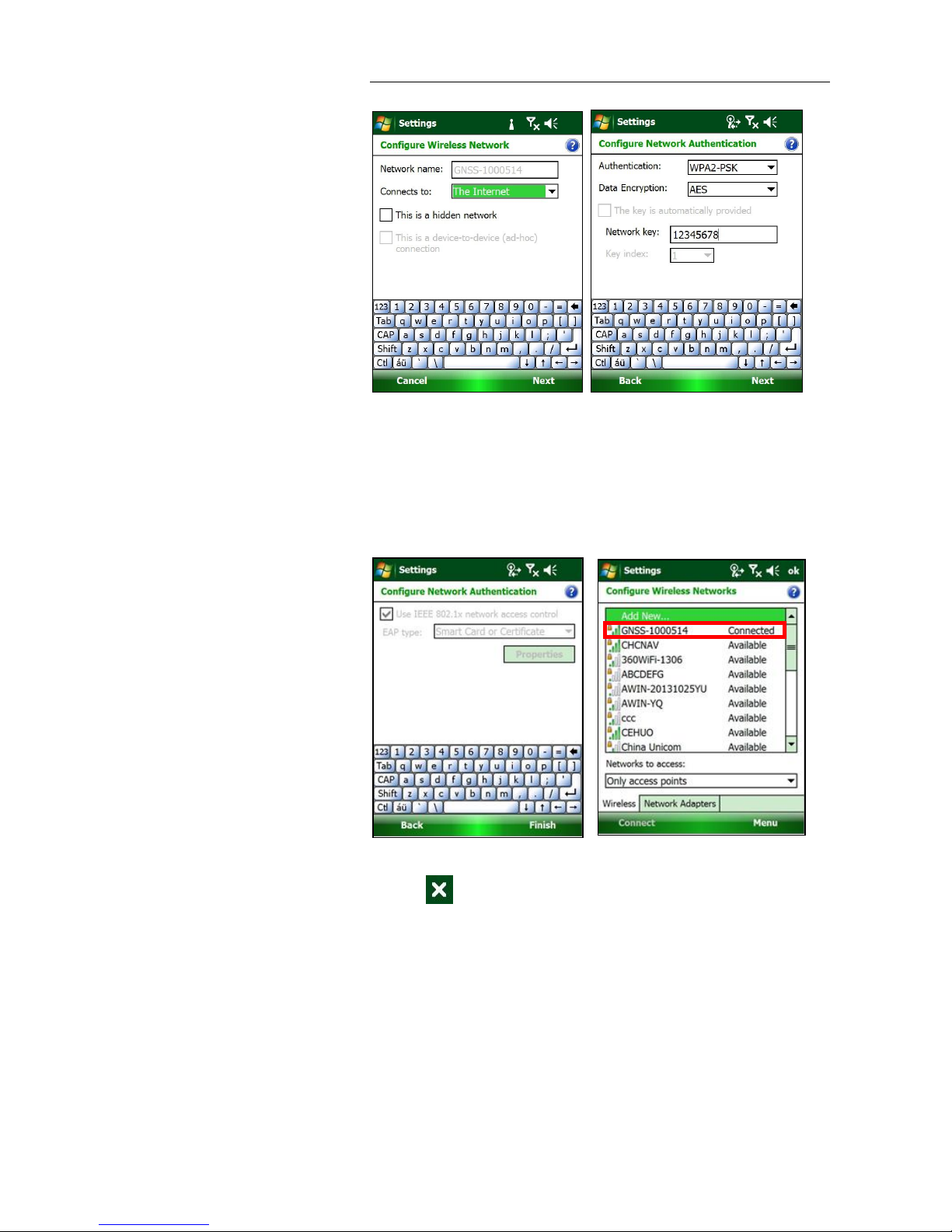

4. In the Configure Wireless Network Settings screen, tap the wireless
network named as the SN of your receiver.
5. In the pop-up screen, tap Next button to enter Configure Network
Authentication screen → enter the Network Key →tap Next button.
GPS to PC Data Cable
Page 18
2. Getting started with i80
i80 GNSS Receiver User Guide Page 16
Tip – The Wi-Fi key of the receiver is 12345678 by default.

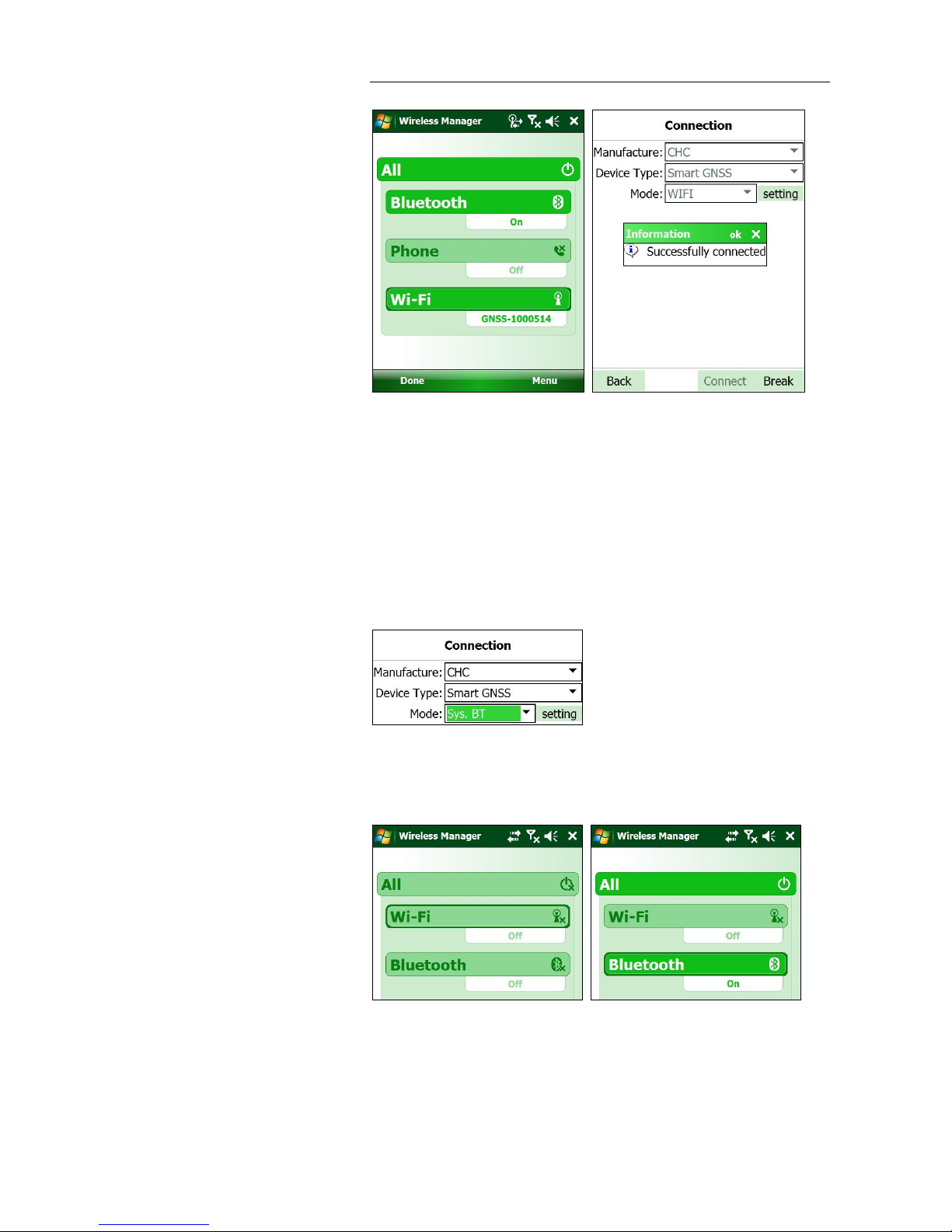

6. Tap Finish button in the pop-up screen, and then you can check that the
controller system has connected to the Wi-Fi of the receiver. Tap ok
button in the top right corner.
7. Tap button in the pop-up screen to go back to the Hcconfig screen
→ tap Connect button to connect the software with the receiver via
Wi-Fi.
Page 19
2. Getting started with i80
i80 GNSS Receiver User Guide Page 17
2.7.2. CONNECTING VIA BLUETOOTH WITH HCCONFIG SOFTWARE
2.7.2.1. Via system Bluetooth
1. Turn on the controller → run Hcconfig → tap Connection in the main
menu.
2. In the Connection screen, select CHC for the Manufacture field, Smart
GNSS for Device Type field, Sys. BT for Mode field.
3. Tap the setting button next to Mode field → turn on the Bluetooth
function → tap Menu button → tap Bluetooth Settings.
4. In the Bluetooth settings screen, select Devices tab. Tap Add new
device…, and then the system will search for Bluetooth devices.
Page 20
2. Getting started with i80
i80 GNSS Receiver User Guide Page 18
In the Select a Bluetooth screen, tap the Bluetooth device named as the SN
of your receiver → tap Next button.
5. In the Enter Passcode screen, enter the Passcode → tap Next button.
After the device is added, tap Done button.
Tip – The Bluetooth key of the receiver is 1234 by default.

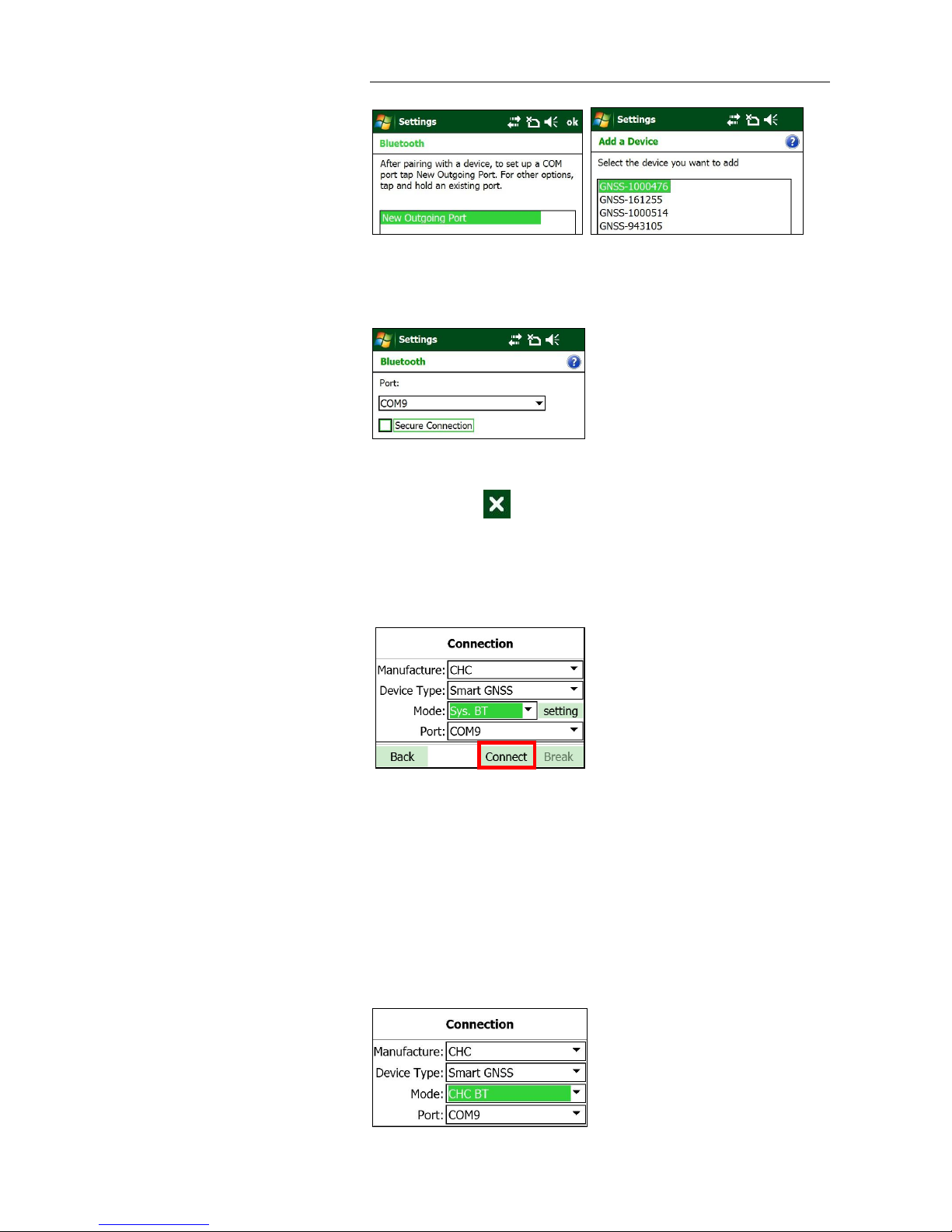

6. In the Bluetooth settings screen, select COM Ports tab. Tap New
Outgoing Port → select your receiver → tap Next button.
Page 21
2. Getting started with i80
i80 GNSS Receiver User Guide Page 19
7. Select a COM port that has not be used from the dropdown list of the
Port field → untick Secure Connection option → tap Finish button.
8. Tap ok button in the top right corner to back the Wireless Manager
screen → tap button to go back the Hcconfig screen →select COM
Port that you configured to connect the controller with the receiver for
the Port field → tap Connect button to connect the software with the
receiver via system Bluetooth.
2.7.2.2. Via CHC Bluetooth
1. Turn on the controller → run Hcconfig → tap Connection in the main
menu.
2. In the Connection screen, select CHC for the Manufacture field, Smart
GNSS for Device Type field, CHC BT for Mode field, COM Port that you
want to be used to connect the controller with the receiver for the Port
field.
Page 22
2. Getting started with i80
i80 GNSS Receiver User Guide Page 20

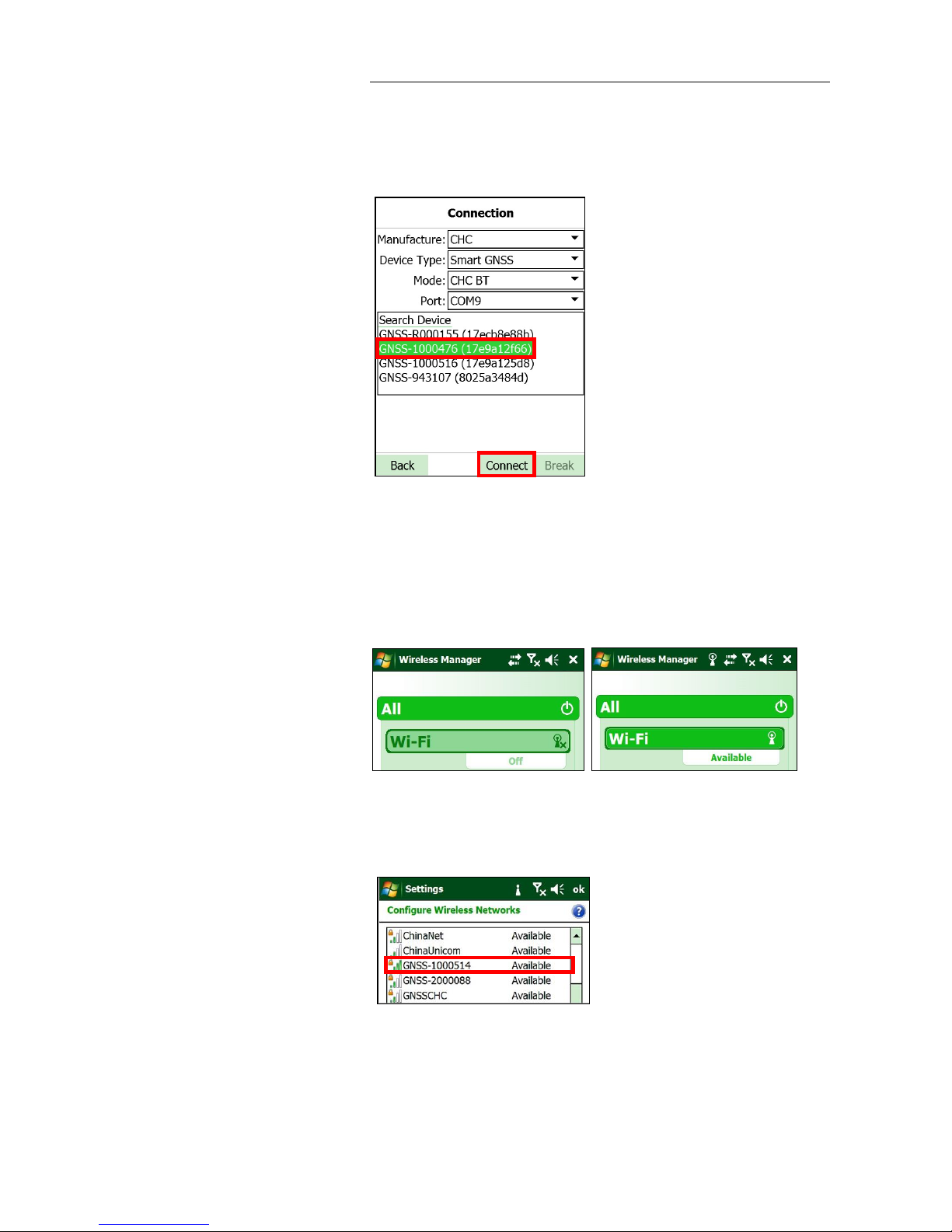

3. Tap Search Device to search the Bluetooth devices → tap the Bluetooth
device named as the SN of your receiver → tap Connect button to
connect the software with the receiver via CHC Bluetooth.
2.7.3. CONNECTING VIA WI-FI WITH LANDSTAR 6 SOFTWARE
1. Turn on the controller → tap Start button → tap Settings → select
Connection tab → tap Wireless Manager → turn on the Wi-Fi function
→ tap Menu button → tap Wi-Fi Settings.
2. In the Configure Wireless Network Settings screen, tap the wireless
network named as the SN of your receiver.
3. In the pop-up screen, tap Next button to enter Configure Network
Authentication screen → enter the Network Key →tap Next button.
Page 23
2. Getting started with i80
i80 GNSS Receiver User Guide Page 21
Tip – The Wi-Fi key of the receiver is 12345678 by default.
4. Tap Finish button in the pop-up screen, and then you can check that the
controller system has connected to the Wi-Fi of the receiver.

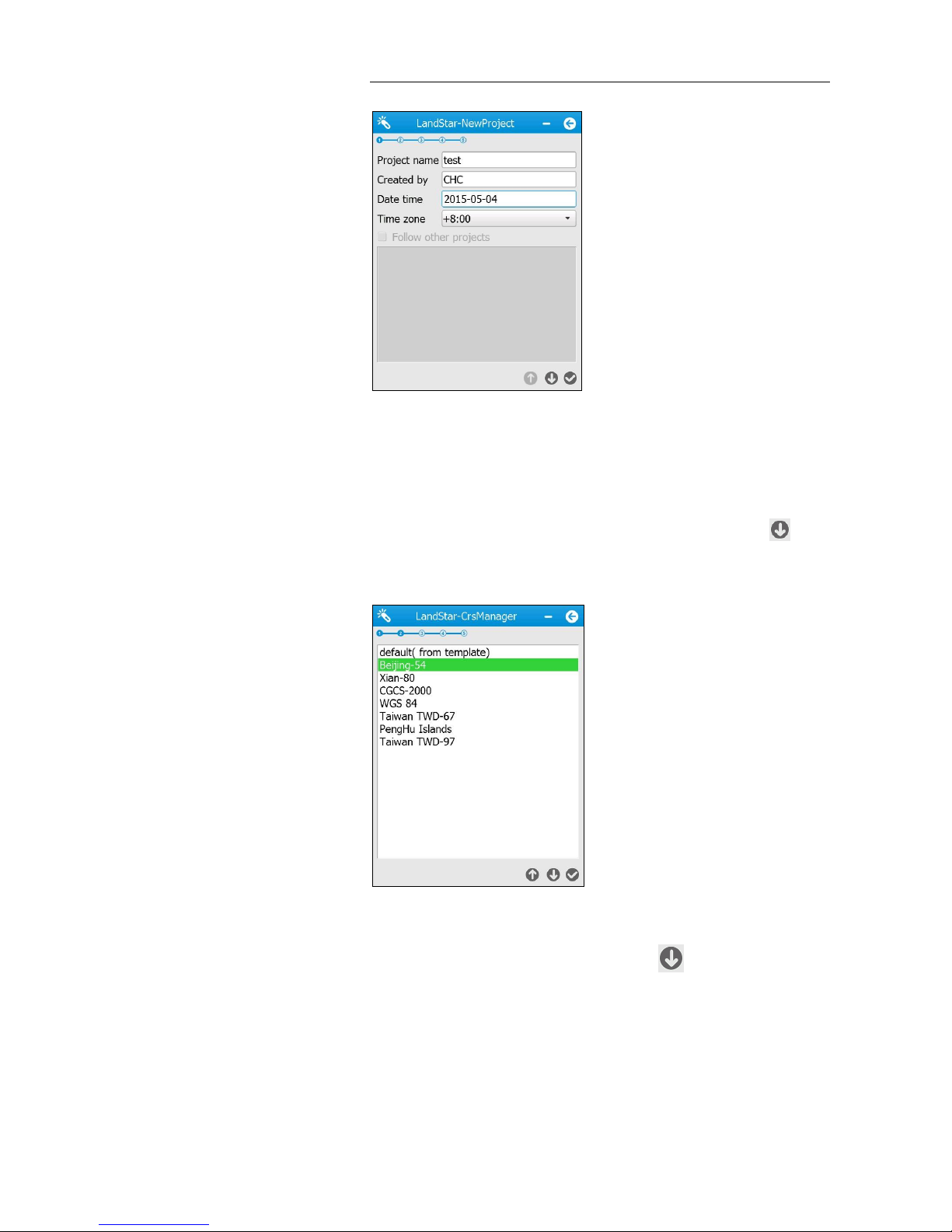

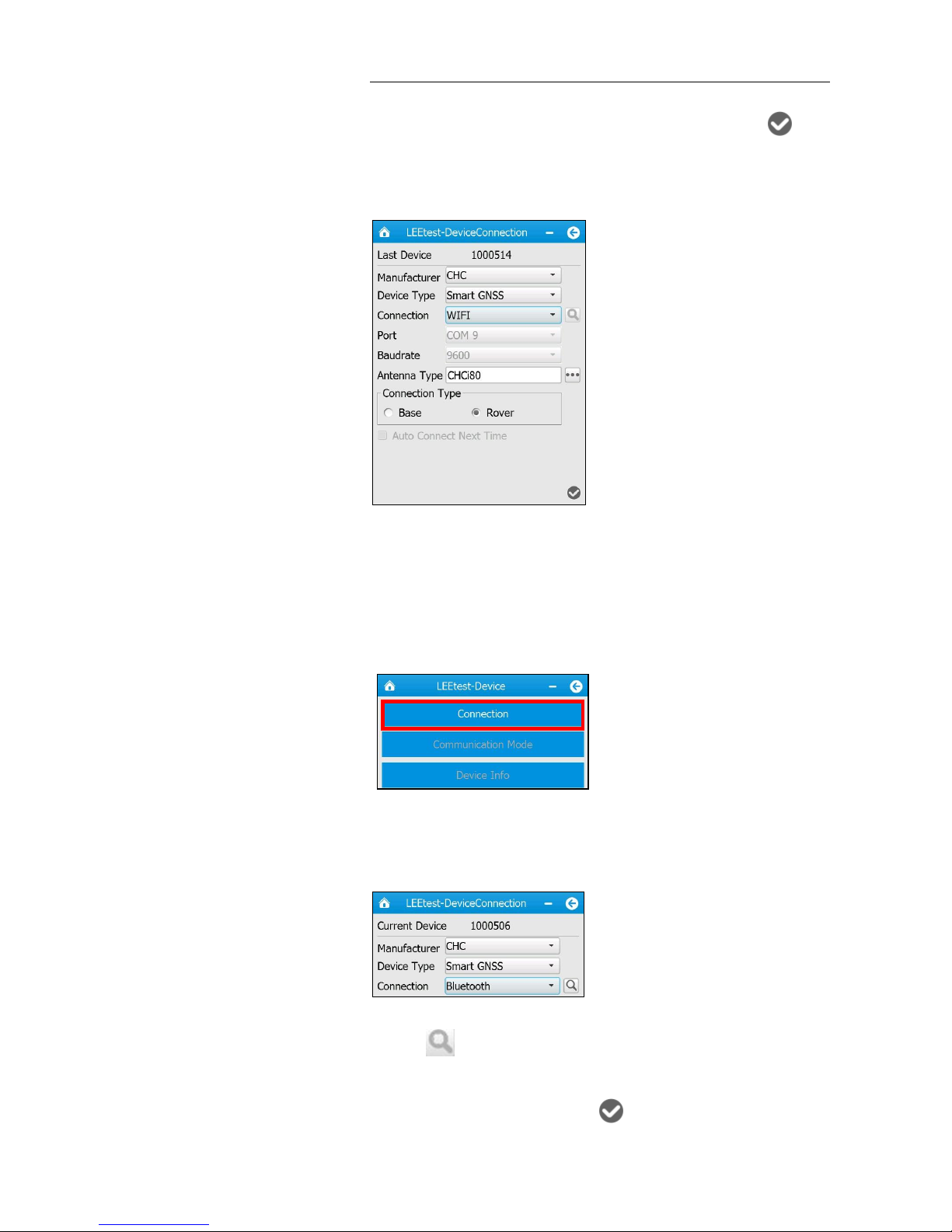

5. Go back to the main screen → run LandStar 6 → create a new project or
open an existing project.
6. In the Main Menu, tap Device →tap Connection.
7. Select CHC for the Manufacture field, Smart GNSS for Device Type field,
WIFI for Connect field, CHCi80 for Antenna Type field → select Base or
Page 24
2. Getting started with i80
i80 GNSS Receiver User Guide Page 22
Rover as Connection Type according to the your needs → tap in
the lower right corner to connect the software with the receiver via
Wi-Fi.
2.7.4. CONNECTING VIA BLUETOOTH WITH LANDSTAR 6 SOFTWARE
1. Turn on the controller →run LandStar 6 → create a new project or open
an existing project.
2. In the Main Menu, tap Device → tap Connection.
3. Select CHC for the Manufacture field, Smart GNSS for Device Type field,
Bluetooth for Connection field.

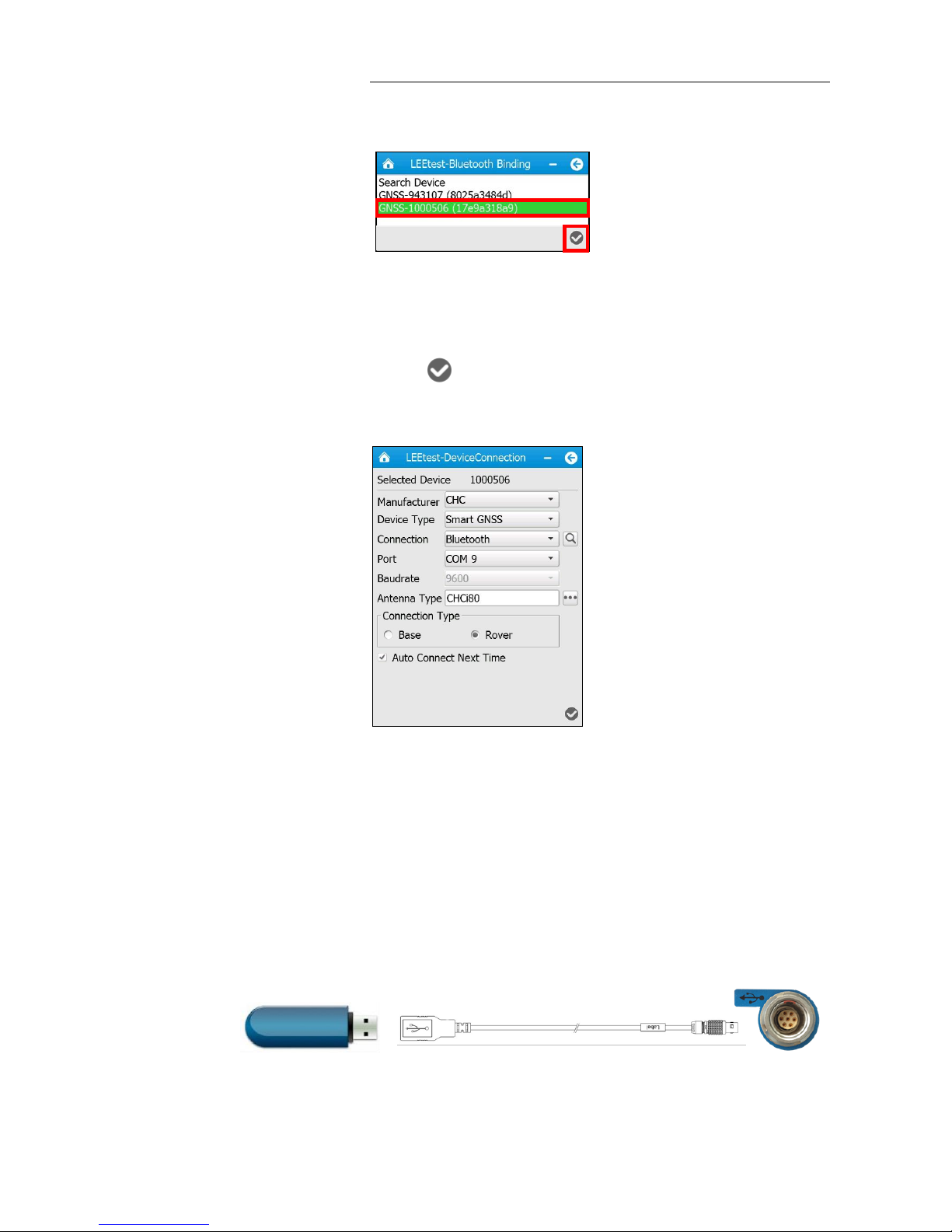

4. Tap icon next to Connection field → tap Search Device in the
pup-up Bluetooth Binding screen → select the Bluetooth device named
as the SN of your receiver → tap in the lower right corner to go
Page 25
2. Getting started with i80
i80 GNSS Receiver User Guide Page 23
back to Connection screen.
5. Select COM Port that you want to be used to connect the controller
with the receiver for the Port field → CHCi80 for Antenna Type field →
select Base or Rover as Connection Type according to the your needs →
tap in the lower right corner to connect the software with the
receiver via Bluetooth.
2.8. CONNECTING TO A USB DRIVE
The receiver can log data directly to a USB drive using the supplied OTG
cable. Also, users can use USB drive to upgrade the firmware for your
receiver using the OTG cable.
The following figure shows how to connect to a USB drive:
OTG Cable
Page 26
2. Getting started with i80
i80 GNSS Receiver User Guide Page 24
2.8.1. FOR DATA LOGGING
The receiver can log data directly to a USB drive; however, the logged
(existing) data cannot be downloaded directly from the receiver memory to
a USB drive.
To log data directly to a USB drive:
1. Connect the USB device (or other external storage device, such as
portable hard drive) with receiver through USB port using the OTG
cable.
2. Configure the data logging settings through a web browser (see 7.4.1.
Log Settings submenu for instruction).

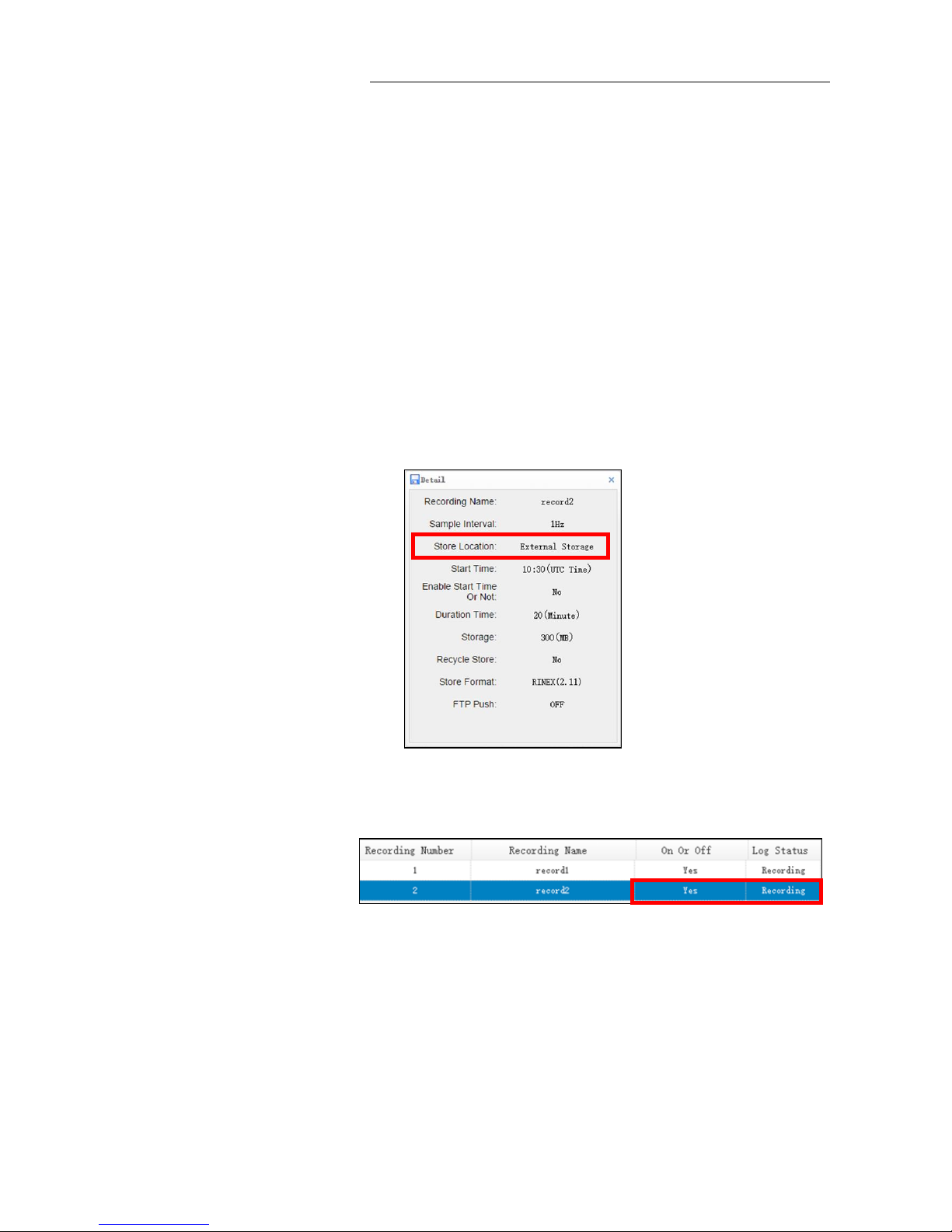

Notes
Select a data logging session, and then select “External Storage” as
the store location.
Make sure the data logging session selected is switched on after the
configuration. Also, user need to verify the Log Status is “Recording”
before leave the web browser.
3. The receiver will log static data to the USB drive.

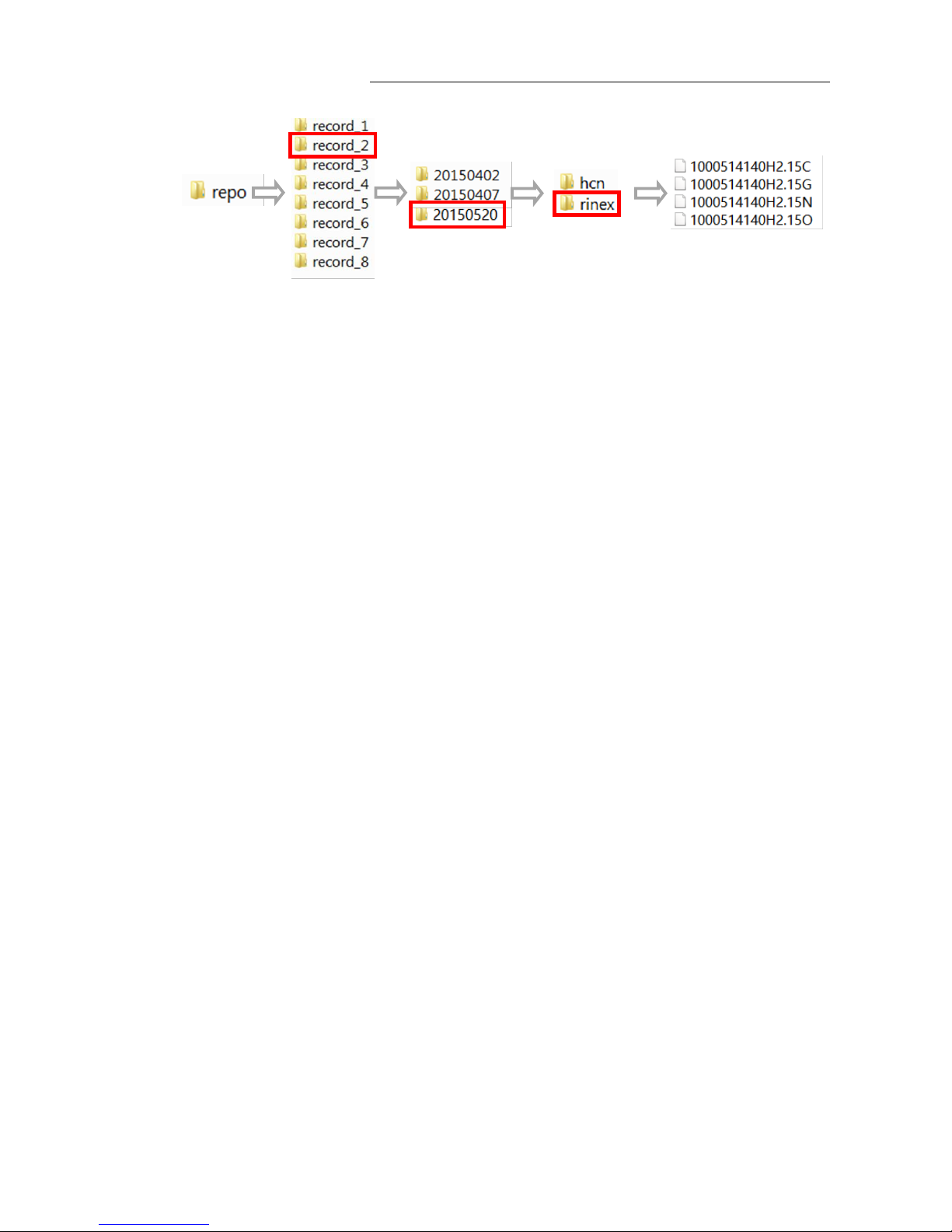

Note – To download the data logged in the USB driver, connect the USB
driver to the computer, find a folder named as “repo” in the USB drive, and
then locate the logged static data according to procedure illustrated as
follows:
Page 27
2. Getting started with i80
i80 GNSS Receiver User Guide Page 25
2.8.2. FOR FIRMWARE UPGRADE
1. Copy the firmware file (xxx.bin file) to the root directory of external
storage device such as USB drive, portable hard drive.
2. Connect the external storage device with receiver through USB port
using the OTG cable.
3. Restart the receiver and then the LCD screen will prompt you whether
to upgrade the firmware.
4. Press Fn button to upgrade the firmware.
5. When the upgrading is completed, the receiver will be restarted and the
LCD screen will prompt you whether to upgrade the firmware again.
6. Press Enter button to quit the upgrading and then remove the OTG
cable.
Note – You can also use Wi-Fi to upgrade the firmware for your receiver
using the web browser (see 7.11.3. Firmware update submenu for
instruction).
2.9. DOWNLOADING LOGGED DATA
Data logging involves the collection of GNSS measurement data over a
period of time at a static point or points, and subsequent postprocessing of
the information to accurately compute baseline information. Data logging
using receivers requires access to suitable GNSS postprocessing software
such as the CHC Geomatics Office (CGO) Software.
The following figure shows how to connect to the computer for downloading
logged data:
Page 28
2. Getting started with i80
i80 GNSS Receiver User Guide Page 26
The procedures of downloading logged data in the receiver are as follows:
1. Switch on the receiver and connect it with a computer by USB Cable.
After the successful connection, a removable disk named as the Serial
Number (SN) of the receiver will appear on the computer.
2. Double click the removable disk and you will see the folder named as
“repo”. Double click this folder, you will see 9 folders. The “push_log”
folder is used to save the log files, and the other 8 folders represent
different logging session and are used for store static data.
3. Double click the folder that you has configured to store the static data,
you will see the folder(s) created by the i80 system automatically and
named by the date which is decide by GPS time when you start to log
data.
4. Select the destination folder and double click it, and then two folders
named as different data format (hcn and rinex) will be displayed.
5. Select the data format that you has configured to save the static data,
you will find the static raw data.
Tip – For hcn files, the name of the file is represented as XXXXXXDDDNN,
where XXXXXX is the SN of the receiver, DDD is day of year, and NN is the
recording session.
WARNING – The static data will be saved in the first logging session, the
“record_1” folder, by default. Old files will be deleted if the storage space is
full. If you configure not to auto delete old files when the memory is low, the
receiver will stop data logging.
USB Cable
Page 29
i80 GNSS Receiver User Guide Page 27
3. FRONT PANEL OPERATION
The front panel contains one LCD screen, two indicator LEDs, and two
buttons. The operating controls are all located on the front panel.
3.1. MAIN OPERATION MENUS
The main operation menus of the front panel are as follows:
Top-level Menu
Second-level Menu
Description
SV: 22 Battery: 97%
Click Enter button to enter the
second-level menus.
Indicates the number of the satellites
tracked and the internal batteries power
remaining.
If the receiver is searching for satellites
and the batteries are not be inserted, this
menu will be displayed as “SV: Getting
Battery: N/A”.
22 = G09 R05 C07 S00 E0
Indicates the total number of satellites that
have been tracked and the number of satellites
tracked of each constellation, where G
represents GPS, R represents GLONASS, C
represents BeiDou, S represents SBAS and E
represents Galileo.
Pwr: A 97% B 97%
Indicates the remaining power of the battery
inserted in the left (B) and right (A) battery
compartment.
Wlan Status On Wlan Mode
HotSpot
Indicates the Wi-Fi status.
Click Enter button to change the status,
and then click Fn button to cancel the
change, or click Enter button to confirm
the change.
Dial Status Offline
Indicates whether the receiver has been
connected to cellular network.
Generally, when the SIM card has been
inserted before the receiver is turned on,
this menu will be displayed as “Dial Status
Online”.
Cancel
Click Enter button to back to the top-level
menu.
Mode Rover UHF
Click Enter button to enter the
Page 30
3. Front panel operation
i80 GNSS Receiver User Guide Page 28
Top-level Menu
Second-level Menu
Description
second-level menus.
Indicates the current working mode.
Base Cable
Click Enter button to enter the
configuration screen of the selected
working mode.
More operation information, see 3.2.
Configure the working mode.
Base Int. UHF
Base APIS
Base APIS & Cable
Rover APIS
Rover Ntrip/IP
Rover UHF
Cancel
Click Enter button to back to the top-level
menu.
Static Off
Click Enter button to enter the
second-level menus.
Indicates the current data logging status:
Static Off or Static On.
Set Off
Click Enter button to change the data logging
status.
Recorded 00:02
Indicates the duration of data logging.
Epoch Intv 1s
Click Enter button to change the
measurement interval.
The available options are: 0.2s, 0.5s, 1s,
2s, 5s, 10s, 15s, 30s, and 60s.
Mask Angle 13 Degree
Click Enter button to change the mask degree
from 0 degree to 15 degrees.
Duration time 1440 min
Click Enter button to enter Duration Time
Setting screen.
In the Duration Time Setting screen, click
Fn button to move to the character of the
duration time value you want to make
change, and then click Enter button to
change from 0 to 9. After the change has
been done, you can click Fn button to
move to OK field, and then click Enter
button to save the change and back to the
second-level menu; or click Fn button to
move to Cancel field and click Enter
button to cancel the change and back to
the second-level menu.
OK
Click Enter button to save the settings of the
data logging and back to the top-level menu,
and then the settings will take effect.
Page 31
3. Front panel operation
i80 GNSS Receiver User Guide Page 29
Top-level Menu
Second-level Menu
Description
Cancel
Click Enter button to cancel the settings of the
data logging and back to the top-level menu.
Receiver Info.
Click Enter button to enter the second-level
menus and check the basic information about
the receiver.
SN 1000514
Displays the Serial Number (SN) of the receiver.
PN 1180020032231
Displays the Part Number (PN) of the receiver.
Reg. 20301231
Displays the expiry date of registration code.
Ver. 1.1.16
Displays the firmware version.
Language English
Click Enter button to change the display
language between Chinese, English and
Russian.
Cancel
Click Enter button to back to the top-level
menu.
3.2. CONFIGURE THE WORKING MODE
7 working modes are provided for quickly setting up a RTK base station or
rover station. Users can configure each working mode through front panel as
follows:
Working Mode
Menus in Configuration Screen
Description
Base Cable
Set up the receiver as a base station using
external UHF.
Click Enter button to enter the
configuration screen.
Mode Base Cable
The title of this configuration screen.
Format CMR
Click Enter button to change the correction
format.
The available correction formats are: CMR,
CMR+, SCMR, RTCM v2.3, RTCM v3, and
RTCM v3.2.
OK
Click Enter button to save the settings and back
to the top-level menu, and then this working
mode will take effect.
Cancel
Click Enter button to cancel the settings and back
to the second-level menu.
Base Int. UHF
Set up the receiver as a base station using
internal UHF.
Click Enter button to enter the
configuration screen.
Page 32
3. Front panel operation
i80 GNSS Receiver User Guide Page 30
Working Mode
Menus in Configuration Screen
Description
Mode Base Int. UHF
The title of this configuration screen.
Channel 1
Click Enter button to change the channel from 1
to 9.
Format CMR
Click Enter button to change the correction
format.
The available correction formats are: CMR,
CMR+, SCMR, RTCM v2.3, RTCM v3, and
RTCM v3.2.
Power 2w
Click Enter button to change the
transmitting power.
The available transmitting power options
are: 0.1w, 0.5w, 1w and 2w.
Protocol CHC
Indicates the current protocol.
OK
Click Enter button to save the settings and back
to the top-level menu, and then this working
mode will take effect.
Cancel
Click Enter button to cancel the settings and back
to the second-level menu.
Base APIS
Set up the receiver as a base station using
APIS service.
Click Enter button to enter the
configuration screen.
Mode Base APIS
The title of this configuration screen.
Format CMR
Click Enter button to change the correction
format.
The available correction formats are: CMR,
CMR+, SCMR, RTCM v2.3, RTCM v3, and
RTCM v3.2.
IP 211.144.118.5
Click Enter button to enter Common IP
screen.
In Common IP screen, click Fn button to
move to the line of IP address, and then
click Enter button to change to other
predefined IP address. After the IP address
has been changed, you can click Fn button
to move to OK field, and then click Enter
button to save the change and back to the
second-level menu; or click Fn button to
move to Cancel field and click Enter button
to cancel the change and back to the
Page 33
3. Front panel operation
i80 GNSS Receiver User Guide Page 31
Working Mode
Menus in Configuration Screen
Description
second-level menu.
Port 9901
Click Enter button to change the port from 9901
to 9920.
OK
Click Enter button to save the settings and back
to the top-level menu, and then this working
mode will take effect.
Cancel
Click Enter button to cancel the settings and back
to the second-level menu.
Base APIS & Cable
Set up the receiver as a base station using
both APIS service and external UHF.
Click Enter button to enter the
configuration screen.
Mode Base APIS & Cable
The title of this configuration screen.
Way Cable & APIS
Indicates that the receiver is set up as a base
station using not only external UHF, but also APIS
service
Format CMR
Click Enter button to change the correction
format.
The available correction formats are: CMR,
CMR+, SCMR, RTCM v2.3, RTCM v3, and
RTCM v3.2.
IP 211.144.118.5
Click Enter button to enter Common IP
screen.
In Common IP screen, click Fn button to
move to the line of IP address, and then
click Enter button to change to other
predefined IP address. After the IP address
has been changed, you can click Fn button
to move to OK field, and then click Enter
button to save the change and back to the
second-level menu; or click Fn button to
move to Cancel field and click Enter button
to cancel the change and back to the
second-level menu.
Port 9901
Click Enter button to change the port from 9901
to 9920.
OK
Click Enter button to save the settings and back
to the top-level menu, and then this combination
working mode will take effect.
Cancel
Click Enter button to cancel the settings and back
to the second-level menu.
Page 34
3. Front panel operation
i80 GNSS Receiver User Guide Page 32
Working Mode
Menus in Configuration Screen
Description
Rover APIS
Set up the receiver as a rover station using
APIS service.
Click Enter button to enter the
configuration screen.
Mode Rover APIS
The title of this configuration screen.
Current Base SN 1000456
Display the SN of corresponding base
station.
Click Enter button to enter Base SN setting
screen. In the Base SN setting screen, click
Fn button to move to the character of the
value you want to make change, and then
click Enter button to change from digital 0
to 9 (in addition, the initial character can be
changed to letter R). After the change has
been done, you can click Fn button to move
to OK field, and then click Enter button to
save the change and back to the
second-level menu; or click Fn button to
move to Cancel field and click Enter button
to cancel the change and back to the
second-level menu.
IP 211.144.118.5
Click Enter button to enter Common IP
screen.
In Common IP screen, click Fn button to
move to the line of IP address, and then
click Enter button to change to other
predefined IP address. After the IP address
has been changed, you can click Fn button
to move to OK field, and then click Enter
button to save the change and back to the
second-level menu; or click Fn button to
move to Cancel field and click Enter button
to cancel the change and back to the
second-level menu.
Port 9901
Click Enter button to change the port from 9901
to 9920.
OK
Click Enter button to save the settings and back
to the top-level menu, and then this working
mode will take effect.
Cancel
Click Enter button to cancel the settings and back
to the second-level menu.
Rover Ntrip/IP
Set up the receiver as a rover station using
Page 35
3. Front panel operation
i80 GNSS Receiver User Guide Page 33
Working Mode
Menus in Configuration Screen
Description
Ntrip.
Click Enter button to enter the
configuration screen.
Mode Rover Ntrip/IP
The title of this configuration screen.
Status Logged
Indicates current status of Ntrip: Status Not
Logged or Status Logged.
Users need to use the web interface to
configure the settings to log on Ntrip (see
7.5.1. IO Settings submenu → RTK Client for
instruction) before.
Note – Make sure a valid SIM card has been
inserted in the receiver.
OK
Click Enter button to save the settings and back
to the top-level menu, and then this working
mode will take effect.
Cancel
Click Enter button to cancel the settings and back
to the second-level menu.
Rover UHF
Set up the receiver as a rover station using
internal UHF.
Click Enter button to enter the
configuration screen.
Mode Rover UHF
The title of this configuration screen.
Channel 1
Click Enter button to change the channel from 1
to 9. Protocol CHC
Indicates the current protocol.
OK
Click Enter button to save the settings and back
to the top-level menu, and then this working
mode will take effect.
Cancel
Click Enter button to cancel the settings and back
to the second-level menu.
Note – The operation menus of front panel may vary from different firmware
versions of your receiver. The menus described in this chapter are based on
firmware version 1.1.16.
Page 36
i80 GNSS Receiver User Guide Page 34
4. BASE STATION SETUP AND OPERATION
Real-Time Kinematic (RTK) operation provides centimeter-level precision by
eliminating errors that are present in the GNSS system. For all RTK
operations, you require both a rover receiver and a source of corrections
from a base station or network of base stations.
A base station consists of a receiver that is placed at a known point. The
receiver tracks the same satellites that are being tracked by the rover
receiver simultaneously. Errors in the GNSS system are monitored at the
base station, and a series of position corrections are computed. The
messages are sent through a radio link to the rover receiver, where they are
used to correct the real time positions of the rover.
This chapter provides the information to help you identify good setup
locations, outlines basic precautions that you need to take to protect the
equipment, and describes the conventional process to set up the base
station and the configuring procedure that required for transmitting
correction data.
4.1. BASE STATION SETUP GUIDELINES
For good performance, the following base station setup guidelines are
recommended:
Place the GNSS receiver in a location on the worksite where equal
range in all directions provides full coverage of the site.
Place the GNSS antenna in a location that has a clear line of sight to the
sky in all directions. Do not place the antenna near vertical obstructions
such as buildings, deep cuttings, site vehicles, towers, or tree canopy.
The GNSS antenna must have a dear line of sight to the sky at all times
during operation.
Place the GNSS and radio antennas as high as practical. This minimizes
multipath from the surrounding area, and enables the radio to
broadcast to the maximum distance.
Choose the most appropriate radio antenna for the size of the worksite.
The higher the gain on the antenna, the longer the range.
Make sure that the GNSS receiver does not lose power. To operate
continuously for more than a few hours without loss of power at the
base station, provide external power. When you use an external power
supply, the integrated battery provides a backup power supply,
enabling you to maintain continuous operation through a mains power
failure.
Do not locate a GNSS receiver, GNSS antenna, or radio antenna within
400 meters (about 1,300 feet) of transmitters, such as a power radar or
Page 37
4. Base station setup and operation
i80 GNSS Receiver User Guide Page 35
cellular communications tower.
Do not set up the base station close to the sources of electromagnetic
interference, include alternators and generators, electric motors,
equipment with DC-to-AC converters, etc.
Do not operate the receiver outside the specified operating
temperature range -40°C to +60°C (-40°F to +140°F).
Take reasonable care to keep the GNSS receiver equipment dry, which
could prolong their life and reduce the effects of corrosion on ports and
connectors.
4.2. OUTPUTTING CORRECTIONS USING INTERNAL RADIO MODEM
4.2.1. BASE STATION SETUP

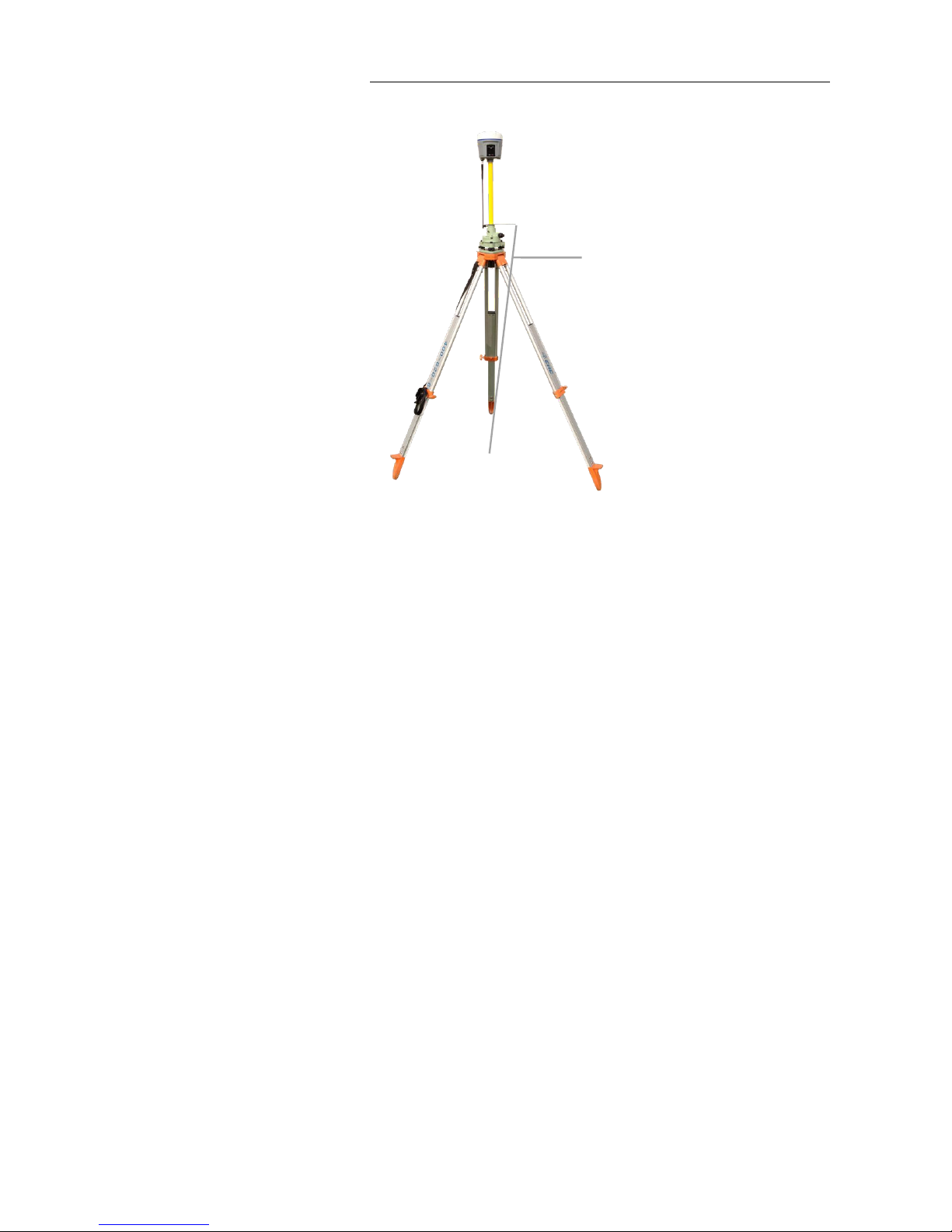

1. Connect the radio antenna onto i80 receiver. Screw the receiver onto
extension pole.
2. Screw the extension pole with auxiliary H.I. tool onto tribrach adaptor.
3. Mount the tribrach onto the tripod.
4. Insert the tribrach adaptor into the tribrach.
5. Level and plumb the receiver over the known (control) point.
6. Measure the height of the base station GNSS antenna by measuring the
slant height from the known (control) point to the auxiliary H.I. tool.
Note – Select “Bottom” as the measurement method, select “CHCi80” as
antenna type, and then enter the vertical height from the known (control)
point to the bottom of receiver that you calculated by adding the height of
the extension pole to the height from the known (control) point to the
auxiliary H.I. tool, the CHC LandStar 6 will calculate the height to the
Antenna Phase Center (APC) automatically.
7. If required, connect the receiver to an external 12 V power supply.
Page 38
4. Base station setup and operation
i80 GNSS Receiver User Guide Page 36
4.2.2. CONFIGURING THE BASE STATION
4.2.2.1. Configuring via Hcconfig software
1. Power on the receiver.
2. Turn on the controller, run Hcconfig and establish the connection with
receiver via Bluetooth or Wi-Fi (see 2.7. Connecting to a controller for
the operations).
3. After successful connection, tap RTK in the main menu.
4. In RTK screen, select Mode from the dropdown list.
When select Auto Base for Mode field:
5. Configure the related parameters: Format, Baud, Elevation and PDOP.
6. Tick Radio option for Enable IO.
7. Tap Set button to save the settings, and then tap Back button to go back
to main menu.
8. Tap GPRS And Internal UHF in the main menu, select Internal UHF for
Work Mode.
9. Configure the internal radio parameters according to your need:
Frequency and Power.
10. Tick Auto Power and Power on to turn on the internal UHF modem.
11. Tap Set button to save the settings → tap Back button to go back to
main menu →tap Exit → select Exit Software Only option to exit
Hcconfig.
When select Manual Base for Mode field:
Slant height
Page 39
4. Base station setup and operation
i80 GNSS Receiver User Guide Page 37
5. Configure the related parameters: Format, Baud, Elevation and PDOP.
6. Tap Here button to obtain the current position or manually enter the
coordinates of the known point in B, L and H.
7. Tick Radio option for Enable IO.
8. Tap Set button to save the settings, and then tap Back button to go back
to main menu.
9. Tap GPRS And Internal UHF in the main menu, select Internal UHF for
Work Mode.
10. Configure the internal radio parameters according to your need:
Frequency and Power.
11. Tick Auto Power and Power on to turn on the internal UHF modem.
12. Tap Set button to save the settings → tap Back button to go back to
main menu →tap Exit → select Exit Software Only option to exit
Hcconfig.
4.2.2.2. Configuring via LandStar 6 software
1. Power on the receiver.
2. Turn on the controller → run LandStar 6 → create a new project or open
an existing project → establish the connection with receiver via
Bluetooth or Wi-Fi (see 2.7. Connecting to a controller for the
operations).
3. After successful connection, tap Communication Mode in the Device
screen.
4. In Communication Mode screen, select Radio for Mode field.
5. Configure the related parameters from the dropdown list: Protocol, Freq,
Baud and Power.
6. Tap to confirm and save the settings → tap in the lower
right corner to back to Device screen.
7. Tap Base Config → select Start Base Station tab.

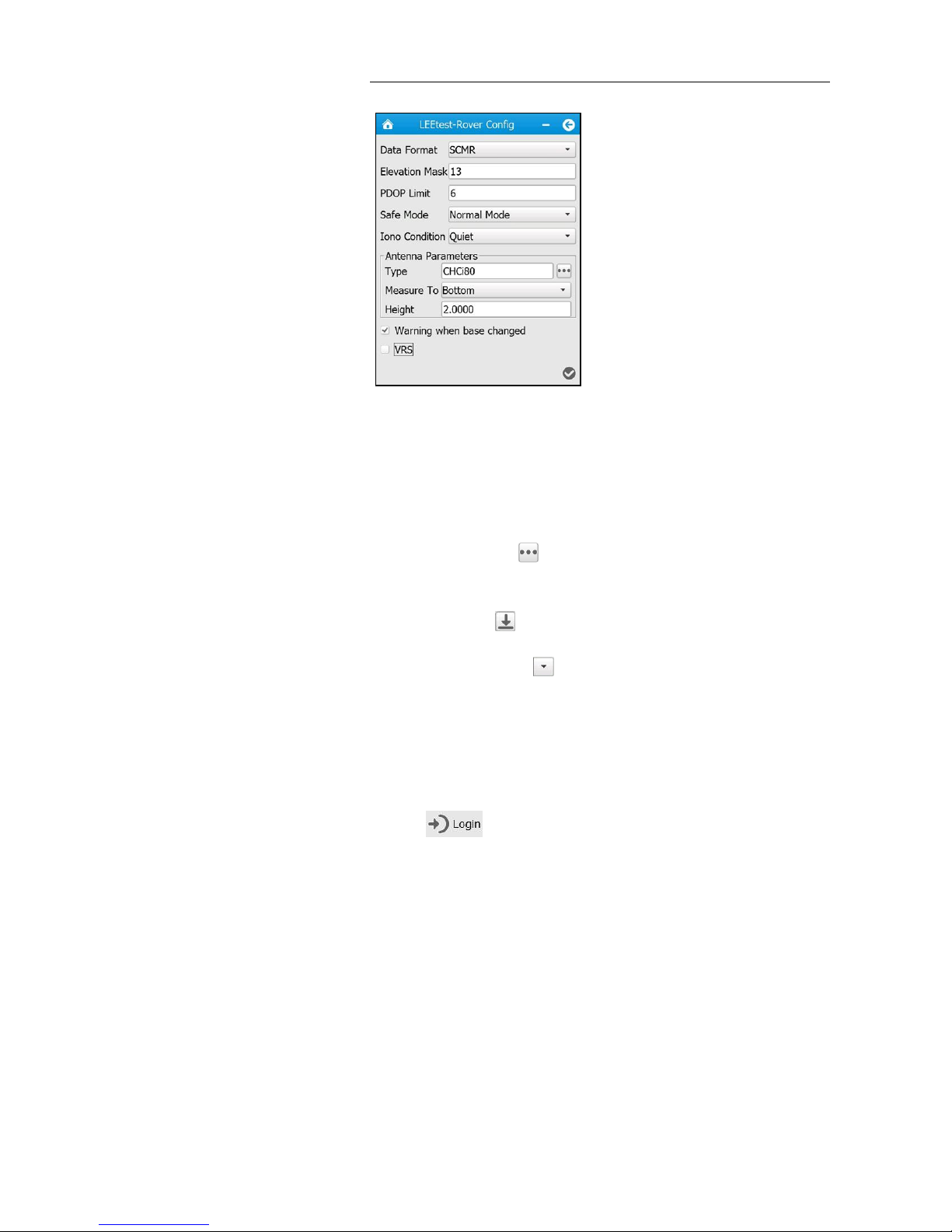

8. Configure the GNSS antenna related parameters as follows:
Type field: tap next to Type field to select CHCi80 as antenna type.
Measure To field: select Bottom from the dropdown list.
Height field: enter the vertical height (in meters) you calculated from
the known (control) point to the bottom of receiver for
Height field.
9. Configure the coordinates of base station.
There are three methods available to configure the base station
coordinates:
a) Tap next to Name field to select an existing point.
Page 40
4. Base station setup and operation
i80 GNSS Receiver User Guide Page 38
b) Manually enter the coordinates of the known point in B, L and H.
c) Tap Get Current Position button to obtain the current position of
the base receiver.
10. Go to Base Parameters tab → select Inner Radio for Transmit COM field
→ configure the Data Format field, Baud Rate field and Elevation Mask
field according to your need.
11. Tap in the lower right corner to save the settings, and then the
LandStar 6 will disconnect with the receiver automatically.
4.3. OUTPUTTING CORRECTIONS USING EXTERNAL RADIO
4.3.1. BASE STATION SETUP
For base receiver part:
1. Screw the i80 receiver onto extension pole.
2. Screw the extension pole with auxiliary H.I. tool onto tribrach adaptor.
3. Mount the tribrach onto the tripod.
4. Insert the tribrach adaptor into the tribrach.
5. Level and plumb the receiver over the known (control) point.
6. Measure the height of the base station GNSS antenna by measuring the
slant height from the known (control) point to the auxiliary H.I. tool.
Note – Select “Bottom” as the measurement method, select “CHCi80” as
antenna type, and then enter the vertical height from the known (control)
point to the bottom of receiver that you calculated by adding the height of
the extension pole to the height from the known (control) point to the
auxiliary H.I. tool, the CHC LandStar 6 will calculate the height to the
Antenna Phase Center (APC) automatically.
7. If required, connect the receiver to an external 12 V power supply.
For external radio part (take the CHC DL5-C Datalink for example):
8. Connect the Datalink Antenna to the 3 meter Cable for Datalink
Antenna.
9. Connect 3 meter Cable for Datalink Antenna to Datalink Antenna
Mounting Pole.
10. Screw the Datalink Antenna Mounting Pole onto the tribrach adapter.
11. Mount the tribrach onto the tripod.
12. Insert the tribrach adaptor into the tribrach.
13. Set up the Datalink Antenna nearby the base receiver.
14. Fix the DL5-C Datalink onto the tripod.
15. Place the car battery at an appropriate location.
Page 41
4. Base station setup and operation
i80 GNSS Receiver User Guide Page 39
For connection between the receiver part and external radio part:
16. Connect Datalink Antenna to the Datalink Antenna Slot of DL5-C
Datalink via 3 meter Cable for Datalink Antenna.
17. Connect the base receiver with DL5-C Datalink via GPS to Datalink Cable.
18. Connect the car battery with DL5-C Datalink via Datalink External Power
Cable.
CAUTION – The Datalink Antenna must be connected to the Datalink before
the Datalink is powered on; otherwise, the Datalink can be damaged.
4.3.2. CONFIGURING THE BASE STATION
4.3.2.1. Configuring via Hcconfig software
1. Power on the receiver.
2. Turn on the controller, run Hcconfig and establish the connection with
receiver via Bluetooth or Wi-Fi (see 2.7. Connecting to a controller for
the operations).
3. After successful connection, tap RTK in the main menu.
4. In RTK screen, select Mode from the dropdown list.
When select Auto Base for Mode field:
5. Configure the related parameters: Format, Baud, Elevation and PDOP.
Page 42
4. Base station setup and operation
i80 GNSS Receiver User Guide Page 40
6. Tick Port option for Enable IO.
7. Tap Set button to save the settings → tap Back button to go back to
main menu →tap Exit → select Exit Software Only option to exit
Hcconfig.
8. After the receiver is successfully transmitting correction data (with the
green LED flashing once per second), power on the external radio, and
then configure the external radio from its panel.
When select Manual Base for Mode field:
5. Configure the related parameters: Format, Baud, Elevation and PDOP.
6. Tap Here button to obtain the current position or manually enter the
coordination of the known point in B, L and H.
7. Tick Port option for Enable IO.
8. Tap Set button to save the settings → tap Back button to go back to
main menu →tap Exit → select Exit Software Only option to exit
Hcconfig.
9. After the receiver is successfully transmitting correction data (with the
green LED flashing once per second), power on the external radio, and
then configure the external radio from its panel.
4.3.2.2. Configuring via LandStar 6 software
1. Power on the receiver.
2. Turn on the controller → run LandStar 6 → create a new project or open
an existing project → establish the connection with receiver via
Bluetooth or Wi-Fi (see 2.7. Connecting to a controller for the
operations).
3. After successful connection, tap Communication Mode in the Device
screen.
4. In Communication Mode screen, select External Radio for Mode → tap
in the lower right corner to back to Device screen.
5. Tap Base Config → select Start Base Station tab.
6. Configure the GNSS antenna related parameters as follows:
Type field: tap next to Type field to select CHCi80 as antenna type.
Measure To field: select Bottom from the dropdown list.
Height field: enter the vertical height (in meters) you calculated from
the known (control) point to the bottom of receiver for
Height field.
7. Configure the coordinates of base station.
There are three methods available to configure the base station
Page 43
4. Base station setup and operation
i80 GNSS Receiver User Guide Page 41
coordinates:
a) Tap next to Name field to select an existing point.
b) Manually enter the coordinates of the known point in B, L and H.
c) Tap Get Current Position button to obtain the current position of
the base station.
8. Go to Base Parameters tab → select Outer Radio for Transmit COM field
→ configure the Data Format field, Baud Rate field and Elevation Mask
field according to your need.
9. Tap in the lower right corner to save the settings, and then the
LandStar 6 will disconnect with the receiver automatically.
10. After the receiver is successfully transmitting correction data (with the
green LED flashing once per second), power on the external radio, and
then configure the external radio from its panel.
Page 44
i80 GNSS Receiver User Guide Page 42
5. ROVER STATION SETUP AND OPERATION
Real-Time Kinematic (RTK) operation provides centimeter-level precision by
eliminating errors that are present in the GNSS system. For all RTK
operations, you require both a rover receiver and a source of corrections
from a base station or network of base stations.
The second part of the RTK GNSS system is the rover receiver. The rover
receiver is moved between the points that require measurement or stakeout.
The rover receiver is connected to a base station or to a source of RTK
corrections such as a CORS (Continuous Operational Reference System) or
the CHC APIS service. The connection is provided by:
an integrated radio
an integrated cellular modem
a cellular modem in the controller
This chapter provides the information to help you identify good setup
locations, describes the conventional process to set up the rover station and
the configuring procedure that required for receiving correction data.
5.1. ROVER STATION SETUP GUIDELINES
For good rover operation, observe the following setup guidelines:
Place the GNSS antenna in a location that has a clear line of sight to the
sky in all directions. Do not place the antenna near vertical obstructions
such as buildings, deep cuttings, site vehicles, towers, or tree canopy.
GNSS rovers and the base station receive the same satellite signals
from the same satellites. The system needs five common satellites to
provide RTK positioning.
WARNING – Take care not to touch overhead power lines with the CHC i80
GNSS receiver or the range pole when moving the equipment into position.
Touching overhead power lines may cause electrocution, leading to serious
injury.
GNSS satellites are constantly moving. Because you cannot measure at
a specific location now does not mean that you will not be able to
measure there later, when satellite coverage at the location improves.
To get a fixed position solution with centimeter precision, initialize the
RTK rover receiver. For initialization to take place, the receiver must
track at least five satellites that the base station is also tracking. In a
dual-satellite constellation operation, for example, GPS and GLONASS,
the receiver must track at least six satellites.
Page 45
5. Rover station setup and operation
i80 GNSS Receiver User Guide Page 43
To continue to survey at centimeter precisions, the rover must
continuously track at least four satellites that the base station is also
tracking. The radio link between the base and rover receivers must also
be maintained.
Loss of the satellite signals will result in a loss of centimeter position
precision.

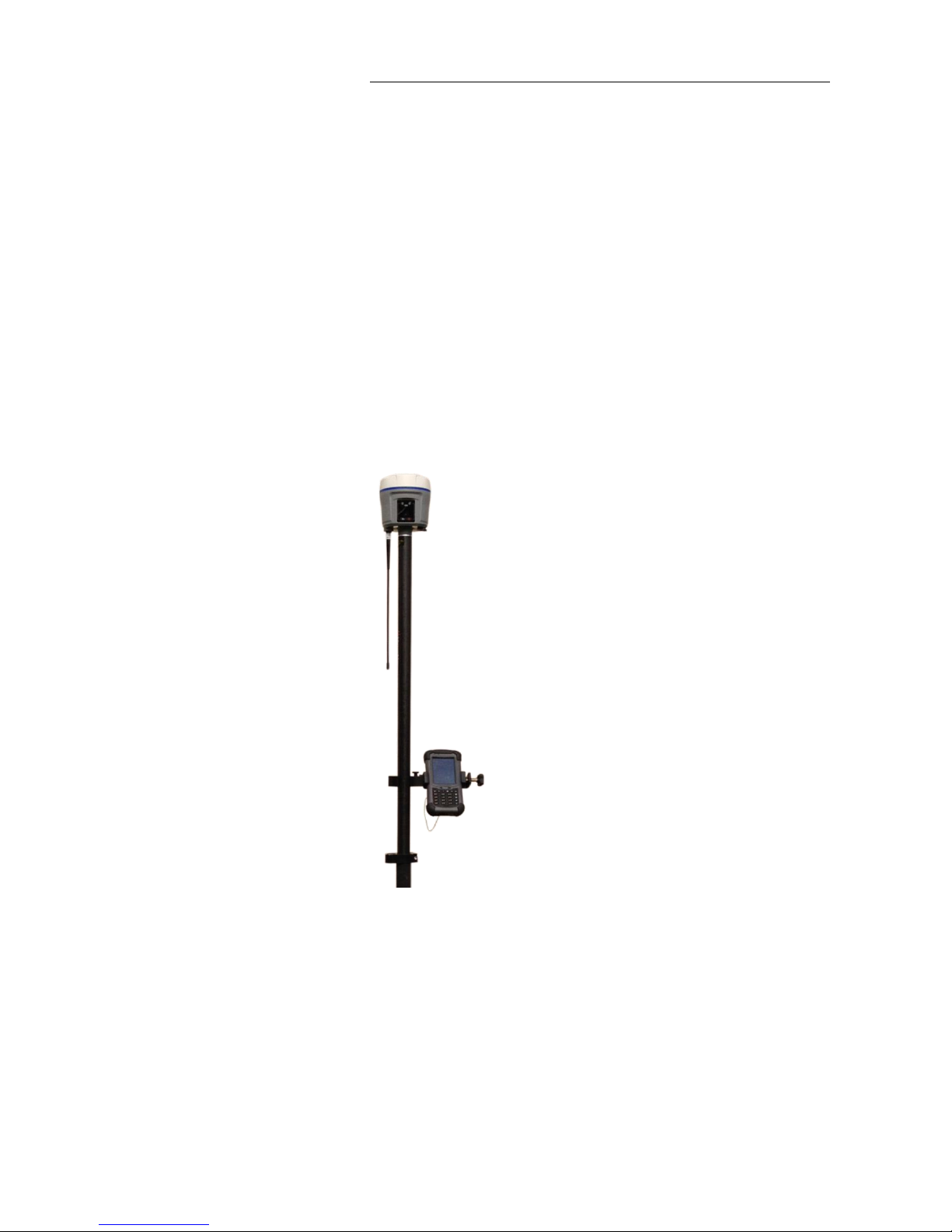

5.2. ROVER STATION SETUP
1. If required, connect the radio antenna onto i80 receiver.
2. Screw the receiver on top of the range pole.
3. Fix the controller bracket on the range pole.
4. Fit the controller in the controller bracket.
5. Level and plumb the receiver over the target measuring point.
5.3. CONFIGURING THE ROVER STATION VIA LANDSTAR 6
SOFTWARE
5.3.1. RECEIVING CORRECTIONS USING INTERNAL RADIO MODEM
1. Power on the receiver.
2. Turn on the controller → run LandStar 6 → create a new project or open
an existing project → establish the connection with receiver via
Bluetooth or Wi-Fi (see 2.7. Connecting to a controller for the
Page 46
5. Rover station setup and operation
i80 GNSS Receiver User Guide Page 44
operations).
3. After successful connection, tap Rover Config in the Device screen.

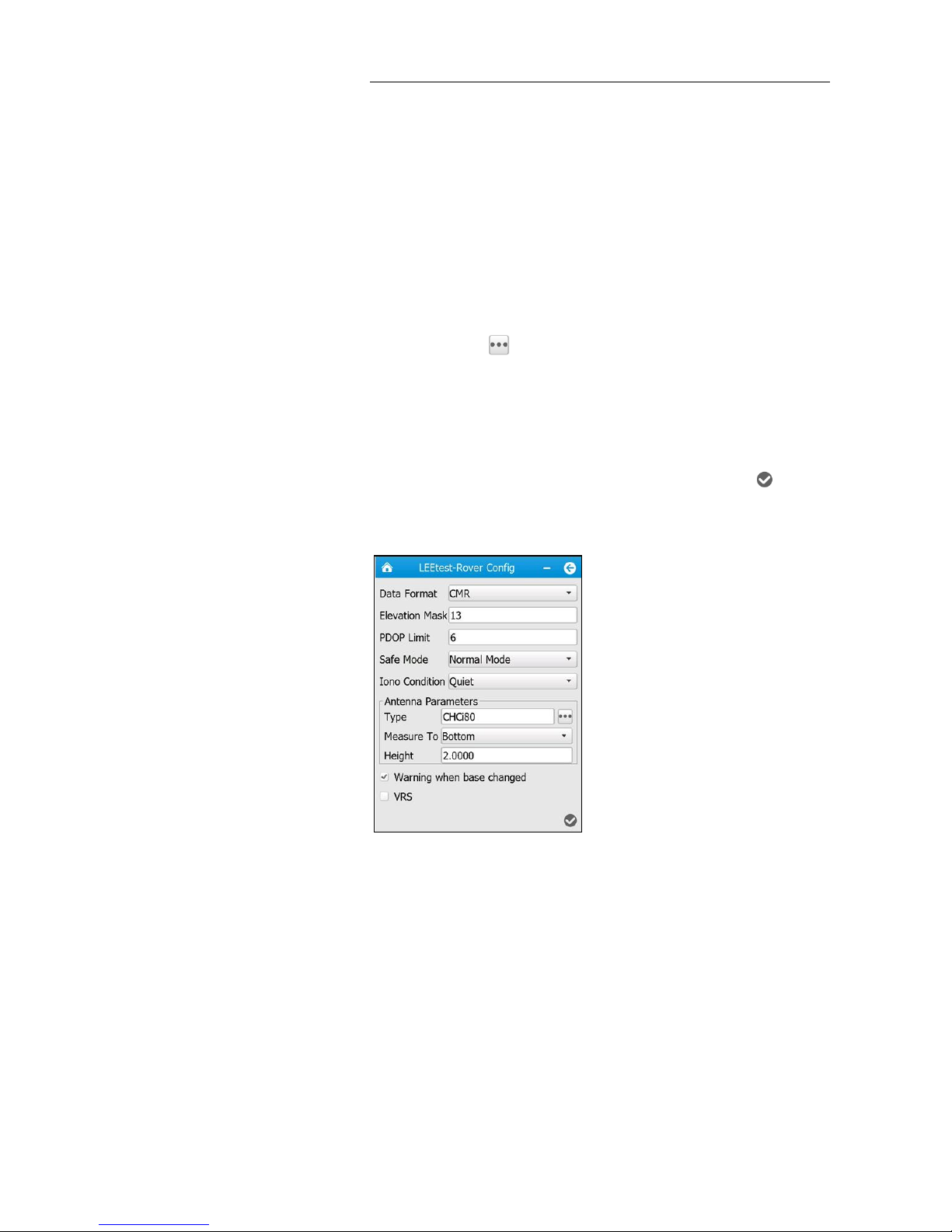

4. In Rover Config screen, configure the related parameters from the
dropdown list or enter the value with the soft keyboard: Data Format,
Elevation Mask, PDOP Limit, Safe Mode and Iono Condition.
Note – Select the Data Format the same as that of base receiver.
5. Configure the antenna parameters as follows:
Type field: tap next to Type field to select CHCi80 as antenna type.
Measure To field: select Bottom from the dropdown list.
Height field: enter the height (in meters) of the range pole you are
using.
6. If required, tick Warning when base changed option → tap in the
lower right corner to save the settings and go back to Device screen.
7. Tap Communication Mode → select Radio for Mode field.
8. Configure the radio parameters as follows:
Protocol field: select the protocol the same as that of base station.
Freq field: select the frequency the same as that of base station.
Tip – Users can select a radio channel from the dropdown list. The frequency
of channel 1 to 9 is predefined; however, the frequency of channel 0 is
editable.
Baud field: select the baud rate the same as that of base station.
Power field: select the power from the dropdown list according to your
Page 47
5. Rover station setup and operation
i80 GNSS Receiver User Guide Page 45
need.
9. Tap to confirm and save the settings of the radio.
10. After the radio parameters are successfully configured, tap in the
lower right corner to back to Device screen.
11. Users can conduct surveying work after the rover receiver receives
correction data (with correction LED flashes once per second) and gets
fixed solution.
5.3.2. RECEIVING CORRECTIONS USING INTERNAL CELLULAR MODEM
1. Insert a SIM card into SIM card slot of the receiver (please see 2.4.
Inserting battery and SIM card for instruction) and the power on the
receiver.
2. Turn on the controller → run LandStar 6 → create a new project or open
Page 48
5. Rover station setup and operation
i80 GNSS Receiver User Guide Page 46
an existing project → establish the connection with receiver via
Bluetooth or Wi-Fi (see 2.7. Connecting to a controller for the
operations).
3. After successful connection, tap Rover Config in the Device screen.
4. In Rover Config screen, configure the related parameters from the
dropdown list or enter the value with the soft keyboard: Data Format,
Elevation Mask, PDOP Limit, Safe Mode and Iono Condition.
Note – Select the Data Format the same as that of base receiver.
5. Configure the antenna parameters as follows:
Type field: tap next to Type field to select CHCi80 as antenna type.
Measure To field: select Bottom from the dropdown list.
Height field: enter the height (in meters) of the range pole you are
using.
6. If required, tick Warning when base changed option → tap in the
lower right corner to save the settings and go back to Device screen.
7. Tap Communication Mode → select Network for Mode field.
8. Configure the network parameters as follows:
Protocol field: select the protocol according to your need.
IP Addr field: enter the IP address and the Port with the soft keyboard,
or tap next to this field to select the predefined
service.
Source field: tap next to this field to get the source table list, and
Page 49
5. Rover station setup and operation
i80 GNSS Receiver User Guide Page 47
then tap to select the suitable source table.
User Name field: enter the user name of the network (such as NTRIP
network), if required.
Password field: enter the user name of the network (such as NTRIP
network), if required.
9. Tap to confirm and save the settings.
10. After the service is successfully logged on, tap in the lower right
corner to back to Device screen.
11. Users can conduct surveying work after the rover receiver receives
correction data (with correction LED flashes once per second) and gets
fixed solution.
Page 50
5. Rover station setup and operation
i80 GNSS Receiver User Guide Page 48
Note – Before switch to other communication mode, please tap in
Communication Mode screen to break the connection to the network.
5.3.3. RECEIVING CORRECTIONS USING CELLULAR MODEM IN THE
CONTROLLER
1. Power on the receiver.
2. Insert a SIM card into SIM card slot of your controller, and then turn on
the controller to establish network connection (please refer to
corresponding user guide of the controller that you are using for
instruction).
3. Run LandStar 6 on the controller → create a new project or open an
existing project → establish the connection with receiver via Bluetooth
or Wi-Fi (see 2.7. Connecting to a controller for the operations).
4. After successful connection, tap Rover Config in the Device screen.
5. In Rover Config screen, configure the related parameters from the
dropdown list or enter the value with the soft keyboard: Data Format,
Elevation Mask, PDOP Limit, Safe Mode and Iono Condition.
Note – Select the Data Format the same as that of base receiver.
6. Configure the antenna parameters as follows:
Type field: tap next to Type field to select CHCi80 as antenna type.
Measure To field: select Bottom from the dropdown list.
Height field: enter the height (in meters) of the range pole you are
using.
7. If required, tick Warning when base changed option → tap in the
lower right corner to save the settings and go back to Device screen.
Page 51
5. Rover station setup and operation
i80 GNSS Receiver User Guide Page 49
8. Tap Communication Mode → select PDA Network for Mode field.
9. Configure the network parameters as follows:
Protocol field: select the protocol according to your need.
IP Addr field: enter the IP address and the Port with the soft keyboard,
or tap next to this field to select the predefined
service.
Source field: tap next to this field to get the source table list, and
then tap to select the suitable source table.
User Name field: enter the user name of the network (such as NTRIP
network), if required.
Password field: enter the user name of the network (such as NTRIP
network), if required.
10. Tap to log-in the network service.
Page 52
5. Rover station setup and operation
i80 GNSS Receiver User Guide Page 50
11. After the successful login, tap in the lower right corner to back to
Device screen.
12. Users can conduct surveying work after the rover receiver receives
correction data (with correction LED flashes once per second) and gets
fixed solution.
Note – Before switch to other communication mode, please tap in
Communication Mode screen to break the connection to the network.
Page 53
i80 GNSS Receiver User Guide Page 51
6. SURVEY WITH LANDSTAR 6 SOFTWARE
The CHC Landstar 6 Software (“LandStar 6”) is a field survey software which
developed based on more than ten years of development experience of CHC
and feedback of surveyors from different fields of application. LandStar 6
provides with a complete set of features for any survey projects, including
data collection, stakeout, COGO (Coordinate Geometry) function, and more,
which makes this software an ideal option for everyday field work.
This chapter briefly introduces the basic survey workflows of LandStar 6,
combining with i80 GNSS receiver.
6.1. NEW PROJECT
Turn on the controller, run LandStar 6 software and establish the connection
with receiver via Bluetooth or Wi-Fi (see 2.7. Connecting to a controller for
the operations), and then create a new project or open an existing project
before measuring any points, or making any calculations.

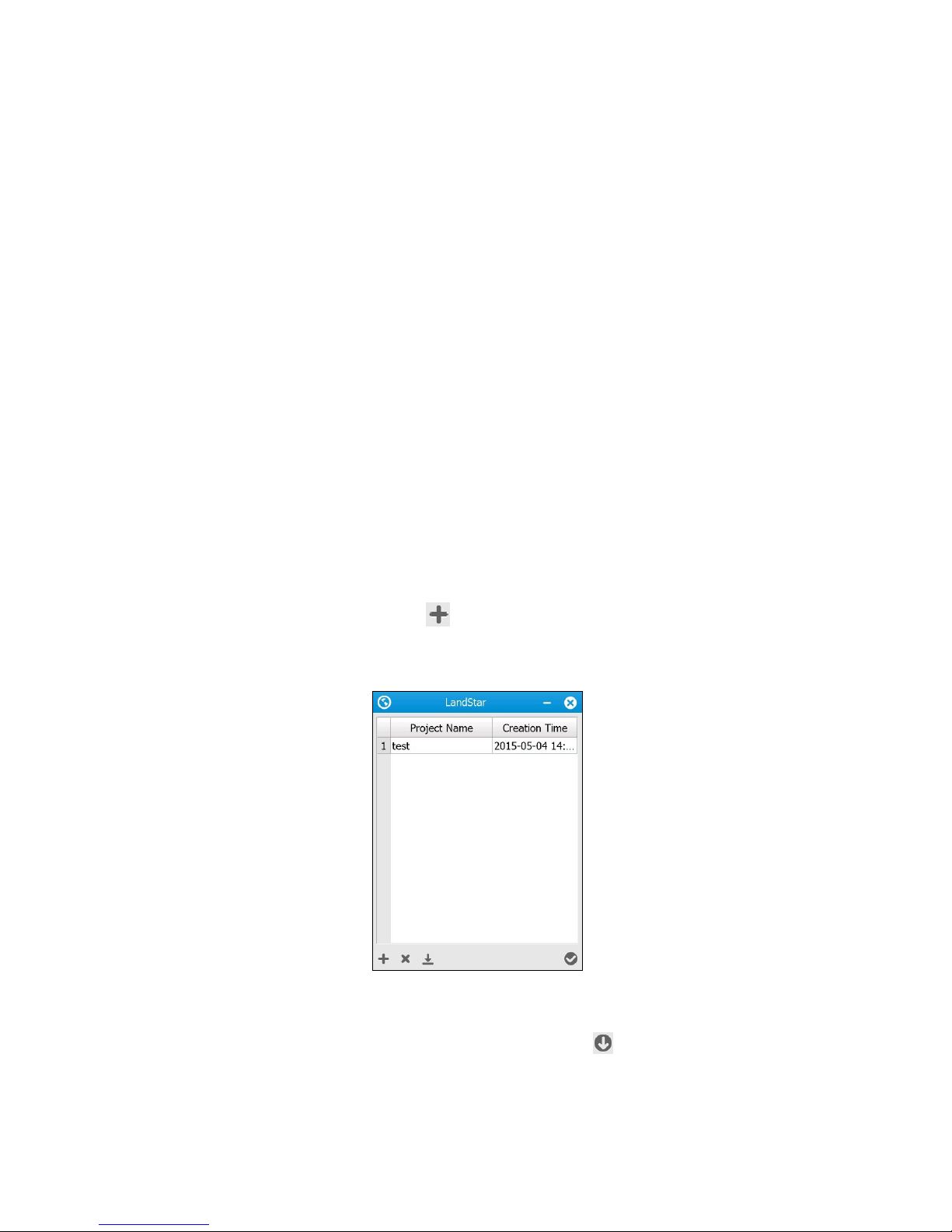

To create a new project:
1. Tap button on the lower left corner of the initial interface that the
LandStar 6 starts with.
2. Enter the Project name and Create by (operator), select Time zone from
the dropdown list, and then tap button.
Page 54
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 52
Note – Also, users can configure other parameters, such as Create By
(operator) and time zone, according to your need.
3. Select one coordinate system from the template list, or tap default
(from template) if there is no suitable template, and then tap
button.

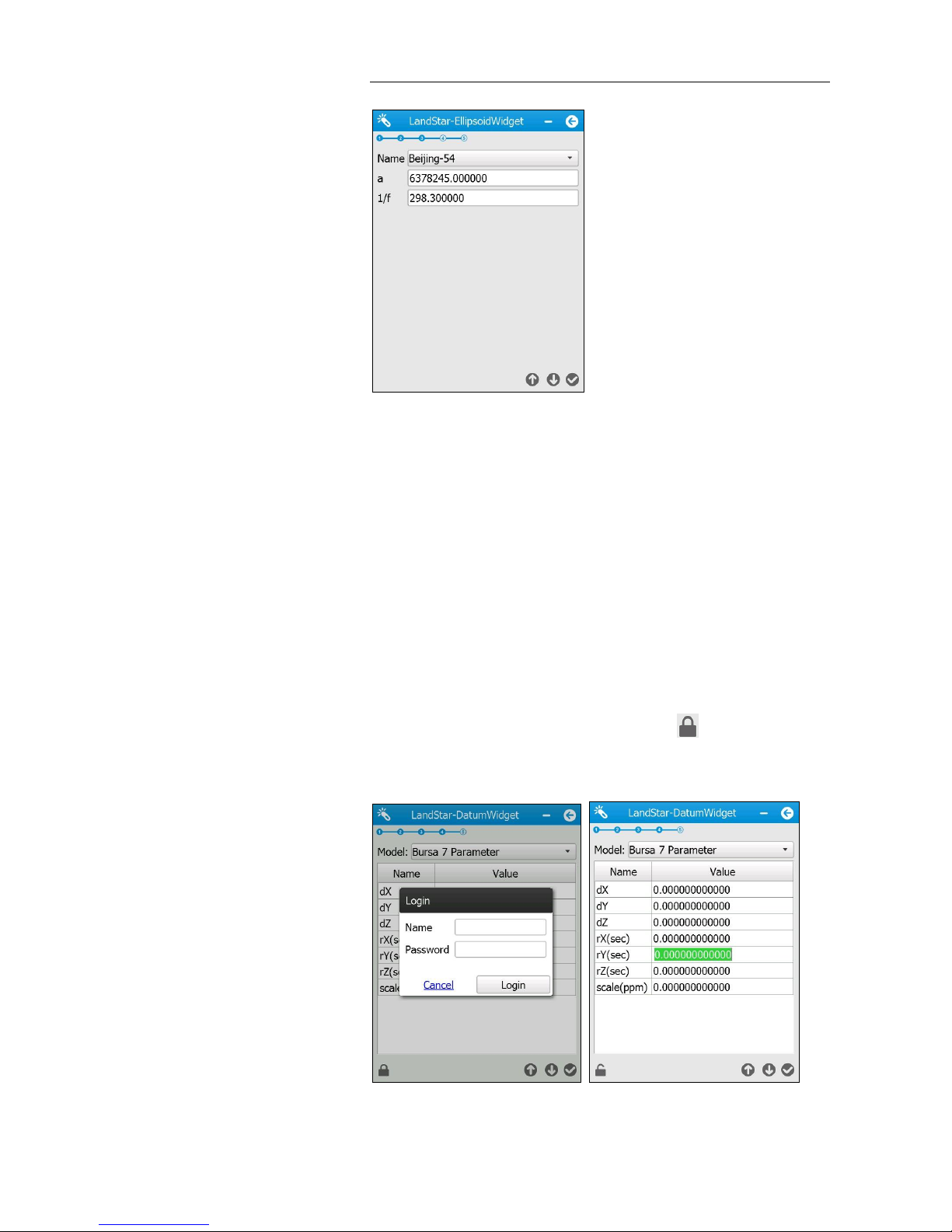

4. Confirm the ellipsoid information or select one ellipsoid from the
dropdown list for Name field, and then tap button.
Page 55
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 53
5. In DatumWidget screen, select one Model from the dropdown list.
There are three model options available:
a) NONE: No transformation parameters are needed to be entered.
b) Bursa 7 Parameter: Users need to enter seven parameters for
local transformation, including translation, rotation and scale.
c) Molodensky 3 Parameter: Users need to enter three translation
parameters for local transformation.
Note – To configure the parameters for Bursa 7 Parameter option and
Molodensky 3 Parameter option, users need to tap button to unlock the
editing function.
Tip – The default login values of editing function are “admin” for Name and
Page 56
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 54
“123456” for Password.
6. Select one projection from the dropdown list, configure the projection
related parameters, and then tap button to save the new project.
7. The project name appears in the title area of the main menu.
6.2. KEY IN POINTS
1. In the main menu, tap Data → tap Point Management.
2. Tap button in the lower left corner of Point Data Management
screen, and then configure the related parameters of the new point as
follows:
Name field: enter the point name.
Page 57
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 55
Code field: enter the code of the point, if required.
CRS field: select the coordination system from the dropdown list. The
available options are: Local and WGS84.
Role field: select the role of the point from the dropdown list. The
available options are: Null, To Stake Out and Control.
X, Y, H field: enter the local grid coordinate of the point.
3. Tap button in the lower right corner of New point screen to save
the point.
6.3. MEASURE POINTS
Note – To ensure the accuracy of the coordinates measured, please perform
measurements after the rover receiver receives correction data (with
correction LED flashes once per second) and gets fixed solution.
6.3.1. MEASURE POINTS IN CONVENTIONAL MODE
1. In the main menu, tap Survey → tap Point Survey.
2. Enter the point name in the input frame on the top left corner.
Notes
The system will automatically increment the numeric component of
the measured point name.
The measured points will be automatically incremented from “P1”,
by default.
3. If necessary, enter the feature code in the input frame on the top right
corner.

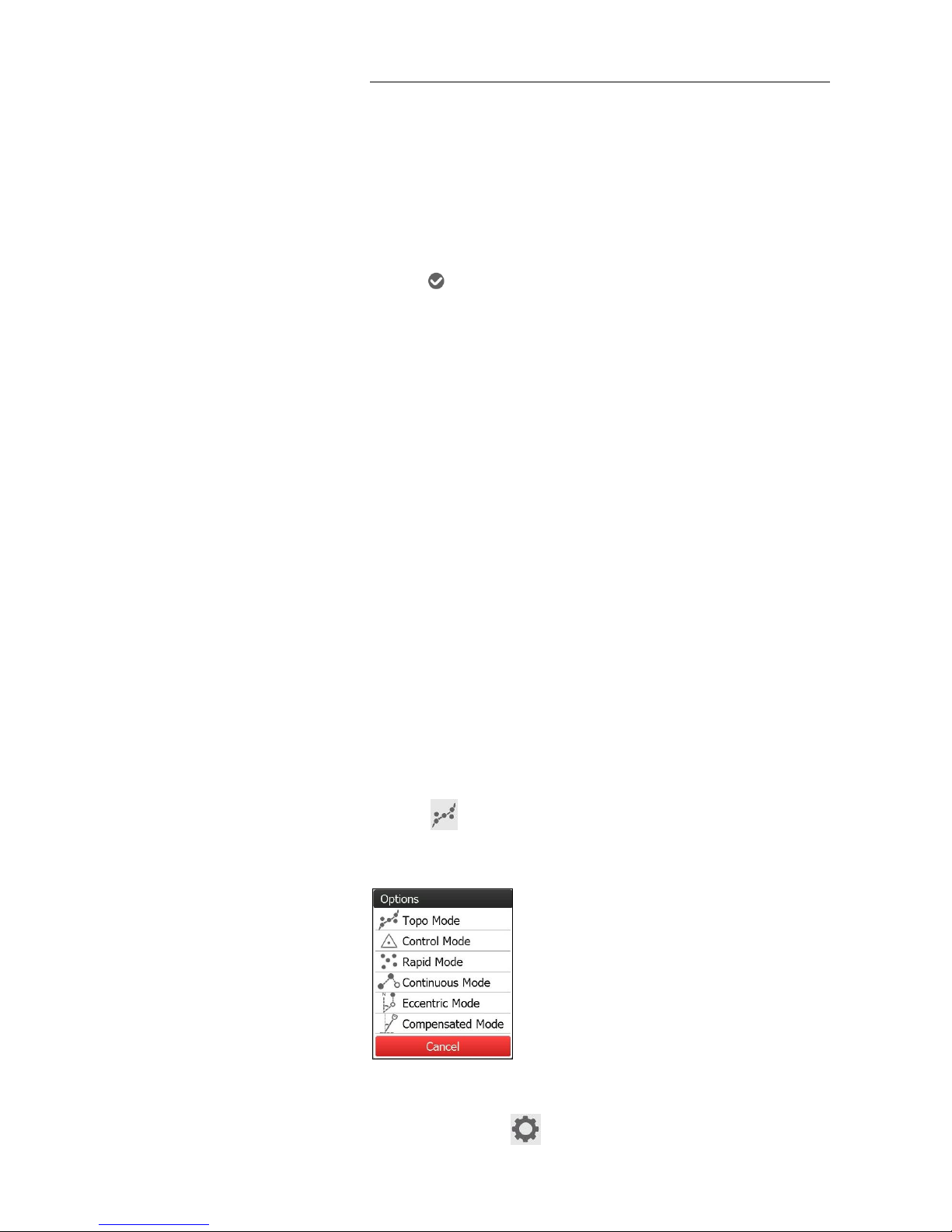

4. Tap button to select a measurement mode in the pop-up
window.
Notes
Users can tap button to configure the settings of each
Page 58
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 56
measurement method in the pop-up Survey Option screen.
The auto measure function is available for three measurement
modes: Topo Mode, Rapid Mode and Compensated Mode (require
the calibration of tilt sensor beforehand, see 6.3.2. Survey with tilt
sensor for reference).

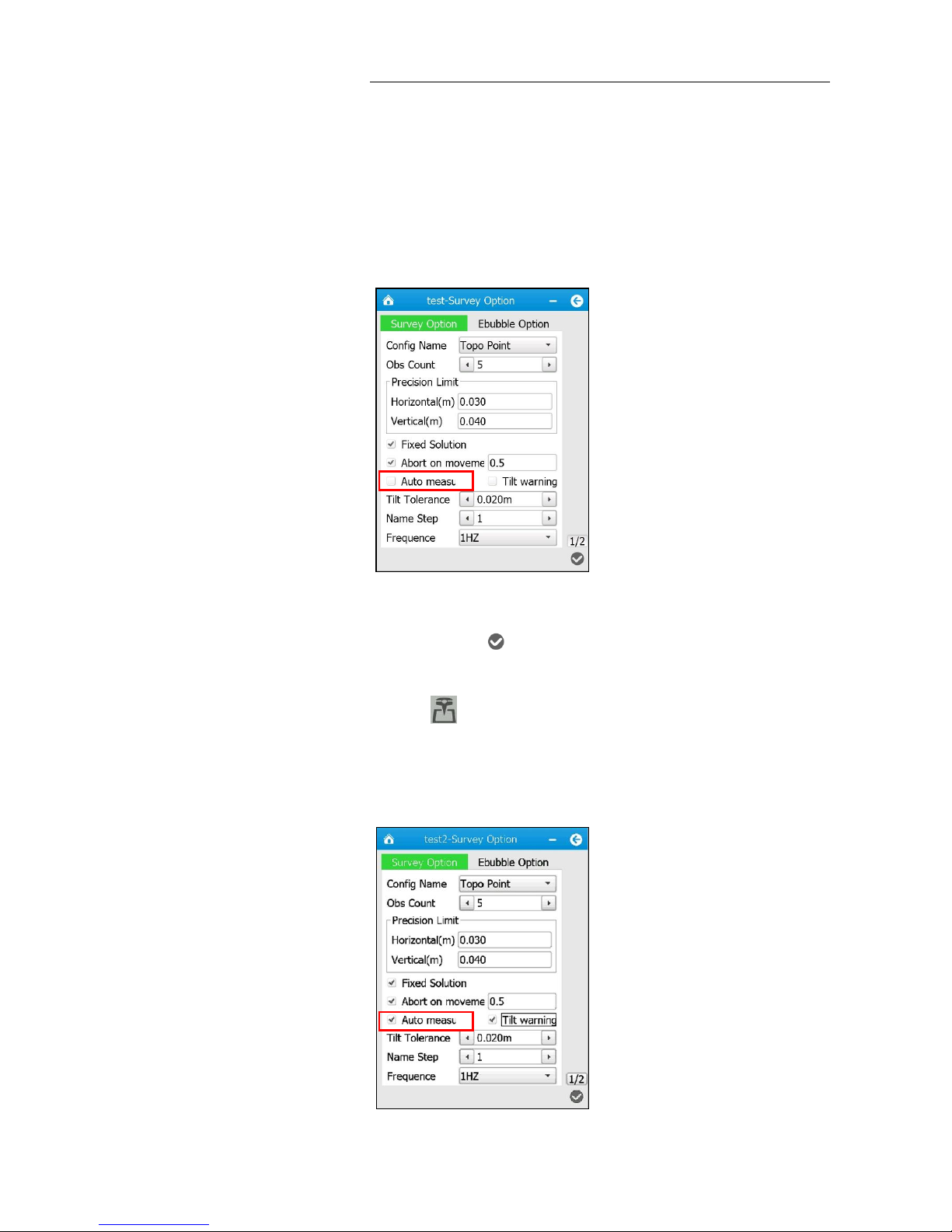

When untick Auto measure in the Survey Option screen:
5. If the settings of the selected measurement method have been
changed, tap button in the lower right corner of the Survey Option
screen to save the change and go back to the Point Survey screen.
6. Ta p button, hold the range pole until the countdown timer
disappears, and then move to next point to continue.

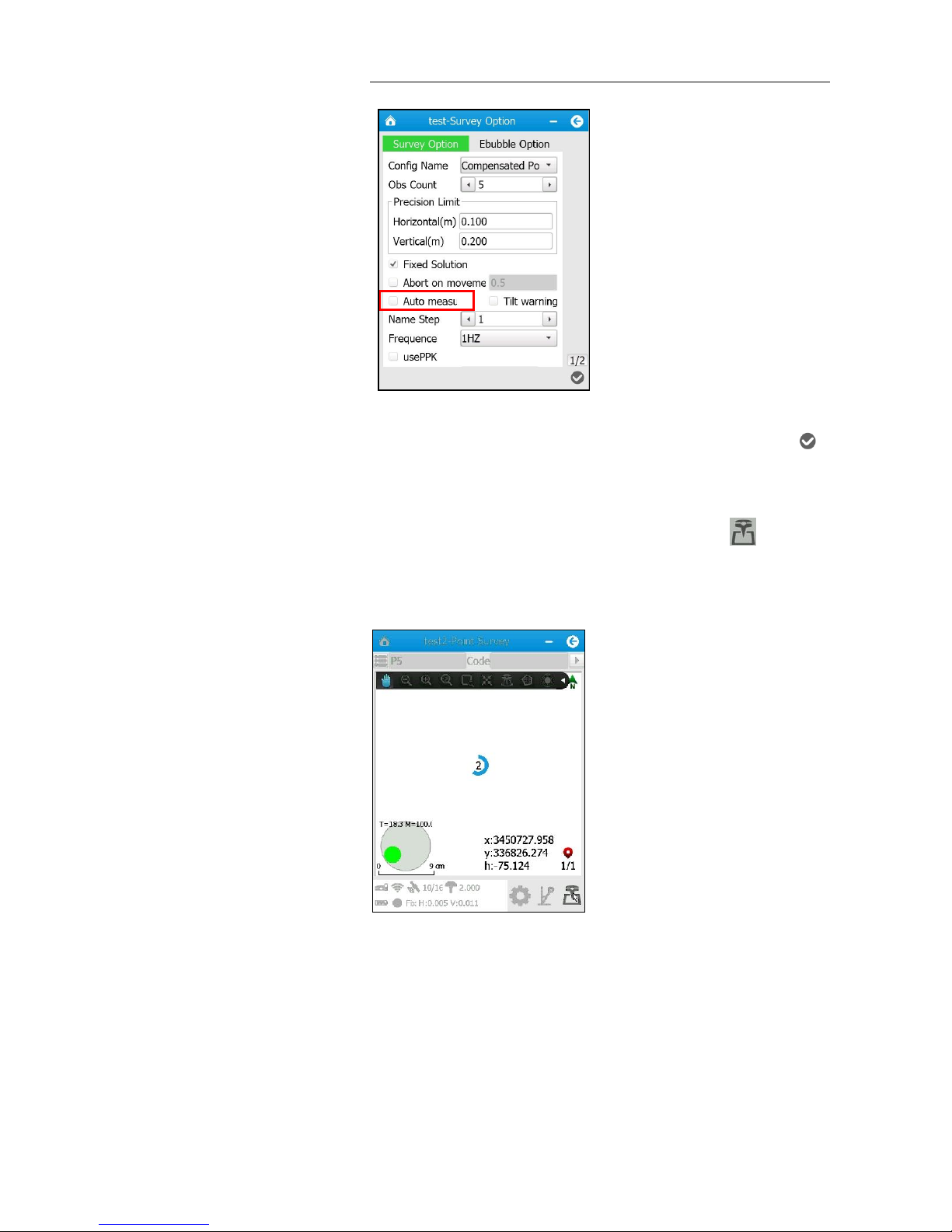

When tick Auto measure in the Survey Option screen:
Page 59
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 57
Note – Users can configure the Tilt Tolerance option to define the maximum
radius that the receiver can tilt and be considered in tolerance. The allowable
range is 0.001m to 1.000m. And the maximum tilt angle is calculated by
arctan(Tilt Tolerance/antenna height).
5. If the settings of the selected measurement method have been
changed, tap button in the lower right corner of the Survey Option
screen to save the change and go back to the Point Survey screen.
6. Tap button in the tool bar to display the eBubble.
7. Ta p button → a “Waiting to move” message appears over the
eBubble → tilt the range pole (exceeding the specified tilt tolerance).
8. A “Waiting for level” message appears over the eBubble → move the
receiver to the target measuring point → level the range pole.
Page 60
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 58
9. When the range pole is within the tilt tolerance, a “Waiting for stable”
message appears.
10. Hold the range pole for more than 2 seconds and the point will
automatically begin measuring.
11. When the countdown timer disappears, tilt the range pole outside of
the tilt tolerance, and then move to next point to continue.
12. To exit the Auto Measure mode, tap button.
6.3.2. SURVEY WITH TILT SENSOR
The i80 receiver is integrated with tilt sensor, which allows the use of
eBubble (electronic bubble) and tilt compensation. The tilt compensation
allows the collection of points even when the receiver is tilted up to 30
degrees off plumb. When the terrain or structures around the point do not
allow full plumbing of the receiver, the built-in tilt sensor will compensate
Page 61
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 59
for the tilt of the range pole. The eBubble can be displayed in the lower left
corner of any survey window within the CHC LandStar 6 software.
To bring the eBubble and tilt compensation into full play, it is very important
to ensure the integrated tilt sensor is correctly calibrated. When calibrating
the integrated tilt sensor, users need to make sure that a range pole or a
tripod with tribrach have been well calibrated. The quality of the integrated
tilt sensor calibration is directly related to the quality of the mechanic
bubble and its calibration.
The integrated tilt sensor calibration is performed within the CHC LandStar 6
software. To calibrate the integrated tilt sensor, place the receiver on a
stable range pole or tripod with tribrach. Level the receiver using the
mechanical bubble on the range pole or tribrach.
6.3.2.1. Calibrating the tilt sensor
1. In the main menu, tap Settings → tap Survey Options → select Ebubble
Option tab.
2. Configure the Sensitivity, Response and Age Limit from the dropdown
lists.
3. Tap button in the lower left corner → a message will pop up
asking user to confirm that the device is level → tap Yes button.
4. A progress message will appear to indicate that the calibration is in
progress.
Page 62
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 60
5. Once the calibration is complete, the green electronic bubble will be
centered in the inner circle.
6. Tap button in the lower left corner → a pop-up message will
prompt user rotate the device follow the illustration during the
compass calibration → tap Yes button.
7. Perform the calibration according to the graphic displayed on the
screen.
8. Once the calibration is complete, tap button in the lower right
Page 63
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 61
corner.
6.3.2.2. Measure points in compensated mode
9. Go back to the main menu, tap Survey → tap Point Survey.
10. Enter the point name in the input frame on the top left corner.
Notes
The system will automatically increment the numeric component of
the measured point name.
The measured points will be automatically incremented from “P1”,
by default.
11. If necessary, enter the feature code in the input frame on the top right
corner.
12. Tap button → select Compensated Mode in the pop-up window.
Notes
Users can tap button to configure the settings of the
Compensated Mode in the pop-up Survey Option screen.
The auto measure function is available for the Compensated Mode.

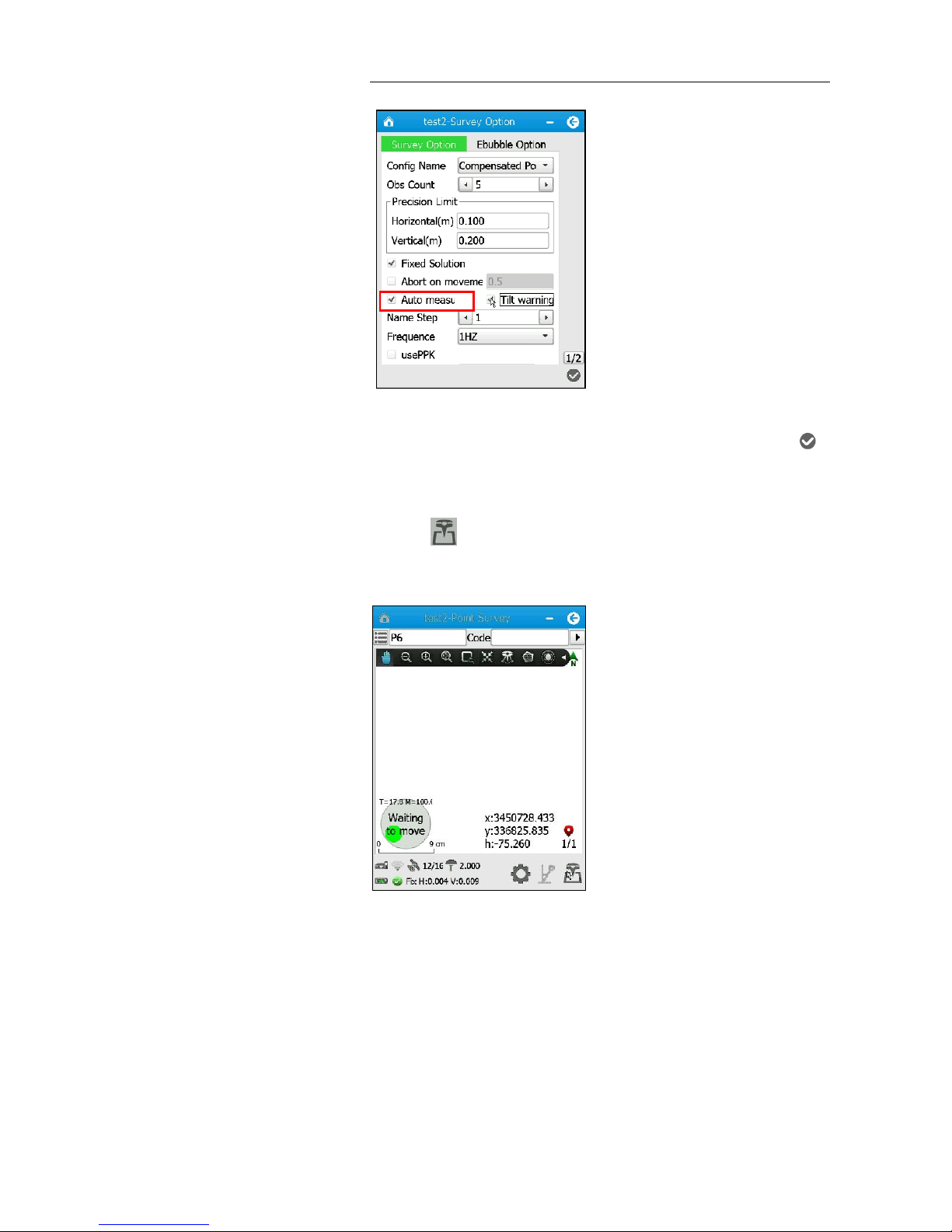

When untick Auto measure in the Survey Option screen:
Page 64
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 62
13. If the settings of the Compensated Mode have been changed, tap
button in the lower right corner of the Survey Option screen to save the
change and go back to the Point Survey screen.
14. Tilt the range pole within 30 degrees off plumb → Tap button,
hold the range pole until the countdown timer disappears → move to
next point to continue.
Tip – The color of eBubble indicates different tilt status of the range pole. Red
means the tilt of the range pole exceeds 30 degrees; however, yellow or
green means the tilt is within 30 degrees or 24 degrees.
When tick Auto measure in the Survey Option screen:
Page 65
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 63
13. If the settings of the Compensated Mode have been changed, tap
button in the lower right corner of the Survey Option screen to save the
change and go back to the Point Survey screen.
14. Ta p button → a “Waiting to move” message appears over the
eBubble → tilt the range pole to more than 30 degrees.
15. A “Waiting for level” message appears over the eBubble → move the
receiver to the target measuring point → tilt the range pole within 30
degrees.
Page 66
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 64

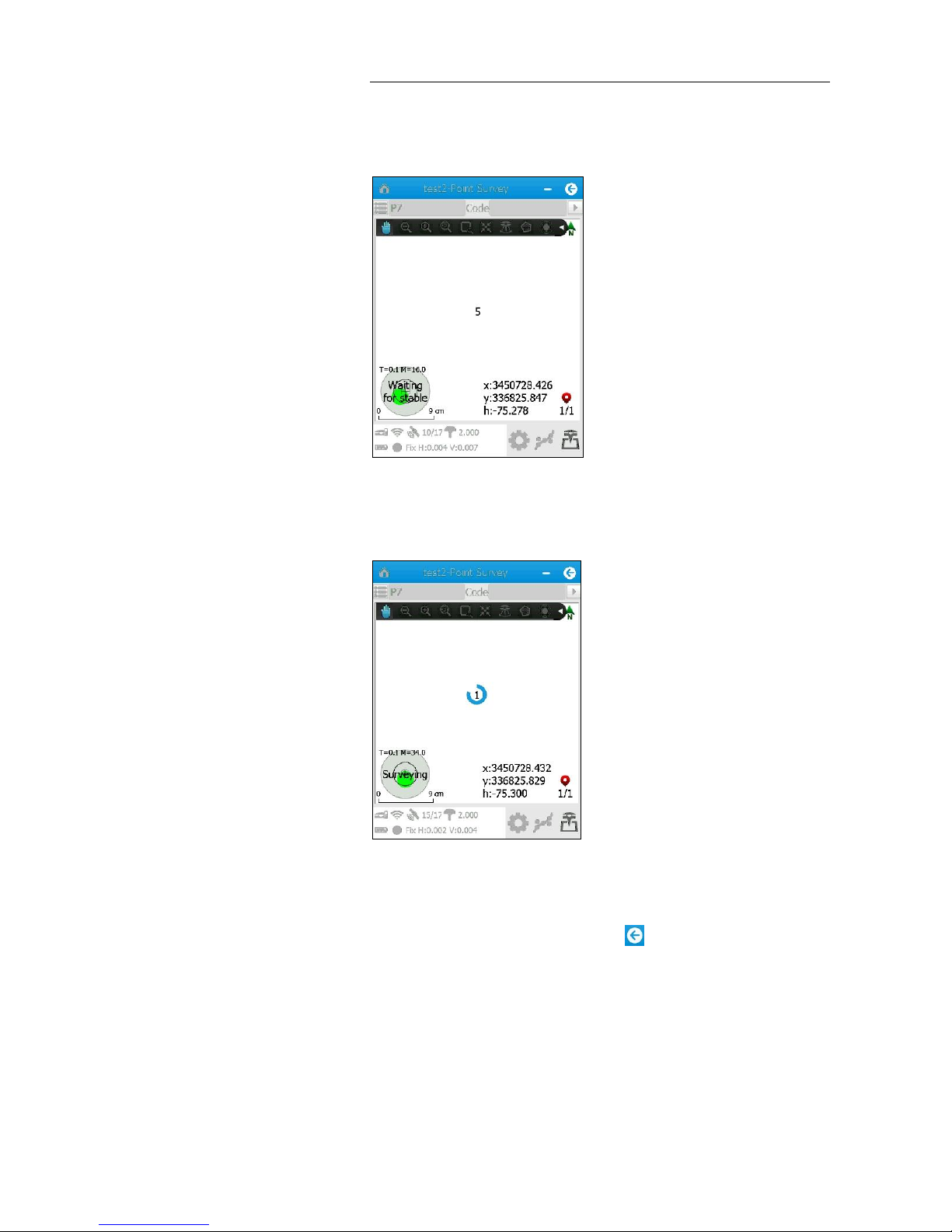

16. When the range pole is within 30 degrees, a “Waiting for stable”
message appears → hold the range pole for more than 2 seconds and
the point will automatically begin measuring.
17. When the countdown timer disappears, tilt the range pole by more
than 30 degrees, and then move to next point to continue.
18. To exit the Auto Measure mode, tap button.

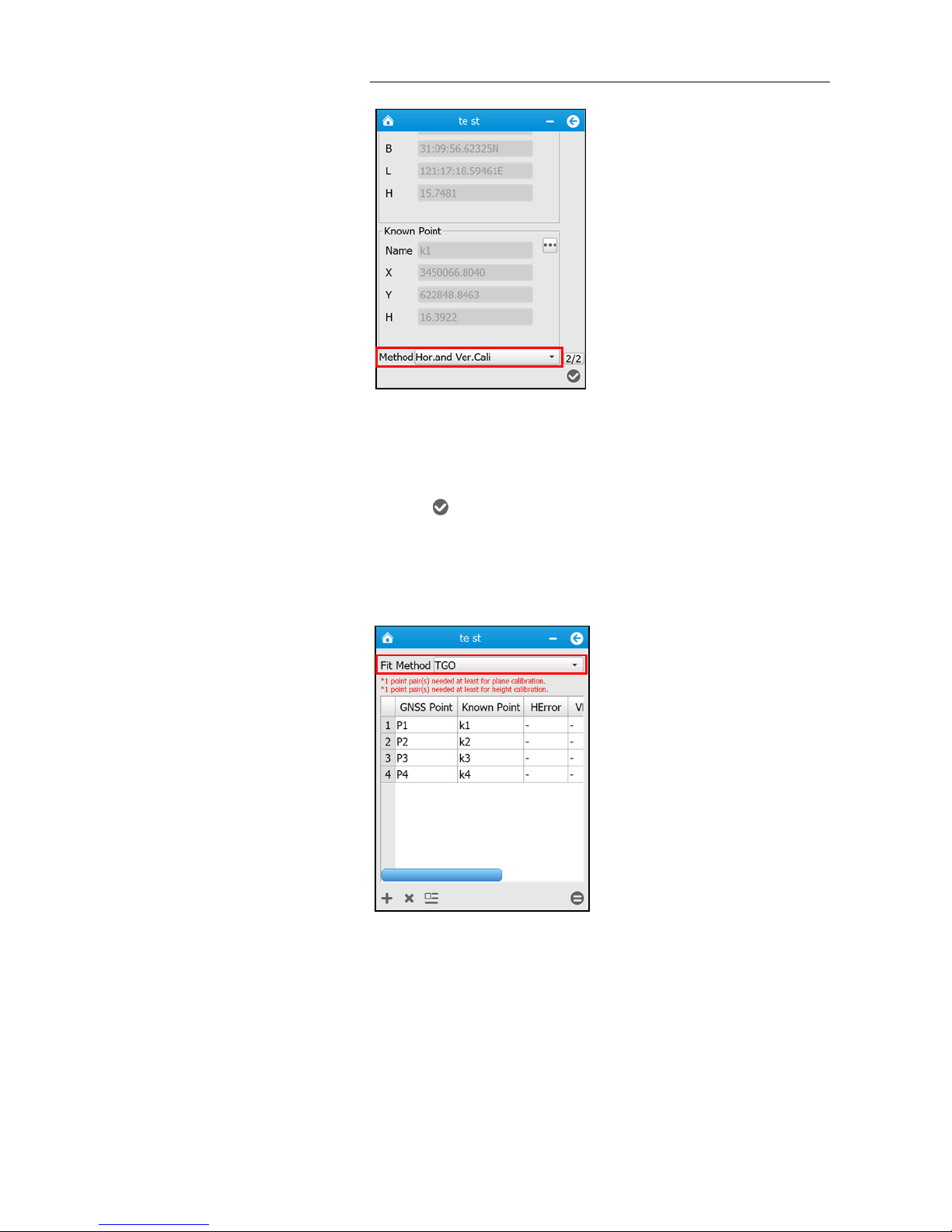

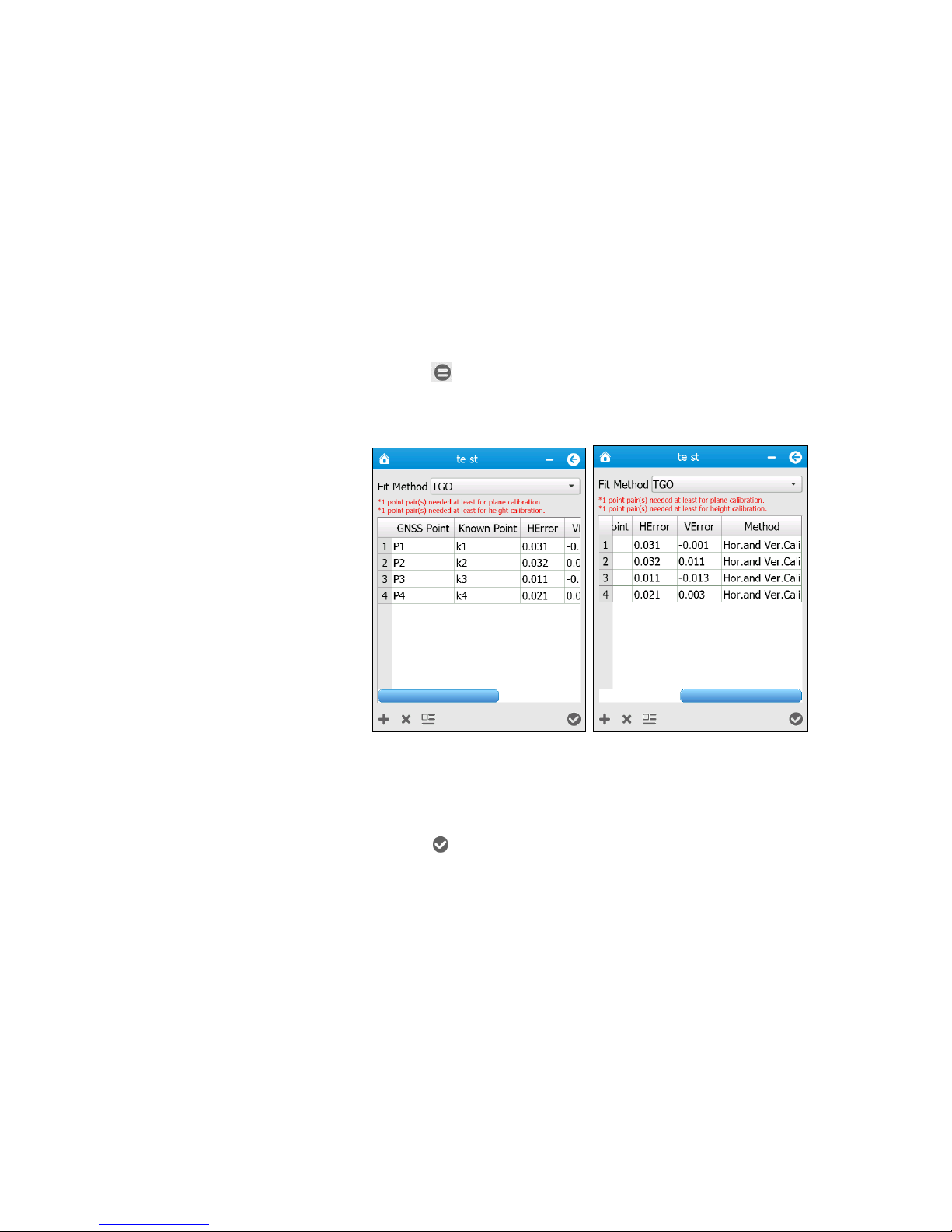

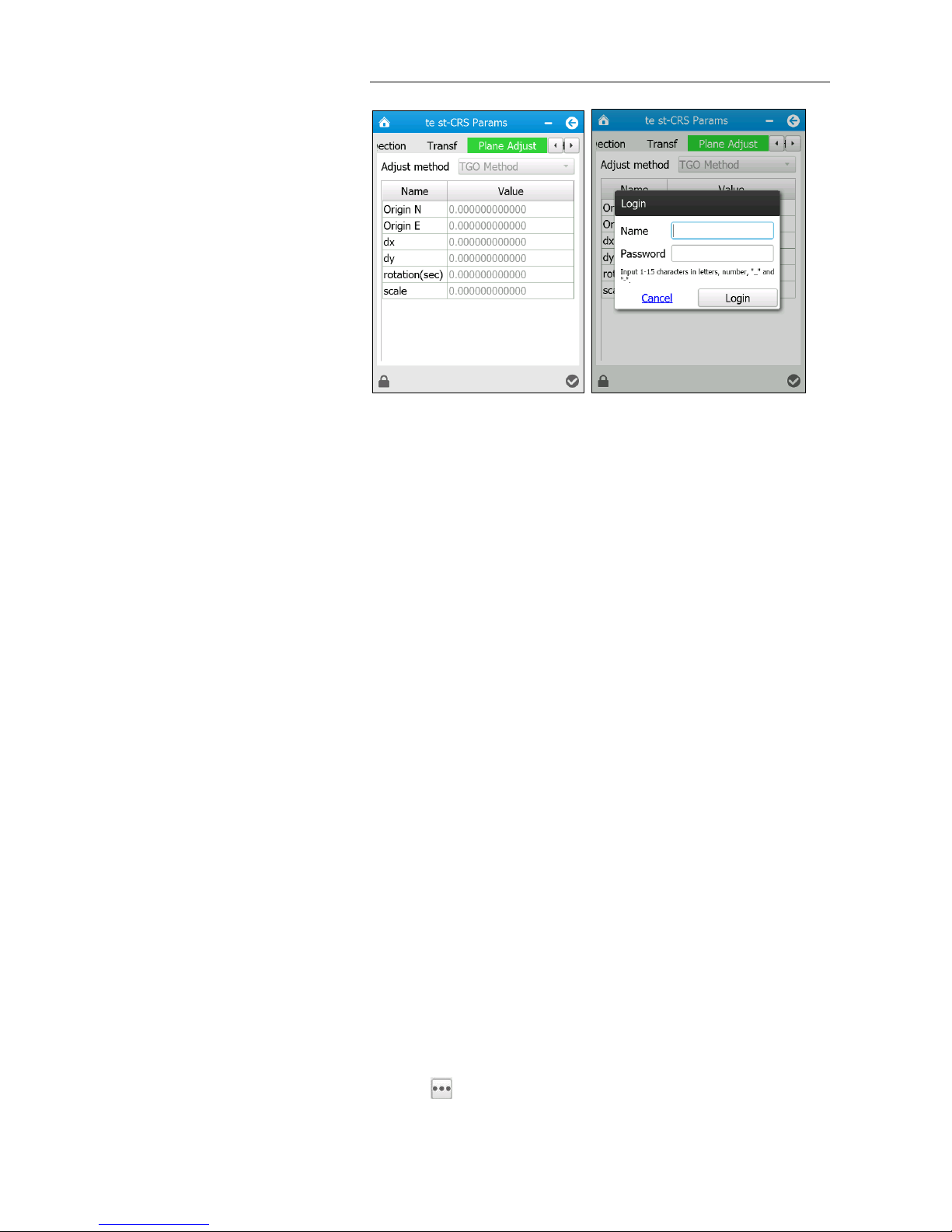

6.4. POINT ADJUST (SITE CALIBRATION)
Point adjust, also known as “site calibration”, is used to transform WGS-84
coordinates into local grid coordinates.
Notes
General speaking, if a three- or seven-parameter datum
transformation has been configured for project, users can skip the
Page 67
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 65
site calibration and the coordinates measured will be transformed
automatically into local grid coordinates.
If a projection and datum transformation have already been
specified, users can reduce any discrepancies between the WGS-84
coordinates and the local grid coordinates by performing a site
calibration.
To perform the site calibration, users need to measure the control
points with GNSS receiver first.
To perform site calibration:
1. In the main menu, tap Survey → tap Point Adjust.
2. Tap button in the lower left corner to add point pair(s).
3. In the pop-up screen, tap button on the upper side of the screen
to add the existing GNSS point or key in a GNSS point.
4. Tap button on the lower side of the screen to add the existing
known point or key in a known point.
5. Tap button to go down to the bottom of the page.
6. Select the adjustment method from the dropdown list next to Method
field.
Page 68
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 66
Note – Users can determine whether this point pair is involved in the
computation of either horizontal or vertical adjustment, or both.
7. Tap button in the lower right corner to save the point pair.
8. Continue the Step 2 to Step 7 to add all the point pairs.
9. If necessary, select the fit method for vertical adjustment from the
dropdown list next to Fit Method field.
Notes
The fit methods of horizontal and vertical adjustment are “TGO”
and “Fixed difference” respectively, by default.
There are four available fit methods for vertical adjustment: Fixed
difference, Plane fitting, Curved surface fitting and TGO.
1. The “Fixed difference” fit method is used when the measuring
surface is almost horizontal, and it requires at least 1 point pair
with elevation information to be involved in the computation.
Page 69
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 67
2. The “Plane fitting” fit method is used when the measuring
surface is level, and it requires at least 3 point pair with
elevation information to be involved in the computation.
3. The “Curved surface fitting” fit method is used when the
measuring surface is uneven, and it requires at least 6 point
pair with elevation information to be involved in the
computation.
4. The “TGO” fit method is almost the same with “Fixed
difference”, except that this method is more convenient for
computation using computer.
10. Tap button to perform the calibration, and then the “HError” and
“VError” information related to each point pair will be displayed.
Note – For best results, make sure that the control points are evenly
distributed to the extent of the job area.
11. Tap button → a message will pop up asking user whether to
replace parameters of current project.
Page 70
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 68
12. If tap YES button, the parameters calculated by this calibration will be
applied to the coordinate system of the current project. Also, the Point
Adjust screen will skip to the CRS Params screen to help user check the
horizontal and vertical adjustments in Plane Adjust tab and Height
Adjust tab.
Note – To check the horizontal and vertical adjustments in Plane Adjust tab
and Height Adjust tab, users need to tap button to unlock the display
function first.
Page 71
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 69
Tip – The default login values of display function are “admin” for Name and
“123456” for Password.
6.5. BASE SHIFT
Typically, the Real-time kinematic (RTK) operation requires a data link to
send observations or corrections from the base station to the rover, and
then the rover will calculates its position in real time.
Within a project, when the base receiver is restarted or moved, the base
coordinated system will shift each time the position of base station is
changed. Normally, the coordinates determined by the base station that set
up on a control point should be in the same coordinate system. However,
coordinates determined by the base station that set up on an autonomous
point should be carried out a base shift, which provided by CHC LandStar 6
software, to keep their base station coordinate the same as the initial
coordinate system.
Notes – To perform the base shift, make sure that the two base stations have
been linked together by at least one common point that sharing with the
same position, which means that the common point not only has the
coordinate determined by the initial coordinate system, but also own the
coordinate surveyed from another base coordinate system that need to be
shifted.
To perform a base shift:
1. In the main menu, tap Survey → tap Base Shift.
2. Tap button next to the GNSS Point field to select the common
point surveyed from the base coordinate system that need to be
Page 72
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 70
shifted.
3. Tap button next to the Known Point field to select that common
point determined by the initial coordinate system.
4. The offset information of base coordinate system that need to be
shifted will be displayed automatically.
5. Tap button → a message will pop up asking user whether to
translate the coordinates determined by the current base coordinate
system to the initial one.
6. If tap YES button, all the coordinates determined by the current base
coordinate system will be translated. Also, the Point Data Management
screen will pop up to help user check whether the coordinates
determined by the current base coordinate system have changed.
Page 73
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 71
Note – The coordinates translated are local grid coordinates rather than
WGS-84 coordinates.

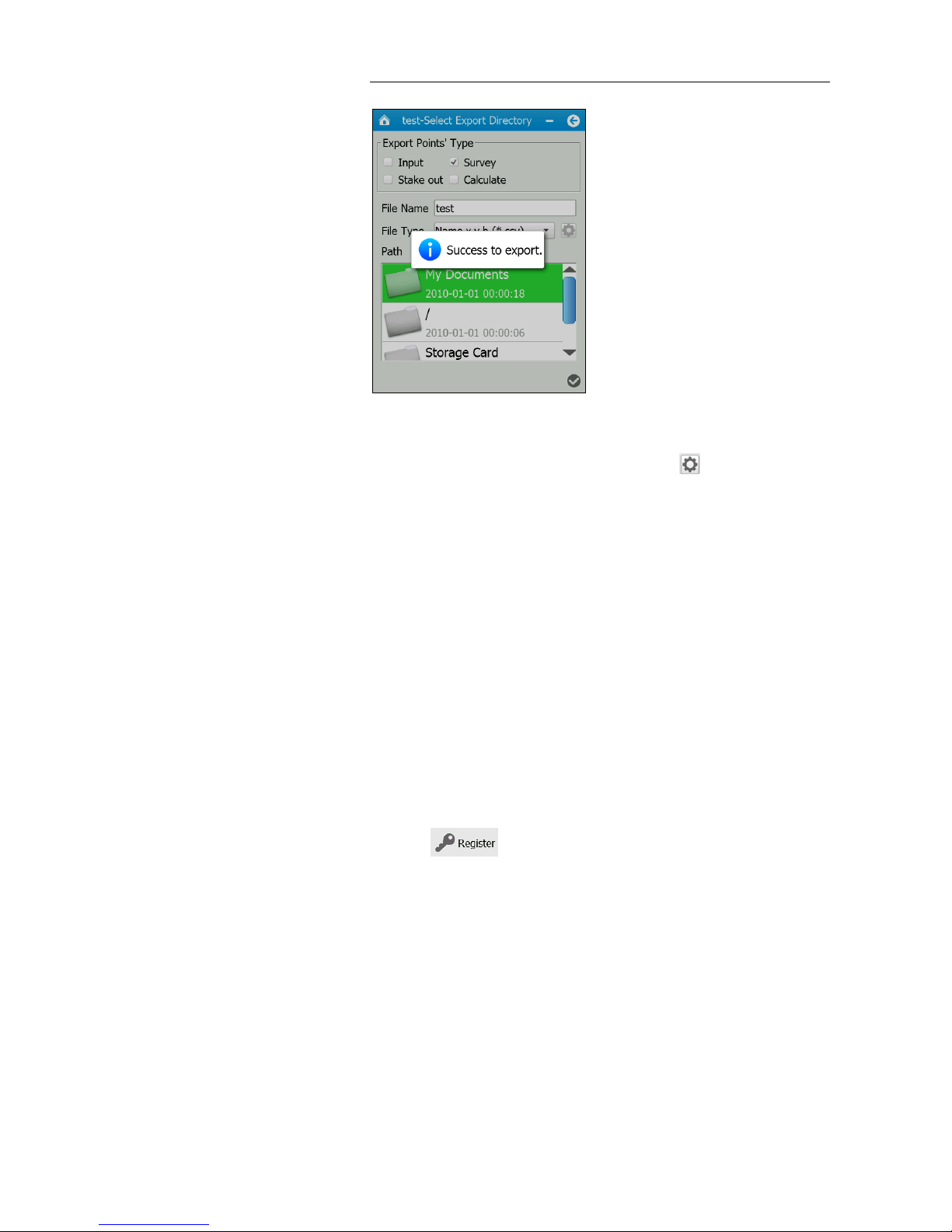

6.6. DATA EXPORT
1. In the main menu, tap Project → tap Export.
2. Select one data format (for example, Custom Format) according to your
requirement.
3. Tick the point type(s) → enter the File Name → select the File Type
from the dropdown list → select the path that used to store the file.
4. Tap button → the software will prompt whether the file has been
successfully exported.
Page 74
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 72
Notes
When select custom format, users can tap button next to File
Tpye field to define the file format according to your requirement.
After the file has been successfully exported in the controller,
connect the controller to the office computer for file transfer (please
refer to corresponding user guide of the controller that you are
using for instruction) and postprocessing.
6.7. RECEIVER REGISTRATION
When the software prompt that the receiver is overdue, users need to
contact your local CHC dealer to get the registration code.
To register the receiver:
1. In the main menu, tap Device → tap Device Info.
2. Tap button in the lower left corner.
3. Enter the registration code in the pop up window.
Page 75
6. Survey with LandStar 6 software
i80 GNSS Receiver User Guide Page 73
4. Tap Finish button to complete the registration, and then the software
will show the expire date.
Page 76
i80 GNSS Receiver User Guide Page 74
7. CONFIGURING THROUGH A WEB BROWSER
Supported browsers:
Google Chrome
Microsoft Internet Explorer
○
R
version 10, or higher
To connect to the receiver through a web browser:
1. Turn on the Wi-Fi of the receiver.
2. Search the wireless network named as GNSS-XXXXXXX (the SN of your
receiver) on your computer, and then establish the connection.
3. After the successful connection between your computer and the
receiver, enter the IP address of the receiver into the address bar of the
web browser on your computer:
4. The web browser prompts you to enter a login account and password:
The default login account for the receiver is:
Login Account: admin
Password: password
Note – Tick remember me option, and then the browser will remember the
Login Account and Password you entered for the next time you enter this
login screen.
5. Once you are logged in, the web page appears as follows:
Page 77
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 75
This web page shows the configuration menus on the left of the browser
window, and the setting on the right. Each configuration menu contains the
related submenus to configure the receiver and monitor receiver
performance.
This chapter describes each configuration menu.
To view the web page in another language, select the corresponding
language name from the dropdown list on the upper right corner of the web
page.
Currently, three languages are available:
7.1. STATUS MENU
This menu provides a quick link to review the receiver's position information,
satellites tracked, runtime, current data log status, current outputs, available
memory, and more.
Page 78
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 76
7.1.1. POSITION SUBMENU
This page shows the relevant position information about the receiver's
position solution which including the position, DOP values, satellites used
and tracked, and the receiver clock information.

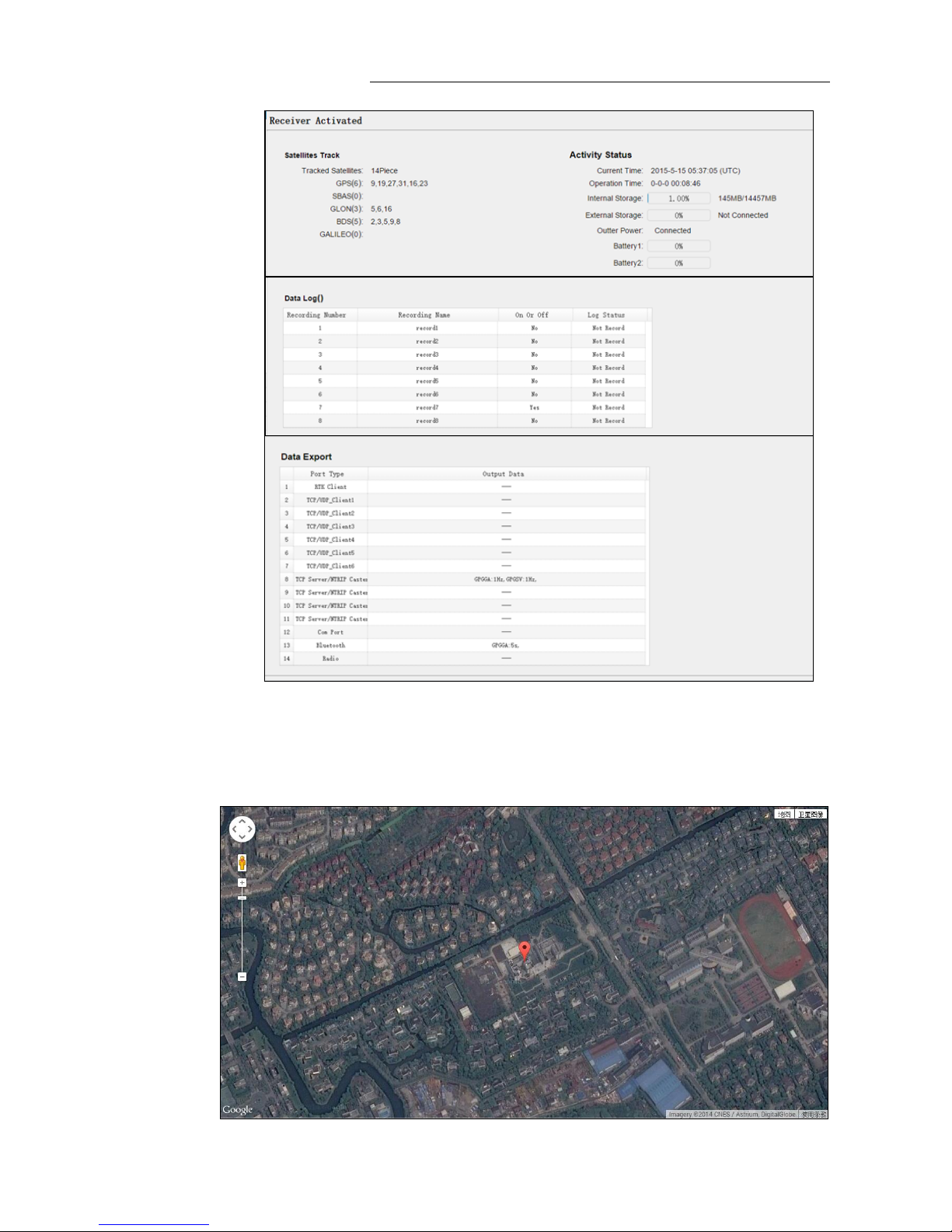

7.1.2. OPERATION SUBMENU
Lists several important items to help you understand how the receiver is
being used and its current operating condition. Items include the identities
of currently tracked satellites, internal and external storage usage rate, how
long the receiver has been operational, state of the internal battery, power
source state, files being logged, and data streams being output. With this
information, it is easy to tell exactly what functions the receiver is
performing:
Page 79
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 77
7.1.3. GOOGLE MAP SUBMENU
Tap this submenu to show the location of the receiver on Google map.
Page 80
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 78
7.2. SATELLITES MENU
Use the Satellites menu to view satellite tracking details and enable/disable
GPS, SBAS, GLONASS, BDS and Galileo constellations. These menus include
tabular and graphical displays to provide all required information on satellite
tracking status.
7.2.1. SATELLITE TRACK TABLE SUBMENU
Provides the status of satellites tracked in general, such as the satellite ID,
satellite type, attitude angle, azimuth angle, L1 SNR, L2 SNR, L5 SNR and
enable/disable status of each one.
7.2.2. SATELLITE TRACK DIAGRAM SUBMENU
The following figure is an example of satellite track diagram page. Users can
determine the satellite types and the corresponding SNR of L-band carriers
to be displayed in any combination.
Page 81
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 79
7.2.3. SKYPLOT SUBMENU
The following figure is an example of Skyplot page.

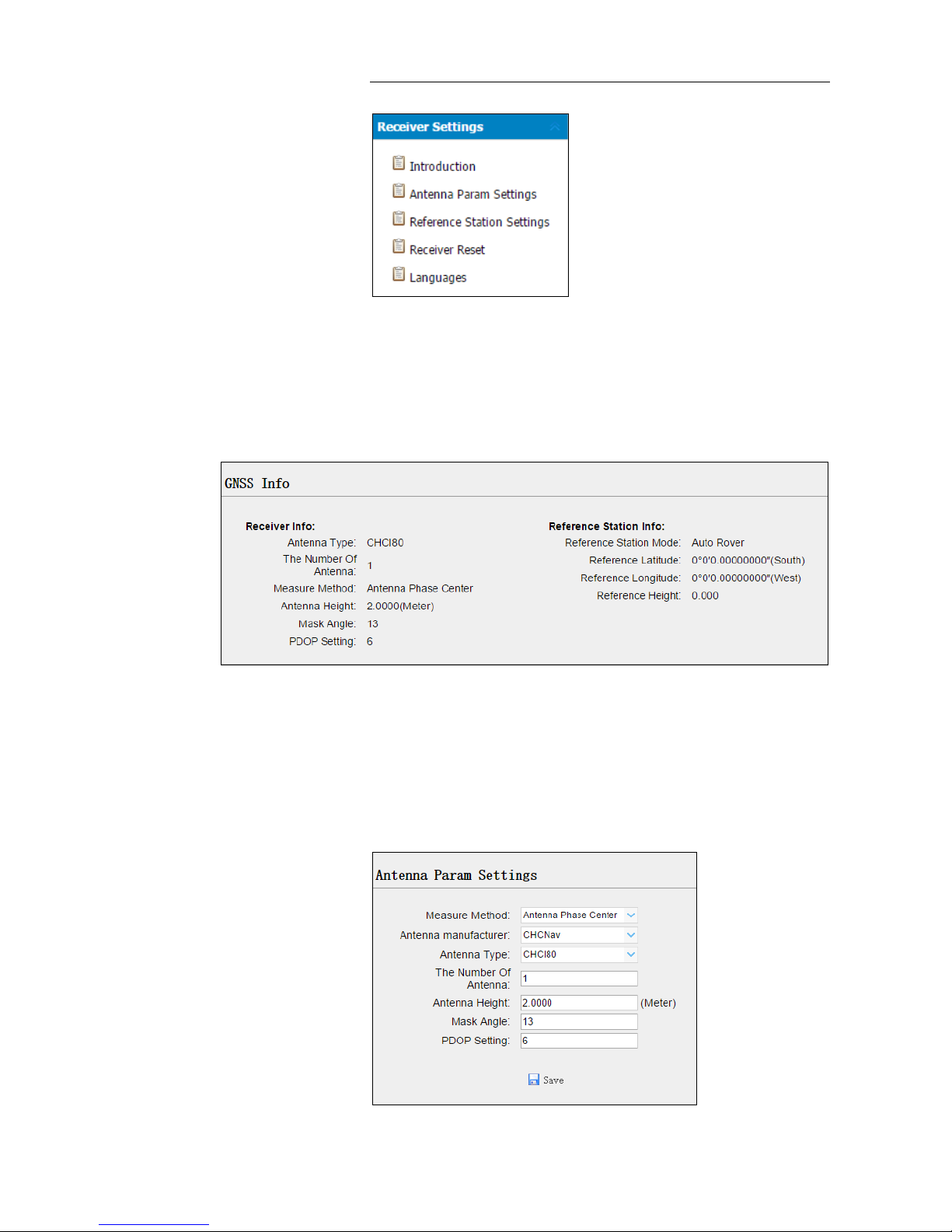

7.3. RECEIVER SETTINGS MENU
Use this menu to configure settings such as the antenna type and height,
elevation mask and PDOP setting, the reference station coordinates, receiver
resetting and web interface language:
Page 82
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 80
7.3.1. INTRODUCTION SUBMENU
This submenu shows the receiver information and reference station
information, including antenna related information, elevation mask angle,
reference station work mode and position, etc.
7.3.2. ANTENNA PARAM SETTINGS SUBMENU
Use this screen to configure all of the items relating to the GNSS antenna.
You must enter the correct values for all antenna-related fields, as the
choices you make significantly affect the accuracy for logged data and
broadcast correction data:
Page 83
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 81

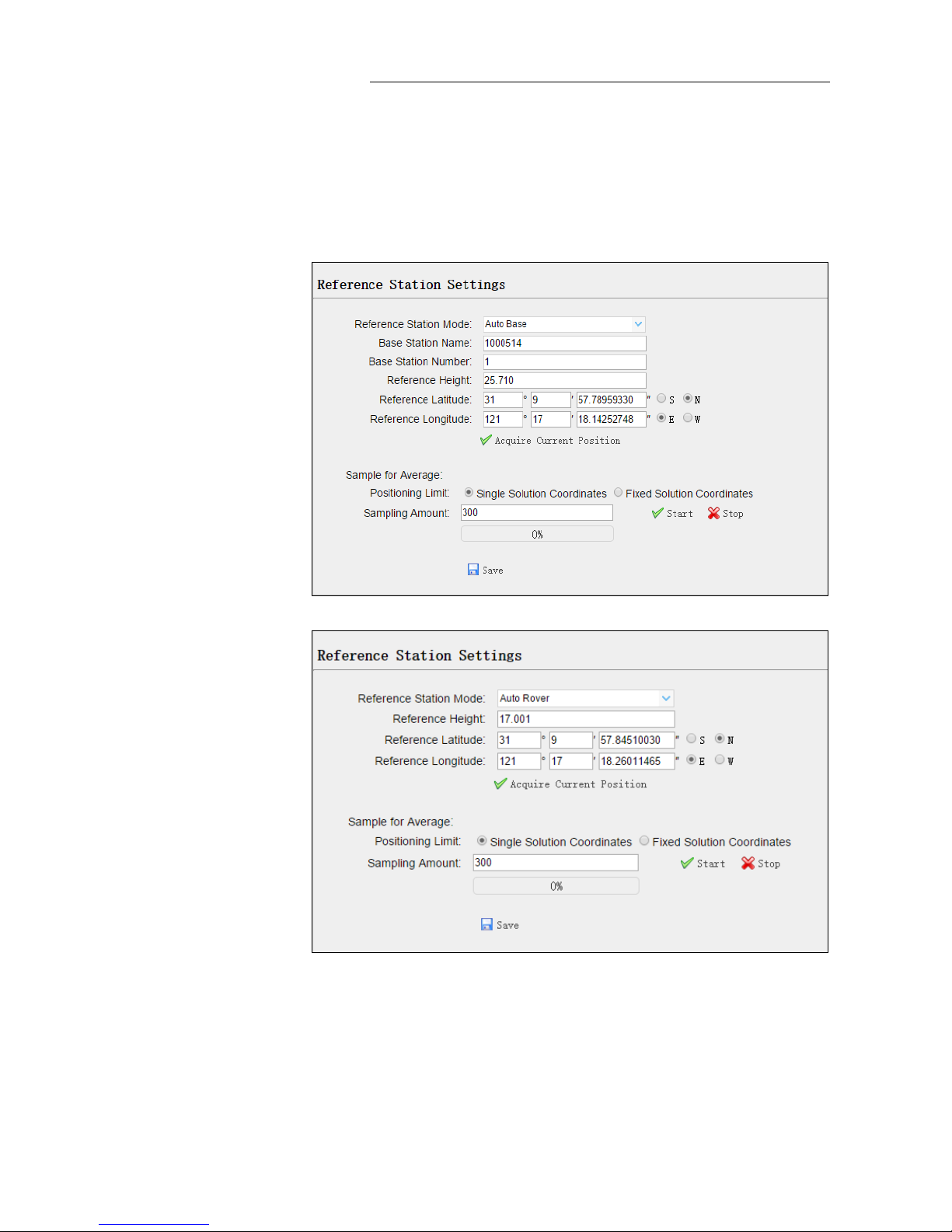

7.3.3. REFERENCE STATION SETTINGS SUBMENU
Use this screen to configure settings such as the station coordinates and the
broadcast station identifiers. You must enter accurate information in these
fields, as this data significantly affects the accuracy of logged data files and
broadcast correction data:
For Reference Station Mode:
There are three modes available:
a) Auto Rover: The receiver will serve as a rover after this mode is
enabled, and then receive correction data through the working
mode set last time.
Page 84
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 82
b) Auto Base: The receiver will serve as a base after this mode is
enabled, and then broadcast correction data based on coordinate
inputted by user, or obtained through autonomous positioning
automatically.
c) Manual Base: The receiver will serve neither as a base or a rover
after this mode is enabled. Users need to configure the receiver
manually.
For Reference Latitude and Reference Longitude:
There are mainly three methods to enter the reference coordinates and
shown as follows:
a) Acquire Current Position: Click this button to acquire current
position obtained through autonomous positioning automatically.
b) Manual Input: Manually input the coordinate of a control point.
c) From CORS: After the receiver logging in CORS, the software can
record the coordinate of current position based on fix solution.
For Sample for Average:
Users can determine the positioning limit and sampling amount. The
positioning limit falls into two types:
a) Single Solution Coordinates: Collect the coordinates of receiver
obtained through autonomous positioning.
b) Fixed Solution Coordinates: Only collect coordinates of receiver
with a fixed solution.
After the configuration of positioning limit and sampling amount, click
to carry out sampling and averaging → the progress bar will
show the progress → the result will be served as the coordinate of
current positon.
If users need to save the changes, please tap button.
7.3.4. RECEIVER RESET SUBMENU
Use this screen to completely or partially reset the receiver:
Page 85
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 83
7.3.5. LANGUAGES SUBMENU
Use this screen to select the web interface language:
7.4. DATA RECORDING MENU
Use the Data Logging menu to set up the receiver to log static GNSS data and
to view the logging settings. You can configure settings such as observable
rate, recording rate, continuous logging limit, and whether to auto delete old
files if memory is low. This menu also provides the controls for the FTP push
feature:
7.4.1. LOG SETTINGS SUBMENU
Shows the data logging status, internal and external storage usage and data
logging status of each session. Also, users can configure the data logging
settings for each session, including recording name, store location, storage
limit, store formats, start time, etc.
Page 86
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 84
To edit the settings of each session, click the Modify button to the right of
the required session, and then the Recording Edit screen appears:
In this screen, you can configure all the data logging parameters, and
determine whether the recording files will be affected by the FTP Push.
The parameters are mainly as follows:
Recording Name: The name of this logging session.
Sample Interval: Select the observable rate from the dropdown list.
Store Location: Determine whether to store at internal storage or
Page 87
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 85
external storage.
Start Time: Set the start time of data logging in UTC. Select Yes or
No option below to determine whether to start data logging from
the start time defined, or immediately after this session is switched
on.
Duration Time: Set the duration of data logging.
Storage: Set the storage space of this session.
Recycle Storage: Select Yes or No option to determine whether to
auto delete old files if the storage space is full.
Storage Format: Set the data format of the logged data.
FTP Push: Decide whether to push the stored files to the FTP server
of your choice.
Tap button to save the settings and back to the Log Settings
screen. Also, users can click to abandon the changed settings
and back to Log Settings screen.
Note – To modify data logging parameters, make sure the data logging
session is switched off.
To switch on or off ANY data logging session, tap the ON or OFF button to
the right of the required session.
To delete the recorded files of ANY data logging session, tap the Clear button
to the right of the required session.
To delete the recorded files of ALL data logging sessions, tap the Clear ALL
Accounts button.

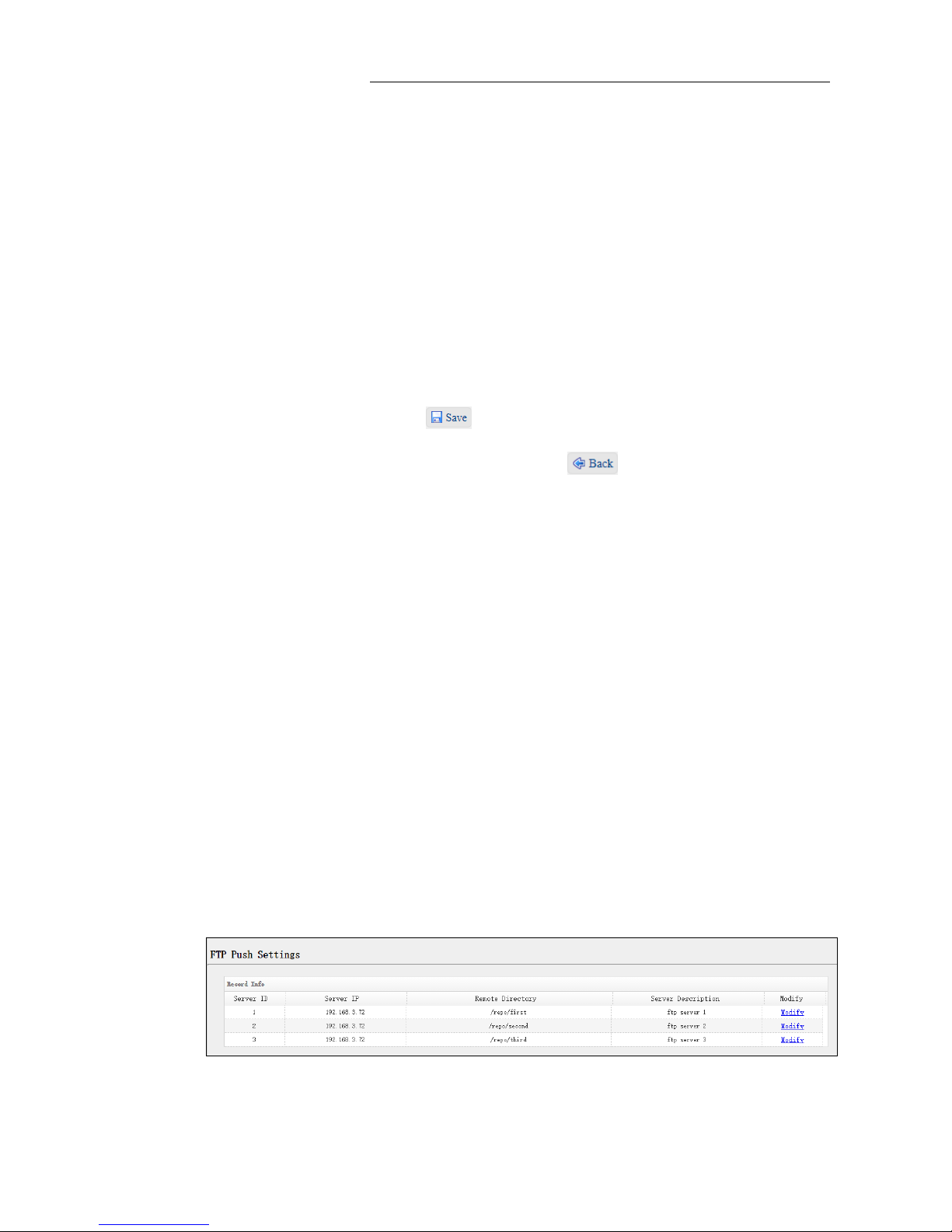

7.4.2. FTP PUSH SETTINGS SUBMENU
Use this screen to configure the receiver to push stored files to the FTP
server of your choice. Only files that are configured to use FTP push are
transmitted.

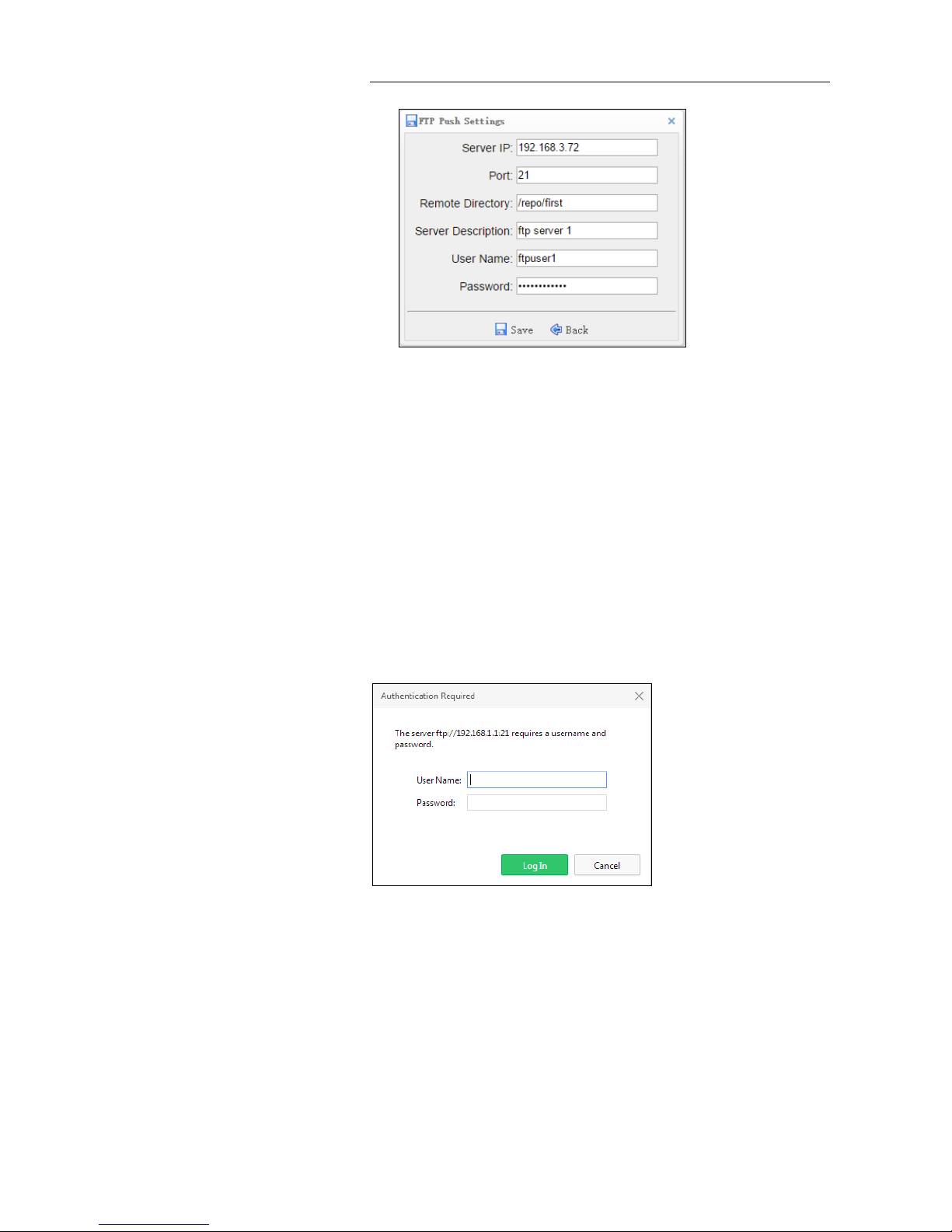

Tap Modify button to the right of the required FTP server and the FTP Push
Settings screen appears:
Page 88
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 86
7.4.3. FTP PUSH RECORDING SUBMENU
Shows the related information about the recorded filed that be pushed. And
users can tap Clear Ftp Send Log button in the upper right corner to clear
the log of FTP Push operations.
7.4.4. DATA DOWNLOAD SUBMENU
In this submenu, users can download the data files that recorded in the
internal storage through the internal FTP site.
1. Click this submenu, and then the log on dialogue box will prompt you to
enter a user name and password:
The default logon account for the internal FTP site is:
User name: ftp
Password: ftp
2. Click the directory named as “repo” to view and download the files
currently stored on the receiver:
Page 89
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 87
3. To find the file need to be downloaded, click the name of data logging
session → the date of file that be recorded → the format of the file →
the name of the target file.
4. To download a file, left-click the name of the target file → download the
file according to the prompts.
7.5. IO SETTINGS MENU
Use the IO Settings menu to set up all receiver outputs and inputs. The
receiver can output CMR, RTCM, Raw data, Ephemeris data, GPGGA, GPGSV,
on TCP/IP, UDP, serial port, or Bluetooth ports.
7.5.1. IO SETTINGS SUBMENU
The following figure shows an example of the screen that appears when you
select this submenu.
Page 90
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 88
In this submenu, users can configure 6 types of input and output settings.
1. RTK Client
After configuring the settings of RTK client, users can log on CORS or APIS.
Tap the Connect button to the right → the IO Settings screen will appear →
choose one of the connection protocols among the NTRIP, APIS_BASE and
APIS_ROVER → configure the related parameters → click to
log on CORS or APIS.
Connection Protocol: NTRIP
Connection Protocol: APIS_BASE
Page 91
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 89
Connection Protocol: APIS_ROVER
2. TCP/UDP Client
Tap the Connect button to the right of required TCP/UDP Client → the IO
Settings screen will appear → select the connection protocol between TCP
and UDP → enter the IP and Port of the target server → configure messages
that you want to output to the target server → click to save
and complete the connection.
Page 92
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 90
3. TCP Server/NTRIP Caster
Tap the Connect button to the right of required TCP Server/NTRIP Caster →
the IO Settings screen will appear → select one of the connection protocols
between NTRIP and TCP → configure the other related parameters → click
to save the settings and open the server.
Connection Protocol: NTRIP
Connection Protocol: TCP
4. COM Port
Page 93
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 91
Tap the Settings button to the right of COM Port → the Serial Port Setup
screen will appear → select Baud Rate used to transmit data → configure the
messages that you want to output through the serial port → click
to save the settings and start to transmit.
5. Bluetooth
Tap the Settings button to the right of Bluetooth → the Bluetooth Set screen
will appear → configure the messages that you want to transmit through
Bluetooth → click to save the settings and start to transmit.

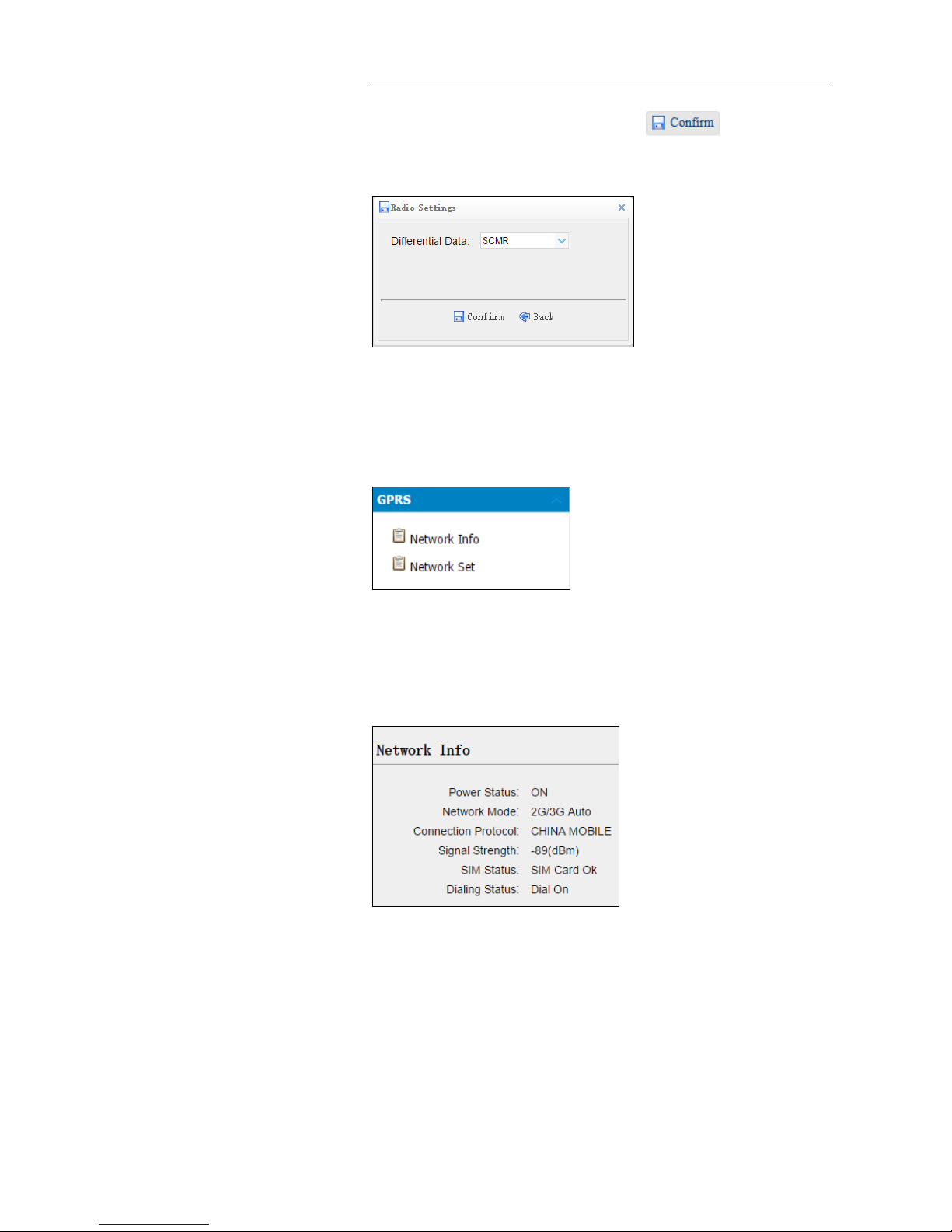

6. Radio
Tap the Settings button to the right of Radio → the Radio Settings screen will
appear → select the format of differential data that you want to transmit
Page 94
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 92
through radio from the dropdown list → click to save the
settings and start to transmit.
7.6. GPRS MENU
Use this menu to check and configure the network settings:
7.6.1. NETWORK INFO SUBMENU
The following figure shows an example of the screen that appears when you
select this submenu:
7.6.2. NETWORK SET SUBMENU
Use this submenu to configure network settings, including GPRS model
status, network mode, dialing status, APN, etc.
Page 95
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 93
7.7. WIFI MENU
Use this menu to check and configure the Wifi settings:
7.7.1. WIFI INFO SUBMENU
The following figure shows an example of the screen that appears when you
select this submenu:
Page 96
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 94
7.7.2. WIFI SETTINGS SUBMENU
Use this submenu to configure the related parameters of the Wi-Fi settings,
including power status, wifi mode, encrypt type, password, etc.
7.8. BLUETOOTH SET MENU
Use this menu to configure Bluetooth settings.
7.8.1. BLUETOOTH SET SUBMENU
The following figure shows an example of the screen that appears when you
select this submenu:
7.9. RADIO SETTINGS MENU
Use this menu to check and configure radio related settings, including
protocol, OTA baud rate, frequency, etc.
Page 97
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 95
7.9.1. RADIO INFO SUBMENU
The following figure shows an example of the current configuration
information about the internal radio:
7.9.2. RADIO SETTINGS SUBMENU
Use this submenu to configure radio settings, including radio status, whether
to switch on auto start or not, protocol, transmitting power, radio frequency,
etc.
7.10. NETWORK SERVICE MENU
Use this menu to configure the receiver’s HTTP port, and the username and
Page 98
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 96
password of internal FTP site:
7.10.1. HTTP SUBMENU
The following figure shows an example of the screen that appears when you
select this submenu:
7.10.2. FTP SERVICE SUBMENU
The following figure shows an example of the screen that appears when you
select this submenu:
7.11. FIRMWARE MENU
Use this menu to check the current firmware information, download the
system log, update the receiver firmware, download or update the
configuration file and register the receiver, and more:
Page 99
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 97
7.11.1. FIRMWARE INFO SUBMENU
Use this submenu to check the current firmware information. The following
figure shows an example of the firmware information.
7.11.2. SYSTEM LOG SUBMENU
Use this submenu to download the system log of the receiver.
7.11.3. FIRMWARE UPDATE SUBMENU
Use this submenu to load new firmware to the receiver across the network.
Tap the Browse button to locate the upgrade file → tap Confirm button to
confirm the selected upgrading file and start upgrading.
Page 100
7. Configuring through a web browser
i80 GNSS Receiver User Guide Page 98
Notes
It may take about 3 or 4 minutes to complete the firmware
upgrading. Do not touch the power button or unplug the power
until the upgrading process is finished, or damage will be caused to
the receiver.
The receiver will restart after the firmware upgrading is done, so
users need to reconnect the receiver with your computer via Wi-Fi,
and then log-in the receiver through a web browser to continue the
configuration.

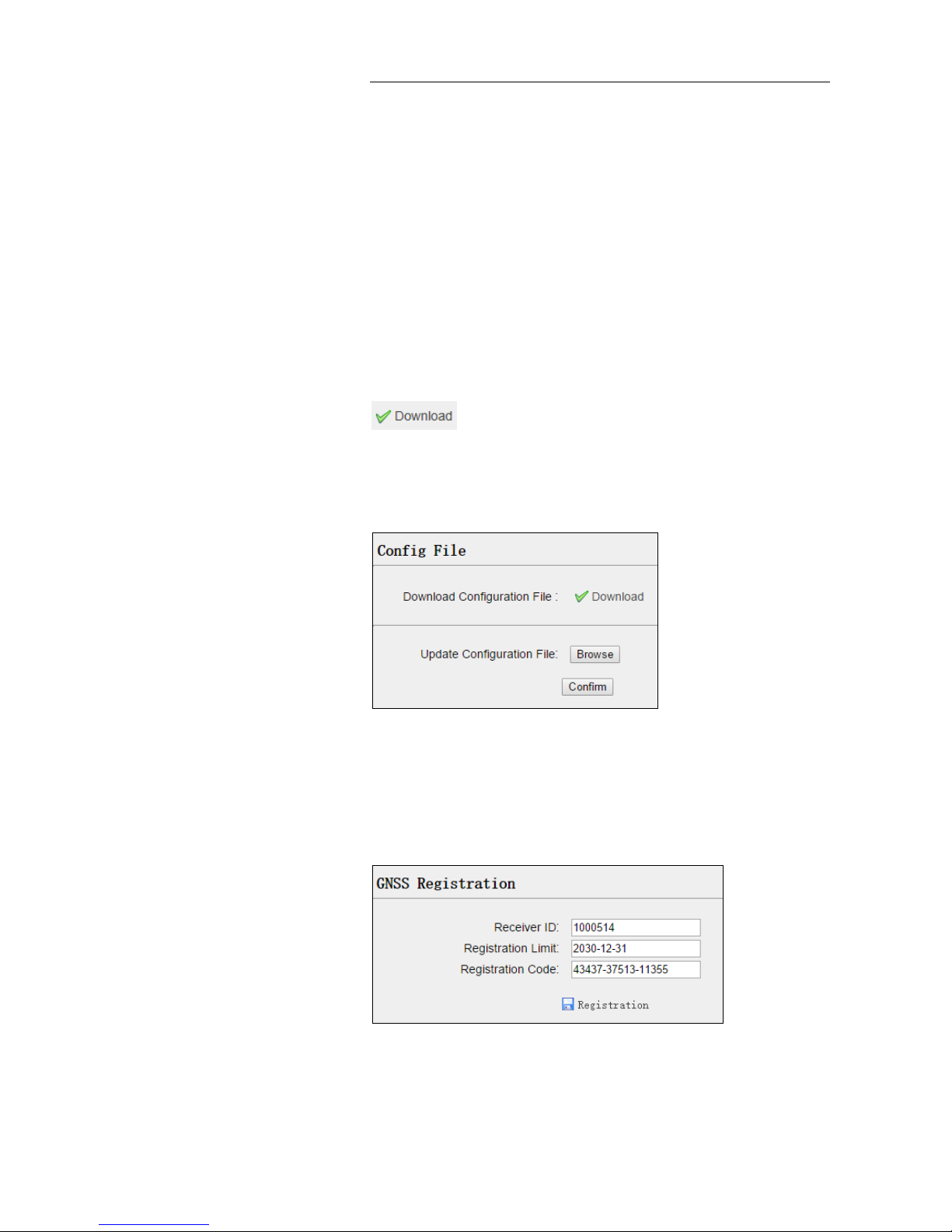

7.11.4. CONFIG FILE SUBMENU
In this submenu, users can download the configuration file by tapping
button and determine a saving path to download the
configuration file (.cfg file). Also, users can tap the Browse button to locate
the existing configuration file → tap Confirm button to confirm the selected
file and start updating.
7.11.5. GNSS REGISTRATION SUBMENU
Use this submenu to register the receiver. Paste or enter the registration
code to the Registration Code field → tap Registration button to complete
the registration.
7.11.6. THE HARDWARE VERSION SUBMENU
Use this submenu to check the hardware information, including main board
version and core board version:
