GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 1

Manuale di

installazione,

Mod. GIGIO – SILVESTRO SERBIS

Installation and instruction manual,

Mod. GIGIO-SILVESTRO-SERBIS

This manual is part of the supply

2 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

DIMENSIONS

GIGIO (Tipo I6)

SILVESTRO (Tipo I9 – I10)

695

508

246

388

695

500

456

43,88

495

500 458

FILO MURO Wall / Mure/

Wand

585

795

708

478

795

500

585

458 500

FILO MURO Wall / Mure / Wand

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 3

SERBIS (Tipo M10 – M10N – M14)

1046

1440 H MAX

380 MAX

1000

550

150

514,5

Ø 100

480

1355 H MIN

293 MIN

1000

4 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

Isolante - Isolant - Insulator - Isolator - Isolatie

D C

A = 100 mm B = 100 mm C = 800 mm D = 500 mm

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 5

6 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

Isolante - Isolant - Insulator - Isolator - Isolatie

D C

A = 250 mm B = 300 mm C = 1000 mm D = 600 mm

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 7

8 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

Dear Customer,

Thank you for choosing one product from our range and we hope you will be fully satisfied.

1. All inserts have been built with high gauge steel (up to 3 and 4 mm for the combustion chamber) of the best quality, and materials like vermiculite (skamolex) for the inner part of the combustion chamber. This give a clear outlook to the stove but also shows a great heat resistance and allows us to gain significant levels of heat output as well as very low emission levels

2. For the electric and electronic components the best suppliers on the European market have been selected. The main board, actually the heart of the stove, has been developed by the market leader with over 1.000.000 parts on the market.

3. Other components like smoke exhaust motors, pellet loading system and hot air fans have been selected with the same concept: only the best available on the market. As an example, for the pre-heater, we decided to install a double jacket. This gives us the possibility to install the pre-heater right there in the fireplace, where the pellet is. Why? To get a faster and safer starting of the stove!

5. On the top of all other checks, electric and for single components, we have added the “FINAL FIRE CONTROL”. At the end of the production we do connect and fire all stoves and, thanks to a special electronic control, we simulate all the typical conditions like in your everyday use. In this way we make 100% sure that each single stove is working 100%.

In a series of stoves from exceptional strength, capable of up to 13kW of power and get up to 70 hours continuously! You can program the heating in your house but switch the fan off when getting home at the evening and enjoy in silence the pleasure of the fire. All models are fitted with the external air inlet in line with the pre-heater. The outside air is getting warmed in the fire pot but a part is used to keep the glass door clean. This makes the stove tight and ideal to be installed in class A or BBC houses.

How could we get this result? First of all by choosing reliable top quality components and, last but not least, adopting a high sophisticated construction technology. On the top of that, our 25 years heating system manufacturing experience and a two years intensive developing program of a French – Italian technical team. The most innovative pellet stove nowadays available on the market is the result of this cooperation…

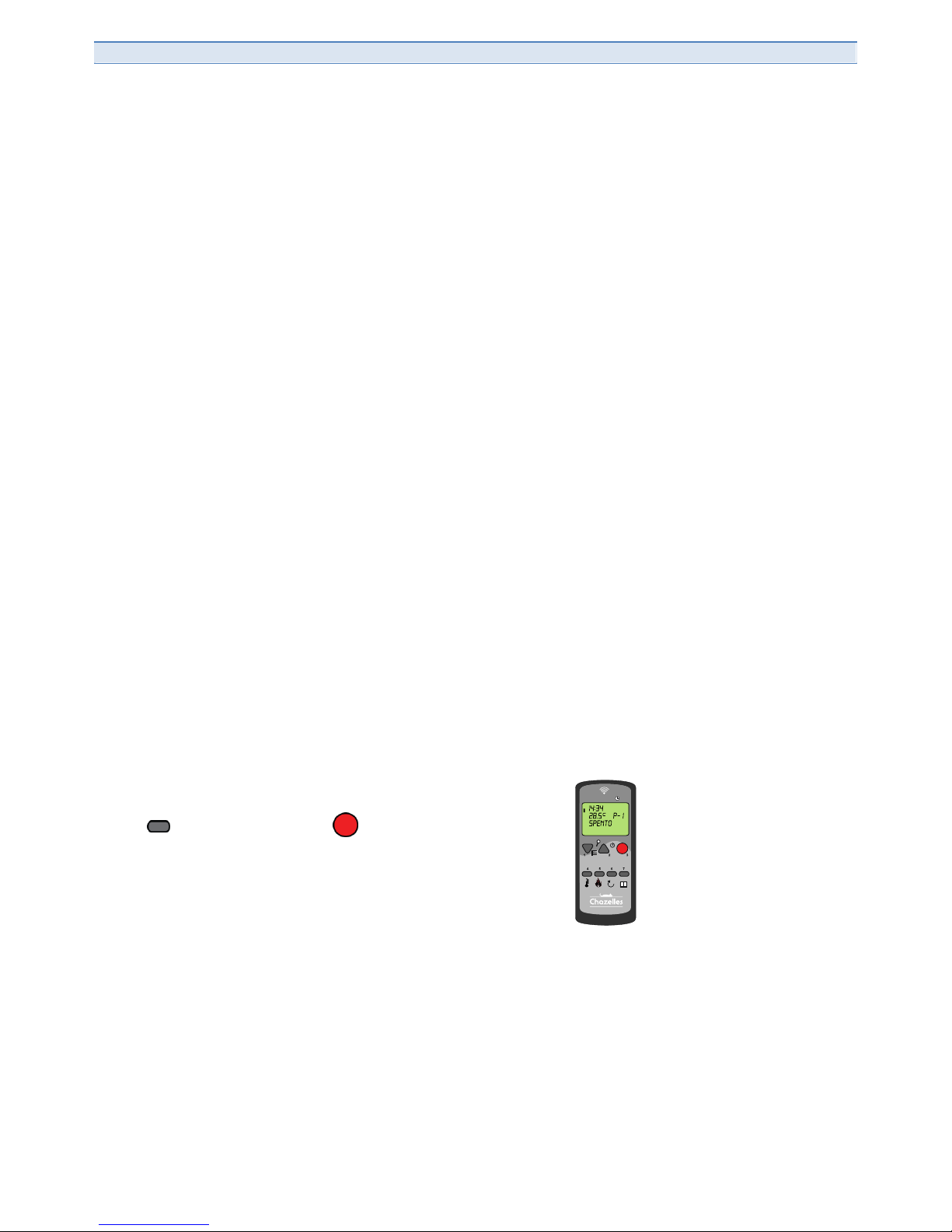

How to lock and unlock the remote control keypad: key 7 and right after key 3 .

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 9

Index ENG

1. IMPORTANT INFORMATIONS 10

2. SAFETY 10

3. HANDLING AND STOCKING 11

4. AUTHORIZED FUEL 11

5. NON AUTHORIZED FUELS 11

6. STOVE DESCRIPTION 12

7. INSTALLATION 13

8. LOCATION OF THE STOVE 14

9. THE SMOKESTACK 20

10. CONNECTING TO THE EXISTING SMOKESTACK 22

11. ALLOWED INSTALLATIONS 24

12. NOT ALLOWED INSTALLATIONS (IN ITALY) 26

13. PASSING THROUG FLAMABLE CEILING 27

14. CONNECTING TO THE EXTERNAL AIR INLET 27

15. ELECTRICAL CONNECTION 28

16. REMOTE CONTROL INSTRUCTIONS 29

17. LIST OF MENUS 30

18. MENU 02 - DAY AND TIME SETTING 31

19. MENU 03 - SET WALL THERMOSTAT 31

20. MENU 04 – SELECT LANGUAGE 33

21. MENU 05 – SET ROOM TEMPERATURE PROBE 33

22. MENU 06 – STAND BY OR STOP&GO 34

23. MENU 07 – BEEPER 34

24. MENU 08 – FIRST PELLET LOADING 34

25. MENU 09 – STOVE STATUS 35

26. MENU 10 – SERVICE SETTINGS 35

27. MENU 11 – DEALER SETTINGS 35

28. MENU 12 – FAN ENABLE 35

29. STOVE STARTING 35

30. ROOM TEMPERATURE SETTING 36

31. POWER SETTING 36

32. SWITCHIN OFF 36

33. REMOTE CONTROL FREQUENCY SETTING 37

34. REMOTE CONTROL LINKING 37

35. HOW TO USE THE REAR CONTROL PANEL (IN EMERGENCY ONLY) 38

36. FIRST STARTING 39

37. MAINTENANCE AND CLEANING 42

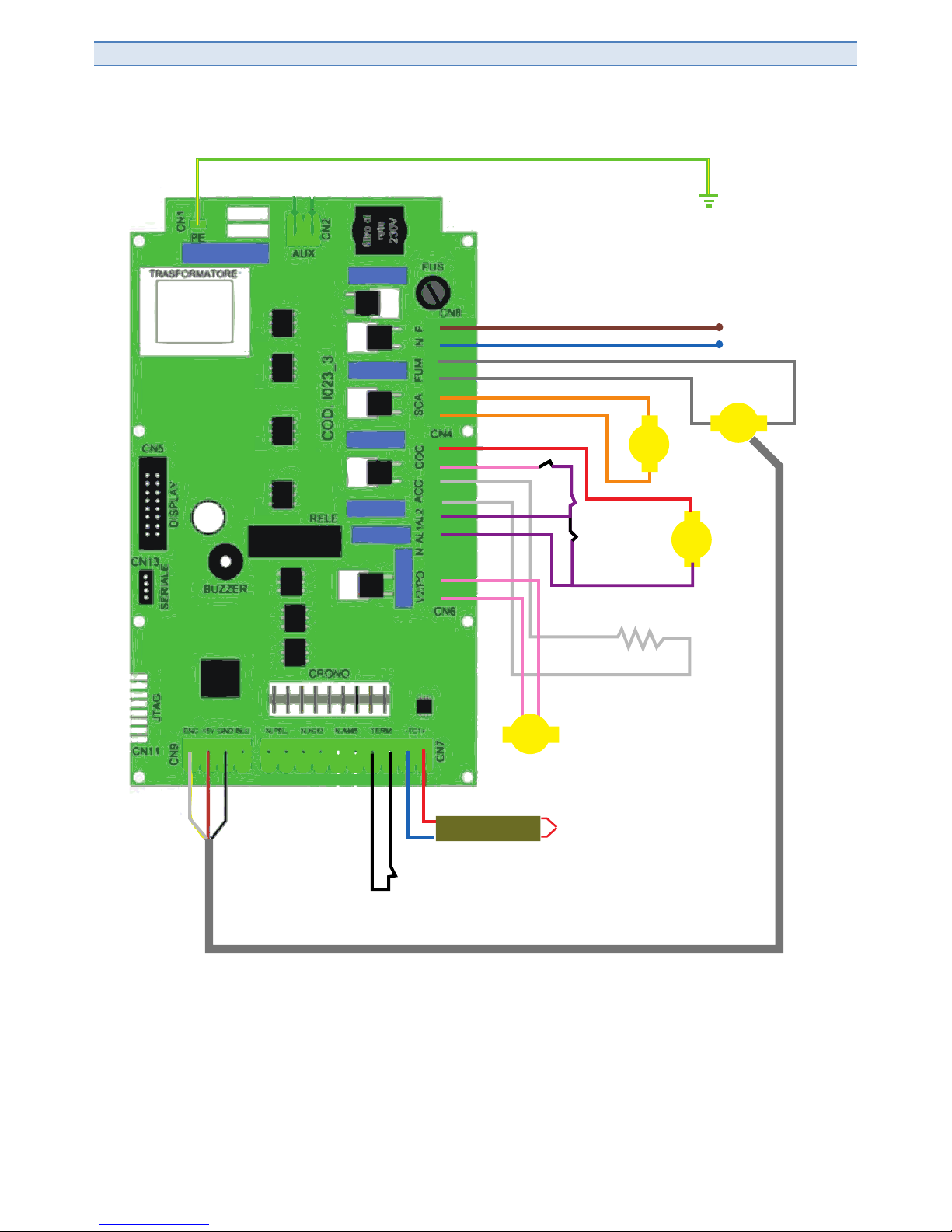

38. ELECTRICAL DIAGRAM 45

39. TROUBLESHOOTING 47

40. GUARANTEE 49

10 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

1. IMPORTANT INFORMATIONS

This instruction manual belongs to the pellet stove and is delivered with it. The stove is delivered with this manual, the relevant plant booklet and the guarantee form. Please do carefully read this instruction manual before installing and starting the stove. Save all the a.m. documents because they are integral parts of the stove.

CAUTION: This warning symbol located in various parts of this book, indicates that if you don’t follow the intructions of what is written, it can cause serious

damages to the product and endanger the safety of those users.

For safety reasons, it is very important to always follow instructions when maintaining the stove.

All the local, regional, National and European regulations have to be satisfied when using this stove.

The packaging does protect your stove. However, during transport, the stove could get damaged. Therefore, we kindly ask you to carefully check the stove and its components. A damaged stove - or in case of missing component – should not be installed. Please get immediately in touch with your dealer.

2. SAFETY

Attention: the glass is very hot !!!! Do not leave kids near the stove!!!

Do not leave curtains, clothes, dish closes, furniture or other material on or near to the stove. Do respect the safety distances.

After installing the stove let it burn at an average power (power 3). Ventilate the room and carefully supervise the stove. During this time, all paints and assembling material will dry out. The light smoke that could develop will rapidly fade away.

Regular maintenance and cleaning are essentials for the stove proper working and lasting. Check for craked or broken glasses. In case, replace immediately.

Your stove has been developed for using a well defined fuel. Specification for the ideal fuel is shown in the next chapter. In case of use of different or not allowed fuels, your stoves can get shortly damaged. The remote control does integrate a probe and you can set the desired temperature for the room where the remote is located. The range is 7 to 8 meters depending on the architecture of the building. We suggest not placing it close to the stove. All side walls and the top of the stove are getting very hot. Do not leave there the remote because it will be damaged. Always use original parts for the guarantee. It is not allowed to modify in any way the stove.

Basic safety rules: General Indications:

- Never use water for extinguishing a stove.

- The glass and other parts of the stoves are extremely hot and could be very dangerous for kids

- Through the glass, there is a radiant heat, don’t put flammable materials, heat sensitive objects or people at less than 80 cm by 180°.

- Don’t leave flammable materials near to the stove.

- Never run the stove when the ashtray is out

- When cleaning the ash tray and burning pot, put all rests in a metallic container and wait at least 48 hours before discarding it in order to prevent fire cases.

After sale service

We recommend you to always order only original spare parts directly supplied by the stove manufacturer otherwise the guarantee will decline. The manufacturer is not responsible for maintenance and cleaning operations made unaccordingly with this manual.

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 11

3. HANDLING AND STOCKING

The cardboard/wood package has been designed to protect the stove but cannot be stocked outside or in very damp places. It must be exposed to the elements, otherwise some components or the stove itself could get damaged and the guarantee will decline. As stoves have some fragiles parts like glasses and electronic components, it should be handled following few basic rules: Lift and lay down the stove gently. In case you use a two wheels trolley or when transporting upstairs, always take the stove at the side opposite to the glass (which is identified by a sticker). The glass is always placed on the sticker side. .

4. AUTHORIZED FUEL

Pellet is produced with wood rests from clean wood machining like sawmills, furniture manufacturing or new wood from forest culture. All these 100% vegetable materials are dried and pressed into the pellet form without adding any kind of glue or chemical. We do approve to be used in our stoves all pellets that satisfy the European regulation EN 14961-2. All the approved pellets must carry the following logo:

New logo since 2011

Typical specifications for the approved fuel:

.caloric capacity (in MJ/kg) (2*)

. ≥ 17,6 MJ/kg

.caloric capacity (in KWh/kg) (2*)

≥ 4,9 KWh/kg

.caloric capacity (in Kcal/kg) (3*)

≥ 4.223 Kcal/kg

..density

..1,12 kg/dm3

..water content

..mass. 10,0 %

..ash content

..mass. 0,5 %

..length

..mass. 30 mm

..diameter

5- 6 mm

..thin material (rests)

..mass. 2,3% (1*)

..composition

..natural wood

If using a low quality fuel, the stove could possibly work not properly and can lead the guarantee to decline. The uses of low quality pellet leads to:

- Shorter cleaning intervals

- Higher fuel consumption

- Lower output

- Glass getting quickly dirty

- Fire pot and exhaust smoke connection will clog up rapidly

5. NON AUTHORIZED FUELS

All pellet types that doesn’t satisfy the a.m. indications..

12 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

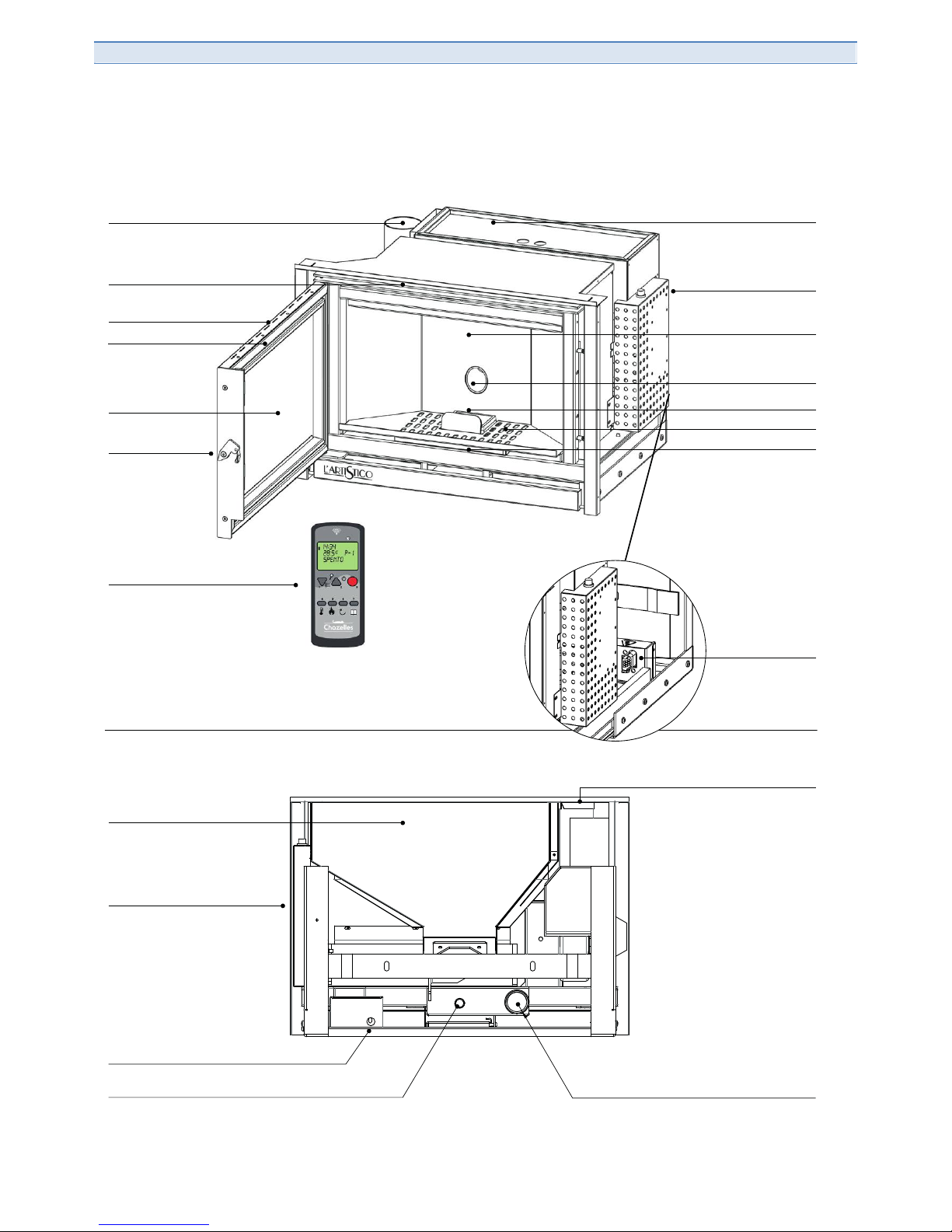

6. STOVE DESCRIPTION

GIGIO - SILVESTRO

Door

Doot Locking

Ceramic glass

Front view

Rear view

Smoke outlet Ø 80

Pellet filling flap

Remote control

Ash Drawer

Decoration Grid

Fire Pot

Fire Pot Pellet Loading

Vermiculite-shamolex Shel

Electric Box

Glass Cleaning Grids

Warm Air Grids

Electrical connection:

automatic fastening

and release when

pushing

in/pulling out

the insert

Smoke Outlet Ø 80

Combustion Air Inlet Ø 50

Pellet Container

Electric Box

Glow Plug

Electric Cord Opening

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 13

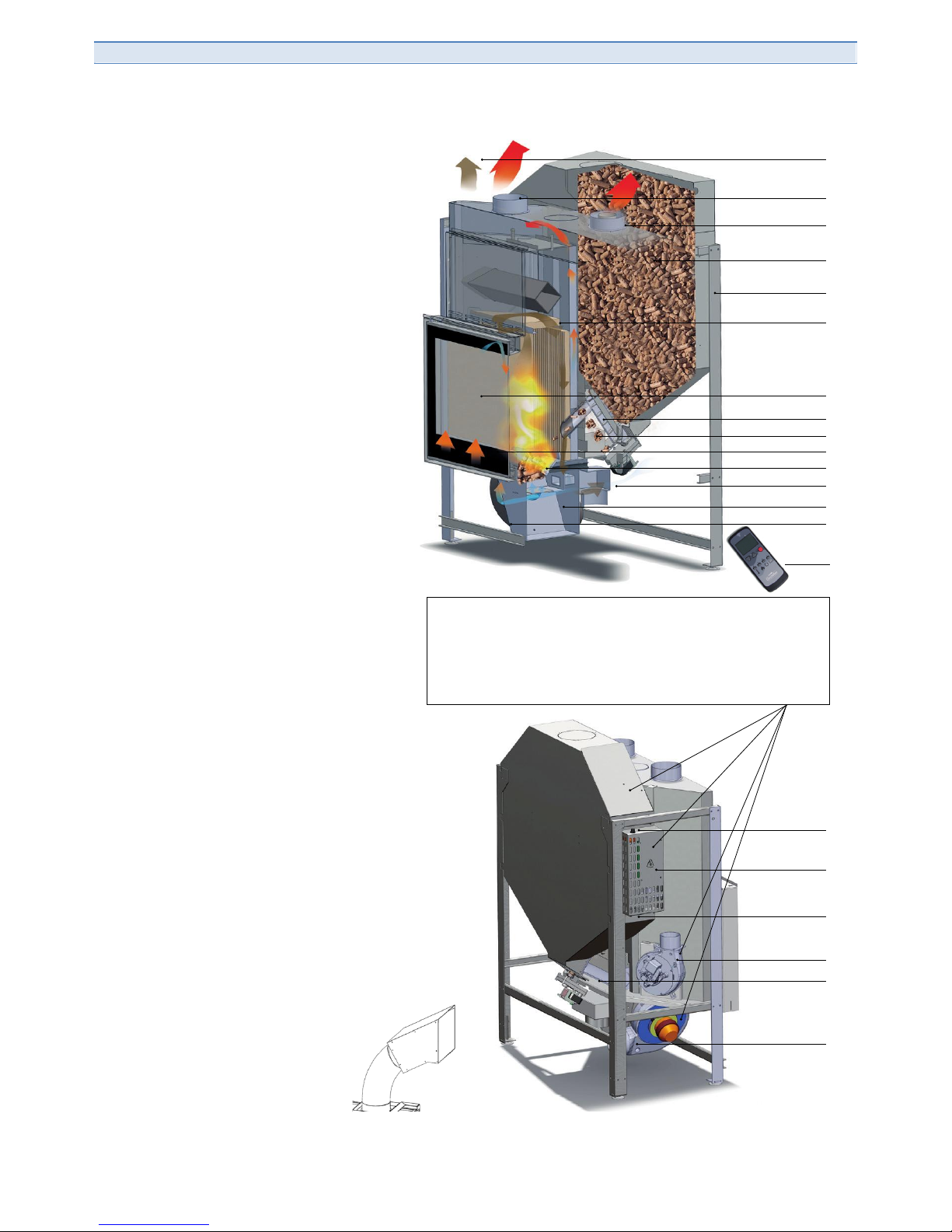

SERBIS

1●

S erb ato io p e llet

P e llet tan k / P e lle ts b e hä lte r F a s s un gs v erm ö ge n / R é s e rv o ir à gran ulé s

2 ●

S is te m a au to m atic o d ’alim en taz io n e p elle t

A u to m atik fe e d in g s ys te m / A u to m atis c hes P ellet Z u fü h ru n g S ys te m au s S ta hl / S ys tèm e d ’alim en tatio n au to m atiq u e

3 ●

S kam o lex

S kam o le x / V erm icu lite / V erm icu lite

4 ●

B ru ciato re d i fu s io n e in ghis a

C as t-iro n b u rn er / B re n n to p f au s G u s s / B rû le u r e n fo n te

5 ●

E n trata aria co m b u s tio n e rac co rd ab ile all’es tern o

C o m b u s tio n A ir in let / P rim ä rlu ftz ufu h r Z u fü h ru n g / E n tré e d ’air d e co m b us tio n

6 ●

A ria s e co n d aria p re ris c ald ata

S e c o n d ary air in let / S e ku n d ä rlu ftzu fu hr Z u fü h run g / E n tré e d ’air s ec o n d aire

7●

P e rco rs o e u s cita fu m i

S m o ke exit / R au c hga s kan al / E v ac u a tio n d e s p ro d u its d e c o m b u s tio n (fu m é e s )

8 ●

E s tratto re fu m i

S m o ke exhau s ter / R au chga s a b s c h e id e r / E xtrac teu r d e fu m é es

9●

P e rco rs o e us cita aria cald a (in co n v ez io n e n atu rale o

fo rzata)

W o rm air exit (b y n atural o r fo rce d c o n v ectio n ) / W arm lu ftau s tritt S ch litz en / C ircu it e t s o rtie d ’air c hau d (p ar c o n vectio n n atu re lle o u fo rc é e )

10●

S en s o re te rm o s tato s ic u re zza

S e c u rity te m p erature p ro b e / T e m p eratur F ü hle r / S o n d e de te m p é rature d e s é c u rité

11●

Z o n a d ecan taz io n e fu m i

S m o ke e xtrac tio n are a / R au c h ga s A b s e tz b e cke n / Z o n e d ’e xtrac tio n d es fu m é e s

12 ●

S ched a ele ttro n ic a co n m icro p ro ce s s o re p e r co m u n icazio n e co n tele co m an d o : p o s s ib ilità d i co m an d are la s tu fa in cas o d i e m ergen za s en za te le co m an d o

E le ctro n ic S ys te m w ith m ic ro s hip to co m m u n icate w ith the rem o te co n tro l an d to fix m an u a lly the s to v e in c as e o f e m erge n cy / E le ktro n is c he M ikro p ro z e s s o r S te ue ru n g fü r F e rn b ed ie n u n g Ü be rw achu n g m it in tegrie rte s N o t F u n ktio n : b e i S tö ru n ge n d e n O fe n ka n n au c h o h n e F e rn b e d ie n un g b en utz t s e in / S ys tèm e é le c tro n iq u e av e c m ic ro p ro ce s s eu r q u i p e rm et d e co m m u n iq u e r a v e c la té lé co m m an d e e t d e ré gle r le p o ê le e n c as d ’u rge n c e m an u elle m e n t.

13 ●

R ad io co m an d o c o n s en s o re tem p eratu ra

R ad io R em o te C o n tro l w ith te m p e ra ture p ro b e / R ad io F ern b e d ie n un g m it ein ge b au te s R a u m te m p e ra tu r F ü h le r / T é lé c o m m a n d e rad io av e c s o n d e d e te m p é ratu re in té gré e

14 ●

V en tilato re ce n trifu go d i co n v ez io n e (16 0 m3/h) p er can alizz az io n e

C en trifu gal co n v e ctio n fa n (u n til 16 0 m 3 /h ) / Z e n trifu galv e n tilato r, b is z u 16 0 m 3 /h / V en tila teu r d e c o n v ectio n ju s q u ’à 16 0 m 3 /h p o u r c an aliz atio n

15 ●

V en tilato re tan ge n z iale d i c o n vez io n e p er us cita aria

b o cche tte s up erio ri (2 5 0 m3/h)

C o n v e c tio n fan / T a n g e n tiallu fte r / V e n tila teu r d e c o n ve ctio n

16 ●

T erm o s tato d i p ro tezio n e term ica

S ta rtin g re s is tan c e / S ic herhe its T he rm o s tat / D is jo n c teu r th e rm iq u e

17●

F u s ib ile e in te rru tto re co rren te gen erale

F u s e s a n d e lectrical co n n ec tio n / S ic h e ru n ge n u n d N etztan s ch lu s s / F u s ib les e t p ris e d ’alim en ta tio n é le c triq u e

Ventilatore, elettronica, estrattore fumi e carico pellet posizionabili a de stra o a sinistra, intercambiabili. Standard di fabbrica: a sinistra come disegno qui illustrato.

F an , s m o ke e xhau s ter, ele c tro n ic an d lo a d p e llets p o s itio n e d to the right o r le ft, in terc han ge ab le . S tan d ard : le ft. /

L ü fter, M o to re n , e le ktro n is che un d L as t P e llets an ge o rd n et, u m n ach

rech ts o d er lin ks , au s taus c hb ar.

/ V e n tilate u r, e xtracte u r fu m è e , e le ctro n iq u e et chargem en t

d e p ellet p o s itio n n é à d ro ite o u à gau c he , in tercha n geab les . S tan d ard : gau ch e .

Optional: caricatore pellet deluxe con tubo flessi bi le di car ico.

O p tio n al: C h arge r p e lle ts d e lu xe , flexi bl e al lum i ni um pi pe fo r cha rge O p tio n al: F ee d er-P e lle ts d elu xe F ü lls chlau c h E n o p tio n : trap e d ’alim en tatio n gran u lé s d e lu xe. T u yau d e re m p lis s age

14 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

8. LOCATION OF THE STOVE

If the stove is located on a flammable floor (i.e. parquet), you will have to protect it against radiant heat and eventually some combustion rests with appropriate non flammable materials (steel, marble, tiles etc.). Minimum distances to be respected are shown below and in the first page of this manual:

If scaffoldings are placed over the stove, a minimum distance of 50 cm from the stove itself and from the chimney has to be respected. A distance of min 50 cm between the chimney and heat sensitive building elements like facing, beams or wooden ceilings, etc. must be respected

Keep all flammable materials like wooden furniture, curtains, carpets and flammable fluids at least 80 cm from the stove when operating).

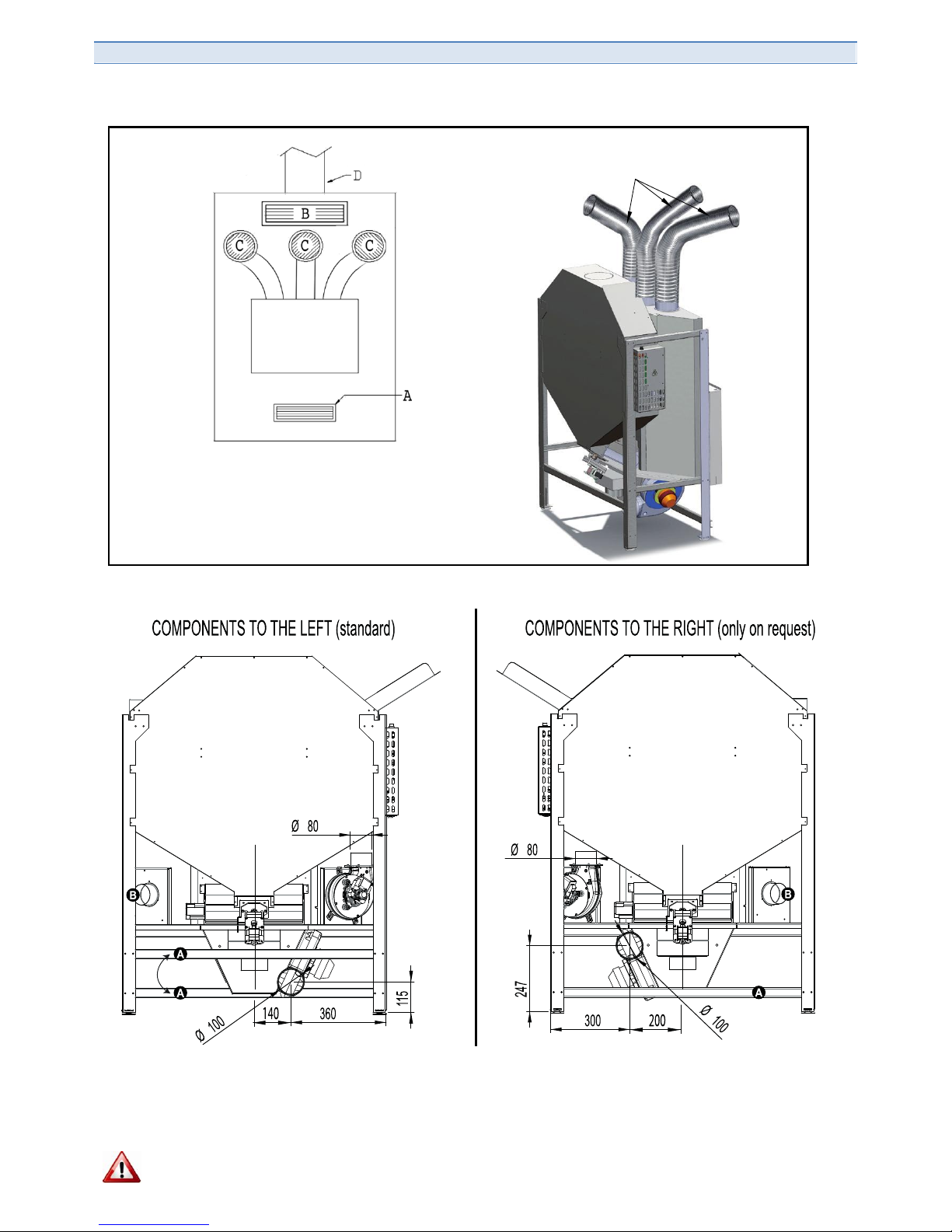

GIGIO – SILVESTRO

Respect this instruction:

A = 450 cm2 Room connective air

B – C = 450 cm2 Decompression hood D = 100 mm, Minimum smokestack diameter

We recommend to isolate the hood inner with panels Firerock (rock wool insulation panels of 30 mm coupled to an aluminum foil, aluminum side toward the insert) observing a minimum distance of 3 cm from the insert.

MIN 50 cm

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 15

How to locate the insert GIGIO and SILVESTRO in existing fire places:

1) open and remove the lower flap door (to remove, rise it of 3 mm, move it to the left, take it out on the right side and take it off on the left side)

2) release insert’s sliding (use the

appropriate tool)

3) take the insert 5 cm out.

4) unscrew the 4 nuts (2 left and 2 right) that hold the insert on the sliding guides.

5) remove the insert and lean it on the floor. Protect flooring with a piece of paperboard.

6) place the sliding guides inside the existing fire place and screw them down by means of 8 mm fisher plugs. Check the following sketch for measures.

Important: leave 44 mm between the outside fire place edge and the insert chassis. warning: in some fire places, the fire area is often made of worn firebricks. In this case we suggest to use chemical plugs to ensure a proper fastening.

129 314

100

100 100

300

Ourside fire place edge – dimensions in mm

Existing fire place

Top view

Fig. 8

Fig. 9

145

300170,1 170,1

Side view

Rear fastening

16 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

7) connect the smokestack to the rear smoke outlet which is integrated on the insert sliding system. Check the smokestack being proper and the connection well sealed.

8) place the insert on the sliding guides.

9) fasten the 4 nuts (2 left and 2 right) that hold the insert on the sliding guides. Slide the insert.

WARNING: sliding guides must be properly fastened and / or mounting nut of the sliding guides must be right tightened. If not, when sliding the insert out it may fall down or hurt a person. Please do

carefully follow the instructions.

GIGIO-SILVESTRO: EVENTUAL REGULATION OF THE HANDLE UNCOUPLING UNDERCARRIAGE

If, after the installation, the handle uncoupling-undercarriage of the file would not have been shut perfectly, you have the possibility to carry out a manual regulation being acted on the regulation bolts (to see figure here over).

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 17

GIGIO – SILVESTRO : LEGS KIT ASSEMBLY (OPTIONAL) AND FLOOR FASTENING OF THE UNIT

This kit is delivered disassembled and pace in one single box. Assemble all the parts using the included screws. The legs can be adjusted and locked at the required height. Place the insert on the chassis and fasten it with all the included nut and bolts.

Legs must be fastened with all the included nuts and bolts. The unit must be fastened on the floor and possibly on the wall as well. In case these instructions

not being followed L’ARTISTICO declines all responsibility for damages and hurts. When

fastening the legs on the floor use 6 or 8 mm plugs and screws (“Fischer” o similar, not included).

18 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

SERBIS: MODEL FORCED CONVECTION (M10 – M14)

When there are two fans, they must always be connected to the nozzle (see diagram below).

It's forbidden, (otherwise it would cancel the warranty) to connect the air tubes differently as shown in the diagram (Fig. 6).

The tangential fan (which pushes air into the two openings C) begins to run automatically when the appliance is in the right temperature and is adjusted according to the power set of the stove. The centrifugal fan (which pushes air into the sewage E) can be adjusted via the remote control: menu 1, from 0 to 5-speed or automatic.

SERBIS: MODEL NATURAL CONVECTION (M10N)

Fig. 6

Ø 80 mm

Max. 5 mt

Ø 150 mm

Min. 50 cm Max 150 cm

Max. 5 mt

A = 450 cm2 convective air ambient B = 450 cm2 decompression air hood

C = N° 2 outlets ventilated of Ø 150 mm/cad. D = Ø 100 mm, minimum diameter flue E = Ø 80 mm, air outlet duct, air flow up to 5 meters F = Ø 80 mm, room air intake duct for ventilation

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 19

Having no forced ventilation, the more heat that accumulates in the flue compartment must be vented and then serve all 3 upper air outlets must be connected as shown below (Fig. 7)

Serbis: centrifugal fan, electronic, smoke extractor and loading pellets can be delivered to the right or left.

The pellet fireplace Serbis is shipped with all components on the left side: the only thing you have to do is to move the beam (A) at the rear of the holes below the upper holes to allow the fitting of flue pipe. The traverse is shipped in the lower position for transportation needs and convenience when traveling. If you want the fireplace with the right components, you will have to ask for them when ordering (option at extra cost).

It's strictly prohibited too moove of electrical components (or warranty would be cancelled). This task must be done only in the factory, by the manufacturer.

Fig. 7

Ø 150 mm

Min. 50 cm Max 150 cm

A = 600 cm2 convective air ambient B = 600 cm2 decompression air hood

C = N° 3 outlets convection natural of Ø 150 mm/cad. D = Ø 100 mm, minimum diameter flue

20 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

If you want to reverse the side of the pellet load, unscrew the front and rear of the tank, remove the upper cover and the charger and put them back into the new location.

IMPORTANT: In order to access easily to the pellet loader and to realise technical inspection and maintenance, it’s compulsory to have an access door with (minimum size L 50 x H 120 cm).

For a correct recirculation of hot air, we recommend to connect the collar B (opposite to the centrifugal fan) to a tube and a outlet diameter of 80 mm outside the plasterboard lining. We recommend to isolate the hood inner with panels Firerock (rock wool insulation panels of 30 mm coupled to an aluminum foil, aluminum side toward the insert) observing a minimum distance of 3 cm by the insert.

9. THE SMOKESTACK

The smokestack must always be conform to the local and national regulations in force. Each stove shall be only connected to a single chimney. The chimney ahs must be built in a proper way to allow cleaning and inspection. All chimneys and connection piping must be identified by an approved tag showing all typical datas in accordance with local and national regulations in force.

Smoke evacuation system components designation example:

Temperature class (es: T400 minimum, T450-T600 suggested)

The smokestack temperature class should not be lower than the maximum exhaust gasses temperature declared by the stove manufacturer. For all appliances, (appliances for home heating burning wooden pellet as fuel – requirements and testing procedure) temperature class lower than T400 are not allowed. In any case always check the stove data sheet for technical details but temperature Txxx should be at least 50 °C higher than the maximum smoke temperature.

Pressure class (smoke tightness) N

Since all smokestacks must work in depression, the pressure class will be N = negative By the end a smokestack showing this tag is perfect to fit a pellet stove: T450N1D2GXX

Soot fire resistance class G

Metal chimney

Regulation ID number Temperature class (as per UNI EN 1443) Pressure class N, P or H (as per UNI EN 1443) Moisture resistance class (as per UNI EN 1443) Corrosion resistance class (as per UNI EN 1443) Soot fire resistance class G or O Followed by the distance from flammable materials

EN 1443 T400 N1 D 2 G50

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 21

All smokestacks connect to appliances burning solid fuel must be soot fire resistant; the designation letter will therefore be G followed by the distance in millimeters (XX) from flammable materials. The chimney has to be build in accordance with local and national regulations in force.

22 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

10. CONNECTING TO THE EXISTING SMOKESTACK

. Piping with classification “O” and minimum distance in millimeters xx is allowed provided that in case of soot fire all

connecting piping will be fully replaced in order to restore the original conditions. Please make sure only 3 directions changing of maximum 90° and a 4 meters horizontal segment are allowed (check following examples).

GIGIO – SILVESTRO:

Example with 2 bends 90° Example with 3 bends 90° (maximum allowed)

SERBIS:

Example with 2 bends 90° Example with 3 bends 90° (maximum allowed)

The appliance can be connected to an existing smokestack only after carefully checking it. In case the smokestack doesn’t show the approved tag, a registered chimneysweeper has to certify it. When connecting to non isolated smokestacks, draught problems can occur. It is however forbidden connecting the stove to smokestack with a diameter bigger than 200 millimeters; if the case slot-in a 120 – 150 millimeter pipe up to

(

)

ø 100 mm

min.

Fig. 10 Fig. 11 Fig. 12

INSULATING

CONNECTOR T

CLEANING DIRECTION

(

)

ø 150 mm min

Fig. 10 Fig. 11 Fig. 12

Ø 150 min

INSULATING

CONNECTOR T

CLEANING DIRECTION

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 23

4 meters or a 150 – 180 millimeter one over 5 meters of smokestack height. Always follow the local and national regulations in force.

GIGIO – SILVESTRO:

SERBIS:

Ø 80mm

Ø 180mm MAX

Ø 100mm MIN

Fig. 13 Fig. 14

CHIMNEY

INSULATING

INSERTING OF A TUBE

INSPECTION

COVER

NOT INTEGRATED FLUE

DUCTING WITH

CLOSING FLANGE

CLOSING FLANGE IN HERMETIC

STAINLESS STEEL OR ALUMINATE

OUTDOOR AIR SUPPLY

WITH GRATE NO PACKABLE

DUCTING EXISTING FLUE

Ø 100mm

Ø 180mm MAX

Ø 120mm MIN

Fig. 13 Fig. 14

Connection A T with stopper closing

Connection

ø 100 > ø 120

ø 100 mm

ø 120mm

SER BIS

CHIMNEY

INSULATING

INSERTING OF A TUBE

INSPECTION

COVER

NOT INTEGRATED FLUE

DUCTING WITH

CLOSING FLANGE

CLOSING FLANGE IN HERMETIC STAINLESS STEEL OR ALUMINATE

OUTDOOR

AIR SUPPLY WITH GRATE NO PACKABLE

DUCTING EXISTING FLUE

24 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

GIGIO – SILVESTRO:

SERBIS:

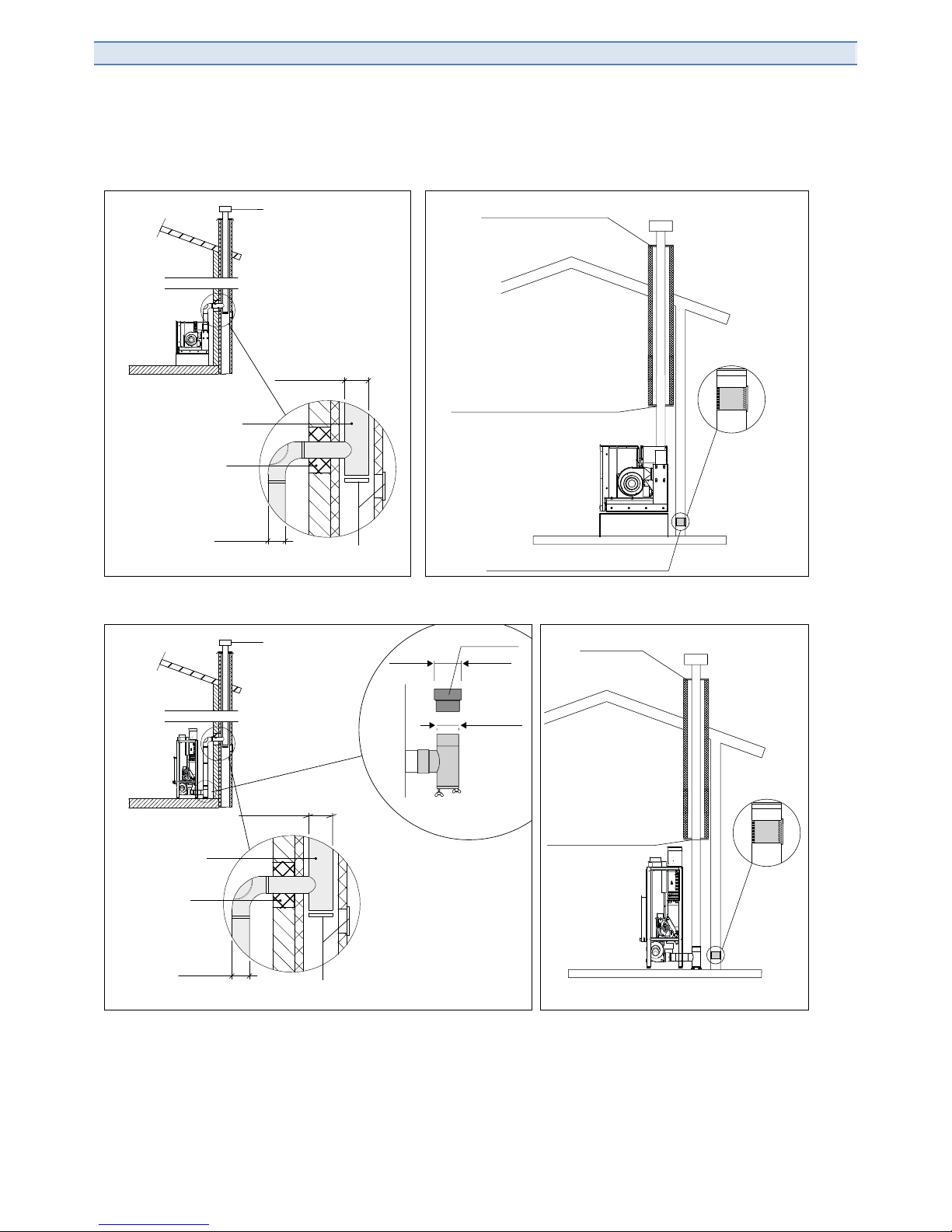

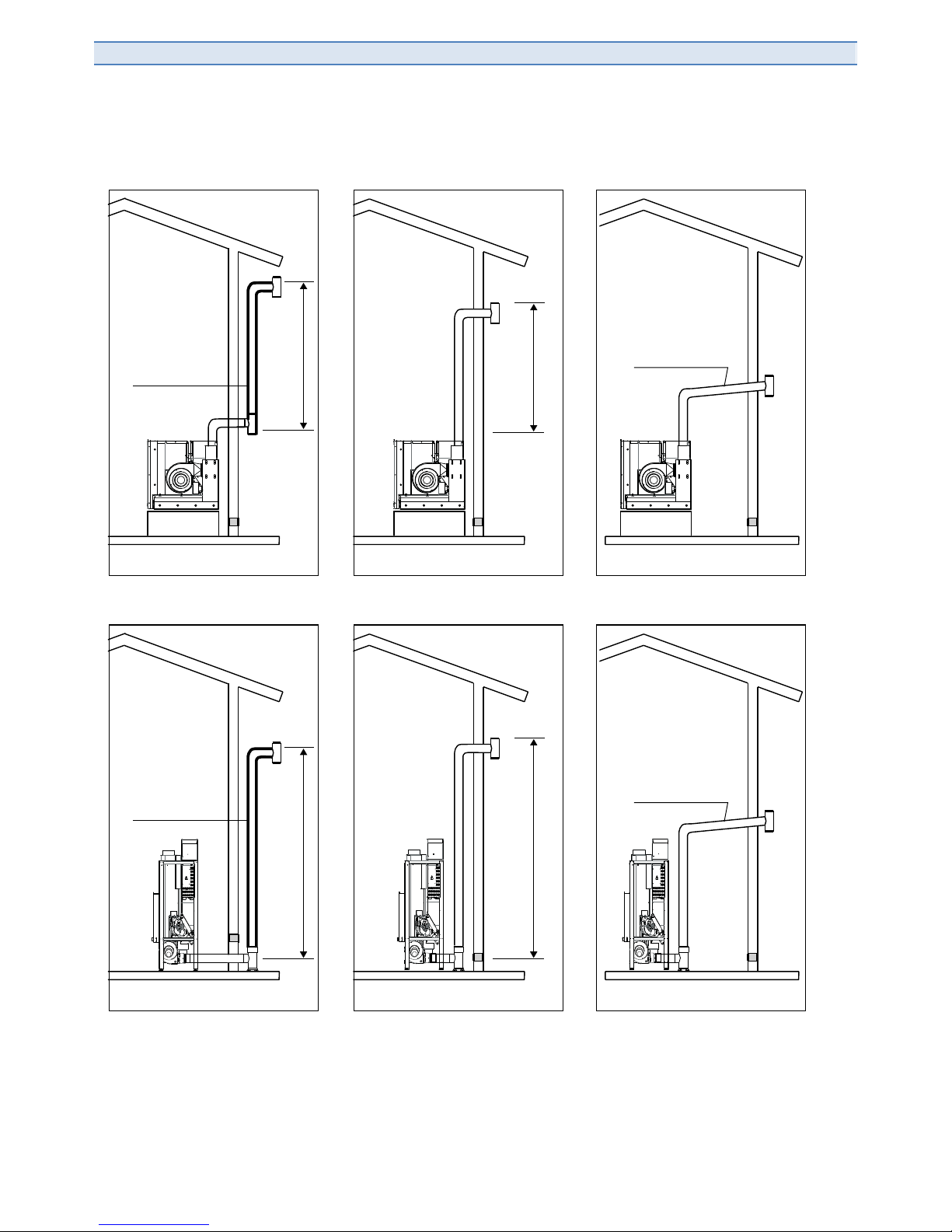

11. ALLOWED INSTALLATIONS

Smokestack diameter has to be adequate to its height as per the following sketches. The use of insulated smokestacks is recommended in all the following cases:

- All outside smokestacks.

- When getting through non heated attics or mansards

- Very long segments (over 4 meters) inside the apartment.

(

)

(

)

NO OK

Fig. 15 Fig. 16 Fig. 17

INSULATING

CLEANING DIRECTION

CLEANING DIRECTION CLEANING DIRECTION

(

)

(

)

OK OK

Fig. 15 Fig. 16 Fig. 17

Inspection

INSULATING

CLEANING

DIRECTION

CLEANING DIRECTION

CLEANING DIRECTION CLEANING DIRECTION

INSULATING

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 25

GIGIO - SILVESTRO:

SERBIS:

Ø 80 mm

MAX 3 m

Ø 100 mm

MAX 6 m

Ø 150/180 mm

MAX 15 m

Fig. 18 Fig. 19 Fig. 20

ISOLATION

Ø 100 mm

MAX 3 meters

Ø 120-150 mm

MAX 6 meters

Ø 180 mm

MAX 15 meters

Fig. 18 Fig. 19 Fig. 20

ISOLATION

26 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

In some European countries, wall exhaust of combustion gas is straightly forbidden by all national, regional and local regulations. However, in some European countries it is allowed. Following sketches are wall exhaust examples for those countries where it allowed.

GIGIO - SILVESTRO:

SERBIS:

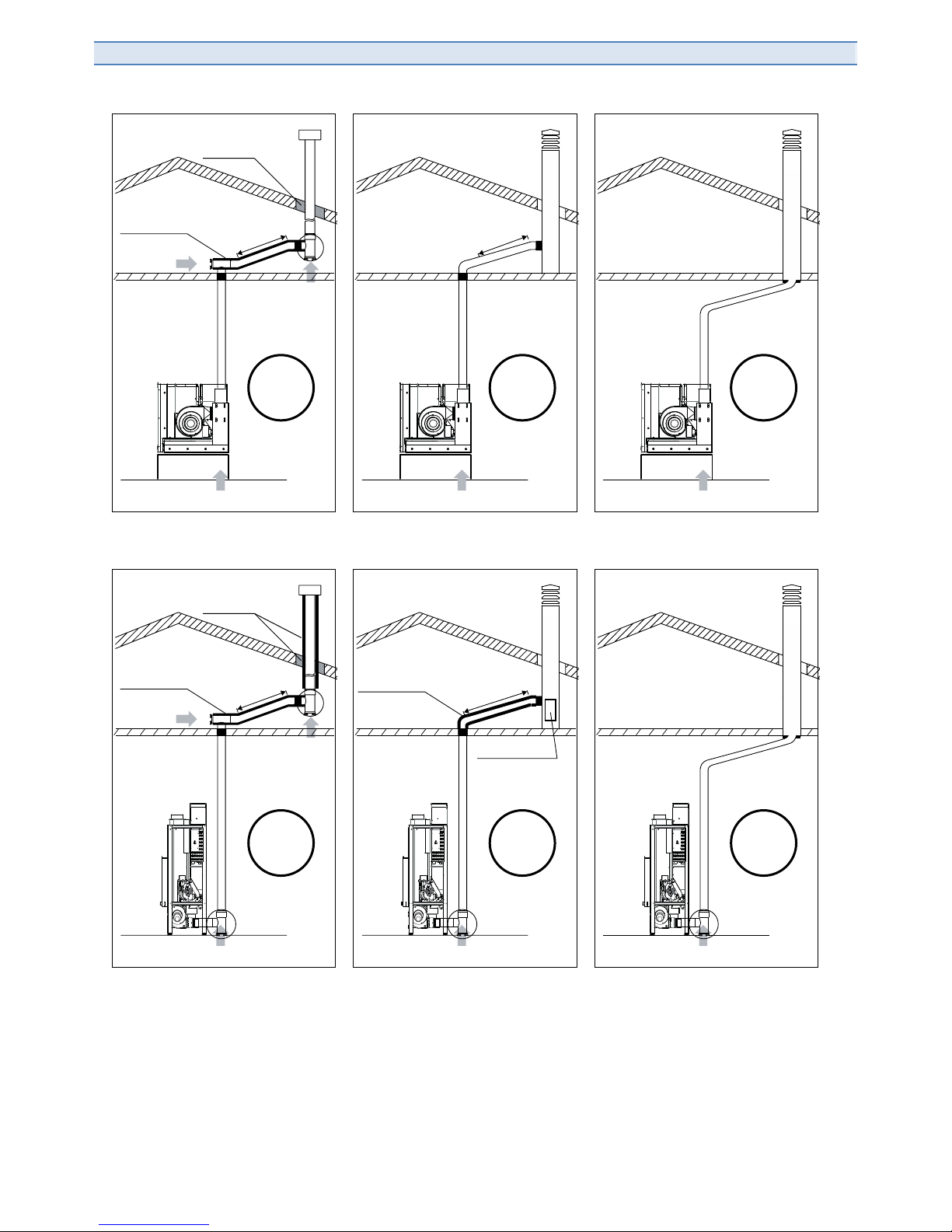

12. NOT ALLOWED INSTALLATIONS (In Italy)

1) Two or more stoves connected to the same smokestack.

2) Stove and fireplace connected to the same smokestack. For all other countries, respect all local and national regulations in force.

MIN 1,5 metri

MIN 2 metri

Inclinaison > 3% Longueur < 3 m

Fig. 21 Fig. 22 Fig. 23

ISOLATION

MIN 1,5 m

MIN 2 m

Fig. 21 Fig. 22 Fig. 23

Inclinaison > 3% Longueur < 3 m

ISOLATION

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 27

13. PASSING THROUG FLAMABLE CEILING

Be very careful when getting through walls, ceilings or roofs made of flammable materials. The high smoke temperatures can start a fire. Do always respect the safety distances described in the local and national regulations in force.

14. CONNECTING TO THE EXTERNAL AIR INLET

When connecting the stove with an external air inlet you will get an exceptional level of comfort and softness. The stove will properly work, even in case you cannot connect it to an external air inlet, but getting the combustion air from the room. The local and national regulations in force show the minimum air volume in the room to be respected.

GIGIO e SILVESTRO: The air inlet diameter should be not less than 60 millimeters and the maximum piping

length are 1 meter and one 90° bend. A kit of Ø 80 millimeters is available (in option) to be connected directly to the external air. In this case, the maximum length can be 1,5 meters and one 90° bend.

Fig. 26

Fig. 27 Fig. 28 Fig. 29

28 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

SERBIS

The air inlet diameter should be not less than 100 millimeters and the maximum piping length is 1 meter

and one 90° bend.

15. ELECTRICAL CONNECTION

Check for the wall plug to be adequate to the stove electrical requirements: 230V/50Hz e 400Watt. Make sure the electrical cord doesn’t get in touch with any hot part of the stove and doesn’t run over the smoke connection that a proper earth is available and a proper circuit breaker is fitted. In case of irregular power supply (normally in remote or mountain areas), do not worry because your stove is protected with two 5X20 4A STD between the main switch and the cord plug on the rear panel (only model SERBIS). The insert GIGIO/SILVESTRO have a fuse on electronic card: please conncet the insert to a wall plug accessible and commanded from switch… Check the fuses before installing

the stove.

GIGIO – SILVESTRO SERBIS

Fig. 26

Fig. 27 Fig. 28 Fig. 29

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 29

16. REMOTE CONTROL INSTRUCTIONS

The remote control works up to a maximum distance of 8 meters and allows you operating your pellet stove.

› Button 1 - Navigation

To reduce temperature and power output and scrolling down the menu.

› Button 2 - Navigation

To increase temperature and power output and scrolling up the menu.

› Button 3 - ON-OFF and BACK

Hold for 3 seconds for switching the stove on and off. Press once for getting back into the menu till home page.

› Button 4 - ROOM TEMPERATURE SETTING

Press for entering the room temperature setting menu with buttons 1 and 2.

› Button 5 - POER OUTPUT SETTING

Press for entering the power output level 1 to 5 setting menu with buttons 1 and 2.

› Button 6 - Not in use

Not in use.

› Button 7 - MENU and OK

Press for entering the main menu than use buttons 1 and 2 for scrolling; press button 7 again for entering the desired sub menu. Press to confirm selection (OK).

› Display

All the needed information are displayed (following represents the starting screen):

In case no buttons are pressed for 30 seconds after switching on the stove the remote control enters the stand-by status and the display goes off. Press any button to reactivate.

To lock or unlock the keyboard: button 7 and button 3 in rapid sequence.

The remote control is supplied with a wall rest.

Do not place the remote control near the stove or close to other heat sources. For best

results we suggest to place it at a height of 150 centimeters. The maximum operating range of 8 meters from the stove depends on architectonical barriers (walls). The remote control should be handled with care and not exposed to the weather (sun, rain). The control is fitted with AAA cells (included). Change batteries every year or when low. Remove the cover on the backside to access the battery location. Please dispose flat batteries properly. In case of doubts, please check with your local re ycling center.

When programming the stove by using the remote control, the clock stops, so if you "play" with the remote control for a long time, you will find that the display not indicate more the exact time. The clock goes programmed every time you "play" for a long time with the remote control. TOLERANCE INDICATOR OF TEMPERATURE ON THE REMOTE CONTROL is + or - 3 ° C

30 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

17. LIST OF MENUS

After switching the remote control on (press button 3 ), Access the different menus for programming the stove:

Press button 7 to access the main menu (MENU 1 on the display) Press button 1

and 2

to scroll all menus 1 to 12

When selected the desired menu, press button 7 to confirm. Confirm the different options (OK) with button 7 .

To exit the menus and getting back to main menu, press button 3

MENU 01 ADJUST BLOWER

For GIGIO and SYLVESTRO: Menu not enabled.

For SERBIS: Adjustment speed centrifugal fan from 0 to 5 or A = automatic.

MENU 02 SET CLOCK

> Day (Monday – Sunday) > Hours (00 – 24) > Minutes (00 – 59) > Date (01 – 31) > Month (1 – 12) > Year (00 – 99)

MENU 03 SET THERMOSTAT

> Week setting (ON/OFF) > Start program – 1 (OFF, 00:00 – 24:00) > Stop program – 1 (OFF, 00:00 – 240:00) 10 minutes interval

MENU 04 SET LANGUAGE

> Italian ITA > French FRE > English ENG > German DEU

MENU 05 SET PROBE

> Inside probe > Remote control probe

MENU 06 STAND-BY

> On > Off

MENU 07 BUZZER

> On > Off

MENU 08 STARTING LOAD

To be used by the starting only

MENU 09 STOVE STATUS

Close menu. All indication on stove status are given

MENU 10 SERVICE SETTINGS

Code access menu for qualified service use only

MENU 11 DEALER SETTINGS

Code access menu for qualified dealer use only

MENU 12 SET FAN

For GIGIO and SYLVESTER: Menu not enabled.

For SERBIS: Reserved exclusively to the CAT enabled. Do not change the value ON

MENU 01 ADJUST BLOWER

MENU 02 SET CLOCK

MENU 03 SET CHRONO

MENU 04 SELECT LANGUAGE

MENU 05 SELECT FEELER

MENU 06 MODE STAND-BY

MENU 07 MODE BUZZER

MENU 08 LOAD INITIAL

MENU 09 STATE STOVE

MENU 10 SETTING S

MENU 11 SETTING S

MENU 12 ENABLE BLOWER

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 31

18. MENU 02 - DAY AND TIME SETTING

1) From main

menu…

2) Press button 7 for accessing menus

3) Menu 01 is displayed

4) Press button 2 for scrolling all menus

5) Show menu 02

6) Press button 7 for entering the menu

7) Display the week day (Monday – Sunday)

8) Press button 2 to change the day

9) Press button 7 to confirm

10) Display the time (00 – 24)

11) Press button 2 for changing the time

12) Press button 7 to confirm

13) Display minutes (00 –

59)

14) Press button 2 to set minutes

15) Press button 7 to confirm

16) Day date is displayed (01 –

31)

17) Press button 2 for changing date

18) Press button 7 to confirm

19) display month (01 – 12)

20) Press button 2 to set month

21) Press button 7 to confirm

22) Year is displayed (00 –

99)

23) Press button 2 for changing year

24) Press button 7 to confirm and then button 3.

19. MENU 03 - SET WALL THERMOSTAT

This program enables you setting a fire or power off interval for each week day. You can schedule up to 4 different on/off programs. The following example shows a typical program for a family with children. ON/OFF intervals are set to satisfy the school time table of the children as well as the week end heating requirements when the whole family is staying home.

Monday

Tuesday

Wednesday

Thursday

Friday

Saturday

Sunday

PROG 1 : from 5h00 to 9h00

PROG 2 : from 18h00 to 23h00

PROG 3 : from 13h00 to 23h00

PROG 4 : from 9h00 to 23h00

Attention: before programming the CRONO function, you have to set day, date and time (menu 02 - SET TIME).

14 :34

28.5 P-1 OFF

MENU 01 ADJUST BLOWER

MENU 02 SET CLOCK

MENU 02 SUNDAY DAY

10 MENU 02 TIME CLOCK

: 09 MENU 02 MINUTES CLOCK

23 MENU 02 DAY CLOCK

10 MENU 02 MONTH CLOCK

11 MENU 02 YEAR CLOCK

32 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

MENU 03 - SET WEEK THERMOSTAT

1) From main

menu…

2) Press button 7 for accessing menus

3) Menu 01 is displayed

4) Press button 2 for scrolling all menus

5) Show menu 03

6) Press button 7 for entering the menu

7) Program on/off displayed

8) Press button 2 for enable program (ON)

9) Press button 7 to confirm

10) Starting time program 1 is displayed but disabled (OFF)

11) Press button 2 for enable the program (ON)

12) Starting time program 1 is displayed

13) Press button 2 for changing starting time (10 minutes steps)

14) In this example starting time at 05:00 AM is shown

15) Press button7 to confirm starting time

16) Switch off time program 1 is displayed but disabled (OFF)

17) Press button 2 for enable the switch off time

18) Program 1 switch off time is displayed

19) Press button 2 for changing switch off time (10 minutes steps)

20) In this example switch off time at 09:00 AM is shown

21) Press button7 to confirm switch off time

22) First week day Monday with program 1 is displayed

23) Press button 2 for enabling (ON) program 1 for that day

24) Press button 7 to confirm and start programming the next day

25) repeat all points from 23) to 24) for each single day of the week…

26) …after Sunday, program 2 will be displayed

27) repeat all points from 11) to 25) for the remaining 3 programs

28) When finished press button 3 to confirm

29) Press button 3 to exit back to menus

2 mere tasto 7 per confermare e

14 :34

28.5 P-1 OFF

MENU 01 ADJUST BLOWER

MENU 03 SET CHRONO

OFF MENU 03 CRONO WEEKLY

OFF MENU 03 START PROG-1

00 00 MENU 03 START PROG-1

05 00 MENU 03 START PROG-1

OFF MENU 03 STOP PROG-1

00 00 MENU 03 STOP PROG-1

09 00 MENU 03 STOP PROG-1

OFF MENU 03 MONDA Y

OFF MENU 03 START PROG-2

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 33

MENU 03 - WALL THERMOSTAT ENABLING AND CONNECTING

1) From main

menu…

2) Press button 7 for accessing menus

3) Menu 01 is displayed

4) Press button 2 for scrolling all menus

5) Show menu 03

6) Press button 7 for entering the menu

7) Program displayed but disabled (OFF)

8) Press button 7 to confirm

8) Press button 3 to back to the menu

9) Connect to the plug on electronic card….

10) … by mean of two wires as….

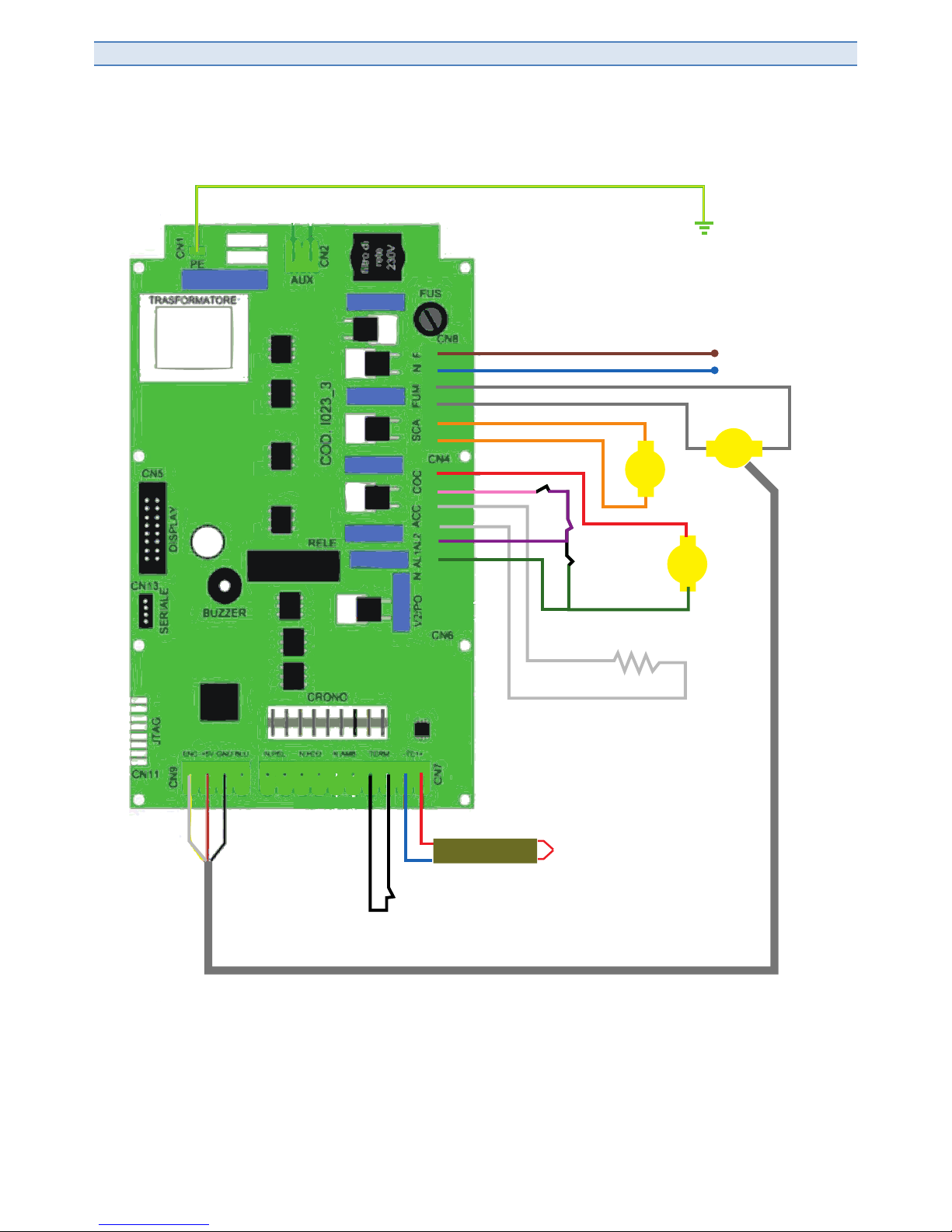

11) … wall thermostat electrical diagram

20. MENU 04 – SELECT LANGUAGE

This menu allows selecting the desired language among Italian (ITA) which is the default selection, English (ENG), French (FRE) and German (DEU)

1) Select menu 04 (button 7 and then button 2)

2) Press button 7 to enter the menu

3) The selected language is displayed ENG (English)

4) Press button 2 for selecting the desired.

5) Press button 7 to confirm.

6) Press button 3 to back the menu.

21. MENU 05 – SET ROOM TEMPERATURE PROBE

This menu allows to switch the desired room temperature probe. On GIGIO and SILVESTRO and SERBIS model, is operating only the remote control probe (REMOTE). The procedure described here should not be used (only used by the Service Center).

1) Select menu 05 (button 7 and then button 2)

2) Press button 7 to enter the menu

3) Probe in use INTERN or REMOTE is displayed

4) Press button 2 to select the desired probe.

5) Selected probe INTERN or REMOTE is displayed

6) Press button 7 to confirm and button 3 to back to the menu

14 :34

28.5 P-1 OFF

MENU 01 ADJUST BLOWER

MENU 03 SET CHRONO

OFF MENU 03 CRONO WEEKLY

MENU 04 SELECT LANGUA GE

MENU 04 ENG LANGUA

MENU 05 SELECT FEELER

Menu 0 5 INTERN

Menu 0 5 TELECO

34 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

22. MENU 06 – STAND BY or STOP&GO

This menu allows choosing between two functions:

- ON: after few minutes when the room temperature has been reached the stove switch off and will automatically switch on again by room temperature decreasing 2 to 3°C (if safety requirements are satisfied).

- OFF (default and suggested setting): when the set room temperature has been reached, the stove doesn’t switch off but continue to burn at the minimum thermal output; if the room temperature decrease from 2 to 3°C, the stove will automatically increase its thermal output.

1) Select menu 06 (button 7 and then button 2)

2) Press button 7 to enter the menu

3) The OFF or ON setting will be displayed

4) Press button 2 to select the setting.

5) Press button 7 to confirm

6) Press button 3 to back to the menu

23. MENU 07 – BEEPER

This menu allows to enable(ON) or disable(OFF) the confirmation “beep” for all remote control operations.

1) Select menu 07 (button 7 and then button 2)

2) Press button 7 to enter the menu

3) The OFF or ON setting will be displayed

4) Press button 2 to select the setting.

5) Press button 7 to confirm

6) Press button 3 to back to the menu

24. MENU 08 – FIRST PELLET LOADING

This menu allows filling the feeding screw when first loading pellet into the relevant fuel tank.

Attention: this program should be run when first starting the stove or when the pellet tank went empty (maintenance, clearing, run out of pellet) otherwise the stove will not start because of lake of fuel in the fire pot. This operation can only be done when the stove is cold. .

1) Select menu 08 (button 7 and then button 2)

2) Press button 7 to enter the menu

3) The OFF setting will be displayed

4) Press button 1 for loading pellet

5) After 90” the feeding screw will stop

6) Press button 7 to confirm and button 3 to back to the menu

MENU 06 MODE STAND-

OFF MENU 06 MODE STANDBY

MENU 07 MODE BUZZER

ON MENU 07 MODE BUZZER

MENU 08 LOAD INITIAL

OFF MENU 08 P1 TO LOAD

90’’

21.0 P - 1 LOAD INITIAL

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 35

25. MENU 09 – STOVE STATUS

This menu gives advanced information on the stove status and has to by use by dealer’s authorized personnel only. .Here are the matches of the state indicated on the display: STATUS 0 = STOVE OFF STATUS 1 = STOVE ON STATUS 2 = STOVE WAS ON HOLD or HOLD FIRE BURNOUT STATUS 3 = FIRE PRESENT STATUS 4 = STOVE WORK STATUS 5 = BURNER CLEANING STATUS 6 = FINAL CLEANING STATUS 7 = STOVE WAS WAITING FOR COOLING FROM STAND-BY STATUS 8 = ALARM WAS ACTIVE IN STOVE STATUS 9 = STOVE WAS IN MEMORY ALARM

26. MENU 10 – SERVICE SETTINGS

To be entered by trained service center technicians only (password required).

27. MENU 11 – DEALER SETTINGS

To be entered by trained dealer technicians only (password required).

28. MENU 12 – FAN ENABLE

GIGIO and SYLVESTER: Menu not enabled. Serbis: Menu RESTRICTED EXCLUSIVELY FROM AUTHORIZED SERVICE. Do not change the factory setting ON.

1) Select menu 12 (button 7 and then button 2)

2) Press button 7 to enter the menu

3) The OFF or ON setting will be displayed

4) Press button 2 to select the setting.

5) Press button 7 to confirm

6) Press button 3 to back to the menu

29. STOVE STARTING

After having correctly installed the appareil do as follows for starting it:

- fill the stove’s pellet tank up

- run the first pellet loading program (MENU 08) at first starting only.

- follow this procedure:

1) Press red button 3 for 3 seconds

2) START will be displayed.

3) After some 10” “LIGHTERWAIT“ will be displayed.

4) After some 1’ “LOAD PELLET”

will be displayed.

5) After some 3’ “FIRE WAIT” will

be displayed.

6) After some 4’ “FLAME LIGHT”

will be displayed

MENU 12 ENABLE BLOWER

ON MENU 07 ENABLE BLOWER

14 :00

28.5° P-1 START

14 :00

28.5° P-1 LIGHTE R

14 :01

28.5° P-1 load PELLET

14 :04

28.5° P-1 FIRE WAIT

14 :08

28.5° P-1 FLAME LIGHT

14 :10

28.5° P1 WORK

36 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

7) After 2 minuts 2, “WORK” will be displayed on the remote; this means the stove is correctly working and the burning is constant. Now you can set both room temperature and thermal output. The fan will automatically start when the heat exchanger temperature will reach the correct level. When the stove is in use “CLEAN CRUCIBLE” will be displayed after each hour burning and will automatically disappear after the self clearing procedure being performed. .

30. ROOM TEMPERATURE SETTING

Desired room temperature can be set.

When room temperature value being reached the stove switches in the modulation status and “WORK MODULAT”

will be displayed.

1) Press button 4 to enter the temperature menu

2) Set temperature is displayed

3) Press button 1 for decreasing temperature

4) Press button 2 for increasing temperature

5) Press button 7 to confirm

6) Press button 3 to back to main menu

31. POWER SETTING

Desired power level can be set (from 1 to 5). Much higher the selected power level, much quicker the stove will reach the set room temperature.

1) Press button 4 to enter the temperature menu

2) Set power is displayed

3) Press button 1 for decreasing power

4) Press button 2 for increasing power

5) Press button 7 to confirm

6) Press button 3 to back to main menu

32. SWITCHIN OFF

When the stove is switched of by pressing red button 3, the switching off procedure will start, but both fan and smoke fan will work till the safety stove temperature will be reached.

1) Press and hold red button 3 for some 3’’

2) “CLEANING FINAL” will be

displayed

3) After some

20’ stove goes

completely off.

20° SET

TEMP

03 SET

POWER

14 :15

28.5° P-1 CLEANIN G

14 :34

28.5° P1 OFF

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 37

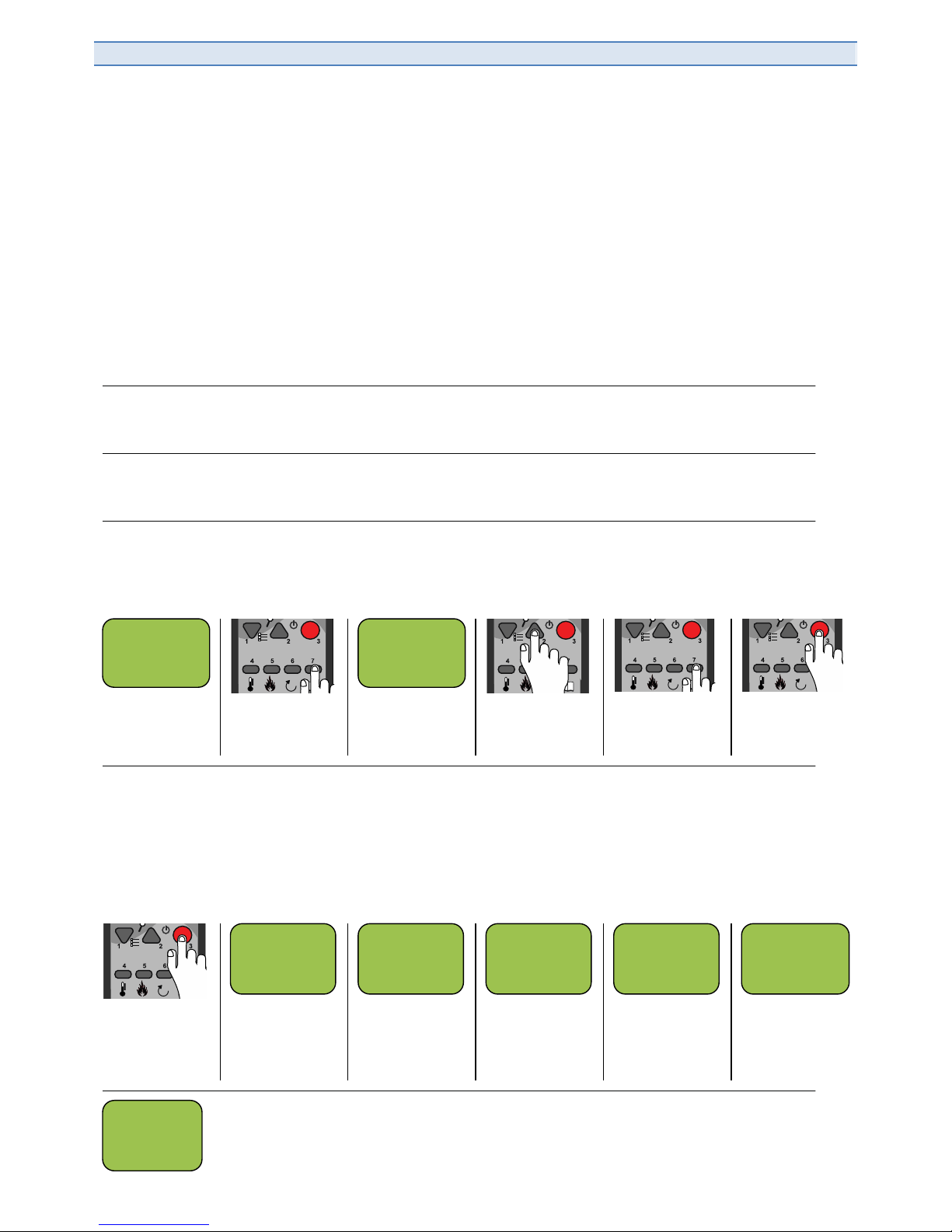

33. REMOTE CONTROL FREQUENCY SETTING

For avoiding transmission failures in case of radio controller appliances being located near to the stove changing the remote control frequency is needed (default 0) following the procedure:

1) Press at same time buttons 1 and 2 and keep for some seconds

2) “SCEGLI UNITA’ 0” will

be displayed.

3) Press button 2 to select the radio code: 0,1, 2, or 3

4) Turn off the insert by pulling the power plug

5) Turn on the insert by inserting the plug

6) press red

button 3

7) “UNITA’ 1 CARICATA” (or unit 0 or 1 or 2 or 3) will be displaye

8) After some

10” the remote

control switches back to main menu

34. REMOTE CONTROL LINKING

In case radio data transmission between remote control and appareil doesn’t work properly (high electromagnetic pollution), it is possible to link the remote control with a dedicated cable (to be ordered as option).

Attention: when linking the remote control to the stove via cable, batteries must be removed because the needed power is supplied from the stove.

SCEGLI

UNITA’

1 CARICA TA

14 :34

28.5° P-1 OFF

38 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

35. HOW TO USE THE REAR CONTROL PANEL (in emergency only)

Warning: for SERBIS model, the panel must be positioned so that it is visible and accessible.

The rear control panel is designed to be used in emergency cases only, (remote control failure or remote loose). The heart of the system is the remote control. For this reason, only 2 functions can be operated from the real panel: on/off and power output setting on steps 2 or 5. It is not possible to set the room temperature.

› Button 3 - On / Off

To switch the stove on: press button for some 3 seconds till the relevant led lights green To switch the stove off: press button for some 3 seconds till the relevant green led starts flashing . When the self clearing procedure will be finished it goes out.

› Covering led

This led confirms the remote control transmission has been correctly covered.

› Alarm Led

This led lights on when a failure has been detected. The remote control is necessary to display the failure that did occur. If the stove goes out of pellet, press and keep button 3 to reset the alarm till red led goes off and green led starts flashing. In all other cases, do not start the stove but call for service.

› Button 2 - Power output 5

Allows setting the power output on level 5. Press and keep button 2 for 3 seconds till the relevant led light yellow .

› Button 1 - Power output 2

Allows setting the power output on level 2. Press and keep button 1 for 3 seconds till the relevant led light yellow .

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 39

36. FIRST STARTING

Fill the tank up with pellet before starting the stove. Remember the feeding screw is empty and a longer time is needed when first starting the stove. Run the relevant menu.

When first burning the stove, you can feel bad smells in the room because all the

protection greases used during production procedure are burning out. Do ventilate the room and do not stay in till smells cannot be felt. In order to supply you with the best possible

product, al paints are water based and no harmful thinners are used.

SWITCHIN ON

- Check the cord being connect to the wall plug and for the right voltage.

- Check for the main switch on the rear panel being on I position (only for SERBIS model).

- Check safety fuse being properly working.

- Check the pellet tank being loaded with a sufficient quantity of pellet for the programmed time of heating.

- Check the remote control working properly and batteries being charged.

- Check day and date settings on the remote control.

- Check the ashtray being properly located in the stove.

- Check the fire pot grid being properly located.

- Check the door being properly closed

FUEL LOADING

- Swing the flap door located on the upper panel up (only for GIGIO / SILVESTRO if used).

- Cut a corner of the bag of and let pellet slowly flow into the tank. Check for any object accidentally being

packed with the pellet.

Fire alert: do absolutely not leave some pellet on the hot parts of the appliance particularly on the top panel. When loading pellet, make sure the bag doesn’t touch hot parts of the stove.

- Pellet is packed in plastic or paper bags. Do carefully stock it away from humidity.

- Check for sawdust in the pellet tank. Vacuum clean weekly.

When the stove is starting, the pellet loading into the fire pot takes some minutes; during this time the firing resistance is activated. Usually combustion starts after some 5 to 6 minutes. When the smoke gas temperature reaches the minimum temperature level, the smoke probe transmits to the operating system that all the components are properly working. Now the stove switches to normal burning mode. In the contrary, an error message will be displayed on the remote control (check for error messages).

GIGIO – SILVESTRO

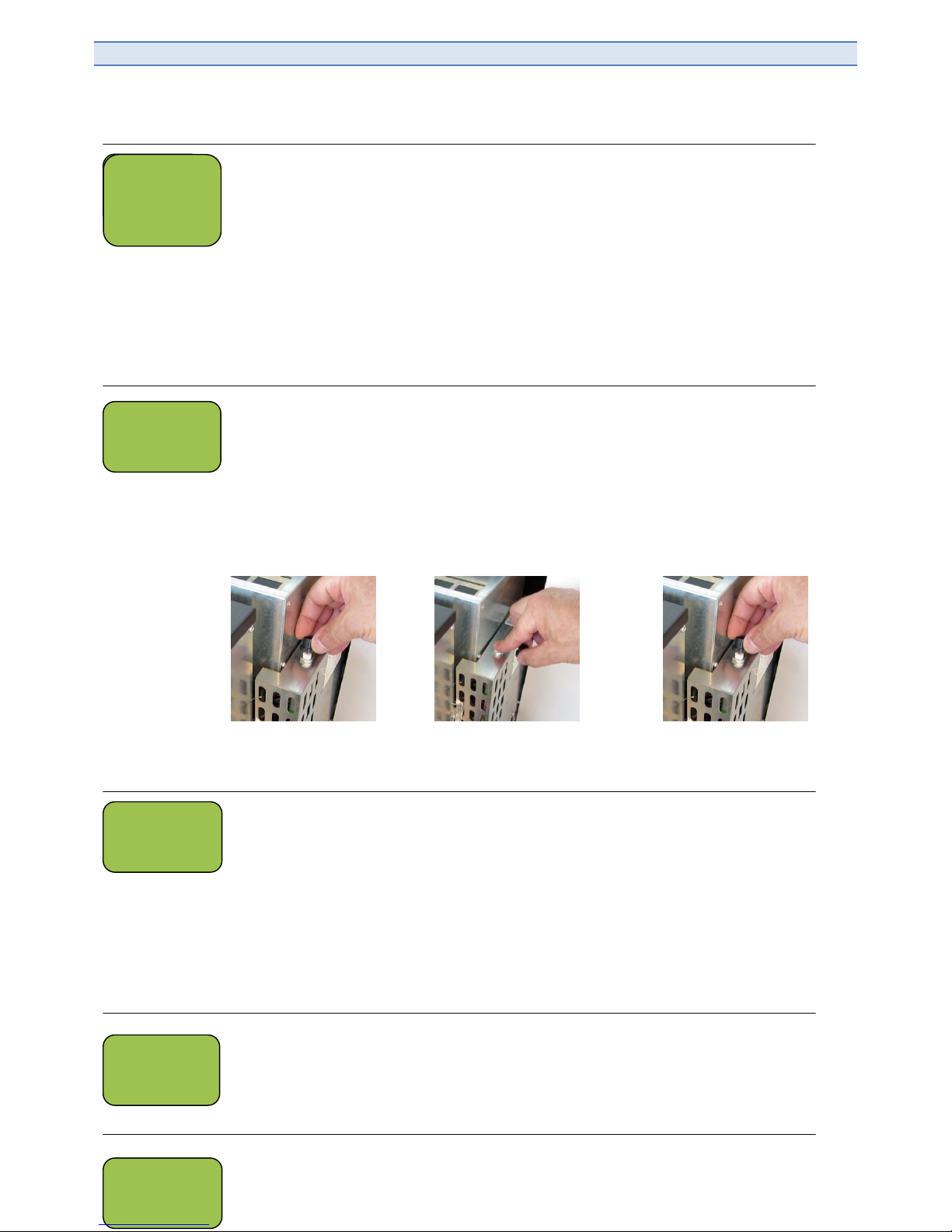

For the STANDARD pellet loading procedure the insert has to slide out as follows:

1) open the lower flap

2) unlock the sliding guides.

3) slide the insert out

40 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

4) Lift the pellet tank cover.

5) Cut a corner of the pellet bag and empty it slowly into the pellet tank. Make sure there are not foreign bodies into the bag.

6) Put the cover in place and slide the insert in.

Pellet loading systems is available as Option in two different types: Standard and Deluxe:

Warning: while charging the pellet careful not to overfill the tank with the risk of spilling the pellets.

Scivolo laterale economico, vista dall’alto - Fig. 39

Max 730 mm

Min 550 mm

Scivolo laterale/frontale deluxe, vista dall’alto - Fig. 40

Max 800 mm Max 800 mm

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 41

SERBIS: The charge of the fuel STANDARD in Serbis model is made through the chute, positioned on the left side

of the insert (can be reversed and placed on the right side). Please reserve a space (in the drywall or finish you are going to build around the fireplace) for a door at a suitable height for the loading of the pellets.

Available as an OPTION: charge pellets in deluxe version, with which you can load pellet on the side or front.

Warning: while charging the pellet, be careful not to overfill the tank with the risk of spilling the pellets.

TURNING STOVE OFF

Press button 3 on/off but do not disconnect the power cord. The smoke fan and the fan (when fitted) will continue working till the stove will cool down to a safety level.

Carico laterale standard - Fig. 39

1255

223

1220

545

Scivolo laterale/frontale deluxe, vista dall’alto - Fig. 40

Max 800 mm Max 800 mm

42 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

37. MAINTENANCE AND CLEANING

First to make any kind of maintenance or cleaning intervention the stove must be switched off, cold and be disconnected from power supply For keeping your stove efficient following maintenance and clearing operation must be performer

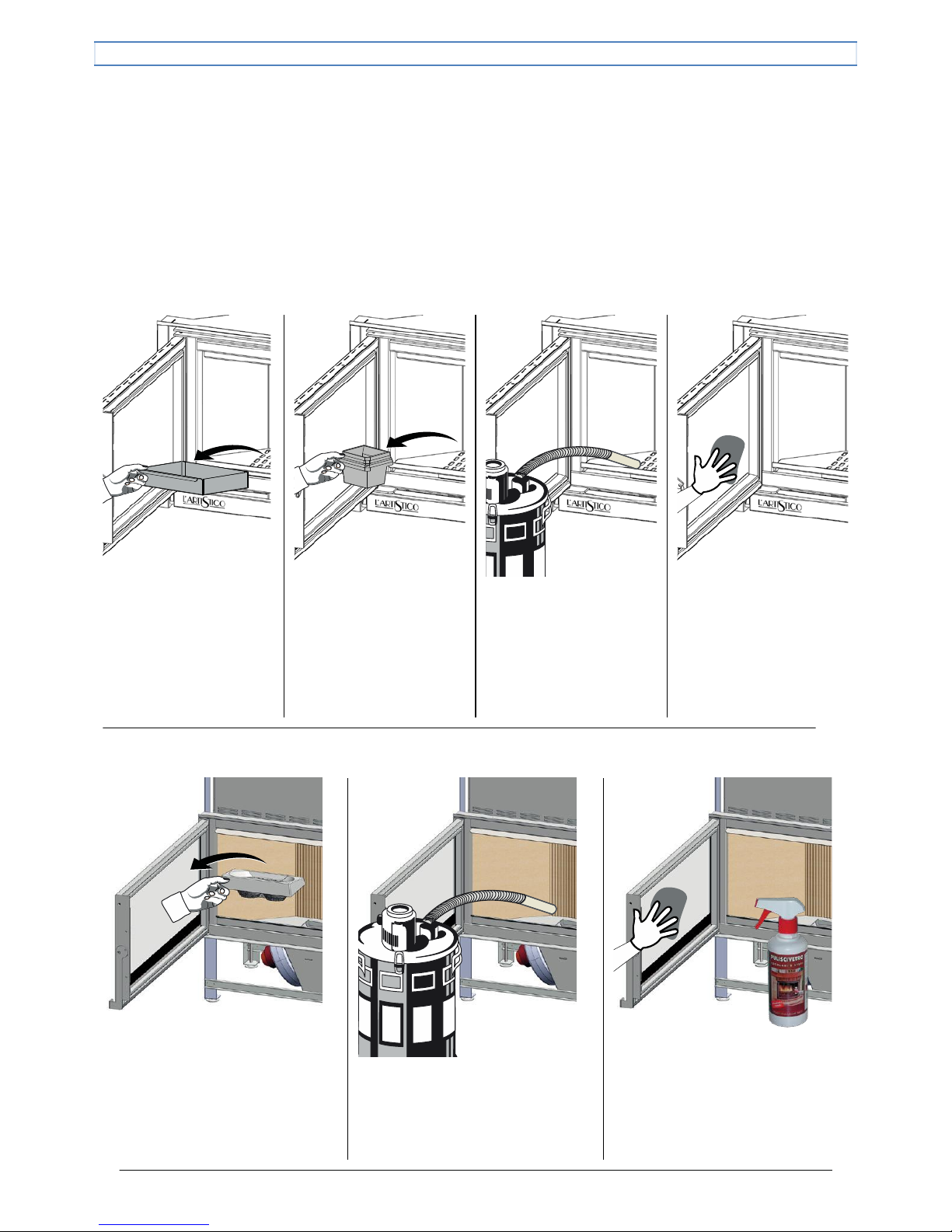

Every day cleaning

In order to obtain the best performance from your stove and prolong as much as possible its working life, you should

proceed obligatory every day to some simple and quick operations as above:

FOR GIGIO – SILVESTRO:

1) Ashtray: take it completely out and empty ash in a metal can. Wait at least 48 hours before discarding for preventing fire danger.

2) Fire pot: take it completely out and empty ash in a can.

3) Protection grid: vacuum clean all pellet and ash rests.

4) Glass: clean the glass with a soft cloth in combination with our specific glass cleaner PULISCI VETRI. Make sure air adduction slots being free and clean

For SERBIS:

Fire pot: take it completely out and empty ash in a metal box and wait at least 48 hours before you throw them, to prevent fires.

2) Use an inhale-ash in order to eliminate all accumulated particles of pellet and ash in all the combustion chamber.

3) Glass: clean the glass with a soft cloth in combination with our specific glass cleaner PULISCI VETRI. Make sure air adduction slots being free and clean.

Fig. 41

Fig. 42

Fig. 43

Fig. 44

Fig. 42

Fig. 43

Fig. 44

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 43

Clean MONTHLY (depending on the type of installation, the quantity and quality of pellets

burned).

You may need additional cleaning following the instructions below:

For GIGIO E SILVESTRO:

1) Unscrew the bolt stop upper

flap.

2) Remove the deflecting steel top. 3) Carefully remove the grate ash, ash pan and grate in cast iron.

4) Carefully remove the back panel in vermiculite.

4) With the help of a vacuum

cleaner clean the heat exchanger compartment located behind the rear panel in vermiculite and clean the whole combustion chamber.

5) If necessary to clean the smoke connection with the aspirator.

For SERBIS:

Fire pot: take it completely out and empty ash in a metal box and wait at least 48 hours before you throw them, to prevent fires.

2) Remove the 3-steady vermiculite: lift them up and remove. Remove the two side panels in vermiculite and finally the rear panel in vermiculite.

3) Use an inhale-ash in order to eliminate all accumulated particles of pellet and ash in all the combustion chamber.

Fig. 45

Fig. 46

Fig. 47

44 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

Every year:

- Combustion chamber

- Lower smoke chamber

- Smoke fan

- Connection pipe to the smokestack

- Fan if fitted

- Air intake

- Vacuum clean the back side and all electric/electronic components

- Smokestack

Call for a trained serviceman for the cleaning of the smoke internal connection as well as the smoke fan case. All mechanical and electronic components will be carefully checked. Our partners located all over Europe will provide you with the right professional maintenance service.

Smokestack cleaning:

- It is compulsory to call a professional chimney sweeper for brushing the smokestack once a year, or at least

every 1000 kg of pellet but not later than 2 years.

- A cleaning & inspection certificate has to be issued and it will be valid for stove maintenance service as well

as for your home insurance.

- Always check that the stove is perfectly working and if the gaskets arn’t worn. All smokestack connections

must be tight and the whole mechanic not being damaged.

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 45

38. ELECTRICAL DIAGRAM

GIGIO – SILVESTRO :

ALP

ALC ALF

230V

Ground

Fan

smoke

Cochlea

main

interchange

Electrical resistance

Yellow/green

Brown

Pink White

White Violet

Green

Gray

Blue

Red

Gray Orange

Orange

ALF = Safety thermostat General ALC = Pressure ALP = Safety thermostat

Smoke

probe

Fan smoke

Red

Blue

White

Red

Black

additional

thermostat

46 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

SERBIS:

ALP

ALC ALF

Pink Pink

Canalized

fan

230V

Ground

Fan

smoke

Cochlea

main

interchange

Electrical resistance

Yellow/green

Brown

Pink White

White Violet

Violet

Gray

Blue

Red

Gray Orange

Orange

ALF = Safety thermostat General ALC = Pressure ALP = Safety thermostat

Smoke

probe

Fan smoke

Red

Blue

White

Red

Black

additional

thermostat

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 47

39. TROUBLESHOOTING

Error messages on the remote control display

Trouble: Combustion doesn’t start. Cause: - Pellet feeding screw empty.

- Not enough primary air (combustion) because of dirtiness (lack in maintenance)

- Check for the starting resistance

- Check for pellet quality

- Check for overpressure switch, could be off because of dirty smoke outlet. Could a sign that the smoke extractor doesn’t work properly

- Check for the safety thermostat.

Solution: check for pellet in the tank. In case you couldn’t slear the problem call for technical service.

Problem: The stove is far too hot. Cause: Smokestack could be obstructed.

- Stove has been installed in a niche without proper ventilation

- Remote control temperature probe failure (or chronothermostat probe if installed)

- On board temperature probe failure

Solution: detect the causes. To quit the error signal follow the procedure

1) Unscrew protection cup 2) Press safety thermostat button 3) Screw the protection up

Problem: depression hasn’t been build up into the stove. Cause: - Check for all pressure switch connections and the static pressure intake working

properly.

- Check the door being closed and all gaskets not being damaged.

- Check the overpressure flap located on the top of combustion chamber being closed.

- Check all smoke exhaust connection piping and the smokestack being properly connected and clean.

Solution: Go carefully through the a.m. possible causes. If doesn’t solve the problem, call for technical service.

Problem: The smoke exhaust fan doesn’t work. Cause: - Check all the electrical connections and the wiring to the encoder.

Solution: If doesn’t work call for technical service.

Problem: Pellet doesn’t start burning into the fire pot.

MANCA TA

SAFETY THERMAL

FAILURE DEPRESS

FAN FAILURE

NO PELLET

no LIGHTIN-

48 ENG GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

Cause: - Check for pellet tank being loaded.

- Check for loading screw motor not being blocked.

- Check for loading screw not being staged.

- Check the main board.

Solution: go carefully through the a.m. possible causes. If it doesn’t solve the problem, call for technical service.

Problem: refer to smoke probe wiring Cause: - Check the temperature probe.

- Check the smoke probe being correctly positioned at the correct depth.

Solution: Go carefully through the a.m. possible causes. If it doesn’t solve the problem, call for technical service.

Problem: the stove doesn’t copy the remote control. Cause: - Check the main switch on stove’s rear panel being ON.

- Check fuses (4A) located near the main switch and on the electronic board.

Solution: Go carefully through the a.m. possible causes. If it doesn’t solve the problem, call for technical service.

Problem: stove is getting overheated Cause: - Stove hasn’t been correctly located.

- Smoke piping being staged.

- Combustion chamber is not properly cleaned.

Solution: let the Every Year Cleaning be performed by authorized trained professionals. If it doesn’t work properly, call for technical service.

Feeler exhaust

CERCA CAMPO

HOT EXHAUST

GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012) ENG 49

40. GUARANTEE

8.1 – Lasting The stove is covered by a 2 years guarantee with the exception of all wear and tear components, vermiculite and gaskets. Guarantee starts from delivery date – purchasing date if bought from a reseller – but stated on the relevant bill that must always be enclosed. The guarantee does cover for the time of 2 years all production, components and materials mistakes. All the damages parts will be checked by our technicians and in case of need substituted free of charge.

8.2 – Validity The buyer states he went carefully through this installation and instruction manual. The guarantee does only apply to appliances that have been correctly installed in accordance with the local and national regulations in force

8.3 – Exclusions

8.3.1 wear & tear and refractory components Al gaskets on door and inspection flaps as well as vermiculite components into the combustion chamber are considered as wear & tear parts. The guarantee does therefore cover those components for a period of 1 year starting from delivery date.

8.3.2 Glass All standard and screened ceramic glasses are eluding from the guarantee.

8.3.3 all ceramic components are handmade. Small marks or differences in color cannot be considered as failures but a plus being the sign are made one by one as per a centuries old ceramic tradition.

8.3.4 General All travelling, transport, man craft, packaging, disassembling and down time of the stove rising from the stove repair in guarantee time are at customer charge. All components not belonging to the stove but connected to the stove itself, i.e. electronic equipments, are not covered by the guarantee and are out of our responsibility but not part of the appliance. In case of using non approved fuels, the guarantee will expire and will not cover all related damages

Guarantee will not be applied in the following cases: If the installation and assembling is not being done by us, we cannot be responsible for any kind of damage to people and/or objects due to an incorrect installation, violating the regulations in force. The guarantee will not be applied to appliances which havn’t been used in the proper way or for different purposes: if component have been modified, , in case of any kind of modification non expressly approved in written by the manufacturer, in case of cleaning with aggressive thinners or acids able to damage the finishing and decoration on the appliance.

50 GIGIO - SILVESTRO - SERBIS (Rev. 01/07/2012)

chazelles GIGIO, SILVESTRO, SERBIS Installation And Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
