User Manual
Table of Contents
TABLE OF CONTENTS
1. Before You Begin ....................................................................... 1
What Is Included ........................................................................................... 1
Unpacking Instructions.................................................................................. 1
Claims ..................................................................................................................... 1
Text Conventions .......................................................................................... 1
Symbols ........................................................................................................ 1
Disclaimer ..................................................................................................... 1
Intellectual Property ...................................................................................... 1
Safety Notes.................................................................................................. 2
2. Introduction ................................................................................ 3
Product Overview.......................................................................................... 3
Product Dimensions ...................................................................................... 3
3. Setup ........................................................................................... 4
AC Power...................................................................................................... 4
Fuse Replacement .................................................................................................. 4
Power Linking.......................................................................................................... 4
Mounting ....................................................................................................... 5
Orientation............................................................................................................... 5
Rigging .................................................................................................................... 5
4. Operation .................................................................................... 6
Control Panel Operation................................................................................ 6
Menu Map ..................................................................................................... 6
Configuration (DMX) ..................................................................................... 6
Starting Address and Personality............................................................................ 6
DMX Channel Assignments and Values ....................................................... 7
3Ch.......................................................................................................................... 7
Configuration (Standalone) ........................................................................... 7
Color Wheel............................................................................................................. 7
Wave Effect............................................................................................................. 7
Dimmer.................................................................................................................... 7
Temperature............................................................................................................ 7
IRC-6 Infrared Remote Control ..................................................................... 8
IRC-6 Operation ...................................................................................................... 8
Master/Slave Mode ....................................................................................... 8
5. Maintenance................................................................................ 9
Product Maintenance .................................................................................... 9
6. Technical Specifications ........................................................... 10
Returns............................................................................................ 11
Contact Us ...................................................................................... 12
Abyss 2 User Manual Rev. 1
Before You Begin
1. Before You Begin
What Is Included
• Abyss 2
•Power Cord
Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Convention Meaning
1–512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
ON A value to be entered or selected
• Quick Reference Guide
Symbols
Symbol Meaning
Electrical warning. Not following these instructions may cause electrical damage to
the product, accessories, or the user.
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetdj.com
.
Intellectual Property
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2021 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
CHAUVET, the Chauvet logo, and Abyss 2 are registered trademarks or trademarks of Chauvet & Sons
LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and
product names and logos referred to herein may be trademarks of their respective companies.
Abyss 2 User Manual Rev. 1
Page 1 of 12
Safety Notes
• This product is not intended for permanent installation.
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Always disconnect the product from the power source before cleaning or replacing the fuse.
• Avoid direct eye exposure to the light source while the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power by pulling or tugging on the cord.
• If mounting the product overhead, always secure to a fastening device using a safety cable.
• Make sure there are no flammable materials close to the product when operating.
• Do not touch the product’s housing when operating because it may be very hot.
• The voltage of the outlet to which you are connecting this product must be within the range
stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the
product to rain or moisture.
• Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from
adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• Never connect the product to a dimmer or rheostat.
• Make sure to replace the fuse with another of the same type and rating.
• Never carry the product from the power cord or any moving part. Always use the handles.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher
temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Do not open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
Before You Begin
Keep this User Manual for future use. If the product is sold to someone else, be sure that they
also receive this document.
Page 2 of 12
Abyss 2 User Manual Rev. 1
Introduction
DMX
in/out
Fuse
holder
Power
in
Menu
buttons
LED
display
Power
out
IR
sensor
Safety cable
pass-through
Manual
focus
IR
sensor
9.72 in
247 mm
7.76 in
197 mm
8 in
203 mm
4.92 in
125 mm
4.69 in
119 mm
7 in
178 mm
6.38 in
162 mm

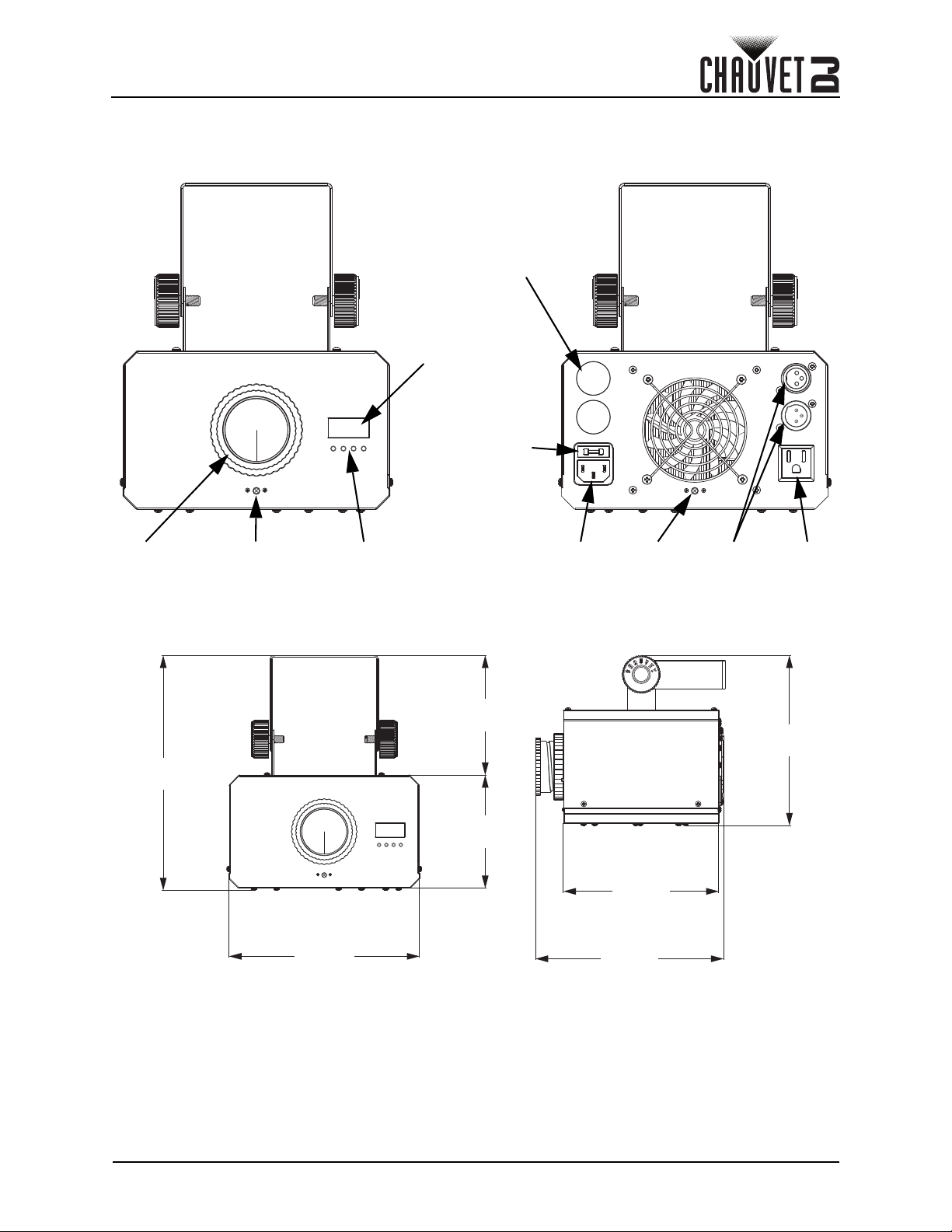

2. Introduction
Product Overview
Product Dimensions
Abyss 2 User Manual Rev. 1
Page 3 of 12
Setup
Safety cap
Spare fuse holder
(inside safety cap)
Installed fuse
(held by plastic clip)
1st product 2nd product 3rd product
Additional
products
Power
source
3. Setup
AC Power
The Abyss 2 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240
VAC, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current
value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
The listed current rating indicates the product’s average current draw under normal conditions.
• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure
the product has an appropriate electrical ground to avoid the risk of electrocution or
fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the
rheostat or dimmer channel serves only as a 0 to 100% switch.
Fuse Replacement
1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the fuse holder out of the housing.
4. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
5. Insert the fuse holder back in place and reconnect power.
Disconnect the product from the power outlet before replacing the fuse.
Power Linking
The product provides power linking via the outlet located in the back of the product. See the diagram below
for further explanation.
Power Linking Diagram
You can power link up to 7 Abyss 2 products on 120 VAC or up to 13 Abyss 2
230 VAC.
The power linking diagram corresponds to the North American version of the product ONLY!
If using the product in other markets, you must consult with the local Chauvet distributor
as power linking connectors and requirements may differ in your country or region.
products on
Page 4 of 12
Abyss 2 User Manual Rev. 1
Setup
Safety cable
(such as CH-05
from Chauvet)
Mounting clamp
(such as CLP-15 from Chauvet)
Mounting bracket
Bracket adjustment knob
(x2)
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
Orientation
The Abyss 2 may be mounted in any position; however, make sure adequate ventilation is provided around
the product.
Rigging
• Before deciding on a location, always make sure there is easy access to the product for
maintenance and programming.
• Make sure adequate ventilation is provided around the product.
• Make sure that the structure or surface onto which you are mounting the product can support the
product’s weight. (see the Technical Specifications
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power linking cables to
reach.
• When mounting the product on the floor, make sure that the product and cables are away from
people and vehicles.

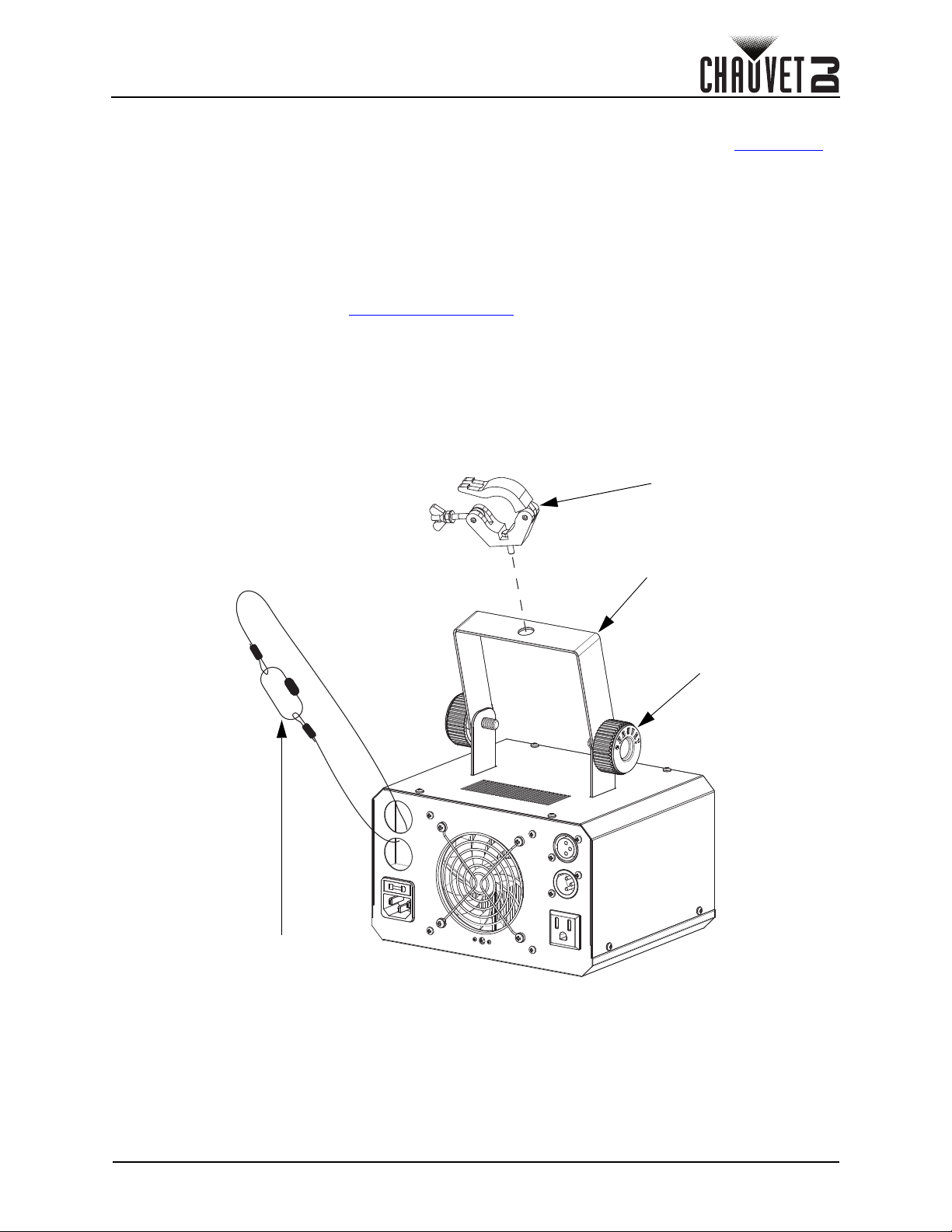

Mounting Diagram
)
Abyss 2 User Manual Rev. 1
Page 5 of 12
Operation
4. Operation
Control Panel Operation
To access the control panel functions, use the four buttons located underneath the display. Please refer to
the Product Overview
Button Function
<MENU> Press to find an operation mode or to back out of the current menu option
<UP> Press to scroll up the list of options or to find a higher value
<DOWN> Press to scroll down the list of options or to find a lower value
<ENTER> Press to activate a menu option or a selected value
Menu Map
Refer to the Abyss 2 product page on
Mode Programming Levels Description
DMX Mode 3Ch A001–512 Sets the DMX starting address
Color Wheel C--
Wave Effect UAuE
Dimmer U-- u 0–255 Sets the output level
Infrared
Mode
Temperature tENP t _ _ Shows the current product temperature in °C
to see the button locations on the control panel.
SEt
www.chauvetdj.com
C--1 White
C--2 Magenta
C--3 Yellow
C--4 Cyan
C--5 Green
C--6 Orange
C--L L000–100 Counter-clockwise rotation and speed
C--r r000–100 Clockwise rotation and speed
Stop No wave effect
U--L L000–100 Counter-clockwise wave effect and speed
U--r r000–100 Clockwise wave effect and speed
on
oFF
for the latest menu map.
Turns infrared on or off
Configuration (DMX)
The Abyss 2 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which
is available from the Chauvet website http://www.chauvetlighting.com/downloads/
DMX_Primer_rev05_WO.pdf.
Starting Address and Personality
When selecting a starting DMX address, always consider the number of DMX channels the selected DMX
mode uses. If the starting address is set too high, access to some of the product’s channels could be
restricted.
The Abyss 2 uses 3 DMX channels, which defines the highest configurable address to 510.
For information about the DMX protocol, download the DMX Primer from www.chauvetdj.com
To select the starting address and personality, do the following:
1. Press <MENU> repeatedly until 3Ch shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select the starting address, from A001–512.
4. Press <ENTER>.
Page 6 of 12
Abyss 2 User Manual Rev. 1
.
Operation
DMX Channel Assignments and Values
3Ch
Channel Function Value Percent/Setting
1 Dimmer 000 255 0–100%
000 021 White
022 042 Magenta
043 063 Yellow
064 084 Cyan
2 Color wheel
3 Wave effect
085 105 Green
106 127 Orange
128 188 Counter-clockwise rotation, fast to slow
189 194 Stop
195 255 Clockwise rotation, slow to fast
000 No function
001 122 Counter-clockwise wave effect, slow to fast
123 133 Stop
134 255 Clockwise wave effect, fast to slow
Configuration (Standalone)
Set the product in one of the standalone modes to control without a DMX controller.
Never connect a product that is operating in any standalone mode to a DMX string
connected to a DMX controller. Products in standalone mode may transmit DMX signals
that could interfere with the DMX signals from the controller.
Color Wheel
To set the color or color effect on the Abyss 2, follow the instructions below.
1. Press <MENU> repeatedly until C-- shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select from C--1 (white), C--2 (magenta), C--3 (yellow), C--4 (cyan),
C--5 (green), C--6 (orange, C--L (counterclockwise rotation), or C--r (clockwise rotation).
4. Press <ENTER>.
5. If C--L or C--r, use <UP> or <DOWN> to increase or decrease the rotation speed, from 000–100.
6. Press <ENTER>.
Wave Effect
To set the wave effect on the Abyss 2, do the following:
1. Press <MENU> repeatedly until UAuE shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select from Stop (no wave effect), U--L (counter-clockwise wave effect),
or U--r (clockwise wave effect).
4. Press <ENTER>.
5. If U--L or U--r, use <UP> or <DOWN> to increase or decrease the effect speed, from 000–100.
6. Press <ENTER>.
Dimmer
To set the dimmer on the Abyss 2, follow the instructions below.
1. Press <MENU> repeatedly until U-- shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to increase or decrease the dimmer, from u 0–255.
4. Press <ENTER>.
Temperature
To view the temperature of the Abyss 2 in °C:
1. Press <MENU> repeatedly until tENP shows on the display.
2. Press <ENTER>.
Abyss 2 User Manual Rev. 1
Page 7 of 12
Operation
BLACK
OUT
AUTO
SOUND
SENSITIVITY
SPEEDSTROBE
%
MANUAL
FADE
RGB
WUVA
+
0
-
123
654
789
IRC-6 Infrared Remote Control
The Abyss 2 is compatible with the IRC-6 infrared remote control from Chauvet. To run the Abyss 2 in IR
mode, follow the instructions below.
1. Press <MENU> repeatedly until SEt shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select from on or oFF.
4. Press <ENTER>.
IRC-6 Operation
Color Wheel
To select a color with the IRC-6:
1. Press <1> (white), <2> (magenta), <3> (yellow), <4> (cyan), <5> (green), or
<6> (orange).
To set rotation direction with the IRC-6:
1. Press <AUTO>.
2. Press <+> or <-> to toggle the rotation direction.
To set rotation speed with the IRC-6:
1. Press <SPEED>.
2. Press <+> or <-> to increase or decrease the speed.
Wave Effect
To set the wave effect direction with the IRC-6:
1. Press <SOUND>.
2. Press <+> or <-> to toggle the direction.
To set the wave effect speed with the IRC-6:
1. Press <SENSITIVITY>.
2. Press <+> or <-> to increase or decrease the speed.
Dimmer
To set the dimmer with the IRC-6:
1. Press <%>.
2. Press <+> or <->
Alternatively, press <MANUAL> to set the dimmer to 100%
Black Out
To black out the lights with the IRC-6:
1. Press <BLACK OUT> on the IRC-6.
This will turn off all the lights until the button is pressed again.
NOTE: The IRC-6 will not respond to any inputs when Black Out is activated. If the
product does not respond when a button is pressed, try pressing <BLACK OUT>.
Black Out may have been activated.
to increase or decrease the dimmer.
Master/Slave Mode
The Master/Slave mode allows a single Abyss 2 product (the “master”) to control the actions of one or more
Abyss 2 products (the “slaves”) without the need of a DMX controller. The master product will be
operate in either standalone mode or with the IRC-6, while the slave products will be set to operate in slave
mode. Once set and connected, the slave products will operate in unison with the master product.
Configure the products as indicated below.
Slave products:
1. Press <MENU> repeatedly until 3Ch shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select A001.
4. Press <ENTER>.
5. Connect the DMX input of the first slave product to the DMX output of the master product.
6. Connect the DMX input of the subsequent slave products to the DMX output of the previous slave
product.
7. Finish setting and connecting all the slave products.
Master product:
1. Set the master product to operate in standalone mode or with the IRC-6.
2. Make the master product the first product in the DMX daisy chain.
• Configure all the slave products before connecting the master to the daisy chain.
• Never connect a DMX controller to a DMX string configured for Master/Slave operation
because the controller may interfere with the signals from the master.
• Do not connect more than 31 slaves to the master.
Page 8 of 12
Abyss 2 User Manual Rev. 1
set to
Maintenance
5. Maintenance
Product Maintenance
Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of
the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean
your lighting products at least twice a month. However, be aware that usage and environmental conditions
could be contributing factors to increase the cleaning frequency.
To clean the product, follow the instructions below:
1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external
surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl
alcohol.
5. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.
Always dry the transparent surfaces carefully after cleaning them.
Do not spin the cooling fan using compressed air because it could be damaged.
Abyss 2 User Manual Rev. 1
Page 9 of 12
Technical Specifications
6. Technical Specifications
Dimensions and Weight
Length Width Height Weight
8 in (203 mm) 7 in (178 mm) 6.38 in (152 mm) 6.2 lb (2.8 kg)
Note: Dimensions in inches are rounded.
Power
Power Supply Type Range Voltage Selection
Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging
Parameter 120 V, 60 Hz 230 V, 50 Hz
Consumption 80 W 74 W
Operating Current 1.1 A 0.6 A
Power linking current (products) 8 A (7 products) 8 A (13 products)
Fuse T 1 A, 250 V T 1 A, 250 V
Power I/O U.S./Worldwide UK/Europe
Power input connector IEC IEC
Power output connector Edison IEC
Power Cord plug Edison (U.S.) Local Plug
Light Source
Type Color Quantity Power Current Lifespan
LED White 1 60 W 2 A 50,000 hours
Photometrics
Coverage Angle Illuminance @ 2 m
60° 5,010 lux
Thermal
Maximum External Temperature Cooling System
104 °F (40 °C) Fan-assisted convection
DMX
I/O Connector Channel Range
3-pin XLR 3
Ordering
Product Name Item Code UPC Number
Abyss 2 07051837 781462221850
Page 10 of 12
Abyss 2 User Manual Rev. 1
Returns
Returns
In case you need to get support or return a product:
• If you are located in the U.S., contact Chauvet World Headquarters.
• If you are located in the U.K. or Ireland, contact Chauvet Europe Ltd.
• If you are located in Benelux, contact Chauvet Europe BVBA.
• If you are located in France, contact Chauvet France.
• If you are located in Germany, contact Chauvet Germany.
• If you are located in Mexico, contact Chauvet Mexico.
• If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local
distributor. See www.chauvetdj.com
France, Germany, or Mexico.
If you are located outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico,
contact your distributor of record and follow their instructions on how to return Chauvet
products to them. Visit our website www.chauvetdj.com
Call the corresponding Chauvet Technical Support office and request a Return Merchandise Authorization
(RMA) number before shipping the product. Be prepared to provide the model number, serial number, and
a brief description of the cause for the return.
To submit a service request online, go to www.chauvetdj.com/service-request
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet
will not issue call tags.
Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA
number.
Write the RMA number on a properly affixed label. DO NOT write the RMA number directly
on the box.
for distributors outside the U.S., U.K., Ireland, Benelux,
for contact details.
.
Before sending the product, clearly write the following information on a piece of paper and place it inside
the box:
• Your name
• Your address
• Your phone number
• RMA number
• A brief description of the problem
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be
your responsibility. FedEx packing or double-boxing are recommended.
Chauvet reserves the right to use its own discretion to repair or replace returned
product(s).
Abyss 2 User Manual Rev. 1
Page 11 of 12
Contact Us
Chauvet World Headquarters
Chauvet Europe Ltd
Chauvet Europe BVBA
Chauvet France
Chauvet Germany
Chauvet Mexico
Address: Av. de las Partidas 34 - 3B
Lerma, Edo. de México, CP 52000
General Information Technical Support
Address: 5200 NW 108th Ave. Voice: (844) 393-7575
Sunrise, FL 33351 Fax: (954) 756-8015
Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com
Fax: (954) 929-5560
Toll Free: (800) 762-1084 Website: www.chauvetdj.com
Address: Unit 1C Email: UKtech@chauvetlighting.eu
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK Website: www.chauvetdj.eu
NG16 6NT
Voice: + 44 (0) 17 7 3 511115
Fax : + 44 (0) 1 7 7 3 511110
Address: Stokstraat 18 Email: BNLtech@chauvetlighting.eu
9770 Kruishoutem
Belgium Website: www.chauvetdj.eu
Voice: +32 9 388 93 97
Address: 3, Rue Ampère
91380 Chilly-Mazarin
France Website: www.chauvetdj.eu
Voice: +33 1 78 85 33 59
Address: Bruno-Bürgel-Str. 11
28759 Bremen
Germany Website: www.chauvetdj.eu
Voice: +49 421 62 60 20
(Entrance by Calle 2)
Zona Industrial Lerma Website: www.chauvetdj.mx
Voice: +52 (728) 690-2010
Email: FRtech@chauvetlighting.fr
Email: DEtech@chauvetlighting.de
Email: servicio@chauvet.com.mx
Contact Us
Visit the applicable website above to verify our contact information and instructions to request support.
Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.
Page 12 of 12
Abyss 2 User Manual Rev. 1
Loading...
