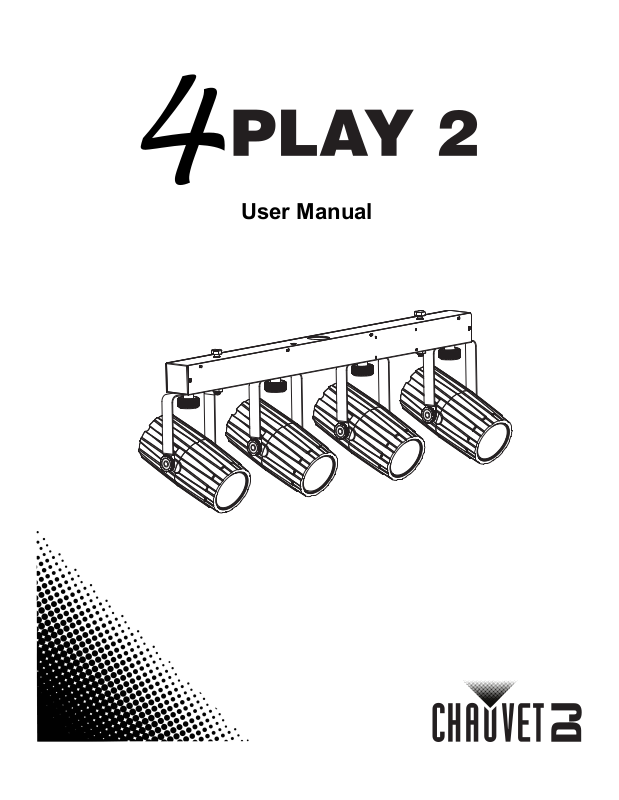

User Manual
Table of Contents
TABLE OF CONTENTS
1. Before You Begin ....................................................................... 1
What Is Included ........................................................................................... 1
Unpacking Instructions.................................................................................. 1
Claims ..................................................................................................................... 1
Text Conventions .......................................................................................... 1
Symbols ........................................................................................................ 1
Disclaimer ..................................................................................................... 1
Intellectual Property ...................................................................................... 1
Safety Notes.................................................................................................. 2
2. Introduction ................................................................................ 3
Product Overview.......................................................................................... 3
Product Dimensions ...................................................................................... 4
3. Setup ........................................................................................... 5
AC Power...................................................................................................... 5
Fuse Replacement .................................................................................................. 5
Power Linking.......................................................................................................... 5
Mounting ....................................................................................................... 6
Orientation............................................................................................................... 6
Rigging .................................................................................................................... 6
4. Operation .................................................................................... 7
Control Panel Operation................................................................................ 7
Menu Map ..................................................................................................... 7
DMX Linking.................................................................................................. 7
Configuration (DMX)................................................................................................ 7
DMX Personality and Starting Address................................................................... 7
DMX Values .................................................................................................. 7
Zones for DMX Control............................................................................................ 7
DMX Channel Assignments and Values ....................................................... 8
6-Channel................................................................................................................ 8
Configuration (Standalone) ........................................................................... 9
Automatic Programs................................................................................................ 9
Automatic Speed..................................................................................................... 9
Sound-Active Mode ................................................................................................. 9
IRC-6 Infrared Remote Control ..................................................................... 10
IRC-6 Operation ...................................................................................................... 10
Master/Slave Mode ....................................................................................... 11
Master/Slave Mode ................................................................................................. 11
5. Maintenance................................................................................ 12
Product Maintenance .................................................................................... 12
6. Technical Specifications ........................................................... 13
Returns............................................................................................ 14
Contact Us ...................................................................................... 15
4PLAY 2 User Manual Rev. 1
Before You Begin
1. Before You Begin
What Is Included
•4PLAY 2
• Power Cord
Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Convention Meaning
1–512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
Menu > Settings A sequence of menu options to be followed
<ENTER> A button to be pressed on the product’s control panel
ON A value to be entered or selected
•Carrying Bag
• Quick Reference Guide
Symbols
Symbol Meaning
Electrical warning. Not following these instructions may cause electrical damage to
the product, accessories, or the user.
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet
assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or
disruption caused by any errors or omissions in this document, whether such errors or omissions result from
negligence, accident or any other cause. Chauvet reserves the right to revise the content of this document
without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to
make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com
Intellectual Property
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2019 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
CHAUVET, the Chauvet logo, and 4PLAY 2 are registered trademarks or trademarks of Chauvet & Sons LLC (d/
b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names
and logos referred to herein may be trademarks of their respective companies.
.
4PLAY 2 User Manual Rev. 1
Page 1 of 15
Safety Notes
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Always disconnect the product from the power source before cleaning or replacing the fuse.
• Avoid direct eye exposure to the light source while the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power by pulling or tugging on the cord.
• If mounting the product overhead, always secure to a fastening device using a safety cable.
• Make sure there are no flammable materials close to the product when operating.
• Do not touch the product’s housing when operating because it may be very hot.
• The product is not intended for permanent installation.
• The voltage of the outlet to which you are connecting this product must be within the range
stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the
product to rain or moisture.
• Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from
adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• Never connect the product to a dimmer or rheostat.
• Make sure to replace the fuse with another of the same type and rating.
• Never carry the product from the power cord or any moving part. Always use the hanging/
mounting bracket.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher
temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Never attempt to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance center.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
Before You Begin
Keep this User Manual for future use. If the product is sold to someone else, be sure that
they also receive this document.
Page 2 of 15
4PLAY 2 User Manual Rev. 1
Introduction
DMX
In/Out
Fuse
Holder
LED Display
Back Panel View
Power
In
Menu
Buttons
Power
Out
2. Introduction
Product Overview
4PLAY 2 User Manual Rev. 1
Page 3 of 15
Product Dimensions
A
12.5 in
318 mm
3.5 in
89 mm
33 in
838 mm
Front View
Side View
Introduction
Page 4 of 15
4PLAY 2 User Manual Rev. 1
Setup
Safety cap
Spare fuse holder
(inside safety cap)
Installed fuse
(held by plastic clip)
1st Product
2
nd
Product 3rd Product
Power
Source
Additional
Products
3. Setup
AC Power
The 4PLAY 2 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240
VAC, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current
value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
The listed current rating indicates the product’s average current draw under normal conditions.
• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure
the product has an appropriate electrical ground to avoid the risk of electrocution or
fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the
rheostat or dimmer channel serves only as a 0 to 100% switch.
Fuse Replacement
1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the fuse holder out of the housing.
4. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
5. Insert the fuse holder back in place and reconnect power.
Disconnect the product from the power outlet before replacing the fuse.
Power Linking
The product provides power linking via the outlets located in the back of the product. See the diagram
below for further explanation.
Power Linking Diagram
You can power link up to 33 4PLAY 2 products on 120 VAC or up to 56 4PLAY 2 products
on 230 VAC.
The power linking diagram shown above corresponds to the North American version of
the product ONLY! If using the product in other markets, you must consult with the local
Chauvet distributor as power linking connectors and requirements may differ in your
country or region.
4PLAY 2 User Manual Rev. 1
Page 5 of 15
Setup
Safety Cable
(such as CH-05
from Chauvet)
Mounting Clamp (x2)
(such as CLP-15 from
Chauvet)
Tripod Insertion
Point
Pod Pan
Adjustment
Knob (x4)
Pod Tilt
Adjustment Knob
(x2 per pod)
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
Orientation
The 4PLAY 2 may be mounted in any position; however, make sure adequate ventilation is provided
around the product.
Rigging
• Before deciding on a location, always make sure there is easy access to the product for maintenance
and programming.
• Make sure adequate ventilation is provided around the product.
• Make sure that the structure or surface onto which you are mounting the product can support the
product’s weight. (see the Technical Specifications
• When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging
point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
Mounting Diagram
)
Page 6 of 15
4PLAY 2 User Manual Rev. 1
Operation
White
Red
Green
Blue
4. Operation
Control Panel Operation
To access the control panel functions, use the four buttons located underneath the display. Please refer to
the Product Overview
Button Function
<MENU> Press to find an operation mode or to back out of the current menu option
<UP> Press to scroll up the list of options or to increase the numeric value in a function
<DOWN> Press to scroll down the list of options or to decrease the numeric value in a function
<ENTER> Press to activate a menu option or set the selected value in a function
Menu Map
Mode Programming Levels Description
DMX Mode .512 d001–512
Sound Mode Snd Snd1–9 Sets sound-active program
Auto Program Auto Au01–20
Auto Speed S-- S001–100
DMX Linking
The 4PLAY 2 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which
is available from the Chauvet website http://www.chauvetlighting.com/downloads/
DMX_Primer_rev05_WO.pdf.
Configuration (DMX)
Set the product in DMX mode to control with a DMX controller.
1. Connect the product to a suitable power outlet.
2. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the
product.
DMX Personality and Starting Address
When selecting a starting DMX address, always consider the number of DMX channels the selected DMX
mode uses. If the starting address is set too high, access to some of the product’s channels could be
restricted.
To ensure full access to all channels available in each DMX mode, the highest recommended DMX
address is 507.
For information about the DMX protocol, download the DMX Primer from www.chauvetdj.com
To select the starting address, do the following:
1. Press <MENU> repeatedly until .512 shows on the display.
2. Press <ENTER> and d 1–512 will show on the display.
3. Use <UP> or <DOWN> to select the starting address.
4. Press <ENTER>.
DMX Values
Zones for DMX Control
to see the button locations on the control panel.
Sets DMX starting address
Sets automatic programs
Sets the auto program speed
.
4PLAY 2 User Manual Rev. 1
Page 7 of 15
DMX Channel Assignments and Values
6-Channel
Channel Function Value Percent/Setting
000 010 No function
011 016 White 1
017 022 White 2
023 028 White 3
029 034 Red 1
035 040 Red 2
041 046 Red 3
047 052 Green 1
053 058 Green 2
059 064 Green 3
065 070 Blue 1
071 076 Blue 2
077 082 Blue 3
083 088 All white
089 094 All red
095 100 All green
101 106 All blue
1–4
5Strobe
LED Control, 1 Channel
per Head
107 112 All red and green
113 118 All red and blue
119 124 All green and blue
125 130 All red, green, and blue
131 136 All red and white
137 142 All green and white
143 148 All blue and white
149
154 Blue 1 and all white
155 160 Blue 2 and all red
161 166 Blue 3 and all green
167 172 Blue 1 and red 3
173 178 Blue 2 and red 2
179 184 Blue 3 and red 1
185 190 White 3 and green 1
191 196 White 2 and green 2
197 202 White 1 and green 3
203 208 White 3, red 1, green 3, and blue 1
209 214 White 2, red 2, green 2, and blue 2
215 220 White 1, red 3, green 1, and blue 3
221 255 All white, red, green, and blue
000 010 No function
011 255 Strobe, slow to fast
Operation
Page 8 of 15
4PLAY 2 User Manual Rev. 1
Operation
Channel Function Value Percent/Setting
000 009 No function
010 034 Program 1
035 058 Program 2
059 082 Program 3
083 106 Program 4
6 Programs
107 130 Program 5
131 154 Program 6
155 178 Program 7
179 226 Program 8
227 250 Programs 1–8
251 255 Sound-active mode
Configuration (Standalone)
Set the product in one of the standalone modes to control without a DMX controller.
• Connect the product to a suitable power outlet.
Never connect a product that is operating in any standalone mode to a DMX string
connected to a DMX controller. Products in standalone mode may transmit DMX signals
that could interfere with the DMX signals from the controller.
Automatic Programs
To run the 4PLAY 2 in Automatic mode, follow the instructions below:
1. Press <MENU> repeatedly until Auto shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select Au01–20.
4. Press <ENTER>.
Automatic Speed
To change the auto program speed, do the following:
1. Press <MENU> repeatedly until S-- shows on the display.
2. Press <ENTER> and Sxxx will show on the display.
3. Use <UP> or <DOWN> to increase or decrease the speed.
4. Press <ENTER>.
Sound-Active Mode
To run the 4PLAY 2 in sound-active mode, do the following:
1. Press <MENU> repeatedly until Snd shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select Snd1–9.
4. Press <ENTER>.
4PLAY 2 User Manual Rev. 1
Page 9 of 15
IRC-6 Infrared Remote Control
BLACK
OUT
AUTO
SOUND
SENSITIVITY
SPEEDSTROBE
%
MANUAL
FADE
RGB
WUVA
+ 0
-
123
654
789
The 4PLAY 2 is compatible with the IRC-6 infrared remote control from Chauvet.
IRC-6 Operation
Automatic Mode
Automatic mode will enable you to run the automatic programs on the product.
To turn on Automatic mode (snap) with the IRC-6:
1. Press <AUTO> on the IRC-6.
2. Press <+> or <–> to choose between the different auto programs.
To adjust the speed of the automatic program:
1. Press <SPEED> on the IRC-6.
2. Press <+> or <–> to increase or decrease the speed of the program.
Sound-Active Mode
To turn on Sound-Active mode with the IRC-6:
1. Press <SOUND> on the IRC-6.
2. Press <+> or <–> to select a sound-active program.
To adjust the sound sensitivity:
1. Press <SENSITIVITY> on the IRC-6.
2. Press <+> or <–> to increase or decrease the sensitivity.
Manual Color Control
To select a preset static color with the IRC-6:
1. Press <MANUAL> on the IRC-6.
2. Press any number between 0–9 to choose your color.
To manually control the RGB percentage with the IRC-6:
1. Press <MANUAL> on the IRC-6.
2. Select the color to be edited, from <R> (red), <G> (green), <B> (blue), or
<W> (white).
3. Press <+> or <–> to increase or decrease the intensity of the selected
color.
• Press <0> to set all LEDs to full intensity.
4. Repeat steps 2 and 3 until the product outputs as desired.
Strobe
To adjust the strobe rate with the IRC-6:
1. Press <STROBE> on the IRC-6.
2. Press <+> or <–> to increase or decrease the strobe rate.
3. Set to 0 to turn off the strobe.
Black Out
To black out the lights with the IRC-6:
1. Press <BLACK OUT> on the IRC-6.
This will turn off all the lights until the button is pressed a
The IRC-6 will not respond to any inputs when Black Out is activated. If the
remote does not respond when a button is pressed, try pressing
<BLACK OUT>. You may have inadvertently activated Black Out.
Operation
gain.
Page 10 of 15
4PLAY 2 User Manual Rev. 1
Operation
Master/Slave Mode
The Master/Slave mode allows a single 4PLAY 2 product (the “master”) to control the actions of one or
more 4PLAY 2 products (the “slaves”) without the need of a DMX controller. Once set and connected, the
slave products will operate in unison with the master product.
Master/Slave Mode
Configure the products as indicated below.
Slave products:
1. Press <MENU> repeatedly until .512 shows on the display.
2. Press <ENTER> to select.
3. Set the DMX address to d 1.
4. Connect the DMX input of the first slave product to the DMX output of the master product.
5. Connect the DMX input of the subsequent slave products to the DMX output of the previous slave
product.
6. Finish setting and connecting all the slave products.
Master product:
1. Set the master product to operate in either Automatic or Sound-Active mode.
2. Make the master product the first product in the DMX daisy chain.
• Configure all the slave products before connecting the master to the daisy chain.
• Never connect a DMX controller to a DMX string configured for Master/Slave operation
because the controller may interfere with the signals from the master.
• Do not connect more than 31 slaves to the master.
4PLAY 2 User Manual Rev. 1
Page 11 of 15
Maintenance
5. Maintenance
Product Maintenance
Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of
the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean
your lighting products at least twice a month. However, be aware that usage and environmental conditions
could be contributing factors to increase the cleaning frequency.
To clean the product, follow the instructions below:
1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external
surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl
alcohol.
5. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.
Always dry the transparent surfaces carefully after cleaning them.
Page 12 of 15
4PLAY 2 User Manual Rev. 1
Technical Specifications
6. Technical Specifications
Dimensions and Weight
Length Width Height Weight
33 in (838 mm) 3.5 in (89 mm) 12.5 in (318 mm) 9 lb (4.1 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Power
Power Supply Type Range Voltage Selection
Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging
Parameter 120 V, 60 Hz 230 V, 50 Hz
Consumption 15 W 15 W
Operating Current 0.2 A 0.1 A
Fuse 1.6 A, 250 V 1.6 A, 250 V
Power I/O U.S./Worldwide UK/Europe
Power input connector IEC IEC
Power Cord plug Edison (U.S.) Local Plug
Light Source
Type Color Quantity Power Current Lifespan
LED RGBW 228 0.25 W 1 A 50,000 hours
Photometrics
Strobe Rate Coverage Angle (per pod)
0 to 20 Hz 63°
Thermal
Maximum External Temperature Cooling System
104 °F (40 °C) Convection
DMX
I/O Connector Channel Range Optional Controllers
3-pin XLR 6 IRC-6
Ordering
Product Name Item Code UPC Number
4PLAY 2 07051554 781462219024
4PLAY 2 User Manual Rev. 1
Page 13 of 15
Returns
Returns
In case you need to get support or return a product:
• If you are located in the U.S., contact Chauvet World Headquarters.
• If you are located in the UK or Ireland, contact Chauvet Europe Ltd.
• If you are located in Benelux, contact Chauvet Europe BVBA.
• If you are located in France, contact Chauvet France.
• If you are located in Germany, contact Chauvet Germany.
• If you are located in Mexico, contact Chauvet Mexico.
• If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local
distributor. See www.chauvetdj.com
Germany, or Mexico.
If you are located outside the U.S., UK, Ireland, Benelux, France, Germany, or Mexico,
contact your distributor of record and follow their instructions on how to return Chauvet
products to them. Visit our website www.chauvetdj.com
Call the corresponding Chauvet Technical Support office and request a Return Merchandise Authorization
(RMA) number before shipping the product. Be prepared to provide the model number, serial number, and
a brief description of the cause for the return.
To submit a service request online, go to www.chauvetdj.com/service-request
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet
will not issue call tags.
Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA
number.
Write the RMA number on a properly affixed label. DO NOT write the RMA number directly
on the box.
for distributors outside the U.S., UK, Ireland, Benelux, France,
for contact details.
.
Before sending the product, clearly write the following information on a piece of paper and place it inside
the box:
• Your name
• Your address
• Your phone number
•RMA number
• A brief description of the problem
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be
your responsibility. FedEx packing or double-boxing are recommended.
Chauvet reserves the right to use its own discretion to repair or replace returned
product(s).
Page 14 of 15
4PLAY 2 User Manual Rev. 1
Contact Us
Contact Us
Chauvet World Headquarters
Chauvet Europe Ltd
Chauvet Europe BVBA
Chauvet France
Chauvet Germany
Chauvet Mexico
Address: Av. de las Partidas 34 - 3B
Lerma, Edo. de México, CP 52000
General Information Technical Support
Address: 5200 NW 108th Ave. Voice: (844) 393-7575
Sunrise, FL 33351 Fax: (954) 756-8015
Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com
Fax: (954) 929-5560
Toll Free: (800) 762-1084 Website: www.chauvetdj.com
Address: Unit 1C Email: UKtech@chauvetlighting.eu
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK Website: www.chauvetdj.eu
NG16 6NT
Voice: + 44 (0) 17 73 511115
Fax : +44 (0) 1773 511110
Address: Stokstraat 18 Email: BNLtech@chauvetlighting.eu
9770 Kruishoutem
Belgium Website: www.chauvetdj.eu
Voice: +32 9 388 93 97
Address: 3, Rue Ampère
91380 Chilly-Mazarin
France Website: www.chauvetdj.eu
Voice: +33 1 78 85 33 59
Address: Bruno-Bürgel-Str. 11
28759 Bremen
Germany Website: www.chauvetdj.eu
Voice: +49 421 62 60 20
(Entrance by Calle 2)
Zona Industrial Lerma Website: www.chauvetdj.mx
Voice: +52 (728) 690-2010
Email: FRtech@chauvetlighting.fr
Email: DEtech@chauvetlighting.de
Email: servicio@chauvet.com.mx
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.
Follow the instructions to request support or to return a product. Visit our website for contact details.
4PLAY 2 User Manual Rev. 1
Page 15 of 15
Loading...
