Chauvet Spot LED 150 User Manual

Download
Page 1
User Manual
Page 2
TABLE OF CONTENTS
1. Before You Begin .............................................................................. 3
Claims ........................................................................................................................ 3
2. Introduction ....................................................................................... 5
3. Setup .................................................................................................. 7
Fuse Replacement ..................................................................................................... 7
Power Linking............................................................................................................. 7
Orientation ................................................................................................................. 8
Rigging ....................................................................................................................... 8
4. Operation ........................................................................................... 9
Starting Address ....................................................................................................... 10
DMX Personalities .................................................................................................... 10
11-CH ....................................................................................................................... 11
6-CH ......................................................................................................................... 13
Sound Active Mode .................................................................................................. 14
Automatic Mode ....................................................................................................... 14
Manual Pan/Tilt Operation ....................................................................................... 14
Pan/Tilt Angle Restrict .............................................................................................. 14
Display Orientation ................................................................................................... 15
Master/Slave Mode .................................................................................................. 15
Reset Software......................................................................................................... 15
5. Technical Information ......................................................................16
6. Technical Specifications ..................................................................17
Page 2 of 18 Intimidator™ Spot LED 150 User Manual (Rev. 5)
Page 3
What Is
Unpacking
Instructions
upon receipt
Failure to do so in a timely manner may
For other issues such as missing components or parts, damage not related to shipping,
within 7 days of receiving the
Text
1~512
A range of values
50/60
A set of values of which only one can be chosen
Settings
A menu option not to be modified
Menu > Settings
A sequence of menu options to be followed
<ENTER>
A key to be pressed on the product’s control panel
ON
A value to be entered or selected
Symbols
Symbol
Meaning
Critical installation, configuration, or operation information. Failure the user.
Important installation or configuration information. Failure to functioning correctly.
Disclaimer
The information and specifications contained in this document are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or
CHAUVET® reserves the right to update the
in the United States of

1. BEFORE YOU BEGIN

Included
Claims
Conventions
• Intimidator™ Spot LED 150
• 2 x Mounting Brackets
• 2 x Mounting Bolts
• Safety Eyebolt
Immediately upon receipt, carefully unpack the product and che ck the cont ain er to make sure you have received all the parts indicated above in good condition.
If the container or the material inside the container (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not CHAUVET®. invalidate your claim with the carrier. In addition, keep the container and all the packing material for inspection.
or concealed damage, file a claim with CHAUVET® merchandise.
Convention Meaning
• Power Cord
• Warranty Card
• Quick Reference Guide
omissions that may appear in this manual. existing document or to create a new document to correct any errors or omissions.
You can download the latest version of this document from www.chauvetlighting.com.
© Copyright 2012 CHAUVET®. All rights reserved.
Printed in P.R.C. Electronically published by CHAUVET® America.
Author Date Editor Date
A. Diaz 3/21/12 S. Graham 3/21/12
to comply c ould make the product not work, damage it, and harm
comply with this information may prevent the product from
Useful information.
Intimidator™ Spot LED 150 User Manual (Rev. 5) Page 3 of 18
Page 4
Product at a

Safety Notes

Do not touch the product’s housing when operating because it may be very hot.
center.
Glance
Use on Dimmer Outdoor Use Sound Activated DMX Master/Slave
Please read the following Safety Notes carefully before working with the product. The Notes include important safe ty infor mat ion abou t installation, usage, and maintenance.
• This product is not intended for permanent installation.
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Always disconnect the product from the power source before cleaning or replacing
the fuse.
• Avoid direct eye exposure to the light source while the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power cord by pulling or tugging on the cord.
• If mounting the product overhead, always secure to a fastening device using a
safety cable.
• Make sure there are no flammable materials close to the product when operating.
•
• Always make sure that the voltage of the outlet to which y ou are conne cti ng the
product is within the range stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the product to rain or moisture.
• Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• Never connect the product to a dimmer.
• Make sure to replace the fuse with another of the same type and rating.
• Never carry the product from the power cord or any moving part. Always use the
hanging/mounting bracket or the handles.
• The maximum ambient temperature (Ta) is 104° F (40° C). Do not operate the product at higher temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Never try to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
Auto Programs Auto-ranging Power Supply Replaceable Fuse User Serviceable Duty Cycle
• Keep this User Manual. If you sell the product to another user, be sure that they also receive this document.
Page 4 of 18 Intimidator™ Spot LED 150 User Manual (Rev. 5)
Page 5

2. INTRODUCTION

Product Overview

Power In/Out
Fuse Holder
DMX In/Out
LED Display
Moving Head
Adjustable Lens
Moving Yoke
Cooling Fan
Intimidator™ Spot LED 150 User Manual (Rev. 5) Page 5 of 18
Page 6

Product Dimensions

Page 6 of 18 Intimidator™ Spot LED 150 User Manual (Rev. 5)
Page 7

AC Power

ranging power supply and it can work with
circuit breaker, power outlet, and
(circuit breaker or fuse). Make
an appropriate electrical ground to avoid the risk of
a rheostat (variable resistor) or dimmer circuit, even
Fuse

Power Linking

of the unit.
Power Linking
s on 120 VAC or up to
The power linking diagram shown above corresponds to the North American
in other markets, you must
consult with the local CHAUVET® distributor as power linking connectors and
1st Product
2nd Product
3rd Product
Other products

3. SETUP

Replacement
The Intimidator™ Spot LED 150 has an auto­an input voltage range of 100~240 VAC, 50/60 Hz.
To determine the product’s power requirements ( wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. The listed current rating indicates the product’s average current draw under normal conditions.
Always connect the product to a protected circuit sure the product has electrocution or fire.
Never connect the product to if the rheostat or dimmer channel serves only as a 0~100% switch.
Disconnect the product from power before replacing the fuse.
1. Using a flat-head screwdriver, unscrew the fuse holder from the back of the product.
2. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
3. Insert the fuse holder back in place, re-tighten, and reconnect power.
The product provides power linking via the Edison outlet located in the back Please see the diagram below for further explanation.
Diagram
You can power link up to 6 Intimidator™ Spot LED 150 unit 12 Intimidator™ Spot LED 150 units on 230 VAC.
version of the product ONLY! If using the product requirements may differ in your area.
Intimidator™ Spot LED 150 User Manual (Rev. 5) Page 7 of 18
Page 8

Mounting

may be mounted in any position; however, make sure
Mount the
, which is appropriate for
always consider the length of the
surface mounting. When
Rubber Feet (x4)
Safety Loop
Attachment Point
Bracket
Attachement (x2)
Before mounting the product, read and follow the Safety Notes.
Orientation
The Intimidator™ Spot LED 150 adequate ventilation is provided around the product.
Rigging
• Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes.
• Make sure that the structure or surface onto which you are mounting the product can support the product’s weight. See the Technical Specifications s ection of this manual for weight information.
• When mounting the product overhead, always use a safety cable. product securely to a rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, you should use a mounting clamp of appropriate weight capacity. The bracket has a 13 mm hole this purpose.
• When po wer linking m ultiple products, you must power linking cable and mount the products close enough for the cable to reach.
• The rubber feet also serve as floor supports/allow for mounting the product on the floor, make sure that the product and cables are away from people and vehicles.
Mounting Diagram
Page 8 of 18 Intimidator™ Spot LED 150 User Manual (Rev. 5)
Page 9
Control Panel
To access the control panel functions, use the four buttons located underneath the
<ENTER>

Menu Map

NASL (SLoU)
Normal Pan
PAn
Normal
Tilt 90
Ti 9

4. OPERATION

Operation
display.
Button Function
<MODE/ESC>
<UP>
<DOWN>
Mode Programming Steps Description
DMX Mode 001-512
Operating
Mode
Pan
Tilt
Display
Channel Mode
Manual Pan
Restrict
Manual Tilt
Restrict
Press to find an operation mode or to back out of the current menu option
Press to scroll up the list of options or to find a higher value Press to scroll down the list of options or to find a lower value Press to activate a menu option or a selected value
Sets the DMX starting address
SLAv (Son)
NAFA (FASt)
NStS (SrUn)
Inverse Pan r PAn
Normal Tilt tiL Inverse Tilt r tiL
Display Inverse
Display
11-Channel
Mode
6-Channel
Mode Pan 540 PA54 Pan 360 PA36 Pan 180 PA18
Tilt 270 Ti27 Tilt 180 Ti18
diS
r diS
11CH
6CH
Slave operating mode Automatic Mode, Slow Program Automatic Mode, Fast Program Sound Active Mode Normal Pan operation Inverse Pan operation Normal Tilt operation Inverse Tilt operation
Change the LCD display text position
Selects the DMX personality
Select Pan angle restrictions
Select Tilt angle restrictions
Reset rESt
Load LoAd
Intimidator™ Spot LED 150 User Manual (Rev. 5) Page 9 of 18
Resets fixture Load factory defaults
Page 10
Configuration
always consider the number of DMX channels
the selected DMX mode uses. If you choose a starting address that is too high, you could
annel DMX
online at
DMX
channel personality and
Set the product in DMX mode to control with a DMX controller.
(DMX)
1. Connect the product to a suitable power outlet.
2. Turn the product on.
3. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product.
Starting Address
Personalities
When selecting a starting DMX address, restrict the access to some of the product’s channels.
The Intimidator™ Spot LED 150 uses up to 11 DMX channels in its 11-ch mode, which defines the highest configurable address to 502.
If you are not familiar with the DMX protocol, you may refer to the DMX Primer
www.chauvetlighting.com.
To select the starting address, do the following:
1. Press <MODE/ESC> repeatedly until 001 shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select the starting address.
4. Press <ENTER>.
The Intimidator™ Spot LED 150 has two DMX personalities, an 8­a 14-channel personality.
To choose which DMX personality to use, follow the steps below:
1. Press <MODE/ESC> repeatedly until either 14CH (to choose the 14-channel personality) or 8CH (to choose the 8-channel personality) shows on the display.
2. Press <ENTER>.
Page 10 of 18 Intimidator™ Spot LED 150 User Manual (Rev. 5)
Page 11

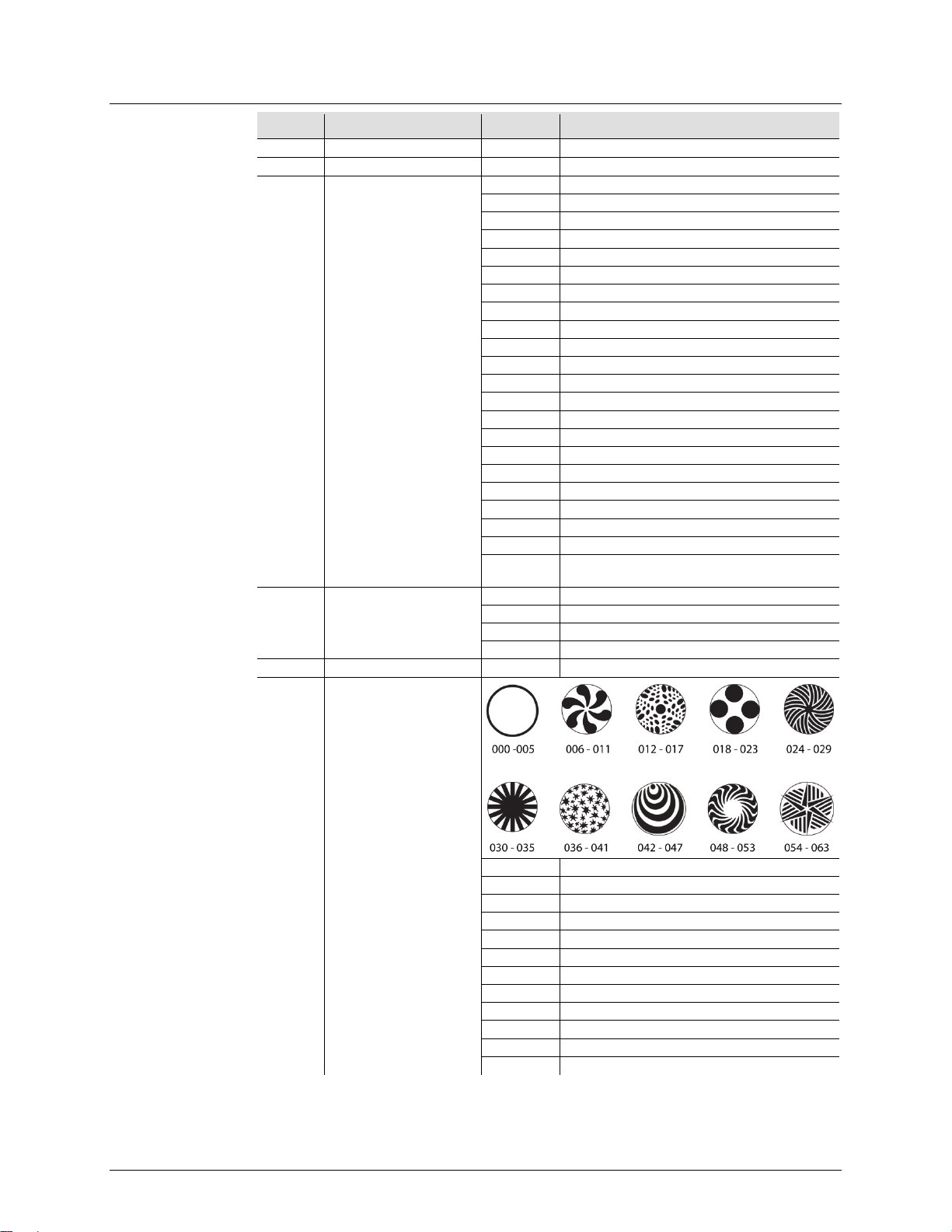

DMX Channel Assignments and V alues
1
Pan
000 255
0-540°
2
Tilt
000 255
0-270°
3
Fine Pan
000 255
Fine control of panning
4
Fine Tilt
000 255
Fine control of tilting
5
Speed
000 255
Pan/Tilt speed (fast to slow)
000 005
White
006 011
Yellow
012 017
Magenta
018 023
Green
024 029
Red
030 035
Cyan
036 041
Orange
042  047
Blue
048 053
Light Green
054 063
Amber
064 069
White + Yellow
070 075
Yellow + Magenta
076 081
Magenta + Green
082 087
Green + Red
088 093
Red + Cyan
094 099
Cyan + Orange
100 105
Orange + Blue
106 111
Blue + Light Green
112 117
Light Green + Amber
118 127
Amber + White
128 191
Color cycling rainbow with increasing speed
Reverse color cycling rainbow with increasing speed
000 003
Blackout
004 007
Open
008 215
Strobe (0-20 Hz)
216 255
Open
8
Dimmer
000 255
0-100%
11-CH
Channel Function Value Setting
6 Color Wheel
7 Shutter
192 255
Intimidator™ Spot LED 150 User Manual (Rev. 5) Page 11 of 18
Page 12
064 071
Gobo 9 shake, from slow to fast
072 079
Gobo 8 shake, from slow to fast
080 085
Gobo 7 shake, from slow to fast
086 091
Gobo 6 shake, from slow to fast
092 097
Gobo 5 shake, from slow to fast
098 103
Gobo 4 shake, from slow to fast
104 109
Gobo 3 shake, from slow to fast
110 115
Gobo 2 shake, from slow to fast
116 121
Gobo 1 shake, from slow to fast
122 127
Open
128 191
Cycle effect with increasing speed
192 255
Reverse cycle effect with increasing speed
000 007
No function
008 027
Blackout while pan/tilt moving
028 047
Blackout while moving gobo wheel
048 067
Disable blackout while pan/tilt/moving gobo wheel
068 087
Blackout while moving color wheel
088 107
Disable blackout while pan/tilt/moving color wheel
108 127
Disable blackout while moving gobo/color wheel
128 147
Disable blackout while moving all options
148 167
Reset pan
168 187
Reset tilt
188 207
Reset color wheel
208 227
Reset gobo wheel
228 247
Reset all channels
248 255
No function
000 007
No function
008 023
Auto program 1
024 039
Auto program 2
040  055
Auto program 3
056 071
Auto program 4
072 087
Auto program 5
088 103
Auto program 6
104 119
Auto program 7
120 135
Auto program 8
136 151
Sound controlled program 1
152 167
Sound controlled program 2
168 183
Sound controlled program 3
184 199
Sound controlled program 4
200 215
Sound controlled program 5
216 231
Sound controlled program 6
232 247
Sound controlled program 7
248 255
Sound controlled program 8
9 Gobo Wheel
10 Control Functions
11 Auto Programs
Page 12 of 18 Intimidator™ Spot LED 150 User Manual (Rev. 5)
Page 13
1
Pan
000 255
0-540°
2
Tilt
000 255
0-270°
000 005
White
006 011
Yellow
012 017
Magenta
018 023
Green
024 029
Red
030 035
Cyan
036  041
Orange
042 047
Blue
048 053
Light Green
054 063
Amber
064 069
White + Yellow
070 075
Yellow + Magenta
076 081
Magenta + Green
082 087
Green + Red
088 093
Red + Cyan
094 099
Cyan + Orange
100 105
Orange + Blue
106 111
Blue + Light Green
112 117
Light Green + Amber
118 127
Amber + White
128 191
Color cycling rainbow with increasing speed
Reverse color cycling rainbow with increasing speed
000 003
Blackout
004 007
Open
008 215
Strobe (0-20 Hz)
216 255
Open
5
Dimmer
000 255
0-100%
064 071
Gobo 9 shake, from slow to fast
072 079
Gobo 8 shake, from slow to fast
080 085
Gobo 7 shake, from slow to fast
086 091
Gobo 6 shake, from slow to fast
092 097
Gobo 5 shake, from slow to fast
098 103
Gobo 4 shake, from slow to fast
104  109
Gobo 3 shake, from slow to fast
110 115
Gobo 2 shake, from slow to fast
116 121
Gobo 1 shake, from slow to fast
122 127
Open
128 191
Cycle effect with increasing speed
192 255
Reverse cycle effect with increasing speed
6-CH
Channel Function Value Setting
3 Color
192 255
4 Shutter
6 Gobo Wheel
Intimidator™ Spot LED 150 User Manual (Rev. 5) Page 13 of 18
Page 14
Configuration
Static,
s in
standalone mode may transmit DMX signals that could interfere with the DMX
Sound Active
Automatic Mode
Manual Pan/Tilt
Spot LED 150 to operate with normal tilting
Pan/Tilt Angle
Spot LED 150 to
(Standalone)
Mode
Set the product in one of the standalone modes to contr ol without a DMX controller.
1. Connect the product to a suitable power outlet.
2. Turn the product on.
Never connect a product that is operating in any standalone mode (either Automatic, or Sound) to a DMX string connected to a DMX controller. Product
signals from the controller.
To enable the Sound Active mode, do the following:
1. Press <MODE/ESC> repeatedly until one of the following shows on the display: NASl, NAFA, NStS, or SLAv.
2. Press <UP> or <DOWN> to select NStS.
3. Press <ENTER>.
The product will only respond to low frequencies of music (bass and drums).
To enable the Automatic Mode, follow the instructions below:
1. Press <MODE/ESC> repeatedly until one of the following shows on the display: NASl, NAFA, NStS, or SLAv.
2. Press <UP> or <DOWN> to select NASl (for a slow light show) or NAFA (for a fast light show).
3. Press <ENTER>.
Operation
Restrict
To select whether you want the Intimidator™ Spot LED 150 to operate with normal
panning or inverted panning, do the following:
1. Press <MODE/ESC> repeatedly until PAn shows on the display.
2. Press <UP> or <DOWN> to select normal pan operation (PAn) or inverse pan operation (r PAn).
3. Press <ENTER>.
To select whether you want the Intimidator™
or inverted tilting, do the following:
1. Press <MODE/ESC> repeatedly until tiL shows on the display .
2. Press <UP> or <DOWN> to select normal pan operation (tiL) or inverse pan operation (r tiL).
3. Press <ENTER>.
You are able to restrict the pan and tilt angles on the Intimidator™ achieve the effect you like.
To select which pan angle to use, do the following:
1. Press <MODE/ESC> repeatedly until PA54 shows on the display.
2. Press <UP> or <DOWN> to select either 540° (PA54), 360° (PA36) or 180° (PA18).
3. Press <ENTER>.
To select which tilt angle to use, do the following:
1. Press <MODE/ESC> repeatedly until Ti27 shows on the display.
2. Press <UP> or <DOWN> to select either 270° (Ti27), 180° (Ti18) or 90° (Ti 9).
3. Press <ENTER>.
Page 14 of 18 Intimidator™ Spot LED 150 User Manual (Rev. 5)
Page 15
Master/Slave
unit (the “master”) to
units (the “slaves”)
o operate in either Automatic or Sound Active mode, while the slave units will be set to operate in Slave Mode. Once set and connected, the slave units will operate in unison with the master
units before connecting the master unit to the DMX
Never connect a DMX controller to a DMX string configured for Master/Slave
may interfere with the signals from the
The product will reset all settings in the software to the default
Display
Orientation
Mode
You are able to flip the LED display for easy readability in any mounting situation. To select your display angle:
1. Press <MODE/ESC> repeatedly until diS shows on the display.
2. Press <UP> or <DOWN> to select normal display mode (diS) or inverse display mode (r diS).
3. Press <ENTER>.
The Master/Slave mode allows a single Intimidator™ Spot LED 150 control the actions of one or more Intimidator™ Spot LED 150 without the need of a DMX controller. The master unit will be set t
unit. Configure the units as indicated below.
Slave units:
1. Press <MODE/ESC> repeatedly until SLAv shows on the display.
2. Press <ENTER> to accept.
3. Set the DMX address to 001.
4. Connect the DMX input of the first slave unit to the DMX output of the master unit.
5. Connect the DMX input of the subsequent slave units to the DMX output of the previous slave unit.
6. Finish setting and connecting all the slave units.
Master unit:
1. Set the master unit to operate in either Automatic or Sound mode .
2. Make the master unit the first unit in the DMX daisy chain.
• Configure all the slave
daisy chain.
•
operation because the controller master unit.
• Do not connect more than 31 slave units to the master unit.
Reset Software
To reset the software on the Intimidator™ Spot LED 150, do the following:
1. Press <MODE/ESC> repeatedly until rESt shows on the display.
2. Press <ENTER>. factory settings.
Intimidator™ Spot LED 150 User Manual (Rev. 5) Page 15 of 18
Page 16
Product
Dust build up reduces light output performance and can cause overheating. This can
To maintain optimum
at least twice a
because you could damage

5. TECHNICAL INFORMATION

Maintenance
performance and minimize wear, you should clean your lighting products month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.
To clean the product, follow the instructions below:
• Unplug the product from power.
• Wait until the product is cold.
• Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on
the external surface/vents.
• Clean all external optics with a mild soap solution, ammonia-free glass cleaner, or
isopropyl alcohol.
• Apply the solution directly to a soft, lint-free cotton cloth or a lens cleaning tissue.
• Softly drag any dirt or grime to the outside edges of the external optics.
• Gently polish the external optics until they are free of haze and lint.
Always dry the external optics carefully after cleaning them.
Do not spin the cooling fan/fans using compressed air it/them.
lead to reduction of the light source’s life and/or mechanical wear.
Page 16 of 18 Intimidator™ Spot LED 150 User Manual (Rev. 5)
Page 17
Dimensions and
Length
Width
Height
Weight
8.1 in (205 mm)
8.3 in (211 mm)
11.5 in (291 mm)
9.3 lbs (4.2 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Power
Power Supply Type
Range
Voltage Selection
Switching (internal)
100~240 V, 50/60 Hz
Auto-ranging
Parameter
120 V, 60 Hz
230 V, 50 Hz
Consumption
88 W
92 W
Operating
0.7 A
0.4 A
Power linking current (units)
8 A (6 units)
8 A (12 units)
Fuse
F 2 A, 250 V
F 2 A, 250 V
Power I/O
US/Worldwide
UK/Europe
Power input connector
IEC
IEC
Power output connector
Edison
IEC
Power Cord plug
Edison (US)
Local plug
Light Source
Type
Power
Lifespan
LED
25 W (1.5 A)
50,000 hours
Color
Quantity
Current
White
1
350 mA
Photo Optic
Parameter
Illuminance @ 2 m
2714 lux
Beam angle
15º
Strobe rate
0-20 Hz
Pan & Tilt
540
270
Pan/Tilt Ranges
540°, 360°, 180°
Pan
270°, 180°, 90°
Tilt
Thermal
Maximum External Temp.
Cooling System
104° F (40° C)
Convection
DMX
I/O Connectors
Connector Type
Channel Range
3-pin XLR
Sockets
6, 11
Ordering
Product Name
Item Code
Item Number
Intimidator™ Spot LED 150
08010176
INTSPOTLED150

6. TECHNICAL SPECIFICATIONS

Weight
Intimidator™ Spot LED 150 User Manual (Rev. 5) Page 17 of 18
Page 18
, United Kingdom, or Ireland, contact your distributor of
s to
Returns
Tech Support office and request a Return
. Be prepared to
provide the model number, serial number, and a brief description of the cause for the
, in its original box, and with its original packing
the following information on a piece of paper
properly. Any shipping damage resulting from inadequate
reserves the right to use its own discretion to repair or replace

Contact Us

Fax: +44 (0)1773 511110
Email: tech@chauvetlighting.com
www.chauvetlighting.com
www.chauvetlighting.co.uk
In case you need to return a product or request support, follow the procedure below:
• If you live in the U.S., contact CHAUVET® World Headquarters (see below).
• If you live in the UK or Ireland, contact CHAUVET® Europe Ltd. (see below).
• If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your
distributor of record. See www.chauvetlighting.com for distributors outside the U.S., United Kingdom, or Ireland.
If you live outside the U.S. record and follow their instructions on how to return CHAUVET® product them. Visit our website for contact details.
Call the corresponding CHAUVET® Merchandise Authorization (RMA) number before shipping the product
return. You must send the merchandise prepaid
and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product
returned without an RMA number.
Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box.
Before sending the product, clearly write and place it inside the box:
• Your name
• Your address
• Your phone number
• The RMA number
• A brief description of the problem
Be sure to pack the product packaging will be your responsibility. As a suggestion, proper UPS packing or double­boxing is always a safe method to use.
CHAUVET® returned product(s).
World Headquarters
CHAUVET® General Information
Address: 5200 NW 108th Avenue Sunrise, FL 33351 Voice: (954) 929-1115 Fax: (954) 929-5560 Toll free: (800) 762-1084
Technical Support
Voice: (954) 929-1115 (Press 4)
Fax: (954) 756-8015
United Kingdom & Ireland
CHAUVET® Europe Ltd. General Information
Address: Unit 1C Brookhill Road Industrial Estate Pinxton, Nottingham, UK NG16 6NT Voice: +44 (0)1773 511115
Technical Support
Email: uktech@chauvetlighting.com
World Wide Web
Page 18 of 18 Intimidator™ Spot LED 150 User Manual (Rev. 5)
World Wide Web
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
