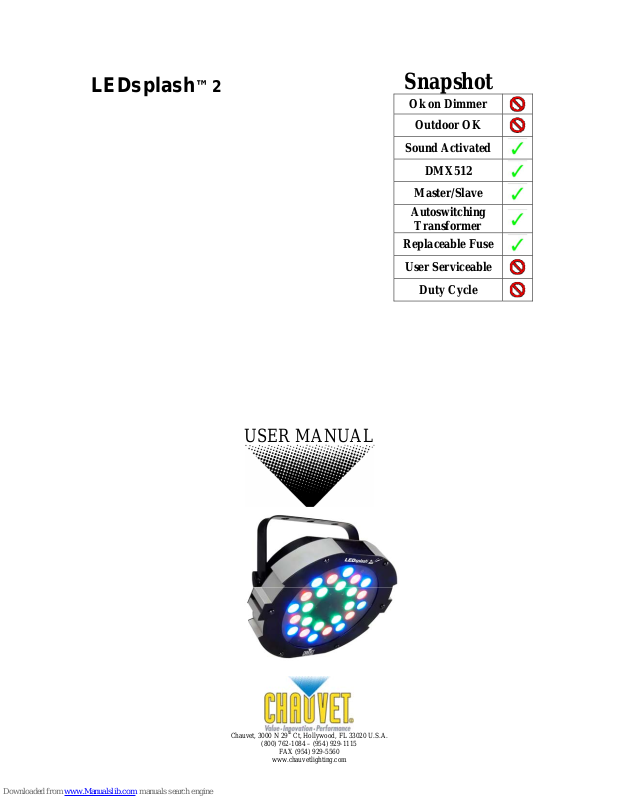

Chauvet LEDsplash 2 User Manual

LEDsplash™2

Snapshot

Ok on Dimmer

Outdoor OK

Sound Activated

DMX512

Master/Slave

Autoswitching

Transformer

Replaceable Fuse

User Serviceable

Duty Cycle

USER MANUAL

Chauvet, 3000 N 29th Ct, Hollywood, FL 33020 U.S.A.

[phone] – [phone]

FAX [phone]

www.chauvetlighting.com

TABLE OF CONTENTS

1. BEFORE YOU BEGIN................................................................................................................................3

HAT IS INCLUDED......................................................................................................................................... 3

W

NPACKING INSTRUCTIONS............................................................................................................................. 3

U
AC

POWER ................................................................................................................................................... 3

ONTACT US................................................................................................................................................. 3

C
S

AFETY INSTRUCTIONS................................................................................................................................... 4

2. INTRODUCTION ........................................................................................................................................ 5

EATURES..................................................................................................................................................... 5

F

CHANNEL SUMMARY.............................................................................................................................. 5

DMX
P

RODUCT OVERVIEW ..................................................................................................................................... 6

3. SETUP........................................................................................................................................................ 7

USE REPLACEMENT...................................................................................................................................... 7

F

IXTURE LINKING........................................................................................................................................... 7

F

Data Cabling ........................................................................................................................................... 7

DMX Data Cable............................................................................................................................... 7

Cable Connectors............................................................................................................................. 8

3-Pin to 5-Pin Conversion Chart....................................................................................................... 8

S

ETTING UP A DMX SERIAL DATA LINK............................................................................................................ 8

ASTER/SLAVE FIXTURE LINKING.................................................................................................................... 9

M
M

OUNTING.................................................................................................................................................... 9

Orientation........................................................................................................................................ 9

Rigging ............................................................................................................................................. 9

4. OPERATING INSTRUCTIONS..................................................................................................................10

PERATION..................................................................................................................................................10

O

Stand-Alone Mode (Sound-Active, Auto Mode): ....................................................................................10

Master/Slave Mode (Master Sound, Master Auto): ................................................................................10

Dipswitch Options............................................................................................................................11

DMX Mode.............................................................................................................................................11

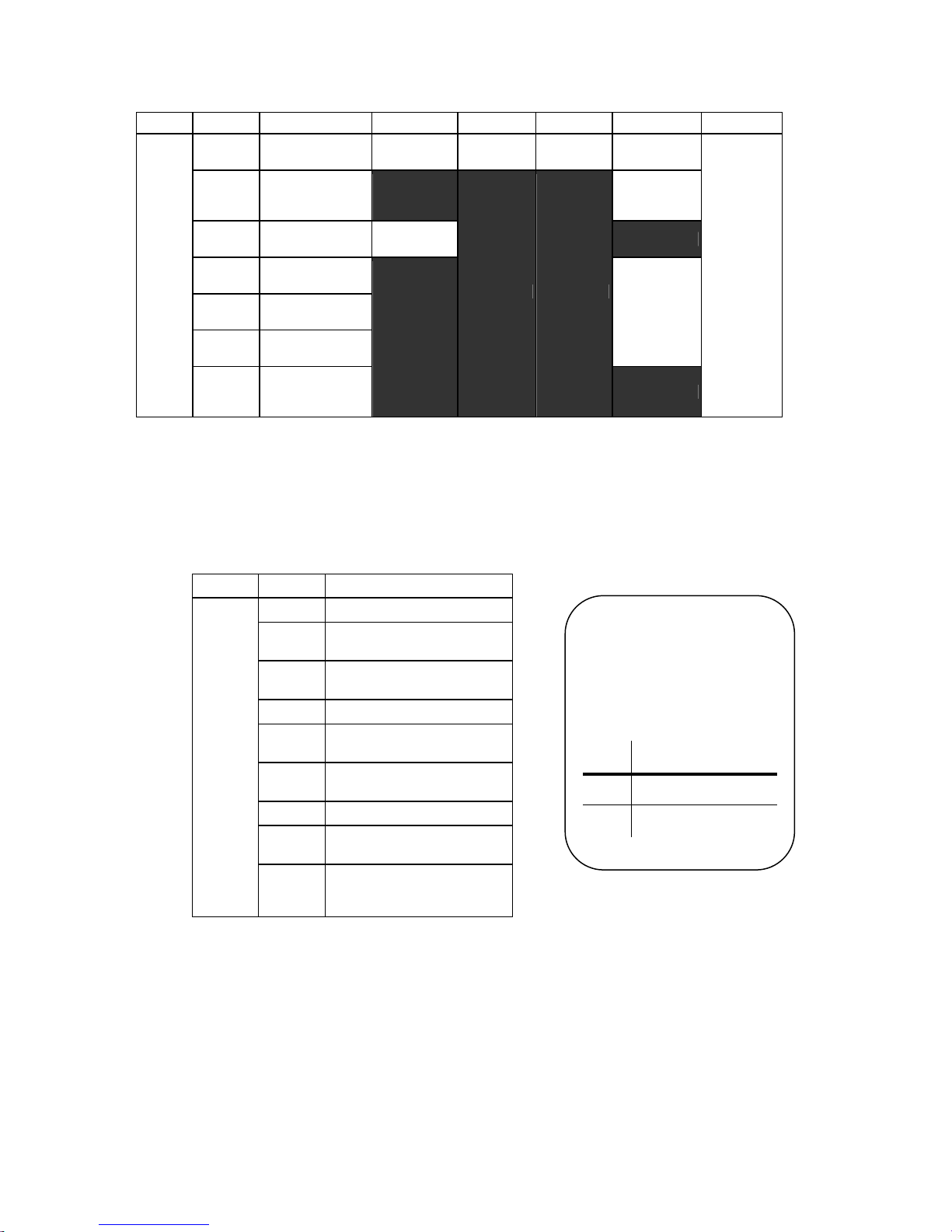

CHANNEL VALUES................................................................................................................................11

DMX
G

ENERAL TROUBLESHOOTING........................................................................................................................13

ECHNICAL SUPPORT....................................................................................................................................14

T

5. APPENDIX.................................................................................................................................................14

DMX

PRIMER...............................................................................................................................................14

ENERAL MAINTENANCE ...............................................................................................................................15

G
R

ETURNS PROCEDURE..................................................................................................................................15

LAIMS........................................................................................................................................................15

C
T

ECHNICAL SPECIFICATIONS ..........................................................................................................................16

LEDSplash 2 User Manual 2 2008-01-22/09:14

1. BEFORE YOU BEGIN

What is included

¾ 1 x LEDSplash™ 2
¾ Power Cord
¾ Warranty Card
¾ User Manual

Unpacking Instructions

Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that
all parts are present, and have been received in good condition. Notify the shipper immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture
must be returned to the factory, it is important that the fixture be returned in the original factory box
and packing.

AC Power

This fixture has an auto-switching power supply that can accommodate a wide range of input
voltages. The only thing necessary to do before powering on the unit is to make sure the line voltage
you are applying is within the range of accepted voltages. This fixture will accommodate between
100V and 240V AC. All fixtures must be powered directly off a switched circuit and cannot be run off a
rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for
a 0% to 100% switch.

Contact Us

World Wide

General Information Chauvet Lighting

3000 North 29
Hollywood, FL 33020
voice: 954.929.1115
fax: [phone]
toll free: 800.762.1084

Technical Support Chauvet Lighting

3000 North 29
Hollywood, FL 33020
voice: 954.929.1115 (Press 4)
fax: [phone] (Attention: Service)

World Wide Web www.chauvetlighting.com

th

Court

th

Court

LEDSplash 2 User Manual 3 2008-01-22/09:14

Safety Instructions

Please read these instructions carefully, which includes important
information about the installation, usage and maintenance of this
product.

• Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.

• Always make sure that you are connecting to the proper voltage, and that the line voltage you are
connecting to is not higher than that stated on the decal or rear panel of the fixture.

• This product is intended for indoor use only!

• To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no

flammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent
surfaces. Be sure that no ventilation slots are blocked.

• Always disconnect from power source before servicing or replacing fuse and be sure to replace with
same fuse size and type.

• Secure fixture to fastening device using a safety chain. Never carry the fixture solely by its head. Use
its carrying handles.

• Maximum ambient temperature (Ta) is 104°F (40°C). Do not operate fixture at temperatures higher
than this.

• In the event of a serious operating problem, stop using the unit immediately. Never try to repair the
unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.

• Don’t connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

• Do not daisy chain power to more than 8 units.

Caution! There are no user serviceable parts inside the unit. Do not open the housing or

attempt any repairs yourself. In the unlikely event your unit may require service,
please contact CHAUVET at: 954-929-1115.

LEDSplash 2 User Manual 4 2008-01-22/09:14

2. INTRODUCTION

Features

• 6-channel DMX-512 LED wash light

• Blackout/static/dimmer/strobe

• Static colors and RGB color mixing with or without DMX controller

• Built-in automated programs via master/slave or DMX

• Built-in sound activated programs via master/slave or DMX

Additional Features

• High-power, 1W (350mA) LEDs

• Linkable with LED Shadow™, LED Shadow™ 2, LED Techno Strobe™, LED

Techno Strobe™ RGB, LEDsplash™ 200B and LEDsplash™ 2 in stand alone

DMX Channel Summary

1 2 3 4 5 6

RGB 000~029 Red

000~255

Pulse 030~119

(Slow>Fast)

Color Macros 120~149 Color

RGB Chase 150~179 Chase Speed

Color Change 180~209
Color Change

w/ fade
Sound 240~255

210~239

No
Function

Macro
000~255

Green
000~255

Blue
000~255

Strobe
000~255

000~255
Program

Speed
000~255

Dimmer
000~255

For a detailed view of DMX values turn to the Appendix section in this manual. Control
mode parameters are set by DMX values in Channel # 1.

LEDSplash 2 User Manual 5 2008-01-22/09:14

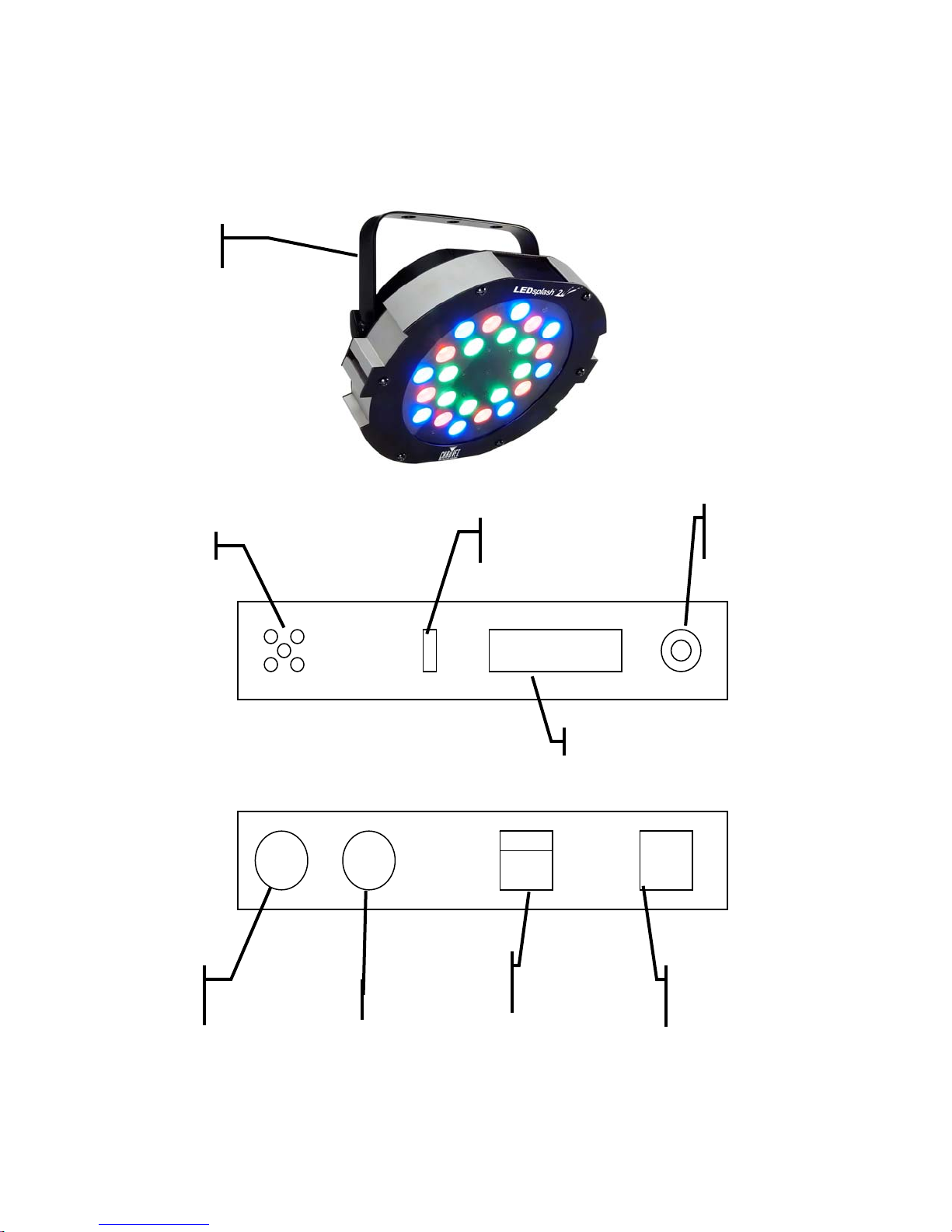

Product Overview

p

p

r

Mounting
Bracket

Micro

hone

Music/Auto
Switch

Di

Sound
Sensitivity
Knob

switches

DMX
Output
Connector

LEDSplash 2 User Manual 6 2008-01-22/09:14

DMX Input
Connecto

Power
Connector and
Fuse Holder

Power Output
(max 8 units)

LEDsplash 2 only!

3. SETUP

Disconnect the power cord before replacing a fuse and always
replace with the same type fuse.

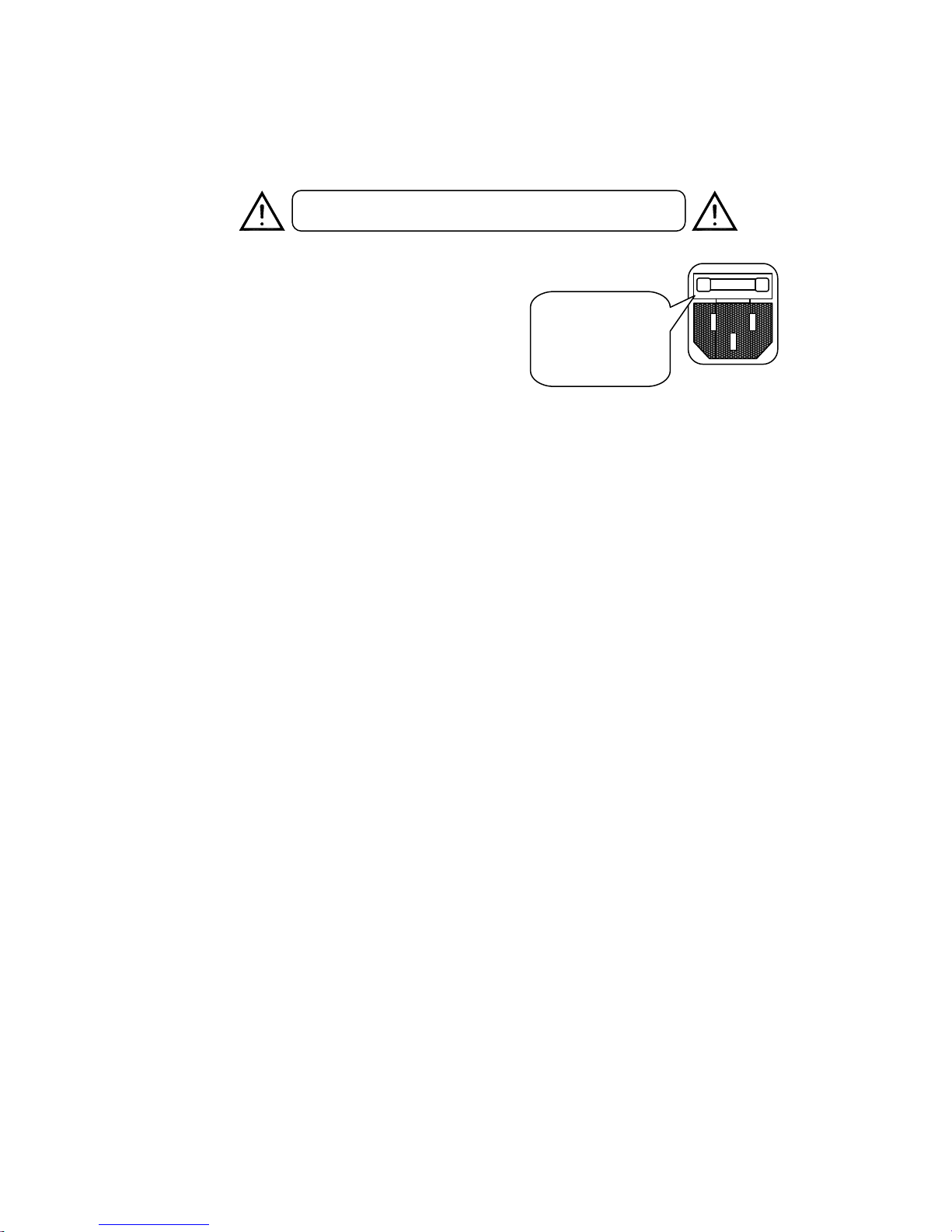

Fuse Replacement

With a flat head screwdriver wedge the fuse
holder out of its housing. Remove the damaged
fuse from its holder and replace with exact
same type fuse. Insert the fuse holder back in
its place and reconnect power.

Fixture Linking

You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller
or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The
combined number of channels required by all the fixtures on a serial data link determines the number
of fixtures the data link can support.

Important: Fixtures on a serial data link must be daisy chained in one single line. To comply with the EIA-485

Maximum recommended serial data link distance: 500 meters (1640 ft.)
Maximum recommended number of fixtures on a serial data link: 32 fixtures

Data Cabling

To link fixtures together you must obtain data cables. You can purchase CHAUVET-certified DMX
cables directly from a dealer/distributor or construct your own cable. If you choose to create your own
cable please use data-grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.

The fuse is located
inside this
compartment.
Remove using a flat
head screwdriver.

standard no more than 32 devices should be connected on one data link. Connecting more than 32
fixtures on one serial data link without the use of a DMX optically-isolated splitter may result in
deterioration of the digital DMX signal.

DMX DATA CABLE

Use a Belden© 9841 or equivalent cable which meets the specifications for EIA RS-485 applications.
Standard microphone cables cannot transmit DMX data reliably over long distances. The cable will
have the following characteristics:

2-conductor twisted pair plus a shield
Maximum capacitance between conductors – 30 pF/ft.
Maximum capacitance between conductor and shield – 55 pF/ft.
Maximum resistance of 20 ohms / 1000 ft.
Nominal impedance 100 – 140 ohms

LEDSplash 2 User Manual 7 2008-01-22/09:14

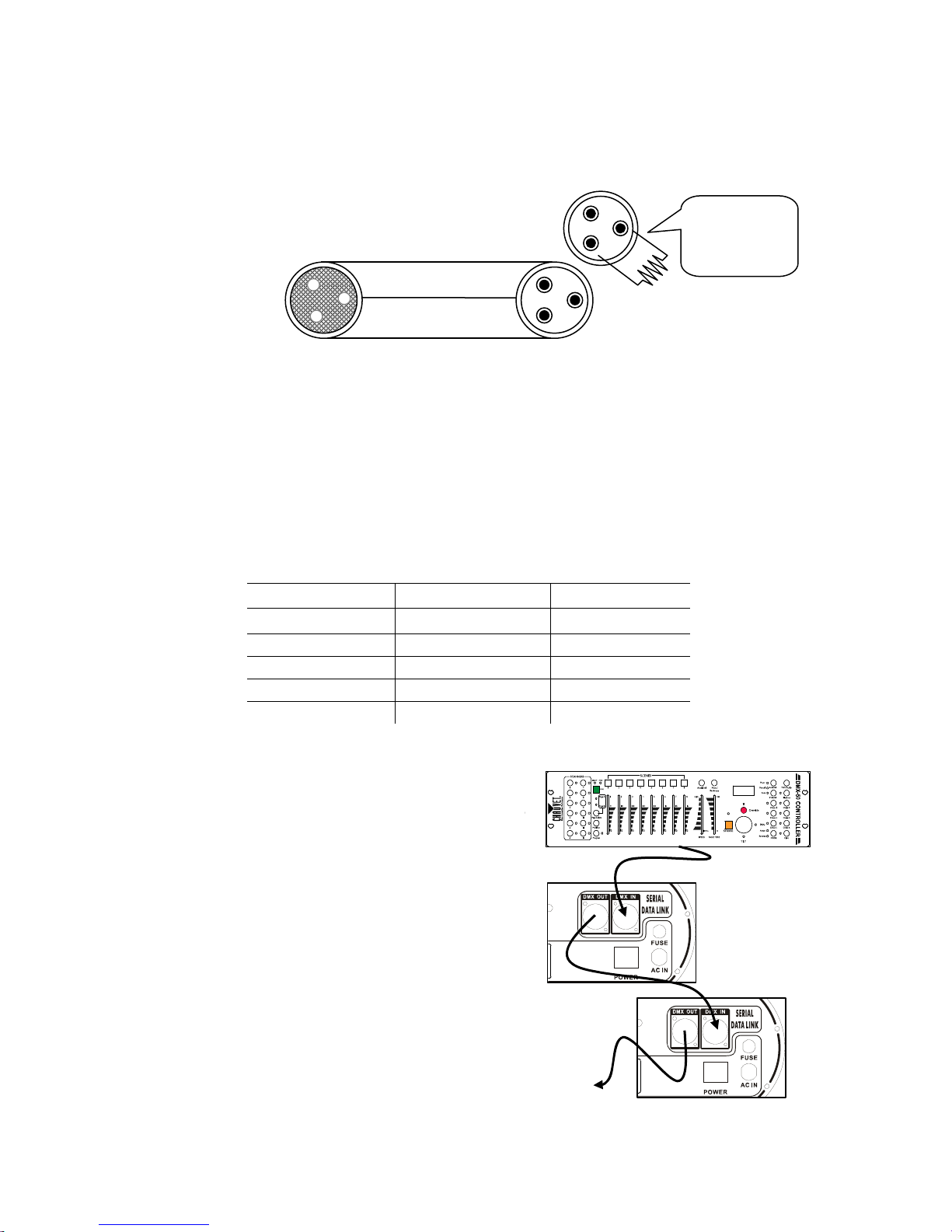

CABLE CONNECTORS

Cabling must have a male XLR connector on one end and a female XLR connector on the other end.

DMX connector configuration

INPUT

1

3
2

DMX

+

-

CAUTION Do not allow contact between the common and the fixture’s chassis ground. Grounding the common

can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to
verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

3-PIN TO 5-PIN CONVERSION CHART

Note! If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.

CHAUVET Model No: DMX5M, or DMX5F.
The chart below details a proper cable conversion:

PIN TO 5 PIN CONVERSION CHART

3
Conductor 3 Pin Female (output) 5 Pin Male (Input)

Ground/Shield Pin 1 Pin 1
Data ( - ) signal Pin 2 Pin 2

Data ( + ) signal Pin 3 Pin 3
Do not use Do not use
Do not use Do not use

1

3

2

Resistance 120
ohm 1/4w between
pin 2 (DMX -) and
pin 3 (DMX +) of
the last fixture.

1

OUTPUT

3

Termination reduces signal errors and

2

to avoid signal transmission problems
and interference, it is always
advisable to connect a DMX signal
terminator.

Setting up a DMX Serial Data Link

1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector

of the controller.

2. Connect the end of the cable coming from the controller which will have a (female) 3 pin connector

to the input connector of the next fixture consisting of a (male) 3 pin connector.

3. Then, proceed to connect from the output as stated above to the input of the following fixture and

so on.

CHAUVET Certified DMX Data Cables

Order Code Description
DMX1.5 DMX Cable 1.5m/4.9ft
DMX4.5 DMX Cable 4.5m/14.8ft
DMX10 DMX Cable 10m/32.8ft

LEDSplash 2 User Manual 8 2008-01-22/09:14

Universal DMX Controller

Continue the link

This drawing provides a
general illustration of the
DMX Input/Output panel of
a lighting fixture.

y

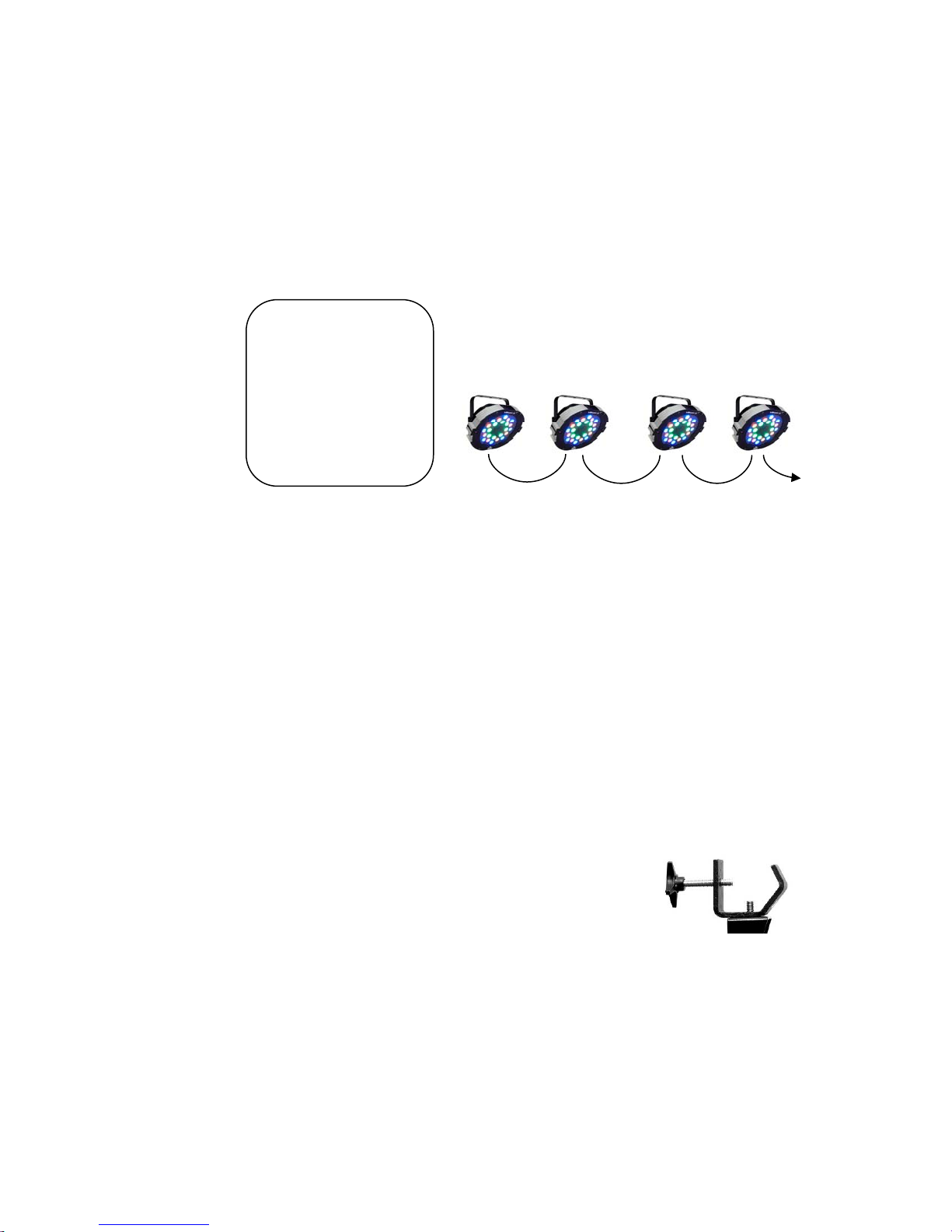

Master/Slave Fixture Linking

1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector

of the first fixture.

2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin

connector to the input connector of the next fixture consisting of a (male) 3 pin connector. Then,
proceed to connect from the output as stated above to the input of the following fixture and so on.

Often, the setup for Master-Slave
and Standalone operation requires
that the first fixture in the cha in be
initialized for this purpose via either
settings in the control panel or DIP­switches. Secondarily, the fixtures
that follow may also require a slave
setting. Please consult the
“Operating Instructions” section in
this manual for complete ins tructions
for this type of setup and
configuration.

Mounting

ORIENTATION

This fixture may be mounted in any position provided there is adequate room for ventilation.

RIGGING

It is important never to obstruct the fan or vents pathway. Mount the
fixture using, a suitable “C” or “O” type clamp. Adjust the angle of the
fixture by loosening both knobs and tilting the fixture. After finding the
desired position, retighten both knobs.

• When selecting installation location, take into consideration lamp
replacement access and routine maintenance.

• Safety cables should always be used.

• Never mount in places where the fixture will be exposed to rain, high

humidity, extreme temperature changes or restricted ventilation.

Hanging Clamp

Note!
Clamp is sold separatel

.

LEDSplash 2 User Manual 9 2008-01-22/09:14

4. OPERATING INSTRUCTIONS

Operation
Stand-Alone Mode (Sound-Active, Auto Mode):

This mode allows a single unit to run to the beat of the music, or the unit will auto change in Auto
Mode.

1. Set all dipswitches on the unit to the “Off” position and the unit will run its built in color change

program.
OPTIONS

- Set Music/Auto switch to Music and for sound-activated triggering of the program

- Set Music/Auto switch to Auto then use the rotary dial to adjust speed of the program

- See below under Dipswitch Options for additional program settings

Master/Slave Mode (Master Sound, Master Auto):

The Master/Slave mode will allow you to link up to as many units you want in a daisy chain fashion. In
this mode, the first unit in the daisy chain will automatically command all other units following.

1. Connect all LEDsplash™2 units in a daisy chain fashion as described in the section following.

2. Dipswitch settings on slave fixtures are not required and will have no affect.

3. Set all dipswitches on the Master unit to the “Off” position and the unit will run its built in color

change program.
OPTIONS

- Set Music/Auto switch to Music and for sound-activated triggering of the program

- Set Music/Auto switch to Auto then use the rotary dial to adjust speed of the program

- See below under Dipswitch Options for additional program settings

LEDsplash 2 User Manual 10 2008-01-22/09:14

DIPSWITCH OPTIONS

FUNCTIONS DIPSWITCHES ( ON ) NOTES & DESCRIPTION

Color change
program

Red LEDs

Green LEDs

Blue LEDs

“User Color” Any combination of Red, Green and

None Music/Auto switch

Music: Sound Activated, Rotary knob sets sound sensitivity
Auto: Rotary knob sets speed of program

1 Low Intensity
2 Medium Intensity
3 Full Intensity
4 Low Intensity
5 Medium Intensity
6 Full Intensity
7 Low Intensity
8 Medium Intensity
9 Full Intensity

For example Dipswitch 9 and 3 ON creates a Pink color
Blue LED intensity to create custom
color.

DMX Mode

This mode allows the unit to be controlled by any universal DMX controller. If you are unfamiliar with
DMX, please read the DMX Primer on page 15.

1) A working DMX-512 signal source plugged into the LEDsplash™ 2 activates the DMX mode.

DMX Channel Values

NOTE!
Please read all instructions carefully on fixture DMX control mode and addressing.

DMX channels 2, 3, 4, 5 and 6 functions are determined by the current settings of channel 1. For
example, while Channel 1 is set between 000 and 029 the following conditions will apply;

i. Channel 2 will control the Red LEDs

ii. Channel 3 will control the Green LEDs
iii. Channel 4 will control the Blue LEDs
iv. Channel 5 will control Strobing

v. Channel 6 will control the Dimmer

LEDsplash 2 User Manual 11 2008-01-22/09:14

C

HANNEL VALUE FUNCTION CH 2 CH 3 CH 4 CH 5 CH 6

1

000 Ù 029

030 Ù 059
060 Ù 119

120 Ù 149

150 Ù 179

180 Ù 209

210 Ù 239

240 Ù 255

RGB Control Mode

Pulse Strobe

Pulse ( 0 <-> 100% )
Pulse ( 100 <-> 0% )

Color Macro

Color Macros

R,G,B Chase

RGB Chase pattern

Automatic

Color Change

Automatic (Fade)

Color Change w fade

Sound Activated

Music/Auto switch

must be set to Music

Red

000 Ù 255

See Table 1.1

Green

000 Ù 255

Blue

000 Ù 255

Strobe

000 Ù 255

Speed

000 Ù 255

000 Ù 255

Speed

000 Ù 255

Table 1.1

M

ODE CH 2 DESCRIPTION

Color
Macro

Ch 1

120 Ù 149

000 Ù 016
017 Ù 056

057 Ù 094

095 Ù 096
097 Ù 136

137 Ù 174

175 Ù 176
177 Ù 216

217 Ù 255

Red

Red ( Full )
Green: ( 0% ~ 100% )

Green (Full
Red: ( 100% ~ 0% )

Green
Green ( Full )

Blue: ( 0% ~ 100% )
Blue ( Full )

Green: ( 100% ~ 0% )
Blue
Blue ( Full )

Red: ( 0% ~ 100% )
Blue ( Full )

Red ( Full )
Green: ( 0% ~ 100% )

Music/Auto Switch
Note! Regardless of DMX

controller operated use, when the
LEDsplash 2 is set to run in Sound
Activated mode, you should make
sure that all units are properly
switched to Music and that you have
adjusted the rotary dial to optimize
the sound level response of the unit.

S

WITC

ROTARY FUNCTION

H

AUTO

MUSIC

Adjusts speed of built in
program

Adjusts sound sensitivity of
built in Mic.

Dimmer

LEDsplash 2 User Manual 12 2008-01-22/09:14

General Troubleshooting

Applies to

Symptom Solution(s)

Auto shut off Check fan thermal switch reset

Beam is very dim or
not bright

Breaker/Fuse keeps
blowing

Chase is too slow Check users manual for speed adjustment

Device has no power Check for power on Mains.

Fixture is not
responding

Fixture is on but
there is no
movement to the
audio

Lamps cuts off
sporadically

Light will not come
on after power failure

Loss of signal Use only DMX cables

Moves slow Check 220/110v switch for proper setting

Clean optical system or replace lamp
Check 220/110v switch for proper setting

Check total load placed on device

Check device’s fuse. (internal and/or external)
Check DMX Dip switch settings for correct addressing

Check DMX cables
Check polarity switch settings

Make sure you have the correct audio mode on the
control switches. If audio provided via ¼” jack, make
sure a live audio signal exists
Adjust sound sensitivity knob

Possible bad lamp or fixture is overheating.
Lamp may be at end of its life.

Some discharge lamps require a cooling off period
before the electronics in the fixture can kick start it
again, wait 5 to 10 minutes before powering up

Install terminator
Note: Keep DMX cables separated from power cables
or black lights.

Lights

9
9

Foggers
& Snow

Controllers

Dimmers
& Chaser

9
9

9

9 9
9 9

9

9
9

9 9

9 9 9 9

9

9

No flash Re-install bulb, may have shifted in shipping

No laser output Bounce mirror motor may have shifted during shipping,

readjust

No light output Check slip ring & brushes for contact

Install bulb
Call service technician

Relay will not work Check reset switch

Check cable connections

Remote does not
work

Stand alone mode All Chauvet lighting fixtures featuring stand-alone

LEDsplash 2 User Manual 13 2008-01-22/09:14

Make sure connector is firmly connected to device

functions do not require additional settings, simply
power the fixture and it will automatically enter into this
mode

If you still have a problem after trying the above solutions, please contact CHAUVET Technical
Support at the location on the next page.

9
9

9

9 9

9

9

Technical Support

Address: Service Dept.
3000 N 29th Ct, Hollywood, FL 33020 (U.S.A.)
Support (Email): [email protected]
Telephone: [phone] - (Press 4)
Fax: [phone] - (Attention: Service)
Website: http://www.chauvetlighting.com

5. APPENDIX

DMX Primer

There are 512 channels in a DMX-512 connection. Channels may be assigned in any manner. A
fixture capable of receiving DMX 512 will require one or a number of sequential channels. The user
must assign a starting address on the fixture that indicates the first channel reserved in the controller.
There are many different types of DMX controllable fixtures and they all may vary in the total number
of channels required. Choosing a start address should be planned in advance. Channels should
never overlap. If they do, this will result in erratic operation of the fixtures whose starting address is
set incorrectly. You can however, control multiple fixtures of the same type using the same starting
address as long as the intended result is that of unison movement or operation. In other words, the
fixtures will be slaved together and all respond exactly the same.

DMX fixtures are designed to receive data through a serial Daisy Chain. A Daisy Chain connection is
where the DATA OUT of one fixture connects to the DATA IN of the next fixture. The order in which
the fixtures are connected is not important and has no effect on how a controller communicates to
each fixture. Use an order that provides for the easiest and most direct cabling. Connect fixtures
using shielded two conductor twisted pair cable with three pin XLR male to female connectors. The
shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET
carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’)

LEDsplash 2 User Manual 14 2008-01-22/09:14

General Maintenance

To maintain optimum performance and minimize wear fixtures should be cleaned frequently. Usage
and environment are contributing factors in determining frequency. As a general rule, fixtures should
be cleaned at least twice a month. Dust build up reduces light output performance and can cause
overheating. Be sure to power off fixture before conducting maintenance.

Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust
collected on external vents and internal components. Clean all glass when the fixture is cold with a
mild solution of glass cleaner or Isopropyl Alcohol and a soft lint free cotton cloth or lens tissue. Apply
solution to the cloth or tissue and drag dirt and grime to the outside of the lens. Gently polish optical
surfaces until they are free of haze and lint.

The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates:
damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s
optics. Clean with soft cloth using normal glass cleaning fluid. - Always dry the parts carefully. - Clean
the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.

Returns Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products
returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the
fixture. Be prepared to provide the model number, serial number and a brief description of the cause
for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate
packaging is the customer’s responsibility. CHAUVET reserves the right to use its own discretion to
repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is always a safe
method to use.

Claims

Note: If you are given an RA #, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) The RA #

5) A brief description of the symptoms

Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise. It is the customer's responsibility to notify and
submit claims with the shipper in the event that a fixture is damaged due to shipping. Any other claim
for items such as missing component/part, damage not related to shipping, and concealed damage,
must be made within seven (7) days of receiving merchandise.

LEDsplash 2 User Manual 15 2008-01-22/09:14

Technical Specifications

WEIGHT & DIMENSIONS

Length............................................................................................................................. 9.5 in (241 mm)

Width ..................................................................................................................................9 in (229 mm)

Height............................................................................................................................. 6.8 in (171 mm)

Weight ..............................................................................................................................4.7 lbs (2.1 kg)

POWER

Autoswitching Power Supply................................................................................ 100V – 240V 50/60Hz

Fuse......................................................................................................20mm Glass 2A 250V Fast Blow

Power Consumption at 120V 60Hz ....................................................................... 19W (0.3A) operating

Inrush Power .................................................................................................................................... 1.4A

Power Factor.....................................................................................................................................0.63

LIGHT SOURCE

LED................................................................................................24 (8 red, 8 green, 8 blue) 50,000hrs

PHOTO OPTIC

Beam Angle.....................................................................................................................................11.8°

Field Angle..........................................................................................................................................22°

Illuminance at 1m ......................................................................................................................5,627 lux

THERMAL

Maximum ambient temperature...........................................................................................104°F (40°C)

CONTROL & PROGRAMMING

Data input................................................................................................ locking 3-pin XLR male socket

Data output...........................................................................................locking 3-pin XLR female socket

Data pin configuration ..............................................................................pin 1 shield, pin 2 (-), pin 3 (+)

Protocols........................................................................................................................DMX-512 USITT

DMX Channels .......................................................................................................................................6

ORDERING INFORMATION

LEDSplash 2....................................................................................................................LED-SPLASH2

WARRANTY INFORMATION

Warranty.............................................................................................................. 2-year limited warranty

LEDsplash 2 User Manual 16 2008-01-22/09:14
