Chauvet Laser Wizard CH-505 User Manual

Laser Wizard

CH-505

User Guide

Please read these instructions carefully befor use

Tel: [phone] Fax: [phone]

World-wide Headquarters:

3000 North 29th Ct., Hollywood

Florida, FL 33020 USA

www.ChauvetLighting.com

At Rear

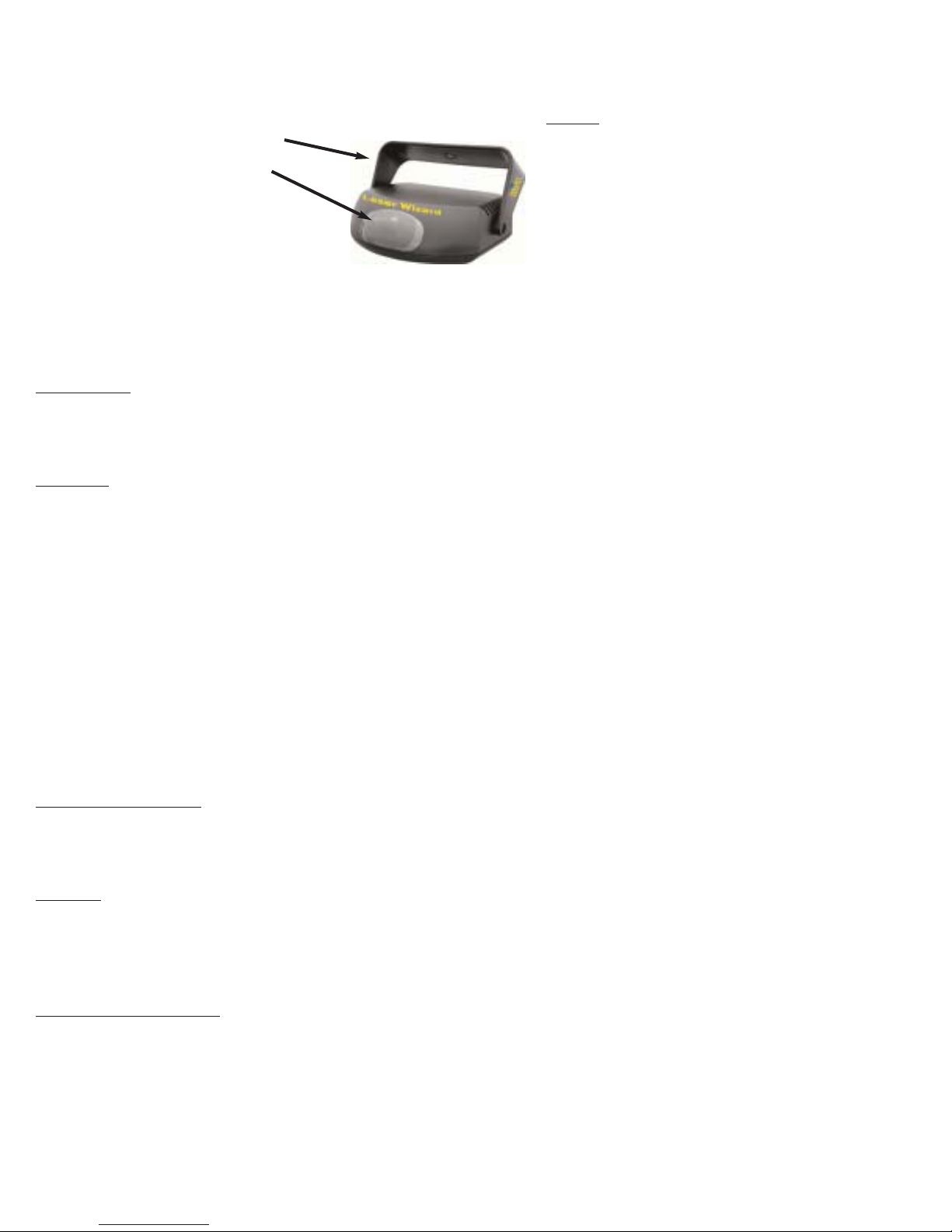

• Mounting Bracket

• Laser aperature

• Power Input

• On / Off Switch

• Auto Speed Adjustment

• Sound Activation Switch

• Manual Speed Adjustment

• Manual Pattern Selection

Introduction

Congratulations on the purchase of your new CHAUVET lighting effect. We are confident you will enjoy many trouble free
hours with this unit. To assist with the care and use of the product we have prepared this short guide.

Operation

This lighting effect has been designed to function on a DC power supply of 12V and has been supplied with a suitable power
pack for use with your local voltage. Check the label on the unit and the power plug for the correct voltage.

When connected to the mains power supply via the power pack and switched on the unit should illuminate and shoot a 3.9mW
single red laser.

Warning: Do not aim towards eye.

This unit provides three modes of operation accessible via the functions switch (fig. 1). The three modes are as follows:
Sound Activation, Auto Mode and Manual. In the sound and automatic modes, the laser will change through sixteen preset
patterns. In manual mode, the user can select the pattern and rotation speed.

Great with fog.

Installation / Mounting

This unit has been designed to be hung. It is recommended that, for safety purposes, your lighting effect be properly mounted
using a suitable hanging clamp and safety cable. CHAUVET offers a range of items, which are ideal for safe mounting.

Cleaning

The most important part of your lighting effect to keep clean is the glass front as this allows the laser output to transmit. This
should be cleaned with a soft damp cloth. The housing of the unit may also be cleaned in the same way. Internal cleaning must
be carried out only by a fully qualified technician.

Maintenance & Servicing

There is no maintenance required. Work on internal parts should be carried out by a qualified technician. Removal of any cov­ers is considered a breach of warranty and will not be covered under any such agreement unless authorized first by the com­pany.

.

Troubleshooting

· If the unit is not functional - check main power supply is 'on' and DC jack is secure.

· If the unit is not functional - make sure if in audio mode there is music playing.
If after trying this solution you still have a problem contact your dealer or CHAUVET.

Caution

No user serviceable parts, please refer to CHAUVET for service.

Power Connections

The unit is supplied with a power pack appropriate to its voltage and destination. It is imperative that the correct power pack
suitable for this unit be used at all times. If any other type of supply is provided to this unit then it is likely to render the unit non­operational.

Caution - Use of controls or adjustments or performance of procedures other than as specified herein may result in
hazardous radiation exposure!

Technical Specifications

Power 120V, 60Hz AC 240V, 50Hz Ac

Power Pack

Diode

Dimensions
Weight 0.58 kg / 1.3 lbs 0.58 kg / 1.3 lbs

9 VDC 250 mA 9 VDC 250 mA

1 x 3.9mW Red Laser 1 x 3.9mW Red Laser

Part No. 3.9mW Red Part No. 3.9mW Red

175 x 140 x 104mm/ 6.9 x 5.5 x 4.1in 175 x 140 x 104mm/ 6.9 x 5.5 x 4.1in

User Information (Please complete for your records)

Date Purchased: // Serial No:

Dealer Stamp: Model: CH-505 Laser Wizard

CH-505 Mini Laser

Chauvet Lighting
3000 North 29th Ct.
Hollywood, Fl 33020 USA

Manufactured: January,2002

Complies with performance
standards for laser products
with the exception of devia-

tion pursuant to Laser Notice

No. 50, dated July 26, 2001

LASER RADIATION

AVOID DIRECT EYE EXPOSERE

CLASS 3R LASER PRODUCT

5.0 mW max CW Diode 532 nm
IEC/EN 60825-1, ed 1.2

CAUTION - CLASS 3R

LASER RADIATION WHEN

OPEN AVOID DIRECT EYE

EXPOSURE

CAUTION - CLASS 3R

LASER RADIATION WHEN

OPEN AVOID DIRECT EYE

EXPOSURE
