Chauvet Epix Drive 640 User Manual

Download

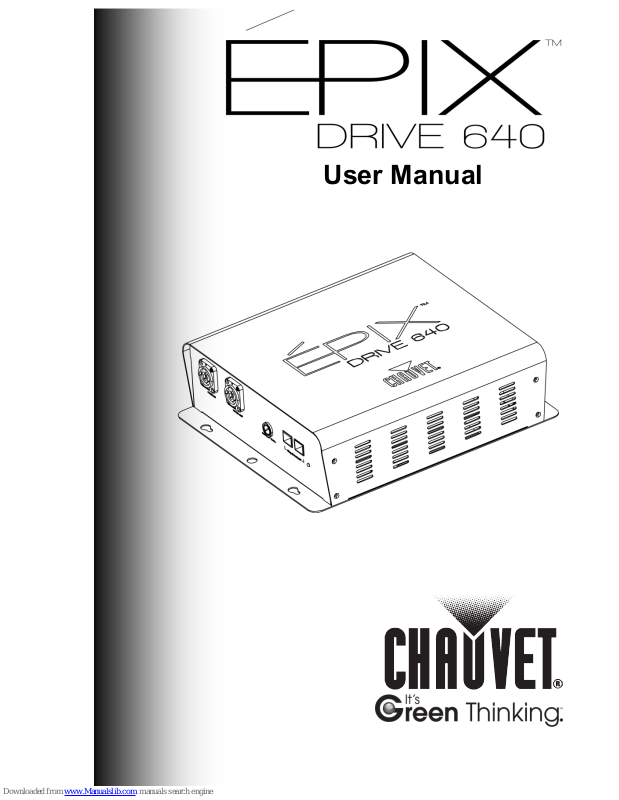

Page 1
User Manual
Page 2
Page 2 of 14
Edition
Notes
The ÉPIX™ Drive 640 User Manual Rev. 9 covers the description, safety
precautions, installation, and maintenance of the ÉPIX™ Drive 640
.
CHAUVET® released this edition of the ÉPIX™ Drive 640
User Manual
in April 2012.
Trademarks
CHAUVET® is a registered trademark of CHAUVET & Sons Inc. (d/b/a CHAUVET® or Chauvet). The CHAUVET® logo in its entirety including the CHAUVET name and the dotted triangle, and all other trademarks in this manual pertaining to services, products, or marketing statements
(example: It’s Green Thinking™
) are owned or licensed by CHAUVET®.
Any other
product names, logos, brands, company names, and other
trademarks featured or referred to within this document are the property of
their respective trademark holders.
Copyright
Notice
CHAUVET® owns the content of this user manual in its entirety, including
but not limited to pictures, logos, trademarks, and resources.
© Copyright 2012 CHAUVET®. All rights reserved.
Electronically published by CHAUVET® in the United States of America.
Manual
Usage
CHAUVET® authorizes its customers to download and print this manual
for professional information purposes only. CHAUVET
® expressly
prohibits the usage, copy, storage, distribution, modification, or printing of this manual or its content for any other purpo
se without written consent
from CHAUVET®.
Intended
Audience
Any person installing, operating, and/or maintaining this product should completely read through the guide that shipped with the product, as well as
this manual, before installing, operating, or maintaining this product.
Disclaimer
CHAUVET® believes that the information contained in this manual is accurate in all respects. However, CHAUVET® assumes no responsibility
for any error or omissions in this document. CHAUVET® reserves
the
right to revise this document and to make changes from time to time in the
content hereof without obligation of CHAUVET® to notify any person or
company of such revision or changes. This does not constitute in any way a
commitment by CHAUVET® to make
such changes. CHAUVET® may
issue a revision of this manual or a new edition of it to incorporate such
changes.
Document
Revision
The ÉPIX™ Drive 640 User Manual Rev. 9 supersedes all previous
versions of this manual. Discard any older versions of this manual you may have, whether in printed or electronic format, and replace with this version.
Author
Date
Editor
Date
D. Couppe 4/20/12 S. Graham 4/20/12
Page 3
Page 3 of 14
Unpacking
Instructions
Immediately upon receiving this product, carefully unpack and check the
container. Make sure you have received all the parts indicated
in the
What Is Included section of this manual and that all the parts
are in good
condition.
Claims
If the container or the material inside the container (the product and
included accessories) appear damaged from shipping, or show
signs of
mishandling, notify the carrier immediately upon receipt
, not
CHAUVET®. Failure to notify the carrier
in a timely manner may
invalidate your claim. In addition, keep
the container and all the packing
material for inspection. For other issues such as missing components or parts, damage not related
to shipping, or concealed damage, file a claim with CHAUVET®
within
seven (7) days of receiving the merchandise. Refer to the Contact Us
section in this manual for addresses and phone
numbers.
Icon
Indications
Icon This icon indicates . . .
Critical installation, configuration, or operation information. Failure to comply with this information may render the product partially or completely inoperative, damage third-party equipment, or cause harm to the user.
Important installation or configuration information. Failure to comply with this information may prevent the product from functioning correctly.
Useful information.
Expected LED
Lifespan
LEDs gradually decline in brightness over time, mostly because of heat.
Packaged in clusters, LEDs exhibit higher operating temperatures
than in
ideal, single-LED conditions. For this reason, using clustered
LEDs at
their fullest intensity significantly reduces the LEDs’ lifespan.
Under
normal conditions, this lifespan can be 40,000 to 50,000 hours. If
extending this lifespan is vital, lower the operating
temperature by
improving the ventilation around the product and reducing the ambient temperature to a optimal operating range. In addition, limiting the overall projection intensity may also help to extend the LEDs’ lifespan.
Page 4
Page 4 of 14
Safety
Notes
Read all the following Safety Notes before working with this product.
These notes
include important information about the installation, usage,
and maintenance of this product.
There are no user-serviceable parts in this product. Any reference to servicing in this User Manual applies only to properly certified CHAUVET® technicians. Do not open the housing or attempt any repairs unless you are certified by CHAUVET®.
Please refer to all applicable local codes and regulations for proper installation of this product.
Personal
Safety
• Always disconnect this product from its power source before servicing.
• Always connect this product to a grounded circuit to avoid the risk of
electrocution.
• Do not touch this product’s housing during operation
because it may be
very hot.
Mounting
and
Rigging
• This product is for indoor use only! To prevent risk of fire or shock, do
not expose this product to rain or moisture.
• Make sure there are no flammable materials close to this product while
it is operating.
• When hanging this product, always secure to a fastening device using a
safety chain/cable (not included).
Power and
Wiring
• Always make sure you are connecting this product to the proper
voltage, as per the Technical Specifications in this manual or on the product’s specification label.
• Never connect this product to a dimmer pack or rheostat.
• Never disconnect this product by pulling or tugging on the power
cable.
Operation
• Do not operate this product if you see damage on the housing, I/O
ports, or cables. Have the damaged parts replaced by an authorized technician at once.
• Do not cover the ventilation slots when operating to avoid internal
overheating.
• The maximum ambient temperature is 104° F (40° C). Do not operate
this product at a higher temperature.
• In case of a serious operating problem, stop using this product
immediately!
In the unlikely event that your CHAUVET® product may require service, contact CHAUVET® Technical Support.
Page 5
Page 5 of 14
What Is
Included
• One ÉPIX™ Drive 640
• One NEUTRIK® powerCON® to Edison Plug Input Power Cord
• One Warranty Card
Features
• Controlled via the ArKaos Kling-Net protocol which provides fast
and easy assignment and control
• A video/pixel mapping system that doesn’t require years of
experience or technical know-how to design, set-up, or operate
• Does NOT require piles of processing, driver, and signal distribution
equipment to create large-scale displays
• To be used with ÉPIX™ strip
• Utilizes NEUTRIK® powerCON® in and out connections for power
and RJ45 for ArKaos Kling-Net protocol communication
• Housing Material: Stainless Steel
Controllers
• ArKaos MediaMaster™ software (required)
Page 6
Page 6 of 14
Product
Description
The ÉPIX™ Drive 640 is the power supply for the ÉPIX™ Strip.
The ÉPIX™ Drive 640 consists of stainless steel construction. You may combine other ÉPIX™ Series units to create mul
tiple numbers of
configurations. The ÉPIX™ Drive 640 is controlled using a computer (Mac or PC) with
ArKaos MediaMaster™ software installed.
ArKaos MediaMaster™ software running on a PC or Mac is required to use this product.
Product Overview
Rear View
Front View
Top View
Signal Input/Output
Power Output
Mounting Points
RJ45 Data/Power Output
Power Input
Page 7
Page 7 of 14
Product Dimensions
Page 8
Page 8 of 14
Input Power
The ÉPIX™ Drive 640 has swichable power supply that works with an
input voltage of 120VAC, 60 Hz or 230 VAC 50/60 Hz. Make sure that you are connecting this product to the proper voltage. To
determine the power requirements for the ÉPIX™ Drive 640
, refer to the
specification
label affixed to the product or the specifications in this
manual.
Never connect this product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0% to 100% switch.
Power Linking
The ÉPIX™ Drive 640 supports power linking. You can power link up
to three (3) ÉPIX™ Drive 640’s at 120 VAC or six (6) at 230 VAC.
This product comes with a power input cord. This product does not come
with a power linking cord; however, a power linking cord
is available as
an option.
You can only link up to three (3) ÉPIX™ Drive 640 products at 120 VAC or six (6) at 230 VAC! Refer to the Technical Specifications section of this manual for further information.
Drive Power Linking
Diagram
Page 9
Page 9 of 14
Data Linking
The ÉPIX™ Drive 640 works connected through a network switch (or
crossover cable) to a computer (Mac or PC) with ArKaos MediaMaster™ software installed.
Data
Connection
The ÉPIX™ Drive 640 uses an RJ45 data connection to link all data ports.
The following diagrams illustrate how to assemble the data connections.
For smooth-running operation, ArKaos Kling-Net requires a gigabit (1000 Mbps) Ethernet card and network switch.
NEVER REVERSE THE INPUT AND OUTPUT CONNECTIONS! DOING SO WILL DESTROY THE INTERNAL CIRCUITS OF THE PRODUCT!
ArKaos Kling-Net
Connection
Switch
Computer
(running ArKaos MediaMaster™
software)
ÉPIX™ Strip Connection
Input
Output
Page 10
Page 10 of 14
Mounting
Before mounting this product, read the Safety Notes in this User Manual.
Orientation
Always mount this product in a safe position and make sure there is
adequate room for ventilation, configuration, and maintenance.
Rigging
The ÉPIX™ Drive 640 has six (6) mounting points with 10 mm holes.
CHAUVET® recommends using the following general guidelines
when
mounting this product:
•
When selecting an installation location, consider easy access to this
product for operation, programming adjustments, and routine maintenance.
• Make sure to mount this product away from any flammable material
as indicated in the Safety Notes section.
• Never mount in places where rain, high humidity, extreme
temperature changes, or restricted ventilation may affect the product.
• If hanging this product, make sure that the mounting location can
support the product’s weight. Refer to the Technical Specifications section for the weight-bearing requirements of this product.
Procedure
The ÉPIX™ Drive 640 has four (4) mounting points (one on each corner)
with 10 mm holes to which you can install screws and mount
this product
directly to almost any flat surface in any orientation. The ÉPIX™ Drive 640 also has two (2) mounting poi
nts centered on each
end of the product to install clamps for hanging. You must
supply your
own clamps and make sure the clamps
are capable of supporting the
weight of this product.
Product
Mounting
Diagram
Page 11
Page 11 of 14
Programming
Refer to the ArKaos MediaMaster™ software manual for detailed
instructions on installing and programming this product.
Product
Maintenance
To maintain optimum performance and minimize wear, you should clean
this product frequently. Usage and environment are contributing factors in determining the cleaning frequency.
As a rule, clean this product
at least twice a month. Dust build up reduces
light output performance and can cause overheating. This can lead to
reduced light source life and increased mechanical wear. To clean your product:
• Unplug the product from power.
• Wait until the product has cooled.
• Use a vacuum (or dry compressed air) and a soft brush to remove dust
collected on the external vents and accessible internal components.
• Clean all external surfaces with a mild solution of non-ammonia glass
cleaner or isopropyl alcohol.
• Apply the solution directly to a soft, lint-free cotton cloth or a lens
cleaning tissue.
• Wipe any dirt or grime to the outside edge of the surface.
Gently polish
the surfaces with the lint-free cotton cloth or lens cleaning tissue until they are free of haze and lint.
Always dry the external surfaces carefully after cleaning them.
Page 12
Page 12 of 14
Returns
Procedure
You must send the merchandise prepaid, in the original box, and with the
original packing and accessories. CHAUVET® will not issue call tags. Call CHAUVET®
and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause for the
return. Clearly label the package with an RMA number. CHAUVET® will refuse
any product returned without an RMA number.
DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label.
Once you have received the RMA number, include the following
information on a piece of paper inside the box:
• Your name
• Your address
• Your phone number
• The RMA number
• A brief description of the problem
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. FedEx packing or double-boxing are recommended.
CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s).
Page 13
Page 13 of 14
Technical Specifications
Dimensions and
Weight
Length
Width
Height
Weight
10.0 in (253 mm)
12.2 in (310 mm)
3.4 in (86 mm)
6.3 lbs (2.9 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Electrical
Power Supply Type
Range
Voltage Selection
ÉPIX™ Drive 640
120/230 V, 50/60 Hz
Switchable
Parameter
120 V, 60 Hz
230 V, 50 Hz
Consumption
310 W
299 W
Operating
4.12 A
2.16 A
Power linking products
3 products
6 products
Fuse
T 3.15 A, 250 V
T 3.15 A, 250 V
Power I/O
US/Worldwide
Europe
Power input connector
NEUTRIK® powerCON®
A
NEUTRIK® powerCON®
A
Power output connector
NEUTRIK® powerCON®
B
NEUTRIK® powerCON®
B
Power cord plug
Edison (US)
Local plug
Thermal
Max. External
Temperature
Cooling System
104° F (40° C)
Convection
ArKaos Kling-Net
I/O Connectors
Channel Range
RJ45 Determined per ArKaos
MediaMaster™ software
Ordering
Product Name
Item Code
UPC Number
ÉPIX™ Drive 640
17090454
781462208066
ArKaos MediaMaster™
software
99080464
781462208165
Page 14
Page 14 of 14
Contact Us
World Headquarters
CHAUVET®
General Information
Address: 5200 NW 108th Avenue Sunrise, FL 33351 Voice: (954) 929-1115 Fa x: (954) 929-5560 Toll free: (800) 762-1084
United Kingdom and Ireland
CHAUVET® Europe Ltd.
General Information
Address: Unit 1C Brookhill Road Industrial Estate Pinxton, Nottingham, UK NG16 6NT Voice: +44 (0)1773 511115
Fa x: +44 (0)1773 511110
Technical Support
Voice: (954) 929-1115 (Press 4) Fa x: (954) 756-8015 Email: tech@chauvetlighting.com
Technical Support
Email: uktech@chauvetlighting.com
World Wide Web
www.chauvetpro.com
World Wide Web
www.chauvetlighting.co.uk
Outside the U.S., United Kingdom, or Ireland, contact your distributor of record. Follow their instructions to request support or to return a product.
Visit our Web site for contact details.
ÉPIX™ Drive 640 User Manual – Rev. 9 © Copyright 2012 CHAUVET®
All rights reserved. Printed in the P. R. C.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
